Features	Details
Video resolution	720P (1280 x 720 pixels)
Camera type	Indoor/outdoor surveillance camera
Night vision	Yes, up to 10 meters
Viewing angle	90 degrees
Connectivity	Wi-Fi (802.11 b/g/n)
Storage	MicroSD card up to 128 GB (not included)
Mobile app	EZVIZ App available on iOS and Android
Power supply	Power adapter included
Maintenance	Regular lens cleaning, firmware update via the app
Security	Data encryption, password protection
Dimensions	92 x 92 x 100 mm
Weight	200 g
Warranty	2 years

Frequently Asked Questions - By Hikvision Mini O 720P EZVIZ

How do I set up my EZVIZ Mini O 720P camera for the first time?

Download the EZVIZ app, create an account, turn on the camera, and follow the on-screen instructions to connect it to your Wi-Fi network.

What should I do if my camera does not connect to Wi-Fi?

Check that the Wi-Fi password is correct, ensure the camera is within range of the router, and restart the camera and router if necessary.

How do I access the videos recorded on my camera?

Open the EZVIZ app, go to the 'Album' section to view videos recorded on your SD card or in the cloud.

What should I do if the image quality is poor?

Make sure the camera is properly positioned, there is enough light, and check the internet connection for smooth streaming.

Does the camera work at night?

Yes, the EZVIZ Mini O 720P camera is equipped with night vision that allows it to capture images in low light conditions.

How do I reset my camera to factory settings?

Press and hold the reset button on the back of the camera for about 10 seconds until the indicator light flashes.

Can I use the camera outdoors?

The EZVIZ Mini O 720P camera is designed for indoor use. For outdoor use, it is recommended to use a model specifically designed for that.

How do I update my camera's firmware?

Go to the EZVIZ app, navigate to 'Settings' then 'Firmware Update' to check for and install available updates.

What should I do if I do not receive motion notifications?

Check that notifications are enabled in the app, that motion detection mode is activated, and that sensitivity is properly set.

How do I change my EZVIZ account password?

Open the app, go to 'Profile', then 'Account Settings' to change your password.

USER MANUAL By Hikvision Mini O 720P EZVIZ

Abstract logo with four colored petal shapes (blue, green, magenta, orange) arranged in a cross pattern (no text or symbols)

ezviz

EN

DE

ES

FR

IT

NL

PL

RU

GR

CZ

Mini O

Quick Start Guide

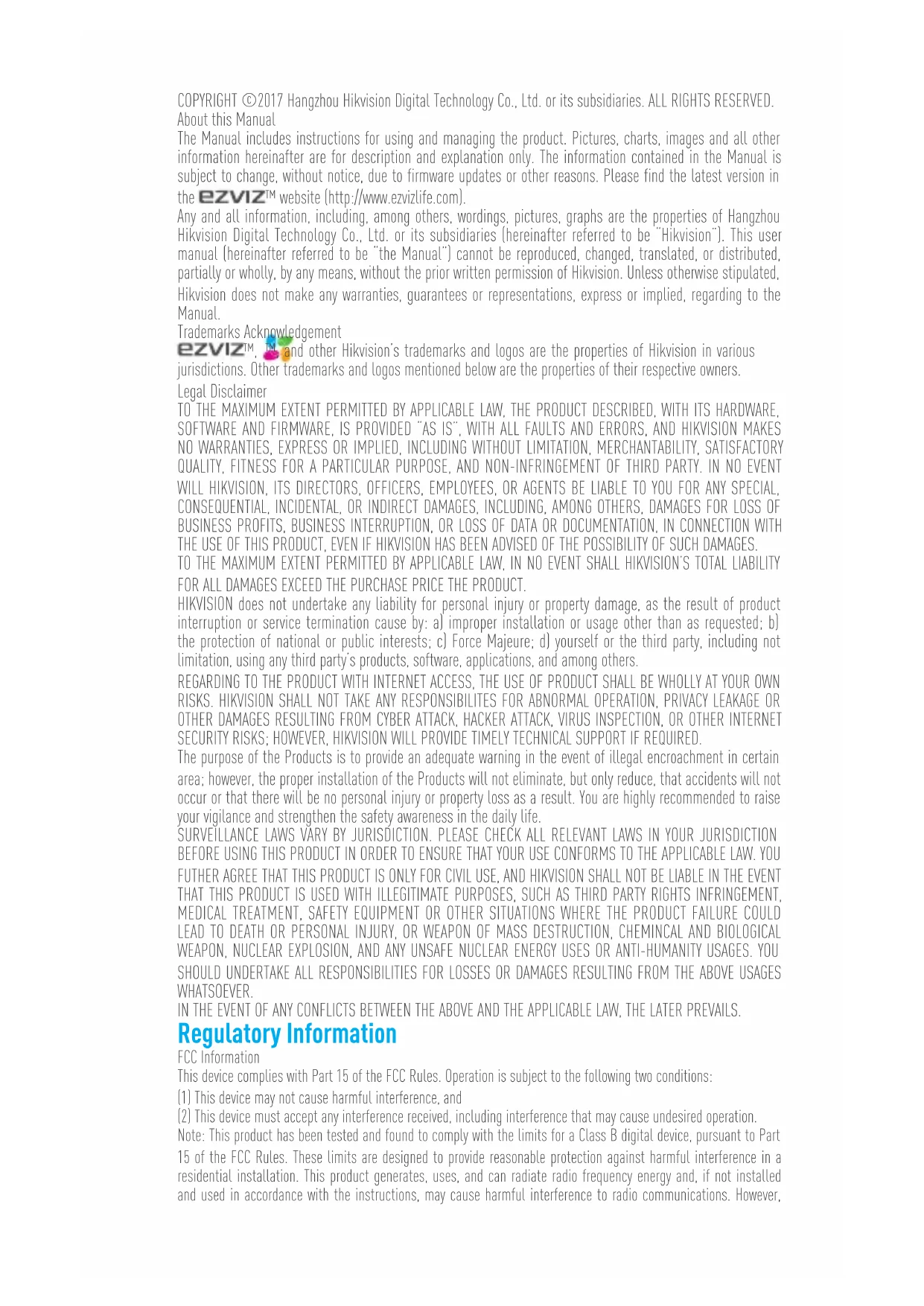

COPYRIGHT ©2017 Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries. ALL RIGHTS RESERVED. About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the ezviz™ website (http://www.ezvizlife.com).

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

Trademarks Acknowledgement

ezviz™, ™ and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HIKVISION'S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE PURCHASE PRICE THE PRODUCT.

HIKVISION does not undertake any liability for personal injury or property damage, as the result of product interruption or service termination cause by: a) improper installation or usage other than as requested; b) the protection of national or public interests; c) Force Majeure; d) yourself or the third party, including not limitation, using any third party's products, software, applications, and among others.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

The purpose of the Products is to provide an adequate warning in the event of illegal encroachment in certain area; however, the proper installation of the Products will not eliminate, but only reduce, that accidents will not occur or that there will be no personal injury or property loss as a result. You are highly recommended to raise your vigilance and strengthen the safety awareness in the daily life.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. YOU FUTHER AGREE THAT THIS PRODUCT IS ONLY FOR CIVIL USE, AND HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES, SUCH AS THIRD PARTY RIGHTS INFRINGEMENT, MEDICAL TREATMENT, SAFETY EQUIPMENT OR OTHER SITUATIONS WHERE THE PRODUCT FAILURE COULD LEAD TO DEATH OR PERSONAL INJURY, OR WEAPON OF MASS DESTRUCTION, CHEMINCAL AND BIOLOGICAL WEAPON, NUCLEAR EXPLOSION, AND ANY UNSAFE NUCLEAR ENERGY USES OR ANTI-HUMANITY USAGES. YOU SHOULD UNDERTAKE ALL RESPONSIBILITIES FOR LOSSES OR DAMAGES RESULTING FROM THE ABOVE USAGES WHATSOEVER.

IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW. THE LATER PREVAILS.

Regulatory Information

FCC Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

[1] This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
[2] this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

EC DECLARATION OF CONFORMITY

Hereby, Hangzhou Hikvision Digital Technology Co., Ltd. declares that the radio equipment type [CS-C2C-31WFR, CS-C2C-UVWXYZ, CS-CV200, CS-CV300, CS-CV106, CS-CV206, CS-CV306] is in compliance with Directive 2014/53/EU. The full text of the EC DECLARATION OF CONFORMITY is available at the following web link: http://www.ezvizlife.com/declaration-of-conformity.

Due to the product shape and dimension, the name and address of the importer/manufacturer are printed on the package.

Safety Instruction

CAUTION: THE PRODUCT IS BUILT IN A REPLACEABLE BATTERY. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Setup

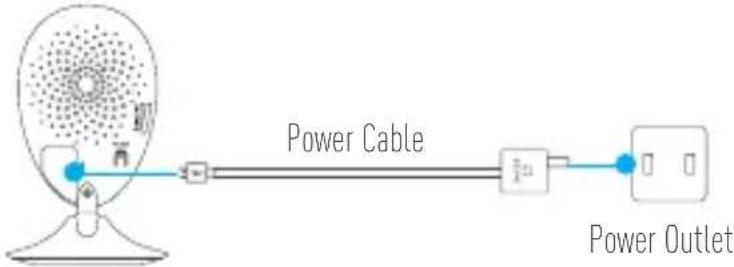

Step 1 Power-on

Plug the power cable into the camera and to the power adapter and then into a power outlet, as shown in the figure below. The LED indicator will flash red and blue when the camera is ready for setup.

Power Cable Power Outlet

Step 2 Camera Setup

1. Create an user account

• Connect your mobile phone to Wi-Fi.
• Download and install the EZVIZ app by searching "EZVIZ" in App Store and Google Play™.
• Launch the app and register for an EZVIZ user account following the start-up wizard.

2. Add a camera to EZVIZ

• Log in the EZVIZ app.

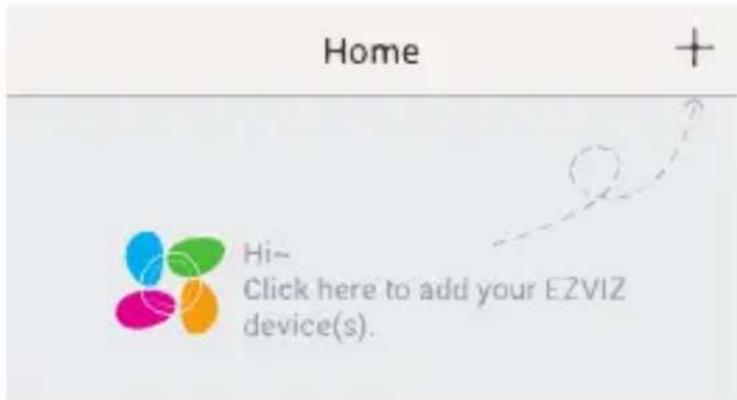

• From the EZVIZ app Home screen, tap "+" on the upper-right hand corner to go to the scan QR code interface.

Home Hi~ Click here to add your EZVIZ device(s).

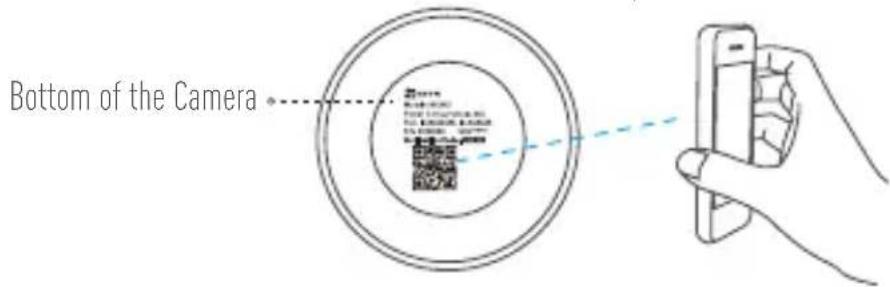

• Scan the QR Code on the bottom of the camera.
• Enter the verification code located on the bottom of the camera.
• Enter the correct time zone and DST information and tap "Finish" to finish setup.

Bottom of the Camera

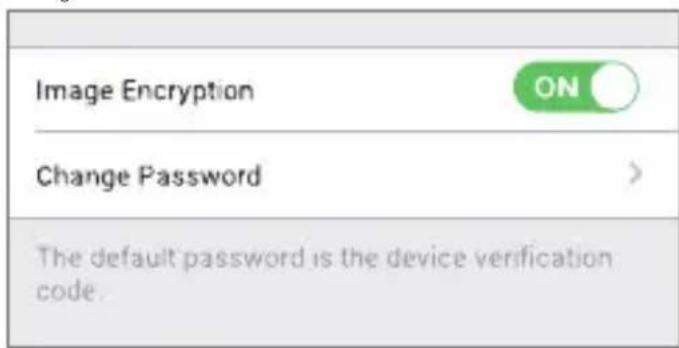

3. Changing the default password

After adding the camera, you are required to change the device password to ensure your video security. The password is used for the Image Encryption. If you turn on the Image Encryption, you are required to input your password when you live view or play back the camera.

- Go to the camera settings screen to change the default password.

- Tap on "Change Password".

Image Encryption ON Change Password > The default password is the device verification code.

• Tap on "Edit".
• Enter the original verification code located on the bottom of the camera.
• Enter the new password. Please use letters and numbers between 6 to 12 characters.

Installation

Step 1 Installing the Metal Plate (Optional)

Pick a clean and flat surface and secure the metal plate to the desired position with the foam stickers or screws (not included).

There's a magnet piece inside the camera. You can skip this step if the surface is made of metal.

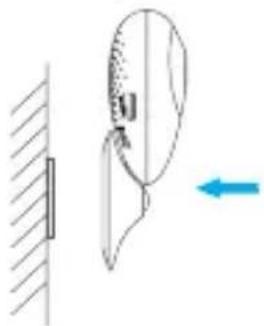

Step 2 Installing the Camera

Secure the camera magnetically to the metal plate or metal surface (see figure below).

Diagram showing a mechanical component with a blue arrow indicating direction, next to a vertical wall and a separate panel (no text or symbols)

Step 3 Completing Installation

Adjust the camera angle as required.

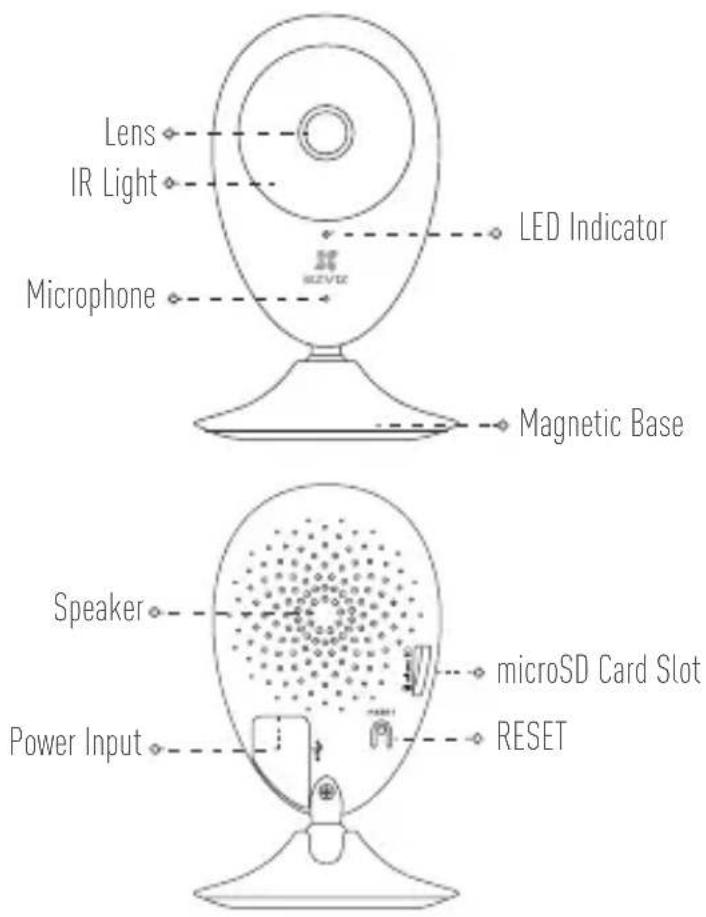

Basics

Lens IR Light Microphone LED Indicator Magnetic Base Speaker microSD Card Slot Power Input RESET

Name Description

IR Light Auto light source for dark environment. The camera video has two modes: color (for daylight recording) and black and white with IR illuminator (for night condition).

LED Indicator • Blinking Red and Blue: The camera is ready for the Wi-Fi connection.

• Steady Blue: The camera is connected by a user.
• Slow Blue Flicker: The camera is running properly.
• Steady Red: The camera is starting up.
• Slow Red Flicker: The Wi-Fi connection has failed.
• Fast Red Flicker: MicroSD card error.

microSD Card Slot For microSD card (not included with this product). You can purchase separately. Recommended compatibility: Class 10, maximum space 128GB. After inserting the card, you can record the event inside the camera.

RESET Hold down the RESET button for 10 seconds while the camera is running, the camera restarts and all parameters are reset to default.

Power Input — 5V±10%

Speaker Two-way talk.

Box Content

Internet Camera (x1) USB Cable (x1) Power Adapter (x1)

Foam Sticker X2

Metal Plate X1 (3.5mm Hole Diameter) Quick Start Guide X1

Installing Memory Card

Insert a microSD card into the slot until a click.

Diagram of a device with a speaker emitting sound waves, showing airflow direction and component placement (no text or symbols)

Initializing Memory Card

1. In the EZVIZ app, check the memory card status by tapping on the Storage Status in the Device Settings interface.

Wi-Fi Configure	TEST-WiFi >
Storage Status	>
Device Version	Vx.xx build xxxxx No new version.

1. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.

Troubleshooting

Q: “The device is offline.” or “The device is not registered.” prompts appear when adding the camera using the EZVIZ App.

A: 1. Make sure the network, which the camera is connected to, is working properly and the router's DHCP is enabled. 2. Hold down the RESET button for 10s to reset the settings if you change the network parameters.

Q: The mobile phone cannot receive alarm prompts when the camera is online.

A: 1. Make sure the EZVIZ app is running on your mobile phone. 2. For Android OS mobile phone, make sure the app is running in the background; and for iOS mobile phones, enable the message push function in "Settings > Notification". Q: Does the camera support power via USB devices or a portable battery.

A: It's advised to use the EZVIZ standard power adapter to provide a stable voltage supply.

For more information, please visit www.ezvizlife.com.

Einrichten

Home Hi~ Click here to add your EZVIZ device(s)

Image Encryption ON Change Password > The default password is the device verification code

Diagram showing a mechanical component with a blue arrow indicating direction, no text or symbols present

Diagram of a device with a speaker emitting sound waves, showing internal components and a blue arrow pointing to a device (no text or symbols present)

Home + Hi- Click here to add your EZVIZ device(s).

Image Encryption ON Change Password > The default password is the device verification code.

- Toque "Edit" (Editar).

Diagram showing a hand holding a wall and a curved object with a blue arrow indicating direction (no text or symbols)

Diagram of a device with a fan-like structure and directional arrows, no text or symbols present

Home + Hi- Click here to add your EZVIZ device(s)

Image Encryption ON Change Password > The default password is the device verification code.

Diagram showing a mechanical or structural component with a hatched wall and a blue arrow indicating direction (no text or symbols)

Diagram of a smart speaker with sound waves and control panel (no text or symbols)

Home Hi~ Click here to add your EZVIZ device(s).

Image Encryption ON Change Password > The default password is the device verification code

- Toccare "Edit" (Modifica).

Diagram showing a mechanical component with a hatched wall and an arrow indicating direction (no text or symbols)

Diagram of a device with labeled components and directional arrows, including a valve and fan-like structure.

Home + Hi- Click here to add your E2VIZ device(s)

Image Encryption ON Change Password > The default password is the device verification code.

NL

Diagram showing a mechanical or structural component with a hatched wall and a blue arrow indicating direction (no text or symbols)

Diagram of a device with a speaker emitting sound waves, showing no text or symbols

Home Hi- Click here to add your EZVIZ device(s)

Image Encryption ON Change Password > The default password is the device verification code.

Diagram showing a mechanical component with a blue arrow indicating direction, next to a vertical wall and hatched area (no text or symbols)

Diagram of a device with a speaker emitting sound waves, showing airflow direction and component placement (no text or symbols)

Home + Hi~ Click here to add your EZVIZ device(s)

Image Encryption ON Change Password > The default password is the device verification code.

RU

Diagram showing a mechanical component with a blue arrow indicating direction, no text or symbols present

Diagram of a device with a speaker emitting sound waves, showing internal components and a blue arrow indicating direction (no text or symbols)

Home Hi~ Click here to add your EZVIZ device(s).

Image Encryption ON Change Password > The default password is the device verification code.

Diagram showing a mechanical component with a blue arrow indicating direction, no text or symbols present

Diagram of a device with a speaker emitting sound waves, showing airflow direction and component placement (no text or symbols)

Home + Hi- Click here to add your EZVIZ device(s).

Image Encryption ON Change Password > The default password is the device verification code.

Diagram showing a mechanical or structural component with an arrow indicating direction (no text or symbols present)

Diagram of a smart speaker with sound waves and a device, no text or symbols present

Thank you for purchasing EZVIZ products. This limited warranty gives you, the original purchaser of the EZVIZ product, specific legal rights. You may also have other legal rights that vary by state, province or jurisdiction. The disclaimers, exclusions, and limitations of liability under this limited warranty will not apply to the extent prohibited by applicable law. No distributor, reseller, agent, or employee is authorized to make any medication, extension, or addition to this limited warranty.

Your EZVIZ product is warranted for a period of one (1) year from the date of purchase against defects in materials and workmanship, or such longer period as may be required by law in the country or state where this product is sold, when used normally in accordance with user manual.

You can request warranty service by emailing us at [e-mail].

For any defective EZVIZ products under warranty, HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ("the Company") will, at its option, (i) repair or replace your product free of charge; (ii) exchange your product with a functional equivalent product; (iii) or refund the original purchase price, provided you provide the original purchase receipt or copy, brief explanation of the defect, and return the product in its original packaging. At the sole discretion of the Company, repair or replacement may be made with a new or refurbished product or components. This warranty does not cover the postal cost, insurance and any other incidental charges incurred by you in returning the product.

Except where prohibited by applicable law, this is your sole and exclusive remedy for breach of this limited warranty. Any product that has either been repaired or replaced under this limited warranty will be covered by the terms of this limited warranty for the longer of ninety (90) days from the date of delivery or the remaining original warranty period.

This warranty does not apply and is void:

• If the warranty claim is made outside the warranty period or if the proof of purchase is not provided.
• For any malfunction, defect or failure caused by or resulting from the evidence of impact, mishandling ,tampering, use contrary to the applicable instruction manual, incorrect power line voltage, accident, loss, theft, fire, flood or other Acts of God, shipping damage or damage resulting from repairs performed by unauthorized personnel.
• For any consumable parts, such as batteries, where the malfunction is due to the normal aging of the product.
  • Cosmetic damage, including but not limited to scratches, dents and broken plastic on ports.
  • Any software, even if packaged or sold with EZVIZ hardware.
  • For any other damages free from defects in material or workmanship.
  • Routine cleaning, normal cosmetic and mechanical wear and tear.

Please do not hesitate to contact your seller, or send e-mails to us [e-mail], with any questions.

COPYRIGHT ©2017 HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. ALL RIGHTS RESERVED.
