Product Type	Tabletop Gas Patio Heater with Quartz Glass
Brand	SunRed
Model	MPF15B
Dimensions	Height 86.5 cm
Weight	6 kg
Maximum Power	3000 W
Minimum Power	2000 W
Gas Type	Propane, butane or mixtures
Element Lifespan	5000 hours
Certifications	CE
Usage	Outdoor or well-ventilated areas (minimum 25% open surface)
Positioning	On stable non-flammable table, table height >= 85 cm
Safety distance from combustible materials	45 cm above, 60 cm on sides
Minimum distance from gas cylinder	1 meter
Ignition Type	Piezoelectric (ignition button)
Pressure Regulator	Compliant with local standards, output pressure suitable for device category
Hose Length	1.4 m (approved hose)
Main Functions	Pilot (PILOT), variable power (Lo-Hi), safety off (OFF)
Maintenance and Cleaning	Wipe lacquered surfaces with soft damp cloth; clean burner of debris; use optional protective cover
Safety	Safety thermocouple; mandatory leak test before each use; do not use indoors or on a vehicle
Spare Parts and Repairability	Injector, regulator, hose, thermocouple available; repair by qualified technician only
General Information	Manual available in multiple languages; expected element lifespan 5000 h; weight 6 kg

Frequently Asked Questions - MPF15B SunRed

How to ignite the SunRed MPF15B patio heater?

Open the gas cylinder valve fully. Press the variable control switch and turn it to the PILOT position (90° to the left). Hold it down for about 30 seconds while pressing the ignition button several times until the pilot flame ignites. Release the switch. Then, turn the switch to high (Hi) for 5 minutes, then adjust to desired temperature.

What type of gas to use for the MPF15B?

The device uses only propane, butane, or mixtures of these gases. The pressure regulator and hose must comply with local standards.

Where to install the patio heater?

Place the device on a stable non-flammable table (wood, stone, glass, metal) with a height of at least 85 cm. It must be used outdoors or in a very well-ventilated area (at least 25% open surface). Maintain a safety distance of 45 cm above and 60 cm on sides from combustible materials.

How to perform a leak test?

Prepare a solution of one part liquid detergent and one part water. Apply it to the connections with a sprayer or cloth, then open the gas supply. If bubbles appear, there is a leak. Turn off the gas, tighten the connections, and repeat. Never use a naked flame to check for leaks.

What to do if the pilot flame does not light?

Check that the gas valve is open, the cylinder is not empty, the injector is not clogged, and there is no air in the system (wait a minute after changing the cylinder). If the problem persists, check the connections and thermocouple.

How to safely turn off the device?

Turn the variable control switch to the PILOT position, then press it and turn it to the OFF position. Then, close the gas cylinder valve completely.

What regular maintenance is required?

Wipe the lacquered surfaces with a soft damp cloth. Clean the burner of debris to ensure safe operation. Use the optional protective cover when the device is not in use. Check and replace the hose if necessary (monthly or after prolonged inactivity).

Can the device be used indoors?

No, indoor use is prohibited as it may cause injury or property damage. The device is designed only for outdoor use or in very well-ventilated areas.

How to store the device and gas cylinder?

Close the cylinder valve after each use. Disconnect the regulator and hose. Never store the cylinder in a basement or poorly ventilated area. Check the cylinder condition before storage.

What to do in case of gas smell?

Immediately shut off the gas supply to the device. Extinguish any flame and do not touch any electrical switches. If the smell persists, call your gas supplier or the fire department. Do not reuse the device until inspected by a qualified technician.

USER MANUAL MPF15B SunRed

Manual gas heater (EN)

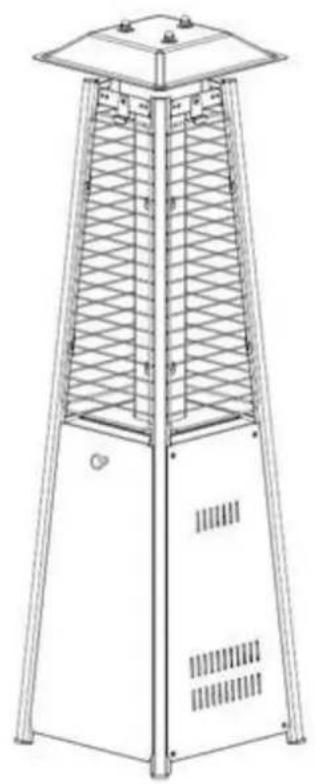

MPF15-MINI TABLE FLAME TOWER

Manual gas heater UK

User instructions - please keep for future reference

TECHNICAL INFORMATION

Wattage: 3000 Watt

Element type: Gas

Expected Life span elements 5000 hrs.

Weight: 6kg

Certificates: CE,

Dimensions: H86,5 cm

All measurements are approximate

Certified by international recognized standards.

Gas heat wave outdoor heater.

Variable control gas valve with electric push igniter.

Steel with powder coated or stainless steel.

www.sunred.nl

WARNING SAFETY RULES

PLEASE READ THE FOLLOWING SAFETY RULES PRIOR TO OPERATION OF THE HEATER

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, immediately call your gas supplier or your fire Department.

FOR YOUR SAFETY

1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

WARNING

1) For use outdoors or in amply ventilated areas.
2) An amply ventilated area must have a minimum of 25% of the surface area open.
3) The surface area is the ssum of the wall surface.

WARNING: Improper installation, adjustment, alteration, service or maintenance Can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

warning

Read the instructions before installation and use.

-This appliance must be installed and the gas cylinder stored in accordance with the regulations in force;
-Do not move the appliance when in operation;
-Shut off the valve at the gas cylinder or the regulator before moving the appliance;
- The tubing or the flexible hose must be changed within the prescribed intervals;
-Use only the type of gas and the type of cylinder specified by the manufacturer;
-In case of violent wind particular attention must be taken against tilting of the appliance;

Of contents

Caution

Heater Stand and Location

Gas Requirements

Leakage Test

Operation and Storage

Cleaning and Care

Parts and Specifications

Assembly Parts and Procedures

Problems Check List

PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION.

Donot use the patio heater for indoors, as it may cause personal injury or property damage.

This outdoorheater is not intended to be installed on recreational vehicles and/or boats.

Installation and repair should be done by aqualified service person.

Improper installation, adjustment, alteration can cause personal injury or property damage.

Do not attempt to alter the unit in any manner.

Never replace or substitute the regulator with any regulator other than the factory-suggested replacement.

Donot store or use gasoline or other flammable vapors or liquids in the heater unit.

The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or damage before

use, and at least annually by a qualified service person.

All leak tests should be done with a soap solution. Never use an openflameto check for leaks.

Donot use the heater until all connections have been leak tested.

Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF.If leak is at Hose/

Regulator connection: tighten connection and perform another leak test. If bubbles continue appearing

should be returned to hose's place of purchase. If leak is at Regulator/Cylinder Valve connection: disconnect,

reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder

valve is defective and should be returned to cylinder's place of purchase.

Donot transport heater while it's operating.

Donot movethe heater after it has been turned off until the temperature has cooled down.

Do not paint the radiant screen, controlpanel or top canopy reflector.

Control compartment, burner and circulation air passageways of the heater must be kept clean.

Frequent cleaning may be required as necessary.

The LP tank should be turned off when theheater is not in use.

Check the heater immediately if any of the following occurs:

The heater does not reach temperature.
The burner makes popping noise during use (a slight noise is normal when the burner is extinguished).
Smell of gas in conjunction with extreme yellow tipping of the burner flames.

The LP regulator/hose assembly must be located out of pathways where people may tripover it or in areawhere the hose will not be subject to accidental damage.

Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.

Adults and children should stay away from high temperature surface to avoid burns or clothing ignition.

Children should be carefully supervised when they are in the area of the heater.

Clothing or other flammable materials should not be hung on the heater or placed on or near theheater.

To change the gas cylinder in a amply ventilated area, away from any ignition

source (candle, cigarettes, other flame producing appliances, ...);

To check that the regulator seal is correctly fitted and able to fulfill its function

showed as photo right;

To not obstruct the ventilation holes of the cylinder housing;

To close the gas supply at the valve of the gas cylinder or the regulator after use;

In the event of gas leakage, the appliance shall not be used or if alight, the gas supply

shall be shut off and the appliance shall be investigated and rectified before it is used again;

To check the hose at least once per month, each time the cylinder is changed, or each time before long time no use.

If it shows signs of cracking, splitting or other deterioration it shall be exchanged for new hose of the same length and of the equivalent quality;

www.sunred.nl

The use of this appliance in enclosed areas can be dangerous and is PROHIBITED;

Read the instructions before using this appliance. The appliance must be installed in accordance with the instructions and local regulations.

For connection of hose and regulator, and connection of regulator and hose, please refer to photo showed above

HEATER STAND AND LOCATION

The garden table heater is primarily for outdoor use only.

Always ensure that adequate fresh air ventilation is provided.

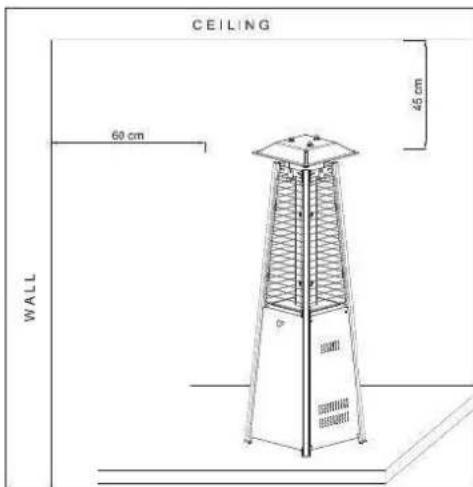

Always maintain proper clearance to non protected combustible materials, i.e. top 45 cm and sides 60 cm minimum.

Garden table heater must be fixed on a stable and strong table made of

non-flammable materials such as wood, stone, glass, metal, etc. Height of the table must be 85cm in minimum.

Never operate heater in an explosive atmosphere like in areas where gasoline or other flammable liquids or vapors are stored.

Distance between gas cylinder and garden table heater must be 1m in minimum.

GAS REQUIREMENTS

Use propane, butane or their mixtures gas only.

The pressure regulator and hose assembly to be used must conform to local standard codes.

The installation must conform to local codes, or in the absence of local codes, with the standard for the

storage and handling of liquid petroleum gases.

A dented, rusted or damaged tank may be hazardous and should be checked by your tank

supplier. Never use a propane tank with a damaged valve connection.

The tank must be arranged to provide for vapor withdrawal from the operating cylinder.

Never connect an unregulated tank to the heateR

LEAKAGETEST

Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness check must be performed at the installation site due to possible mishandling in shipment or excessive pressure being applied to the heater.

Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied

with a spray bottle, brush or rag. Soap bubbles will appear in case of a leak.
The heater must be checked with a full cylinder.
Make sure the safety control valve is in the OFF position.
Turn the gas supply ON.
In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and re
check.

Never leak test while smoking.

www.sunred.nl

1. Turn on the valve on the gas supply cylinder completely.
2. Press and turn the variable control knob to PILOT position (counter-clockwise 90^ ).
3. Press down the variable control knob and hold for 30 seconds. While holding down the variable control knob, press the igniter button several times until the pilot flame lights. Release the variable control knob after the pilot flame lights.

Note:

• If a new tank has just been connected, please allow at least one minute for the air in the gas pipeline to purge out through the pilot hole.

• When lighting the pilot flame make sure that the variable control knob is continuously pressed down while pressing the igniter button. Variable control knob can be released after the pilot flame lights.
  If the pilot flame does not light or it goes out, repeat step 3.

• After the pilot flame lights, turn the variable control knob to Cmaximumposition and leave it there for 5 minutes or more before turning the knob to desired temperature position.

Warning: check that no broken on the glass is found before operation

Storage

1. Always close the gas valve of the gas cylinder after use or in case of a disturbance.
2. Remove the pressure and the hose.
3. Check the tightness of the gas valve and for damage. If you suspect a damage, have it changed by your gas dealer.
4. Never store liquid gas cylinder in a sub-terrain, or at places without adequate air ventilation.

CLEANING AND CARE

• Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that are combustible or corrosive.
• Remove debris from the burner to keep it clean and safe for use.
• Cover the burner unit with the optional protective cover when the heater is not in use.

PARTS AND SPECIFICATIONS

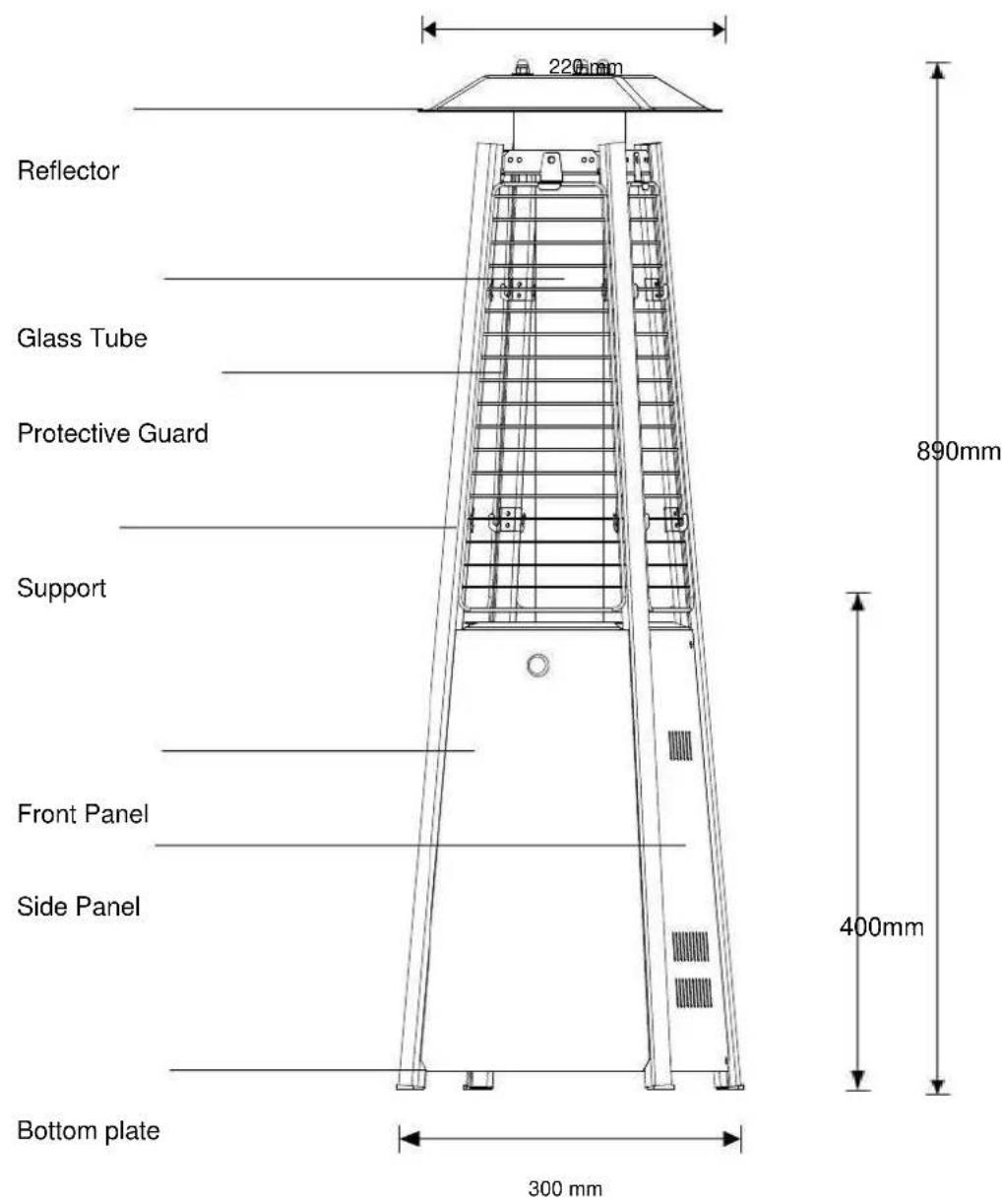

A. Construction and characteristics

Transportable terrace/garden heater with tank housing
- Casing in steel with powder-coating(PBF-B) or in stainless steel(PBF-A).
Gas hose connections with metal clamp (screw caps for Germany)
- Heatemission from reflector

B. Specifications

Use propane,butane or their mixtures gas only.
Max.wattage:3000 watts
Min. wattage: 2000 watts
Consumption:

APPLIANCE CATEGORY:	13+(28-30/37)		13B/P(30)	1 3B / P (50)	3B/P(37)
TYPES OF GAS:	Butane	Propane	Butane, propane or their mixtures	Butane, propane or their mixtures	Butane, propane or their mixtures
GAS PRESSURE:	28-30mbar	37 mba	30 mbar	50mbar	37mbar
OUTLET PRESSURE OF REGULATOR:	30mbar	37 mbar	30 mbar	50mbar	37mbar

Using the proper regulator according to outlet pressure of regulator as showed in the table above.

C. Table of injector

APPLIANCE CATEGORY:	13+(28-30/37)		13B/P(30)	13B/P(50)	13B/P(37)
TYPESOFGAS:	Butane	Propane	Butane, propane or their mixtures	Butane, propane or their mixtures	Butane, propane or their mixtures
GAS PRESSURE:	28-30mba	37 mbar	30 mbar	50mbar	37mbar
TOTAL HEAT INPUT (Hs):(Qn)	3kW (218g/h)				3.2kW (233g/h)
INJECTORSIZE:	0.85 mm formainburner 0.18mm forpilot burner			0.75 mmformainburner 0.18mmforpilot burner	0.85 mmformainburner 0.18mmforpilot burner
The marking, for example, 0.85 on the injector, indicates that the size of injector is 0.85mm

The hose and regulator assembly must conform to local standard codes.
Regulator outlet pressure should meet the corresponding appliance category in B. Specification.
The appliance requires approved hose in 1.4m length.

ASSEMBLY PARTS

Tools needed:

Adjustable opening wrench (2) 20 cm long
- Slip joint pliers 23 cm long
Philips screwdriver w/ medium blade
Teflon plumbing tape for joints
Spray bottle of soap solution for leakage

ASSEMBLY PROCEDURES

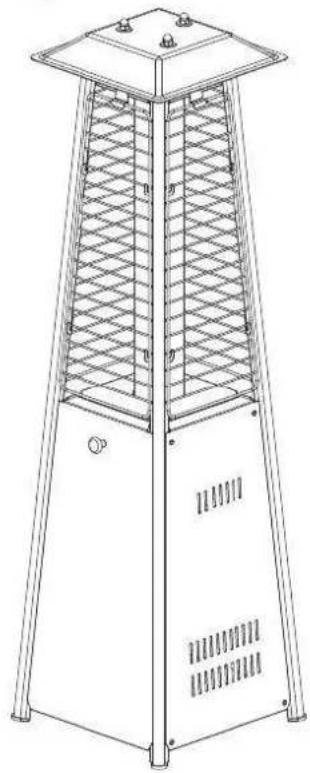

STEP1

Heater is preassembled at the factory.

User needs to complete a couple of assembly procedures to make the appliance operational.

Ensure all transit protection is removed.

STEP2

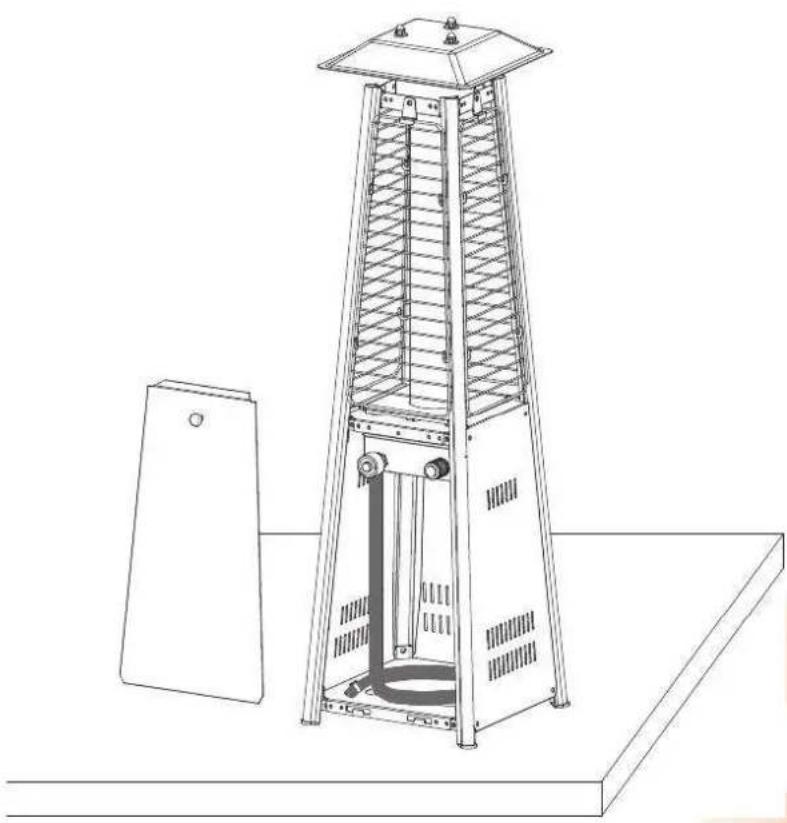

Keep the front panel open.

STEP3

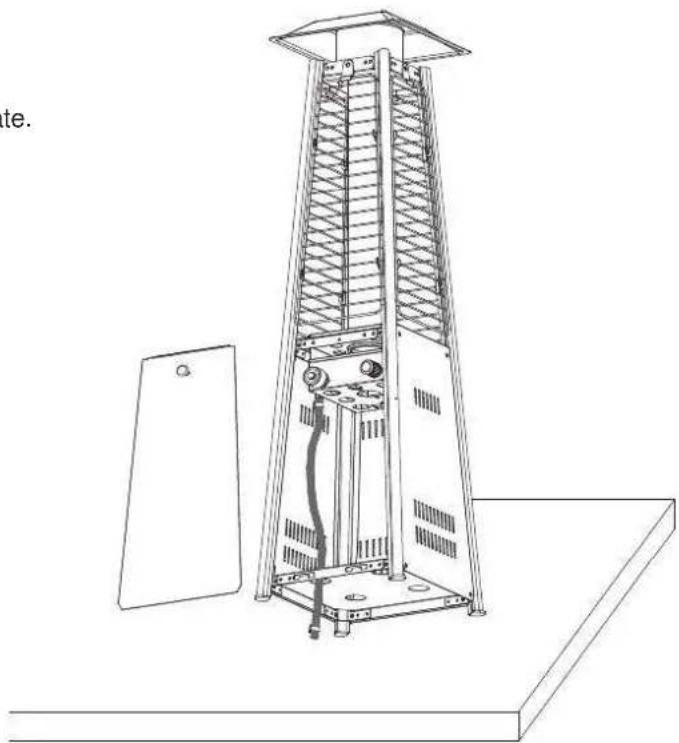

Put the hose through the one of holes in bottom plate.

STEP4

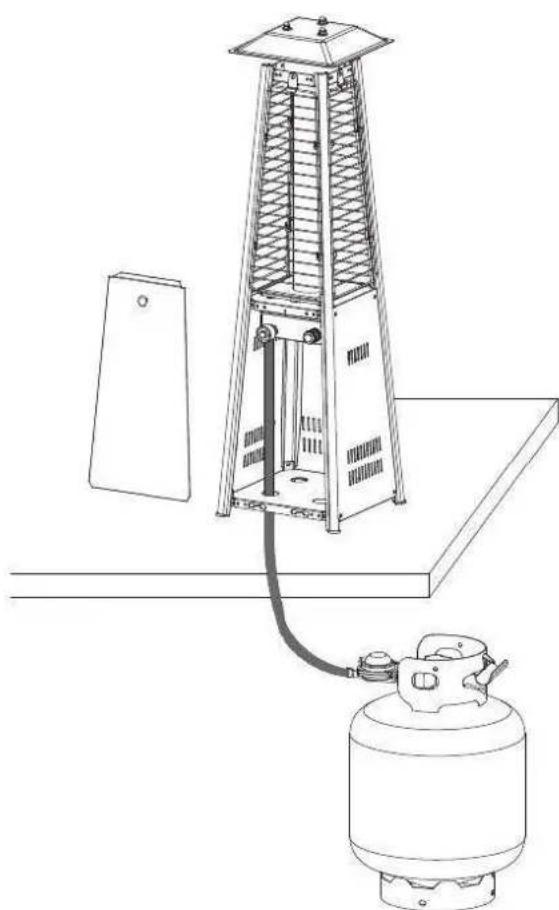

Connect the regulator to the gas tank and tighten it with adjustable wrench.

PROBLEMSCHECK LIST

PROBLEM	PROBABLECAUSE	SOLUTION
Pilotwill not light	Gas valve maybe OFF	Turn the gas valve ON
	Tank fuel empty	Refill LPG tank
	Opening blocked	Clean or replace opening
	Airin supply system	Purge air from lines
	Loose connections	Check all fittings
Pilotwill not stay on	Debris around pilot	Clean dirty area
	Loose connections	Tighten connections
	Thermocouple bad	Replace thermocouple
	Gas leak in line	Check connections
	Lack of fuel pressure	Tank near empty. Refill LPG tank.
Burnerwill not light	Pressure is low	Tank near empty. Refill LPG tank.
	Opening blocked	Remove and clean
	Control not ON	Turn valve to ON
	Thermocouple bad	Replace thermocouple
	Pilot light assembly bent	Place pilot properly
	Not in correct location	Position properly and retry

If the appliance is in case of any defaults or problems of assembly or use, please don't try to modify it by yourself, contact your supplier or distributor to solve it.

Tafelmodel Kwartsglas Gasheater NE

User instructions - please keep for future reference

User instructions - please keep for future reference

TECHNICAL INFORMATION

Wattage: 3000 Watt

Element type: Gas

Lebensdauer Elemente: 5000 hrs.

Nettogewicht: 6 kg

Zertifikate: CE,

User instructions - please keep for future reference

INFORMATION TECHNIQUE

Puissance: 3000 Watt

Typ d'éléments: Gas

Manual gas heater (EN)
