Brand	Braun
Model	MGK3060
Category	Electric Trimmer
Product Type	Multi-purpose Trimmer
Power Source	Rechargeable battery, special power cord included
Charging Time	Approximately 8 hours
Battery Life	Up to 60 minutes
Recommended Charging Temperature	5 °C to 35 °C
Recommended Operating Temperature	15 °C to 35 °C
Main Functions	Beard shaving, hair cutting, precision trimming, nose and ear trimming
Included Accessories	Sliding beard comb (3-11 mm), sliding hair comb (13-21 mm), fixed comb 1 mm, fixed comb 2 mm, trimmer head, nose and ear trimmer head, precision trimmer head, special power cord
Cleaning and Maintenance	Washable under running water (unplugged), brush after use, oil regularly
Safety	Usable by children aged 8 and up with supervision; do not use with damaged accessory; integrated safety voltage
Warranty	2 years, covers manufacturing defects, does not cover normal wear or unauthorized repairs
Recycling	Product contains recyclable batteries and electrical waste, do not dispose of in household waste

Frequently Asked Questions - MGK3060 BRAUN

How long does it take to fully charge the Braun MGK3060?

The full charging time is approximately 8 hours for a battery life of up to 60 minutes.

Can I use the trimmer while it is plugged in?

No, the trimmer is designed for cordless use only. You must fully charge it before using it.

How do I clean the Braun MGK3060 trimmer?

Turn off the device, remove the heads and combs. You can rinse them under running water. Use the provided brush to clean the device. Let all parts dry completely before reassembling.

What accessories are included with the MGK3060?

The kit includes: sliding beard comb (3-11 mm), sliding hair comb (13-21 mm), two fixed combs (1 mm and 2 mm), trimmer head, nose and ear trimmer head, precision trimmer head, and a special power cord.

How do I adjust the cutting length with the sliding combs?

Place the comb on the trimmer head, press the lock button, and slide the comb to the desired length. The adjustment step is 2 mm.

Is the trimmer waterproof?

Yes, the heads and combs can be cleaned under running water. However, the device must be unplugged and turned off before any water cleaning.

Can I use the MGK3060 to trim my ears and nose?

Yes, use the included nose and ear trimmer head (2b). Gently insert the tip without going more than 5 mm inside the nose or ear.

What is the warranty period of the Braun MGK3060?

Braun offers a 2-year warranty from the date of purchase, covering manufacturing defects. Normal wear and unauthorized repairs are not covered.

What should I do if the trimmer does not charge?

Check that the ambient temperature is between 5°C and 35°C. Use only the special power cord provided. If the problem persists, contact a Braun authorized service center.

How do I maintain the trimmer blades?

Regularly apply a few drops of light machine oil (not included) to the blades to maintain good performance. Clean the heads after each use.

USER MANUAL MGK3060 BRAUN

(Sharecall charged at local rates)

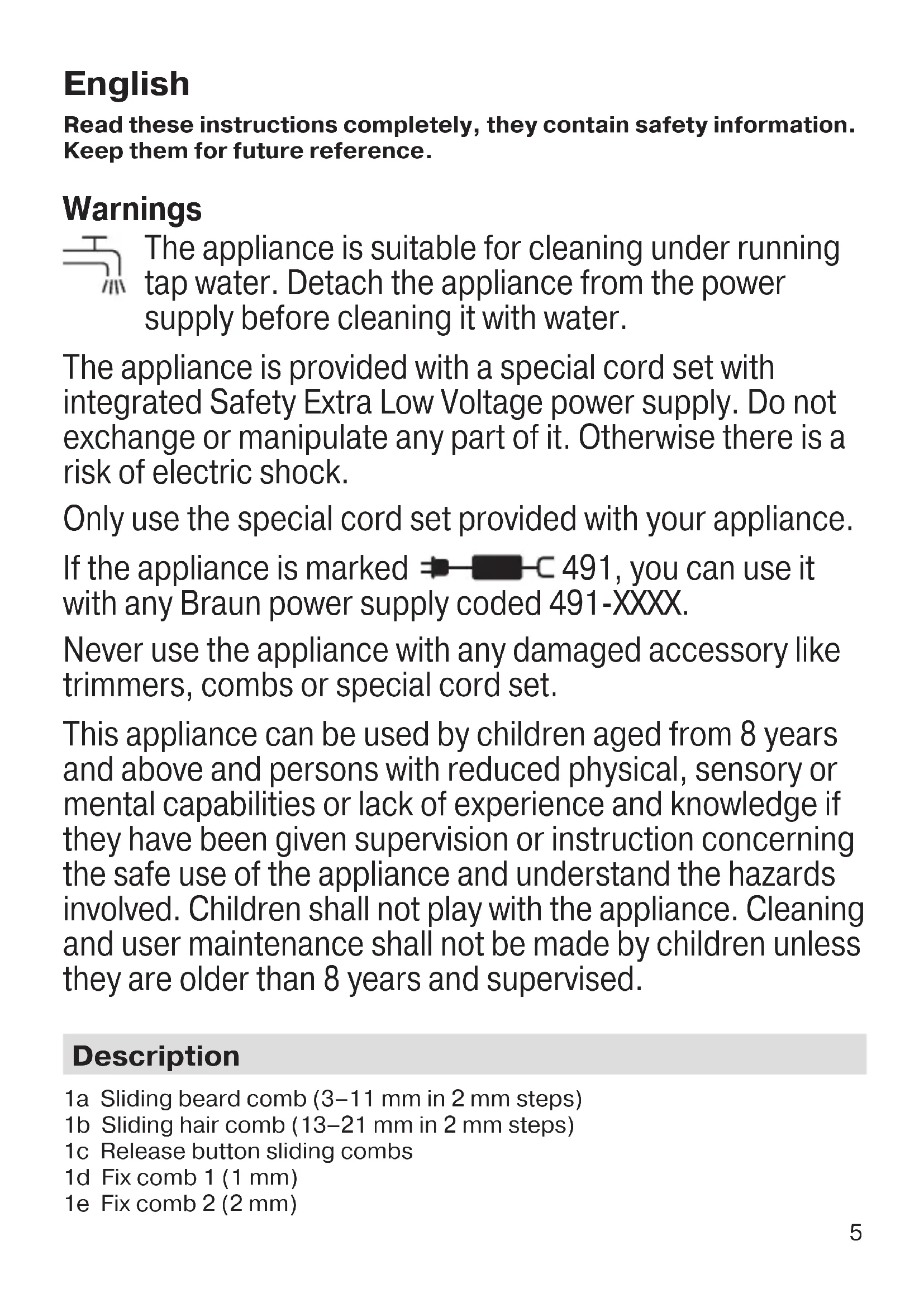

English

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

The appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water.

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance.

If the appliance is marked C 491, you can use it with any Braun power supply coded 491-XXXX.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

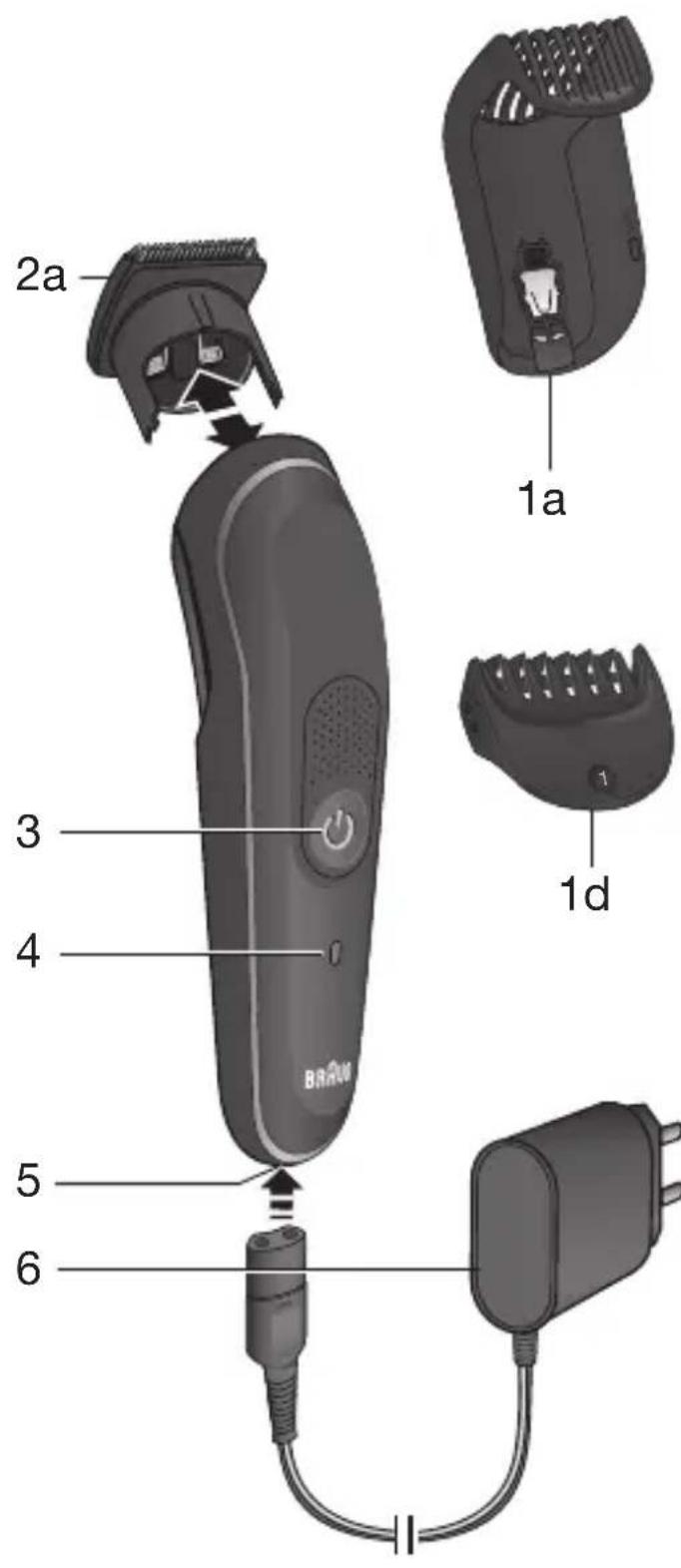

Description

1a Sliding beard comb (3-11 mm in 2 mm steps)
1b Sliding hair comb (13-21 mm in 2 mm steps)

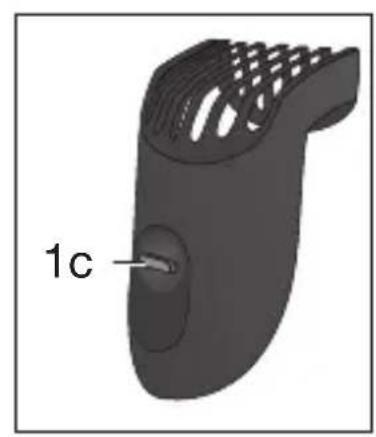

1c Release button sliding combs
1d Fix comb 1 (1 mm)
1e Fix comb 2 (2 mm)

2a Trimmer head

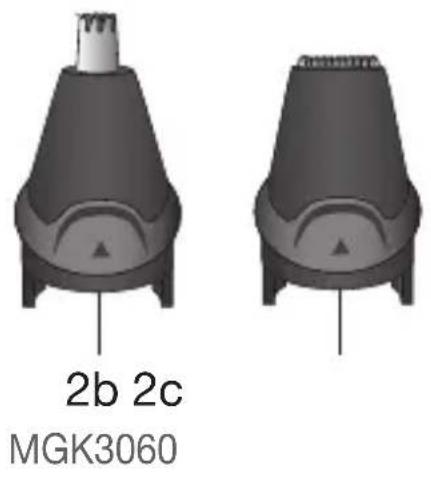

2b Ear & nose trimmer head (MGK3060 only)
2c Detailed trimmer head
3 On/off button
4 Charging indicator
5 Power socket
6 Special cord set (design can differ)

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5^ to 35^ .

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15^ to 35^ . Do not expose the appliance to temperatures higher than 50^ for extended periods of time.

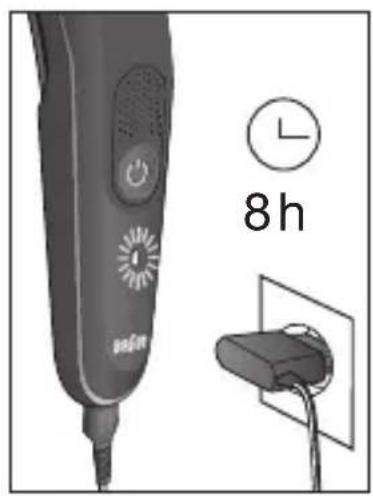

• Connect the appliance via the special cord set (6) to an electrical outlet.
• A full charge takes approx. 8 hours and provides up to 60 minutes of cordless operation time.
• The charging indicator (4) shows that the appliance is being charged. When the battery is fully charged, the charging indicator turns off.
• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Usage

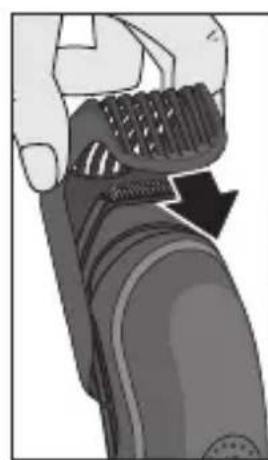

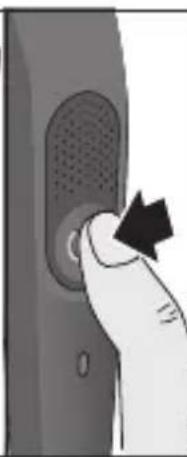

Exchange the attachments only when the appliance is switched off. To turn the appliance on, push the on/off button.

Beard Trimming / Hair Clipping

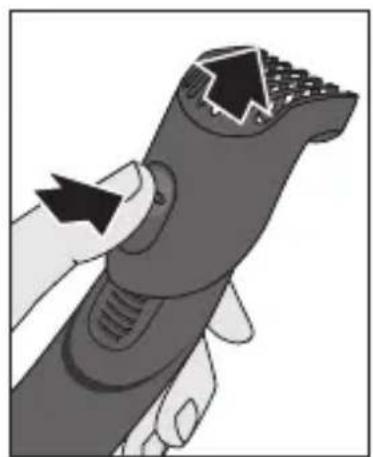

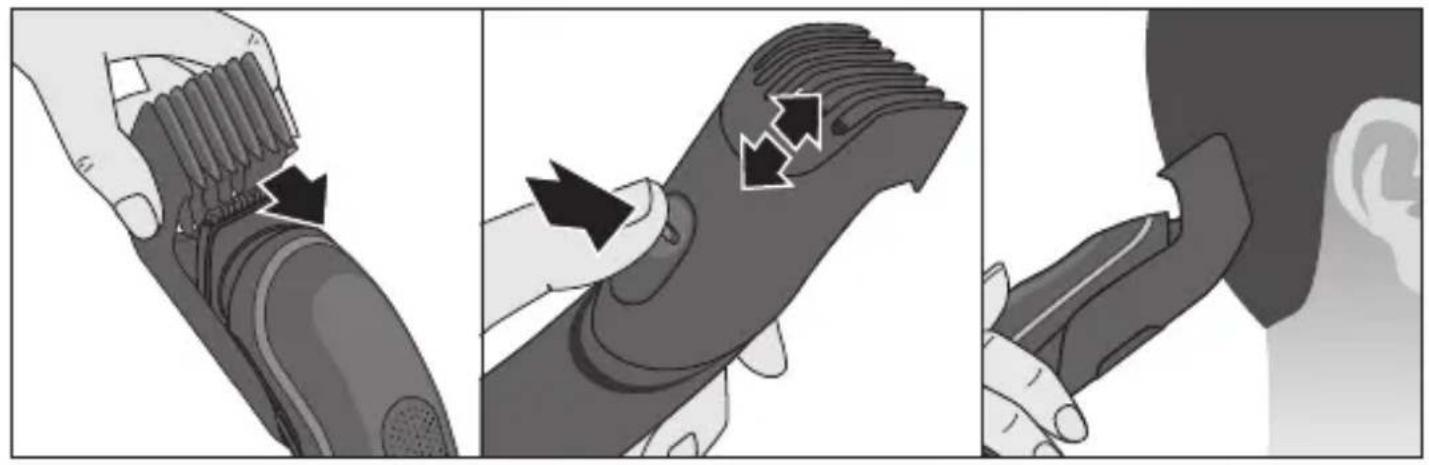

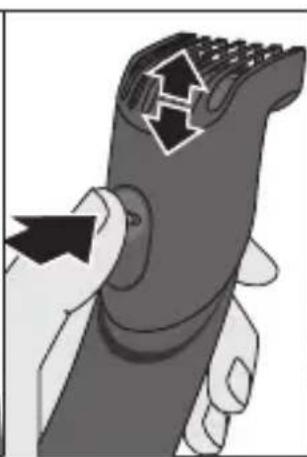

Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a). Press the release button (1c) and slide the comb to your desired length.

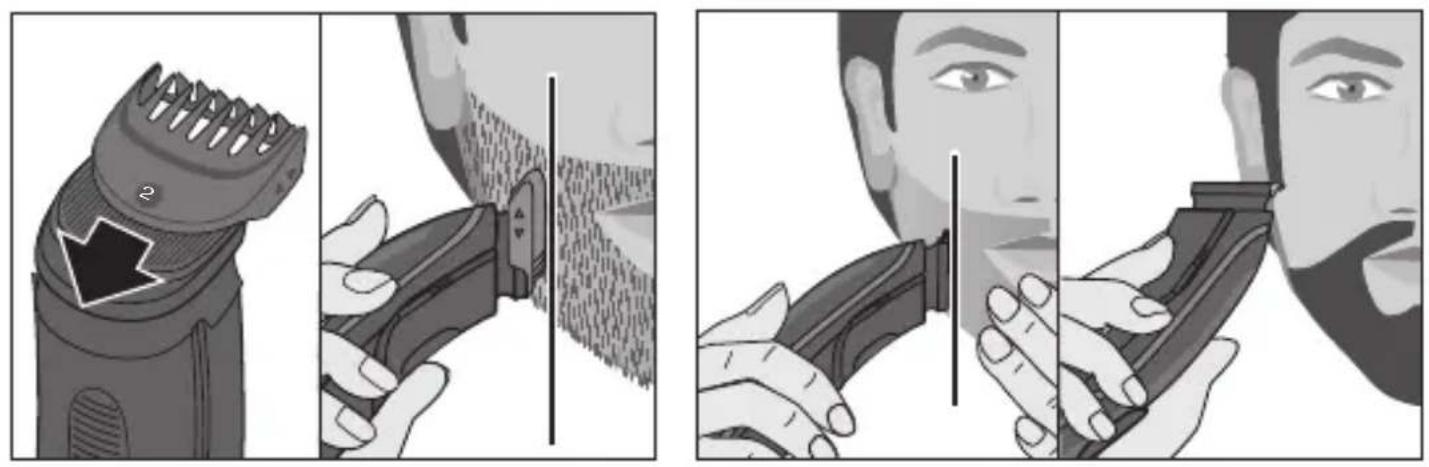

Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

• Trim against hair growth by guiding the flat comb part over the skin.
• Do not force the appliance through the hair faster than it can be cut.
• Avoid clogging the comb with hair. Remove and clean it from time to time.

Precision and Contour Trimming

Use the trimmer head (2a) without comb attachment or the detailed trimmer head (2c) for shaping sideburns, moustaches and partial short beards.

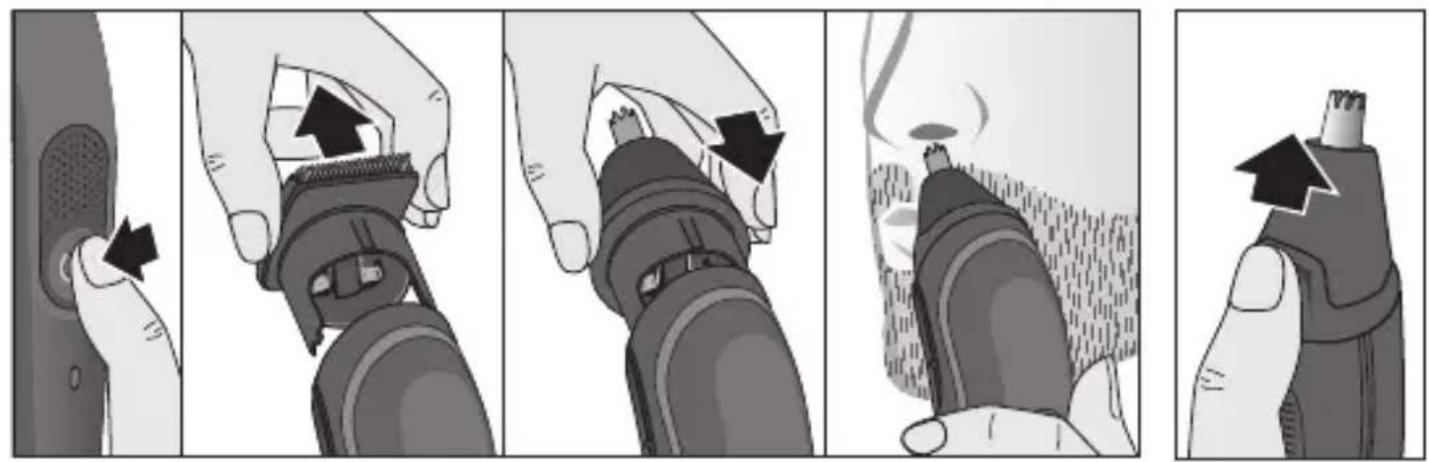

Ear/Nose Trimming

• Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.
• Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5mm (1/4^ ) into nose or ear.

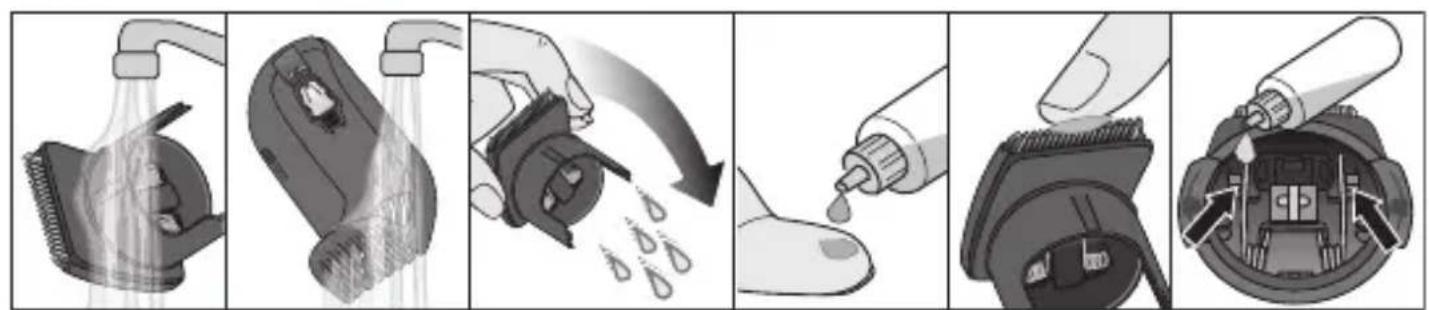

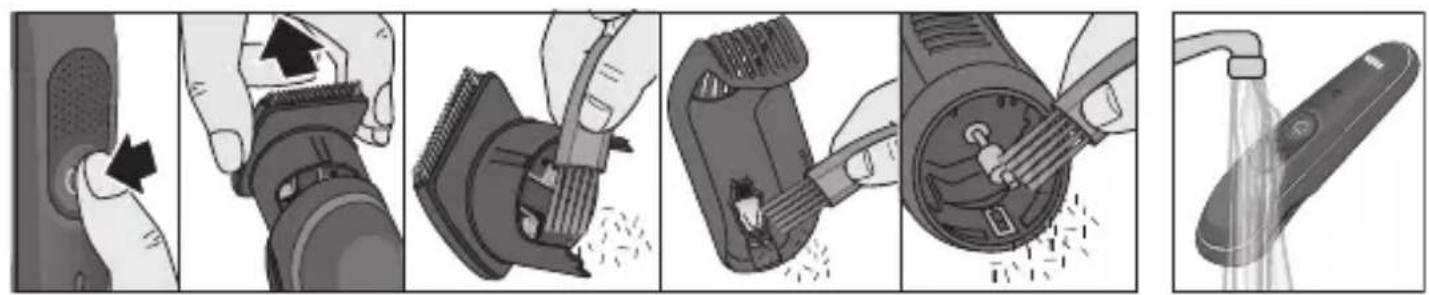

Cleaning and maintenance

• Switch off the appliance.
  Take off any head and attachment.
• Use the brush to clean the heads, combs and the appliance.
• The handle, the heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let all parts dry completely before reassembling them.
• To keep the trimmer working properly, oil it with light machine oil (not included) regularly.

Environmental notice

Product contains a battery and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.
This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.
To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

ELMIN, Durdevac 48350

R. Boškovića 20, Tel. [phone], [e-mail]

BKS d.o.o., Slavonski brod 35000

J. J. Strossmayera 29, Tel. [phone], [e-mail]

FRUK d.o.o., Virovitica 33 000

J. J. Strossmayera 23, Tel. [phone], [e-mail]

MARKOVIĆ OΒRT ZA EL.USLUGE, Varaždin 42 000

Krešimira Filica 9, Tel. [phone], [e-mail]

RADAN ELEKTRINIK CENTAR d.o.o., Dubrovnik 20 000

Ob. Pape I.Pavlall.17, Tel. [phone], [e-mail]

Tehno -Jelcić d.o.o., Sibenik 22 000

VIII Dalmatinske Udarne Brigade 71, Tel. [phone]

MERC&DUJMOVIĆ, Split 21 000

Alojzija Stepinca 6, Tel. [phone], [e-mail]

Slovenski

3ictpnraTe y hnapmky npotu poCTy BOLOCCy, npNTNCKaOCh nlocky NOBepxHIO rpe6eHЯ dO shkpn roNoBn. He nepecyBaIte npilad 3aHaDTo 1WBnDKo, 06 npilaMir 3pi3aTN BOLOCCy.

He nepecybaIte npnaJ 3aHaJTO WbNko, o6 npnaJ mir 3pi3aTn BOLOCCra.
He IOnyckaIte 3a6nBaHnI rpe6eHЯ BOLOCCm. NepioNHyO 3HimaTe Ta OUnuAte rpe6iNb.

TouHn TpIMiHr i KOHTypyBaHHa

BnKOpNCToBvIe rOJOBky TpImepa (2a) 6e3 rpe6eHЯ-hacadKn a6o rOJOBky dIy ToUHOi CTrPnXkN (2c) dIy hAdaHnY fOpMn bakEnbapdAm, BycAm, a TaKoJ dIy cTaNlIHry KOpOTkoI bOpOdn.

TpimiHry hoci/Byxax

3HIMITb IonepeHNIO rOIOBky i HaDiHbTe rOIOBky TpIMepa IJy Bux Ta Hoca (2b)Ha pykny npnilady.
-Оберекно поведы пиладом NO BOLOCchio,якnotpi6no niДрizatn,цоб boHO notpapanlo b element,якni pixe.В oblaacti hoca ta Byx yHnkaite 3aCTOCyBaHHЯ TpIMepa,налaшTOBaHOrO Ha IOBXInHy nOHad 5 MM (1/4").

OuHcHnHnI DoGJaD

BnMKnHItb npnila.
3Himitb roJIOBky i rpe6eHi.
3a donomoroio iTOUKN ONUCTiTB rOIOBky, rpebehi npnilad.
- Ручу, голову я гребени можна мити пд поточно ворою. Роминтуdo NOВНО Видалени зICTриженього волось. Почекайт, рokи DeТаліповсгTO BINOCHNYtB, лрш НIXЗнOBУ BCTaHOBNTU IX.
- Κιος πίπτρημγνατη Πριπερ γνΙδΜινΗόγ ροδουγόν Χταή, υργυλρήσε 3maúŋyǔnte ὄνο CβιTЛΜ MaùnHнм MaclOM (В KOMПЛЕКТ He BxODNTb).

PonepeJxHnI npo He6e3neKy IJra doBkijla

IpoDyKT mICTHTb akymylarTopn i/a6o eJeKtpOnobyToBi BiXoDi, 10 NiIDraIOb BTOpHHi nepepo6ci. Ha KopncTb 3axNCTy DOBkiJIJI, He BVKnDaIte NOrO pa3OM i3 DomaunHIM CmITTjam. YtNiI3aCiJ MoKe 6yTu 3diIChena y nyHKtax 360py eJeKtpOnobyToBx BiXoDiB BaWooi KpaIHn.

Bnpo6nK 3aIi7ae 3a c06oIO npaBO Ha BHeceHnY 3mH 6e3 nonepeiNbOro NOBIDOMJIeHHJ.

Elektrechni Tprimep Braun Tnny 5514 i3 Jxepelom KINBlenn Tnny 491-XXXX.

Country of origin: China

To determine the year of manufacture, remove the head and find the 3-digit production code located inside the housing. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: “527” – The product was manufactured in week 27 of 2015.

：
