Product type	Weight bench
Brand	Tunturi
Model	WB50 Mid Width Weight Bench
Category	Fitness equipment
Assembled dimensions	167 x 60 x 65 cm
Maximum load	200 kg
Intended use	Private home
Assembly required	Yes, by at least two people
Required tools	Two wrenches (included)
Adjustments	Backrest inclination, arm curl pad height, guide height
Maintenance	Periodic lubrication of moving parts with WD-40 or light oil; clean with damp cloth and mild detergent
Safety	Use by one person; keep children away; wear appropriate clothing; consult a doctor before any program
Warranty	2 years on frame, 1 year on parts (domestic use)
Customer service	Email: [e-mail]; hours: Mon-Fri 9am-5pm GMT+1
Country of origin	Not specified

Frequently Asked Questions - WB50 Mid Width Weight Bench TUNTURI

How to assemble the Tunturi WB50 bench?

Assembly requires two people and two wrenches. Follow the steps in the order given in the manual. Tighten all screws after assembling all components, but do not overtighten.

What is the maximum load capacity?

The bench can support a maximum load of 200 kg, including the weight of the user and weights.

How to adjust the backrest inclination?

Slightly tilt the backrest and pull out the adjustment bar from the toothed plates. Move the backrest to the desired position, then reinsert the adjustment bar into the toothed plates to lock it.

How to adjust the arm curl pad height?

Pull the adjustment button, bring the arm curl pad to the desired position, then release the button to lock it.

Can I use this bench in a commercial gym?

No, this bench is designed for private home use only. Commercial use will void the warranty.

How to maintain my Tunturi WB50 bench?

Periodically lubricate moving parts with WD-40 or light oil. Clean with a damp cloth and mild non-abrasive detergent. Regularly check for wear and tighten fasteners.

What are the important safety instructions?

Keep children and pets away, use alone, wear sports clothing and shoes, warm up before exercise, and consult a doctor if you feel pain.

How to order spare parts?

Contact customer service by email at [e-mail] specifying the model, part description, part number, and purchase date.

Is the bench delivered assembled?

No, the bench requires assembly. It is strongly recommended to do it with two people to avoid accidents.

What is the warranty period?

The warranty is 2 years on the frame and 1 year on other parts, for domestic use from the date of purchase.

USER MANUAL WB50 Mid Width Weight Bench TUNTURI

WB50 Mid Width Weight Bench

GB User manual 13-17

Important safety notice. 13

Important assembly information .... 14

Assembly.. 14

Fasten Nuts and Bolts 14

Use 14

Using weight plates 14

Adjusting the backrest inclination 15

Adjusting the arm curl pad height. 15

Adjusting the spotters height 15

Use the spotters hooks 15

Exercise guidelines 15

Building Muscle and Gaining Weight 15

Muscle Strength and Endurance 15

Training Intensity 15

Beginning a Strength Building Program 16

Care and maintenance 16

Additional information 16

Limited warranty 16

Ordering replacement parts.....17

Weight capacity and dimension..... 17

Disclaimer 17

Before you begin

Thank you for selecting the

Tunturi WB50 Mid Width Weight Bench.

For your safety and benefit, read this manual carefully before using the equipment. We are committed to provide you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance.

To avoid unnecessary delays, please contact our customer service department, Monday to Friday 9am - 5pm GMT + 1 hour.

Tunturi New Fitness B.V.

E-mail: [e-mail]

www.tunturi.com

Important safety notice

This exercise equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your equipment. In particular, note the following safety precautions:

• Keep children and pets away from the equipment at all times. DO NOT leave children unattended in the same room with the equipment.
• Only one person at a time should use the equipment.
• If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

Position the equipment on a clear, levelled surface. DO NOT use the equipment near water or outdoors.

• Keep hands away from all moving parts.
• Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that could become caught in the equipment. Running or aerobic shoes are also required when using the equipment.

Use the equipment only for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.

• Do not place any sharp object around the equipment.
• Disabled person should not use the equipment.
• Before using the equipment to exercise, always do stretching exercises to properly warm up.
• Never operate the equipment if the equipment is not functioning properly.
• A spotter is recommended during exercise.
• This equipment is designed and intended for home and consumer use only, not for commercial use.

Warning:

Before beginning any exercise program, consult your physician. This is especially important for individuals over the age of 35 or persons with pre-existing health problems. Read all instructions before using any fitness equipment.

Tunturi New fitness bv. assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

Save these instructions!

Important assembly information

Tools Required for Assembling the Bench: Two Adjustable Wrenches.

NOTE

It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury.
- Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to be assembled. Attach washer only to end of the Carriage Bolt.
- Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that need to be assembled.
- Always wait until all bolts are assembled onto the bench before tightening the bolts. Do not tighten each bolt right after it is installed

Assembly

(Fig. A)

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
• Allow at least 100cm of clearance around the equipment.
  Refer to the illustrations for the correct assembly of the equipment.

Fasten Nuts and Bolts

Securely tighten all Nuts and Bolts after all components have been assembled in current and previous steps.

NOTE

• Do not over tighten any component with pivoting function.
• Make sure all pivoting components are able to move freely.

Do not tighten all Nuts and Bolts in this step.

Use

Using weight plates

• When using weight plates, do make sure to use sufficient locking supports to secure your weight plates at all times before use.
• When using weight plates on a barbell bar, do make sure you divide the weigh-plates evenly over left and right side.
• Never exceed the maximum weight capacity of the barbell bar and or bench.

To take not of your own body weight too.

Adjusting the backrest inclination

(Fig. Use #2)

• Tilt the backrest slightly and tilt the adjusting bar out of the toothed plates.
• Move the backrest into the required position.
• Position the adjusting bar in the toothed plates to secure it.

Adjusting the arm curl pad height.

(Fig. Use #7)

• Pull the adjustment knob.
• Move the arm curl pad to the required position.
• Release the adjustment knob.

Adjusting the spotters height

(Fig. Use #9)

• Adjust the spotters height by loosening the locking knob.
• Pull the locking knob outwards so that the spotter can be moved freely up and down.
• Tighten the locking knob by turning it clockwise.

NOTE

• Make sure both spotters are in the same height setting.

Use the spotters hooks

(Fig.Use #10)

The hooks on top of the spotters are there to secure a barbell bar when stored on the spotters.

To secure the barbell bar.

• Put the barbell bar on top ( centred ) of the spotters.
• Turn the hooks so they are over the barbell bar on both sides.

To release the barbell bar.

• Turn the hooks so they are no longer over the barbell bar on both sides.
• Take off the barbell bar freely.

WARNING

• Never leave a barbell bar stored on the spotters unattended.

Exercise guidelines

Building Muscle and Gaining

Weight

Unlike aerobic exercise, which emphasizes endurance training, anaerobic exercise focuses on strength training. A gradual weight gain can occur while building the size and strength of muscles. While developing muscle mass, your body adapts to the stress placed upon it. You can modify your diet to include foods such as meat, fish and vegetables.

These foods help muscles recover and replenish important nutrients after a strenuous workout.

Muscle Strength and Endurance

To achieve the greatest benefit from exercise, it is important to develop an exercise program that allows you to work all of the major muscle groups equally.

To increase muscles strength; follow this principle: Increasing resistance and maintaining the number of repetitions of an exercise results in increased muscle strength.

To tone your body, follow the principle:

Decreasing resistance plus increasing the number of repetitions of an exercise results in increased body tone.

Once you feel comfortable with an exercise, you can change the resistance, the number of repetitions, or the speed at which you do the exercise. It is not necessary to change all three variables. For example, let's say that you are training at 10kg and performing the exercise 10 times in 3 minutes. When this becomes too easy, you may decide to move up lifting 12kg for the same number of repetitions in the same amount of time. Lifting more weights fewer times most often develops muscle strength. To gain both muscle strength and endurance, it is recommended that you perform each exercise 15 to 20 reps per set.

Training Intensity

How hard you begin to train depends on your overall level of fitness. The soreness you experienced can be lessened by decreasing

the load you place on your muscles and by performing fewer sets.

To avoid injury, you should gradually work into an exercise program and set the load to your individual fitness level. The load should increase as your fitness level increases.

Muscle soreness is common, especially when you first start exercising. If you are painfully sore for a long time, it may be time to change your program. Eventually, your muscle system will become accustomed to the stress and strain placed on it

Beginning a Strength Building

Program

Warming Up

To begin strength training, it is important to stretch and perform light exercise for 5 to 10 minutes. This helps prepare the body for more strenuous exercise by increasing circulation, raising your body temperature and developing more oxygen to your muscles.

Exercise

Each workout to keep in mind that muscle soreness that lasts for a long period in not desirable and may mean that injury has occurred.

Cool Down

At the end of each workout, perform slow stretching exercises for 5 to 10 minutes. Ease into each stretch only going as far as you can. This stage allows your muscles wind down after training.

To provide a total workout program it is also recommended that 2 to 3 days of aerobic exercise is performed in addition to the strength training.

Drinking Water

For the body to function properly, it must be properly hydrated. If you are exercising, you should increase your fluid intake. The reason for this is that the water you take in will leave your system through the sweating mechanism that cools your body during exercise. The water you lose through exercise must be replaced so that the muscles can recover properly.

Rest Day

Although you may not feel like doing it, taking a rest day at least once a week is important because it gives you body a chance to heal it self. Continuously working your muscle will result in over training which will not benefit in the long run.

Care and maintenance

• Lubricate moving parts with WD-40 or light oil periodically.
• Inspect and tighten all parts before using the equipment.
• The equipment can be cleaned using a damp cloth and mild non-abrasive detergent. DO NOT use solvents.
• Examine the equipment regularly for signs of damages or wear.
• Replace any defective components immediately and/or keep the equipment out of use until repair.
• Failure to examine regularly may affect the safety level of the equipment.

Additional information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a Time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Limited warranty

Tunturi New Fitness warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the frame and one year

on all other parts and components from the date of purchase. This warranty extends only to the original purchaser. Tunturi New Fitness's obligation under this Warranty is limited to replacing damaged or faulty parts at Tunturi New Fitness's option.

All returns must be pre-authorised by Tunturi New Fitness. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage, purchasers own repairs or for products used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorised by Tunturi New Fitness.

Tunturi New Fitness is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.

Your statutory rights are not affected.

Ordering replacement parts

Replacement parts can be ordered by contacting our Customer Support Department, Monday to Friday, 9am - 5pm GMT +1 hour:

E mail: [e-mail]

When ordering replacement parts, please give the following information,

• Model
• Description of Parts
• Part Number
• Date of Purchase

Further contact information or user manuals in other languages can be found on our website.

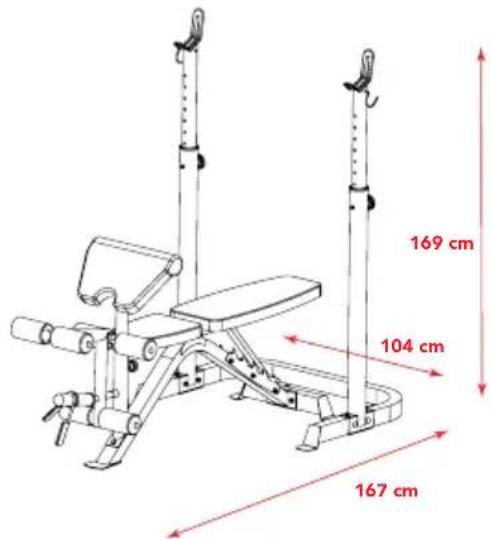

Weight capacity and dimension

(Fig. W#1)

Maximum load weight: 200kg

Assembled Dimension: 167 × 60 × 65 cm .

Disclaimer

© 2018 Tunturi New Fitness BV All rights reserved.

The product and the manual are subject to change. Specifications can be changed without further notice.
