USER MANUAL M.Zuiko Digital 45mm f1.8 OLYMPUS

© 2017 ED 45mm f1.2 PRO WD242101 Printed in Japan Model No.:IM009 date of issue 2017.8

The following importer description applies to products imported into the EU directly by OLYMPUS EUROPA SE & Co. KG only. OLYMPUS EUROPA SE & Co. KG Wendenstrasse 14-18, 20097 Hamburg, Germany Manufactured by OLYMPUS CORPORATION 2951 Ishikawa-machi, Hachioji-shi, Tokyo 192-8507, Japan

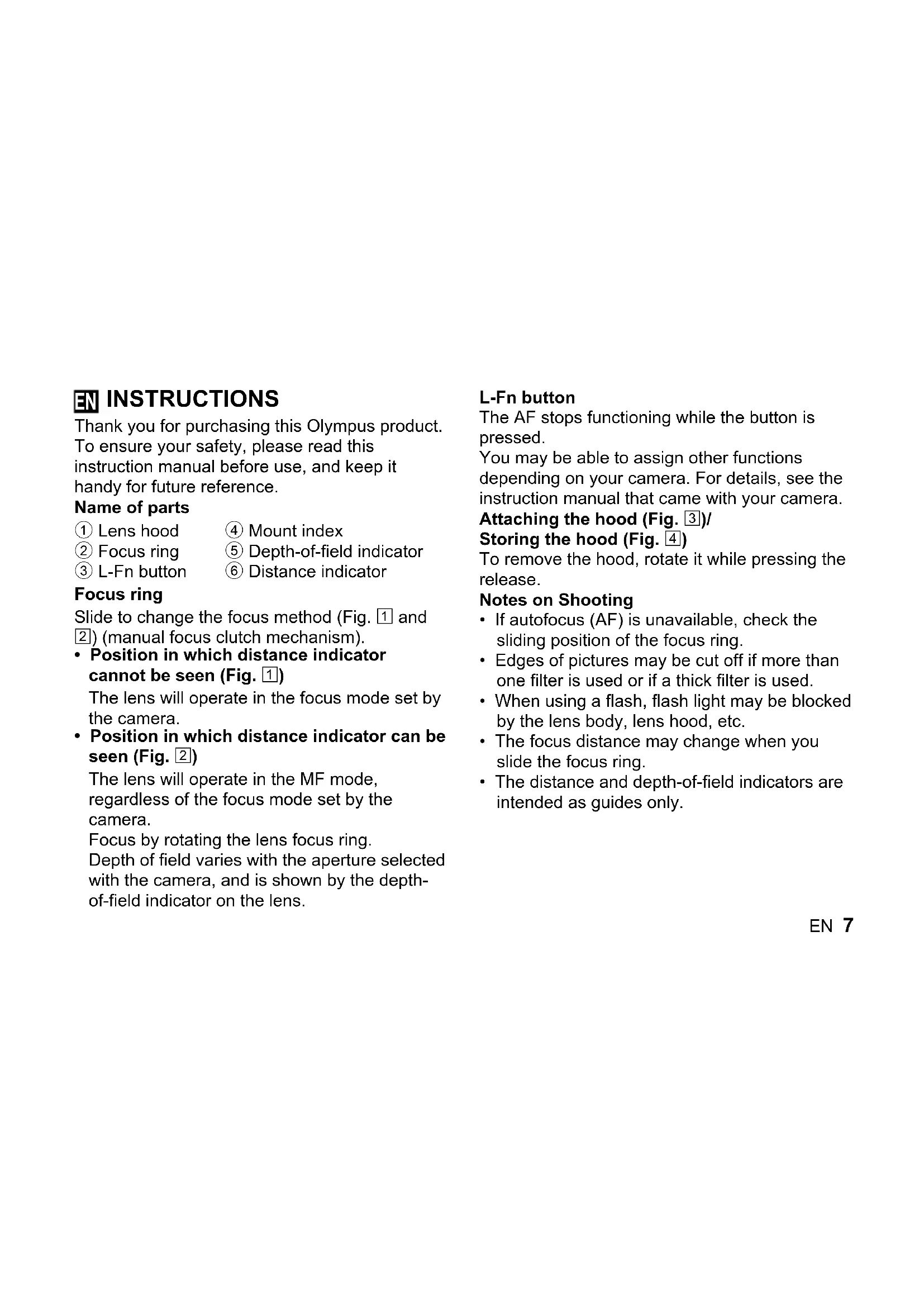

2) (manual focus clutch mechanism).

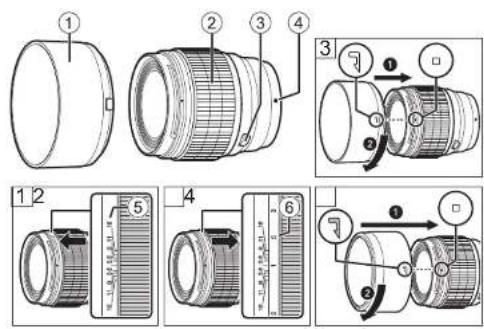

• Position in which distance indicator cannot be seen (Fig. 1) The lens will operate in the focus mode set by the camera.

• Position in which distance indicator can be seen (Fig. 2) The lens will operate in the MF mode, regardless of the focus mode set by the camera. Focus by rotating the lens focus ring. Depth of field varies with the aperture selected with the camera, and is shown by the depth- of-field indicator on the lens. L-Fn button The AF stops functioning while the button is pressed. You may be able to assign other functions depending on your camera. For details, see the instruction manual that came with your camera. Attaching the hood (Fig. 3)/ Storing the hood (Fig. 4) To remove the hood, rotate it while pressing the release. Notes on Shooting

• If autofocus (AF) is unavailable, check the sliding position of the focus ring.

• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.

• When using a flash, flash light may be blocked by the lens body, lens hood, etc.

• The focus distance may change when you slide the focus ring.

• The distance and depth-of-field indicators are intended as guides only. EN8 EN Main Specifications Mount : Micro Four Thirds mount Focal distance : 45 mm (equivalent to 90 mm on a 35 mm camera) Max. aperture : f1.2 Image angle : 27° Lens configuration : 10 groups, 14 lenses Iris control : f1.2 to f16 Shooting range : 0.5 m (19.7 in.) to ) (infinite) Focus adjustment : AF/MF switching Weight : 410 g (14.5 oz.) (excluding hood and cap) Dimensions : Max. dia. Ø 70 (2.8 in.) × length 84.9 mm (3.3 in.) Lens hood mount : Bayonet Filter mount thread diameter : Ø 62 mm

Specifications are subject to change without any notice or obligation on the part of the manufacturer. Maintenance Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper. Precautions: Be Sure to Read the Following Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.

• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.

• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire. Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of

OLYMPUS CORPORATION.EN 9

For customers in Europe This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product. European Technical Customer Support Please visit our homepage http://www.olympus-europa.com or call: Tel. 00800 - 67 10 83 00 (Toll-free) +49 40 - 237 73 899 (Charged)
