XF 1024mm f4.0 OIS - Lens FUJIFILM - Free user manual and instructions

Features	Details
Lens type	Wide-angle zoom
Maximum aperture	f/4.0
Focal length range	10-24 mm
Image stabilization	OIS (Optical Image Stabilization)
Mount	Fujifilm X mount
Optical construction	14 elements in 10 groups
Minimum focusing distance	24 cm
Filter diameter	72 mm
Dimensions	To be specified
Weight	To be specified
Recommended use	Landscape, architecture, and interior photography
Maintenance	Clean with a soft cloth, avoid abrasive products
Safety	Do not expose to extreme temperatures or excessive humidity
General information	Compatible with Fujifilm X-mount cameras

Frequently Asked Questions - XF 1024mm f4.0 OIS FUJIFILM

How can I clean the FUJIFILM XF 10-24mm f4.0 OIS lens?

To clean the lens, use a soft microfiber cloth and a lens cleaner. Avoid using harsh chemicals.

Why are my photos blurry with the FUJIFILM XF 10-24mm f4.0 OIS lens?

Blurry photos can be caused by motion blur. Make sure to use an appropriate shutter speed or enable the lens's image stabilization if available.

Is the FUJIFILM XF 10-24mm f4.0 OIS lens compatible with my FUJIFILM camera?

This lens is compatible with all FUJIFILM cameras with an X-mount. Check your camera's specifications to confirm compatibility.

How do I adjust manual focus on the FUJIFILM XF 10-24mm f4.0 OIS lens?

To adjust manual focus, set the focus switch to 'MF' (Manual Focus) and turn the focus ring on the lens.

Can I use filters with the FUJIFILM XF 10-24mm f4.0 OIS lens?

Yes, you can use filters. This lens has a 72 mm filter thread. Make sure to choose filters that fit this size.

What is the weight of the FUJIFILM XF 10-24mm f4.0 OIS lens?

The lens weighs approximately 410 grams.

What is the minimum focusing distance of this lens?

The minimum focusing distance is approximately 24 cm.

My FUJIFILM XF 10-24mm f4.0 OIS lens makes a clicking noise. Is this normal?

A slight clicking noise can be normal during focusing, especially in autofocus mode. If the noise is excessive, contact customer service.

How do I activate image stabilization on the FUJIFILM XF 10-24mm f4.0 OIS lens?

To activate image stabilization, make sure the OIS switch on the lens is set to 'ON'.

Is the FUJIFILM XF 10-24mm f4.0 OIS lens weather resistant?

Yes, this lens is designed to be weather resistant, making it suitable for use in wet weather and harsh conditions.

USER MANUAL XF 1024mm f4.0 OIS FUJIFILM

XF18-55mmF2.8-4 R LM OIS

XF55-200mmF3.5-4.8 R LM OIS

OWNER'S MANUAL

日本語

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

NEDERLANDS

SVENSKA

NORSK

SUOMI

РУССКИЙ

ITALIANO

DANSK

POLSKI

中文简

中文繁體

한글

お取り扱いにご注意ください

ご使用前に必ずお読みください

安全上のご注意

Labeled diagram of a camera lens assembly with numbered parts for identification

Technical diagram of a camera lens with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a camera lens with labeled parts and directional arrows indicating rotation or movement.

レンズフードの取り付け方

Diagram illustrating camera lens adjustment process, showing before and after states with numbered annotations

付属品一覧

Be sure to read these notes before use

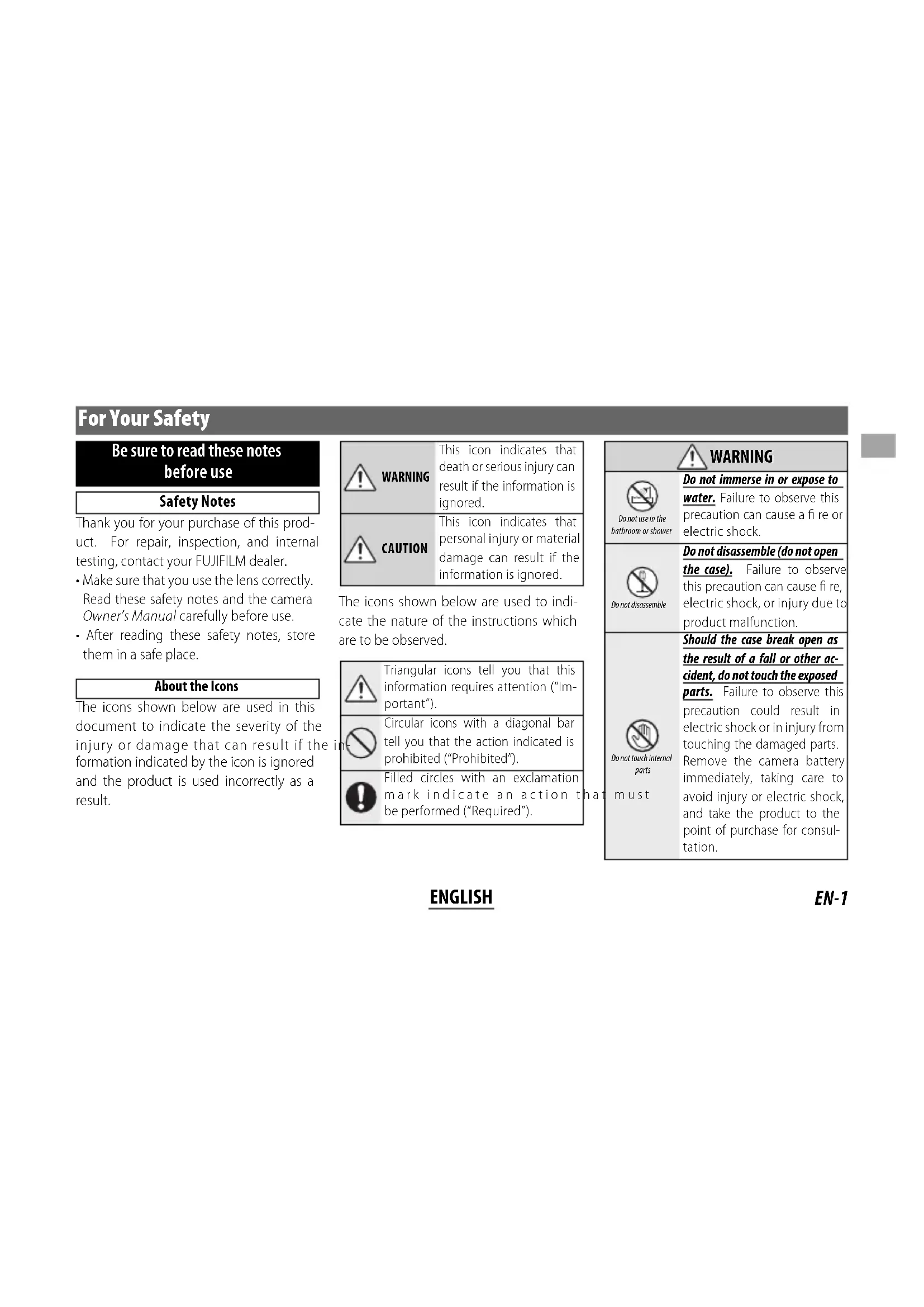

Safety Notes

Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your FUJIFILM dealer.

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner's Manual carefully before use.
• After reading these safety notes, store them in a safe place.

About the Icons

The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the formation indicated by the icon is ignored and the product is used incorrectly as a result.

	This icon indicates that death or serious injury can result if the information is ignored.
	This icon indicates that personal injury or material damage can result if the information is ignored.

The icons shown below are used to indicate the nature of the instructions which are to be observed.

	Triangular icons tell you that this information requires attention ("Important").
	Circular icons with a diagonal bar tell you that the action indicated is prohibited ("Prohibited").
	Filled circles with an exclamation mark indicate an action to be performed ("Required").

WARNING
Do not use in the bathroom or shower	Do not immerse in or expose to water.Failure to observe this precaution can cause a fi re or electric shock.
Do not disassemble	Do not disassemble (do not open the case).Failure to observe this precaution can cause fi re, electric shock, or injury due to product malfunction.
Do not touch internal parts must	Should the case break open as the result of a fall or other accident, do not touch the exposed parts.Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts.Remove the camera battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation.[YBX2] WARNING
	Do not place on unstable surfaces. The product may fall, causing injury.
	Do not view the sun through the lens or camera view fi ndFailure to observe this precaution can cause permanent visual impairment.
	CAUTION
	Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fi re or electric shock.
	Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day.Failure to observe this precaution can cause fi re.

For Customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• You are cautioned that any changes or modifications not expressly approved in this manual could void the user's authority to operate the equipment.

Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi Im-specific ed ferrite-core A/V cable, USB cable, and DC supply cord.

For Customers in Canada

CAN ICES-3 (B)/NMB-3(B)

CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water (excluding waterproof products).
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as ra-

diators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Electrical and Electronic Equipment in Private Households

In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal.

Australian RCM

Before Using This Product

Some lens features are not available with older versions of the camera fi rmware. Be sure to update the camera fi rmware to the latest version. Instructions on viewing the camera fi rmware version and updating camera fi rmware are available from the following website:

http://www.fujifilm.com/support/digital_cameras/software/#firmware

If you do not have access to a computer, support is available from the local distributor listed in the "FUJIFILM Worldwide Network" material provided with your camera.

Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.

• Keep the lens signal contacts clean.

• Use a blower to remove dust and lint from the lens surfaces. To remove smudges and fingerprints, apply a small amount of ethanol or lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fingers.

• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Attach the front and rear caps when the lens is not in use.
• If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting of the internal mechanism can cause irreparable damage.
  • Leaving the lens in extremely hot locations could cause damage or warping.

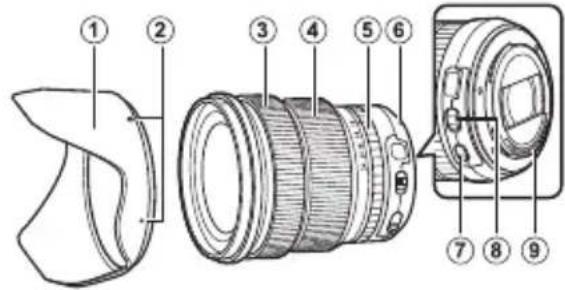

Parts of the Lens

XF10-24mmF4 ROIS XF18-55mmF2.8-4 RLM OIS

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens assembly with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Technical illustration of a mechanical component with a numbered callout (10), showing internal structure without any text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

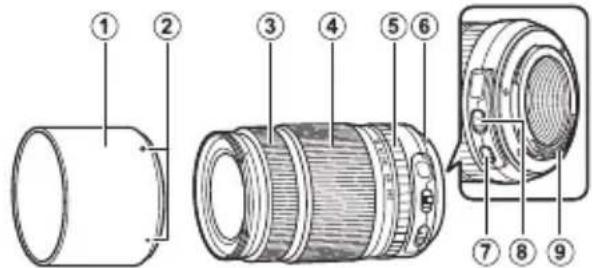

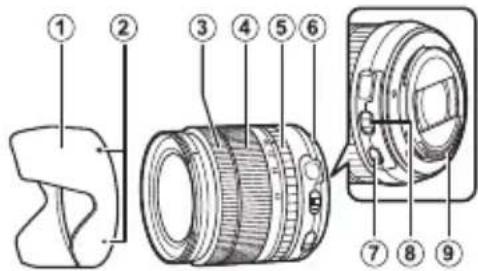

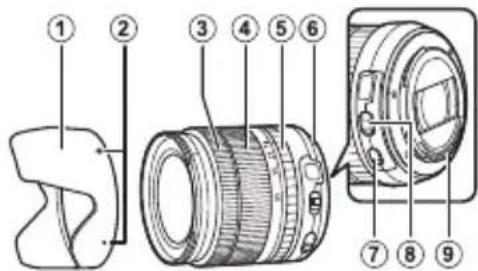

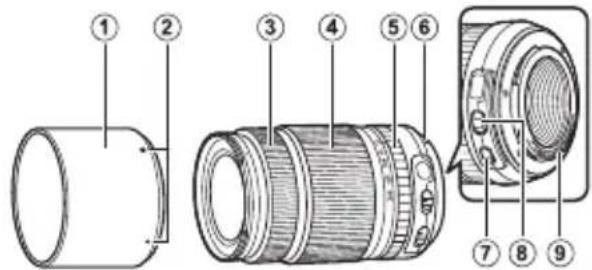

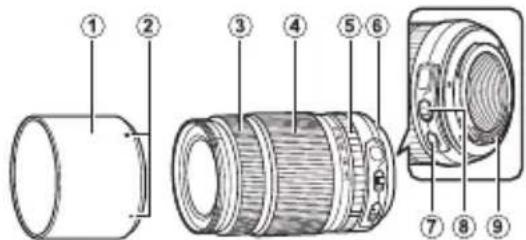

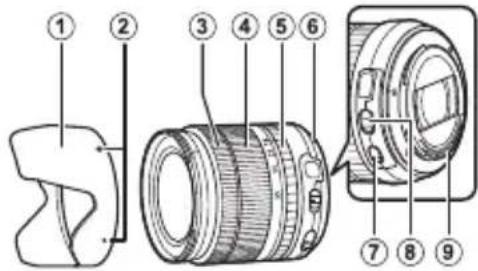

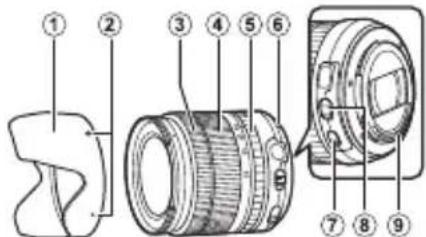

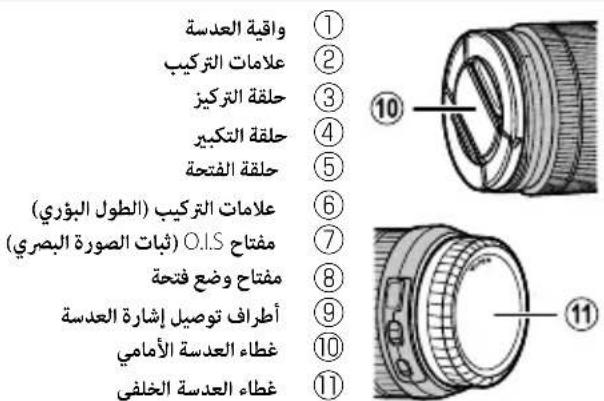

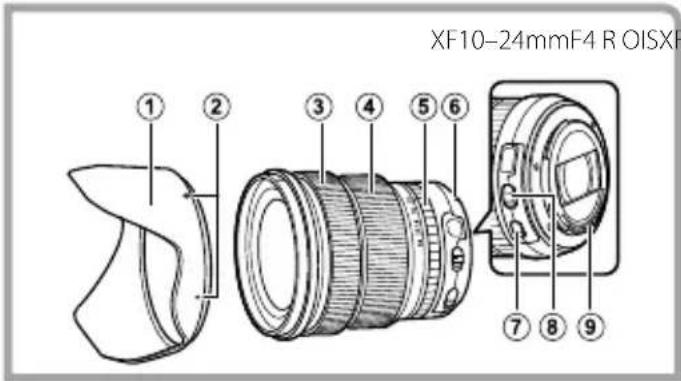

① Lens hood
② Mounting marks
③ Focus ring
④ Zoom ring
⑤ Aperture ring
⑥ Mounting marks (focal length)
⑦ O.I.S. switch
⑧ Aperture mode switch
⑨ Lens signal contacts
⑩ Front lens cap
⑪ Rear lens cap

Attaching the Lens

See the camera manual for information on attaching and removing lenses. Note that this product is not compatible with X mount fi lm cameras.

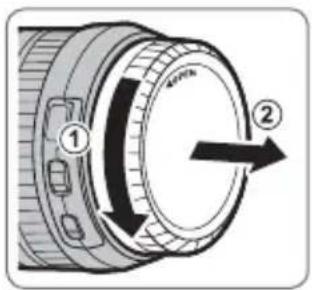

Removing the Caps

Remove the caps as shown.

Diagram of a camera lens assembly with numbered parts and directional arrows indicating motion or rotation.

Diagram of a camera lens with labeled parts and directional arrows indicating rotation or movement.

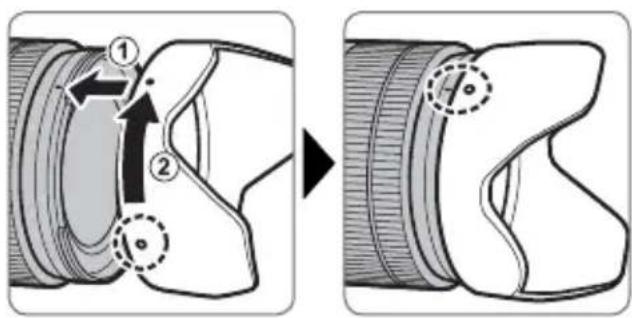

Attaching the Hood

When attached, lens hoods reduce glare and protect the front lens element.

Diagram illustrating camera lens adjustment process with numbered parts and rotation indicators

Supplied Accessories

• Front lens cap
• Rear lens cap
• Lens hood
• Cloth wrapping

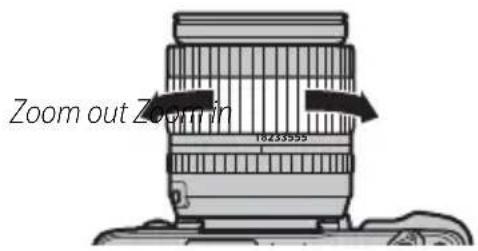

Zoom

Rotate the zoom ring left to zoom out, reducing magnifi cation and increasing the area visible in the frame. Rotate the ring right to zoom in, increasing magnifi cation so that the subject occupies more of the frame.

Zoom out Zoom in 10/455292

Optical Image Stabilization (OIS)

To use optical image stabilization, slide the O.I.S. switch to ON.

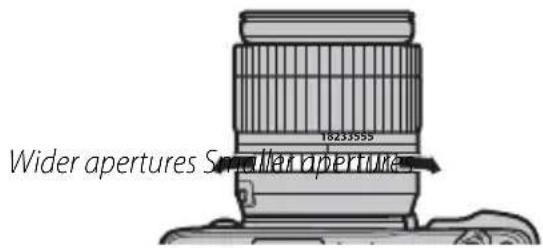

Aperture

For auto aperture control, slide the aperture mode switch to A.

To adjust aperture manually, slide the switch to ⚙ and rotate the aperture ring. Rotate the ring left for wider apertures (lower f-numbers), right for smaller apertures (higher f-numbers).

Wider apertures Smaller apertures

Specifications

Type XF10-24mmF4 R OIS XF18-55mmF2.8-4 R LM OIS XF55-200mmF3.5-4.8 R LM OIS
Lens construction 14 elements in 10 groups(includes 4 aspherical and 4 extra low dispersion elements)		14 elements in 10 groups(includes 3 aspherical and 1 extra low dispersion elements)	14 elements in 10 groups(includes 1 aspherical and 2 extra low dispersion elements)
Focal length (35 mm format equivalent)	f=10-24 mm (15-36 mm)	f=18-55 mm (27-84 mm)	f=55-200mm (84-305 mm)
Angle of view	110°-61.2°	76.5°-29°	29°-8.1°
Max. aperture f/4 f/2.8-4.0	f/3.5-4.8
Min. aperture	f/22	f/22	f/22
Aperture controlNumber of bladesStop size	7 (rounded diaphragm opening)1⁄3 EV (16 stops)	7 (rounded diaphragm opening)1⁄3 EV (19 stops)	7 (rounded diaphragm opening)1⁄3 EV (17 stops)
Focus range	Normal: 0.5 m-infinity (zoom range)Macro: 24 cm	Normal: 0.6 m-infinity (zoom range)Macro: 30 cm-10 m (W);40 cm-10 m (T)	Normal: 1.1 m-infinity (zoom range)Macro: 1.1 m-3.0 m
Max. magnification	T:0.16×	T:0.15×	T:0.18×
External dimensions: Diameter × Length*(approx.)* distance from camera lens mount flange	∅78.0×87.0 mm	W:ø65.0×70.4mmT:ø65.0×97.9 mm	W:ø75.0×118 mmT:ø75.0×17.7 mm
Weight* (approx.)* excluding caps and hoods	410 g	310 g	580 g
Filter size	∅72 mm	∅58 mm	∅62 mm

① Improvements may result in unannounced changes to specifications and appearance.
① Owing to how this lens is constructed, the "Distance indicator" displayed by the camera may in some cases differ from the actual focus distance. Use the "Distance indicator" as a guide only.

EN-8 ENGLISH

Pour votre sécurité

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens assembly with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Technical illustration of a mechanical component with a numbered callout (10), showing internal structure without any text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

Technical diagram showing two mechanical components with numbered parts and directional arrows indicating rotation or movement.

Diagram illustrating camera lens adjustment process, showing two stages of lens positioning with numbered annotations.

Accessoires fournis

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens assembly with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Technical illustration of a mechanical component with a numbered callout (10), showing internal gear-like structure without any text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

Diagram illustrating camera lens adjustment process with numbered parts and rotation arrows

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens assembly with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Technical illustration of a mechanical component with a numbered callout (10), showing internal structure without any text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

Diagram of a camera lens assembly with numbered parts and directional arrows indicating components

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

Diagram illustrating camera lens adjustment process, showing left and right views with numbered annotations

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens assembly with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Close-up of a mechanical component with a numbered callout (10), showing internal gear-like structure without any readable text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

① Zonnekap
② Bevestigingsmarkeringen
③ Scherpstelring
④ Zoomring
⑤ Diafragmaring
⑥ Bevestigingsmarkeringen (brandpuntsafstand)
⑦ O.I.S.-knop
⑧ Diafragmamodusknop
⑨ Lenssignaalcontacten
⑩ Voorste lensdop
⑪ Achterste lensdop

Een lens bevestigen

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force directions.

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

De zonnekap bevestigen

Diagram illustrating camera lens adjustment process, showing before and after states with numbered annotations

Meegeleverde accessoires

• Voorste lensdop
• Achterste lensdop
  • Zonnekap
• Omslagdoek

NL-6 NEDERLANDS

Zoom

Optical Image Stabilization (OIS)

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Close-up of a mechanical component with a numbered callout (10), showing internal structure without any readable text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

Diagram of a camera lens assembly with numbered parts and directional arrows indicating components

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

Diagram illustrating camera lens adjustment process, showing before and after states with numbered annotations

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Technical illustration of a mechanical component with a numbered callout (10), showing internal structure without any text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

① Solblender
② Monteringsmerker
③ Fokusring
④ Zoomring
⑤ Blenderring
⑥ Monteringsmerker (brennvidde)
⑦ O.I.S.-bryter
⑧ Bryter for blenderåpningsfunksjon
⑨ Objektivets signalkontakter
⑩ Fremre objektivdeksel
⑪ Bakre objektivdeksel

NORSK

NO-5

Feste linsen

Diagram showing mechanical components with numbered parts and directional arrows indicating motion or assembly.

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

Diagram illustrating camera lens adjustment with numbered parts and rotation indicators

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Close-up of a mechanical component with a numbered callout (10), showing internal threading and layered structure (no text or symbols)

Technical line drawing of a camera lens with no visible text or symbols

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force directions.

Diagram of a mechanical component with numbered parts and directional arrow indicating rotation or movement

Diagram illustrating camera lens adjustment process with numbered parts and rotation indicators

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Technical illustration of a mechanical component with a numbered callout (10), showing internal structure without any text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

Установка бленды

Diagram illustrating camera lens adjustment process, showing before and after states with numbered annotations

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens assembly with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Technical illustration of a mechanical component with a numbered callout (10), showing internal gear-like structure without any text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

Diagram of a camera lens assembly with numbered parts and directional arrows indicating components

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

Montaggio paraluce

Diagram illustrating camera lens adjustment process, showing eye and lens assembly with numbered parts and rotation indicators

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens assembly with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Technical diagram of a mechanical component with a numbered callout (10), showing internal gear-like structure without any text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

Diagram showing a mechanical component with numbered parts and directional arrows indicating motion or force directions.

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

Diagram illustrating camera lens adjustment process, showing before and after states with numbered annotations

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens assembly with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Technical diagram of a mechanical component with a numbered callout (10), showing internal gear-like structure without any text or symbols.

Technical line drawing of a camera lens with no visible text or symbols

Diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

Diagram illustrating camera lens adjustment process, showing left and right views with numbered annotations

Dołączone akcesoria

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Close-up of a camera lens with a numbered callout (10) pointing to the aperture (no text or symbols on the lens itself)

Technical line drawing of a camera lens with no visible text or symbols

Diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

安装遮光罩

Diagram illustrating camera lens adjustment with numbered parts and rotation indicators

附带配件

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Technical diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Close-up of a camera lens with a numbered callout (10) pointing to the aperture (no text or symbols on the lens itself)

Technical line drawing of a camera lens with no visible text or symbols

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or force directions.

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

安裝遮光罩

Diagram illustrating camera lens adjustment process with numbered parts and rotation indicators

隨附配件

http://www.fujifilm.com/support/digital_cameras/software/#firmware

Labeled diagram of a camera lens with numbered parts for identification

Labeled diagram of a camera lens assembly with numbered parts for identification

XF55-200mmF3.5-4.8 R LM OIS

Technical diagram of a camera lens with numbered parts for identification

Cross-sectional diagram of a mechanical component with numbered callout (10), no visible text or symbols

Close-up of a camera lens assembly with a numbered callout (11), no visible text or symbols beyond the number.

Diagram showing a mechanical component with numbered parts and directional arrows indicating motion or force directions.

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

후드부착

Diagram illustrating camera lens adjustment process, showing eye and lens assembly with numbered components

제공되는 액세서리

User to prepare 18235555

Diagram illustrating camera lens adjustment with numbered parts and directional arrows indicating movement or positioning.

الإكسسوارات المرفقة

تركيب العدسة

Diagram of a camera lens with labeled parts and directional arrow indicating rotation or movement

Technical diagram of a camera lens with numbered parts for identification

XF10-24mmF4 ROISXF18-55n

XF10-24mmF4 R OISXF ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨
