Technical Specifications	2-way column speaker, 6.5 inches, 1 inch aluminum tweeter
Rated Power	100 Watts RMS, 400 Watts peak
Frequency Response	38 Hz - 21 kHz
Impedance	8 Ohms
Dimensions	1000 mm x 200 mm x 300 mm
Weight	15 kg
Recommended Use	Ideal for home theater systems and music
Maintenance	Clean with a soft cloth, avoid excessive moisture
Safety	Avoid strong shocks, do not expose to extreme temperatures
General Information	Compatible with low to medium power amplifiers

Frequently Asked Questions - Reference R610F KLIPSCH

How do I connect the KLIPSCH Reference R610F to my amplifier?

Use speaker cables to connect your amplifier terminals to the speaker terminals. Make sure to respect the polarity (+ and -) when connecting.

What are the dimensions of the KLIPSCH Reference R610F?

The dimensions of the KLIPSCH Reference R610F are 32.7 cm height, 20.9 cm width, and 31.8 cm depth.

What type of cables should I use for the speakers?

It is recommended to use quality speaker cables, at least 16 AWG, to ensure good signal transmission.

My KLIPSCH Reference R610F speaker produces no sound, what should I do?

Check that the cables are properly connected and that your amplifier is turned on. Also ensure that the audio source is correctly selected.

How do I adjust my speaker settings for better sound?

Use an equalizer if available on your amplifier to adjust bass, midrange, and treble according to your preferences. Also position the speakers at an appropriate distance from walls to avoid unwanted resonances.

Is the KLIPSCH Reference R610F compatible with a wireless audio system?

The KLIPSCH Reference R610F is a wired speaker. For wireless use, you will need a compatible wireless transmitter/receiver to connect your amplifier.

How do I clean my KLIPSCH Reference R610F speakers?

Use a soft, dry cloth to wipe the surface of the speakers. Avoid harsh chemicals that could damage the finish.

What is the rated power of the KLIPSCH Reference R610F?

The rated power of the KLIPSCH Reference R610F is 100 watts, with a peak power of 400 watts.

Where should I place my speakers for optimal sound?

Place the speakers at ear level, away from walls, and orient them towards the listening area for a better sound experience.

What should I do if one speaker does not work while the other does?

Check the connections of the non-working speaker, test it with another cable or amplifier to identify if the problem is with the speaker or the audio system.

USER MANUAL Reference R610F KLIPSCH

1) the standard, the benchmark, the point used for comparison
2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound. Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection. Experience the power, detail and emotion of Klipsch Reference. We are the Keepers of the Sound.

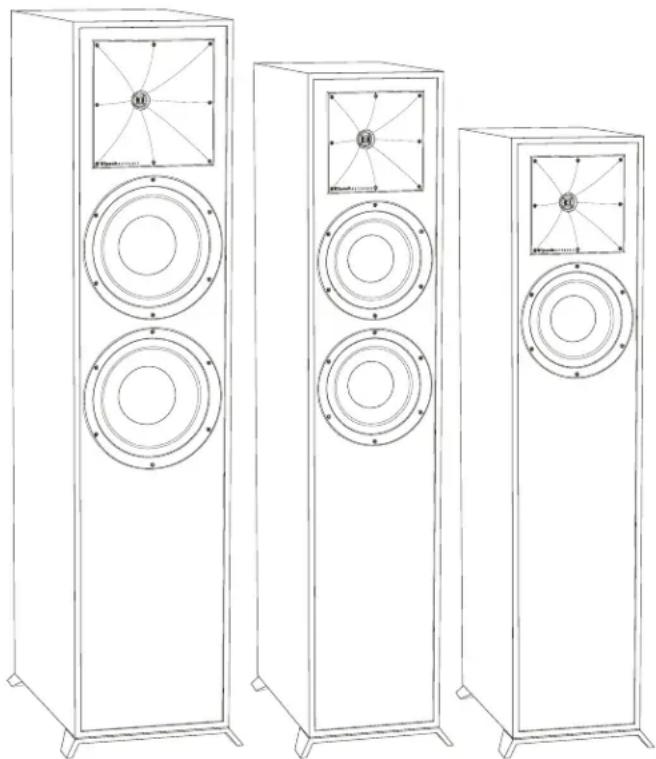

REFERENCE SPEAKERS

R-620F

R-610FR-820F

R-51M

R-41M

R-52C

R-34C

DOLBY ATMOS

R-41SA

R-625FA

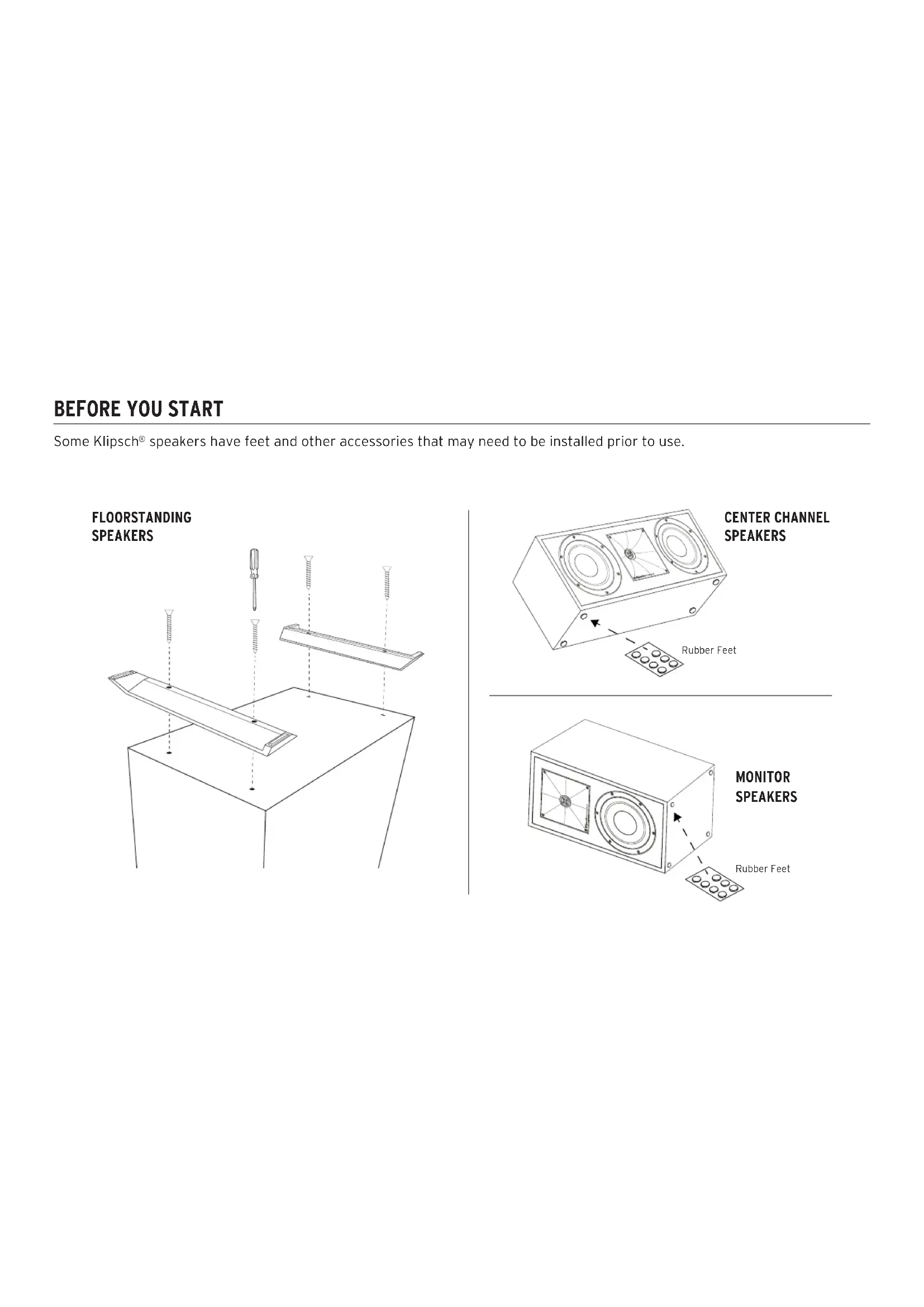

BEFORE YOU START

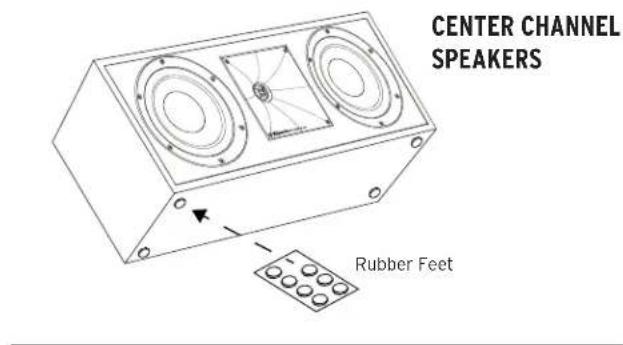

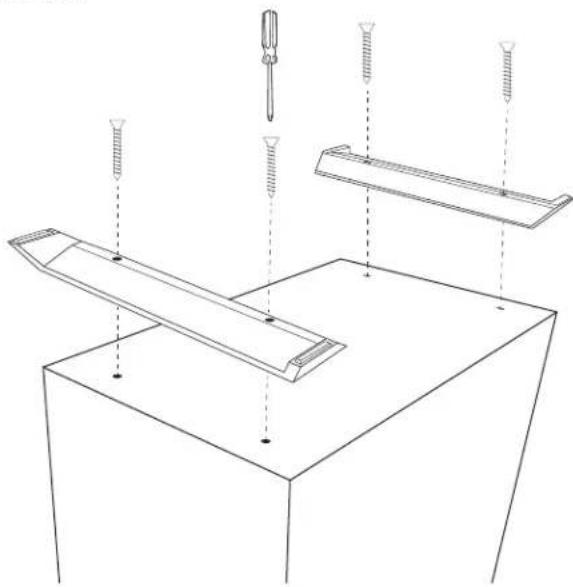

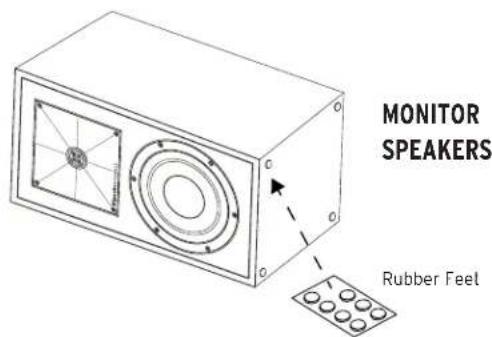

Some Klipsch® speakers have feet and other accessories that may need to be installed prior to use.

FLOORSTANDING SPEAKERS

ROOM PLACEMENT CONNECTION

Left and Right Main Channel Speakers - For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m ) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

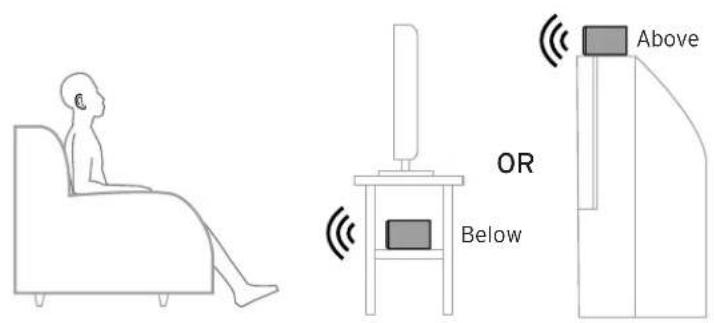

Center Channel Speakers - Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers - Klipsch surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

Conventional Connection - Using 16-12 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel.

Repeat the above procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Some Klipsch Reference speakers come with dual binding posts that are connected by a metal strip. Do not remove this strip or your speakers will not function correctly. Keep this strip in place and connect your speaker wire to the top set of the binding posts. It is possible to "Bi-wire" a speaker that has two sets of binding posts. Please see your receiver's manual for further instructions.

Amplifier Requirements - Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

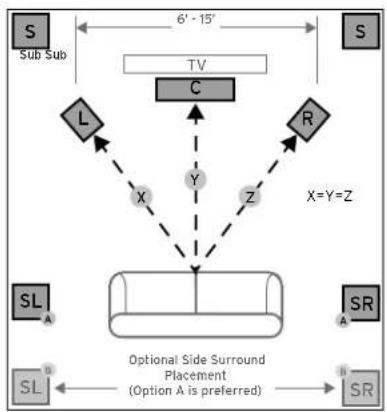

FIGURE 1
SPEAKER PLACEMENT IN LISTENING AREA

FIGURE 2
CENTER CHANNEL

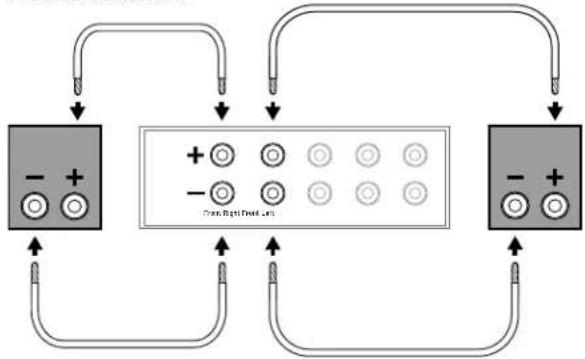

FIGURE 3
STANDARD CONNECTIONS

for ceiling mounting!

10 or 12
2.5" - 3" panhead wood screws
Mount in wall stud or use anchors
leave 1/4" exposed

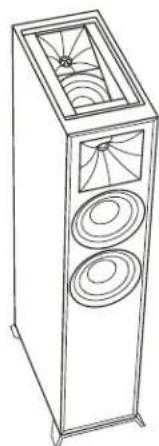

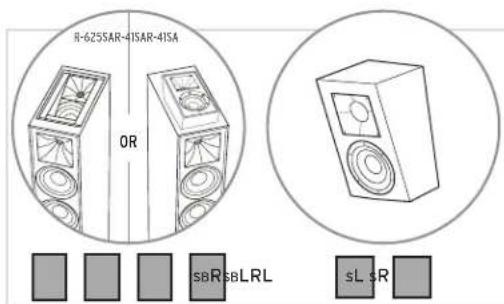

REFERENCE WITH DOLBY ATMOS® TECHNOLOGY

R-41SAR-625FA

MANDATORY

SECONDARY

OPTIONAL

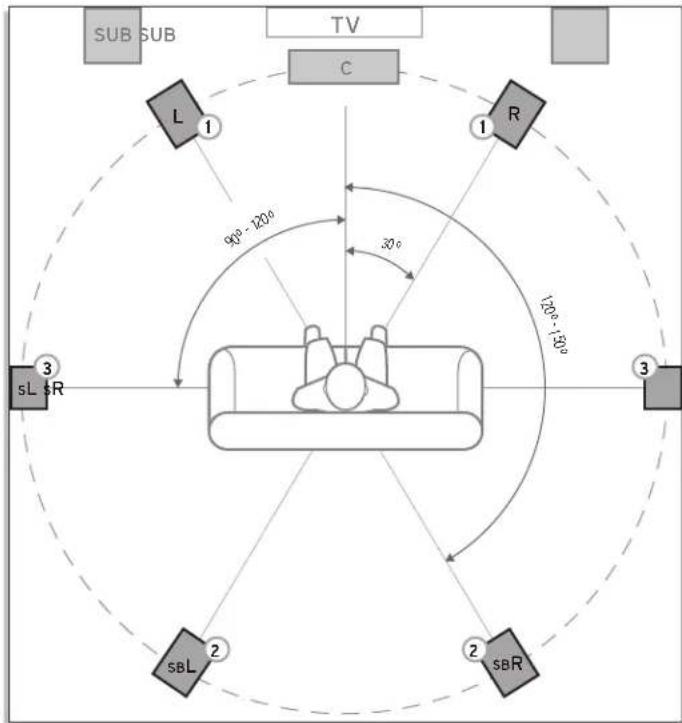

SPEAKER PLACEMENT IN LISTENING AREA

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes. Please retain your receipt for warranty claims.

REFERENCE

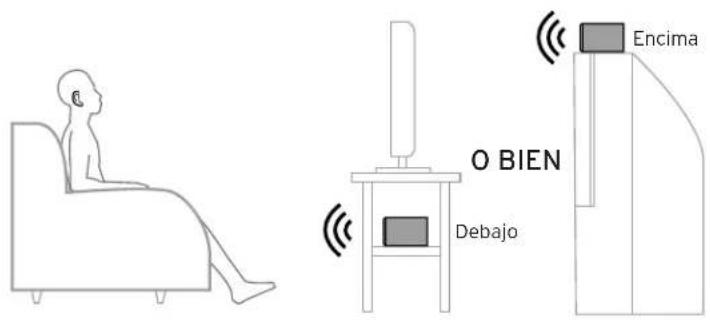

FIGURA 2
CANAL CENTRAL

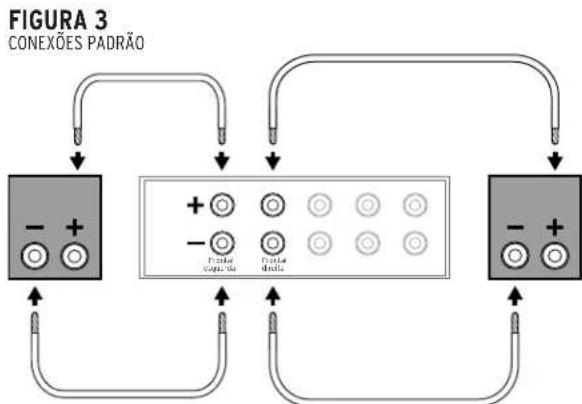

FIGURA 3
CONEXIONES ESTANDAR

FIGURA 4
MONTAJE DE LOS ALTAVOCES SURROUND EN LA PARED

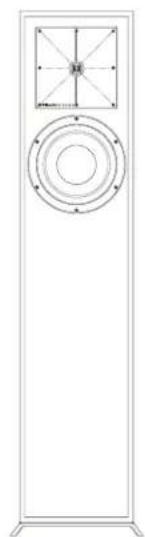

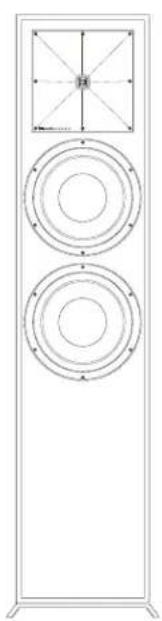

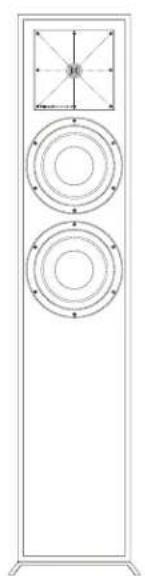

CAIXAS ACUSTICAS REFERENCE

R-620F

R-610FR-820F

R-51M

R-41M

R-52C

R-34C

DOLBY ATMOS

R-41SA

R-625FA

ANTES DE COMEÇAR

FIGURA 2 CANAL CENTRAL

FIGURA 4 INSTALAÇÃO DAS CAIXAS ACUSTICAS SURROUND EM PAREDE

a 1 a a a a a a a a a a a a a a a a a a a a a a a a a
