Groove XXL - Speaker KLIPSCH - Free user manual and instructions

Product Type	Portable wireless speaker
Power supply	Built-in rechargeable lithium-ion battery and AC adapter (international adapters included)
Power	Not specified in the manual
Connectivity	Bluetooth (not specified in the manual but typical for this model)
Operating temperature	Up to 35 °C (95 °F)
Maintenance	Clean with a dry cloth
Safety	Do not expose to water, do not block ventilation openings, do not open the casing
Included accessories	International AC adapters, power cord
User-replaceable parts	None (built-in non-removable battery)
Repairability	Refer all servicing to qualified personnel
Electrical compatibility	AC power supply conforming to the values indicated on the back
Compliance standards	CE, FCC Class B, IC, RoHS, WEEE
Battery	Lithium-ion, do not expose to excessive heat, do not incinerate

Frequently Asked Questions - Groove XXL KLIPSCH

How to connect the Klipsch Groove XXL via Bluetooth?

Turn on the speaker, enable Bluetooth on your device, select 'Klipsch Groove XXL' from the list of available devices. The PIN is usually 0000 if prompted.

What is the battery life?

Battery life is not specified in the manual, but for a speaker in this category, it is typically 8 to 12 hours depending on volume.

How to recharge the speaker?

Use the supplied AC adapter and USB cable (or power cord) to plug the speaker into a wall outlet. The charging indicator usually lights up.

Can I use the Groove XXL plugged into the mains without battery?

Yes, you can use it plugged into the mains even if the battery is dead.

How to clean the speaker?

Use a soft, dry cloth. Do not use chemical or abrasive products. Clean the grilles carefully.

What to do if the sound is distorted or low?

Check the volume on your device and the speaker, make sure the battery is fully charged and that nothing is blocking the speakers.

Is the speaker waterproof?

No, the manual advises against use near water. Do not expose it to rain or moisture.

Can I use standard batteries?

No, the speaker uses a built-in non-removable lithium-ion battery. Do not attempt to replace it yourself.

How to reset the speaker?

The manual does not mention a specific reset. Try turning the device off and on again, or unplugging it for a few minutes.

Where to find the serial number of my Groove XXL?

The serial number is usually located under the speaker or on the packaging. Check the back or bottom of the device.

USER MANUAL Groove XXL KLIPSCH

ESTABLISHED 1946 • USA Klipsch EXCEPTIONAL QUALITY

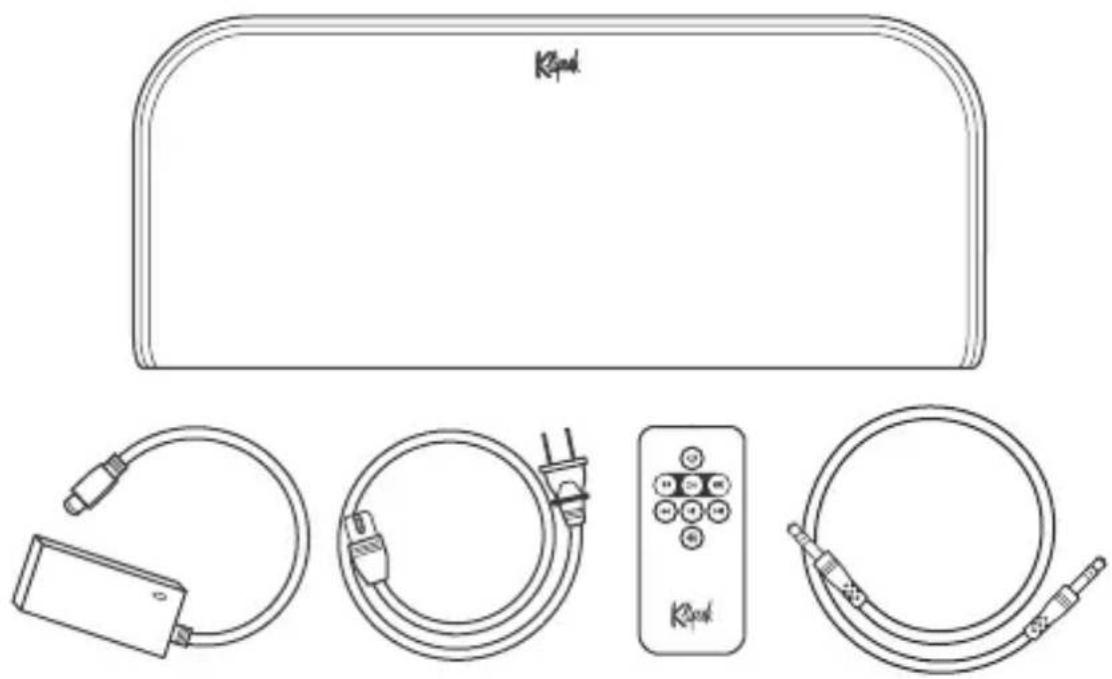

INSIDE

CONTENU • CONTENIDO • INHALT • CONTENUTO • CONTEÚDO • 目录 • 同梱品

International Adapters Included.

ON/OFF VolumBluetooth® Source Select Source Select Down Volume Up

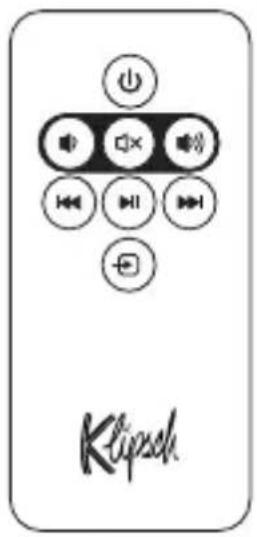

Klipsch

ON / OFF

VOLUME DOWN

MUTE

VOLUME UP

PREVIOUS

(Bluetooth mode only)

PLAY / PAUSE

(Bluetooth mode only)

NEXT

(Bluetooth mode only)

SOURCE SELECT

ON / OFFSous tensio w / Hors tensionEncendido / ApagadoEin / AusAcceso / SpentoLigar / Desligar开/关電源オン/オフ

SourceSelectSélection de la sourceSelección de fuenteQuellenwahlSelezione segnaleSeleção de fonte源选择入力選択

Volume DownVolume basBajada de volumenLeiserRiduzione volumeDiminuir o volume音量减小音量ダウン

Volume UpVolume hautSubida de volumenLauterAumento volumeAumentar o volume音量増大音量アップ

Bluetooth® SourceSelect	Play / Pause	Previous	Next
Sélection de la source Bluetooth®	Lecture/pause	Précédent	Suivant
Selección de fuente Bluetooth®	Reproducción/pausa	Anterior	Siguiente
Bluetooth® Quellenwahl	Wiedergabe/Pause	Bisherige	Nächster
Selezione segnale Bluetooth®	Riproduzione / Pausa	Precedente	Il prossimo
Seleção de fonte Bluetooth®	Reproduzir/Pausar	Anterior	Próximo
蓝牙®源选择	播放/暂停	以前	下一个
Bluetooth 入力選択	再生/停止	前	次

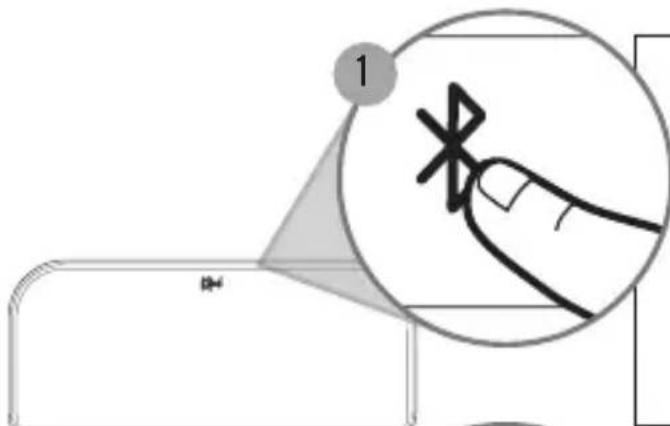

BLUETOOTH® WIRELESS TECHNOLOGY

TECNOLOGÍA INALÁMBRICA BLUETOOTH® • CONFIGURACIÓN DE TECNOLOGIA WIRELESS BLUETOOTH® • DRAHTLOSE BLUETOOTH®-TECHNOLOGIE-SETUP • CONFIGURAZIONE TECNOLOGIA WIRELESSBLUETOOTH® • CONFIGURAÇÃO DE TECNOLOGIA SEM FIO BLUETOOTH® • BLUETOOTH® 蓝牙无线电技术 • BLUETOOTH® ワイヤレス技術

1 ¥

Hold 3 Seconds

Appuyer pendant 3 secondes Mantenga oprimido durante 3 segundos 3 Sekunden gedrückt halten Tenere premuto per 3 secondi Manter pressionado por 3 segundos

长按 3 秒 3秒間押します

2

Flashing

Clignotant Destello Blinkt Lampeggiante Intermitente

闪烁点滅

* Example only. Your device may differ.

- À titre d'exemple seulement. Votre appareil peut être différent. - Este es solo un ejemplo. Es posible que su dispositivo sea diferente. - Nur als Beispiel. Ihr Gerät kann anders aussehen - Solo a titolo esemplificativo. Lo specifico dispositivo può essere diverso. - Apenas para exemplo. O dispositivo pode ser diferente. - 仅为示例。实际设备可能有所不同

・例のみ：デバイスによって異なります

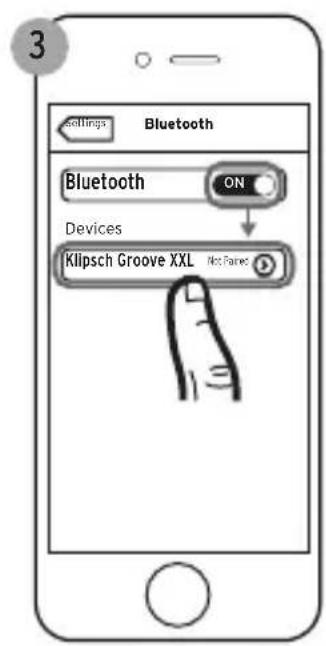

3 Settings Bluetooth Bluetooth ON Devices Kilipsch Groove XXL No. Fairee

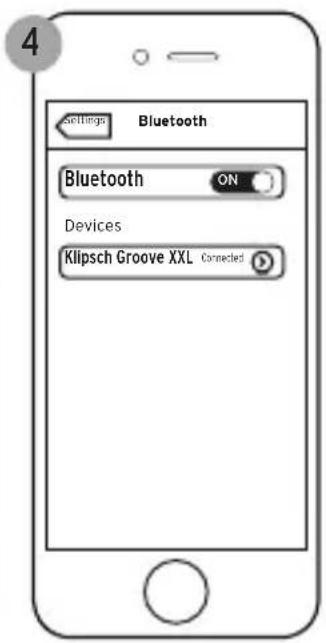

Settings Bluetooth Bluetooth ON Devices Klipsch Groove XXL Connected

5

Solid Continu Continuo Dauerhaft Luce fissa Constante 常亮 点灯

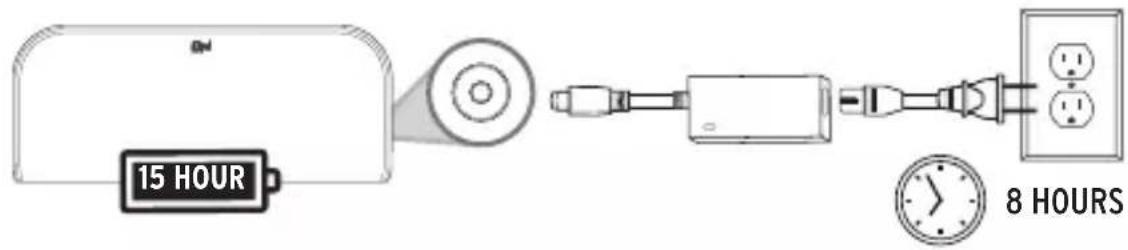

BATTERY CHARGE

CHARGE BATTERIE • CARGA DE LA PILA • AKKULADESTAND • CARICA BATTERIA • CARGA DA BATERIA • 电池充电 • チャージ

15 HOUR 8 HOURS

USB AUDIO

Diagram showing a device with a rectangular panel and a USB flash drive (no text or symbols)

MP3	√
WMA	X
AAC	X

WAV	√
AIFF	X
FLAC	X

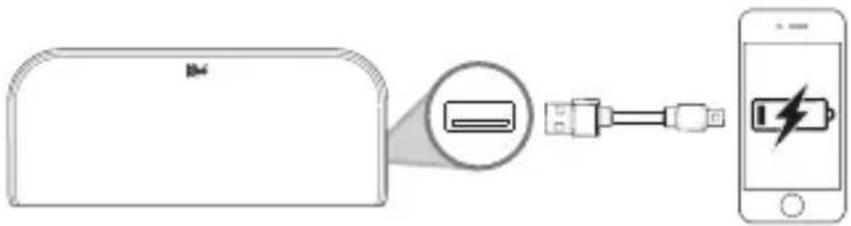

USB CHARGING

CHARGE USB • CARGA USB • USB-AUFLADUNG • RICARICA USB • CARREGAMENTO USB • USB充电 • USB充電

Diagram showing a smartphone connected to a battery via a USB cable, illustrating the connection and charging mechanism.

AUX IN


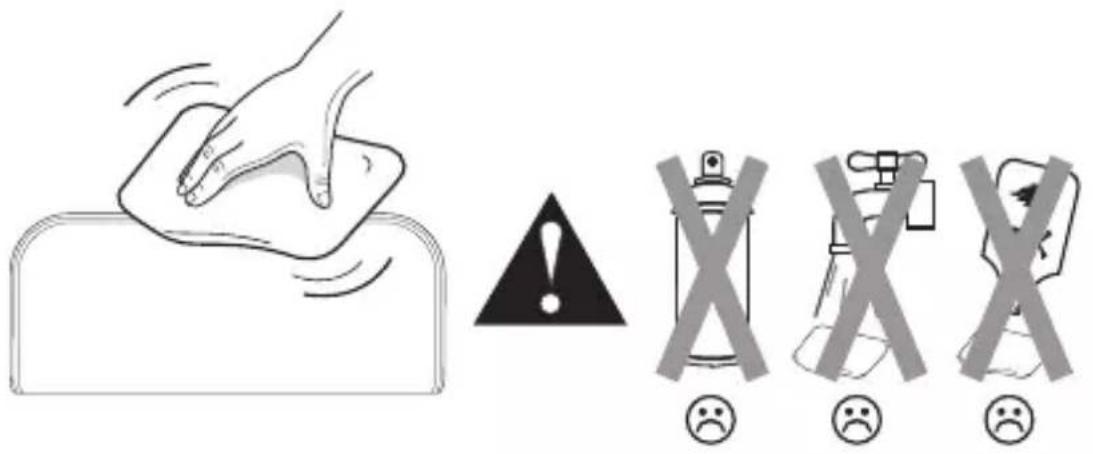

CARE AND CLEANING

ENTRETIEN ET NETTOYAGE • CUIDADO Y LIMPIEZA • PFLEGE UND REINIGUNG • CURA E PULIZIA • CUIDADOS E LIMPEZA • 保养与清洁 • お手入れ

Safety warning illustration showing hand pressing a blanket with warning symbols and three crossed-out spray cans below, each labeled with a negative symptom.

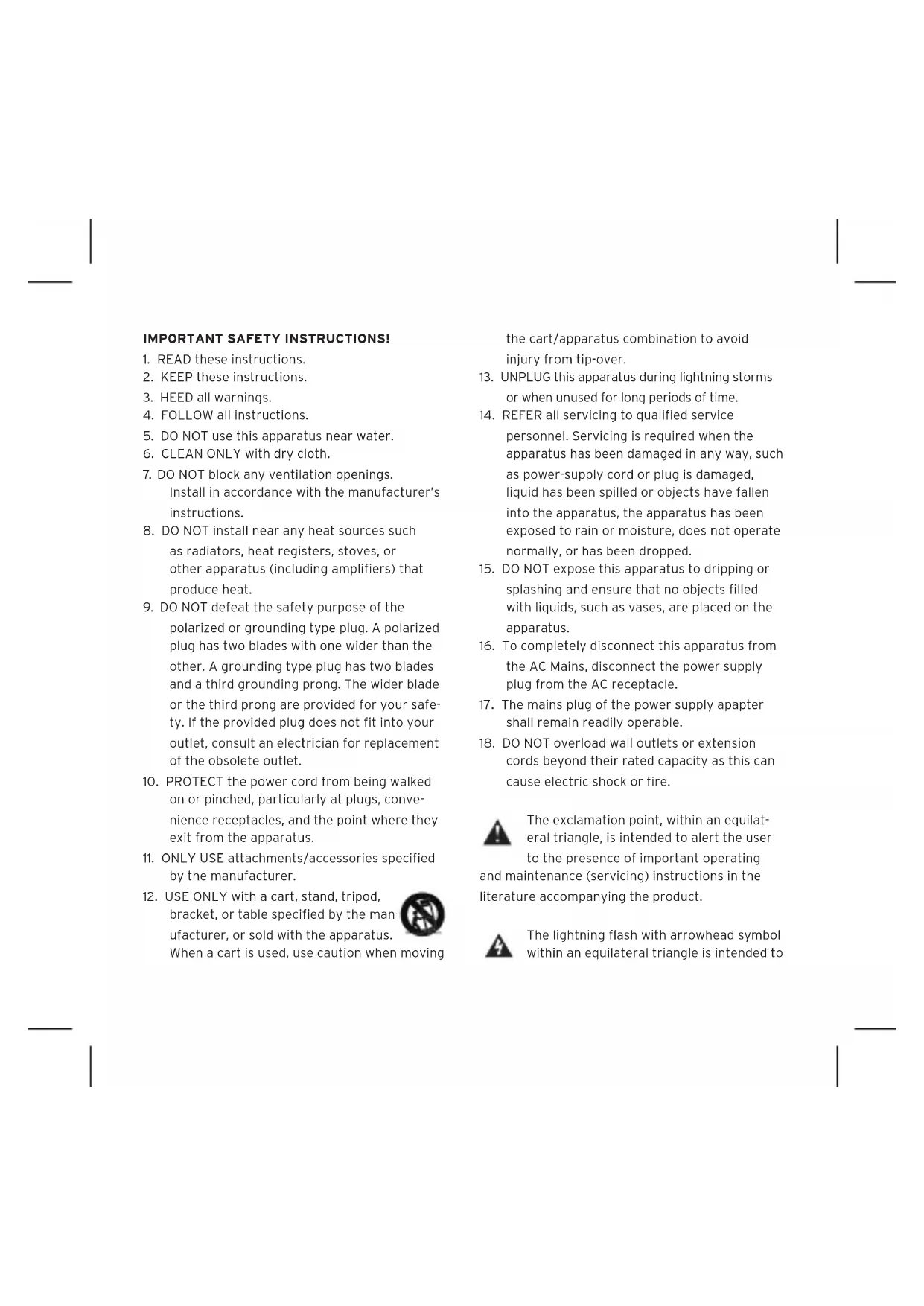

IMPORTANT SAFETY INSTRUCTIONS!

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE ONLY with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving

the cart/apparatus combination to avoid injury from tip-over.

1. UNPLUG this apparatus during lightning storms or when unused for long periods of time.

2. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.

4. To completely disconnect this apparatus from the AC Mains, disconnect the power supply plug from the AC receptacle.

5. The mains plug of the power supply adapter shall remain readily operable.

6. DO NOT overload wall outlets or extension cords beyond their rated capacity as this can cause electric shock or fire.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to

alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked flame sources - such as candles - should be placed on the product.

THIS PRODUCT USES LITHIUM-ION BATTERIES. IF MISUSED OR ABUSED THIS CAN RESULT IN:

1. Smoke or gas hazard
2. Heat hazard
3. Fire hazard
4. Explosion hazard

WARNING: Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: Risk of leakage. Only use the specified type of batteries. Never mix new and used batteries.

Observe correct polarity. Remove batteries from products that are not in use for extended periods of time. Store batteries in a dry place.

WARNING: Do not handle leaking or damage Lithium batteries.

WARNING: Danger of explosion if battery is

incorrectly replaced. Replace only with the same or equivalent type.

WARNING: Do not place batteries in mouth or ingest. Keep out of reach of children and pets.

WARNING: Do not recharge non-rechargeable batteries.

WARNING: Operating temperature between 32°F/0°C and 95°F/35°C

Please dispose of any used batteries properly, following any local regulations. Do not incinerate.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

Place the equipment near a main power supply outlet and make sure that you can easily access the power breaker switch.

CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. ATTENTION: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

In Singapore, please only use the provided 3-pin detachable plug adapter to charge or power the product.

WARNING: This product is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply of the product. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the products warranty. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate. If the product is equipped with a detachable power cord, use only the type provided with your product or by your local distributor and/or retailer. If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer.

CE

EU COMPLIANCE INFORMATION

Eligible to bear the CE mark; Conforms to European Union Low Voltage Directive 2006/95/EC; European Union EMC Directive 2004/108/EC; European Union WEEE Directive 2002/96/EC; European Union Eco-Design Directive 2009/125/EC; European Union Radio and Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EC;

This product contains batteries that are covered under the 2006/66/EC European Directive, which cannot be disposed of with normal household waste. Please follow local regulations.

You may obtain a free copy of the Declaration of Conformity by contacting your dealer, distributor, or Klipsch Group, Inc.'s worldwide headquarters. Contact information can be found here: http://www.klipsch.com/Contact-Us

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste of electrical and electronic

equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

CONSIGNES DE SÉCURITÉ IMPORTANTES !

RISQUED'ÉLECTROCUTION NE PAS OUVRIR

CE INFORMATIONS DE CONFORMITÉ UE

INFORMATIONS DE CONFORMITÉ FCC ET CEM CANADA

This Class B digital apparatus complies with Canadian ICES-003.

Eligible to bear the CE mark; Conforms to European Union Low Voltage Directive 2006/95/EC; European Union EMC Directive 2004/108/EC; European Union WEEE Directive 2002/96/EC; European Union Eco-Design Directive 2009/125/EC; European Union Radio and Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EC;

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

R

210-149645

©2022, Klipsch Group, Inc. Klipsch Group, Inc. is a wholly-owned subsidiary of Voxx International Corporation. Klipsch and Keepers of the Sound are trademarks of Klipsch Group, Inc., registered in the United States and other countries. The Bluetooth® word mark is a registered trademark owned by Bluetooth SIG, Inc. and any use of such mark by Klipsch Group, Inc. is under license.

V03-220907
