Product Type	Wireless Speaker
Brand	Klipsch
Model	Nashville
Power Source	Mains (power adapter) and built-in rechargeable lithium-ion battery
Operating Temperature	Up to 35 °C
Connectivity	Bluetooth, auxiliary input, USB port
Controls	Power button (long press 3 s), function buttons (short press)
Battery	Lithium-ion, rechargeable, non-user replaceable
Battery Life	Approximately 8 hours (estimated)
Dimensions (approx.)	25 x 15 x 15 cm
Weight (approx.)	2 kg
Care and Cleaning	Clean with a dry cloth only
Safety	Do not expose to water, do not block ventilation grilles, do not open (risk of electric shock), keep out of reach of children
Standards	CE, FCC Class B, IC, WEEE compliance
Spare Parts and Repairability	No user-replaceable parts; repair by authorized professional

Frequently Asked Questions - Nashville KLIPSCH

How to turn on and off the Klipsch Nashville speaker?

To turn on, press the power button for 3 seconds. To turn off, press again for 3 seconds.

What type of battery does the Klipsch Nashville use?

It uses a built-in rechargeable lithium-ion battery. Do not attempt to replace it yourself.

How to connect my phone via Bluetooth?

Enable Bluetooth on your device, select 'Klipsch Nashville' from the list of devices. The speaker connects automatically.

Can I use the speaker while it is charging?

Yes, you can use the speaker while plugged into the mains. The battery charges simultaneously.

What to do if the speaker is unresponsive?

Try resetting it by turning the device off and on. If the problem persists, contact customer support.

Is the speaker waterproof?

No, it is not waterproof. Avoid any contact with water and liquids.

How to clean the Klipsch Nashville?

Use a dry, soft cloth. Never use chemical or abrasive products.

What is the maximum operating temperature?

The operating temperature must not exceed 35 °C to avoid any risk.

Can I use a different power adapter?

Use only the provided adapter or an adapter with the same specifications to avoid damaging the device.

How to dispose of the product at the end of its life?

Do not throw it away with household waste. Dispose of it at a WEEE collection point or return it to your retailer.

USER MANUAL Nashville KLIPSCH

Two technical line drawings: a rectangular plate with circular patterns and a circular connector (no text or symbols)

Diagram of a device panel with labeled buttons and indicators, including power, battery, minus, and plus signs.

ON / OFFSous tensio w / Hors tensionEncendido / ApagadoEin / AusAcceso / SpentoLigar / Desligar开/关電源オン/オフ開/關전원

Bluetooth®Bluetooth®Bluetooth®Bluetooth®Bluetooth®Bluetooth®蓝牙®Bluetooth®蓝牙블루투스

Volume DownVolume basBajada de volumenLeiserRiduzione volumeDiminuir o volume音量减小音量ダウン降低音量음량 감소

Volume UpVolume hautSubida de volumenLauterAumento volumeAumentar o volume音量增大音量アップ提高音量음량 증가

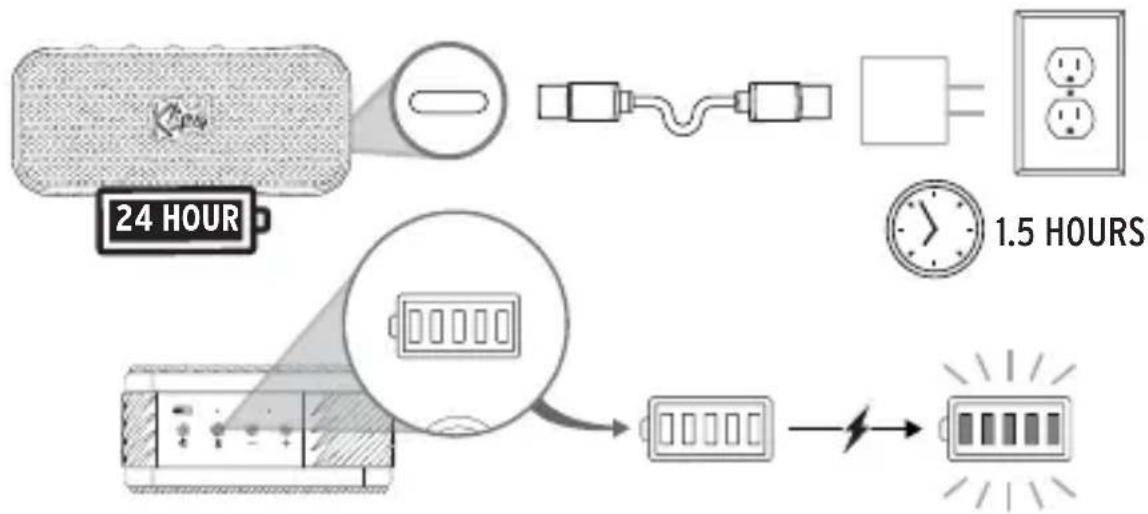

BATTERY CHARGE

CHARGE BATTERIE • CARGA DE LA PILA • AKKULADESTAND • CARICA BATTERIA • CARGA DA BATERIA • 电池充电 • チャージ • 電池充電 • 배터리 충전


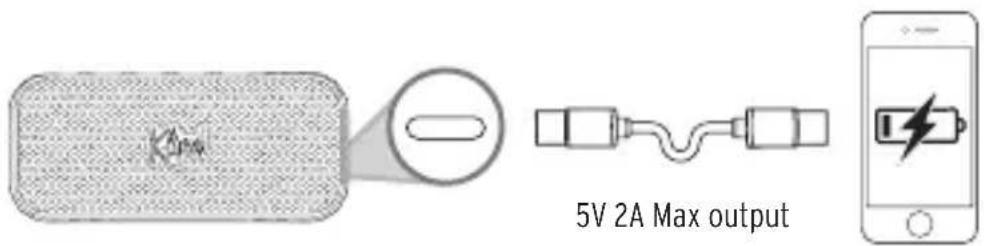

USB REVERSE CHARGING

CHARGE INVERSÉE USB • CARGA INVERSA POR USB • USB-ANSCHLUSS MIT BIDIREKTIONALER LADEFUNKTION • RICARICA INVERSA CON LA PORTA USB-C • CARREGAMENTO REVERSO VIA USB • USB 接口可为其他设备充电 • USB逆充電 • USB 反向充電 • USB 역충전

5V 2A Max output

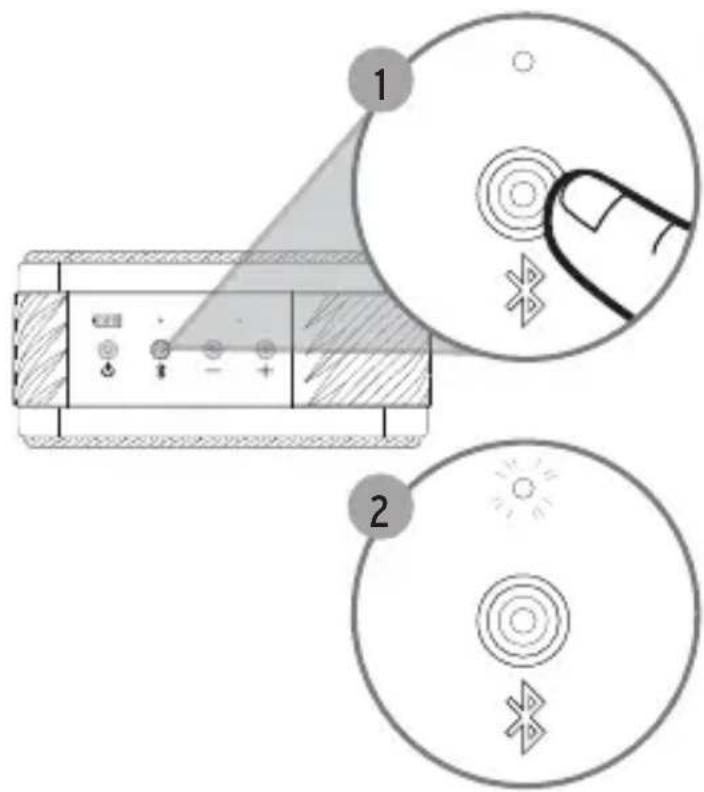

BLUETOOTH® WIRELESS TECHNOLOGY

TECNOLOGÍA INALÁMBRICA BLUETOOTH® • CONFIGURACIÓN DE TECNOLOGIA WIRELESS BLUETOOTH® • DRAHTLOSE BLUETOOTH®-TECHNOLOGIE-SETUP • CONFIGURAZIONE TECNOLOGIA WIRELESSBLUETOOTH® • CONFIGURAÇÃO DE TECNOLOGIA SEM FIO BLUETOOTH® • BLUETOOTH® 蓝牙无线电技术 • BLUETOOTH®ワイヤレス技術 • BLUETOOTH®藍牙無線技術 • BLUETOOTH®무선 기술

Diagram showing two views of a remote control panel with labeled icons and a hand pointing to a CD.

Hold 3 Seconds

\* Example only. Your device may differ.

- À titre d'exemple seulement. Votre appareil peut être différent. • Este es solo un ejemplo. Es posible que su dispositivo sea diferente. • Nur als Beispiel. Ihr Gerät kann anders aussehen • Solo a titolo esemplificativo. Lo specifico dispositivo può essere diverso. • Apenas para exemplo. O dispositivo pode ser diferente. • 仅为示例。实际设备可能有所不同・例のみ: デバイス によって 異 なりま僅供参考。您的設備可能有所不同。• * 예입니다. 제품마다 다를 수 있습니다.

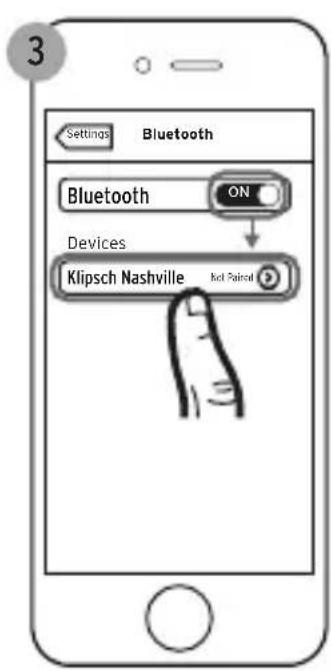

3 Settings Bluetooth Bluetooth ON Devices Klipsch Nashville Not Paired

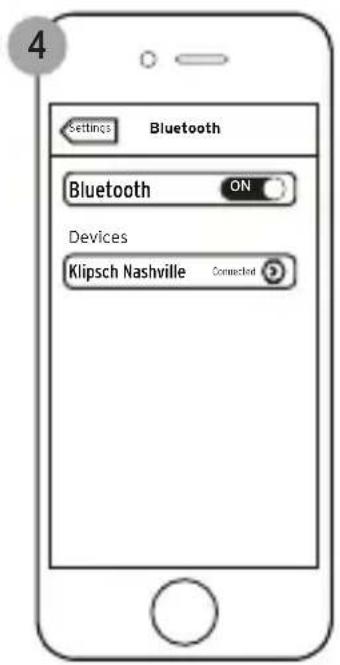

4 Settings Bluetooth Bluetooth ON Devices Klipsch Nashville Connected

Simple circular diagram with concentric circles and a lightning bolt, no text or symbols present

Solid Continu Continuo Dauerhaft Luce fissa Constante 常亮 点灯 堅固 점등

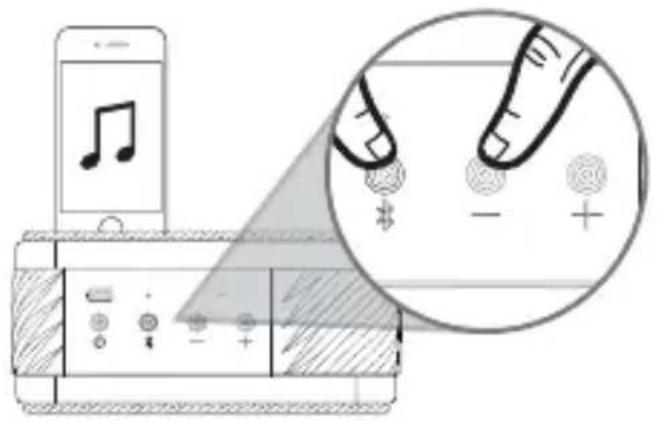

TRUE WIRELESS STEREO PAIRING

VÉRITABLE COUPLAGE STÉRÉO SANS FIL • VERDADERO EMPAREJAMIENTO ESTÉREO INALÁMBRICO • ECHTE KABELLOSE STEREO-KOPPLUNG • VERO ACCOPPIAMENTO STEREO WIRELESS • EMPARELHAMENTO ESTÉREO SEM FIO VERDADEIRO

Diagram illustrating the use of a music device with a magnified view showing finger placement and polarity indicators.

Hold <1 Seconds

Diagram showing a device with musical notes and a magnified view of its finger pressing down on a screen, indicating playback control.

Hold <1 Seconds

Diagram of a device control panel with buttons and indicators (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram of a device control panel with labeled buttons and indicators

L

Pure electrical circuit lines without any symbols

R

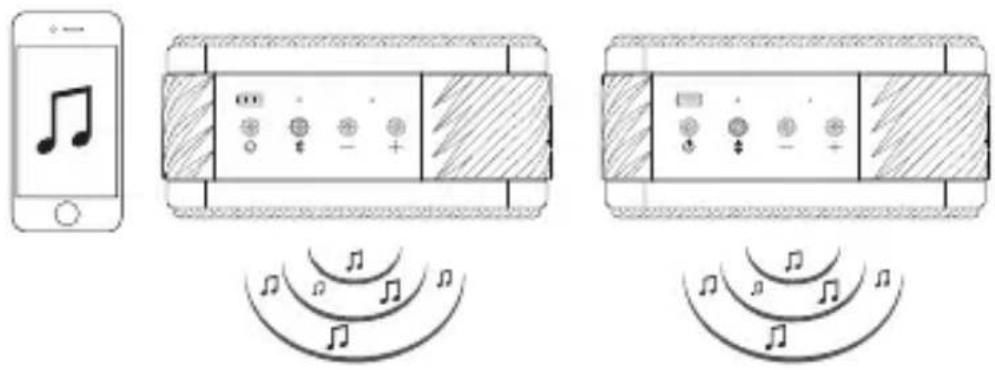

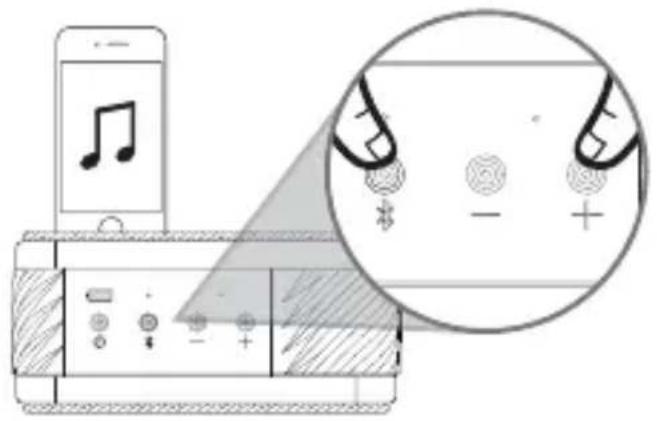

BROADCAST MODE PAIRING

COUPLAGE EN MODE DIFFUSION • VINCULACIÓN EN MODALIDAD DE EMISIÓN • ÜBERTRAGUNGSMODUS-KOPPLUNG • ASSOCIAZIONE IN MODALITÀ BROADCAST • PAREAMENTO PELO MODO BROADCAST • 广播模式配对

Diagram showing a smartphone connected to a device via a device interface, with a magnified circular view highlighting the device's interior components (no text or symbols present)

Hold >1 Seconds

Appuyer pendant >1 secondes

Mantenga oprimido durante >1 segundos

Diagram showing audio device interface with playback controls and a close-up of a device's screen display, including musical notes and plus signs.

Hold >1 Seconds

Appuyer pendant >1 secondes

Mantenga oprimido durante >1 segundos

Diagram of a device control panel with buttons and indicators (no text or symbols)

Pure electrical circuit lines without any symbols

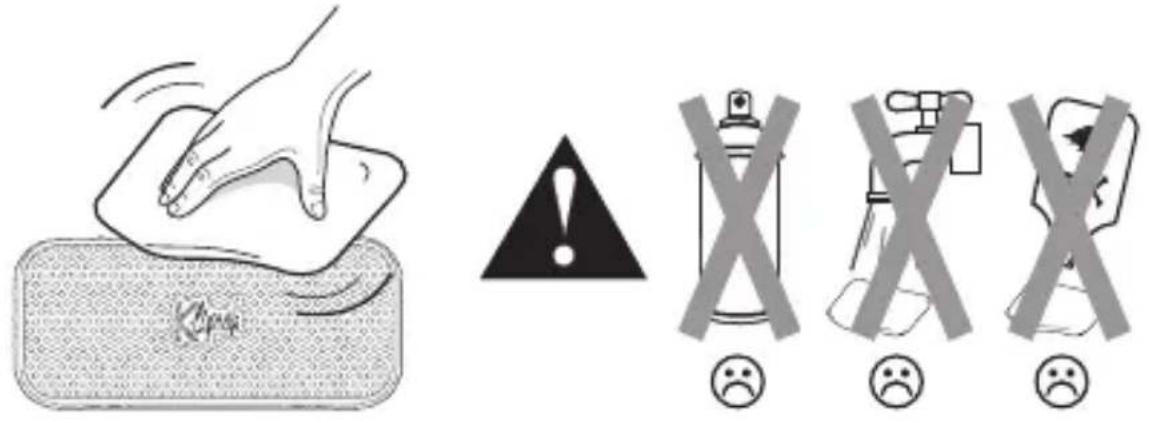

CARE AND CLEANING

ENTRETIEN ET NETTOYAGE • CUIDADO Y LIMPIEZA • PFLEGE UND REINIGUNG • CURA E PULIZIA • CUIDADOS E LIMPEZA • 保养与清洁 • お手入れ • 護理和清潔 • 관리 및 청소

Safety warning illustration showing hand cleaning a device with warning symbols and three crossed-out spray cans below indicating harmful symptoms.

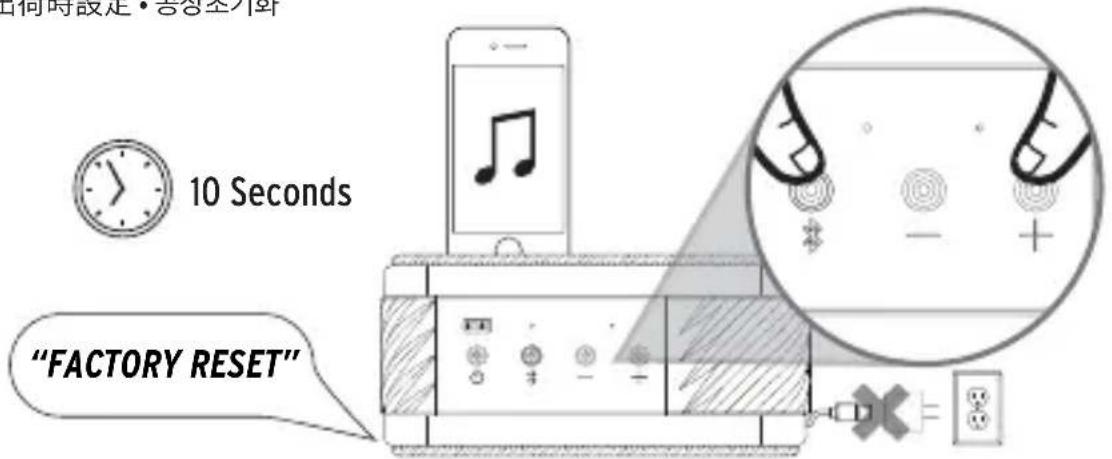

FACTORY RESET

RÉINITIALISATION • RESTABLECIMIENTO DE FÁBRICA • RÜCKSETZUNG AUF WERKSEINSTELLUNG • RIPRISTINO IMPOSTAZIONI DI FABBRICA • RESTABELECIMENTO DAS CONFIGURAÇÕES DE FÁBRICA • 恢复出厂设置

工場出荷時設定·공장초기화

10 Seconds "FACTORY RESET"

INSTALL THE KLIPSCH CONNECT APP

APPLICATION KLIPSCH CONNECT • APLICACIÓN KLIPSCH CONNECT • KLIPSCH CONNECT APP • APP KLIPSCH CONNECT • APLICATIVO KLIPSCH CONNECT • KLIPSCH CONNECT应用 • KLIPSCH CONNECTアプリ • 安装KLIPSCH 連接應用程式 • KLIPSCH CONNECT 앱 설치

Klipschi CONNECT

Getting Started

Product Registration

Virtual Remote Control and EQ

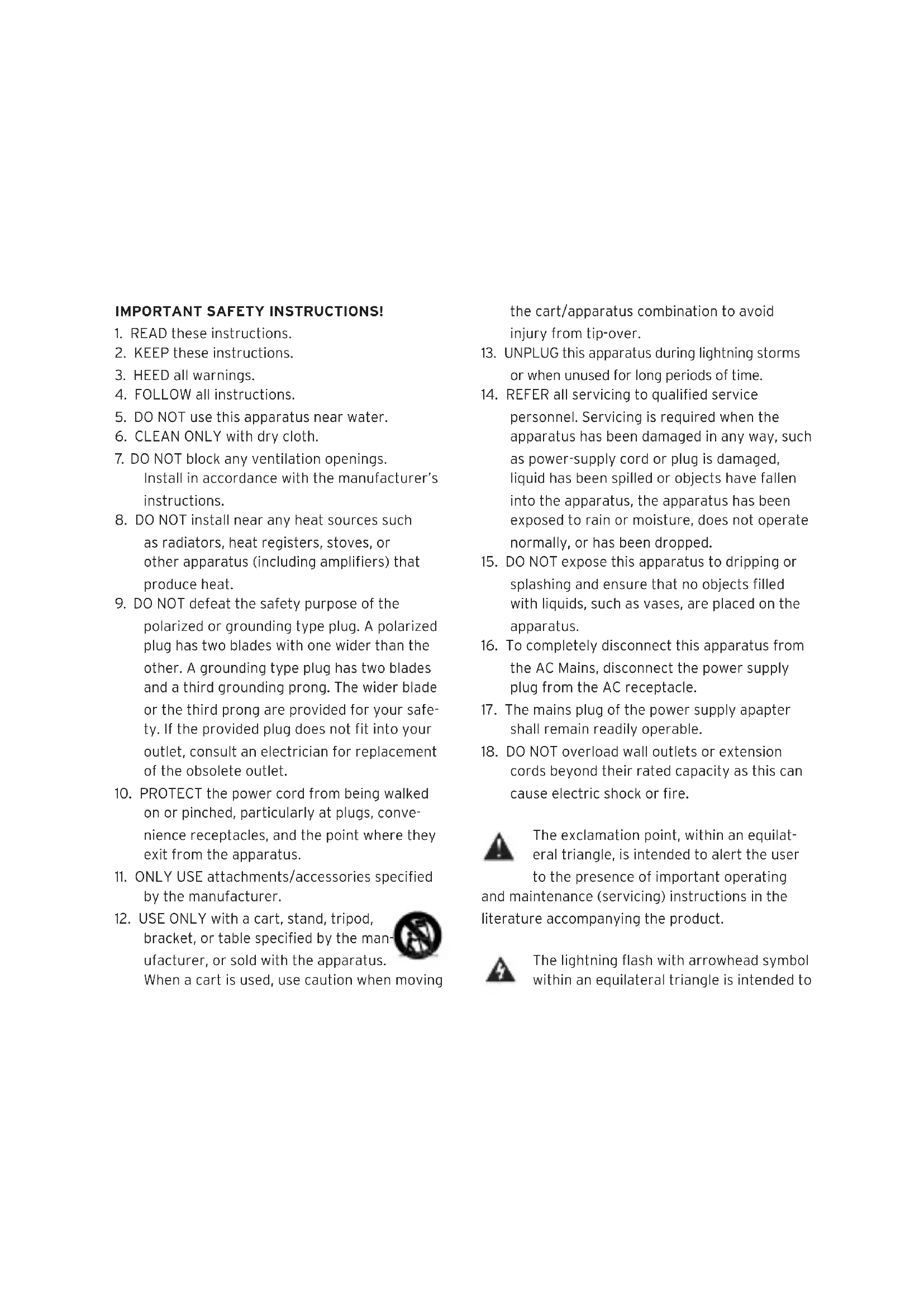

IMPORTANT SAFETY INSTRUCTIONS!

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. ONLY USE attachments/accessories specified by the manufacturer.

12. USE ONLY with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving

the cart/apparatus combination to avoid injury from tip-over.

1. UNPLUG this apparatus during lightning storms or when unused for long periods of time.

2. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.

4. To completely disconnect this apparatus from the AC Mains, disconnect the power supply plug from the AC receptacle.

5. The mains plug of the power supply adapter shall remain readily operable.

6. DO NOT overload wall outlets or extension cords beyond their rated capacity as this can cause electric shock or fire.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to

alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked flame sources - such as candles - should be placed on the product.

THIS PRODUCT USES LITHIUM-ION BATTERIES. IF MISUSED OR ABUSED THIS CAN RESULT IN:

1. Smoke or gas hazard
2. Heat hazard
3. Fire hazard
4. Explosion hazard

WARNING: Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: Risk of leakage. Only use the specified type of batteries. Never mix new and used batteries.

Observe correct polarity. Remove batteries from products that are not in use for extended periods of time. Store batteries in a dry place.

WARNING: Do not handle leaking or damage Lithium batteries.

WARNING: Danger of explosion if battery is

incorrectly replaced. Replace only with the same or equivalent type.

WARNING: Do not place batteries in mouth or ingest. Keep out of reach of children and pets.

WARNING: Do not recharge non-rechargeable batteries.

WARNING: Operating temperature between 32°F/0°C and 95°F/35°C

Please dispose of any used batteries properly, following any local regulations. Do not incinerate.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

Place the equipment near a main power supply outlet and make sure that you can easily access the power breaker switch.

CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. ATTENTION: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

In Singapore, please only use the provided 3-pin detachable plug adapter to charge or power the product.

WARNING: This product is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply of the product. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the products warranty. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate. If the product is equipped with a detachable power cord, use only the type provided with your product or by your local distributor and/or retailer. If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer.

CE

EU COMPLIANCE INFORMATION

Eligible to bear the CE mark; Conforms to European Union Low Voltage Directive 2006/95/EC; European Union EMC Directive 2004/108/EC; European Union WEEE Directive 2002/96/EC; European Union Eco-Design Directive 2009/125/EC; European Union Radio and Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EC;

This product contains batteries that are covered under the 2006/66/EC European Directive, which cannot be disposed of with normal household waste. Please follow local regulations.

You may obtain a free copy of the Declaration of Conformity by contacting your dealer, distributor, or Klipsch Group, Inc.'s worldwide headquarters. Contact information can be found here: http://www.klipsch.com/Contact-Us

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste of electrical and electronic

equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

CONSIGNES DE SÉCURITÉ IMPORTANTES !

AVERTISSEMENT RISQUED'ÉLECTROCUTION NE PAS OUVRIR

INFORMATIONS DE CONFORMITÉ UE

INFORMATIONS DE CONFORMITÉ FCC ET CEM CANADA

This Class B digital apparatus complies with Canadian ICES-003.

Eligible to bear the CE mark; Conforms to European Union Low Voltage Directive 2006/95/EC; European Union EMC Directive 2004/108/EC; European Union WEEE Directive 2002/96/EC; European Union Eco-Design Directive 2009/125/EC; European Union Radio and Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EC;

Klipsh R 210-149645 CE ©2023, Klipsch Group, Inc. Klipsch Group, Inc. is a wholly-owned subsidiary of Voxx International Corporation. Klipsch and Keepers of the Sound are trademarks of Klipsch Group, Inc., registered in the United States and other countries. The Bluetooth® word mark is a registered trademark owned by Bluetooth SIG, Inc. and any use of such mark by Klipsch Group, Inc. is under license. V07 - 231011

210-149645

©2023, Klipsch Group, Inc. Klipsch Group, Inc. is a wholly-owned subsidiary of Voxx International Corporation. Klipsch and Keepers of the Sound are trademarks of Klipsch Group, Inc., registered in the United States and other countries. The Bluetooth® word mark is a registered trademark owned by Bluetooth SIG, Inc. and any use of such mark by Klipsch Group, Inc. is under license.

V07-231011
