USER MANUAL IceIceBaby Klarstein

Row of white icons representing kitchen appliances including blender, kettle, refrigerator, air conditioner, washing machine, fan, and microwave (no text or symbols)

Illustration of a waffle-shaped milk mug with a transparent dome and pink base (no text or symbols)

Eiscreme-Maschine

10030517

KLARSTEIN

Labeled diagram of a coffee maker with five numbered parts including a blender, slide, and cup.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Contents

Technical Data 8

Safety Instructions 8

Product Description 9

Use and Operation 9

Cleaning and Care 11

Recipes 12

Disposal and Declaration of Conformity 13

Technical Data

Item number 10030517
Power supply 220-240 V ~ 50-60 Hz
Power consumption 7.3-9.5 W

Safety Instructions

• Read all of the instructions carefully before use.
• Unplug the machine before fitting, removing, or cleaning parts.
  • Children should not use this machine unsupervised. Do not let the cord hang down where a child could grab it.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, is dropped, or has been damaged in any manner.
• To protect against the risk of fire, electric shock, or personal injury, do not place the cord, plug, or unit in water or other liquids.
• Never use an unauthorized attachment.
• Avoid contact with moving parts. Keep hands, hair, clothing, spatulas and other utensils away during operation to reduce the risk of injury to persons and/or damage to the machine.
• Do not use outdoors. Never leave the machine on unattended. Do not let children play with this machine.
• Only use the machine for its intended domestic use.
  • Always make sure everything is thoroughly clean before making ice cream or sorbet.
• Never freeze ice cream that has been fully or partially defrosted.
• Any ice cream or sorbet containing raw ingredients should be consumed within one week. Ice cream tastes best when fresh.
• Ice cream or sorbet that contains raw or partially cooked eggs should not be given to young children, pregnant women, the elderly or people who are generally unwell.

• To prevent freezer burn, always ensure that hands are protected when handling the inner bowl, especially when first removed from the freezer.

• If the freezing solution appears to be leaking from the inner bowl, discontinue use. The freezing solution is non toxic.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Product Description

1 Freezer bowl
2 Paddle
3 Lid
4 Power unit
5 On/Off switch

Labeled diagram of a coffee maker with five numbered parts showing the interior structure.

Use and Operation

Step 1 Step 2

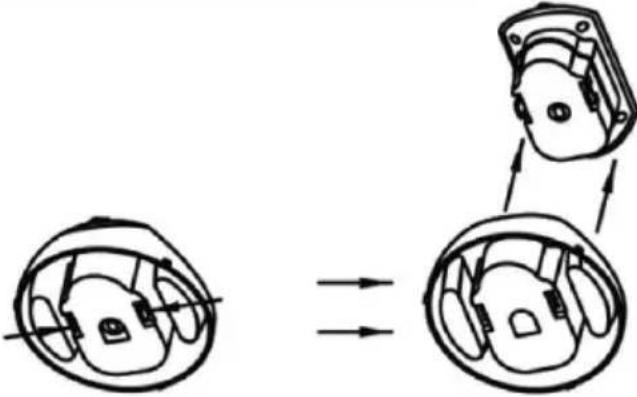

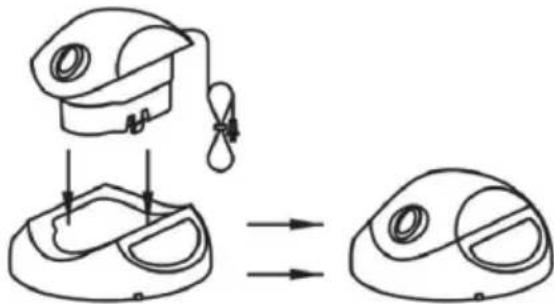

Fit the power unit into the lid, A “click” sound will be heard indicating that both plastic lock have locked into place.	Press the both plastic lock at the same time and then take away the power unit from the lid.

Step 3 Step 4

Diagram illustrating the change in steering wheel and dashboard components from left to right, with arrows indicating direction.

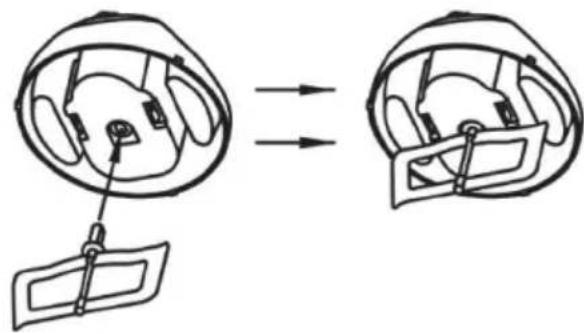

Fit the paddle into the power unit until locked into place.

Diagram illustrating the process of smart glasses interacting with a coffee mug, showing how to connect to a power cord.

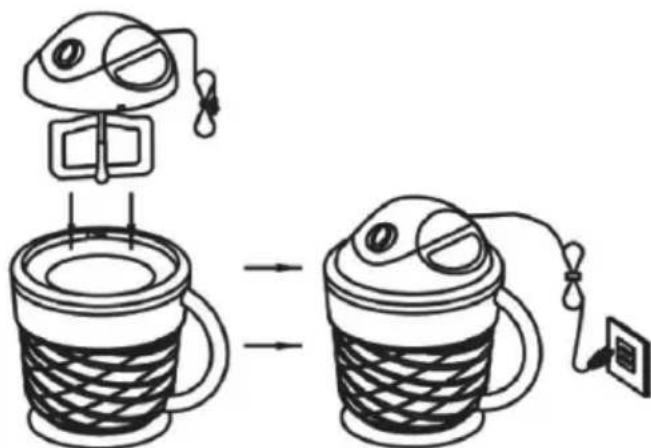

Take out the freezer bowl from the freezer. Lower the assembled lid/power unit/paddle onto the freezer bowl and turn clockwise to lock into position.

Step 5

Insert the plug into outlet. Now you can switch on the ice cream maker using the on/off switch. THE MACHINE MUST BE SWITCHED ON BEFORE ADDING THE ICE CREAM OR SORBET RECIPE TO PREVENT THE MIX FROM IMMEDIATELY FREEZING ON THE INSIDE OF THE BOWL.

Step 6

Pour the ice cream or sorbet mix into the freezer bowl from lid. When pouring mixture into the bowl, always stop at least 1 inch from the top, as the mixture will increase in volume during freezing.

Step 7

Allow the mixture to churn until frozen or the desired consistency is reached. This can take up to 30 minutes, but most recipes will be ready in less time.

Important Notes on Use

• Do not stop and start the machine during the freezing process, as the mixture may freeze in contact with the bowl and prevent movement of the paddle.
• To avoid overheating the motor, the direction of rotation will change if the mixture becomes too thick. If the direction of rotation continues to change, stop the machine when the mixture is ready.
• In the unlikely event of the motor overheating, a safety cut out will operate causing the motor to stop. If this happens, unplug the machine and allow the power unit to cool.
• For the best result of ice cream, the paddle will contact with the inside of the inner bowl when the paddle moves.

• When the setting time is over, the machine is stopped automatically, unplug the machine and remove the power unit/lid. The ice cream is ready to serve.

• The ice cream produced should be a soft spoonable type. This can be transferred to a separate container for storage in the freezer or if you wish to firm the ice cream before eating.

• Do not use metal utensils to remove mix from the bowl.

Important Notes on Use of the Freezer bowl

• Do not remove the Freezer bowl from the freezer until ready to make ice cream..
• We suggest that you keep the Freezer bowl in the freezer so that it is ready for use. Place in a plastic bag before freezing. Freeze the Freezer bowl in the upright position.
  • Always make sure the Freezer bowl is thoroughly dry before placing in the freezer.
• Do not puncture or heat the Freezer bowl.
• The Freezer bowl should be placed in a freezer that is operating at a temperature of -18^ or below for 8 hours before use.
• For best results always refrigerate the ingredients before making ice cream.
• The addition of alcohol to recipes inhibits the freezing process.

Cleaning and Care

Important Hints on Cleaning

• Always switch off, unplug and dismantle before cleaning.
- Never put the power unit in water or let · the cord or plug get wet.
- Do not wash parts in the dishwasher.
- Do not clean with scouring powders, ·steel wool pads, or other abrasive materials.

Freezer Bowl

Allow the freezer bowl to reach room temperature before attempting to clean. Wash the inside of the bowl, then dry thoroughly. Do not immerse in water.

Paddle

Remove the paddle from the power unit. Wash then dry thoroughly.

Lid

Wash the lid then dry thoroughly.

Power unit

Wipe with a damp cloth, then dry.

Recipes

Banana Ice Cream

Ingredients:

1 Large ripe banana
200 ml Skimmed milk
100 ml Heavy cream
25 g Confectioner's sugar

Raspberry Frozen Yogurt

Ingredients:

100 g Fresh raspberries
50 g Confectioner's sugar
150 ml Natural yoghurt

Chocolate Mint Ice Cream

Ingredients:

150 ml Skimmed milk
50 g Confectioner's sugar
150 ml Heavy cream
20 g Grated chocolate
Peppermint extract

Preparation:

Mash the bananas until smooth. Mix in the milk, heavy cream and sugar. Pour the mixture into the freezer bowl with the paddle running. Allow to freeze until the desired consistency is achieved.

Preparation

Mash the raspberries or puree them. For a smooth result remove the pips by sieving. Add the sugar and natural yoghurt and mix together. Pour the mixture into the freezer bowl with the paddle running. Allow to freeze until the desired consistency is achieved.

Preparation:

Place the milk and sugar into a saucepan. Place over a low heat and stir until the sugar has dissolve, then leave until cold. Stir the cream and a few drops of the peppermint essence into cooled milk. Pour the mixture into freezer bowl with the paddle running. When the mixture starts to freeze add the grated chocolate down the chute. Allow to freeze until the desired consistency is achieved.

Strawberry Ice Cream

Ingredients:

130 g fresh strawberries

50 g Confectioner's sugar

150 ml Heavy cream

Juice from 1/2 small size lemon

Lemon Sorbet

Ingredients:

75 g granulated sugar

100 ml Water

Orange juice from 1/2 orange

120 ml Lemon juice

1/2 medium size egg white

Preparation:

Puree the strawberries until smooth, add the remaining ingredients. Pour the mixture into the freezer bowl with the paddle running. Allow the mixture to freeze until the desired consistency is achieved.

Preparation

Place the sugar and water in a saucepan. Stir over a low heat until the sugar has dissolved. Bring the mixture to the boil and allow to boil for 1 minute. Remove from heat and allow to cool. Add the orange and lemon juice. Whisk the egg white until almost stiff and then stir into the lemon mixture. Pour the mixture into the freezer bowl with the paddle running. Allow to freeze until the desired consistency is achieved.

Hints on Disposal

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
