USER MANUAL GDX 180LI Professional BOSCH

OBJ_BUCH-3029-001 Book Page 1 Tuesday, November 1, 2016 4:16 PM

Robert Bosch Power Tools GmbH

70538StuIart

GERMANY

www.bosch-pt.com

160992A34W(2016.11)PS/83

160992A34W

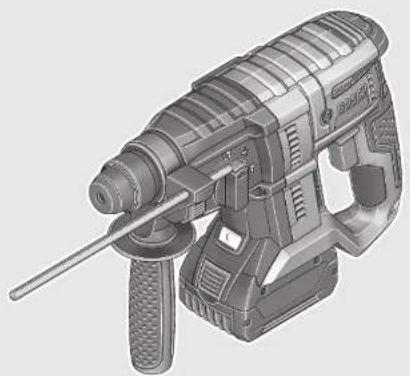

GBH 180-LI Professional

BOSCH

en Original instructions

fr Notice originale

pt Manual original

es Manual original

pt Manual original - Brazil

cn正本使用说明书

tw原始使用說明書

th nuaanrnaaennn
id Petunik-Petunikuruk Pencuruan Orisinal
viBan ge hong dan sifung
arulolulunil
fa 15aiui 423

2

English. Page 3

Francais. Page 9

Portugues. Pagina 16

Espanol .Pagina 22

Portugues-Brazil. Pagina 28

中文. 页34

中文. 39

mynn 44

Bahasa Indonesia 51

Tiéng Viet. Trang 57

yj

L 250

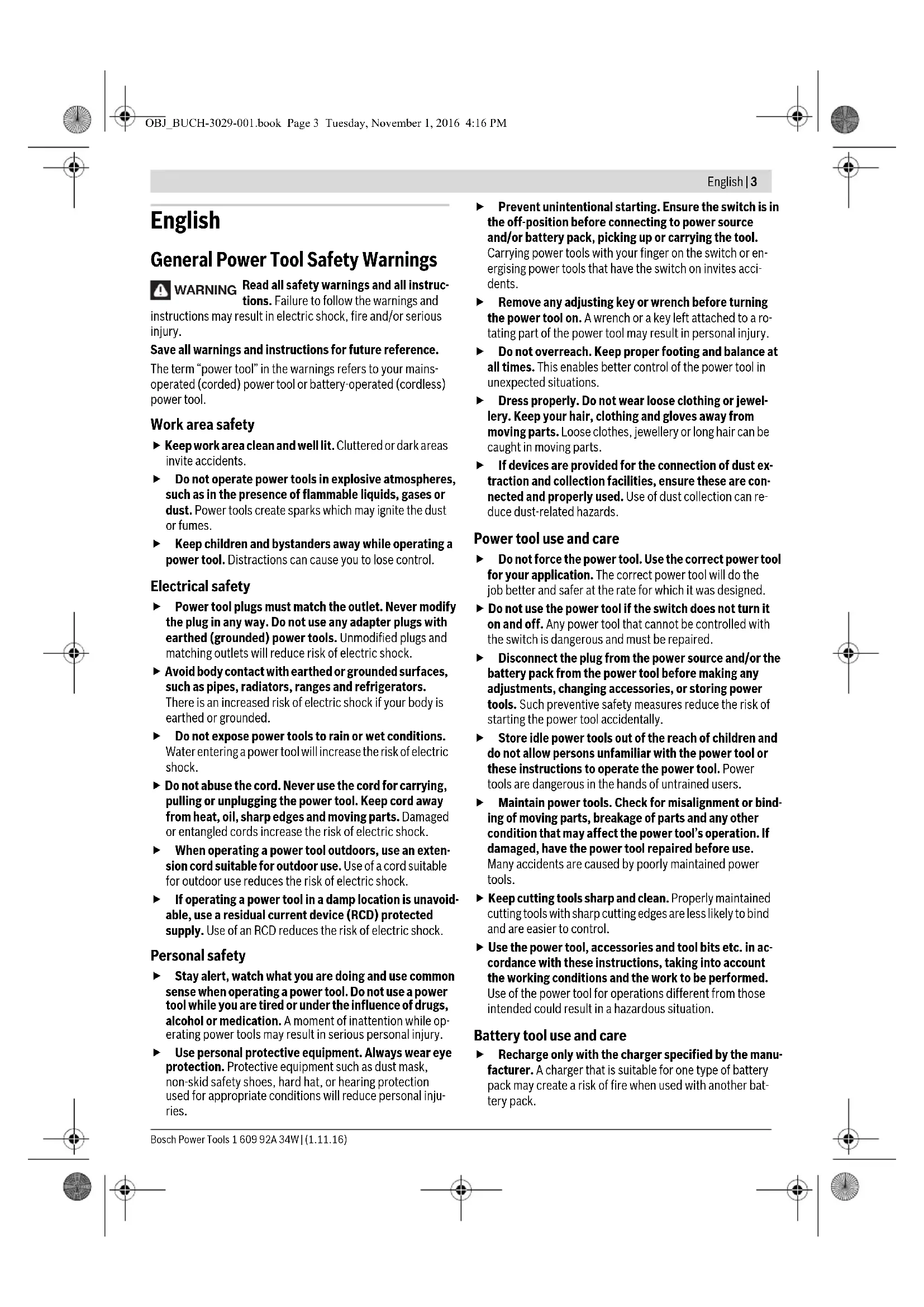

English | 3

English

General Power Tool SafetyWarnings

WARNING Read all safety warnings and all instruc-tions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

4 | English

Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Hammer SafetyWarnings

Wear ear protectors. Exposure to noise can cause hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold the tool by the insulated gripping surfaces when performing operations where the application tool or the screw could contact hidden wiring or its own power cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.

Additional Safety and Working Instructions

When transporting and storing, set the rotational direction switch to the centre position. Danger of injury when accidentally actuating the On/Off switch.
- Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage.
Firmly tighten the auxiliary handle, hold the machine firmly with both hands while working and keep proper footing and balance at all times. The power tool is guided more secure with both hands.
Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
For drilling without impact in wood, metal, ceramic and plastic as well as for screwdriving, tools without SDS-plus are used (e.g., drill bits with cylindrical shank). For these tools, a keyless chuck or a key type drill chuck are required.
The quick change chuck is automatically locked. Check the locking effect by pulling the quick change chuck.

Inserting SDS-plus Drilling Tools: Check the latching by pulling the tool.
Replace a damaged dust protection cap immediately. The dust protection cap largely prevents the penetration of drilling dust into the tool holder during operation. When inserting the tool, pay attention that the dust protection cap is not damaged.
Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health and cause allergic reactions, lead to respiratory infections and/or cancer. Materials containing asbestos may only be worked by specialists.

• As far as possible, use a dust extraction system suitable for the material.
• Provide for good ventilation of the working place.
• It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the materials to be worked.

Prevent dust accumulation at the workplace. Dust can easily ignite.
To save energy, only switch the power tool on when using it.
Apply the power tool to the screw/nut only when it is switched off. Rotating tool inserts can slip off.
If the application tool should become blocked, switch the machine off. Loosen the application tool.
Before switching on the power tool, make sure that the application tool moves freely. When switching on with a blocked drilling tool, high torque reaction can occur.
Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
- Avoid unintentional switching on. Ensure the On/Off switch is in the off position before inserting battery pack. Carrying the power tool with your finger on the On/Off switch or inserting the battery pack into power tools that have the switch on invites accidents.
Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
Use the battery only in conjunction with your Bosch power tool. This measure alone protects the battery against dangerous overload.
Use only original Bosch batteries with the voltage listed on the nameplate of your power tool. When using other batteries, e.g. imitations, reconditioned batteries or other brands, there is danger of injury as well as property damage through exploding batteries.

English | 5

The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.
Read the operating instructions of the battery charger.
Check the tight seating of the battery. Two locking levels are possible.
The battery pack can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery pack can burn, smoke, explode or overheat.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

Symbol Meaning

GBH 180-LI: Cordless Rotary Hammer Grey-marked area: Handle (insulated gripping surface)

Article number

Read all safety warnings and all instruc-tions

Before any work on the machine itself, remove the battery from the power tool.

Wear protective gloves

Always wear ear protection.

Wear safety glasses/goggles

Bosch recommends using battery packs with a capacity of at least 3.0 Ah.

Movement direction

Reaction direction

Symbol Meaning

Next step of action

Drilling without impact

Hammer Drilling

Chiselling

Screwdriving

Right/left rotation

Vario-Lock

Switching On

Switching Off

Low speed/impact rate

High speed/impact rate

Battery Charge Indicator

Dust cup

Tool holder

U Rated voltage

ns

Impact rate

E Impact energy per stroke accordi

EPTA-Procedure 05/2009

n Rated speed

Wood

Steel

Concrete

Brickwork

Ø Drilling diam

Weight according to EPTA-Procedure 01:2014

LAA

Sound power level

LpA

Sound pressure level

a

Vibration total value

6 | English

Symbol Meaning
K	U n
T1	Permitted ambient temperature during charging
T2	Permitted ambient temperature during operation and storage * limited performance at temperatures <0 °C
	Recommended batteries
	Recommended chargers

Delivery Scope

Rotary hammer, auxiliary handle and depth stop.

Application tools and other accessories shown or described are not part of the standard delivery scope.

A complete overview of accessories can be found in our accessories program.

Intended Use

The machine is intended for hammer drilling in concrete, bricks and masonry, as well as for light chiselling work. It is also suitable for drilling without impact in wood, metal, ceramics and plastic, as well as for screwdriving.

The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination.

Technical Data

c The technical data of the machine are listed in the table on t page 76.

Noise/Vibration Information

The measured values of the machine are listed in the table on page 76.

Sound emission values determined according to EN 60745-2-6.

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-6.

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Mounting and Operation

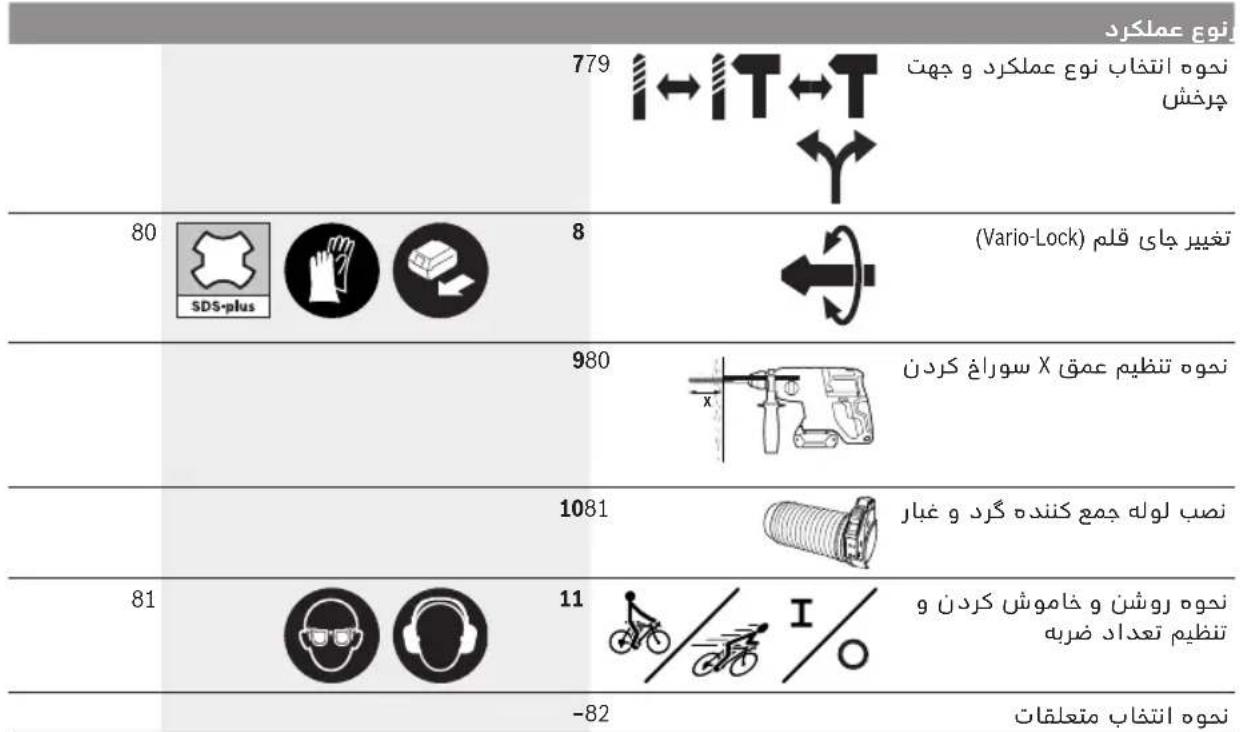

The following table indicates the action objectives for mounting and operation of the power tool. The instructions for each action objective are shown aside. Depending on the type of application, various instruction combinations are required. Observe the safety instructions.

Action Figure Please observe Page

Changing the position of the auxiliary handle

177

Removing the battery

277

English | 7

Action Figure Please observe Page

Inserting the battery

377

Checking the battery charge condition

478

Inserting SDS-plus Drilling Tools

Removing SDS-plus Drilling Tools

678

Selecting the operating mode and rotation direction

Changing the chisel position (VarioLock)

779

Adjusting the drilling depth X

880

Mounting the Dust Collection Tube

980

Switching on and off and setting the speed

Selecting Accessories

1181

-82

Maintenance and Cleaning

For safe and proper working, always keep the machine and ventilation slots clean.

Clean the application tool, the tool holder, the power tool's ventilations slots, and the battery's ventilation slots each time after using.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

8|English

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

People's Republic of China

China Mainland

Bosch Power Tools (China) Co., Ltd.

567, Bin Kang Road

Bin Jiang District 310052

Hangzhou, P.R.China

Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.cn

HK and Macau Special Administrative Regions

Robert Bosch Hong Kong Co. Ltd.

21st Floor, 625 King's Road

North Point, Hong Kong

Customer Service Hotline: [phone]

Fax:[phone]

E-Mail: [e-mail]

www.bosch-pt.com.hk

Indonesia

PT Robert Bosch

Palma Tower 10^th Floor

JI. RA Kartini II-S Kaveling 6 Sek II

Pondok Pinang, Kebayoran Lama

28th Floor Fort Legend Towers,

3rd Avenue corner 31st Street,

Fort Bonifacio Global City,

1634 Taguig City, Philippines

Tel.: [phone]

Fax: [phone]

[e-mail]

www.bosch-pt.com.ph

Bosch Service Center:

9725-27 Kamagong Street

San Antonio Village

Makati City, Philippines

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Malaysia

Robert Bosch Sdn. Bhd.

No.8A,Jalan 13/6

G.P.O.Box 10818

46200 Petaling Jaya

Selangor, Malaysia

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Toll-Free: 1800 880188

www.bosch-pt.com.my

Thailand

Robert Bosch Ltd.

Liberty Square Building

No.287,11 Floor

Silom Road, Bangrak

Bangkok 10500

Tel.: [phone]

Fax: [phone]

Robert Bosch Ltd., P. O. Box 2054

Bangkok 10501, Thailand

www.bosch.co.th

Bosch Service - Training Centre

La Salle Tower Ground Floor Unit No.2

10/11 La Salle Moo 16

Srinakharin Road

Bangkaew, Bang Plee

Samutprakarn 10540

Thailand

Tel.:[phone]

Fax:[phone]

Singapore

Powerwell Service Centre Ptd Ltd

65 Ubi Crescent, #06-03 Hola Centre

Singapore 408559

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Toll-Free: 1800 3338333

www.bosch-pt.com.sg

Vietnam

Robert Bosch Vietnam Co. Ltd

13th Floor, 194 Golden Building

473 Dien Bien Phu Street

Ward 25, Binh Thanh District

84 Ho Chi Minh City

Vietnam

Tel.: [phone]

Fax: [phone]

Hotline: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.vn

www.baoohanbosch-pt.com.vn

Français|9

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch-pt.com.au

www.bosch-pt.co.nz

Egypt

Unimar

20 Markaz kadmat

El tagmoa EL Aoul - New Cairo

Tel: [phone]

Fax:[phone]

E-Mail: [e-mail]

Ethiopia

Forever plc

Kebele 2,754,BP 4806

Addis Ababa, Ethiopia

Tel: [phone]

E-Mail:[e-mail]

Nigeria

C. Woermann Ltd.

P.O.Box 318

6, Badejo Kalesanwo Street

Matori Industrial Estate

Lagos, Nigeria

Tel: [phone]

E-Mail: [e-mail]

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

Disposal

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Battery packs/batteries:

Li-ion:

Please observe the instructions in section "Transport", page 9.

Subject to change without notice.

Français

Perçage sans percussion

yulwulwulwunwunauuunn uun wu uunwulwla uulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwulwul
yauo:1novuaolwnuuovnuunuaa

aannnnaeunnnn

Jauuuaaunnnaaunnnnnaaannnnnnaa aannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaanennnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaann
nnaaunuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnu
nwnnnnnae nnnnnnne nee
Wnwnnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn
aaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinai
wnlaiuunauanunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnuunnu

A

Wuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyuuyu

myn145

Jauunnnaaannnnnnaa aannnnnnaa annnnnnaa ananannnnaa anannnnnnaa anannnnnnaa
Jauunrnnnnaaannnnaaannnnaanennnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaann
1000000000000000000000000000000000000000000000000000000
nannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
1
wnnnaaannnnnnaaennnnnnaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanara

nlaaananaananaananaan

aunnnaeauuulnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn nannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne aannnne
aaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinaiinai
nauuuee uuaaunnnnaaennn nnnnne aenannnnaanlwaananaan
aannnnae aan nnnnne anen annnne ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane ane

101111111111111111111111111111111111111
yauuuaa aauuuu uuuuauu uuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuUU
1nnaaalwnnnnnaanennnnaaae aae nannnnnnaaee nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne nnnnnnne

n1uuaaunauanrnnnnae

yauuuaaunauanauauuuuunnnnnaaunu uuuu uuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuUU
1wauanrwnnnnnaaunlwnnnnna 1nnae nnnae nnae nnne nnnnne
10uunuunununununununununununununununununununununununununununununununununununununununununununununununun
aaiuuaananae aonauanauanauan anu uannnnaa nnnnnaaunnnaaennnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaa annnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n

WnVvuaaeeaaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeaeae
nauuuaaunauuulwauanauuunu uauuuuauuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuUU
nauuuaaunnnnaeauauauauauauauauauauauauauauauauauauauauauauauauauauauauauauauauauauauauauauuu
nanaanannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaannnnnnaaa
yuaanrnnnnaaannnnnnae

unuuaananaa a. u. 1nna nnnnnae anannnnae nnne

Junanuuaaannnnaaennnnnnae annnnnne aannnnnne
Wnwnnnnnaeauuauauauauauuuu uunnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
1nwnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

147

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nannnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
uuaananaananaananaananaan an a. uauauuulunnuu uuuuunannnnnnaa an uunununununununununununununununununununununununununun

aannnu

1 + u8 = 1.5

Lap Dung Cu Khoan SDS-plus

478

Thay Dung Cu Khoan SDS-plus Ra

Chon ché do hoat dong va chieu quay

Thay doi tu the cua mui duc (Vario-Lock/Khoa nhieu vi tri)

Dieu chinh chiou sau khoan X

Lap ong chu bui

Táng 10,194 Golden Building

473 Dien Bién Phu

Phuong 25, Quan Binh Thanh

Thanh Pho Ho Chi Minh

Viet Nam

Tel.: [phone] Ext 413

Fax: [phone]

[e-mail]

www.bosch-pt.com

Vân Châu

Pin co chuá lithium-ion la doi tuong phai tuan theo cac qui dinh qua Phap Luat ve Hang Hoa Nguyen Hiem. Nguoi su dung co the van chuyen pin bang duong bo ma khong can co them yeu cau nao khac. Khi duoc van chuyen thong qua ben thu ba (vd. van chuyen bang duong hang khong hay dai ly giao nhān), phai tuan theo cac yeu cau dac biét v dong goi va dan nhān. De chuàn bi cho monHang sé duoc gui di, can tham khao y kien qua chuyen gia vêt lieu nguy hiem.

Chi gui pin di khi vongai khong bj hong. Dan bang keo hay che kin cac diem tiep xuc de ho va dong goi pin cach sao cho pin khong the xedich khi namstrong bao bi duoc.

gllg sJoll g aJgS J oJolll

Ulaill gjb c aullaiao aabgulg

aolc alal

Uulllg UJlbJI/SLjJIg AuiuqSJJ 8

!aJjai

:UJUJI/psIJI

gU Ug! 69 uolll oJy .64 aall, "uill

.

#

<ggaigajlj

.1oIg uKuJUosu aggill

aagglgagwogosolngjloillxcabj

JSSaJUgagUgawLgajLjSJJ

JLasw

pIaW2I oJgog jUjlldo

aiuoggssjosillwgljuljjdoj

gwwjll jz. jzll gbd uayuagai

:gagjllgbe jc loglaI lgc Jsaal

www.bosch-pt.com

aJg 10000000000000000000000000000000000000000000000000000000000

gaaagllg jg jall g caiall pjly Jue g bulb g ljlwaiw uJlww! sic qill

Jg 100

JgBgUgAulg

U

ggl

jgdo ojJall ajj.53j

J20300JJ

A 1. aIg U I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I

4 1gS j0 sL. gaoe JsWbJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJtJ t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t J t

JlJLsJlo

4 1

1b0g jol y aasub gllg 1n 9l jll g lglwll qjg w g uJg JgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

saoj 9. aijgJl oall joswi loic s8y .glll sic jqll lc ojbuill

1b0j00

Ae

Jy

JgJ 10 JgJ gJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJ

<20 a<1

4 L

abwglg lgl golldlg aigllg jgulg jg yloic ayjgl closall jbs slsj .claw .jgo claw

gaijgJl

sju. agbglg lbsl jc auiuieo ool dai j 1sll sww n iuiyssi ool sall baa

g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g

Jlasiu d

g auiyjLdS Jauu lo sic LaiJU Uusuuiu uuuu yduu uusuiu uuuu. kJI UuiyjSL Uoossu

4auij8J10ss

Jull no ayLgU gao psswL aubllg 1g2 Jcalalall jull no ayLgU gao po sssu! calalll .auiuul uolauu

70|L

gSduaBogjUcUgaiSyu（LiojUyIgmo 1yUgaiJ.3JgDagjUggo （slaOlaL JuaWlJSdUJlujdaBg (sjwOol laia .ds daJpa

Lg i d s 1JwI g Jb0j I jyj
I Sjg g wgy j ly (Sglis) Ukai .sU y
. gai j ksi ss dy aas as ai ay
aag l o sldol ng Jraa Dab Jy

LsSgJl
15y g 15 yj y j
9 00 j l Cwjj 0000000000000000000000000000000000000000000000000000000000000000000000000000

(Li-Ion) g-oguJ 70 aoo

.（gao （）

J 10

4.1.1.10

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

oJglo g oJgjI yu

oJyJ Lw gW y wg jI yu Caa J 1
Lalao g yu cabg uagw uay
Labe oju JcUaBgl uog uai
gws yj Ouol uowu uugio U lalao g y

www.bosch-pt.com:

g 2000
1000
1000
1000

LJlglgolwssasjiljlolaowslj

olkiws Jaa

J 1000000000000000000000000000000000000000000000000000000000000000

w g u Ll Jn j 0 w s q w t a j b s p j g d E N 60745 1s i l w q p y S oj d
o laa w l jy b y sl a j y n u g no j j wu jw g w g g g g g .g q
. c w | wia o j j wai j
g jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy jy j y
j y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y
j y y y y y y y y y y y y y y y y y y y y y y y y y y y
j 00000000000000000000000000000000000000000000000000000000000000000000000000000000000000

olkiwsjlolalawsljgo

jg g jai jy sgs jg kaj g y jy o jy
o w aig jai jy sww (ij p) slg yls q
sga u g y slg kaj g y jy nglc .cwi
a y slj n i aq g cgiu slgo. kolw jg
. cwl w lio ysl g wk
g jy jy k jy bao piaiwa li w g jy jy jy jy
wli ad jy gli li w g y jy g cwl o dw
. cww

gi 1

76 1g jS oLgws jI g iOaio g poJ .oi Oo

wla j|g|doa bgo cda

76 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

jglg oai ogai

Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn

177
277
377
478
78	SDS-plus	5
78	SDS-plus	6

72|L

###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	### ###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###
###	###

JgS JdlaaiI gJjI (Jdo S) 1aJl aJi dJia 1sJy jJ 0laai I Jg Jg oJg JIwJg Jy Jg Jdai J Jajil Jd JIu Jua Jua Jda Jda Jda Jda

JgjLg jIgjNjIgjNjIgjNjIgjNjIg

jIw oIsw s JusJgW g IlaaiJ .iIgaiI jSjI

Sg 1000 g ggs 5d s Jii S 1000 g 1000 g .wU aJg jg .CwI g90

yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu yu

Loo

jI jO slaw gJgSgUgLo gUgUg Ulc
Lgipggao gUc uI IabJ. SiuUcuamU law
SoSlaw u pUc uI gauu uuuiu uuua uuua uuua uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu U

#

sS：GBH180-L

oow sJisioLc oSg Saa Osiu: Si j Sjins Ls (JcLwSgJ L)

#

iδjlaω

g jai l ksi dls bbl gbi I J Jaaaljgws

SsL aGgPoJl JU W
CuaJ LjI JI SgJ
QJI JI JI JI SjL
.

oIaiwI iai! uSsws jI

oIawI gaiI wgSj

gdo g j 1 y w sgl k g
sao g siu ly jao gaiu u sligio o jla g
glo g lau u g jj jj cay cwi
sga glgo ly .siu ly j ubw g o w
y:

oJIoJoiI (JIsOaBg) OJo

L

.

LdJggsjmuoUjao g jglg d. 5iS dgi jLcIabg glgo Jolao

.igw Jaiuwo gilwI duiiIgJ GjgSJJgI

.0laowjIjIggaOdsuJgj

gag uia jla jj1 jj1 jkol .sJ 5

sulalio.1uS wgoI J gJ IjI,clalso 1sI jI Oo aSglg oJ

a jgi Gg uu Jolal Lk yu wai .s
slj g sis jlg uua oikw s jiaaw
. gwh

LlaiaIg IaiI KJ Lw JlSogaiIabilj

g jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg

aI yI bI yI aI gS J. gW jI I cI aI yI
C W S J I GAI I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I
G W S J. dIgW bI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI
yI qll ccl sllgwo 0w j1 oW agw .gWg

g lalao y

j1oJlawl p

4 山 L _ 山 山 山 山 山

05wS[5g]

a5suiSjju

aLaiw L

4oJ5jlljil

4gj ccl j

451 a9j 0

μg

.5s oIawI JgJg 8gJ
Jauai law oIw s Gai dS w g acl jI
.

g 11 j y j b g o slaiw (joj l joi s gls) jo j g 11 j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

Jolai JJI Lc

Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg Jg

Slo sio gai | jjg jl os laiw .sS oiai
g iai oks ,wjol wai gai slu uas, gai
jbs. kjiJl jI l J5 egi lu wliio gai wg
. dso ykls I jsw
