HG01480E - Watch AURIOL - Free user manual and instructions

Feature	Details
Product type	Watch
Display	Analog
Movement	Quartz
Case material	Stainless steel
Water resistance	30 meters
Case dimensions	38 mm diameter
Strap type	Leather
Strap color	Black
Additional features	None
Usage	Daily use, formal occasions
Maintenance	Regular cleaning with a soft cloth
Repair	Battery replacement recommended every 2-3 years
Safety	Avoid strong shocks and exposure to extreme temperatures
Warranty	2 years

Frequently Asked Questions - HG01480E AURIOL

How do I set the time on my AURIOL HG01480E watch?

To set the time, pull the watch crown out to position 2. Turn the crown clockwise or counterclockwise to adjust the time. Push the crown back to the normal position once the time is set.

The watch won\u0027t turn on, what should I do?

Make sure the watch is charged. If it runs on a battery, check if the battery needs to be replaced. If it\u0027s a quartz watch, try gently shaking it to reactivate the mechanism.

How do I change the battery on my AURIOL HG01480E watch?

To change the battery, use a small screwdriver to open the back of the watch. Carefully remove the used battery and replace it with a new battery of the same type. Close the back of the watch securely.

Is my watch waterproof?

The AURIOL HG01480E watch is water resistant up to 30 meters. This means it can withstand splashes and rain but should not be used for swimming or diving.

How do I clean my AURIOL HG01480E watch?

To clean your watch, use a soft, dry cloth. Avoid using chemicals or abrasive cleaners that could damage the case or strap.

What should I do if the strap on my watch is too large?

You can adjust the strap by removing links. Use a link removal tool or take it to a jeweler for professional adjustment.

Where can I find the user manual for my watch?

The user manual can be found on the official AURIOL website or in the original box of your watch. You can also contact customer service to obtain a digital copy.

How do I sync my watch with a smartphone?

The AURIOL HG01480E watch does not have smartphone syncing features. It is designed as a classic analog watch.

What should I do if my watch has scratches on the glass?

For light scratches, you can use a polishing product for acrylic glass. For deeper scratches, it is best to consult a professional for glass replacement.

USER MANUAL HG01480E AURIOL

www.1idl-service.com ARMBANK WRISTWA

ARMBANDUHR-SCHMUCKSET WRISTWATCH AND BRACELET SET PARURE MONTRE ET BRACELET

DE AT CH

ARMBANDUHR-SCHMUCKSET

WRISTWATCH AND BRACELET SET

Operation and Safety Notes

NL BE

HORLOGE-SIERADENSET

B
3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

C 1. 6 2. HG01480A 6

D HG01480C / HG01480E 9 8 7

E HG01480C / HG01480E

HG01480C / HG01480E

Technical diagram showing assembly steps of a mechanical component with numbered parts and directional arrows indicating motion.

HG01480C / HG01480E

Diagram showing two types of forceps applied to a spring, with one being tensile and the other tensile, labeled with number 10.

ARMBANDUHR-SCHMUCKSET

Einleitung

QR code with central logo containing 'Lion'

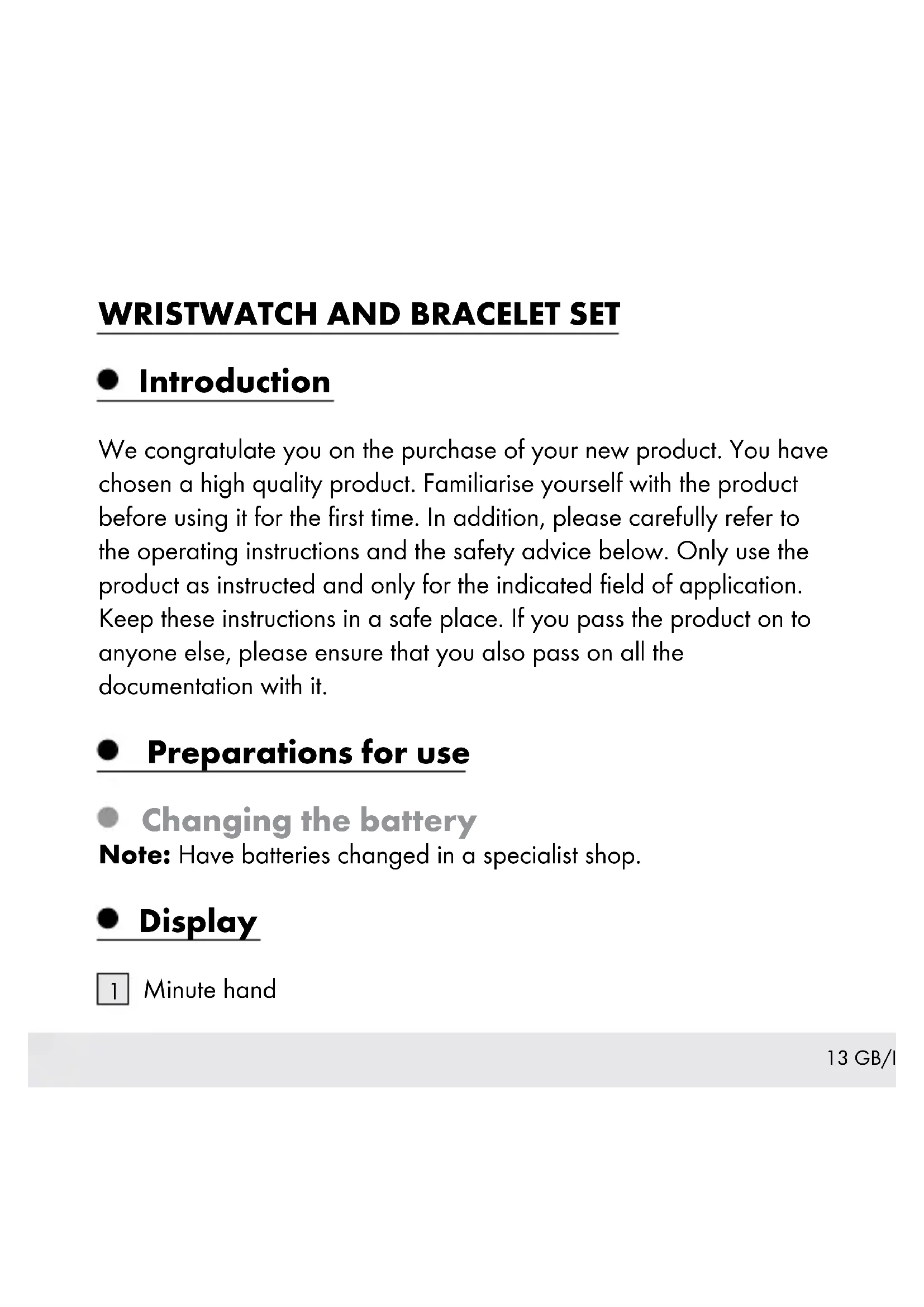

WRISTWATCH AND BRACELET SET

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

● Preparations for use

- Changing the battery

Note: Have batteries changed in a specialist shop.

- Display

1 Minute hand

2 Crown
3 Second hand
4 Hour hand
5 1st position
6 Fastener (for model HG01480A)
7 Segment
8 Repair set
9 Slider
10 Spare pin
11 Bottom cover

- Setting the time

1. To set the time, pull the crown 2 out to the 1st position 5.
2. Turn the crown 2 to set the hour and minute hands 4, 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

- Watertightness

This watch is watertight to 3 bar in accordance with DIN 8310.

Figure B shows the permissible areas of use. Please note that the watertightness is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

- Shortening the watch strap

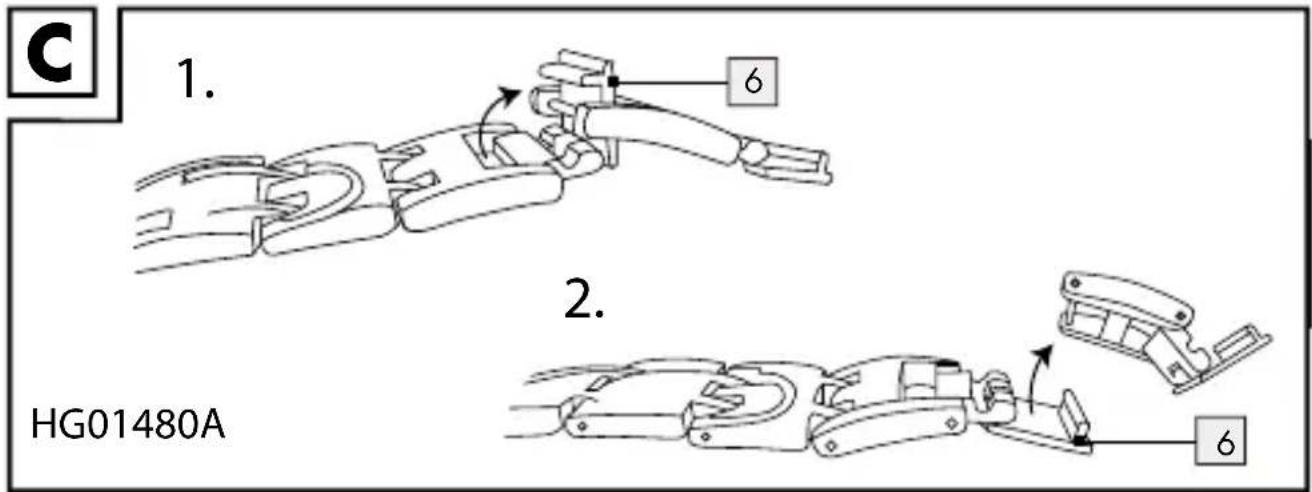

Model No. HG01480A

To shorten the watch strap, 2 removable segments are included. Open the fastener 6 of the watch strap and the fastener of the removable segment. Remove 1 or 2 segments and re-close the fastener of the watch strap (see Fig. C).

Model No. HG01480C / HG01480E

QR code with central logo containing 'liao' text

Note: The watch strap can be shortened by removing segments 7 (2 spare units are included). To this purpose you should use the repair set 8 supplied.

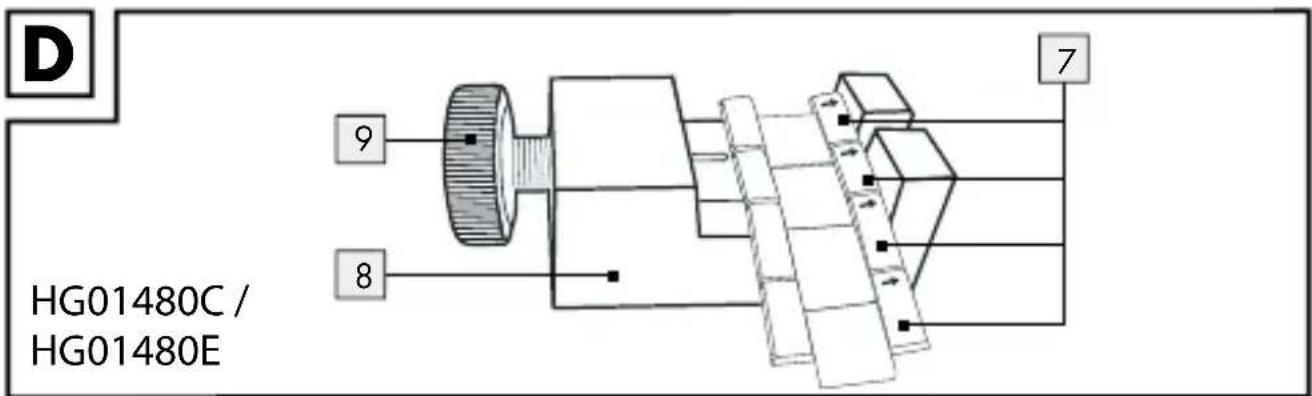

- Removing Segments (Fig. D)

Note: The segments which can be removed are marked with an arrow (see Fig. D). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set 8. Use a pair of tweezers if necessary in order to remove the pins.

Place the watch with the dial facing downwards in the repair set 8.
☐ Remove the pins of the segment that you wish to remove (as described above) and take out the segment 7.

Note: If you would like to take out more than one consecutive segment 7, it is sufficient to remove the two outer pins.

☐ Connect the watch strap together again by joining the loose segments 7 with a pin. Press this pin against the direction of the arrow into the adjacent segments 7.

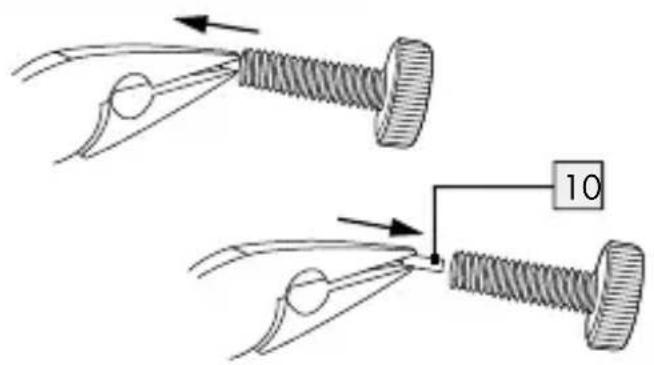

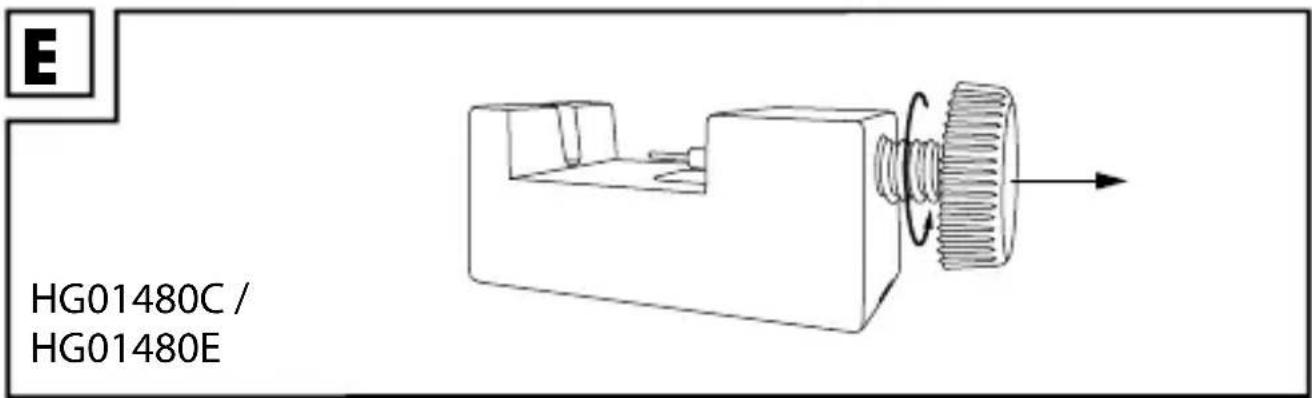

How to exchange the pin inside the slider (Fig. E,F,G)

☐ Take out the slider 9, open the bottom cover 11 with the spare pin 10 inside.
☐ You will need the pliers to carefully remove the old pin from the

slider.

☐ Insert the spare pin carefully into the slider by again using the pliers. The new pin is installed.

● Cleaning and maintenance

- Clean the product on the outside only with a soft, dry cloth.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC and its amendments. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries must not be disposed off with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase.

Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

CE
