Brand	AEG
Model	LBS 5691
Product type	Rechargeable epilator
Net weight	Approx. 114 g
Power supply	NiMH battery 2x1.2V, 600 mAh
Voltage/adapter	Input: 100-240V AC, 50/60Hz; Output: 3V DC, 600 mA
Charging time	8.5 hours (first charge: 9 hours)
Operating time	Up to 60 minutes
Included accessories	Face massage attachment, callus remover attachment, lady shaver, long hair trimmer, shaving foil, cleaning brush
Main functions	Epilation, shaving, massage, callus removal, long hair trimming
Optimal hair length	2 to 5 mm for epilation
Charging indicator	Red light during charging
Adapter protection class	II
Cleaning	Accessories in soapy water; housing with damp cloth; do not immerse
Maintenance	Regularly oil the shaving head and trimmer (1-2 drops of acid-free oil)
Safety	Do not use on irritated skin, lesions, varicose veins, moles; not recommended for diabetes, pregnancy, etc.
Storage	In a dry place, out of reach of children; loosely wrap the cable
Disposal	Remove battery before recycling; do not dispose with household waste

Frequently Asked Questions - LBS 5691 AEG

How long does the charging of the AEG LBS 5691 epilator take?

Full charging takes about 8.5 hours. Before first use, it is recommended to charge for 9 hours.

What is the battery life of the epilator after a full charge?

The battery life is about 60 minutes of continuous use.

Can I use the epilator directly from the mains?

No, the device operates only on battery. It must be charged via the provided adapter before use.

How to clean the epilator accessories?

Clean the accessories in a mild soapy solution, rinse with clean water and let dry completely before reassembling. Do not use abrasive products.

What accessories are included with the AEG LBS 5691 epilator?

The included accessories are: a face massage attachment, a callus remover attachment, a lady shaver, a long hair trimmer, a shaving foil, and a cleaning brush.

Can I use the epilator on sensitive areas like the face?

Yes, but with caution. Use the face massage attachment. Avoid the eye area and do not press too hard. For sensitive skin, test on a small area first.

How to remove the shaving head for cleaning?

Turn off the device, press the unlock button on the back of the attachment and pull upwards. You can then remove the shaving head. Use the provided brush to remove hairs.

What to do if the battery no longer holds a charge?

The battery is built-in and must be replaced by a professional. Contact customer service or an authorized technician for replacement.

Is it normal to have redness after the first epilation?

Yes, it is common. It is recommended to epilate in the evening to allow the skin to regenerate overnight. Apply a moisturizing cream to soothe.

Can I use the device in my bath or shower?

No, the epilator and its adapter should not be used near water. Keep the device dry and charge it in a dry place.

USER MANUAL LBS 5691 AEG

D 4 in 1 Lady Beauty Set NL 4 in 1 Damas Beauty Set F Kit beaute femme 4 en 1 E Kit de bellezza femenina 4 en 1 I 4 in 1 Kit bellezza per donna OE 4 in 1 Lady Beauty Set PL Zeetaw kosmetycryne dile pan, 4 w! H 4 at Hien nol sapepagapolasi kesdet RUS Hapopone vane Lp# 4 a 1 AR 1 & 4 d##

4 IN 1 LADY BEAUTY SET LBS 5691

C E

AEG

Overview of the Components

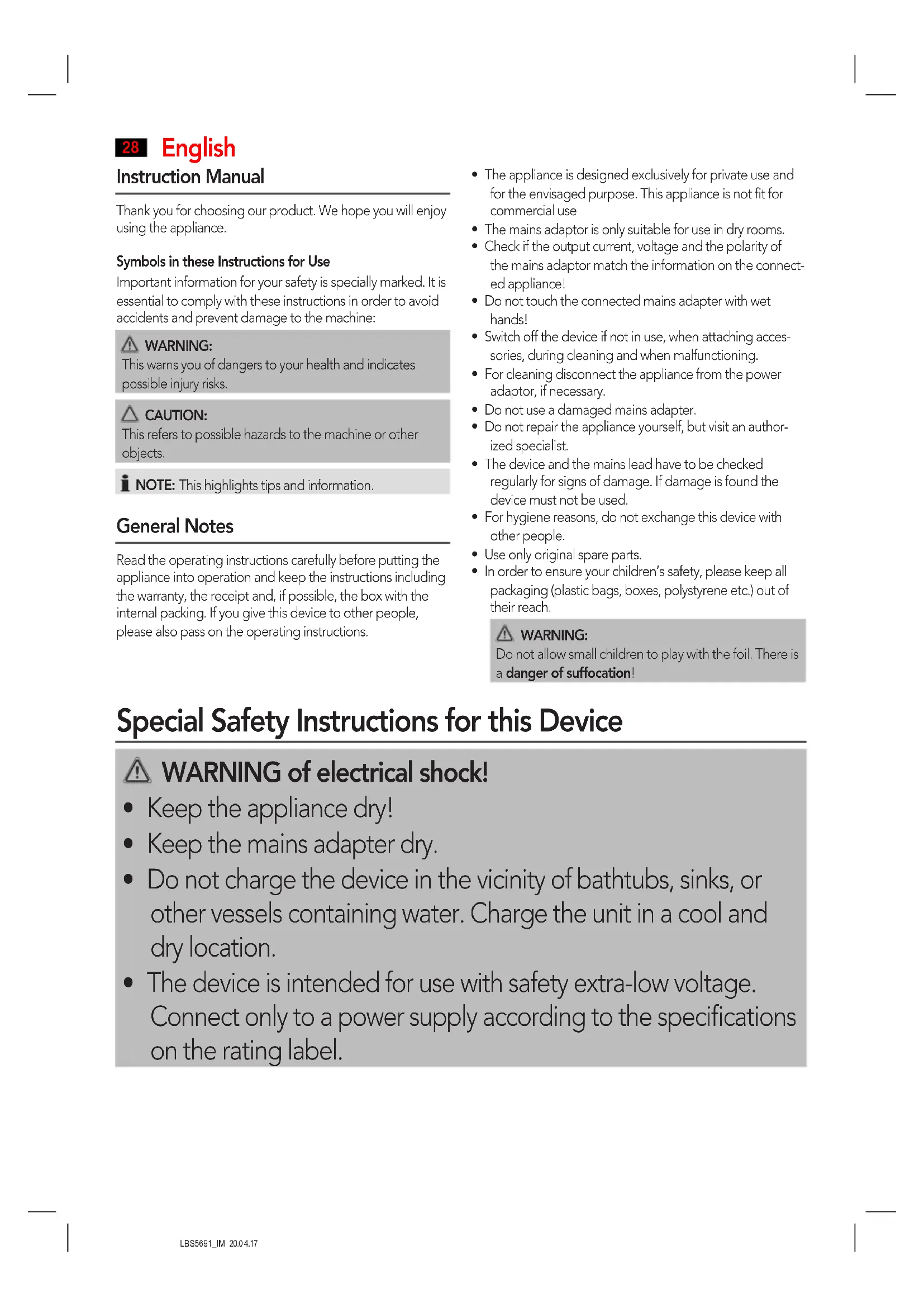

28 English Instruction Manual

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. The mains adaptor is only suitable for use in dry rooms.
• Check if the output current, voltage and the polarity of the mains adaptor match the information on the connected appliance!
• Do not touch the connected mains adapter with wet hands!
• Switch off the device if not in use, when attaching accessories, during cleaning and when malfunctioning.
• For cleaning disconnect the appliance from the power adaptor, if necessary.
• Do not use a damaged mains adapter.
• Do not repair the appliance yourself, but visit an authorized specialist.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• For hygiene reasons, do not exchange this device with other people.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Device

WARNING of electrical shock!

• Keep the appliance dry!
• Keep the mains adapter dry.
• Do not charge the device in the vicinity of bathtubs, sinks, or other vessels containing water. Charge the unit in a cool and dry location.
• The device is intended for use with safety extra-low voltage. Connect only to a power supply according to the specifications on the rating label.

WARNING of electrical shock!

• If the connection cable of this device has been damaged, it must be replaced with a special connection cable available from the manufacturer or its customer service.
• Do not replace any parts. Do not perform any modifications. Risk of electric shock!
• This device may be used by children, from the age of 8 and persons with reduced physical, sensory, or mental capabilities, or persons with inadequate experience and lack of knowledge if they are supervised or have been trained and understand the hazards involved concerning the safe use of the appliance. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

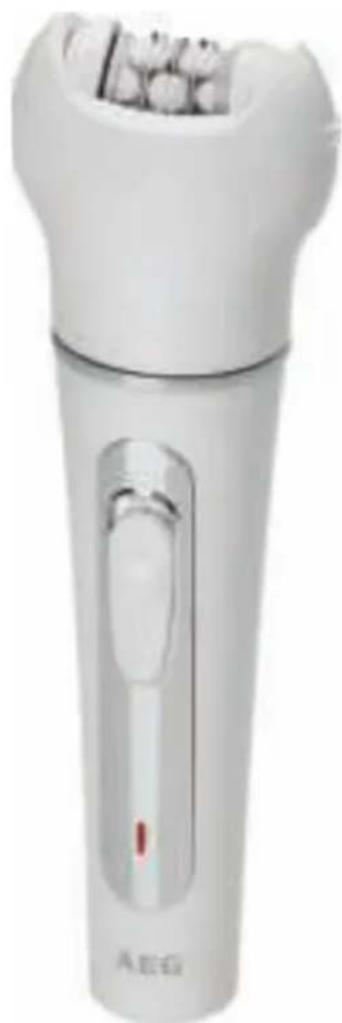

Overview of the Components / Delivery Scope

1 Epilator 2 On/off switch 3 Power indicator 4 Connection socket 5 Attachment for face massage 6 Callus remover 7 Lady Shaver 8 Long-hair cutter 9 Shaving foil

Not shown:

Mains adapter

Cleaning brush

Notes on Use

The device is operated via charged battery. - Mains operation alone is not possible.

Charging the Battery

• Switch off the device. "OFF" can be seen on the switch. Connect the power supply with the connection socket on the appliance.
• Plug the power adaptor into wall outlet.
• The indicator light remains red during the charging process.

NOTE:

The charge indicator does not indicate the state of charge of the rechargeable battery.

• Charge the unit before first use for 9 hours. After initial use, do not charge the battery for longer than 8.5 hours at one time.

CAUTION:

After 8.5 hours always disconnect from mains power supply.

NOTE lifetime rechargeable battery:

You can extend the lifetime of the rechargeable battery by following these steps:

• Only charge after the battery is nearly exhausted.
• Do not charge for more than 8.5 hours.
• Charge the unit at temperatures between 0° and +40°C .

Attachments and their Function

Epilator (1)

Little hairs will be removed thoroughly and gently everywhere on the body. The hair is removed by its roots and the skin remains smooth for several weeks. As the hairs that subsequently grow are soft and delicate, there is no more stubble.

• When it is switched on, do not let the device come into contact with areas such as the eyebrows, eyelashes or the hair of the scalp. The ideal hair length for epilation is 2 to 5mm We recommend that the hairs be shortened to this length beforehand.
• The first use of this device may result in reddening of the skin. It is best to epilate in the evening in order that the skin can recover overnight. Moisture creams may also help.
• Thin hairs can grow into the skin. Body peeling removes the top layer of the skin so that fine hairs can reach the surface.
• Do you have any doubts concerning whether you should use this device? In the following cases you should consult your doctor: if you suffer from eczema, cuts, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins; in the area of moles, if you have an impaired immune system of the skin (as can occur with diabetes), during pregnancy, if you have Raynaud's syndrome, if you are a haemophiliac or have an impaired immune system.

Attachment for face massage (5)

Releases tension, reduces wrinkles, and stimulates blood circulation

• Persons with sensitive skin might experience skin irritations / swelling. If necessary, test the device on another part of the body first. e.g. under your arm.
• Do not use the device in direct proximity of your eyes. The skin there is thinner and more sensitive.
• In order to avoid injury, do not apply too much force when using the attachments on your skin.

Callus remover (6)

The special coating gently removes excess skin. The rotating roller gets to work quickly on the affected areas.

Always apply the roller gently. - You can treat individual areas again and again. - Apply the roller to the affected areas from different directions. - Never use the appliance on badly cracked skin or open wounds! - Do not use on birthmarks or moles. If you suffer from illnesses such as diabetes, haemophilia or immune deficiency, first consult your doctor. - If the callus is very tough to start with, a more even result will be achieved by repeated short applications. Therefore, gently use the appliance each day. - To prevent the skin from cracking, use a skin cream after treatment - After about 7 to 10 days you should achieve good results. Normally, 1 to 2 applications per week should suffice thereafter.

Lady Shaver (7)

Removes hairs everywhere on the body. The shaving head exactly adapts to all parts of the body. Different than in the epilator mode, the hairs are not removed at the roots. Additionally, the lady shaver prevents shaving spots.

• Shave in the armpit area and in the bikini area: The skin in this area is sensitive. Always tighten the skin with the other hand, to avoid injury. Pay attention to skin irregularities such as stem warts. These should not be touched with the long-hair cutter.
• Avoid the use of skin-irritating substances, such as alcohol-based deodorants, immediately after hair removal.

Using the Appliance

• In order to change an attachment, switch off the device. OFF appears on the switch. Press the release button on the back of the attachment and pull it upwards. Place the desired attachment on the drive mechanism until it snaps on.
• Switch the device on by sliding the switch upwards.
• Turn off the device after use.

Cleaning

WARNING:

• Turn off the device and disconnect the mains adapter from the mains supply when cleaning.

WARNING:

• Do not immerse the device and the mains adapter into the water.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents. The shaving foil of the lady shaver may not be cleaned with the brush. Always switch off the device before cleaning.

Attachments

Clean the attachments in a mild soap solution. Rinse them with water afterwards. Let the attachments dry completely before you put them back in place.

NOTE:

To clean them more easily, you can remove the shaving head of the lady shaver and the outer cover of the epilator. To remove the hairs, you can use the brush. - Regularly apply 1 - 2 drops of acid-free oil to the shaving head and the long-hair cutter.

Housing

You may wipe the housing of the device with a slightly damp cloth.

Storage

• The mains cable should only be wound up loosely. Never tie the cable tightly round the device, as over time this may result in the cable breaking. Check the mains cable regularly for damage. We recommend that the appliance is kept in its original packaging if you do not intend to use it for long periods. Always store the appliance out of the reach of children, in a well-ventilated and dry place.

Technical Data

Model: LBS 5691

Net weight: approx. 114g

Mains adapter

Protection class: II

Input: AC 100-240V, 50/60Hz

Output: DC3.0V,600mA

Battery: 2x1.2V,600mAh,NiMH

Operating time: 60 minutes maximum

Charging time: 8.5 hours

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest regulations.

Disposal

Accumulator/battery disposal

The unit contains a rechargeable battery. Used batteries/accumulators (rechargeable batteries) do not belong in household waste.

The battery must be removed before the product is recycled. Contact qualified personnel.

Information on where batteries/accumulators are to be disposed of can be obtained from your local or municipal authorities.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Do not allow children to play with the device without supervision. Danger of injury!

Special safety instructions for this device

Short hairs will be removed gently and precisely all over the body. Hairs are removed with the root and the skin remains smooth. Since the hairs are soft and fine, they will not grow back.

Do not use the device on sensitive areas such as eyebrows, eyelashes, or head hair. - The optimal hair length for epilation is between 2 and 5 mm. We recommend shortening the hair to this length first. - Redness of the skin may occur after use. It is best to perform epilation in the evening so that the skin can recover overnight. Moisturizing creams also help. Fine hairs may grow into the skin. The exfoliator removes the top layer of skin and fine hairs are lifted to the surface. - Are you unsure whether you can use this device? Consult a doctor in the following cases: for eczema, wounds, inflammatory skin reactions such as folliculitis (ingrown hairs) and varicose veins, if you want to remove hair in the area of birthmarks, if you have weakened skin protection (which

Russian

may occur with diabetes), during pregnancy, if you have Raynaud's syndrome (white finger syndrome), if you have bleeding disorders or a weakened immune system.

Massage attachment for the face (5)

Relieves tension, reduces the formation of wrinkles, stimulates blood circulation in the skin.

People with sensitive skin may experience irritation/swelling. If necessary, test the device on another part of the body, for example, on the back of the hand. Do not use the device directly around the eyes. The skin around the eyes is much thinner and more sensitive. To avoid the appearance of wounds, do not press hard on the device when using it.

Removal of calluses (6)

The special coating gently removes the top layer of skin. The rotating roller works quickly on the areas to be treated.

Always use the roller carefully. You can treat certain areas several times. - Move the roller in different directions. Never use the device on severely cracked skin or open wounds! Do not use on moles or birthmarks. - If you have any illnesses, such as diabetes, hemophilia, or immune deficiency, consult a doctor beforehand. - If the skin on the feet is very thick for treatment, it is recommended to treat with short, repeated sessions. Therefore, use the device carefully every day. - To protect the skin from cracking, use a skin cream after treatment. After 7-10 days you should get good results. Then usually 1-2 maintenance treatments per week are sufficient.

Women's shaver (7)

KeHcka 6pntBa (7)

This device is intended for full body hair removal. The attachment head is slightly curved to follow the contours of the body. It differs from the epilator mode in that it does not pull out hair roots. Additionally, female shaving prevents ingrown hairs.

• During hair removal in the armpits and bikini area, the skin is sensitive. To avoid injury, always stretch the skin with the other hand.
• Pay attention to skin irregularities, for example, warts. They must not be touched with the shaver for pubic hair.

Immediately after hair removal, avoid using substances that irritate the skin, for example, deodorants containing alcohol.

Working with attachments

To change attachments, turn off the device. On the switch, the OFF indication appears. Press the release button on the attachment and pull it upwards. Insert the required attachment into the block of the drive mechanism until it clicks into place. 1. Turn on the device by sliding the switch upwards. 2. After use, turn off the device.

Cleaning

WARNING:

• Before cleaning, turn off the device and disconnect the adapter from the mains. Do not immerse the device or the adapter in water.

CAUTION:

Do not use wire brushes or other abrasive objects. Do not use strong or abrasive cleaning agents. - The shaving head of the female shaver cannot be rinsed; always turn off the device before cleaning.

Attachments

Rinse the attachments with a mild cleaning solution of medium concentration. Then rinse them with water. Allow the attachments to dry completely before reinstalling them.

IMEYAHNIA:

• To simplify the shaver, you can remove the trimmer head of the women's shaver and the outer cap of the epilator. To remove hair, you can use a brush.
• Regularly apply 1-2 drops of non-acidic oil to the shaving head and the trimmer for long hair.

Housing

You can wipe the housing of the device with a slightly damp cloth.

Storage

• The power cord should not be pulled. Never wrap the power cord tightly around the device, as this will eventually lead to damage to the cord. Regularly check the power cord for any damage.
• If you do not intend to use the device for an extended period, we recommend storing it in its original packaging. Always store the device in a place inaccessible to children, dry and well-ventilated.

Technical data

Model: LBS 5691

Net weight: approx. 114 grams

Power adapter

Protection class: II

Input: Alternating current (AC) 100-240V, 50/60Hz

Output: Direct current (DC) 3.0V, 600mA

Accumulator: 2x1.2V, 600mA, NiMH

Operating time: 60 minutes maximum

Charging time: 8.5 hours

We reserve the right to make technical and design changes as part of ongoing product development.

This product has passed all necessary and current checks prescribed by the CE directive for electromagnetic compatibility and compliance with low-voltage equipment requirements. It has also been designed and built with the latest safety technology requirements in mind.

LBS 5691

1. 240-100. 600-3.0. JL600600 6001,2x2. 8560.

8.5 8.5

__SUPPIMER__

150

AEG is a registered trademark used under license from AB Electrolux (publ)
