USER MANUAL TKG MG 1007 DGC KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

2

TKG MG 1007 DGC-101224

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

D

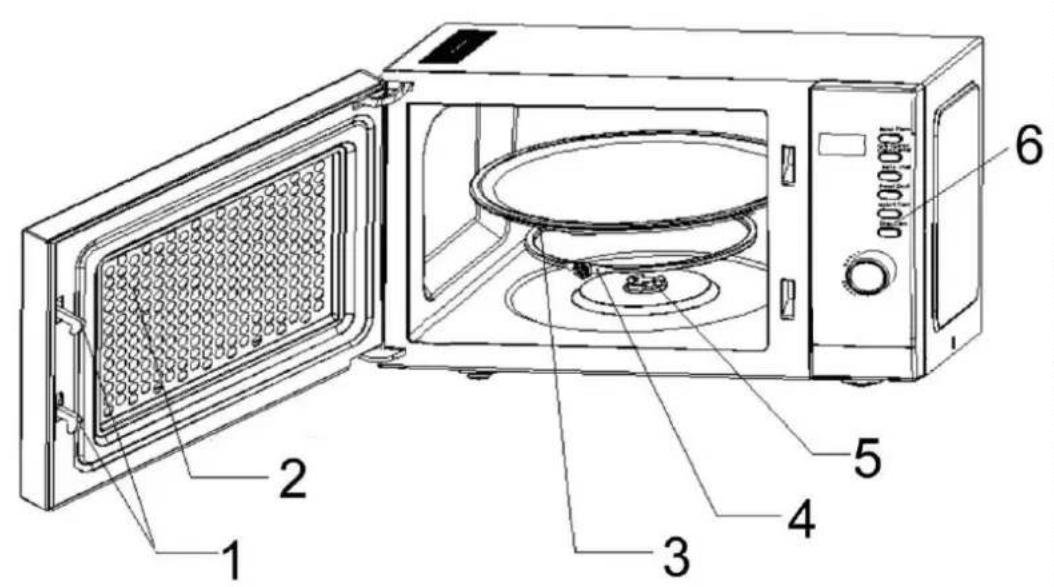

1. Door safety lock system
2. Oven window
3. Glass tray
4. Rolling ring
5. Shaft
6. Control panel

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

SOLLTE DER FEHLER NOCHT NICT BEHOHEN SEIN, WENDEN SIE SICH BITTE AN EINEN FACHMANN. VERSUCHEN SIE NIEMALS SELBST DAS GERAT ZU REPARIEREN.

FEHLERMELDUNGEN

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

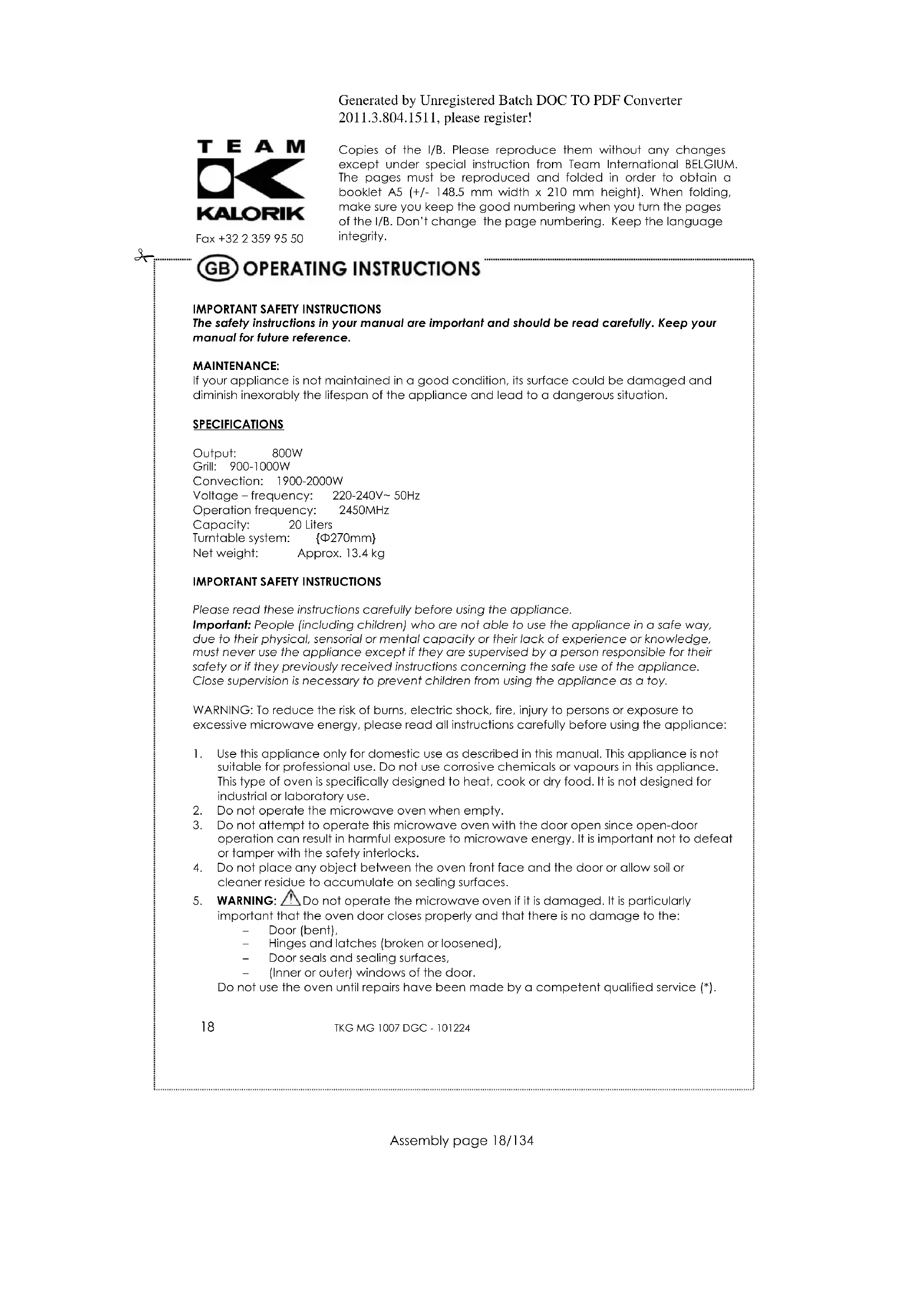

IMPORTANT SAFETY INSTRUCTIONS The safety instructions in your manual are important and should be read carefully. Keep your manual for future reference.

MAINTENANCE: If your appliance is not maintained in a good condition, its surface could be damaged and diminish inexorably the lifespan of the appliance and lead to a dangerous situation.

SPECIFICATIONS

Output: 800W

Grill: 900-1000W

Convection: 1900-2000W

Voltage - frequency: 220-240V~50Hz

Operation frequency: 2450MHz

Capacity: 20 Liters

Turntable system: {Φ270mm}

Net weight: Approx. 13.4 kg

IMPORTANT SAFETY INSTRUCTIONS

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy, please read all instructions carefully before using the appliance.

1. Use this appliance only for domestic use as described in this manual. This appliance is not suitable for professional use. Do not use corrosive chemicals or vapours in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
2. Do not operate the microwave oven when empty.
3. Do not attempt to operate this microwave oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
4. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
5. WARNING: Do not operate the microwave oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:

Door (bent),
Hinges and latches (broken or loosened),
Door seals and sealing surfaces.
- (Inner or outer) windows of the door.

Do not use the oven until repairs have been made by a competent qualified service (^*)

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1. If steam appears between the inner and outer window when cooking, immediately stop the oven, unplug it, and contact the nearest customer service. Otherwise, you might be exposed to microwave energy.

2. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation that involves the removal of any cover that gives protection against exposure to microwave energy. Should the appliance or its power cord be damaged, do not use this appliance. All repairs should be made by a competent qualified service (^*)

3. Do not attempt to disassemble the appliance or to remove feet, seals, screws etc.

4. WARNING: Children should not use this appliance without supervision except if they were previously given proper instructions so that they can use it correctly and understand the risks linked to improper use.

5. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, check the oven frequency to avoid any risk of fire.

b. Remove wire twist-fies from paper or plastic bags before placing the bag in the oven.

c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. IMPORTANT: UTENSILS THAT ARE NOT SUITABLE FOR MICROWAVE COOKING.

Always check if your utensils are microwave resistant before using them in the appliance.

• Never use utensils with a metal handle.
• Never use utensils with metal decorations.
• Never use iron locking clips (not even covered with paper).

• Never use melamine receptacles as these contain a substance that absorbs microwave energy. The receptacle might break or carbonise and the cooking process would be slower.
  The use of traditional thermometers is prohibited, use microwave resistant thermometers.
  In case of doubt, please contact the supplier of the utensil to know whether it is microwave resistant or not.

• Do not prepare food in receptacles with a too narrow opening, as this might cause these receptacles to explode.

• WARNING: CAUTION, Liquid or other food must not be heated in sealed containers (such as receptacles with lid or feeding bottle with dummy) since they are liable to explode.
• Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means "CAUTION, this surface may get very hot during use".
• Eggs in their shell or whole hard-boiled eggs must not be heated in the microwave oven as they might explode.
• Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when you handle the container.
• CAUTION: Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns. Do not warm up greasy foods in the microwave oven, as it might catch fire.
• Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking. Otherwise they might explode.

19

TKG MG 1007 DGC - 101224

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
2. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
3. Before operating the microwave oven, make sure the glass tray, the motor shaft and the roller ring are in correct position inside the oven.
4. Make sure the openings of microwave resistant receptacles are neither obstructed nor covered in order to avoid that they explode during operation.
5. Do not place the preparation directly on the glass tray, but put it in a microwave resistant receptacle.
6. Food containing a mixture of water and grease should be left 30 to 60 seconds in the oven when switched off to allow the mixture to come down to avoid bubbling, especially when a beef cube is added.
7. It is necessary to clean the cavity of your oven regularly and to remove any rests of food. Food remains on the heating elements of the oven will produce smoke and bad smells.

(*) Competent qualified service: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. Check the microwave oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact a competent qualified service.
3. This microwave oven must be placed on a flat, stable surface which is able to hold its weight (14.7kg) and the heaviest food likely to be cooked in the oven.
4. Do not place the microwave oven where heat, moisture or high humidity are generated, or near combustible materials.
5. Do not cover or block any openings on the appliance. Do not remove the feet.
6. For correct operation, the microwave oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at the back and 8cm at both sides.
7. The socket must be readily accessible so that it can be easily unplugged in case of emergency.
8. Do not use the microwave oven outdoors.

WARNING: THIS APPLIANCE MUST BE GROUNDED.

The length of the cord is about 1.4m, so the appliance needs to be installed near a power socket. Avoid using extension cords or make sure they are compatible with the power of your appliance.

We advise you to call for an electrician if you have any questions concerning the technical installation of your appliance.

This appliance is protected by a safety fuse. Should this fuse be replaced, please contact a competent qualified electrician () .

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV or similar 20 TKG MG 1007 DGC - 101224

equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean the door and sealing surface of the microwave oven.
2. Reorient the receiving antenna of radio or television.
3. Move the microwave oven away from the receiver.
4. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place the thickest areas towards the outside of the dish.
2. Watch the cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Tum foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the centre of the dish to the outside.

UTENSILS GUIDE

1. We advise you to use utensils that are specially conceived for microwave cooking as they allow energy to pass through the container and heat the food.
2. Microwaves cannot penetrate metal, so metal utensils or dishes with a metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fire.
4. Round/oval dishes rather than square/oblong ones are recommended, as food in corners tends to overcook.

The table below is a general guide to help you select the correct utensils.

Cookware	Microwave Cooking	Grill	Convection	Combination
Heat-Resistant Glass	Yes	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No	No
Kitchen Paper	Yes	No	No	No
Metal Tray	No	Yes	Yes	Yes
Metal Rack	No	Yes	Yes	Yes
Aluminium Foil & Foil Containers	No	Yes	No	No

BEFORE THE FIRST USE

Manufacturing residues or oil may cause a light smell or some smoke when using your appliance for the first time. This is normal and does not affect the performance of your appliance. It will disappear after a few times if you keep the door open after use to provide proper ventilation. In order to eliminate these manufacturing residues, we advise you to operate the microwave oven a few times for about 30 seconds in grill mode or in the

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

convection mode without food in it. Attention: Do not operate the microwave oven without food in it in microwave or combination mode.

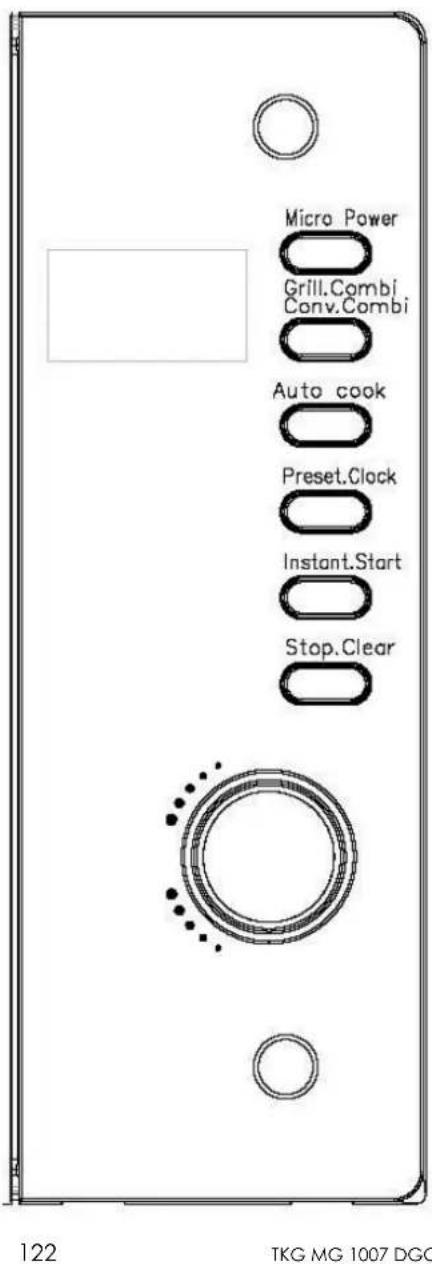

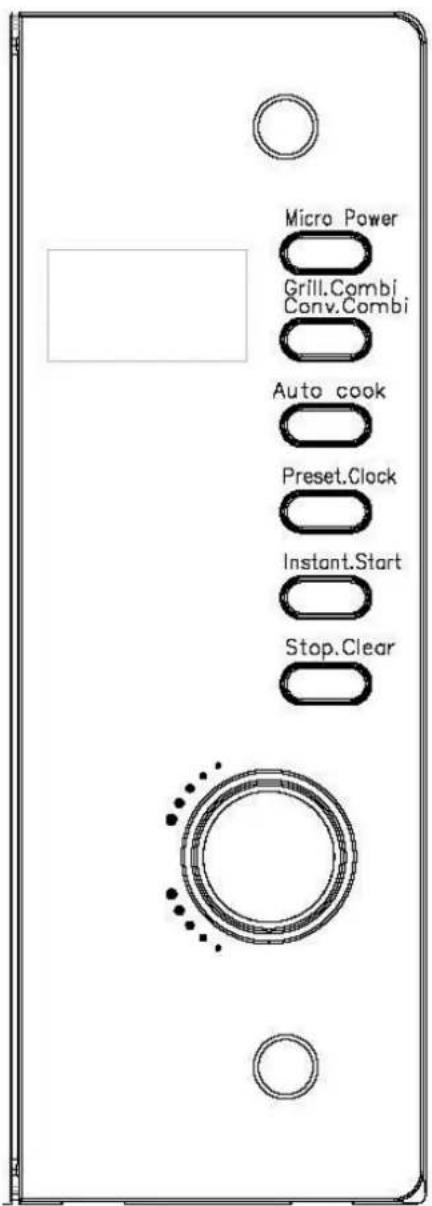

CONTROL PANEL

For each button, please refer to the paragraph "USE" to know their functions.

23

TKG MG 1007 DGC-101224

USE

IMPORTANT REMARKS:

1) There must be a food preparation in the oven cavity before starting the microwave oven.
2] Make sure the receptacle does not touch the walls of the cavity in order not to disturb the rotation of the glass tray.
3) The metal rack supplied can be used in the convection function or the grill function. It can be used to put the food nearer to the heating element or to put several receptacles in the oven.

Each time a key is pressed, a short beep will sound to acknowledge the press.

When the appliance starts, the light inside the oven switches on in order to check the cooking. The cooking time countdown begins.

At the end of the cooking time, three beeps will sound and the light inside the oven switches off. The display will show "End". If you do not press the "Stop.Clear" key or open the door, three beeps will sound again every 3 minutes.

If you open the door during the cooking process, the oven stops. To continue cooking, close the door and press "Instant.Start".

Anytime, if you press the "Stop.Clear" key, the setting or the cooking process will be stopped.

SETTING THE CLOCK

When the microwave oven is plugged into a wall outlet, the display will flash 3 times and then "..." will flash.

1. Press "Preset.Clock". "00:00" appears on the display.
2. Turn the rotary knob to set the hours (0-23). The hours will be flashing.
3. Press "Preset.Clock" again to confirm the hours. The last digits, indicating the minutes, will start flashing.
4. Turn the rotary knob to set the minutes (0-59).
5. Press "Preset.Clock" again to finish the setting or wait 5 seconds.

Note: If you press "Stop.Clear" during the process of clock setting, the oven will go back to the previous status automatically.

If time resetting is needed afterwards, press "Preset.Clock" and proceed as described above.

SETTING THE COOKING TIME, POWER AND COOKING FUNCTION

Important remark: Make sure the door of the oven is closed before you press "Instant.Start", otherwise the oven will not function.

a) Microwave cooking

1. Select the desired power by pressing "Micro Power" once or a number of times (for the power level regulation, see table below).

Power	100%	80%	60%	40%	20%
Display	100P	80P	60P	40P	20P
Function	Meat, vegetables	Eggs, fish, rice, soup	Steaming	Defrosting	Keeping warm

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1. Turn the rotary knob to set the cooking time (maximum 60 minutes).
2. Press "Instant.Start" to start the oven. The countdown begins.

Notes:

• You can adapt the cooking time during the cooking process.
• Do not use the metal rack for microwave cooking.
• It is recommended to turn the food halfway through. When you have turned the food, close the door and press "Instant.Start" to resume the cooking process.

b) Convection (with or without preheating function)

The convection function can be used to cook the food as a traditional oven. Hot air is circulated throughout the oven cavity in order to crisp and brown foodstuffs quickly and evenly. No microwaves are used. It is recommended to preheat the oven to a certain temperature before placing the food in the oven.

To preheat the oven:

1. Press the "Conv.Combi/Grill.Combi" key once. "C" appears on the display.
2. Turn the rotary knob to set the temperature. You can select a temperature from 100 to 200 degrees Celsius.
3. Press "Instant.Start" to confirm the temperature setting.
4. Turn the rotary knob to set the preheating time. You may skip this step, in which case the default preheating time will be 15 minutes.
5. Press "Instant.Start" to start preheating. During preheating, the temperature inside the oven cavity flashes on the display.
6. When the oven has reached the desired temperature, it holds this temperature automatically. The integrated cooling fan will run for 30 seconds while the lamp is illuminated.

Note: the preheating temperature must be lower than the temperature that will be used for cooking. Otherwise "Err2" will appear on the display when setting the cooking temperature and you will have to reset the temperature or wait for the oven to cool down.

When you have put the food in the oven and closed the door, you can set the cooking programme:

1. Press the "Conv.Combi/Grill.Combi" key once. "C" appears on the display.
2. Turn the rotary knob to set the temperature. You can select a temperature from 100 to 200 degrees Celsius (100°C - 140°C - 160°C - 180°C - 200°C).

Function	Temperature
Defrostling	100°C or 140°C
Baking	140°C or 160°C
Grilling poultry	180 - 200°C

1. Press "Instant.Start" to confirm the temperature setting.
2. Turn the rotary knob to set the cooking time.
3. Press "Instant.Start" to start the oven.
4. When the cooking has ended, the integrated cooling fan will run for 30 seconds while the lamp is illuminated.

A few tips for cooking with the convection function (after preheating):

Foodstuffs	Quantity/Size	Cooking temperature	Cooking time
Poultry	1.5 kg	200°C	45 minutes

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Cake	Ø 20 cm	180°C	45 minutes
Cookies	25 pieces	180°C	20 minutes
Pizza	15 mm thick	200°C	30 minutes

Notes: - You may remove the turntable when prehealing the oven.

• Do not use aluminium foil in the convection mode as this would slow down the cooking process.

• Round pizza pans are excellent cooking utensils for cooking with the convection function.

Attention: In the convection mode, the oven, the metal rack and the receptacles may become very hot. Use patholders or oven gloves to prevent burns.

c) Combination cooking: Convection + Microwave

The combination of convection and microwave cooking produces juicy meats and tender poultry with the right degree of browning and crispness. It is advised to cook meats and poultry directly on the metal rack provided. You can place a shallow dish under the food to collect dripping gravy.

1. Press the "Conv.Combi/Grill.Combi" key a few times until "C1" or "C2" appears on the display. Programme "C2" adds more microwave cooking time than "C1" which makes it suitable for cooking large pieces of poultry.
2. Turn the rotary knob to set the temperature. You can select a temperature from 100 to 180 degrees Celsius (in combination mode, the oven cannot be heated to a temperature higher than 180^ ).
3. Press "Instant.Start" to confirm the temperature setting.
4. Turn the rotary knob to set the cooking time.
5. Press "Instant.Start" to start the oven.

Note: Preheating is not recommended in the combination mode.

Attention: In the combination modes, the oven, the metal rack and the receptacles may become very hot. Use potholders or oven gloves to prevent burns.

d) Grill cooking

When using the grill function, the healing element will be energized during use. The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages or pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes.

1. Press the "Conv.Combi/Grill.Combi" key several times until "G" appears on the display.
2. Turn the rotary knob to set the cooking time.
3. Press "Instant.Start" to start the oven. The countdown begins.

Note: It is not necessary to preheat for grill cooking.

Attention: In the grill mode, the oven, the metal rack and the receptacles may become very hot. Use potholders or oven gloves to prevent burns.

e) Combination cooking: Grill + Microwave

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

If you want to cook thick pieces of food, it is advised to use a combination of grill and microwave cooking as a brown crust is obtained in this way while the microwaves penetrate the food and heat up the centre of the food as well.

1. Press the "Conv.Combi/Grill.Combi" key several times until "G1" or "G2" appears on the display. Programme "G2" adds more working time of the heating element than "G1".
2. Turn the rotary knob to set the cooking time.
3. Press "Instant.Start" to start the oven. The countdown begins.

Attention: In the combination modes, the oven, the metal rack and the receptacles may become very hot. Use potholders or oven gloves to prevent burns.

f) Defrost by weight

With this function, the power is set automatically in order to defrost your preparation progressively without cooking it.

1. Turn the rotary knob to the left or to the right to select the desired defrosting programme.

Code	Type of food	Weight
d.1	Meat	0.1 – 2.0 kg
d.2	Poultry	0.2 – 3.0 kg
d.3	Seafood	0.1 – 0.9 kg

1. Press "Instant.Start" to confirm the defrosting programme.
2. Turn the rotary knob to the right to select the weight that has to be defrosted.
3. Press "Instant.Start" to start the defrosting process.
4. Halfway during the defrosting process, 3 beeps will sound twice, indicating that it is time to turn over the food. Open the door, turn over the food and close the door again.
5. Press "Instant.Start" to continue the defrosting process.

Notes: Normally, the defrosting process takes longer than the cooking process. If the food can be cut with a knife, the defrosting process can be considered as completed. For best results, put the food on a shallow dish and shield the edges of the foodstuffs with foil. After defrosting, cover the food with aluminium foil and let it stand for 5-30 minutes.

g) AUTO-menu

The auto-functions select the appropriate cooking programme according to the food you want to prepare.

AUTO code table

AUTO Code	Food	Guidelines
Ac.1	Popcorn	To pop a bag of corn of 85g (3.0 Oz). If the popping speed has decreased to 1 time per 1-2 seconds before the end of the cooking time, press the "Stop.Clear" key to stop the popping process.
Ac.2	Popcorn	Same as Ac.1 but for a bag of corn of 100g (3.5 Oz).
Ac.3	Pizza	To heat up a slice of pizza of about 0.15kg.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Ac.4	Beverage	To heat a cup with 250ml liquid.Use a cup with a big opening and do not seal the opening.
Ac.5	Beverage	To heat a cup with 500ml liquid.Use a cup with a big opening and do not seal the opening.
Ac.6	Potato	To cook 0.45kg of potato strips.Cut the potatoes into strips of 5mm,place them on a large dish and cover them with a thin film to prevent water loss.
Ac.7	Potato	Same as Ac.6 but for about 0.65kg of potato strips.
Ac.8	Fish	To steam a fish of 0.45kg.When the fish has been washed and the scales have been removed,slit the skin of the fish.Put the fish on a shallow dish(22-27cm diameter)and sprinkle it lightly with the ingredient of your choice.Cover the dish with a thin film to prevent water loss.Let it stand for 2 minutes after cooking.

1. Press the "Auto Cook" key to select the desired auto code corresponding to the food you want to cook.
2. Press "Instant.Start" to start cooking.

Note: you can adjust (increase or decrease) the cooking time if necessary.

PRESET FUNCTION

It is possible to delay the start-up time of the appliance by pre-setting it. To do so:

1. Set the clock (see section "Setting the clock").
2. Set a cooking programme (cooking mode + cooking time) without pressing "Instant.Start" at the end of the setting. Note: The defrost function and the AUTO-menu cannot be preset.
3. Press "Preset.Clock" and hold it for 3 seconds. The current time will be displayed.
4. Turn the rotary button to set the hours (0-23) of the time at which the cooking should start.
5. Press "Preset.Clock" again; the last figures indicating the minutes will start flashing.
6. Turn the rotary knob to set the minutes (0-59).
7. Press "Preset.Clock" to confirm the setting.
8. As soon as the preset time is reached, the appliance will be switched on according to the chosen cooking setting.

Note:

• If the clock has not been set beforehand, the preset function will not work.
• If you press "Preset.Clock" in the preset state, the preset time will be displayed.

MULTI-STAGE COOKING

Four stages can be set at most. If one of the stages involves defrosting, this stage has to come first.

1. Set a cooking programme without pressing "Instant.Start" at the end of the setting.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1. Set a second cooking programme (and if desired also a third and a fourth) and press "Instant.Start" only at the end of the last setting.
2. The appliance will be switched on according to the first cooking setting. The time counts down for the first setting.
3. When the first stage has finished, the oven starts according to the second cooking setting.
4. At the end of the cooking time of the last stage, 3 beeps will sound.

Note: the AUTO-menu and preheating cannot be set as one of the stages.

CHILD SAFETY LOCK

This oven has a safety device that locks the keys so that the oven cannot be used when it is unsupervised. To lock the control panel, press "Stop.Clear" for 3 seconds until "OFF" appears on the display. To unlock, press "Stop.Clear" for 3 seconds until "" appears on the display.

BEFORE YOU CALL FOR SERVICE

If the microwave oven fails to operate:

a) Check to ensure that the microwave oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
c) Check to ensure that the control panel is programmed correctly and the timer is set.
d) Check to ensure that the door is securely closed. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A COMPETENT QUALIFIED ELECTRICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

ERROR MESSAGES

If "Err0" or "Err1" appears on the display, contact a competent qualified electrician.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. It is very important to clean the oven door, as it is responsible for the impenetrability of the microwave oven. Therefore, make sure it is always clean and make sure no object hinders the door from being properly closed.
3. Keep the inside of the microwave oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
4. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the microwave oven, water should not be allowed to seep into the ventilation openings.

5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave the oven door open to prevent the microwave oven from accidentally turning on.

6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions. This is normal.

7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or a dishwasher. When removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.
9. Remove odours from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult the customer service to have it replaced.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

FR MODE D'EMPLOI

Puisance restituee: 800W

Grid: 900-1000W

Convection: 1900-2000W

Tension-fréquence: 220-240V~50Hz

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

soupe

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

FAITES APPEL À UN SERVICE QUALIFIE EN CAS D'AUTRES PROBLEMES. N'ESSAYEZ EN AUCUN CAS DE REPARER L'APPAREIL VOUS-MEME.

MESSAGESD'ERREUR

Microgolffrequency: 2450 MHz

Inhoud: 20 liter

Draiplaat:{Φ270mm}

OPGELET: DIT APPARAAT MOET GEAARD WORDEN.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fen+3223599550

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet I A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering: keep the language integrity.

SP MANUAL DE INSTRUCCIONES

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Pastel	Ø 20 cm	180°C	45关键时刻
Galletas	25 unidades	180°C	20关键时刻
Pizza	15 mm espesor	200°C	30关键时刻

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Tome nota: se necessitar pode ajustar (augmentar ou diminuir) o tempo de cozedura.

FUNCAO DE PRE-REGISTO

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

PROTEÇÃO DO MEIO AMBIENTE - DIRECTIVA 2002/96/CE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

zuppe

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Ciasto	Ø 20 cm	180°C	45 minut
Ciasteczka	25 szluk	180°C	20 minut
Pizza	15 mm grubość	200°C	30 minut

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Approx. 13,4kg

Instruiuni importante de siguranta

Va rugam cititi cu atentie aceste instructiuni inainte de a folosi aparatul.

Important: personele (inclusiv copii) care nu sunt capabile sa foloseasca produsul in siguranta, datorita capacitati lor fizice, senzoriale sa mentale, sa datorita lipsei de experienta tau cunostere, nu trebuie niciodata sa foloseasca produsul decat daca sunt supravegheati de o persona responsabila cu siguranta lor Sau daca ei anterior au primit instructiuni privind folorirea aparatului.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

o ventilare a produsului. Pentru eliminarea acestor reziduuri va recomandam sa sa porniti cuptorul fara produse in el, cate 30 secunde, in modul grtar sau convective. Atentie: Nu folositi cuptorul fara mancare in el in modul microunde sau combinat.

PANOU DE COMANDA

Pentru ficare tasta, va rugam consultati paragraful "OPERARE" ca sa aflati functile lor.

Afisaj: Indica timpul de gatire, puterea, ora zilei si starea diferitelor reglaje Sau alte reglaje.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Team International Romania Srl;

131

TKG MG 1007 DGC-101224

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Str.Industrilor 56A, sector 3, Bucuresti CUI 16991287; R.C. J40/19685/29.11.2004

TKG MG 1007 DGC-101224

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

TKG MG 1007 DGC-101224

TKG MG 1007 DGC

Deutsch 4

English 16

Français 28

Nederlands 41

Espanol 54

Portugues 66

Italiano 80

Polska 92

Romána 105

KALORIK

Back cover page (last page)
