Frequently Asked Questions - TKG MG 1015 KALORIK

Download the instructions for your Microwave Oven in PDF format for free! Find your manual TKG MG 1015 - KALORIK and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TKG MG 1015 by KALORIK.

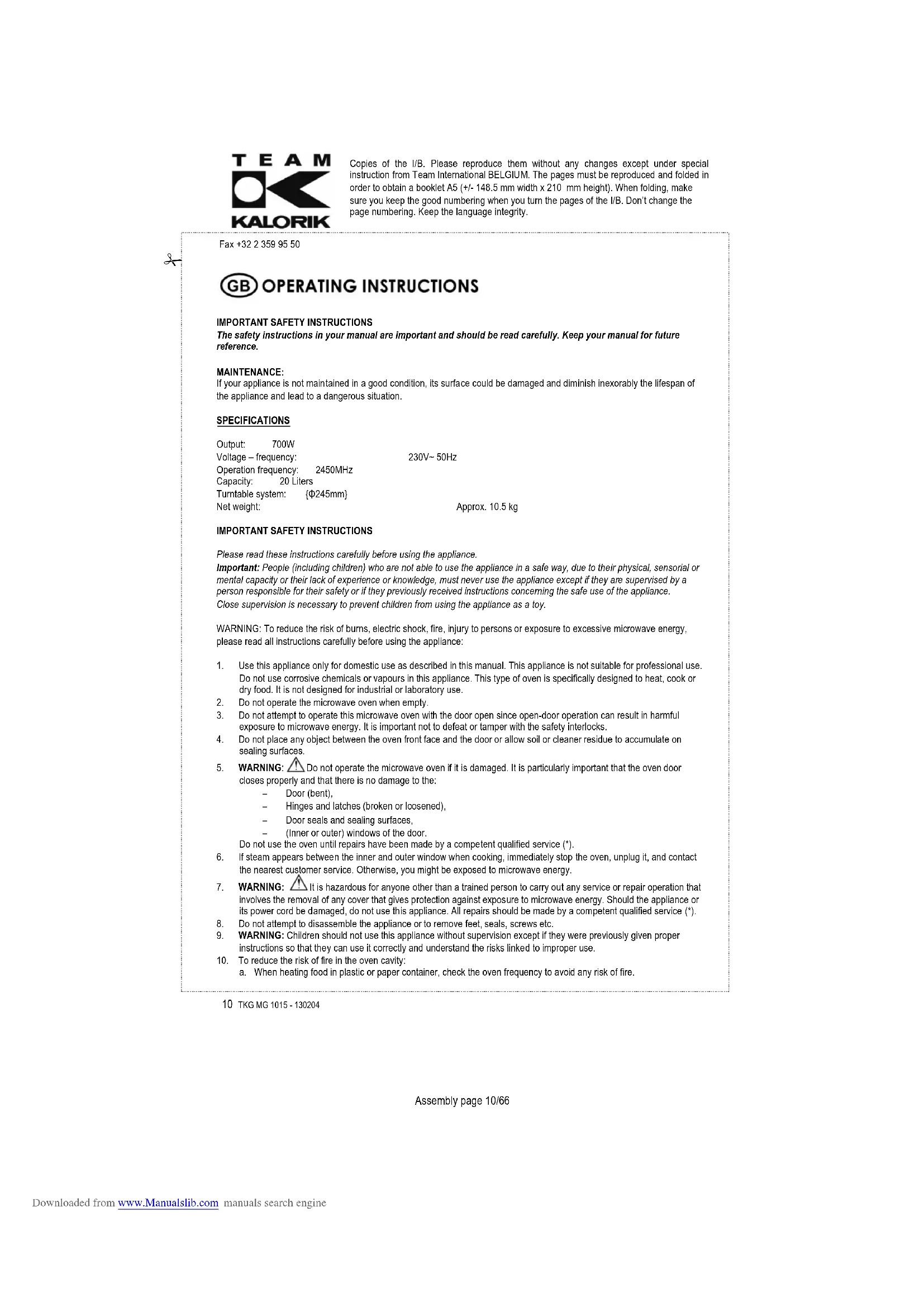

USER MANUAL TKG MG 1015 KALORIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Front cover page (first page)

I/B Version 130204 Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Metallplatte Nein Metallgitter Nein Aluminiumfolie & Foliegefäße Nein Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

IMPORTANT SAFETY INSTRUCTIONS The safety instructions in your manual are important and should be read carefully. Keep your manual for future reference. MAINTENANCE: If your appliance is not maintained in a good condition, its surface could be damaged and diminish inexorably the lifespan of the appliance and lead to a dangerous situation. SPECIFICATIONS Output: 700W Voltage – frequency: 230V~ 50Hz Operation frequency: 2450MHz Capacity: 20 Liters Turntable system: {Φ245mm} Net weight: Approx. 10.5 kg

IMPORTANT SAFETY INSTRUCTIONS

Please read these instructions carefully before using the appliance. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy,

please read all instructions carefully before using the appliance: 1. Use this appliance only for domestic use as described in this manual. This appliance is not suitable for professional use. Do not use corrosive chemicals or vapours in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

2. Do not operate the microwave oven when empty.

3. Do not attempt to operate this microwave oven with the door open since open-door operation can result in harmful

exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

4. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on

5. WARNING: Do not operate the microwave oven if it is damaged. It is particularly important that the oven door

closes properly and that there is no damage to the: − Door (bent), − Hinges and latches (broken or loosened), − Door seals and sealing surfaces, − (Inner or outer) windows of the door. Do not use the oven until repairs have been made by a competent qualified service (*).

6. If steam appears between the inner and outer window when cooking, immediately stop the oven, unplug it, and contact

the nearest customer service. Otherwise, you might be exposed to microwave energy.

7. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation that

involves the removal of any cover that gives protection against exposure to microwave energy. Should the appliance or its power cord be damaged, do not use this appliance. All repairs should be made by a competent qualified service (*).

8. Do not attempt to disassemble the appliance or to remove feet, seals, screws etc.

9. WARNING: Children should not use this appliance without supervision except if they were previously given proper

instructions so that they can use it correctly and understand the risks linked to improper use.

10. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, check the oven frequency to avoid any risk of fire. Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

b. Remove wire twist-ties from paper or plastic bags before placing the bag in the oven. c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

11. IMPORTANT: UTENSILS THAT ARE NOT SUITABLE FOR MICROWAVE COOKING.

Always check if your utensils are microwave resistant before using them in the appliance. - Never use utensils with a metal handle. - Never use utensils with metal decorations. - Never use iron locking clips (not even covered with paper). - Never use melamine receptacles as these contain a substance that absorbs microwave energy. The receptacle might break or carbonise and the cooking process would be slower. - The use of traditional thermometers is prohibited, use microwave resistant thermometers. - In case of doubt, please contact the supplier of the utensil to know whether it is microwave resistant or not.

12. Do not prepare food in receptacles with a too narrow opening, as this might cause these receptacles to explode.

13. WARNING: CAUTION, Liquid or other food must not be heated in sealed containers (such as receptacles with lid or

feeding bottle with dummy) since they are liable to explode.

14. Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This

symbol means “CAUTION, this surface may get very hot during use”.

15. Eggs in their shell or whole hard-boiled eggs must not be heated in the microwave oven as they might explode.

16. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when you handle

17. CAUTION: Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

Do not warm up greasy foods in the microwave oven, as it might catch fire.

18. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking. Otherwise they

might explode. 19. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

20. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to

handle the utensil. 21. Before operating the microwave oven, make sure the glass tray, the motor shaft and the roller ring are in correct position inside the oven. 22. Make sure the openings of microwave resistant receptacles are neither obstructed nor covered in order to avoid that they explode during operation.

23. Do not place the preparation directly on the glass tray, but put it in a microwave resistant receptacle.

24. Food containing a mixture of water and grease should be left 30 to 60 seconds in the oven when switched off to allow the mixture to come down to avoid bubbling, especially when a beef cube is added. 25. It is necessary to clean the cavity of your oven regularly and to remove any rests of food. Food remains on the heating elements of the oven will produce smoke and bad smells. (*) Competent qualified service: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician. INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.

2. Check the microwave oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface,

broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact a competent qualified service. 3. This microwave oven must be placed on a flat, stable surface which is able to hold its weight (10.5 kg) and the heaviest food likely to be cooked in the oven.

4. Do not place the microwave oven where heat, moisture or high humidity are generated, or near combustible materials.

5. Do not cover or block any openings on the appliance. Do not remove the feet.

6. For correct operation, the microwave oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at the back and 8cm at both sides.

7. The socket must be readily accessible so that it can be easily unplugged in case of emergency.

8. Do not use the microwave oven outdoors.

WARNING: THIS APPLIANCE MUST BE GROUNDED.

The length of the cord is about 1.0m, so the appliance needs to be installed near a power socket. Avoid using extension cords or make sure they are compatible with the power of your appliance. We advise you to call for an electrician if you have any questions concerning the technical installation of your appliance. This appliance is protected by a safety fuse. Should this fuse be replaced, please contact a competent qualified electrician (*). RADIO INTERFERENCE Operation of the microwave oven can cause interference to your radio, TV or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean the door and sealing surface of the microwave oven.

2. Reorient the receiving antenna of radio or television.

3. Move the microwave oven away from the receiver.

4. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place the thickest areas towards the outside of the dish.

2. Watch the cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely

overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like

roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the centre of the dish to

the outside. UTENSILS GUIDE 1. We advise you to use utensils that are specially conceived for microwave cooking as they allow energy to pass through the container and heat the food.

2. Microwaves cannot penetrate metal, so metal utensils or dishes with a metallic trim should not be used.

3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may

cause sparks and/or fire.

4. Round/oval dishes rather than square/oblong ones are recommended, as food in corners tends to overcook.

The table below is a general guide to help you select the correct utensils. Cookware Microwave Cooking Heat–Resistant Glass Yes Non Heat–Resistant Glass

Heat–Resistant Ceramics Yes Microwave–Safe Plastic Dish Yes Kitchen Paper Yes Metal Tray

Aluminium Foil & Foil Containers

CONTROL PANEL Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

1. To set a cooking programme: place the food in the oven and close the door.

2. Turn the power regulator to the needed cooking function.

3. Use the timer to select the correct cooking time.

4. Note: As soon as the timer is turned, the oven will start cooking.

5. If you want to select a cooking time of less than 2 minutes, turn the timer past 2 minutes and then return to the correct time.

6. You can interrupt the cooking process by opening the door. When you close back the door, the cooking process

7. Caution: ALWAYS RETURN THE TIMER BACK TO “0” POSITION if food is removed from the oven before the set

cooking time is complete or when the oven is not in use.

BEFORE YOU CALL FOR SERVICE

If the microwave oven fails to operate: a) Check to ensure that the microwave oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance. c) Check to ensure that the control panel is programmed correctly and the timer is set. d) Check to ensure that the door is securely closed. Otherwise, the microwave energy will not flow into the oven. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A COMPETENT QUALIFIED ELECTRICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.

2. It is very important to clean the oven door, as it is responsible for the impenetrability of the microwave oven. Therefore, make sure it is always clean and make sure no object hinders the door from being properly closed.

3. Keep the inside of the microwave oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a

damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

4. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the

microwave oven, water should not be allowed to seep into the ventilation openings. 5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave the oven door open to prevent the microwave oven from accidentally turning on.

6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the

microwave oven is operated under high humidity conditions, this is normal. HIGH 100% power MEDIUM HIGH 85% power MEDIUM 66% power M.LOW 48% power DEFROST 40% power LOW 17% power Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher. 8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or a dishwasher. When removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.

9. Remove odours from your oven by combining a cup of water with the juice and skin of one lemon in a deep

microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

10. When it becomes necessary to replace the oven light, please consult the customer service to have it replaced.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

de neiging heeft om aan te bakken. Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

se vaya a cocinar. Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

informações do modo de utilização do aparelho antes de porem o aparelho a funcionar e que tenham a percepção e Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

cozinhar. Os restos alimentares sobre a resistência originam fumos e cheiros desagradáveis. Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

alimentos que se encontram nos cantos têm tendência a queimarem-se. Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

a. Quando il cibo da riscaldare è contenuto in un recipiente di carta o di plastica, controllate la frequenza del forno Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

: timer (0~30 minuti) Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

HIGH MASSIMO 100% potenza rilasciata M. HIGH MED. MAX 85% potenza rilasciata MEDIUM MEDIO 66% potenza rilasciata M. LOW MED. MIN 48% potenza rilasciata DEFROST SCONGELAMENTO 40% potenza rilasciata LOW MINIMO 17% potenza rilasciata Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

zmywarce do naczyń. Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

aceasta, lasati usa cuptorului deschisa pentru a preveni pornirea accidentala a acestuia. Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

HIGH VYSOKÝ 100% power M. HIGH VYŠŠÍ 85% power MEDIUM STREDNÝ 66% power M. LOW NIŽŠÍ 48% power DEFROST ROZMRAZOVANIE 40% power LOW NŹKY 17% power Downloaded from www.Manualslib.com manuals search engineCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
