USER MANUAL PFBS 160 B2 PARKSIDE

ROTARY TOOL PFBS 160 B2

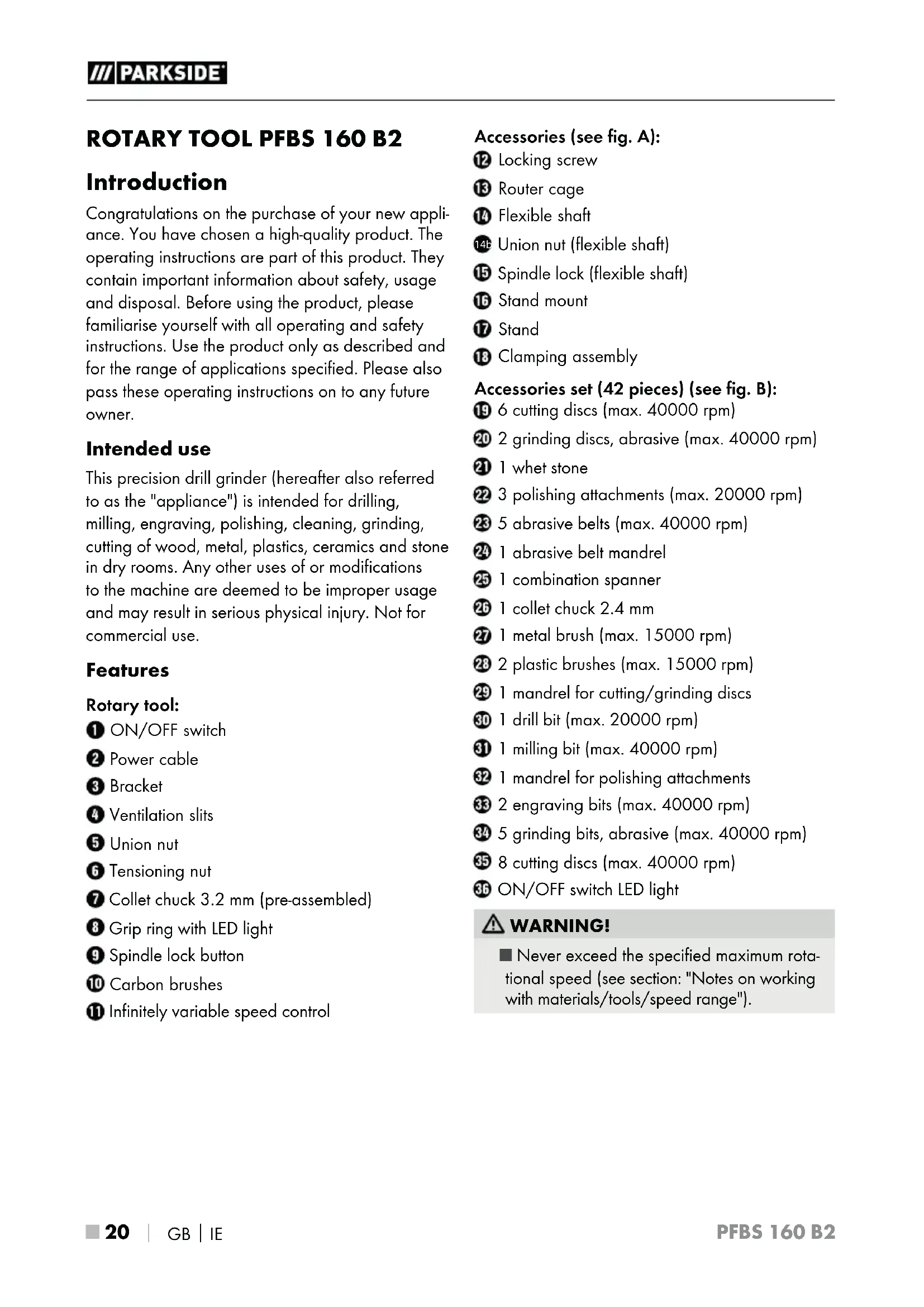

Introduction Congratulations on the purchase of your new appli- ance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use This precision drill grinder (hereafter also referred to as the "appliance") is intended for drilling, milling, engraving, polishing, cleaning, grinding, cutting of wood, metal, plastics, ceramics and stone in dry rooms. Any other uses of or modifications to the machine are deemed to be improper usage and may result in serious physical injury. Not for commercial use. Features Rotary tool: ON/OFF switch Power cable Bracket Ventilation slits Union nut Tensioning nut Collet chuck 3.2 mm (pre-assembled) Grip ring with LED light Spindle lock button Carbon brushes Infinitely variable speed control Accessories (see fig. A): Locking screw Router cage Flexible shaft 14b Union nut (flexible shaft) Spindle lock (flexible shaft) Stand mount Stand Clamping assembly Accessories set (42 pieces) (see fig. B): 6 cutting discs (max. 40000 rpm) 2 grinding discs, abrasive (max. 40000 rpm) 1 whet stone 3 polishing attachments (max. 20000 rpm) 5 abrasive belts (max. 40000 rpm) 1 abrasive belt mandrel 1 combination spanner 1 collet chuck 2.4 mm 1 metal brush (max. 15000 rpm) 2 plastic brushes (max. 15000 rpm) 1 mandrel for cutting/grinding discs 1 drill bit (max. 20000 rpm) 1 milling bit (max. 40000 rpm) 1 mandrel for polishing attachments 2 engraving bits (max. 40000 rpm) 5 grinding bits, abrasive (max. 40000 rpm) 8 cutting discs (max. 40000 rpm) ON/OFF switch LED light WARNING! ■ Never exceed the specified maximum rota- tional speed (see section: "Notes on working with materials/tools/speed range").PFBS 160 B2

21 ■ Package contents 1 rotary tool PFBS 160 B2 1 plastic case 1 flexible shaft 1 stand 1 clamping device 1 router cage 1 grip ring with LED light 2 button cells (expiry date: 04/2023) 1 accessories set (42 pieces) 1 set of operating instructions Technical data Rated power consumption 160 W Rated voltage 230–240 V ∼, 50 Hz (AC) Rated speed n 10,000–40,000 rpm Drills max. Ø 3.2 mm Discs max. Ø 25 mm Protection class II / (double insulation) Noise emission value Noise measurement value determined in accordance with EN 60745. The rated noise level of the power tool is typically as follows Sound pressure level L

= 75 dB(A) Uncertainty K K

= 3 dB Sound power level L

= 86 dB(A) Uncertainty K K

= 3 dB Wear hearing protection! Vibration emission value Total vibration values (vector total of three direc- tions) determined in accordance with EN 60745 Vibration emission value a

NOTE ► The vibration level specified in these instruc- tions has been measured in accordance with a standardised measuring procedure and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. WARNING! ► The vibration level varies depending on the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the power tool in this way may cause the user to underesti- mate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General Power Tool Safety Warnings WARNING! ► Read all safety warnings and all instructions. Failure to follow the warnings and instruc- tions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmo- spheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.PFBS 160 B2 ■ 22 

2. Electrical safety

a) The mains plug of the power tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites ac- cidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.PFBS 160 B2

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalign- ment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many ac- cidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. WARNING! Always wear safety googles Safety instructions for all applications General safety instructions for grinding, sand- paper sanding, working with wire brushes, polishing, milling and abrasive cutting: a) This power tool is intended for use as a grinder, sandpaper sander, wire brush, polisher, milling machine and abrasive cutting appli- ance. Please follow all safety instructions, directives, diagrams and data that you re- ceive with the appliance. If you do not observe the following instructions, this can lead to an electrical shock, fire and/or serious injuries. b) Do not use any accessories that have not been provided or recommended for this power tool by the manufacturer. Just because you can attach the accessories to your power tool, does not guarantee they are safe to use. c) The permissible speed of the attachment part must be at least as high as the maximum speed specified for the power tool. Accessories that rotate faster than the permissible rate can break and throw pieces into the air. d) The external diameter and thickness of the attachment part used must comply with the dimensions of the power tool. Incorrectly dimensioned accessory tools cannot be suf- ficiently shielded or controlled.PFBS 160 B2 ■ 24 

e) Grinding discs, sanding drums or other ac- cessories must match exactly the grinding spindle or collet chuck of your power tool. Ac- cessory tools which do not fit precisely into the take-up of the power tool will rotate unevenly, vi- brate severely and can lead to a loss of control. f) Discs, grinding cylinders, cutting tools or other accessories mounted on a mandrel must be inserted completely in the collet or chuck. Any "protrusion" or exposed parts of the mandrel between the grinding tool and the collet or chuck must be kept to a minimum. If the mandrel is not sufficiently tightened or the grinding tool protrudes too far, the attachment part can come loose and be ejected at high speed. g) Never use damaged attachment parts. Before each use, check accessory tools such as grinding discs for chips or cracks, sanding drums for cracks, wearing or excessive wear and tear and wire brushes for loose or broken wires. If the power tool or the attachment part is dropped, check to see if it is damaged or use an undamaged attachment part. When you have checked and inserted the attachment part, ensure that you and any other people nearby remain outside of the range of the rotating attachment part and allow the tool to rotate at maximum speed for one minute. Damaged accessory tools usually break during this test period. h) Wear personal protective equipment. Depending on the application, ensure that you use full face protection, eye protection or goggles. If appropriate, use a dust mask, ear protectors, protective gloves or special apron to protect you from grindings and material particles. The eyes should be protected from flying debris that may be caused during certain applications. Dust or filter masks must be used to filter any dust created by the application. If you are exposed to loud noise for any length of time, you can suffer a hearing loss.

i) Ensure that other people remain at a safe dis-

tance to your workspace. Anyone who enters the workspace must wear personal protective equipment. Fragments of the workpiece or bro- ken accessory tools can fly off and cause injury – even outside the immediate working area. j) Hold the power tool only by the insulated gripping surfaces when performing work during which the attachment part can contact hidden wiring or its own cord. Contact with a live cable may also cause metal parts of the appliance to become live and may result in an electric shock. k) Always hold the power tool firmly. When running up to full speed, the torque of the motor can cause the power tool to twist. l) If possible, use clamps to hold the workpiece in position. Never hold a small workpiece in one hand and the power tool in the other while you are using it. By clamping small workpieces, you keep both hands free for better control of the power tool. When cutting round workpieces such as dowels, rods or pipes, be aware that these can roll away and this can cause the tool to jam and be thrown towards you. m) Hold the power cord away from any rotating accessories. If you lose control of the appli- ance, the cord may get cut or caught and your hand or arm could get caught in the rotating accessory tool. n) Never put the power tool down until the attachment part has come to a complete standstill. The rotating accessory tool could come into contact with the surface and cause you to lose control of the power tool. o) When changing attachment parts or the settings on the appliance, tighten the collet nut, the chuck or other fixing elements tightly. Loose fastening elements can shift unexpectedly and lead to loss of control; unsecured, rotating components will fly off violently. p) Do not leave the power tool running while you carry it. Accidental contact between your clothing and the rotating accessory tool could lead to a physical injury.PFBS 160 B2

25 ■ q) Clean the ventilation slits of your power tool regularly. The engine fan draws dust into the housing and a strong accumulation of metal dust can cause electrical hazards. r) Do not use the power tool near flammable materials. Sparks can ignite such materials. s) Do not use any attachment parts that require liquid coolant. The use of water or other liquid coolants may lead to an electric shock. Additional safety instructions for all applications Kickback and corresponding safety instructions Kickback is a sudden reaction caused when a ro- tating attachment part, e.g. grinding disc, abrasive band, wire brush, etc. catches or jams. Catching or jamming leads to an abrupt stop of the rotating attachment part. If this happens, an uncontrolled power tool will turn rapidly against the direction of rotation of the attachment part. If, for example, a grinding disc catches or jams, the edge of the grinding disc that is projecting into the workpiece can get caught and break off the grinding disc or cause a kickback. The grinding disc can then fly in the direction of the operator or away from him, depending on the direction of rota- tion of the disc at the blockage. This can also break grinding discs. A kickback is caused by improper or incorrect use of the power tool. This can be avoided by taking proper precautions as given below. a) Hold the power tool firmly in both hands and position your body and arms, so that they can absorb the kickback forces. By taking adequate precautions, the operator can stay in control of the kickback forces. b) Take special care when working around corners, sharp edges, etc. Avoid allowing the attachment part to bounce back from the workpiece or jam in the workpiece. The rotat- ing accessory tool is more likely to jam in cor- ners or sharp edges or if it rebounds off them. This can cause a loss of control or kickback. e) Do not use toothed saw blades. Such acces- sories often cause a kickback or loss of control over the power tool. d) Always move the attachment part in the material in the same direction as the direction in which the cutting edge leaves the material (in other words, the same direction in which the chips are thrown out). Guiding the power tool in the wrong direction will cause the cutting edge of the accessory tool to jump out of the workpiece which can lead to the accessory tool being pulled in this direction. e) Always fix the workpiece when using rotary files, cutting discs, high-speed milling tools or hard-metal tools. Even a minimal tilting in the groove can cause these tools to jam and lead to a kickback. When the cutting disc jams, it usually breaks. When a rotary file, high-speed milling tool or hard-metal milling tool jams, the accessory tool can jump out of the groove and lead to loss of control of the power tool.PFBS 160 B2 ■ 26 

Supplementary safety instructions for grinding and abrasive cutting Special safety instructions for grinding and abrasive cutting: a) Use only the grinding accessories approved for your power tool and only for the recom- mended applications. Example: Never grind with the side surface of a cutting disc. Cutting discs are designed to remove material with the edge of the disc. Any lateral application of force on these grinding tools can lead to a breakage. b) Use only undamaged mandrels of the correct size and length and without undercut on the shoulder for conical and straight pencil grind- ers. Using an appropriate mandrel reduces the risk of breakages. c) Avoid cutting disc jams or excessive contact pressure. Do not make any excessively deep cuts. Overloading the cutting disc increases the stress and likelihood of tilting or blocking and thus the possibility of a setback or a breakage of the grinding tool. d) Avoid putting your hand in the area in front of or behind the rotating cutting disc. When you move the cutting disc away from your hand, it is possible, in the event of a kickback, that the power tool along with the rotating disc could be thrown out directly towards you along with the rotating disc. e) If the cutting disc jams or you stop working, switch the tool off and hold it steady until the disc has completely stopped turning. Never attempt to pull a rotating cutting disc out of a cut. This could lead to a kickback. Identify and remove the cause of the jam. f) Do not switch the power tool back on for as long as it is in the workpiece. Allow the cutting disc to reach its full speed before you carefully continue the cut. Otherwise, the disc may jam, jump out of the workpiece or cause kickback. g) Support panels or large workpieces to reduce the risk of the cutting disc jamming and causing a kickback. Large workpieces can bend under their own weight. The workpiece must be supported on both sides, namely in the vicinity of the cut, and also at the edge. h) Be particularly careful when making plunge cuts into existing walls or other obscured ar- eas. The inserted cutting disc may cut into gas or water pipes, electrical wiring or other objects that can cause kickback. Supplementary safety instructions for working with wire brushes Special safety instructions for working with wire brushes: a) Be aware that the wire brush loses wire bristles even during normal operation. Do not overstress the wires by applying excessive pressure to the brush. The wire bristles can easily penetrate light clothing and/or skin. b) Allow the brush to run at working speed for at least one minute before applying it to the workpiece. Ensure that no one is standing in front of or in line with the brush during this time. Loose pieces of wire could fly off during the run-in period. c) Aim the rotating steel brush away from your- self. When working with these brushes, small particles and minute pieces of wire can fly off at great speed and pierce skin.PFBS 160 B2

27 ■ Safety instructions for LED lights

CAUTION! THERE IS A RISK OF

INJURY TO THE EYES! ■ Never aim the light directly at people or animals and never look directly into the light beam of the LED light. General safety instructions for batteries and cells ■ Do not expose batteries or cells to heat or open flames. Avoid storage in direct sunlight. ■ Cells or batteries must not be short-circuited. Cells or batteries may not be stored dangerously in a box or draw where they can short-circuit each other or be short-circuited by other conductive materials. ■ Do not unpack a cell or battery until you plan to use it. ■ Cells or batteries must not be exposed to mechanical impacts. ■ If a cell is leaking, do not let the fluid come into contact with skin or eyes. If there is contact, wash the affected area with plenty of water and seek medical assistance. ■ Do not use any other charger apart from the one specifically designed for use with these appliances. ■ Always observe the polarity markings – positive (+) and negative (−) on the cells, batteries and appliances. Ensure proper use. ■ Cells or batteries, that are not suitable for use with the appliance may not be used. ■ Do not use combinations of batteries from differ- ent manufacturers, capacities, sizes or designs. ■ Keep cells and batteries out of the reach of children. ■ If a cell or battery is swallowed, seek medical assistance immediately. ■ Always purchase the correct cell or battery for an appliance. ■ Keep cells and batteries clean and dry. ■ If the terminals of the cells or batteries are con- taminated, clean them with a dry, clean cloth. ■ Store the original instructions and information about the products safely for future information and reference purposes. ■ Cells and batteries may not be used in applica- tions for which they are not designed. ■ Always remove batteries from appliances that are not in use, if possible. ■ Do attempt to recharge non-rechargeable batteries. There is a risk of explosion! Original accessories/auxiliary equipment ■ Use only the accessories and auxiliary equip- ment that are specified in the operating instruc- tions and are compatible with the appliance.PFBS 160 B2 ■ 28 

Operation Changing/inserting the tool/collet chuck ♦ Press the spindle lock and hold it down. ♦ Turn the tensioning nut until the lock clicks into place. ♦ Undo the tensioning nut from the thread using the combination spanner . ♦ Remove any attached tool. ♦ First push the intended tool through the tensioning nut before inserting it into the appropriate collet chuck for the tool shaft. ♦ Press the spindle lock and hold it down. ♦ Push the collet chuck into the thread insert and screw the tensioning nut tight with the combination spanner . Using an accessory tool with a mandrel: ♦ Use the screwdriver side of the combination spanner to undo and tighten the screw on the mandrels or . ♦ Insert the respective mandrel , or into the appliance as described. ♦ Use the combination spanner to undo the screw on the mandrel or . ♦ Insert the desired accessory tool between the two washers on the screw. ♦ Use the combination spanner to tighten the screw on the mandrel or . Whet stone ♦ Do not manually grind any edges with the whet stone

Fitting abrasive belts ♦ Push the abrasive belt onto the abrasive belt mandrel . Tighten the screw on the abrasive belt mandrel in order to fix the abrasive belt

Fitting polishing attachments ♦ Screw the polishing attachment onto the tip of the mandrel for polishing attachments . Switching on and off/setting speed range CAUTION! ■ The rotation direction can be read off the arrow engraved on the union nut (anti- clockwise symbol). Switching on/setting the speed range: ♦ Set the ON/OFF switch to the "I" position. ♦ Set the infinitely variable speed control

a position between "1" and "MAX". Switching off: ♦ Move the ON/OFF switch to the position

29 ■ Using the grip ring with LED light ♦ Unscrew the union nut anticlockwise off the thread. ♦ Screw the grip ring with LED clockwise onto the screw thread. ♦ Move the ON/OFF switch of the LED light

the position "I" to switch it on (see fig. C). ♦ Move the ON/OFF switch of the LED light

the position "O" to switch it off again. Notes on working with materials/ tools/speed range ■ Use the milling bit for working on wood, plastics and plasterboard at maximum speed. ■ Calculate the rotational speed range for working on zinc, zinc alloys, aluminium, copper and lead by trying it out on test pieces. ■ Use a low rotational speed for work on plastics and materials with a low melting point. ■ Use a high rotational speed for working on wood. ■ Carry out cleaning, polishing and buffing work in the middle range. NOTE ► The milling bit is not suitable for steel or iron. Suitable products are available in stores. The following are recommendations only and not binding. When carrying out practical work, carry out your own tests to see which tool and which settings are ideal for the material you are working on. Set a suitable rotational speed: Number on the speed control Material being worked 1 Plastics and materials with a low melting point 2–3 Stone, ceramics 4 Soft wood, metal 5 Hardwood Max. SteelPFBS 160 B2 ■ 30 

Select suitable accessories for the appropriate rotational speed: WARNING! ■ Never exceed the specified maximum rotational speed! Speed control Accessories Speed MAX Cutting disc grinding wheel / abrasive belts / milling bits / engraving bits / grinding bits / cutting discs 40000 rpm

Polishing attach- ments / drills

31 ■ Application examples/selecting a suitable tool: Function Accessories Use Protrusion (min–max) mm Drilling Drill bit Working wood 18–25, using the smallest drill, the protrusion is 10 mm Milling Milling bits Various jobs; e.g. creating recesses, hollows, forms, grooves or slits 18–25 Engraving Engraving bits Labelling, handicrafts 18–25 Polishing, rust removal CAUTION! Exert only a light pres- sure when applying the tool to the workpiece. Metal brush rust removal 9–15 Polishing attachments Various metals and plastics, especially precious metals such as gold and silver 12–18 Cleaning Synthetic brushes e.g. cleaning hard-to-access plastic housings or the area around a door lock 9–15 Grinding Grinding discs Grinding work on stone, wood, fine work on hard materials such as ceramics or alloyed steel 12–18 Grinding bits

Cutting Cutting discs Working metal, plastic and wood 12–18 ■ Note that the maximum diameter of the grinding assembly and of grinding cones, pencil grinders and grinding points with a thread insert may not exceed 55mm and the maximum diameter for sandpaper sanding accessories may not exceed 80mm. NOTE ► The max. permissible length of a mandrel is 33 mm. ■ Store the accessories in the original box or store the accessory components somewhere else to protect them from damage. ■ Store the accessories somewhere dry and not in the vicinity of aggressive media. ■ If you exert too much pressure, the fitted tool can break and/or the workpiece could be damaged. You will achieve optimum working results by moving the tool over the workpiece at a steady speed and while exerting light pressure. ■ When carrying out cutting work, hold the appliance firmly with both hands. ■ Observe the data and the information in the table to prevent the end of the spindle from touching the perforated base of the grinding tool.PFBS 160 B2 ■ 32 

Flexible shaft ■ Never operate the spindle lock while the motor is running. Otherwise the appliance or the flexible shaft could be damaged. ♦ Unscrew the union nut anticlockwise off the appliance and store it carefully. ♦ Press the spindle lock and hold it down. ♦ Screw the tensioning nut anticlockwise off the appliance. ♦ The shaft needs to be pulled out a short distance as it cannot be fixed into the collet chuck

otherwise. ♦ Fit the flexible shaft onto the appliance. To do this, the internal access of the flexible shaft push the tensioning nut into the collet chuck , . ♦ Press the spindle lock and hold it down. ♦ Now, tighten the tensioning nut using the combination spanner . Now, screw the union nut 14b of the flexible shaft clockwise onto the appliance. ♦ Place the desired accessory into the collet chuck , of the flexible shaft. ♦ To lock the spindle, push the spindle lock back onto the flexible shaft. ♦ Use the combination spanner to undo the tensioning nut on the flexible shaft. Fit the accessory and retighten the tensioning nut

Stand for the multi-tool ♦ Screw the stand into the clamping assembly

Depending on the desired attachment onto a vertical or horizontal surface, you can screw the stand into the clamping assembly in two different positions. ♦ Screw the clamping assembly onto the edge of a work bench or table whose thickness is at least 55 mm. ♦ The stand is height-adjustable. Undo the upper part of the stand by turning it anti- clockwise (−). Pull out the tube to the maximum height and lock it again by turning it clockwise

♦ The mount is also height-adjustable; turn the black thread anticlockwise. After you have set the mount to the correct height, tighten the thread by turning in the opposite direction. ♦ Fix the appliance onto the mount of the stand using the metal bracket . The mount can be turned 360°.PFBS 160 B2

33 ■ Router cage With this attachment, the appliance is particularly suitable for cutting special forms (holes for plugs, etc.). ♦ Insert the milling bit as described in the sec- tion "Changing/inserting the tool/collet chuck". ♦ Ensure that the shaft of the bit protrudes out of the collet chuck by about 16 mm. ♦ Screw the union nut anticlockwise off the appliance and store it carefully. ♦ Screw the router cage onto the appliance. ♦ To set the correct working height, undo the locking screw and adjust the foot of the router cage to the desired size. ♦ Afterwards, retighten the locking screw

ca. 16 mm Changing the batteries ♦ Make sure that the LED light is turned off. Remove the three screws from the rear of the grip ring with LED

♦ Replace the used batteries in the appliance with new batteries of the same type (button cell LR41). Note polarity when installing new batteries. ♦ Close the battery compartment again by replacing the three screws. Cleaning, care and storage WARNING! RISK OF INJURY! ■ Switch the appliance off and remove the power plug before starting any work on the appliance. The appliance is maintenance-free. ■ Remove all dirt from the appliance. Use a dry cloth to do this. WARNING! ■ If the connecting cable needs to be replaced, this must be carried out by the manufacturer or an authorised representative in order to avoid safety hazards. ■ Store the appliance and all the individual pieces in the provided plastic case to ensure you do not lose any part. NOTE ► Replacement parts not listed (such as the rechargeable battery, battery charger) can be ordered via our service hotline. WARNING! ■ Always ensure that the power plug or the mains cable is replaced only by the manu- facturer of the appliance or its customer service. This will ensure that the safety of the appliance is maintained.PFBS 160 B2 ■ 34 

Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (re- ceipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your prod- uct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improper- ly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazards Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g.IAN12345) available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.PFBS 160 B2

35 ■ You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456. Service WARNING! ► Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained. ► Always ensure that the power plug or the mains cable is replaced only by the manu- facturer of the appliance or its customer service. This will ensure that the safety of the appliance is maintained. Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 332006_1907 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com Disposal The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant. Do not dispose of power tools in your normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environ- mentally compatible manner. Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs. Batteries should not be disposed of with normal household waste. Consumers are legally obliged to dispose of used batteries at a collec- tion point in their town/district or at a retail store. This obligation is intended to ensure that batteries are disposed of in an environmentally responsible manner. Dispose of batteries only when they are fully discharged. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composites. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The product is recyclable, subject to extended producer responsibility and is collected separately.PFBS 160 B2 ■ 36 

Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) Electromagnetic Compatibility (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the dec- laration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards: EN 60745-2-23:2013 EN 60745-1:2009+A11:2010 EN 55014-1:2006/+A1:2009/+A2:2011 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 50581:2012 Type/appliance designation: Rotary tool PFBS 160 B2 Year of manufacture: 11 - 2019 Serial number: IAN 332006_1907 Bochum, 19/11/2019 Semi Uguzlu - Quality Manager - The right to effect technical changes in the context of further development is reserved.PFBS 160 B2
