USER MANUAL PSBSA 18Li A1 PARKSIDE

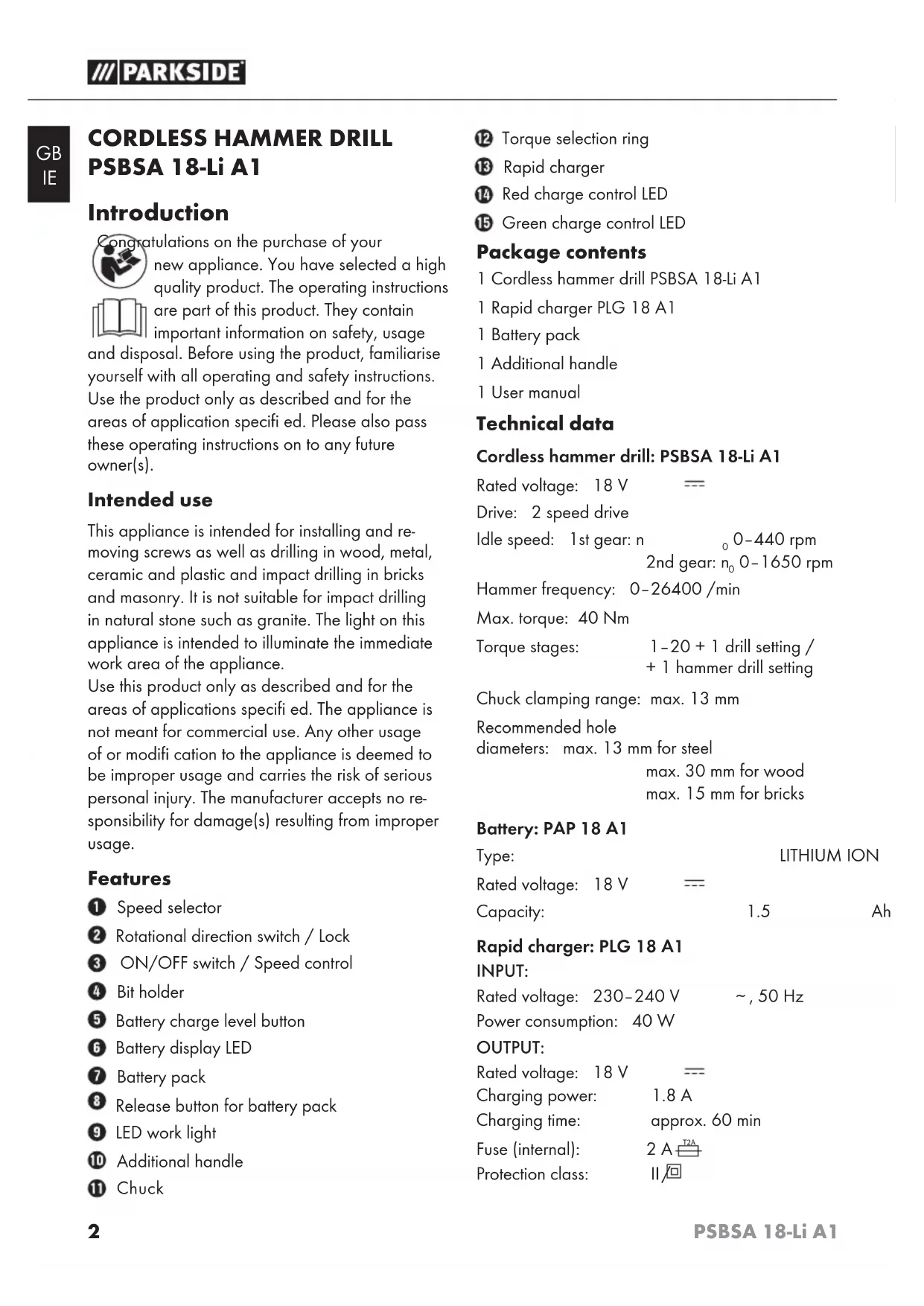

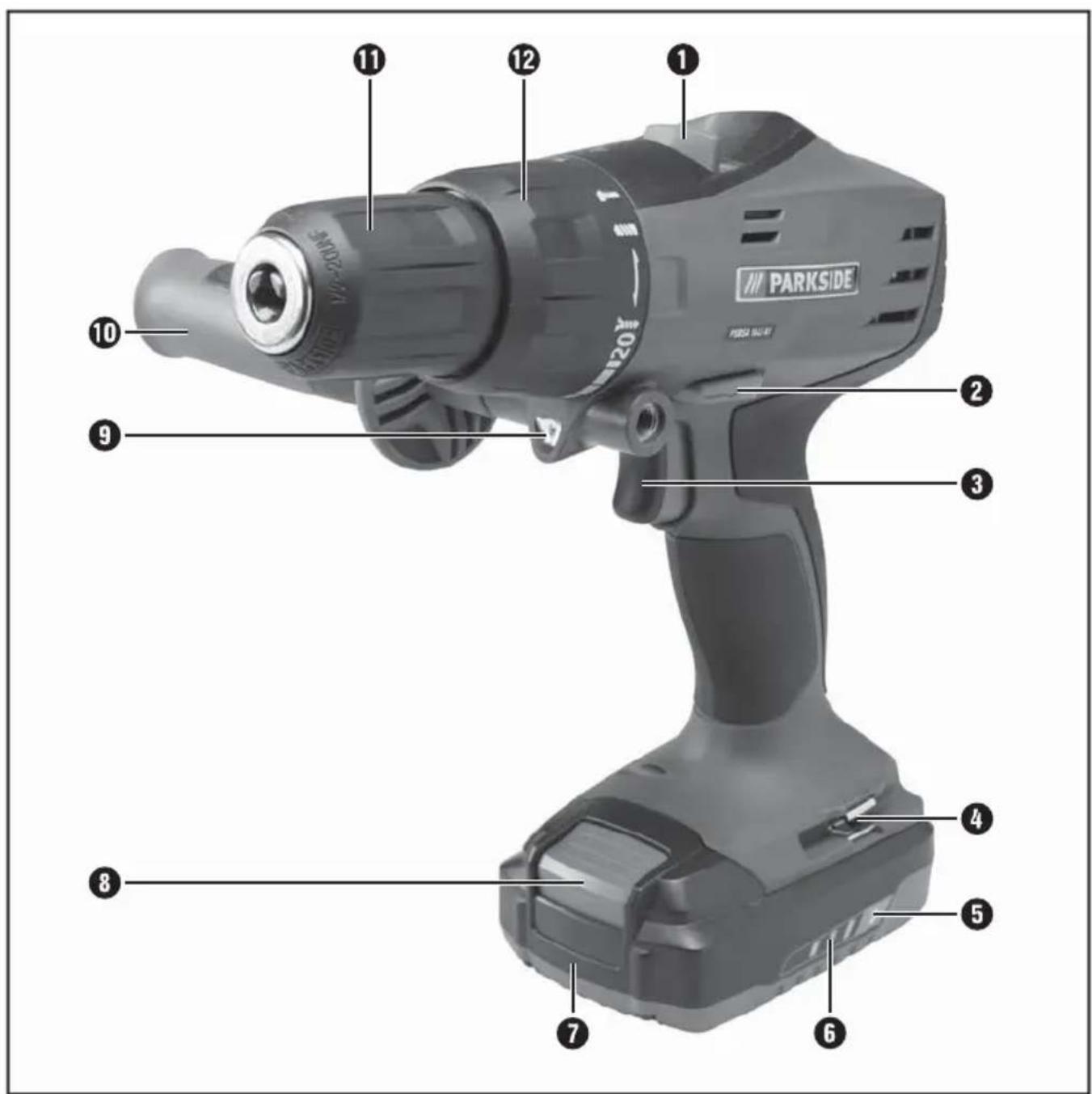

PSBSA 18-Li A1 Introduction Congratulations on the purchase of your new appliance. You have selected a high quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use the product only as described and for the areas of application specifi ed. Please also pass these operating instructions on to any future owner(s). Intended use This appliance is intended for installing and re- moving screws as well as drilling in wood, metal, ceramic and plastic and impact drilling in bricks and masonry. It is not suitable for impact drilling in natural stone such as granite. The light on this appliance is intended to illuminate the immediate work area of the appliance. Use this product only as described and for the areas of applications specifi ed. The appliance is not meant for commercial use. Any other usage of or modifi cation to the appliance is deemed to be improper usage and carries the risk of serious personal injury. The manufacturer accepts no re- sponsibility for damage(s) resulting from improper usage. Features Speed selector Rotational direction switch / Lock ON/OFF switch / Speed control Bit holder Battery charge level button Battery display LED Battery pack Release button for battery pack LED work light Additional handle Chuck Torque selection ring Rapid charger Red charge control LED Green charge control LED Package contents 1 Cordless hammer drill PSBSA 18-Li A1 1 Rapid charger PLG 18 A1 1 Battery pack 1 Additional handle 1 User manual Technical data Cordless hammer drill: PSBSA 18-Li A1 Rated voltage: 18 V Drive: 2 speed drive Idle speed: 1st gear: n

0–440 rpm 2nd gear: n

0–1650 rpm Hammer frequency: 0–26400 /min Max. torque: 40 Nm Torque stages: –20 + 1 drill setting / + 1 hammer drill setting Chuck clamping range: max. 13 mm Recommended hole diameters: max. 13 mm for steel max. 30 mm for wood max. 15 mm for bricks Battery: PAP 18 A1 Type: LITHIUM ION Rated voltage: 18 V Capacity: 1.5 Ah Rapid charger: PLG 18 A1 INPUT: Rated voltage: 230–240 V

, 50 Hz Power consumption: 40 W OUTPUT: Rated voltage: 18 V Charging power: 1.8 A Charging time: approx. 60 min Fuse (internal): 2 A T2A Protection class: II / IB_102868_PSBSA18-LiA1_LB3.indb 2 09.10.14 14:183 PSBSA 18-Li A1

Noise and vibration data: Noise measurement value determined in accordance with EN ISO 4871 The A-rated noise level of the power tool is typically: Sound pressure level: 85 dB(A) Sound power level: 96 dB(A) Uncertainty K: 3 dB Vibration values (vector total of three directions) determined in accordance with EN 60745 Screws: Vibration emission value

Drilling in metal: Vibration emission value

Wear ear protection! NOTE ► The vibration level specifi ed in these instruc- tions has been measured in accor dance with the standardised measuring procedure specifi ed in EN 60745 and can be used to make equipment comparisons. The specifi ed vibration emission value can also be used to make an initial exposure estimate. WARNING! ► The vibration level varies in accordance with the use of the pow er tool and may be higher than the value specifi ed in these instructions in some cases. There is a risk of underestima- tion of the vibration load if the power tool is used regularly in this manner. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General Power Tool Safety Warnings WARNING! ► Read all safety warnings and all instructions. Failur e to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl am- mable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. IB_102868_PSBSA18-LiA1_LB3.indb 3 09.10.14 14:184 PSBSA 18-Li A1

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD re- duces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. IB_102868_PSBSA18-LiA1_LB3.indb 4 09.10.14 14:185 PSBSA 18-Li A1

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

5. Use and handling of the cordless

electrical power tool a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fi re if other types of rechargeable battery units are used. b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fi re. c) When they are not being used, store recharge- able battery units away from paperclips, coins, keys. nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fi re. d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fl uid. If contact occurs, fl ush the aff ected area with water. Seek addi- tional medical help if any of the fl uid gets into your eyes. Escaping battery fl uid may cause skin irritation or burns. CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries! Protect the battery against heat, e. g., against continuous intense sunlight, fi re, water and moisture. Danger of explosion.

a) Have your power tool serviced by a qualifi ed repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Appliance-specifi c safety instructions for hammer drills

Wear ear protectors. Exposure to noise can cause hearing loss. ■ Use auxiliary handle(s), if supplied with the tool. Loss of contr ol can cause personal injury. ■ Hold power tool by insulated gripping sur- faces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Safety instructions for charger ■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabili- ties or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised. This charger is suitable for indoor use only. WARNING! ■ Do not operate the appliance with a dam- aged cable, supply cor d or mains plug. A damaged power cord causes danger to life by electric shock. Appliance-specifi c safety instructions for cordless screw hammer drills ■ Immobilise the workpiece securely. A workpiece that is held in place with a clamp/ vice can be worked much more safely than a workpiece held with the hand. IB_102868_PSBSA18-LiA1_LB3.indb 5 09.10.14 14:186 PSBSA 18-Li A1

■ Hold the power tool fi rmly. When tightening or loosening screws, a high reaction moment can quickly occur. ■ Switch off the power tool immediately if the tool being used gets blocked. Be prepared for high reaction moments as these can cause kick-back. ■ When working on the appliance, as well as during transport and storage, always place the rotation direction switch in the middle position (locked). This will prevent unintentional activation of the device. ■ Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health and cause allergic reactions, lead to respiratory infections and / or cancer. Material containing asbestos may only be worked by specialists. ♦ Provide for good ventilation of the working place. Obser ve the relevant regulations in your country for the materials to be worked.

Wear a dust mask. ■ ATTENTION – SERVICE LINES! DANGER! Take steps to ensure that you do not hit any service lines (electricity, gas, water) when working with the electric tool. If necessary, check with a service line detector before you start to cut or drill into a surface. Genuine accessories/additional equipment ■ Use only the additional equipment and acces- sories specifi ed in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury. Before fi rst use Charging the battery (see fi g. A) CAUTION! ► Always unplug the appliance before you re-

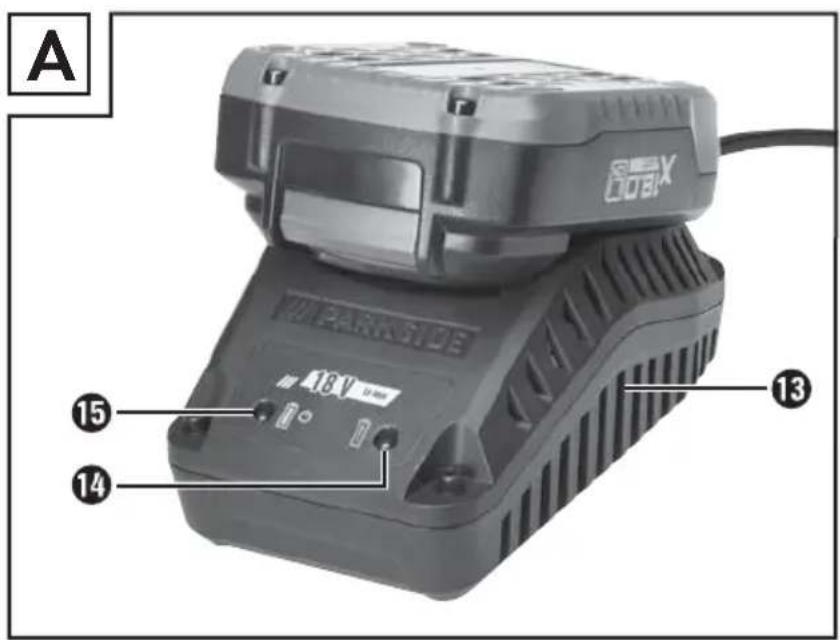

ve the battery pack from or connect it to the charger. HINWEIS ► Three appliances - three compatible batteries. Inter changeable! (see chapter ordering a replacement battery) ■ Never charge the battery pack when the ambient temperature is below 10°C or above 40°C. ♦ Connect the battery pack to the battery charger (see Fig. A). ♦ Push the mains plug into the socket. The operating LED will light up red. ♦ The green LED indicates that the charging process is complete and the battery pack is ready. ♦ Push the battery pack back onto the appli- ance. ■ Never recharge a battery pack again immedi-

tely after rapid charging. This could overcharge the battery pack thus reducing the lifespan of the battery and charger. ♦ Switch off the charger between successive charging sessions for at least 15 minutes. Also disconnect the power plug from the socket. Attaching/disconnecting the battery pack to/from the appliance Inserting the battery pack: ♦ Move the rotation direction switch to the middle position (lock). Allow the battery pack to click into the handle. Removing the battery pack: ♦ Press the release button and remove the battery pack. Checking the battery charge level ♦ Press the battery charge level button to check the status of the battery (see also main diagram). The status/remaining charge will be shown on the battery display LED as follows: ♦ RED/ORANGE/GREEN = maximum charge/ power RED/ORANGE = medium charge/power RED = low charge – charge the battery IB_102868_PSBSA18-LiA1_LB3.indb 6 09.10.14 14:187 PSBSA 18-Li A1

Changing tools Your cordless combi drill has a fully automatic spindle lock

When the motor is stopped, the power train is locked so that the chuck can be opened by turn- ing . After you have attached the desired tool and tightened it by turning the chuck , you can continue working. The spindle lock is automatically released when the motor starts (ON/OFF switch pressed ). Selecting torque/operating mode The torque selector allows adjustment of the torque or selection between the drill setting and the hammer drill setting

♦ Select a low level for small screws or soft materials. ♦ Select a high level for large screws, hard materials or r emoving screws. ♦ Select the drill setting for drilling work by adjust- ing the tor que selection ring to the position

♦ Select the hammer drill setting for hammer drilling

ork by adjusting the torque selection ring to the position

2 speed gearbox CAUTION! ► Only operate the speed selection switch when the appliance is at a standstill. Otherwise the appliance can be damaged. In fi rst gear (speed selector switch

position: 1) you can reach a speed of approx. 440 rpm and a high torque. This setting is suitable for all screw- driving but also for the use of accessories. In second gear (speed selector switch

position: 2) you can reach a speed of approx. 1650 rpm for carrying out drilling work. First use Switching on and off Switching on: ♦ To start the appliance, press and hold the ON/ OFF switch

The LED work light illuminates when the ON/OFF switch is depressed even lightly. ♦ This allows illumination of the work area in low light conditions. Switc hing off : ♦ Release the appliance’s ON/OFF switch

switch off the appliance. Setting the rotational speed Pressing the ON/OFF switch lightly provides a low rotational speed. Increasing pressure increases the speed. NOTE ► The integrated motor brake ensures a quick stop. Changing the direction of rotation ♦ Change the direction of rotation by pressing the rotational direction switch towards the left or right. Tips and tricks Tip! This symbol indicates proper behaviour! ♦ Before operation, check whether the screw or drill bit is corr ectly positioned, i.e. centred in the drill chuck. ♦ Screw bits are labelled according to their di- mensions and their shape. If y ou are uncertain, always check whether the bit fi ts tightly in the screw head without any free play. Torque: ♦ Smaller screws/bits can be damaged if you set the tor que or rotational speed too high. IB_102868_PSBSA18-LiA1_LB3.indb 7 09.10.14 14:188 PSBSA 18-Li A1

Hard screw joints (in metal): ♦ Particularly high torques occur, for example, in metal scr ew joints made using drive sockets. Select a low rotational speed. Soft screw joints (e.g. in soft wood): ♦ Here, too, you should use a low rotational speed, e.g. to av oid damaging the surface of the wood upon contact with the bolt head. Use a counter- sink. When drilling in wood, metal and other materials, observe the following: ♦ Use a high speed for drill bits with small diam- eter and a lo w speed for drill bits with large diameter. ♦ Select a low speed for hard materials and a high speed for sof t materials. ♦ Mark the location where you want to drill using a centr e punch or nail. Select a low rotational speed when starting. ♦ Pull the rotating drill bit from the hole repeatedly to r emove dust and chips and clear the hole. Drilling in metal: ♦ use a metal drill (HSS). For optimum results, you should cool the drill bit with oil. Metal drill bits can also be used to drill into plastics. Star t with a 3 mm diameter drill bit and then increase the size until the desired hole diameter is achieved. Drilling in brick: ♦ use a carbide-tipped masonry drill. (max. r ecommended hole diameter: Ø 15 mm) Drilling in wood: ♦ use a wood drill with a lathe centre; for deep holes, use an “auger bit”; for lar ge-diameter holes, use a Forstner bit. Small screws can be screwed directly into soft wood. Maintenance and cleaning WARNING! RISK OF INJURY! Switch the power tool off and remove the battery before starting any work on the power tool. The cordless combi drill is maintenance-free. ■ The appliance must always be kept clean, dry and fr ee from oil or grease. ■ Never allow fl uids to get into the appliance. ■ To clean the casing, use a soft dry cloth.

ver use petrol, solvents or cleansers which can damage plastic. ■ If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage climate is cool and dry. NOTE

Replacement parts not listed (such as carbon brushes, switch) can be or dered via our service hotline. Warranty You are provided a 3-year warranty on this appliance, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your customer service department by telephone. This is the only way to guarantee free return of your merchandise. The warranty only covers claims for material and manufacturing defects, not for damage sustained during transport, components subject to wear and tear or damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in the case of misuse or improper handling, use of force or inter- ventions which have not been carried out by one of our authorised service centres. Your statutory rights IB_102868_PSBSA18-LiA1_LB3.indb 8 09.10.14 14:189 PSBSA 18-Li A1

are not restricted by this warranty. The warranty period is not extended as a result of repairs accomplished under the warranty. This also applies to replaced and repaired components. Any damage or defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs accomplished after expiry of the warranty period shall be subject to charge. Service WARNING! ► Have the power tool repaired by the ser vice centre or a qualifi ed electrician only using genuine replacement parts.. This will ensure that the safety of the appliance is maintained. ► Always ensure that the plug or the mains cable is r eplaced only by the manufacturer of the power tool or by an approved cus- tomer service provider. This will ensure that the safety of the appliance is maintained. Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk IAN 102868 Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 102868 Hotline availability: Monday to Friday 08:00 - 20:00 (CET) Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com Disposal The packaging is made from environmen- tally friendly material and can be dis- posed of at your local recycling plant. Do not dispose of power tools in your normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Do not dispose of batteries in your normal domestic waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to the existing collection facilities. Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs. IB_102868_PSBSA18-LiA1_LB3.indb 9 09.10.14 14:1810 PSBSA 18-Li A1

Ordering a replacement battery If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone. The price of the replacement battery is €20 including VAT and shipping. Due to limited stocks, this item may sell out quickly. Online ordering To order a replacement battery from the Accessory Shop: ■ use your Internet browser to call up the page www.kompernass.com. ■ Click on the corresponding fl ag on the right side at the bottom of the page to select desir ed country and the language. ■ Click on the tab "Shop" and then select the appropriate replacement battery under the heading

opseller". ■ After you have placed the rechargeable battery in the shopping cart, click the "Checkout" button and follow the on-screen instructions to complete the ordering process. NOTE ► Online ordering of replacement parts is not possible in all countries. In this case, please contact the customer ser vice hotline. ■ The promotion is limited to one battery per customer/appliance and also to a timeline of one month

ter the promotion period. Thereafter the replacement battery can be ordered as a replacement part under other conditions. Telephone ordering Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) To ensure fast processing of your order, have the article number of your appliance to hand (e.g. IAN 102868) in case of questions. The article number can be found on the rating plate or the title page of this manual. Three appliances - three compatible batteries. Interchangeable! IB_102868_PSBSA18-LiA1_LB3.indb 11 09.10.14 14:1812 PSBSA 18-Li A1 IB_102868_PSBSA18-LiA1_LB3.indb 12 09.10.14 14:1813 PSBSA 18-Li A1
