USER MANUAL PBH 1500 F6 PARKSIDE

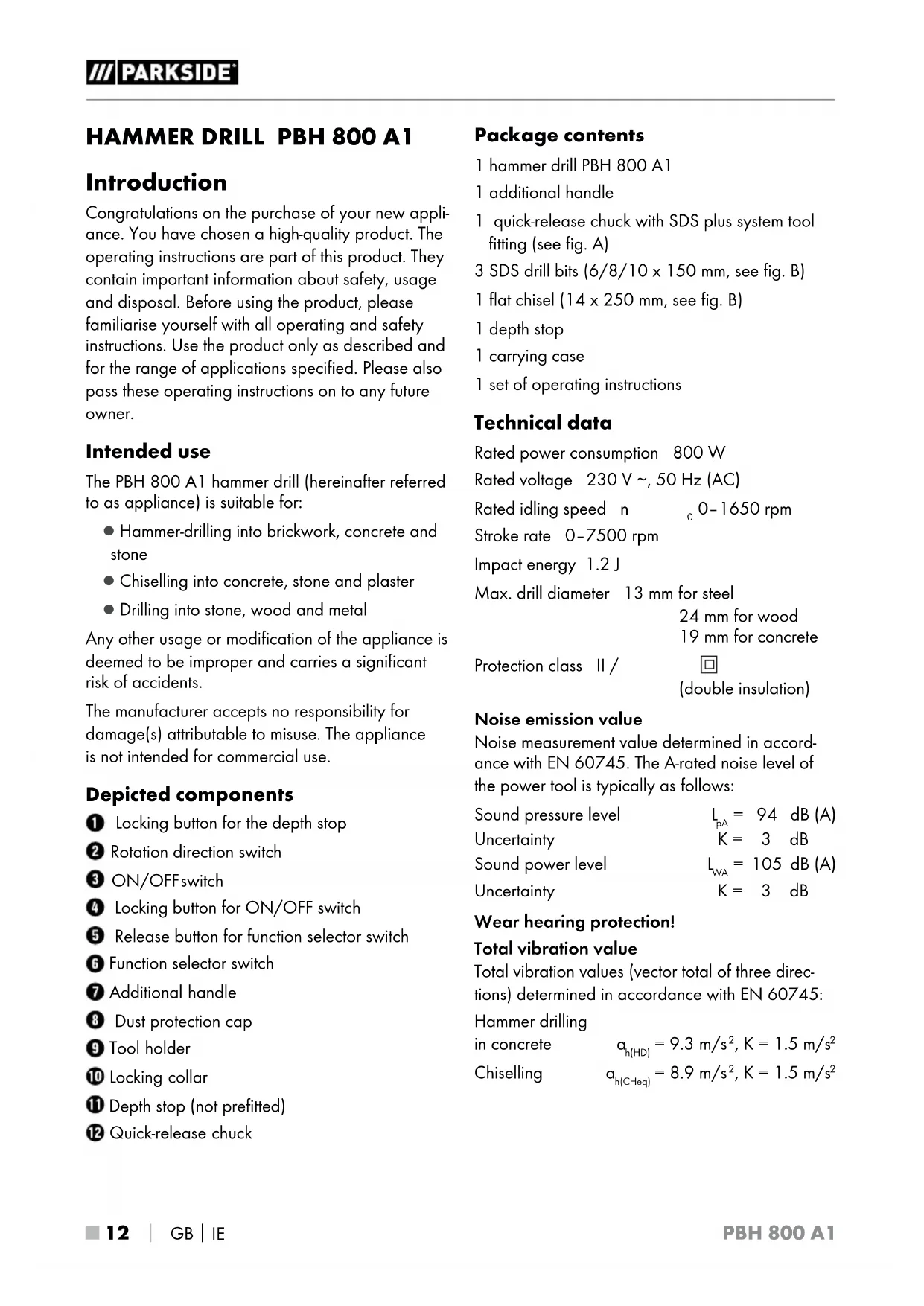

Introduction Congratulations on the purchase of your new appli- ance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use The PBH 800 A1 hammer drill (hereinafter referred to as appliance) is suitable for: ▯ Hammer-drilling into brickwork, concrete and stone ▯ Chiselling into concrete, stone and plaster ▯ Drilling into stone, wood and metal Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. The appliance is not intended for commercial use. Depicted components Locking button for the depth stop Rotation direction switch ON/OFF switch Locking button for ON/OFF switch Release button for function selector switch Function selector switch Additional handle Dust protection cap Tool holder Locking collar Depth stop (not prefitted) Quick-release chuck Package contents 1 hammer drill PBH 800 A1 1 additional handle 1 quick-release chuck with SDS plus system tool fitting (see fig. A) 3 SDS drill bits (6/8/10 x 150 mm, see fig. B) 1 flat chisel (14 x 250 mm, see fig. B) 1 depth stop 1 carrying case 1 set of operating instructions Technical data Rated power consumption 800 W Rated voltage 230 V ∼, 50 Hz (AC) Rated idling speed n

0–1650 rpm Stroke rate 0–7500 rpm Impact energy 1.2 J Max. drill diameter 13 mm for steel 24 mm for wood 19 mm for concrete Protection class II / (double insulation) Noise emission value Noise measurement value determined in accord- ance with EN 60745. The A-rated noise level of the power tool is typically as follows: Sound pressure level L

= 94 dB (A) Uncertainty K = 3 dB Sound power level L

= 105 dB (A) Uncertainty K = 3 dB Wear hearing protection! Total vibration value Total vibration values (vector total of three direc- tions) determined in accordance with EN 60745: Hammer drilling in concrete a h(HD) = 9.3 m/s

 13 ■ NOTE ► The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used for equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. WARNING! ► The vibration level will vary according to the use of the power tool and may sometimes be higher than the value specified in these instructions. Regular use of the power tool in this way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General Power Tool Safety Warnings WARNING! ► Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, only use an extension cable suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.PBH 800 A1 ■ 14 

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medi- cation. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of chil- dren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.PBH 800 A1

 15 ■ Appliance-specific safety instructions for hammer drills ■ Wear hearing protection. Exposure to loud noise can lead to hearing loss. ■ Use the additional handle supplied with the appliance. Loss of control can lead to injuries. ■ Hold the appliance by the insulated handles when you are carrying out work during which the deployed tool may come into contact with concealed power cables or its own power cable. Contact with a live wire may electrify exposed metal parts of the power tool and could give the operator an electric shock.

Wear a dust mask. WARNING! TOXIC DUST! ► Working with the tool can produce harmful/ toxic dusts which represent a health hazard for the person operating the appliance and for anyone else in the vicinity. ■ CAUTION, POWER CABLES! DANGER! Ensure that you are not likely to hit power, gas or water supply lines when you are working with the power tool. If necessary, check with a service line detector before you start to cut or drill into a surface. Residual risks! Even if you operate this power tool properly, there will still be residual risks. The following risks can occur in relation to the power tool’s design and structure:

3. Damage to health caused by hand-arm vibrations

if the appliance is used for extended periods or is not properly used and maintained. WARNING! ► The power tool creates an electromagnetic field during operation. This field can, in certain circumstances, impair active or passive medical implants. To reduce the risk of fatal injuries, we recommend that people with medical implants consult their doctor and the manufacturer of the medical implant before operating this machine. Original accessories/auxiliary equipment ■ Only use the accessories and additional equipment which are specified in the operating instructions and are compatible with the appliance.PBH 800 A1 ■ 16 

Operation Additional handle NOTE

For safety reasons, you should only use this appliance with the additional handle attached. ♦ The gripping position of the additional handle can be varied. Turn the additional handle clockwise and pull the additional handle off the appliance a little way. ♦ Turn the additional handle to the desired position. ♦ Now, slide the locking positions on the addi- tional handle over the two locking pins on the spindle of the appliance. ♦ Retighten the additional handle afterwards by turning it in an anticlockwise direction. NOTE ► Turn the additional handle into the various locking positions depending on your working position. Undo and lock the additional handle as described previously. Depth stop ♦ Push the locking button for the depth stop and keep it pushed in. ♦ Insert the depth stop into the additional handle

♦ Ensure that the toothing on the depth stop

facing downwards. ♦ Pull the depth stop out until the distance between the tip of the drill and the tip of the depth stop with the required drilling depth. ♦ Release the locking button for the depth stop to lock the depth stop . Fitting/removing a tool WARNING! ► Switch the appliance off and remove the power plug before starting any work on the appliance. Fitting a tool ♦ Before fitting a tool, grease the tool holder lightly with machine grease. ♦ Place the tool in the tool holder so that it rotates until it locks automatically. ♦ Check that the tool is properly locked by pulling it. The system has radial play because of the design. Removing a tool ♦ To release the tool, pull the locking collar backwards. Quick-release chuck for round shaft drill bits WARNING!

Do not use the quick-release chuck for hammer drilling or chiselling! ♦ Set the function selector switch to the drill symbol

Inserting the quick-release chuck for round shaft drill bits ♦ Place the quick-release chuck in the tool holder so that it rotates until it locks auto- matically. ♦ Check that the tool is properly locked by pulling it. Removing the quick-release chuck for round shaft drill bits ♦ To remove the quick-release chuck , pull the locking collar backwards and remove the quick-release chuck .PBH 800 A1

 17 ■ Use Select operating mode Function selector ♦ Press and hold the release button on the function selector switch . Turn the function selector switch so that the required symbol engages at the arrow mark: Function Symbol Drilling/screwing Hammer drilling Chiselling Chisel position adjustment Adjusting chisel position You can rotate the tool to the required position for chiselling using this function. ♦ Turn the function selector switch

position . ♦ Turn the tool in the tool holder to the required position. ♦ Turn the function selector switch

position for the chiselling function. Switching on and off Switching the appliance on ♦ Press the ON/OFF switch

Switching the device off ♦ Release the ON/OFF switch

Switching to continuous operation ♦ Press the ON/OFF switch . Lock it in the pressed position with the ON/OFF switch lock button . Switching off continuous operation ♦ Press the ON/OFF switch and release it again. Adjusting the rotational speed The ON/OFF switch has a variable speed control. Pressing the ON/OFF switch lightly yields a low speed. Increasing pressure increases the speed. Changing the direction of rotation ♦ Change the direction of rotation by pressing the rotation direction switch towards the left or right. Maintenance and cleaning WARNING! RISK OF INJURY! Switch the appliance off and remove the power plug before starting any work on the appliance. ■ Never permit liquids to penetrate inside the appliance. ■ Use a soft, dry cloth to clean the housing. ■ Clean the tool holder regularly: CAUTION! PRELOADING! ♦ To do this, pull the locking collar backwards and pull the dust protector cap with the help of a screwdriver off the tool holder . WARNING! ► If the power cord requires replacement, this should be carried out by the manufacturer or an approved representative to avoid safety hazards. NOTE ► Replacement parts not listed (such as carbon brushes, switches) can be ordered via our service hotline.PBH 800 A1 ■ 18 

Disposal The packaging is made from environ- mentally friendly material and can be disposed of at your local recycling plant. Do not dispose of power tools in your normal household waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environ- mentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the appli- ance. Dispose of the packaging in an envi- ronmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The pack- aging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composites. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The product is recyclable, subject to extended producer responsibility and is collected separately. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statu- tory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instruc- tions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.PBH 800 A1

 19 ■ This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazards Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g.IAN12345) available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation soft- ware at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 337117_2001. NOTE ► For Parkside and Florabest tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.). WARNING! ► Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained. ► Always ensure that the power plug or the mains cable is replaced only by the manu- facturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained. Service Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 337117_2001 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, Germany, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the decla- ration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards EN 60745-1:2009+A11 EN 60745-2-6:2010 EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2:2019 EN 61000-3-3:2013+A1 EN 50581:2012 Type designation of machine: Hammer drill PBH 800 A1 Year of manufacture: 06–2020 Serial number: IAN 337117_2001 Bochum, 30/06/2020 Semi Uguzlu - Quality Manager - We reserve the right to make technical changes in the context of further product development.PBH 800 A1
