USER MANUAL PSTDA 20Li A2 PARKSIDE

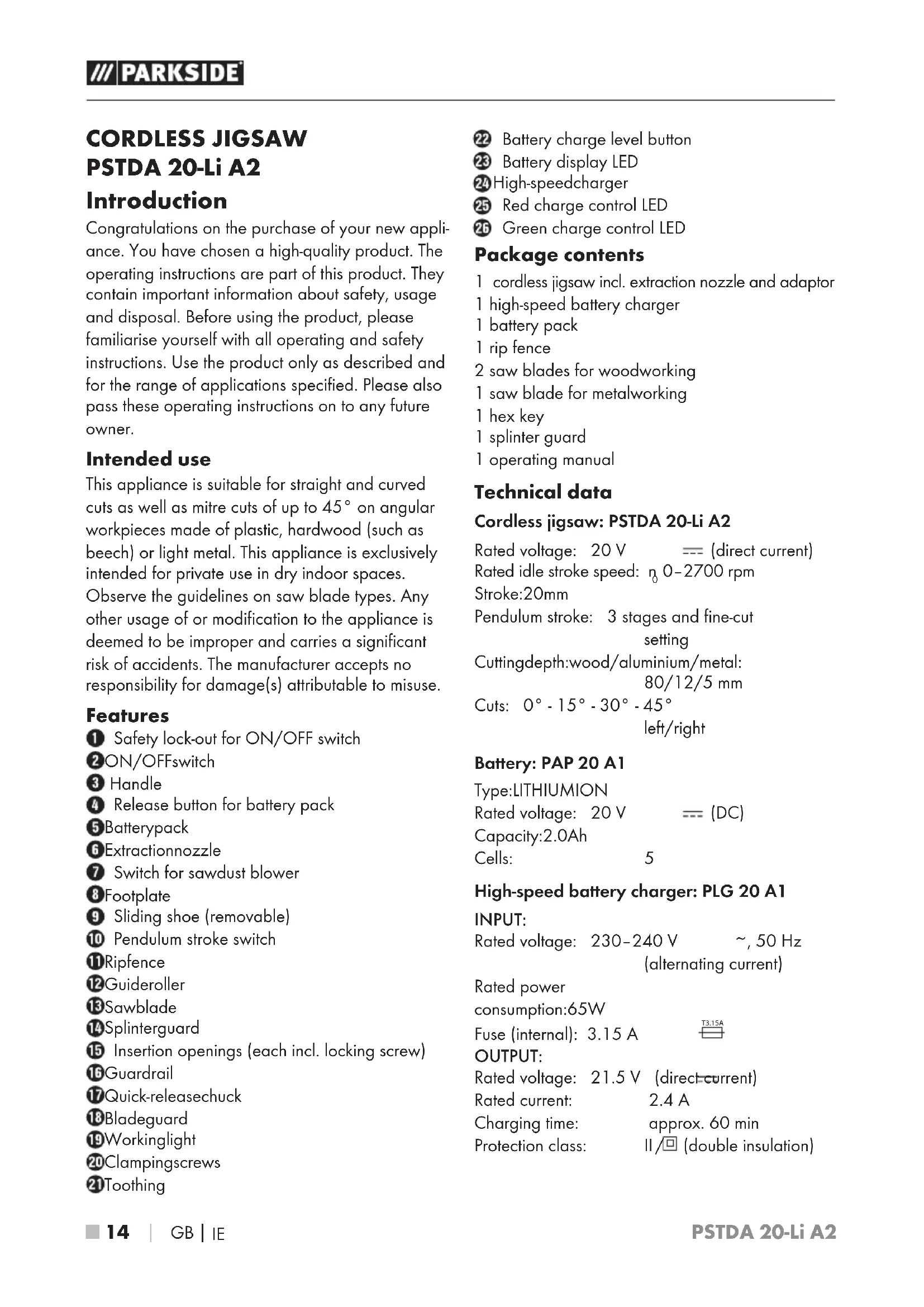

CORDLESS JIGSAW PSTDA 20-Li A2 Introduction Congratulations on the purchase of your new appli- ance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use This appliance is suitable for straight and curved cuts as well as mitre cuts of up to 45° on angular workpieces made of plastic, hardwood (such as beech) or light metal. This appliance is exclusively intended for private use in dry indoor spaces. Observe the guidelines on saw blade types. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. Features Safety lock-out for ON/OFF switch ON/OFF switch Handle Release button for battery pack Battery pack Extraction nozzle Switch for sawdust blower Footplate Sliding shoe (removable) Pendulum stroke switch Rip fence Guide roller Saw blade Splinter guard Insertion openings (each incl. locking screw) Guard rail Quick-release chuck Blade guard Working light Clamping screws Toothing Battery charge level button Battery display LED High-speed charger Red charge control LED Green charge control LED Package contents 1 cordless jigsaw incl. extraction nozzle and adaptor 1 high-speed battery charger 1 battery pack 1 rip fence 2 saw blades for woodworking 1 saw blade for metalworking 1 hex key 1 splinter guard 1 operating manual Technical data Cordless jigsaw: PSTDA 20-Li A2 Rated voltage: 20 V (direct current) Rated idle stroke speed: n

0–2700 rpm Stroke: 20 mm Pendulum stroke: 3 stages and fine-cut setting Cutting depth: wood/aluminium/metal: 80/12/5mm Cuts: 0° - 15° - 30° - 45° left/right Battery: PAP 20 A1 Type: LITHIUM ION Rated voltage: 20 V (DC) Capacity: 2.0 Ah Cells: 5 High-speed battery charger: PLG 20 A1 INPUT: Rated voltage: 230–240 V

, 50 Hz (alternating current) Rated power consumption: 65 W Fuse (internal): 3.15 A T3.15A OUTPUT: Rated voltage: 21.5 V (direct current) Rated current: 2.4 A Charging time: approx. 60 min Protection class: II / (double insulation) IB_302616_PSTDA20-LiA2_LB8.indb 14 15.11.18 10:33PSTDA 20-Li A2

 15 ■ Noise emission value: Noise measurement value determined in accor- dance with EN 60745. The A-rated noise level of the power tool is typically as follows: Sound pressure level: L

= 80dB (A) Uncertainty K: K

= 3 dB Sound power level: L

= 91 dB (A) Uncertainty K: K

= 3 dB Wear hearing protection! Total vibration value: (vector total of three directions) determined in accordance with EN 60745: Cutting boards: a h,B = 8.432 m/s

Cutting sheet metal: a h,M = 5.842 m/s

NOTE ► The vibration level specified in these instruc- tions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. WARNING! ► The vibration level will vary according to the use of the power tool and may sometimes be higher than the value specified in these instructions. Regular use of the power tool in this way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but run- ning without load). General Power Tool Safety Warnings WARNING! ► Read all safety warnings and all instructions. Failure to follow the warnings and instruc- tions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmo- spheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. IB_302616_PSTDA20-LiA2_LB8.indb 15 15.11.18 10:33PSTDA 20-Li A2 ■ 16 

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites ac- cidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing ac- cessories or storing power tools. Such preven- tive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dan- gerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. IB_302616_PSTDA20-LiA2_LB8.indb 16 15.11.18 10:33PSTDA 20-Li A2

5. Use and handling of the cordless

electrical power tool a) Charge a rechargeable battery unit using only the charger recommended by the manufac- turer. Chargers are often designed for a partic- ular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used. b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire. c) When they are not being used, store re- chargeable battery units away from paper- clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire. d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns. CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries! Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. Appliance-specific safety instructions for jigsaws ■ Hold the power tool by the insulated grip- ping surfaces when carrying out work during which the power tool may contact hidden power cables.Contact with a live wire may electrify exposed metal parts of the power tool and could give the operator an electric shock. Safety guidelines for battery chargers ■ This appliance may be used by chil- dren aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under super- vision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by chil- dren unless they are supervised. ■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person. The charger is suitable for indoor use only. WARNING! ■ If the power cord requires replacement, this should be carried out by the manufacturer or an approved representative to avoid safety hazards. IB_302616_PSTDA20-LiA2_LB8.indb 17 15.11.18 10:33PSTDA 20-Li A2 ■ 18 

Original accessories/auxiliary equipment ■ Use only the accessories and additional equipment that are specified in the operat- ing instructions and are compatible with the appliance. Information on saw blades The Parkside basic equipment includes saw blades for use with wood and metal. ▯ 2 saw blades for general wood cutting ▯ 1 saw blade for light metals up to 5 mm NOTE ► You can use any saw blade, provided it is fitted with a suitable mounting (single-lug shank). ► To make long, straight cuts, use a suitable saw blade (e.g. the supplied Parkside Speed- wood saw blade). Saw blade type suitable unsuitable Before use Charging the battery pack (see fig. A) CAUTION! ► Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger. NOTE ► Never charge the battery pack if the ambient temperature is below 10°C or above 40°C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0°C and 50°C. ♦ Connect the battery pack to the high-speed battery charger (see fig. A). ♦ Insert the power plug into the socket. The control LED lights up red. ♦ The green LED indicates that the charging process is complete and the battery pack is ready. CAUTION! ♦ If the red control LED flashes, this means that the battery pack has overheated and cannot be charged. ♦ If the red and green control LEDs both flash, this means that the battery pack is broken. ♦ Push the battery pack back into the appli- ance. ♦ Switch off the charger for at least 15 minutes between successive charging sessions. To do this, disconnect the power plug. IB_302616_PSTDA20-LiA2_LB8.indb 18 15.11.18 10:33PSTDA 20-Li A2

 19 ■ Attaching/disconnecting the battery pack to/from the appliance Inserting the battery pack: ♦ Allow the battery pack to click into place in the appliance. Removing the battery pack: ♦ Press the release button and remove the battery pack. Checking the battery charge level ♦ Press the battery charge level button to check the status of the battery (see also main diagram). The status will be shown on the battery display LED as follows: ♦ RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge – charge the battery Initial operation Fitting/changing the saw blade Remove the battery before carrying out any work on the power tool (e.g. maintenance, changing tools, etc.) as well as during the transport and storage of the power tool. Unintentional activation of the ON/OFF switch can result in injury. ♦ Press the blade guard together at the height of the outer catches and pull it off to the front. ♦ Turn the quick-release chuck and hold it in this position. ♦ Push the required saw blade into the quick- release chuck as far as the stop. ♦ Release the quick-release chuck so that it returns to its initial position. The saw blade is now locked. ■ CAUTION! The saw blade teeth must face the front (see fold-out page)! Fitting the blade guard Fit the blade guard before you connect the appliance to a dust extractor. ♦ Fit the blade guard onto the appliance so that the two outer catches engage in the recesses in the housing. ♦ Remove the blade guard for working without a dust extractor or when making mitre cuts. To do this, press the blade guard together at the height of the outer catches and pull it off to the front. Fitting the rip fence The rip fence can be fitted on the left or right of the appliance. ♦ Undo both the clamping screws on the insertion openings

♦ Push the rip fence into the insertion openings

♦ Retighten the two locking screws. Connecting the sawdust extractor ♦ Push the extraction nozzle into the vacuum extraction duct until it is secured in place. Optional, depending on the diameter of the dust and sawdust extractor. ♦ Attach an approved dust and sawdust extractor to the extraction nozzle

Fitting the splinter guard The splinter guard can prevent the tearing up of the surface when sawing wood. The splinter guard can only be used with certain sawblade types with the sliding shoe and only at a cutting angle of 0°. ♦ Press the splinter guard into the footplate from below (notch facing upwards). Fitting the sliding shoe When working on sensitive surfaces, you can fit the sliding shoe on the baseplate to prevent scratching the surface. ♦ Mount the sliding shoe onto the front of the baseplate and press it up at the back until it clicks into place on the baseplate . ♦ To remove the sliding shoe , unfasten it at the rear of the baseplate and slide it off the front. Use Setting the cutting angle ♦ Undo the clamping screws with the supplied hex key and pull the baseplate to the rear. ♦ Adjust the cutting angle to 0°/15°/30°/45° with the aid of the markings on the baseplate

Push the baseplate forwards so that the locking pin engages in the toothing . ♦ Retighten the clamping screws with the hex key. NOTE ► When using a cutting angle of 15°/30°/ 45°, the blade guard and the splinter guard must be detached beforehand. Setting the stroke rate The ON/OFF switch has a variable speed con- trol. Press the ON/OFF switch lightly for a low speed. Increasing the pressure increases the speed. NOTE ► The integrated motor brake ensures rapid stoppage. Adjusting the pendulum stroke ♦ You can use the pendulum stroke switch to adjust the pendulum movement of the saw blade . You can achieve fine, clean-cut edges without pendulum movement (setting "0"). Deactivate pendulum movement when working on thin workpieces. You can achieve an increas- ingly fast work rate if the pendulum stroke is activated (settings 1–3). Switching on/off Switching the appliance on: ♦ Push the safety lock-out to the left or right and keep it pressed. ♦ Press the ON/OFF switch

Once the saw is running, you can release the safety lock-out . The working light illuminates when the ON/OFF switch is depressed lightly or completely. This provides illumination of the work area in poor lighting conditions. Switching the appliance off: Release the ON/OFF switch

 21 ■ Maintenance and cleaning WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance. ■ The appliance must always be kept clean, dry and free from oil or grease. ■ Use a soft, dry cloth to clean the housing. ■ If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry. ■ Clean the appliance after completing your sawing work. ■ Remove any dirt (e.g. sawdust). If necessary, clean the saw blade mount with a brush or compressed air. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accordance with strict quality guidelines and inspected meticu- lously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase. ■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. IB_302616_PSTDA20-LiA2_LB8.indb 21 15.11.18 10:33PSTDA 20-Li A2 ■ 22 

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com. Service WARNING! ► Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained. ► Always ensure that the power plug or the mains cable is replaced only by the manu- facturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained. Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 302616 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

GERMANY www.kompernass.com Disposal The packaging is made from environmen- tally friendly material and can be dis- posed of at your local recycling plant. Do not dispose of power tools in your normal household waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Do not dispose of batteries in your normal household waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility. Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composites Your local community or municipal authorities can provide information on how to dispose of the worn-out product. IB_302616_PSTDA20-LiA2_LB8.indb 22 15.11.18 10:33PSTDA 20-Li A2

 23 ■ Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, document officer: Mr. Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011/65/EU)* *The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards: EN 60745-1: 2009 / A11: 2010 EN 60745-2-11: 2010 EN 62233: 2008 EN 55014-1:2017 EN 55014-2: 2015 EN 60335-1: 2012 / A13:2017 EN 60335-2-29: 2004 / A2:2010 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 50581:2012 Type designation of machine: Cordless jigsaw PSTDA 20-Li A2 Year of manufacture: 07 - 2018 Serial number: IAN 302616 Bochum, 27/07/2018 Semi Uguzlu - Quality Manager - We reserve the right to make technical changes in the context of further product development. IB_302616_PSTDA20-LiA2_LB8.indb 23 15.11.18 10:33PSTDA 20-Li A2 ■ 24
