USER MANUAL CL301P BIGBEN INTERACTIVE

[e-mail]

[e-mail]

ITALIA, [e-mail]

www/bigben.eu

CL300P

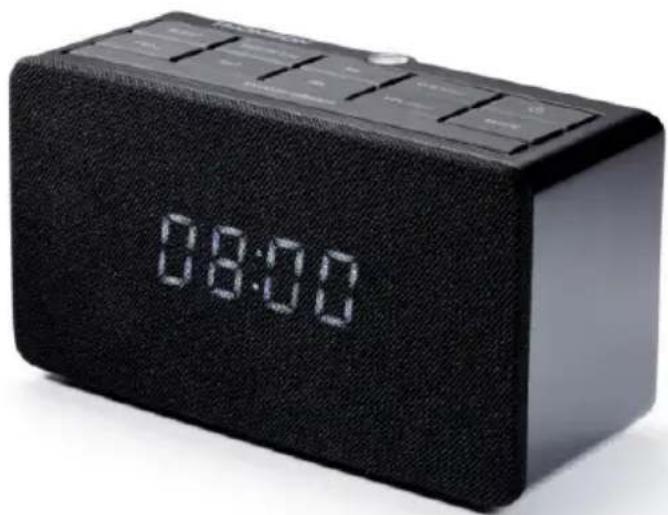

ALARM CLOCK RADIO WITH PROJECTOR

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE

OPERATING THIS UNIT AND RETAIN FOR

FUTURE REFERENCE

Contents

Setting started 1

Safety and notice

Care for your product 2

Care of the environment

What's in the box 3

Description of parts

Power

Power supply by ac adaptor

Battery back-up

Radio operation

Memory recall 5

Clock setting

Alarm setting

Snoopze function 6

Turn off alarm

Sleep function

Light function

Usb function to listen to music

Charging function 7

4 Dimmer function

Time projection function

Volume control

Aux input jack

Headphone jack

Warning! Risk of hearing impairment

Remarks

8

Setting Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safely.

Safety and Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

Safety

Warning

• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.
• Keep this apparatus away from direct sunlight, naked Fames or heat.
• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

• Read these instructions.

• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the Point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of

time.

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
2. Apparatus shall not be exposed to dripping or splashing.
3. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
4. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
5. Make sure there is enough free space around the product for ventilation.
6. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Care for your product

1. Always unplug the appliance when not in use and before cleaning.
2. Do not play music at excessive volume levels as damage to hearing and or the equipment may occur.
3. Do not use this unit in wet or damp conditions.
4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

What's in the box

Check and identify the contents of your package:

• Main unit
• User manual
  Adaptor

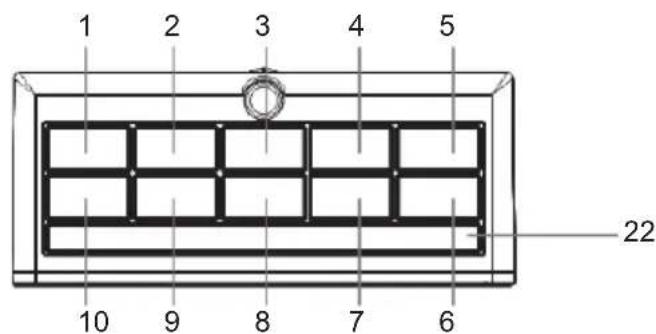

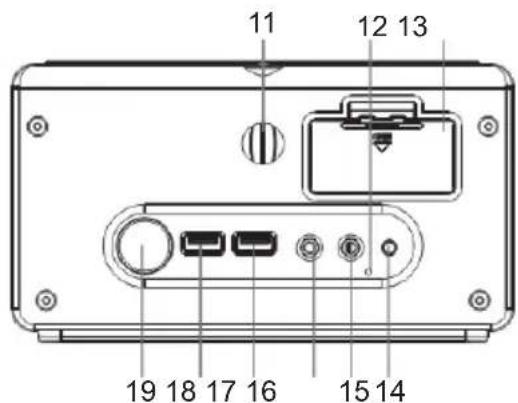

Description of Parts

1. SLEEP BUTTON
2. PRESET/PLAY/PAUSE BUTTON
3. BOLTON
4. VOL+/AL 1 BUTTON
5. POWER BUTTON
6. MODE BUTTON
7. VOL-/AL 2 BUTTON
8. BUTTON
9. SET BUTTON
   10.PROJ.BUTTONG
10. KNOB

11. FM ANTENNA

12. BATTERY DOOR

13. DC JACK
14. EARPHONES JACK
15. AUX IN JACK
16. USB PORT
    18.5V OUT USB PORT
17. ON/OFF BUTTON FOR LIGHT EFFECTS
18. SPEAKER
19. LED DISPLAY
20. SNOOZE/DIMMER BUTTON

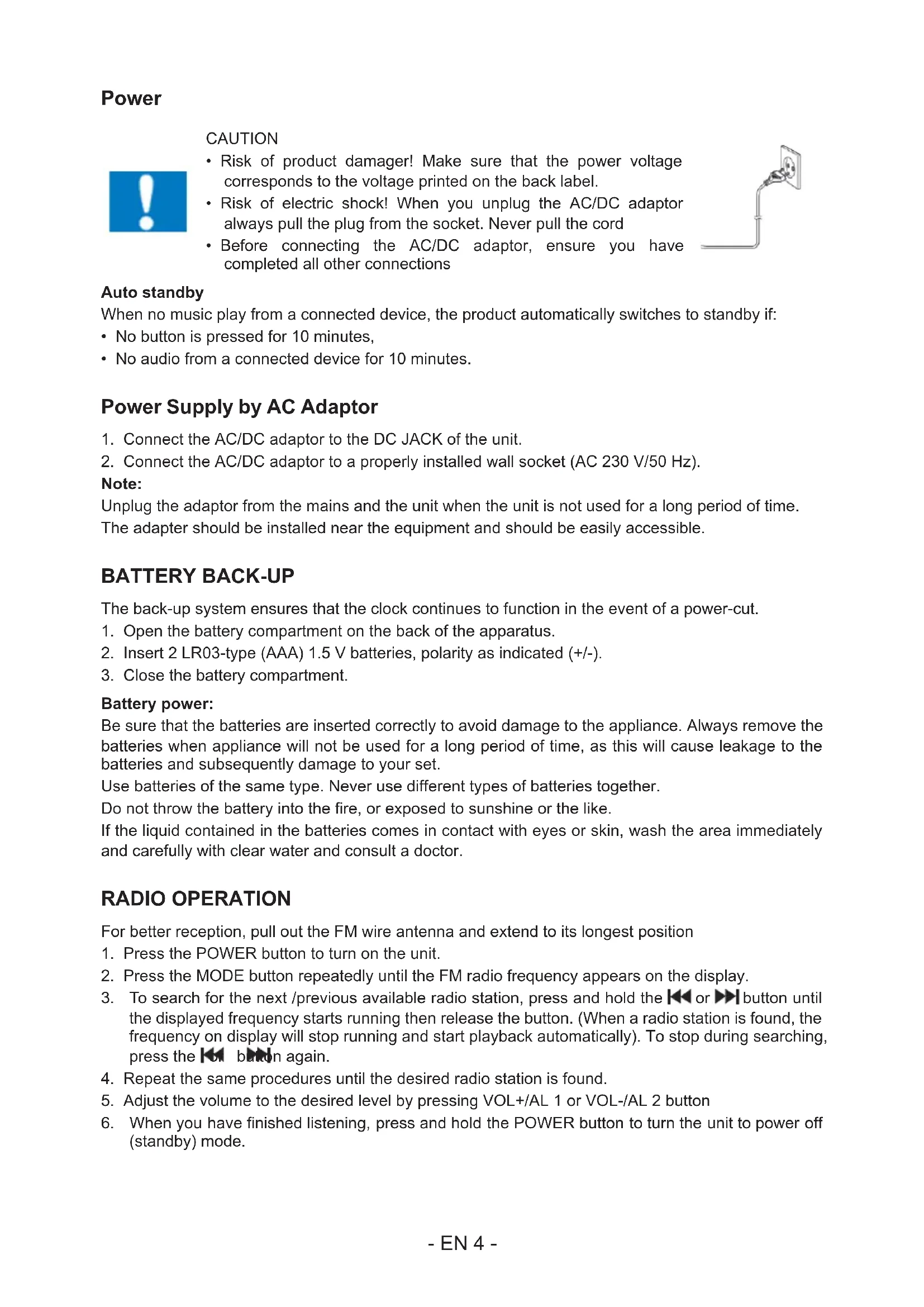

Power

CAUTION

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.
• Risk of electric shock! When you unplug the AC/DC adaptor always pull the plug from the socket. Never pull the cord
• Before connecting the AC/DC adaptor, ensure you have completed all other connections

Auto standby

When no music play from a connected device, the product automatically switches to standby if:

• No button is pressed for 10 minutes,
• No audio from a connected device for 10 minutes.

Power Supply by AC Adaptor

1. Connect the AC/DC adaptor to the DC JACK of the unit.
2. Connect the AC/DC adaptor to a properly installed wall socket (AC 230 V/50 Hz).

Note:

Unplug the adaptor from the mains and the unit when the unit is not used for a long period of time. The adapter should be installed near the equipment and should be easily accessible.

BATTERY BACK-UP

The back-up system ensures that the clock continues to function in the event of a power-cut.

1. Open the battery compartment on the back of the apparatus.
2. Insert 2 LR03-type (AAA) 1.5V batteries, polarity as indicated (+/-) .
3. Close the battery compartment.

Battery power:

Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Use batteries of the same type. Never use different types of batteries together.

Do not throw the battery into the fire, or exposed to sunshine or the like.

If the liquid contained in the batteries comes in contact with eyes or skin, wash the area immediately and carefully with clear water and consult a doctor.

RADIO OPERATION

For better reception, pull out the FM wire antenna and extend to its longest position

1. Press the POWER button to turn on the unit.
2. Press the MODE button repeatedly until the FM radio frequency appears on the display.
3. To search for the next /previous available radio station, press and hold the or button until the displayed frequency starts running then release the button. (When a radio station is found, the frequency on display will stop running and start playback automatically). To stop during searching, press the button again.
4. Repeat the same procedures until the desired radio station is found.
5. Adjust the volume to the desired level by pressing VOL+/AL 1 or VOL-/AL 2 button
6. When you have finished listening, press and hold the POWER button to turn the unit to power off (standby) mode.

MANUAL PRESETTING RADIO STATIONS

1. Receive the desired radio station as in the previously procedure.
2. Press and hold the PRESET/PLAY/PAUSE button for 3 seconds. "P 01" will blink on the display. Press the or button repeatedly to select the program number (01-10) you want to store the station to. Then press the PRESET/PLAY/PAUSE button again to store it.
3. Repeat the same procedures until all the desired radio stations are stored into the program list.

MEMORY RECALL

Recall the stored frequencies by pressing the PRESET/PLAY/PAUSE button repeatedly to select station 1 to 10 as desired

CLOCK SETTING

In standby mode

1. Press the SET button. The hour time will blink on the display
2. Press the bndn to adjust the HOUR.
3. After the desired hour is reached, press the SET button and the MINUTE time will blink.
4. Press the but to adjust the MINUTES.
5. After the desired minute is reached; press the SET button to confirm.

ALARM SETTING

AL1: Alarm 1 indicator

AL2: Alarm 2 indicator

Zz: Snooze indicator

Note: Alarm 1 & Alarm 2 indicator will appear on LED display once the corresponding alarm function is activated

In standby mode

1. Press & hold the VOL+/AL1 button for 3 seconds until the alarm hour digit is blinking.
2. Press the button to adjust the HOUR.
3. After the desired HOUR has been reached, press the VOL+/AL1 button and the MINUTES will blink.
4. Press the button to adjust the MINUTES.
5. After the desired minutes have been reached; press the VOL+/AL1 button

6. Press the or button to select the alarm source, such as "bp", "FM", "USB", "light", "buzz & light", "FM & light", "USB & light".

7. Alarm by buzz
   Alarm by FM radio

8. Alarm by USB
9. Alarm by light
10. Alarm by buzz & light
    Alarm by FM radio & light

11. Alarm by USB & light

12. Press the VOL+/AL1 button to confirm

13. Press the button to select the light color, such as L-1, L-2, L-3, L-4, L-5, L-6, L-7 & L-8.

Light color:

L-1 white
L-2 red
L-3 green
L-4 blue
L-5 yellow
L-6 turquoise
L-7 purple
L-8 Changing color

1. Press the ALARM button to confirm.

Note: This unit has dual alarm function. The Alarm2 setting is same as the Alarm1 setting.

SNOOZE FUNCTION

• If you want to snooze a few more minutes, pressing the SNOOZE button will deactivate the alarm sound for 9 minutes.
• Snooze indicator Zz will appear on the LED display.

TURN OFF ALARM

1. When alarm goes on, press the POWER button to turn off the alarm. The alarm will reset for the next day.
2. To turn off the alarm completely (not reset for the next day), press the ALARM button repeatedly until all alarm LED indicators are off.

SLEEP FUNCTION

• In Power on mode, press the SLEEP button to activate the sleep function. Press the button repeatedly to set the sleep timer. The timer will change form 120 > 90 > 60 > 30 > 15 > 10 > 5 to off. When the time is up, the unit will turn off automatically.

LIGHT FUNCTION

• Press the ON/OFF button to turn on the light then press the ON/OFF button repeatedly to change the light color (7 colors + changing color).
• To turn off the RGB light, press and hold the ON/OFF button again for 3 seconds.

USB FUNCTION to listen to music

1. Press the POWER button to turn on the unit.
2. Press the MODE button repeatedly until "USB" appears on the display.
3. Connect the USB flash drive to the USB slot at back of the unit.
4. The USB flash drive will play automatically.
5. Press the PRESET/PLAY/PAUSE button to stop playing temporarily. Resume normal play by pressing the PRESET/PLAY/PAUSE button again.
6. Press the button to choose the previous or next song.
7. To turn off the unit, press the POWER button again.

Charging function

1. Simply use the USB cable (not included) to charge the digital product. One end of the USB cable connects to the "5 V USB OUT PORT" of the unit, another end connects to the digital product with a converted tip or charging cable. It will start to charge.
2. When the digital product is fully charged, disconnect your digital product from the unit.

Dimmer function

Press the SNOOZE/Dimmer button repeatedly to adjust the LED display brightness as desired.

Time projection function

• Press the PROJ. BUTTON to turn on the projector and start displaying the time one of the room's surfaces (wall or ceiling).
• To turn off the projector, press the PROJ. button again.
• Rotate the KNOB to find the best projection angle

VOLUME CONTROL

• Adjust the volume by pressing the VOL+/AL1 or VOL -/AL2 button

AUX INPUT JACK

1. Connect the external audio device or iPod by an audio connection cable with a 3.5mm stereo plug on both ends (cable not included).
2. Insert one end into the AUX jack on the rear of unit. Insert the other end into the phone's jack.
3. Press the POWER button to turn on the unit.
4. Press the MODE button repeatedly until "AUX" appears on the display. Play the music in the connected external audio device or iPod as usual.
5. When you have finished listening, press the POWER button to turn off the unit.

HEADPHONE JACK

• This unit will accept stereo headphones (not included) with a 3.5mm plug. Before connecting the headphones, set the volume to minimum level so as not to damage your ears or the headphones.
• Connect the headphones to the headphones jack. The unit's speakers will be automatically disconnected.

Warning: Prolonged exposure to high sound levels may permanently damage your hearing. You may not hear some warning sounds while wearing these headphones.

WARNING! Risk of hearing impairment

• Set a low volume on the playback device before connecting the headphones to the sound source.
• Avoid excessive volume, particularly over extended periods or frequent use. Excessive volume can result in permanent hearing impairment.

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

• Take them to a collection point.

• Some components in these appliances may be hazardous to health and the environment.

• In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.

• You can find the information on the plate located at the back of the unit.
• THOMSON is a trademark of TECHNICOLOR SA or its affiliates used under license to Bigben Interactive.
  To download the full statement, please visit our website: http://www/bigben-interactive.co.uk/support and the section <>.

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2-FRETIN

CS 90414

59814 LESQUIN Cedex - France

www/bigben.eu

Made in China

REACH

Fabricant:BigbenInteractiveFRANCE

396, Rue de la Voyette, C.R.T. 2 Fretin.

CS 90414-59814 LESQUIN Cedex

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

CL300P

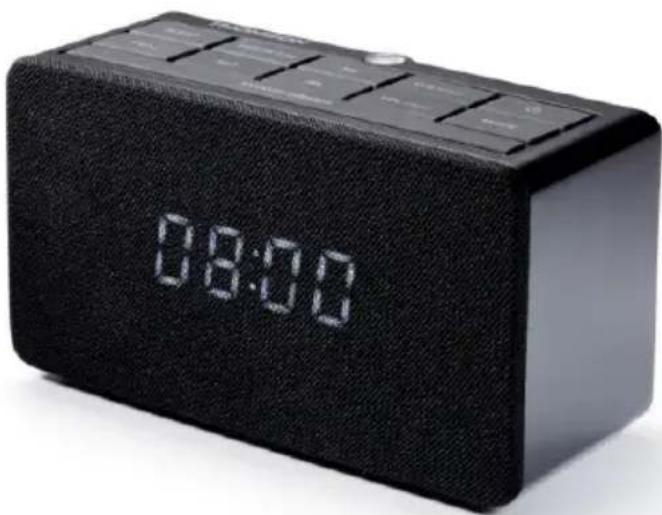

RADIO RELOJ DESPERTADOR CON PROJECTION
