Brand	Bigben Interactive
Model	CR400IBT
Product Type	Radio alarm clock with wireless charging, Bluetooth and FM
Power supply	Power adapter 100-240 V, 50/60 Hz, 0.5 A; output 5 V / 3000 mA
FM radio frequency	87.5 – 108 MHz
Bluetooth connectivity	Yes, max. range 10 meters
Wireless charging	Yes, compatible with smartphones with wireless charging
USB ports	Dual USB charging port (5 V / 3 A total)
AUX input	Yes, 3.5 mm jack socket
Alarm functions	Simple alarm with choice of buzzer or radio; snooze 9 minutes
Time setting	12h/24h format, adjustment with + and - buttons
Brightness control	3 levels: high, low, off
Auto standby	After 10 minutes of inactivity and no audio playback
Maintenance	Disconnect before cleaning; soft damp cloth, no abrasive products
Safety	Do not expose to water, do not open the housing, do not block the openings
Package contents	Main unit, power adapter, USB cable, AUX cable, user manual

Frequently Asked Questions - CR400IBT BIGBEN INTERACTIVE

How to set the time on the CR400IBT?

Briefly press the TIME button to make the hours flash. Use the - or + buttons to adjust. Press TIME again to switch to minutes, adjust then press TIME again or wait 15 seconds to confirm. To change the 12h/24h format, hold down TIME.

How to set the alarm?

Briefly press ALARM to make the hours flash, adjust with - or +. Press ALARM again for minutes, adjust then press ALARM to confirm and choose BUZZER or RADIO. If you choose RADIO, the alarm will use the last FM station and last volume set.

How to use the Bluetooth function to listen to music?

Make sure the device is on. Enable Bluetooth on your smartphone and search for CR400IBT. Pair the devices. Use the answer/hang-up button to play/pause, and the - or + buttons to adjust the volume.

How to charge my smartphone wirelessly?

Place your smartphone compatible with wireless charging in the center of the station located on top of the radio alarm clock. The blue indicator lights up to indicate charging. Note: wireless charging and FM radio cannot operate at the same time.

What to do if the device does not turn on?

Check that the power adapter is properly plugged into the back of the device and into a working electrical outlet. Try another outlet. If the problem persists, contact customer service.

How to use the AUX input?

Press the AUX button to switch to AUX mode. Connect an audio cable (not supplied) from your external player to the AUX socket on the back of the speaker. Press AUX again to exit the mode.

How to adjust the display brightness?

Press the SNOOZE / dimmer button to cycle through 3 levels: high (bright), medium (dim), low (off).

How does the alarm snooze function work?

When the alarm sounds, press the SNOOZE button. The alarm stops then starts again after 9 minutes. To completely deactivate the snooze, press ALARM while the alarm is sounding.

Can I charge two devices at the same time via the USB ports?

Yes, the device has two USB charging ports (5 V / 3 A total). You can charge two devices simultaneously, but the current will be shared between them.

How to clean the radio alarm clock?

Always disconnect the device before cleaning. Use a soft, damp, lint-free cloth. Do not use abrasive products or solvents. Avoid liquid entering the device.

USER MANUAL CR400IBT BIGBEN INTERACTIVE

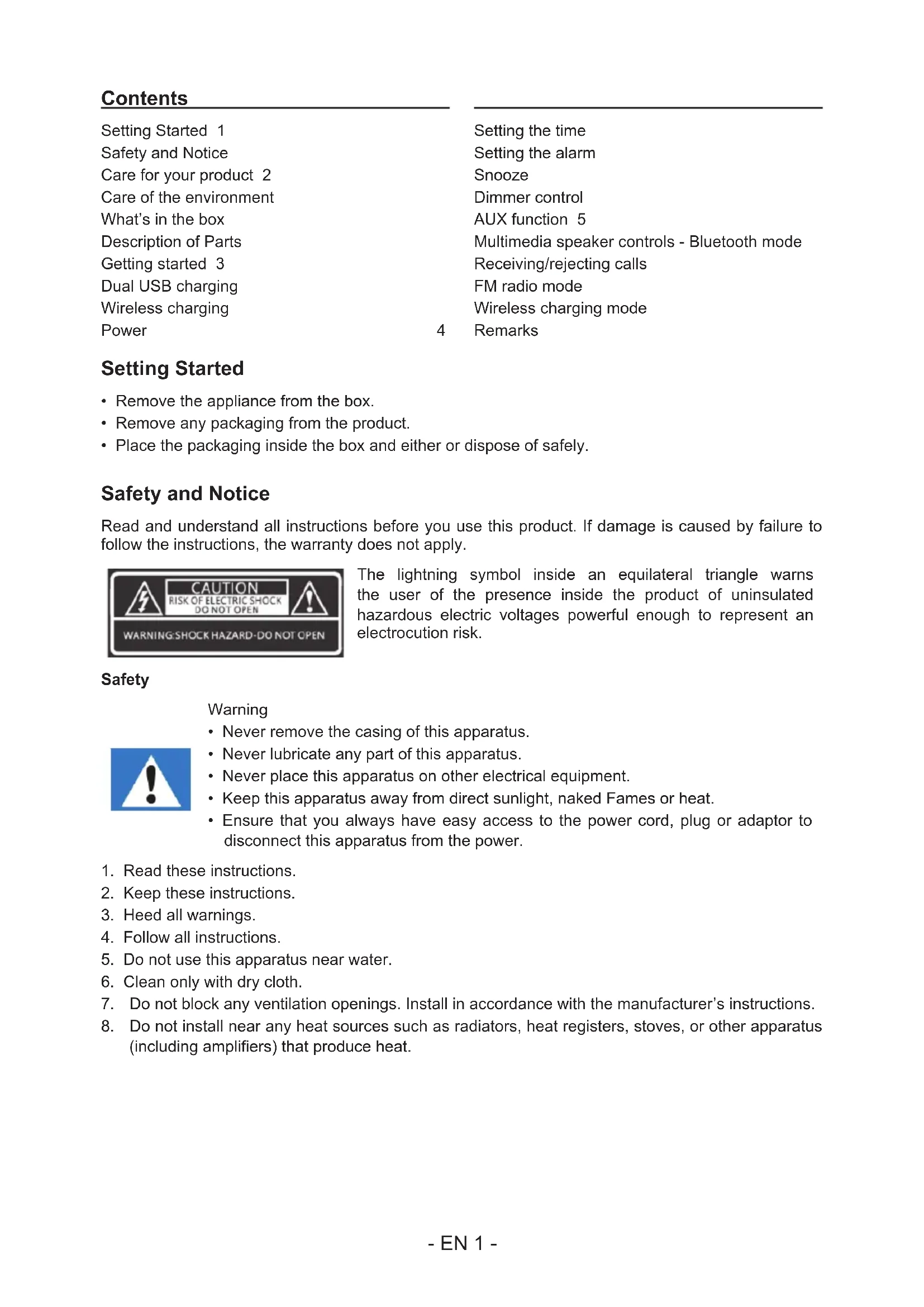

Care for your product 2

Care of the environment

What's in the box

Description of Parts

Getting started 3

Dual USB charging

Wireless charging

Power

Setting the time

Setting the alarm

Snoopze

Dimmer control

AUX function 5

Multimedia speaker controls - Bluetooth mode

Receiving/rejecting calls

FM radio mode

Wireless charging mode

4 Remarks

Setting Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safely.

Safety and Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

The lightning symbol inside an equilateral triangle warns the user of the presence inside the product of uninsulated hazardous electric voltages powerful enough to represent an electrocution risk.

Safety

Warning

• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.
• Keep this apparatus away from direct sunlight, naked Fames or heat.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

• Read these instructions.

• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the Point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Apparatus shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Make sure there is enough free space around the product for ventilation.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Care for your product

1. Always unplug the appliance and wait for the unit getting cold before cleaning.
2. Do not play music at excessive volume levels as damage to hearing and or the equipment may occur.
3. Do not use this unit in wet or damp conditions.
4. Clean the appliance with a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

What's in the box

Check and identify the contents of your package:

• Main unit
• AC Adaptor
• User manual
• USB cable and AUX cable

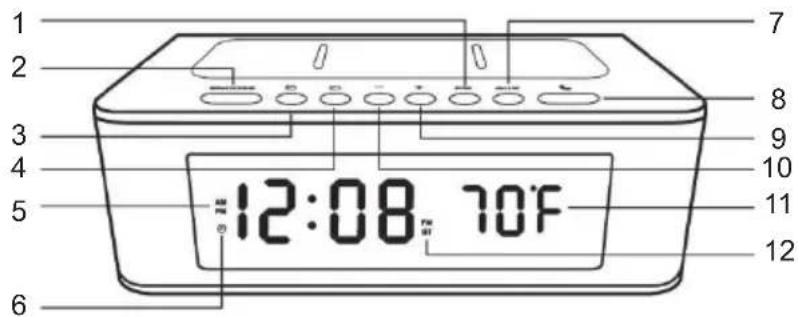

Description of Parts

1. FM RADIO

7.AUX

1. SNOOZE/DIMMER

2. PLAY/PAUSE MUSIC; START/END CALL

3. ALARM

4. +

5. TIME

6. -

7. AM/PM INDICATORS

8. TEMPERATURE

9. ALARM ON INDICATOR

10. BLUETOOTH INDICATOR

Getting started

Plug the power adapter into the back of the clock, and the other end into a standard electrical outlet.

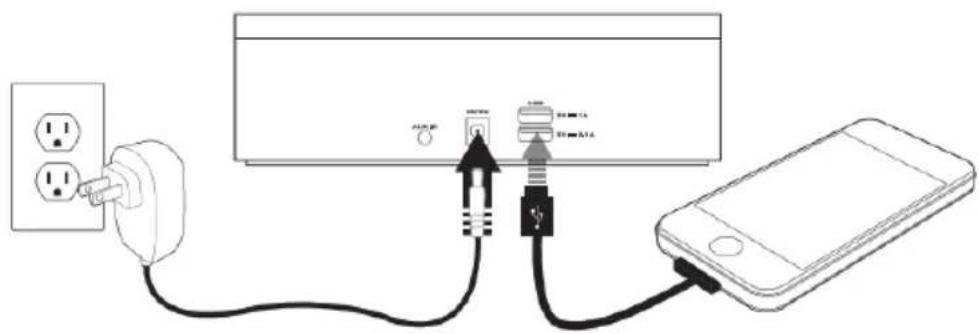

Dual USB charging

To charge your wireless device, connect your USB charging cable to one of the USB charging ports located on the back of the clock.

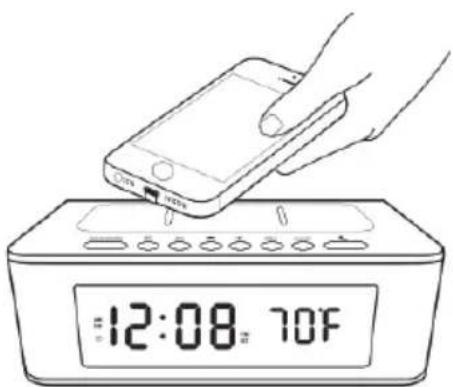

Wireless charging

Compatible with wireless charging enabled smartphones. Other smart phones need to use wireless charging adapters to work.

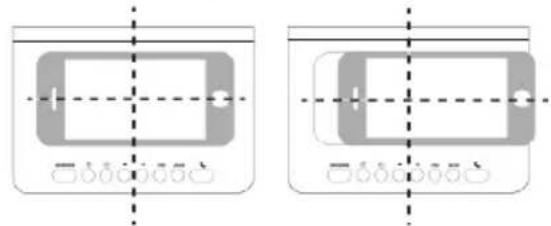

RIGHT WRONG

*Note: When the phone is being charged your phone's charging indicator will show as normal.

*Note: For maximum charging efficiency, the phone must be aligned with the center of the charging area.

*Note: Phones that are capable of wireless charging may need to be placed slightly off center. The built-in wireless receiver may not be centered inside the phone. This varies by brand/model.

Note: Wireless Charging and Radio cannot be used at the same time.

Power

CAUTION

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.
• Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord.
• Before connecting the AC power cord, ensure you have completed all other connections.

Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable.

Auto standby

When no music play from a connected device, the product automatically switches to standby if:

• No button is pressed for 10 minutes,
• No audio from a connected device for 10 minutes.

Setting the time

1. Short press TIME to make the hour blink.
2. Set the hour by pressing - or +.
3. Short press TIME again to make the minute blink.
4. Set the minute by pressing - or +.
5. Short press TIME or wait 15 seconds to show the current time.
6. Long press TIME to set up 12/24H mode.

Setting the alarm

1. Short press the ALARM button once to make the hour blink.
2. Press the - or + buttons as needed until the desired alarm hour is shown on the display.
3. Short press ALARM again to make the minute blink.
4. Set the minute by pressing - or +.
5. Press the ALARM button to save the time and select the BUZZER/RADIO.

NB: If you select RADIO, you will be awoken by the last preset radio at the last preset volume.

1. Short press ALARM or wait 15 seconds to exit alarm set up and return to the current time.

Snoopze

1. Press the SNOOZE button to snooze for 9 minutes.
2. When the alarm sounds, press ALARM to cancel snooze.

Dimmer control

1. Press the dimmer (SNOOZE button) to control the brightness of the digits on the display.
2. There are 3 levels: High (bright) Medium (dim) Low (off)

Turning the alarm on/off

1. Long press ALARM, the alarm icon will display.
2. Long press ALARM again, the alarm icon will disappear.

AUX function

1. Press AUX to enter AUX mode.
2. Insert a line-in cable in the AUX socket in the back of the speaker to connect an external player or computer.
3. Press AUX again to exit.

Multimedia speaker controls - Bluetooth mode

Press CALL/Bluetooth icon to play/pause music.

Press - to decrease the volume.

Press + to increase the volume.

Receiving/rejecting calls

1. While in wireless mode, press the CALL button to accept a call.
2. Press the CALL button again to hang up the call.
3. You only can reject a call from your device, not from the speaker.

FM radio mode

1. Press the FM button to enter FM mode.
2. Press and hold the FM Button for 3 seconds to search and store up to 40 FM stations automatically if the signal is good.
3. Press - or + to choose a radio station.
4. Press and hold - or + to change the volume.
5. Press the FM Button one more time to exit FM mode.

Wireless charging mode

1. Place a compatible device on the center pad on top of the clock.
2. The indicator light on top shows steady blue while charging.

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

• Take them to a collection point.
• Some components in these appliances may be hazardous to health and the environment.
• In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.
• If there is an incoming call while CR400iBT is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depend on your cell phone.)
• The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.
  The NFC™ Mark is a trademark of NFC Forum, Inc. in the United States and in other countries.
• THOMSON is a trademark of TECHNICOLOR SA or its affiliates used under license to Bigben Interactive.
• You can find the information on the plate located at the back of the unit.

The undersigned, Bigben Interactive declares that the radio equipment of the CR400iBT type complies with the 2014/53/EU directive.

The complete text is available at www/bigben.fr/support

To download the full statement, please visit our website: http://www/bigben-interactive.co.uk/support and the section <>>.

Note: The maximum connection distance is around 10 meters. Please place your Bluetooth speaker as close as possible to this device to prevent interruption to the connection.

Specification:

Frequency range: 87.5 - 108 MHz

AC Adaptor:

100-240 V, 50/60 Hz, 0.5 A

Power Output: 5V = 3000mA
