Model no. RR70P

PLL dual alarm clock radio

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: DO NOT REMOVE COVER (OR BACK) - RISK OF ELECTRIC SHOCK. THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with an arrowhead symbol within a triangle is intended to alert the user to the presence of uninsulated dangerous voltages within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature that accompanies the appliance.

WARNING:

1. FIRE OR SHOCK HAZARD: DO NOT EXPOSE THIS DEVICE TO RAIN OR MOISTURE.
2. Do not bend the cover beyond its normal limit. To do so could damage the unit.

CAUTION!

Visible and invisible laser radiation present when the unit is open and locks have been broken. Avoid exposure to beam.

Setup

When switching on the alarm, the automatic update function means the radio will automatically search for radio stations within three minutes. The screen shows the digits and station numbers.

Once complete, the unit will store its maximum of 20 radio stations as preset stations.

General Functions

1) FM radio by Digital Tuning System (DTS)
2) Negative LCD display with blue backlight and dimmer control
3) 12/24-hour clock display
4) Alarm signal can be set to radio or beeping sound
5) Beep sounds can be set to ascend (increase in volume from quiet to loud)
6) 20 preset radio stations
7) Automatic/manual search up/down
8) A.M.S.(automatic memory store) function
9) Automatic dimmer timer

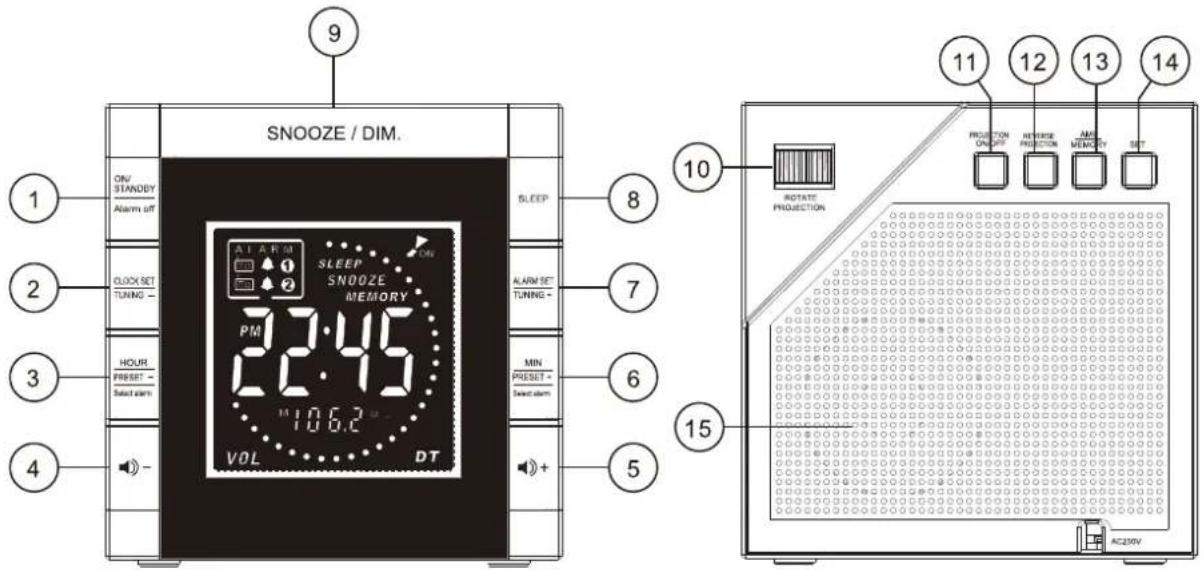

Key functions:

1) radio on/standby/alarm off

2) clock setup/tuning -

3) set hour/station -/select alarm

4) volume -

5) volume +

6) minute/station +/select alarm

7) set alarm/tuning +

8) sleep button

9) snooze/dimmer control

10) adjust rotation

11) projection on/off

12) flip projection upside-down

13) radio station memory/AMS (Auto-Memory Search)

14) SET: function setup – date, 12/24-hour clock, dimmer timer (DT)

15) speaker

1. Set the clock

• In standby mode, press [2] for 3 seconds. The display will flash and show 0:00.
- Set the time by pressing [3] to set the hour and [6] to set the minute.
- Press [2] again to confirm the time. The unit will start to show the passing of every two seconds through the dot indicator.

2. Set the date

• In standby mode, press [14] on the back. The display will flash and show 0:00.
- Press [14], "Year" will flash. Set the year by pressing [4]/[5], e.g. 2015, 2016, etc.
- After the year has been set, press [14]. "Month" will flash. Set the month by pressing [4]/[5], e.g. 1, 2, up to 12.
- After the month has been set, press [14]. "Day" will flash. Set the day by pressing [4]/[5], e.g. d01, d02, up to d031.
- The date will be set and be automatically confirmed if the user does not press any buttons for 15 seconds.

3. Set clock format

• Press [14] and hold until "Year" flashes in the display.
• Press [14] 3 more times.
  • 12/24H will flash. Now you can adjust the time format:
• Press [5] for 12H (12-hour format).
• Press [4] for 24H (24-hour format).
• The clock format will be set and be automatically confirmed if the user does not press any buttons for 15 seconds.

4. Set a dimmer timer (DT)

The display backlight can be set to automatically dim at night time, from 23:00 to 06:00, in order to save energy.

Set as below:

• Press [14] and hold for 15 seconds until "Year" flashes in the display. Press [14] 4 more times.
• "DT" will flash.
• Press [5] to activate the dimmer timer. The display will show "DT". When the dimmer timer is activated, the display backlight will be set to automatically dim at night time, from 23:00 to 06:00.
• Press [4] to deactivate the dimmer timer. The display will show "DT", and the display will not dim at night.

5. Set alarm

- In standby mode, press [7] for 3 seconds. The unit will go to alarm setup, the "alarm 1" icon in the upper left corner will flash and the main digit will show 0:00.

• Press [3] to set the alarm hour.
• Press [6] to set the alarm minute.

• Press [7] again to confirm the time of the alarm.

• With the alarm time set, press [3/6] to select whether the alarm should start the radio or a beep sound.

• Press [7] again to confirm and proceed to set alarm 2.
• Repeat all the steps above exactly as when setting alarm 1.
• Press [7] again to confirm the settings for alarm 2.
• Disable alarm function:
• Press and hold [7] for 3 seconds, then press [7] once more.

The display will flash "Alarm 1" or "Alarm 2". Press [3/6] to turn off 📄 or 🚗 and press [7] again to confirm.

• Output format as below:

Output	LCD display
Beep sound Display	shows bell symbol
Radio output Display	shows radio symbol
Disabled	All the bell radio and alarm symbols are gone

If no key is pressed for 15 seconds, the system will go back to normal mode.

6. Use the snooze function

When the alarm is ringing, press [9] "SNOOZE/Dimmer". The display will flash "SNOOZE". The alarm will stop, but ring again every 9 minutes. Press [1] to completely turn off the alarm.

7. Listen to FM radio

- For radio mode, press [1]. The display will show FM and the current frequency in digits, e.g. FM92.6 MHz.

- When the radio is on, you can adjust the signal by pressing [2 / 7] to tune up or down by 0.1 MHz and search for the next station.

7.1 Store a station to memory – as a preset station

- While already in radio mode, press [13]. Press [3/6] to select the preset station number, e.g. P01, P02.... P20. The display will flash MEMORY and the chosen program station, for example P01 (or whichever program number was chosen – P01... P20). Press [2/7] to select the channel. Finally, press [13] to confirm and save this station to the preset stations.

7.2 Return to preset station

• When radio mode is on, press [3/6] to select the desired preset station number, P01, P02, to P20. The display will then show MEMORY, the preset station number (P01 or whichever preset station number is chosen), and the FM frequency.
• Once the preset station has been selected and confirmed or you have waited for 3 seconds, the display will show the current time and FM frequency.

7.3 AMS

• With radio mode on, press and hold [13] for 3 seconds to activate AMS mode.
- The radio will automatically scan the frequency and save the preset station to memory, with a total of up to 20 different radio stations. Once AMS finishes scanning and stops automatically, it will return to preset station no. P01. The display will show the current time and FM frequency.

When the AMS function is activated, the newly found stations will replace the preset stations that have been previously stored in the memory.

8. Volume control

• With the radio on, press [5/4] for volume +/-. The display will show the volume level, 00 \~ 15, from minimum to maximum sound level.
• Press [5] to increase the sound volume level.
• Press [4] to decrease the sound volume level.

9. Dimmer control (display digit light)

• Press [9] to control the brightness of digits on the display.
  • There are 3 levels: Brightness, dim light and dark.

High level (brightness)

10. Sleep mode timer

• Press [8] to activate sleep mode.
• It will start to count down from the default 120 minutes. The radio will turn off after 120 minutes (or set time). Press [8] again to set the timer for when the radio will turn itself off (note: every press reduces the sleep timer by 5 minutes, and if reduced to zero, OFF will be displayed).

11. Projection display

• Press [11] to turn the projector on/off. The projector icon will be shown in the display when the projector is on.
• Press [12] to flip the projection by 180 degrees.
• Use the tuning knob [10] to rotate the projection angle in 90-degree amounts.

12. Replace clock backup batteries

- Insert 2 AAA batteries. Check the polarity (+ and – at ends of the battery) and follow the instructions on the diagram near the battery compartment. Close the compartment door.

NOTE: Please make sure you properly dispose of batteries (see your local regulations).

13. Basic specifications:

Output: 0.5W

FM range: 87.5 \~ 108 MHz

Input: AC\~ 230V, 50Hz

Station preset: 20

Default dimmer timer: ON for 23:00 - 06:00

Important safety instructions, please read carefully

This unit has been designed and manufactured in such a way as to ensure personal safety, provided it is used as directed. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use. Keep these instructions handy for future reference. Take special note of all the warnings contained in these instructions and on the unit.

• Do not dispose of electrical appliances in the standard household waste.
• Bring such appliances to a collection point.
  • Some parts contained in these appliances may be hazardous to human or animal health.
