USER MANUAL BTR 4.2 Oehlbach

Bluetooth Version: 4.2 - aptX, Low Latency,

A2DP 1.3.1

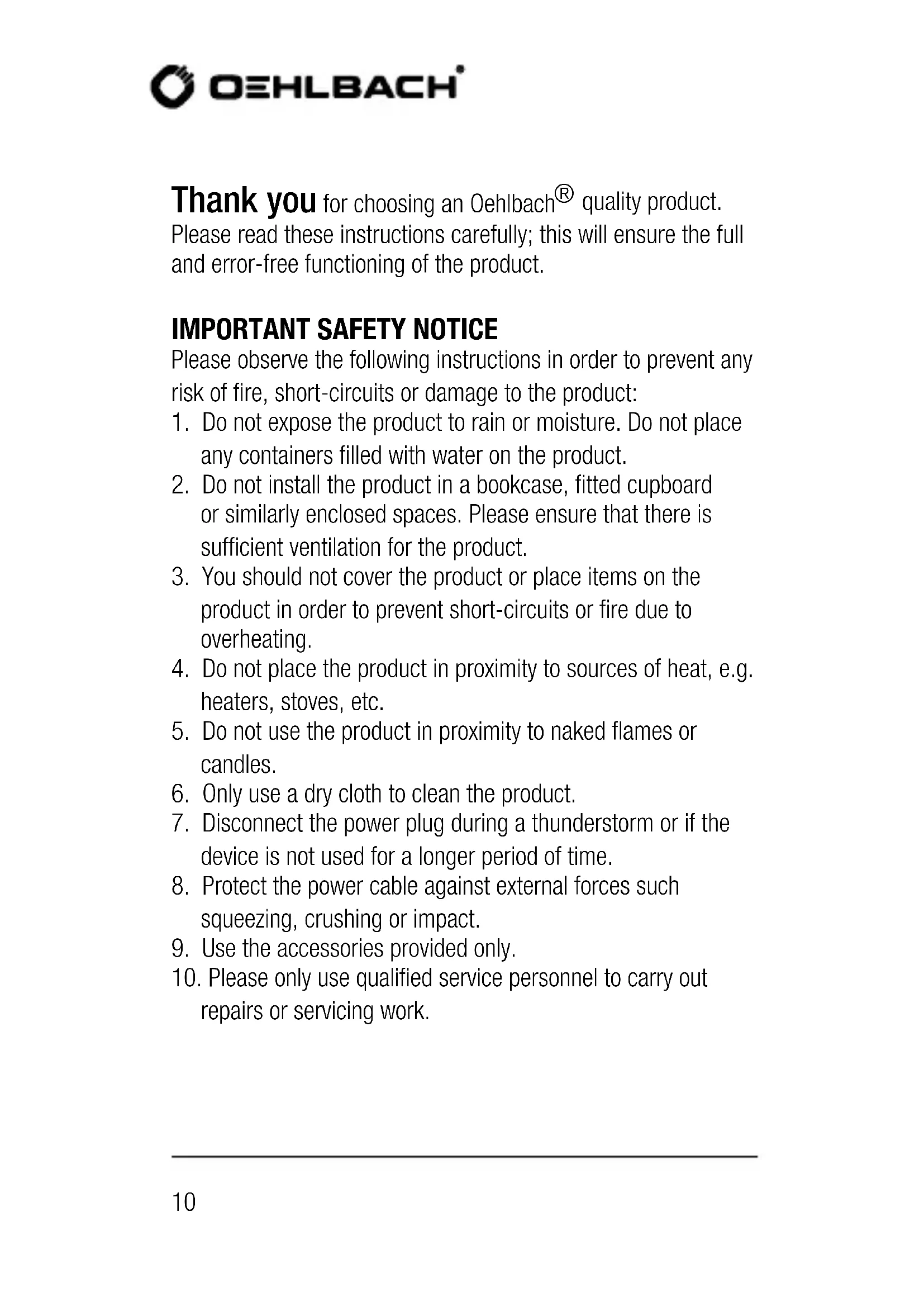

Thank you for choosing an Oehlbach® quality product.

Please read these instructions carefully; this will ensure the full and error-free functioning of the product.

IMPORTANT SAFETY NOTICE

Please observe the following instructions in order to prevent any risk of fire, short-circuits or damage to the product:

1. Do not expose the product to rain or moisture. Do not place any containers filled with water on the product.
2. Do not install the product in a bookcase, fitted cupboard or similarly enclosed spaces. Please ensure that there is sufficient ventilation for the product.
3. You should not cover the product or place items on the product in order to prevent short-circuits or fire due to overheating.
4. Do not place the product in proximity to sources of heat, e.g. heaters, stoves, etc.
5. Do not use the product in proximity to naked flames or candles.
6. Only use a dry cloth to clean the product.
7. Disconnect the power plug during a thunderstorm or if the device is not used for a longer period of time.
8. Protect the power cable against external forces such squeezing, crushing or impact.
9. Use the accessories provided only.
10. Please only use qualified service personnel to carry out repairs or servicing work.

COMPLIANCE WITH EU DIRECTIVES

This product is eligible to bear the CE mark. It complies with the EU Low Voltage Directive 2014/35/EC; EU Directive 2014/30/EC on electromagnetic compatibility; EU RoHS Directive 2011/65/EC; EU Directive on Waste Electrical and Electronic Equipment (WEEE) 2012/19/EC.

Hereby, Oehlbach Kabel GmbH declares that the device BTR 4.2 is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU. The Declaration of Conformity can be found at www.oehlbach.com.de in the download area of the device.

You can obtain a free copy of the Declaration of Conformity by contacting your retailer, distributor or the headquarters of Oehlbach Kabel GmbH. Contact information can be found at:

http://www.oehlbach.com.

Operating frequency: 2402-2480 MHz Maximum emitted power according to EN 62479: 3,7 dBm

DISPOSAL ADVICE

In accordance with the European Guideline 2012/19/EC all electrical and electronic equipment must be disposed of separately at local collection points. Please observe local rules and do not dispose of your old equipment in the normal household waste!

PACKAGING CONTENTS

Oehlbach BTR 4.2 - Bluetooth Transceiver
- Toslink cable 0.5 ~m
- Toslink/3.5 mm adapter
· USB cable for voltage supply - 1m
- Power supply unit (5V/1A)
- User guide

The Oehlbach BTR 4.2 is a Bluetooth 4.2 2in1 adapter. In transmitter mode, audio signals can be received in optical-digital or analogue form and be transmitted wirelessly to a headset or active loudspeaker. In receiver mode, it is very easy to receive music or audio content from a smartphone, tablet or computer and output this in analogue form via the 3,5mm port. All of this happens in CD quality thanks to aptX support. The Low Latency Feature enables the BTR 4.2 to achieve extremely low latency of less than 40 ms and reproduce the sound instantaneously.

FUNCTIONS

• 2-in-1 Bluetooth adapter allows audio signals to be sent and received in one device
• Current Bluetooth version 4.2
  Class 1 technology facilitates a range of over 20m
• 3.5mm port for digital optical and analogue signals.
• aptX guarantees audio transmission in CD quality.
  Qualcomm TrueWireless stereo
• Extremely low latency of less than 40 ms.
• Gold-plated contacts for perfect signal transmission.
• Multiple set-up options and flexible use.

SPECIFICATION

Bluetooth Version: 4.2 - aptX, Low Latency, A2DP 1.3.1

Range: >20m (BT Class 1)

D/A conversion 16 Bit / 96 kHz

A/D conversion 16 Bit / 48 kHz

Temperature range: 5 to +50^ C

Permissible relative humidity: 5 - 90%

Voltage supply: 5V

Dimensions: 33 × 62 × 12 (w x h x d in mm)

Weight: 0.02 kg

OPERATION

BTR 4.2 as a Bluetooth transmitter

In transmitter mode, the BTR 4.2 can be connected to other Bluetooth-capable devices that use a Bluetooth receiver to receive audio signals wirelessly. In this case, the BTR 4.2 acts as a Bluetooth transmitter:

1. Other Bluetooth-capable equipment should be switched off before pairing the BTR 4.2 with devices. This will then guarantee problem-free device pairing.
2. Set the selector switch of the BTR 4.2 to "TX" and establish a voltage supply with the help of the USB cable. The power adaptor supplied can be used for this or a USB port with 5 volt power supply.

3. Then press the function button on the BTR 4.2 briefly twice in succession to proceed to the pairing mode. The red function light should then flash rapidly.

4. The BTR 4.2 can then be found by other Bluetooth-capable devices and pairing is possible.

5. Once pairing has been completed, the red LED flashes twice for one second and audio signals can be transmitted.
6. To switch off the BTR 4.2, press and hold the function button for 3 seconds.

BTR 4.2 as a Bluetooth transmitter

In receiver mode, the BTR 4.2 can be connected to other Bluetooth-capable devices that use a Bluetooth transmitter to transmit audio signals wirelessly. In this case, the BTR 4.2 acts as a Bluetooth receiver: To use the BTR 4.2 in receiver mode, set the selector switch to „RX“ and follow the above-mentioned instructions from point three.

TROUBLESHOOTING

The BTR 4.2 will not switch on

Please make sure that the BTR 4.2 is connected via the USB cable to a power supply of at least 500mA .

The BTR 4.2 cannot be paired with another device

a) Make sure that the Bluetooth device is no further than 1 m away during the pairing process.
b) Make sure that the Bluetooth function is enabled on the device being connected and that its search/pairing mode is active.
c) Check whether you have selected the right Bluetooth mode (Receiver/Transmitter).

The BTR 4.2 is connected to a device, but it is not possible to play any music

a) Make sure that both devices are paired. Please note that the maximum operating range is 20m . Any walls or obstacles located between the devices will reduce this range.
b) Make sure that the volume on the playback device is set between 50 and 100% .

ENIG

Warranty

Congratulations! Thanks to your intelligent choice you are now the proud owner of an OEHLBACH® product. OEHLBACH® products enjoy an excellent reputation around the world due to their high quality. This high quality standard allows us to provide a 2 year warranty for this OEHLBACH® product. OEHLBACH® products are continuously inspected and checked throughout the entire manufacturing process. If service is necessary, however, please observe the following:

1. The warranty period starts with the purchase of the product and only applies to the original owner.
2. During the warranty period we will rectify any defects that are due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damage or subsequent damage, are excluded. The warranty period is not affected by any work we provide under the warranty.

3. The product should not be tampered with.

4. In the event of a warranty claim please contact your authorised dealer first. Should it prove necessary to return the product to us, please ensure that

5. the product is sent in its original factory packaging in good condition,

6. your proof of purchase is enclosed.

7. The following are excluded from the warranty:

8. Illuminants

9. Wear parts
10. Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with the shipping agent, the railway express office or the post office).
11. Scratches in metal components, front panels, etc. (You must notify your authorised dealer directly of such defects within 5 days of purchase).
12. Defects caused as a result of incorrect installation, faulty connection, improper operation (see user manual), overloading or external force.
13. Improperly repaired or modified devices that have been opened by a party other than us.
14. Subsequent damage to other devices.
15. Reimbursement of costs for repairing damage that has been caused by a third party without our prior consent.

Version Bluetooth : 4.2 - aptX, Low Latency,

A2DP 1.3.1

Portee: >20m (BT Class 1)

Conversion A/N 16 bits / 96 kHz

Conversion A/N 16 bits / 48 kHz

D/A-conversie 16-bits/96 kHz

A/D-conversie 16-bits/48 kHz

Conversion A/D a 16 bit / 48 kHz

Version Bluetooth: 4.2 - aptX, Low Latency,

A2DP 1.3.1

Alcance: >20m (BT Class 1)

Conversion D/A 16 bits / 96 kHz

Conversion A/D 16 bits / 48 kHz

Rango de temperatura: 5 a +50 °C

Humedad ambiente permitted: 5 a 90 %

'Ek800n Bluetooth: 4.2 - aptX, Low Latency,

A2DP 1.3.1

YcTpaHHeHHeNcnpaBHOCTeI

BTR 4.2 He BkIIOyaeTc8

06ecneybe, yTo6bI BTR 4.2 6bl CoeHHeN C nCTOuHnKOM IHTaHnHa MmHmym 500 mA uepe3 USB-ka6eJb.

BTR 4.2 He coeHHaTcC dpym yctpoiCTBOM

a) B procece coeHHeNn Bluteoth-ycTroBcTBO doJxHo HaxoITbcra Ha paCCTOarHn He 60JIbwe 1 MeTpa.
b) Пюверьт, Вкlioчен Ли на-coeДиняЕмOM yCTpoIcTBepeхИМBluetoothинхODITСЯ Ли yCTpoIcTBOВ ржIMeNonSCa/CoeДинEHnY.
c) Y6eIntecb, yTO Bbl BblpaJIIN npaBnIbHbI pexm Bluetooth (npneMHNK / npepaTnuK).

BTR 4.2 coeHHeC yCTpOcTBOM, HO My3bIka He npOnrpbIbAeTcR

a) Пюверы, сешины Ли оба усточьда ругс дуrom. PaCSTOrHne MeKdY HmN He DoJXHo PpeBbIaTb 20 M. EcIn MexKdY yCtpoiCTBaMn ImeIoTcA CTeHbI NJIpa3JIuHbIe PpeDMeTbI, 3TO paCSTOrHne yMeHbIaETcra.
