USER MANUAL WKS 9115 BTI

Original Instructions

Ppawoturo oyniyxphn

Istruzioni original

Notice originale

ppa. Stephan Uder Head of Procurement Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - 1

BTI WKS 9115 - 2

ppa. Stephan Uder Head of Procurement Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - 3

P P = A

ppa. Stephan Uder Head of Procurement Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - 4

BTI WKS 9115 - 5

General Power Tool SafetyWarnings

BTI WKS 9115 - General Power Tool SafetyWarnings - 1

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

  • Keep work area clean and well lit. Cluttered or dark areas invite accidents.
    Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  • Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

  • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
    Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
    Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
  • Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
    Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
    Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
    If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

  • Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
  • Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  • Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  • Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SafetyWarnings for AngleGrinder

SafetyWarnings common for Grinding, Sanding,Wire Brushing or Abrasive Cutting Off Operations

This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Operations such as polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
- Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
- Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment.

Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

  • Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
    Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning wheel.
  • Never lay the power tool down until the accessory has come to a complete stop. The spinning wheel may grab the surface and pull the power tool out of your control.
    Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
    Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
    Do not operate the power tool near flammable materials. Sparks could ignite these materials.
    Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.
  • Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.
    For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.
    Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
  • Maintain a firm grip on the power tool and position your body and arm to allow you to resist

kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.

  • Never place your hand near the rotating accessory. Accessory may kickback over your hand.
    Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
  • Use special care when working corners, sharp edges, etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
    Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety warnings specific for Grinding and Abrasive Cutting-Off operations

  • Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
    The grinding surface of the centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
    The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
  • Wheels must be used only for recommended applications. For example: do not grind with the side of the cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding; side forces applied to these wheels may cause them to shatter.
    Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.

Do not use worn down reinforced wheels from larger power tools. Wheels intended for larger power tools are not suitable for the higher speed of a smaller tool and may burst.

Additional safety warnings specific for abrasive cutting off operations

  • Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
    Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
  • When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
  • Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
    Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
  • Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Safety warnings specific for sanding operations

Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc, or kickback.

Safety warnings specific for wire brushing operations

  • Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
    If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional Safety and Working Instructions

Observe the mains voltage! The voltage of the power source must correspond with the data on the type plate of the machine.
- Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
- Release the On/Off switch and set it to the off position when the power supply is interrupted, e. g., in case of a power failure or when the mains plug is pulled. This prevents uncontrolled restarting.
Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health and cause allergic reactions, lead to respiratory infections and/or cancer. Materials containing asbestos may only be worked by specialists.

  • As far as possible, use a dust extraction system suitable for the material.
  • Provide for good ventilation of the working place.
  • It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the materials to be worked.

Prevent dust accumulation at the workplace. Dusts can easily ignite.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.

After breakage of the grinding disc during operation or damage to the holding fixtures on the protection guard/power tool, the machine must promptly be sent to an after-sales service agent for maintenance.
Adjust protection guard in such a manner that sparking toward the operator is prevented.
The protection guard may only be turned while actuating the release lever on the gear head. Otherwise, the machine may not continue to be used anymore and must be sent to an after-sales service agent.
Do not touch grinding and cutting discs before they have cooled down. The discs can become very hot while working.
- Actuate the spindle lock button only when the grinder spindle is at a standstill. Otherwise, the machine may become damaged.
After mounting the grinding tool and before switching on, check that the grinding tool is correctly mounted and that it can turn freely. Make sure that the grinding tool does not graze against the protection guard or other parts.
- When operating the machine with power from mobile generators, loss of performance or untypical behavior can occur upon switching on.
By applying too high application force, the machine can be subject to overload. Overload can lead to overheating and damage of the power tool. After heavily straining the power tool, continue to run it at no-load for several minutes in order to cool it down.
Do not use the power tool with a cut-off stand.
Never use a cutting disc for roughing.
The quick-clamping nut may be used only for grinding or cutting discs. Use only a flawless, undamaged quick-clamping nut.
Do not pull out the gear head while turning it - see figure 12, page 167.
To save energy, only switch the power tool on when using it.
- Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30mA or less.

Symbols

The following symbols are important for reading and understanding the operating instructions.

Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

Symbol Meaning
BTI XXXX XXX
Article number
Read all safety warnings and all instructions
Before any work on the machine itself, pull the mains plug from the socket outlet
Wear protective gloves
Always wear ear protection.
Wear safety glasses/goggles
Movement direction
Apply strength for the workstep.
Low speed
High speed
ISwitching On
Switching Off
On/Off switch lock-on
GReleasing the lock-on function of the On/Off switch
XProhibited action
Permitted action
Next step of action
P1Rated power input
P2Output power
n Rated speed
nVSpeed control adjustment
d1I = Grinding spindle length d1 = Grinding spindle diameter
d2D = Max. grinding disc diameter d2 = Inner disc diameter
ELECTRONICSpeed preselection
CONSTANT ELECTRONICConstant Electronic Control
KICK BACK STOPKickback stop
Restarting Protection The restarting protection feature prevents uncontrolled restarting of the machine after an interruption in the power supply. To restart the operation, switch the On/Off switch to the Off position and start the machine again.
Reduced starting current
Symbol Meaning
I+Additional information
-Surface grinding
-Grinding/sanding with sanding sheet
1Weight according to EPTA-Procedure 01/2003 with vibration-damping auxiliary handle
2Weight according to EPTA-Procedure 01/2003 with standard-auxiliary handle
/IISymbol for protection class II (completely insulated)
LwASound power level
LpASound pressure level
KU n c
ahVibration total value

Delivery Scope

Angle grinder, protection guard, auxiliary handle. Special protection guards, application tools and other accessories shown or described are not part of the standard delivery scope.

A complete overview of accessories can be found in our accessories program.

Intended Use

The machine is intended for roughing metal, stone and ceramic materials and for drilling tiles.

For cutting with bonded abrasives, a special cutting guard (accessory) must be used.

When cutting in stone, provide for sufficient dust extraction.

Together with the hand guard (accessory), the machine can be used for brushing and grinding/sand-ing with elastic sanding plates.

The machine is suitable only for working without water.

Technical Data

The technical data of the machine are listed in the table on page 153.

The values given are valid for a nominal voltage [U] of 230V . For different voltages and models for specific countries, these values can vary.

Declaration of Conformity (C)

We declare under our sole responsibility that the product described under "Technical Data" is in conformity with all relevant provisions of the directives 2011/65/EU, until 19 April 2016: 2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-3.

Technical file (2006/42/EC) at: BTI Befestigungstechnik GmbH & Co. KG 74653 Ingelfingen, GERMANY

ppa. Stephan Uder Head of Procurement Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - Declaration of Conformity (C) - 1

ppa_1 C

The measured values of the machine are listed in the table on page 153.

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-3.

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Mounting and Operation

The following table indicates the action objectives for mounting and operation of the power tool. The instructions for each action objective are shown aside. Depending on the type of application, various instruction combinations are required. Observe the safety instructions.

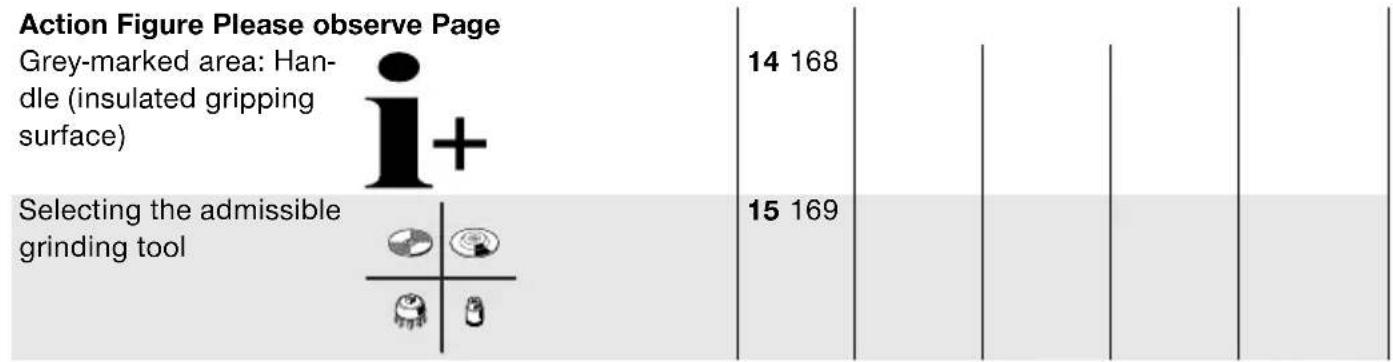

Action Figure Please observe Page

Grinding, preparation 1 154 - 155

BTI WKS 9115 - Action Figure Please observe Page - 1

Cutting, preparation 2 156

BTI WKS 9115 - Action Figure Please observe Page - 2

BTI WKS 9115 - Action Figure Please observe Page - 3

BTI WKS 9115 - Action Figure Please observe Page - 4

BTI WKS 9115 - Action Figure Please observe Page - 5

BTI WKS 9115 - Action Figure Please observe Page - 6

Action Figure Please observe Page
Cutting stone, brick and tiles, preparation (recommendation)3 158 -150
Sanding with extraction hood, preparation4 160 -160
Removing paint, preparation5 162
Removing rust, preparation6 163
Drilling tiles, preparation 7 164
Mounting the quick-clamping nut8 164 -164
Dismounting the quick-clamping nut9 165
Switching On and Off 10 165
Adjusting the speed preselection11 166
Rotating the Machine Head12 167
Working effectively with the angle grinder13 168

BTI WKS 9115 - Action Figure Please observe Page - 7

Maintenance and Cleaning

For safe and proper working, always keep the machine and ventilation slots clean.

In extreme conditions, always use dust extraction as far as possible. Blow out ventilation slots frequently and install a portable residual current device (PRCD). When working metals, conductive dust can settle in the interior of the power tool. The total insulation of the power tool can be impaired. Please store and handle the accessory(-ies) carefully.

If the replacement of the supply cord is necessary, this has to be done by BTI or an authorized BTI service agent in order to avoid a safety hazard.

In all correspondence and spare parts orders, please always include the 7-digit order number given on the nameplate of the machine.

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

BTI WKS 9115 - Only for EC countries: - 1

According to the European Directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must

be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

Evikc unoobxiic aopaaia c yia nEKTpiKa epyaaleia

IPOEIOHOH Aiaaote oAeTc Tc unOeI Eic aopaaiaac KAI TIC

Omyiec. Aeia cKa tAn TnV npon Twv unoEiEew V aopaleic kai twv oyniw mOpei va npokaleouv nekponlxi, npkayia n/Kai oobapouc TpauaTioouc.

0 0 10061Kai oyniec yia kaoe eAovtikn xpno.

O opiooc «Hektpiko epyaaleio » nou xpnoiopoioiEi-Tai OTIC TPOeIOIOTIKEc UTOBcEic avapepetai Oe nKTPiKa epyaaleia nou TpofoTouVTaT aT0 To nKTPiKO bIKTuO (eNkTPko Kaawdo) KAtC KAI oNektpiko epyaaleia nou TpofoTouVTaT aT0 MATApia (xwipnKektpiko Kaawdo).

ppa. Stephan Uder
Head of Procureme
Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - Evikc unoobxiic aopaaia c yia nEKTpiKa epyaaleia - 1

BTI WKS 9115 - Evikc unoobxiic aopaaia c yia nEKTpiKa epyaaleia - 2

Tnpoue to 6ikaiomega aaayawv.

ppa. Stephan Uder ppa. Christian Hasenest Head of Procurement Head of Business Unit Department Construction

BTI WKS 9115 - Evikc unoobxiic aopaaia c yia nEKTpiKa epyaaleia - 3

ppa. Stephan Uder
Head of Procurement
Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - Evikc unoobxiic aopaaia c yia nEKTpiKa epyaaleia - 4

BTI WKS 9115 - Evikc unoobxiic aopaaia c yia nEKTpiKa epyaaleia - 5

ppa. Stephan Uder Head of Procurement Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - Evikc unoobxiic aopaaia c yia nEKTpiKa epyaaleia - 6

BTI WKS 9115 - Evikc unoobxiic aopaaia c yia nEKTpiKa epyaaleia - 7

TNBOM Cnyuae Kpyr MOKET 3aeCTb, OH MOKET BblCKOuHTb N3 O6pa6aTBiBaEMo3aROTOBKn I npNBecTI K O6paTHOMy ydapy.

ΠιntbI Hn60nbWne 3arOTOBKn DoJnxHbI 6bITb HAdexKHO NoDnepTbI, YTO6bI CHN3NTb ONa-CHOCTb 6OpaTHoro ydapa np3aklnHHaHn OTpe3Horo Kpyra. BoNbWne 3arOTOBKn MOyT npOrn6aTbcr NOD CO6CTBeHHbIM BecOM. 3arOTOBKa DOnjKHa ONnpaTbcr C O6eHX CTOpOH, KaK B6n3n pa3pe3a, TaK n NO Kpaam.
Будte Oco6eHNO OCTopoXHbI npn BblnoJHnn pa3pe3OB B CTeHax Hn Dpynx MeCTax, KyJa HEnb3a4rJHyTb. NorpzykaUounca OTpe3HO Knpy MoKet npn nonaDaHn Ha ra3OpBOOd nn BOOnpOBOD, 3JIeKTPnueCKyU nPoBOkKy nn dpyrHe o6BeKTb I npNBecT K O6paTHomy ydpay.

CneuNbHbIe npedynpeKdaUoune yKa3aHnI dIaIINΦOBAHnHaXdau-Hon 6ymaroi

He npimehaTe wHOBaIbHyIO WkypKy pa3Mepom 6oJIbSe HxKHO, a pyKOBOCTByIeTcByKa3AHmN 3rOToBnTEJN OTHOCHTeJbHO pa3-MepOB WnHPOBaIbHO WkypKn. LHPOBaJIb-Ha WkypKa, BbICTyaIOUaJ 3a Kpa JnHPOBaJIbHO TaPeJIKN, MOKeT CtA b PnUHoi TpaBM N 3a-KINHBAHn, MoKeT NOpBaTbcN IN PnPBeCTN K o6paTHOMy ydApY.

Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn

YuHTbIbaIte, YTO npoBOJIOHbIe 5eTKn TepaHOT npoBOJOKn TaKKe H npu HopMaJIbHOJ pa6Ote. He neperpykaTe npoBOJOKn 4pe3MepHbIM yCNIHem npixKaTna. OTneTaIOUne KycKn npoBOJOKN MOyT JERKO npOHKNHyTb Chepe3 TOHKyIO ODeKy N/INN KOxKy.
EcnIpa6OtbpekOMeHyetycNcNoB30BaTb3aHTbIKoKyx,TO NCKHouaTe cOpnKocHOBeHne npOBOnOuHOJ ueTKC KOxYXOM.TapeNbTaBIE NuaSeUHbIe UeTKMOryT yBEnuHaBaTb CBOI dNaMeTp NOd JeInCTBnEM ycNlR npNkataN I ceHTpOpyraNbHbIX cnI.

IonHbI Haob npHaJnEeKHOCTe Bbl HaJeTe B Haaem accOpTImMeTe npHaJnEeKHOCTe.

TexHHuecka DOKymeHTaun (2006/42/EC):

Head of Business Unit

Department

Construction

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 1

PP1 · CQ1 · CQ_2

ppa. Stephan Uder
Head of Procurement
Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 2

ppa_1 Q( 2,1)

Head of Business Unit

Construction

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 3

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 4

Conform Directivei Europene

2012/19/UE privind masinile si aparatele electrice si electronice uzate si transpunerea acesteia in legislata nationa, sculele electrice scoase din

uztrebuie colectate separat si directionate catre o statie de revalorificare ecologica.

Subrezerva modificarilor.

ppa. Stephan Uder Head of Procurement Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 5

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 6

ppa. Stephan Uder
Head of Procurement
Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 7

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 8

ppa. Stephan Uder Head of Procurement Department

ppa. Christian Hasenest
Head of Business Unit
Construction

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 9

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 10

IoproToBka 3a wlnpoBaHe

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 11

PnIroTOBka 3a pR3aHe

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 12

1 154 -

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 13

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 14

2

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 15

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 16

156-157

Head of Business Unit

Construction

BTI WKS 9115 - Ocobie npedynpejkaIOuNe yka3aHnIpa6OT c npoBOJouHbIMN etsKamn - 17

PP1CD1 PP2CD2

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : BTI

Model : WKS 9115

Category : Grinder
