USER MANUAL PAS 3.6 B1 PARKSIDE

PDF online www.lidl-service.com PARKSIDE PAS 3.6 B1

AKKUSCHRAUBER PAS 3.6 B1

DE AT CH

AKKUSCHRAUBER

Operation and Safety Notes

Translation of original operation manual

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 29

PARKSIDE PAS 3.6 B1 1 2 3 4 5 6 7 8

A 8 7 1

B 9 D

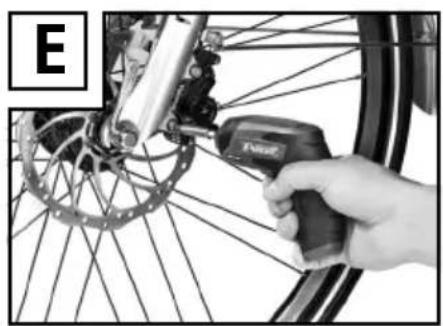

Two-panel image showing a bicycle gear assembly and a close-up of a bicycle wheel with a wrench tool (no text or symbols visible)

Close-up of a handheld device with a black cable inserted, no visible text or symbols

Close-up of a hand using a handheld tool to adjust bicycle wheel rim (no text or symbols visible)

Einleitung

Fourniture......Page 14

Directive Machines (2006/42/EC)

RoHS Directive (2011/65/EU)

Intended purpose....Page 30

Equipment Components......Page 30

Included items Page 30

Technical Data Page 30

General safety advice for electrical power tools

1. Workplace safety......Page 31

2. Electrical safety......Page 31

3. Personal safety......Page 31

4. Careful handling and use of electrical power tools Page 32

5. Use and handling of the cordless electrical power tool Page 32

6. Service Page 33

Safety advice relating to cordless drill drivers Page 33

Original ancillaries/accessories Page 33

Before first use

Charging the rechargeable battery on the device....Page 33

Changing the bits/screwdriver bit inserts......Page 34

Preparing the tool for use

Switching on/off the cordless screwdriver Page 34

Changing the direction of rotation......Page 34

Tips and Tricks....Page 34

Maintenance and cleaning......Page 34

Service Page 35

Warranty Page 35

Disposal Page 35

Conformity Declaration / Manufacturer......Page 36

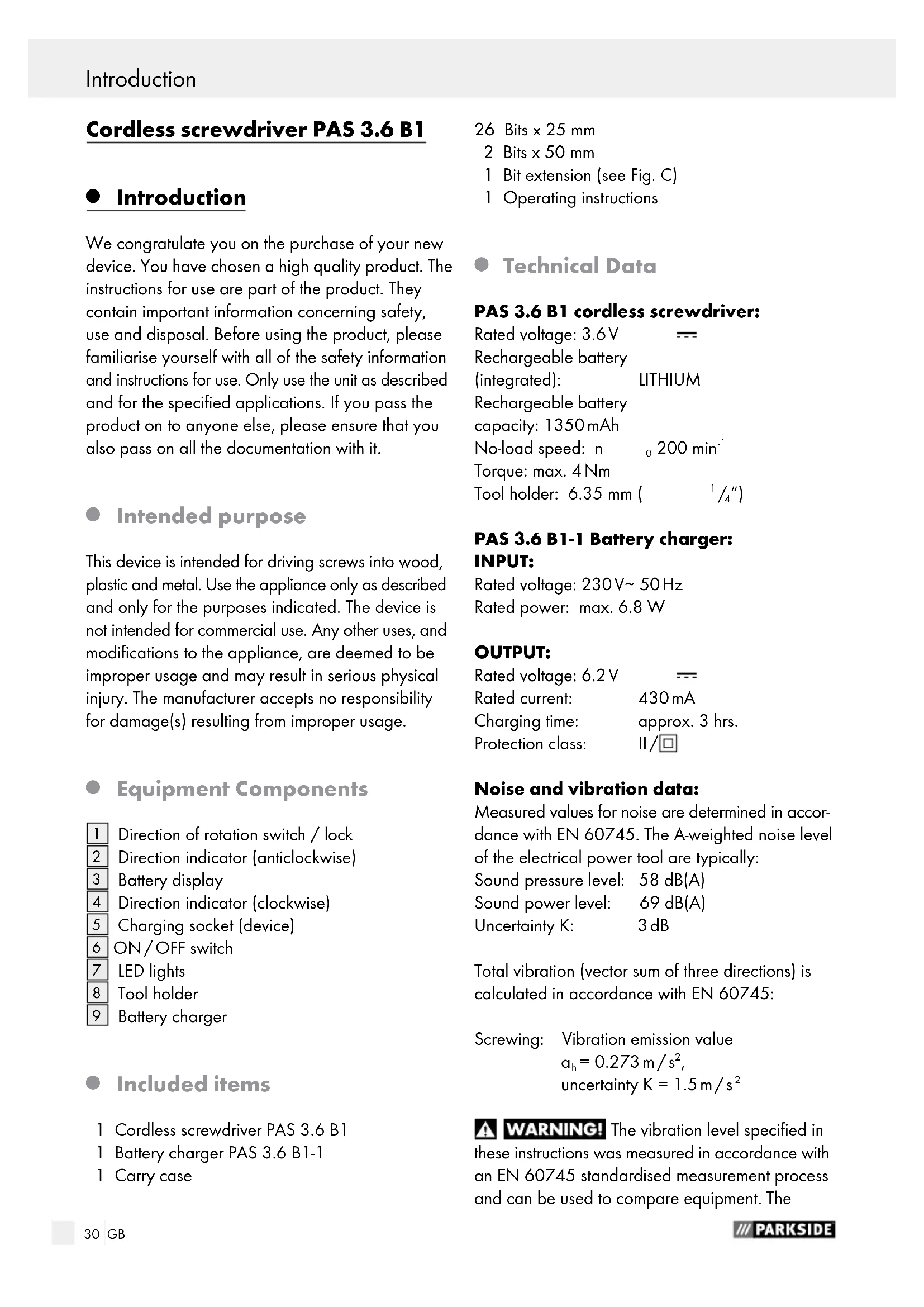

Cordless screwdriver PAS 3.6 B1

- Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended purpose

This device is intended for driving screws into wood, plastic and metal. Use the appliance only as described and only for the purposes indicated. The device is not intended for commercial use. Any other uses, and modifications to the appliance, are deemed to be improper usage and may result in serious physical injury. The manufacturer accepts no responsibility for damage(s) resulting from improper usage.

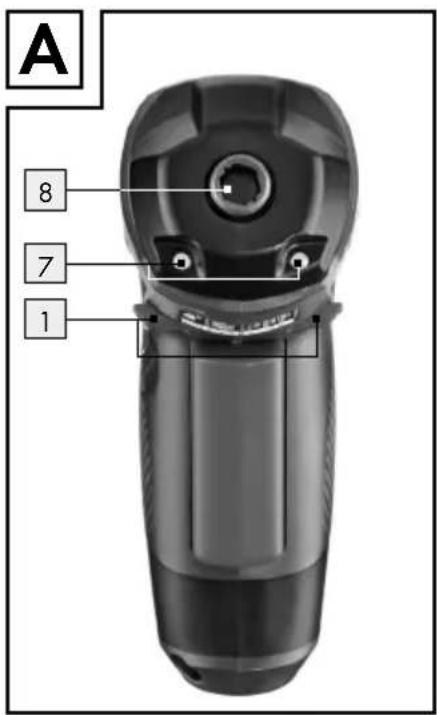

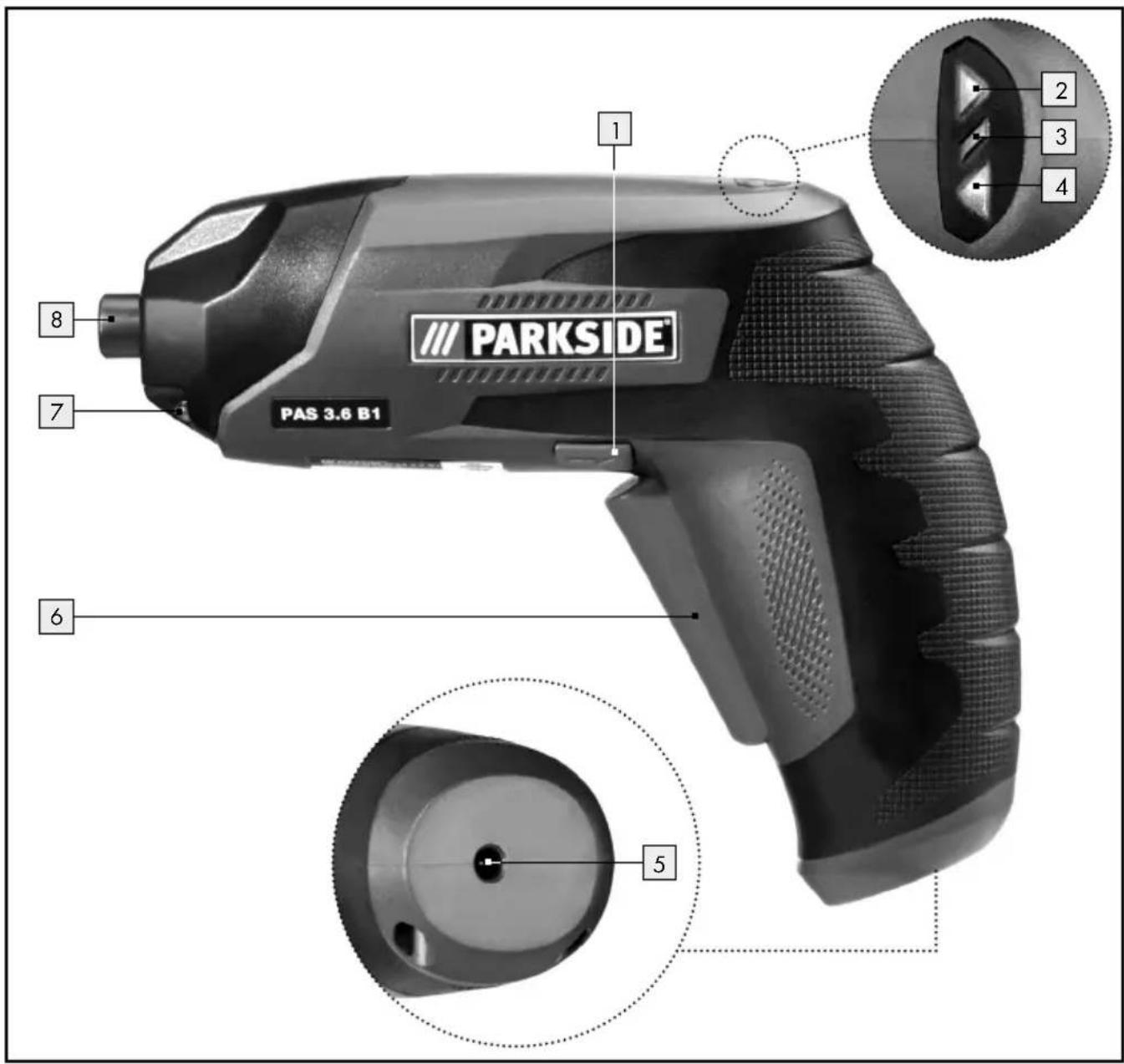

● Equipment Components

1 Direction of rotation switch / lock
2 Direction indicator (anticlockwise)
3 Battery display
4 Direction indicator (clockwise)
5 Charging socket (device)
6 ON/OFF switch
7 LED lights
8 Tool holder
9 Battery charger

Included items

1 Cordless screwdriver PAS 3.6 B1
1 Battery charger PAS 3.6 B1-1
1 Carry case

26 Bits x 25 mm
2 Bits x 50 mm

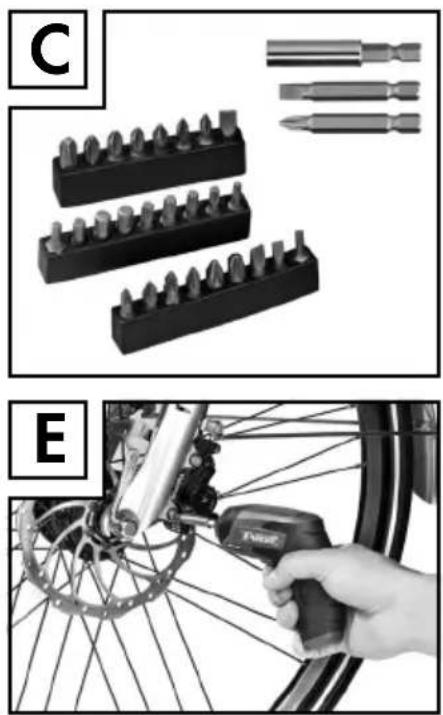

1 Bit extension (see Fig. C)
1 Operating instructions

- Technical Data

PAS 3.6 B1 cordless screwdriver:

Rated voltage: 3.6V

Rechargeable battery

(integrated): LITHIUM

Rechargeable battery

capacity: 1350 mAh

No-load speed: n _0 200 min ^-1

Torque: max. 4Nm

Tool holder: 6.35 mm ( ^1/_4 )

PAS 3.6 B1-1 Battery charger: INPUT:

Rated voltage: 230V\~50Hz

Rated power: max. 6.8 W

OUTPUT:

Rated voltage: 6.2V

Rated current: 430 mA

Charging time: approx. 3 hrs.

Protection class: II/☐

Noise and vibration data:

Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level of the electrical power tool are typically:

Sound pressure level: 58 dB(A)

Sound power level: 69 dB(A)

Uncertainty K: 3 dB

Total vibration (vector sum of three directions) is calculated in accordance with EN 60745:

Screwing: Vibration emission value

$$ \alpha_ {h} = 0. 2 7 3 \mathrm{m} / \mathrm{s} ^ {2}, $$

$$ \text { uncertainty } K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

WARNING! The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The

vibration emission value specified can also serve as a preliminary assessment of the exposure.

The vibration level will change according to the application of the electrical tool an in some cases may exceed the value specified in these instructions. Regularly using the electric tool in such a way may make it easy to underestimate the vibration.

Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.

● General safety advice for electrical power tools

WARNING! Read all the safety advice and instructions! Failure to observe the safety advice and instructions

may result in electric shock, fire and / or serious injury.

Keep all the safety advice and instructions in a safe place for future reference!

The term "electrical tool" used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).

1. Workplace safety

a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially explosive environments in which there are inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away while you are operating the electrical

tool. Distractions can cause you to lose control of the device.

2. Electrical safety

a) The mains plug on the power tool (or on the power supply) must fit the mains socket. Never modify the plug in any way. Never use adapter plugs with earthed power tools. Unmodified plugs and the correct sockets reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.
d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if

you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.

b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.

c) Avoid accidental starting. Verify the power tool is switched off before connecting it to the mains and / or connecting the battery, picking it up, or carrying it. Accidents can happen if you carry the device with your finger on the ON / OFF switch or with the device switched on.

d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.

e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.

f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.

g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust.

4. Careful handling and use of electrical power tools

a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.

b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug out of the socket and / or remove the rechargeable battery before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent the device from unintentionally starting.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp.

Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended

by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.

b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.

c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

■ CAUTION! DANGER OF EXPLOSION!

The batteries must never be recharged!

6. Service

a) Have your device repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
● Safety advice relating to cordless drill drivers
- Securely support the workpiece. A workpiece held in a clamp or vice is kept more securely in place than one held by your hand.
- Hold the electrical power tool firmly. High reaction torques may occur momentarily during tightening or loosening of screws.
If the inserted tool jams, switch off the electrical power tool immediately.

Be prepared for high reaction torques as they may cause kickback.

WARNING! The inserted tool may strike concealed electricity cables, therefore when working you must hold the electrical power tool by the insulated handle areas only. Contact with a live wire means that the metal parts of the electrical power tools may become live and this can result in an electric shock.

Before you carry out any tasks on the device, transport or store it, make sure that the direction of rotation switch is in the middle position (lock). To prevent the device from starting up unintentionally.
Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or instruction by a person responsible for their safety. Children must never be allowed to play with the device.

• Original ancillaries/accessories
  Use only the ancillaries and accessories that are detailed in the operating instructions. The use of ancillaries and accessories other than those recommended in the operating instructions could lead to an increased risk of personal injury for you.

● Before first use

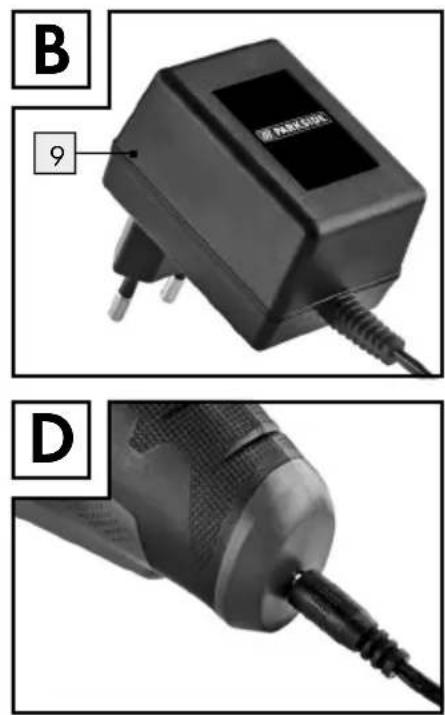

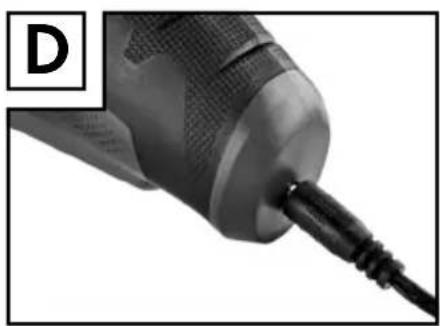

● Charging the rechargeable battery on the device (see Fig. D)
For indoor use only!

Note: The battery is supplied partially charged. Charge the battery for at least three hours before first use. You can charge the Li-Ion battery at any

Before first use/Preparing the tool for use/Maintenance and cleaning

time without risk of shortening battery life. Interrupting the charging process does not damage the battery.

Starting the charging process:

☐ Connect the Battery charger 9 to a 230 V\~50 Hz mains socket.
☐ Connect the Battery charger 9 to the charging socket on the device 5.
The rechargeable battery is charged when the battery indicator 3 changes from red to green.

Ending the charging process:

☐ Disconnect the Battery charger 9 from the mains socket.
☐ Disconnect the Battery charger 9 from the charging socket on the device 5.

- Changing the bits / screwdriver bit inserts

Insertion:

☐ Insert the bit directly into the tool holder 8.

Removal:

☐ Pull out the bit out of the tool holder 8.

● Preparing the tool for use

- Switching on/off the cordless screwdriver

Switching on:

☐ To start the appliance squeeze on the ON / OFF switch 6 and then keep it pressed down.

Switching off:

☐ To stop the appliance, release the ON / OFF switch 6.

- Changing the direction of rotation

Clockwise:

☐ Slide the direction of rotation switch 1 to the left.

☐ Press the ON / OFF switch 6. The direction indicator (clockwise) 4 illuminates. You can now screw in the screws.

Anticlockwise:

☐ Slide the direction of rotation switch 1 to the right.
☐ Press the ON / OFF switch 6. The direction indicator (anticlockwise) 2 illuminates. You can now screw out the screws.

Lock:

☐ Slide the direction of rotation switch 1 into the middle position. The ON / OFF switch 6 is now locked.

Note: The LED lights 7 can still be activated with the ON/OFF switch 6 locked. Simply press the ON/OFF switch 6.

- Tips and Tricks

☐ Screw bits are designated with their dimensions and their shape. If you are unsure, always try the particular screw bit out to see whether it sits in the screw head without any free play.

● Maintenance and cleaning

DANGERNOF ELECTRIC

SHOCK! Pull the Battery charger 9 out of the mains socket before carrying out any cleaning of the device.

The cordless screwdriver is maintenance-free.

□ Always keep the device clean, dry and free of oil or grease.
☐ Do not allow any liquids to enter the device.
☐ Use a cloth to clean the housing. Never use petrol, solvents or cleaning agents that might attack plastic.

- Service

At the your device repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.

A WORLICK ad needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

- Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB Service Great Britain Tel.: [phone] (0,10 GBP/Min.) e-mail: [e-mail]

IAN 89962

- Disposal

The packaging comprises exclusively environmentally-friendly material. Dispose of it in your local recycling containers.

Do not dispose of electrical appliances with your domestic waste!

In accordance with European Directive 2002 / 96 / EC worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.

Do not dispose of rechargeable batteries with your household refuse!

Defective or worn out rechargeable batteries must be recycled according to Directive 2006 / 66 / EC. Dispose of batteries and appliances over the existing collection facilities.

Please contact your local council office to find out about disposal facilities for your worn-out electrical tools or discarded battery packs.

● Conformity Declaration / Manufacturer CE

We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURG-STRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive (2006/42/EC)

EC Low Voltage Directive (2006/95/EC)

Electromagnetic compatibility (2004/108/EC)

RoHS Directive (2011/65/EU)

Applicable harmonized standards

EN 60745-1/A11:2010, EN 60745-2-2:2010
EN 62233:2008
EN 55014-1/A2:2011, EN 55014-2/A2:2008
EN 60335-1:2012, EN 60335-2-29:2004+A2:2010
EN 55014-1:2006/A1:2009/A2:2011
EN 55014-2:1997/A1:2001/A2:2008
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008

Type / Appliance Designation:

Cordless screwdriver PAS 3.6 B1

Date of manufacture (DOM): 06-2013 Serial number: IAN 89962

Bochum, 30.06.2013

Joddyush

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical modifications in the course of further development.

KOMPERNASS HANDELS GMBH

BURGSTRASSE21

44867BOCHUM

DEUTSCHLAND
