USER MANUAL PAS 4 D7 PARKSIDE

User manual Translation of the original instructions

FR BE

4 V TOURNEVIS ÉLECTRIQUE SANS FIL

GB/IE User manual Page 41

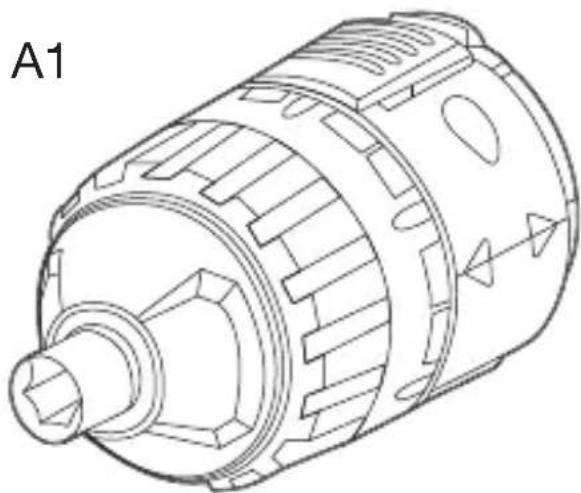

Technical line drawing of a mechanical component with no visible text or symbols

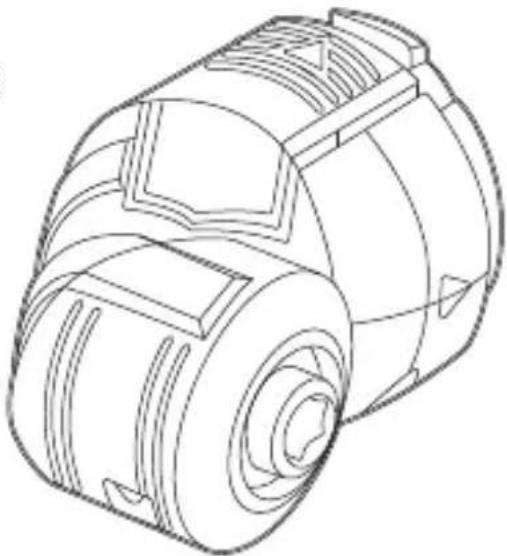

Technical line drawing of a mechanical component with gear-like structure and mounting holes (no text or symbols)

A3

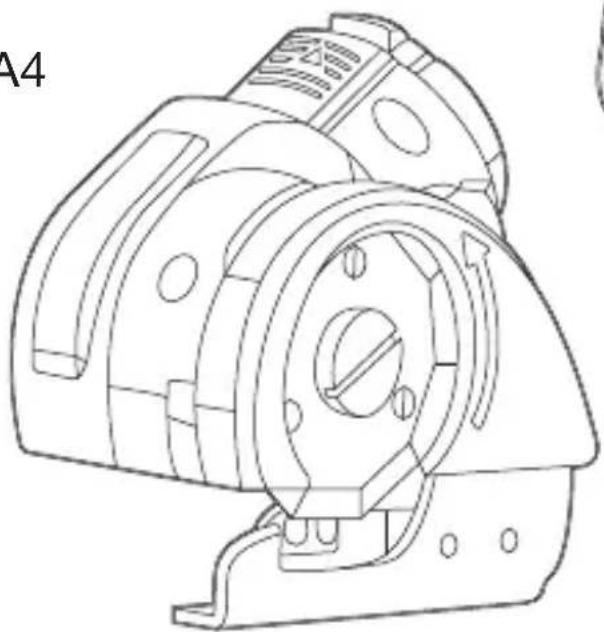

A4

Technical line drawing of a mechanical component with mounting flanges and internal features (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Warnings and symbols used.... Page 43

Introduction Page 45

Intended use.... Page 45

Scope of delivery Page 46

Description of parts ...... Page 46

Technical data.... Page 47

Safety instructions ...... Page 50

General power tool safety warnings ..... Page 50

Safety guidelines for screwdrivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Vibration and noise reduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Behaviour in emergency situations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Battery charger safety warnings.... Page 57

Residual risks Page 58

Use Page 59

Battery information.... Page 59

Changing rotary direction ...... Page 61

LED work light ...... Page 61

Changing bits Page 62

Changing attachments ...... Page 62

Switching on/off Page 62

Troubleshooting Page 63

Cleaning and maintenance ...... Page 64

Maintenance Page 65

Storage Page 65

Transportation. Page 65

Disposal Page 66

Warranty Page 68

Warranty claim procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 68

Service Page 70

EU declaration of conformity .... Page 71

Warnings and symbols usedThe following warnings are used in the user manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.
	ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.
	NOTE: This symbol in combination with “Note” provides additional useful information.
	Danger – risk of electric shock!
	Alternating current/voltage
	Direct current/voltage
	Symbol for a Protection Class II product
	Use the product in dry indoor spaces only.
	This symbol means that the operating instructions must be observed when using the product.
Li-IonLithium-Ion battery
n_0	No-load speed
	Protect the rechargeable battery from heat and continuous intense sunlight.
	Protect the rechargeable battery from fire.
	Protect the rechargeable battery from water and moisture.
min^-1	Revolutions per minute
CE	CE mark indicates conformity with relevant EU directives applicable for this product.
	Safety informationInstructions for use

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed for screwing in and out screws.
Always use the correct accessory tools (attachments and bits) according to the intended use! Observe the technical requirements of this product (see “Technical data”) when purchasing and using accessory tools!
The LED work liq10 on this product is intended to illuminate the immediate work area.

■ Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is not intended for commercial or similar uses.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 4V Cordless screwdriver
1 USB cable
1 User manual

• Description of parts

Before reading, unfold the pages containing the illustrations and familiarise yourself with all the functions of the product.

(Fig. A)

1 Direction indicator ▲(tighten screws)/battery status LED (green colour)
2 Battery status LED (yellow colour)
3 Direction indicator ▼ (loosen screws)/battery status LED (red colour)
4 Rotation direction switch
5 USB Type C socket

6 Charger *
7 USB port (Type A)
8 USB cable
9 Switch trigger
10 LED work light
11 Front cover
12 Bit holder

- Technical data

4V Cordless screwdriver

Model: HG10759
Rated voltage: 4 V	=== (direct current)
Rechargeable battery(built-in): Lithium-Ion
Number of cells: 1
Capacity: 1.5 Ah
No-load speed: n	_0 = 200 min^-1
Torque (hard/soft screwingper ISO 5393): Max.10 Nm
Bit holder: 6.35 mm (1/4")
Dimensions: 138 mm × 42 mm	× 114 mm

Use only the following charger to charge the cordless tool \* :

Information Value
Manufacturer's name or trade mark, commercial registration number and address:	OWIM GmbH & Co. KGHRA 721742Stiftsbergstraße 1,74167 Neckarsulm,GERMANY
Model identifier: HG06825 (VDE plug)HG06825-BS (BS plug)

Information Value Unit
Input voltage: 100–240 V~
Input AC frequency: 50/60 Hz
Output voltage: 5.0 V		---
Output current: 1.7 A
Output power: 8.5 W
Average active efficiency: 78.2 %
No-load power consumption:	< 0.1	W
Input current:	0.3 A
Protection class:	II/☐ (double insulation)
Connection type:	USB (Type A)
Charging time:	approx. 60	min

Recommended ambient temperature

While charging:	+4 °C to +40 °C
During operation:	0 °C to +40 °C
During storage:	0 °C to +50 °C

Noise emission value

The measured values have been determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Sound pressure level: L pA	= 60.37 dB
Sound power level: L wA	= 71.37 dB
Uncertainty K: K pA/WA	= 3 dB

Vibration emission value

Vibration total values (triaxial vector sum) determined according to EN 62841:

Screw driving

Vibration emission value a_h :	= < ^2 2(5.2m/s m/s^2)
Uncertainty K: = 1 .5 m/s	^2

WARNING!

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed.

Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the power tool is switched off and when it is running idle in addition to the trigger time).

NOTE

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs,

alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack for tool that is damaged or modified. Damaged or modified batteries exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

g) Follow all charging instruction and do not charge the battery pack or tool outside the temperature range specified in the instruction. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of the fire.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries!

Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture.

There is a risk of explosion.

Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should be only be performed by the manufactured or authorized service providers.

● Safety guidelines for screwdrivers

a) Hold the power tool by the insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

b) Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand.
c) Hold the power tool firmly. High reaction moments can occur for brief periods while lightening and loosening screws.
d) Switch the power off immediately if the tool blocks while in use. Be prepared for high reaction moments as these can cause kickback.
e) While working on the appliance, transporting it or storing it, always set the rotation direction switch to the central position (lock position). This prevents the power tool from starting up unintentionally.

● Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
■ Ensure that the product is in good condition and well maintained.
■ Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
- Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions.

Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

● Battery charger safety warnings

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

- Do not charge non-rechargeable batterie Disregarding this instruction is hazardous.

■ Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock.

Never hold the appliance under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.

The appliance is suitable for indoor use only.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
■ Danger of injury and property damage caused by flying objects.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

Use

Battery information

The built-in battery is supplied partially charged. Li-Ion batteries can be charged at any time without adversely affecting their service life. Interruption of the charging process will not damage the battery.

This product has a built-in rechargeable battery which cannot be replaced by the user. The removal or replacement of the rechargeable battery may only be carried out by the manufacturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery.

If the red battery status L3 flashes during use, the battery level is less than 10% of its capacity. The battery needs to be charged.

☐ Never charge the product when the ambient temperature is below +4 °C or above +40 °C. The storage climate should be cool and dry and the ambient temperature should be between 0 °C and +50 °C.

Start charging

(Fig. B)

NOTE

The battery status LED lights up for approx. 10 seconds after releasing the switch trigger 9.
These are approximate values for charge level and battery level.

1. Connect the USB cable 8 to the USB port (Type A) 7 of the charger 6.
2. Connect the other end of the USB cable 8 to the USB Type C socket 5.
3. Connect the charger 6 to a socket-outlet.

■ The battery status L1, 2 and 3 show the charging status:

Battery status LED when charging			Charge level
Red 3	Yellow 2	Green 1
Flashing Off	Off <30 %
Light up Flashing Off 30–60 %
Light up Light up Flashing 60–90 %
Light up Light up Light up >90 %

NOTE

The LED work liq10 can be used whilst charging. It is normal for the handle to warm up slightly whilst charging.

Battery status LED when in use			Battery level
Red 3	Yellow 2	Green 1
Flashing Off	Off <10 %
Light up Off	Off 10–30 %
Light up Light	up Off 30–70 %
Light up Light	up Light up >70 %

Stop charging

1. Disconnect the USB cable 8 from the product.
2. Disconnect the charger 6 from the socket-outlet.

● Changing rotary direction

☐ Push through the rotation direction switch 4 to set the rotary direction (Fig. C):

Switch pushed from		Direction	Direction indicator
Right	(b)	Tighten screws	1
Left	(a)	Loosen screws	3

LED work light

The LED work light 10 goes out approx. 10 seconds after the switch trigger 9 is released.
- The LED work light 10 can be switched on separately to illuminate the immediate work area.

1. Set the rotation direction switch 4 to the middle position so that it protrudes equally on both sides.

2. Press down the switch trigger 9.

- Changing bits

NOTE

Screw bits are labelled according to their dimensions and their shape. If you are unsure, always try the particular screw bit out to see whether it sits in the screw head without any free play.

☐ Pull out the screw bit. Insert another type of bit into the bit holder 12 (Fig. D).

● Changing attachments

The front cover 11 can be removed to attach other attachments (not included) (Fig. E, F):

A1 Torque attachment

A2 Eccentric attachment

A3 Angle attachment

A4 Cutting attachment

The attachments are available at www.optimex-shop.com under "PAS4D7".

1. Grip one of the two recesses on the cap to remove the front cover 11.

2. Check the user manual supplied with the interchangeable attachments for assembly and disassembly.

- Switching on/off

Switching on/off Action
On	Press the switch trigger 9 and hold it in place.The LED work light 10 lights up.
Off	Release the switch trigger 9.The LED work light 10 lights up for approx. 10 seconds and then goes off.

● Troubleshooting

WARNING!

If the product dropped into water or was exposed to rain by accident, the product cannot be used any more. Put the product in a sealed plastic bag and send it to the service center for repairing or disposal.

Problem Possible cause Solution
Product is not charging.	The socket-outlet has no power.	Connect the charger 6 to a socket-outlet with normal power supply.
	Charger 6 is broken or damaged.	Change the charger 6.
	USBcable 8 is broken or damaged.	Change the USB cable 8.
	Product or built-in battery is damaged.	Return the product to the service center for repairing.
Problem Possible cause Solution
Product does not work.	The product is overheated.	Allow the product to cool down for approx. 10 minutes.
	The battery is discharged.	Charge the battery.
	The product is damaged.	Return the product to the service center for repairing.
Liquid leaks from the product.	The built-in battery is damaged.	Return the product to the service center for repairing.

● Cleaning and maintenance

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

■ The vents must always be clear.
■ Never allow fluids to get into the product.
■ Regular and proper cleaning will help ensure safe use and prolong the life of the product.

☐ The product must always be kept clean, dry and free from oil or grease.

Remove debris from it after each use and before storage.

☐ Before cleaning or carrying out any maintenance:

- Set the rotation direction switch 4 to the middle position.

This prevents unintentional switching on.

- Remove the USB cable 8.

• Remove the screw bit.
• Disconnect the charge 6 from the socket-outlet.

□ Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.
☐ In particular clean the air vents after every use with a cloth and soft brush.

Maintenance

Before and after each use: Check the product and the screw bits for wear and damage.

If required, exchange the accessories for new ones (see “Changing bits”).

Observe the technical requirements of the accessories (see "Technical data").

Storage

☐ Set the rotation direction switch 4 to the middle position. This prevents unintentional switching on.
□ Store the product in a dry indoor location protected from direct sunlight.

- Transportation

NOTE

The integrated Lithium-Ion battery may only be removed by trained or qualified personnel.

To remove the battery from the housing, the battery must be empty and the screws unscrewed from the housing. The connections on the battery must be individually disconnected and isolated.

NOTE

This product contains a Li-Ion rechargeable battery and is therefore subject to hazardous materials regulation. Users may transport the product with built-in rechargeable battery on roads or by sea without special requirements.
The packaging and marking is subject to special requirements when it is transported by third parties (e.g. airline, courier, carrier). A hazardous materials expert must be consulted when transported by third parties.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for

waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7:

plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries/rechargeable batteries must be recycled. Return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice– free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 480074_2410) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

PDF ONLINE parkside-diy.com

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 480074_2410 takes you to the operating instructions for your item.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

● EU declaration of conformity

EU DECLARATION OF CONFORMITY (No 480074_2410)
IAN:	480074_2410
Product identification:	"PARKSIDE" Cordless Screwdriver
Model Number:	HG10759

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015

EN 62841-2-2:2014

EN ISO 12100:2010

Directive 2014/30/EU

EN 55014-1:2017/A11:2020

EN 55014-2:1997/A2:2008

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN 61000-3-2:2014

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translation of the original declaration of conformity

Neckarsulm

Place

12.11.2024

Date

ppa. Gausel ppa. Stalen Hanagel

ppa. Stehen Haensel

Authorised Signatory

ppa. Budheim ppa. Jens Buchheim

Authorised Signatory

EN

CE

A1 Accessoire couple

A2 Accessoire excentrique
