USER MANUAL PBSA 12 B1 PARKSIDE

AKKU-BOHRSCHRAUBER/ CORDLESS DRILL / PERCEUSE-VISSEUSE SANS FIL PBSA 12 B1

DE AT CH

AKKU-BOHRSCHRAUBER

Translation of the original instructions

NL BE

ACCU-SCHROEFBOORMACHINE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

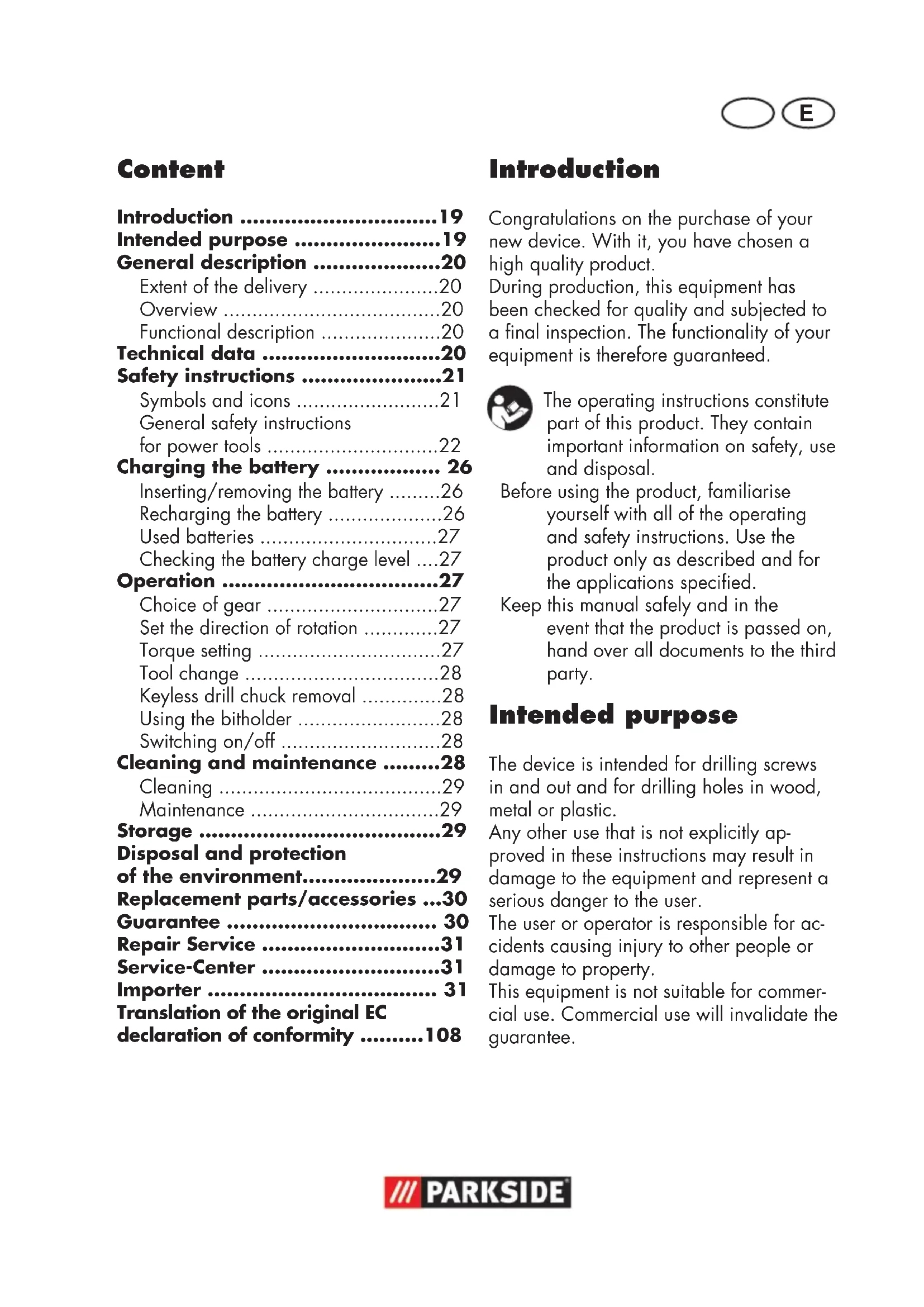

Extent of the delivery 20

Overview 20

Functional description 20

Technical data 20

Safety instructions 21

Symbols and icons 21

General safety instructions

for power tools 22

Charging the battery 26

Inserting/removing the battery 26

Recharging the battery 26

Used batteries 27

Checking the battery charge level ....27

Operation 27

Choice of gear 27

Set the direction of rotation 27

Torque setting 27

Tool change 28

Keyless drill chuck removal 28

Using the bitholder 28

Switching on/off 28

Cleaning and maintenance ....28

Cleaning 29

Maintenance 29

Storage 29

Disposal and protection of the environment. 29

Replacement parts/accessories ...30

Guarantee 30

Repair Service 31

Service-Center 31

Importer 31

Translation of the original EC declaration of conformity 108

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The device is intended for drilling screws in and out and for drilling holes in wood, metal or plastic.

Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.

The user or operator is responsible for accidents causing injury to other people or damage to property.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

General description

The illustrations are on the front and back fold-out page.

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Cordless Drill
• Battery-charger
• Battery
• Storage case
• Instruction Manual

Pictured bit and drill not included.

Overview

1 Keyless drill chuck
2 Chuck ring
3 Torque adjustment ring
4 Battery Indicator
5 Speed selector
6 Direction of rotation switch
7 Battery
8 Battery release button
9 On/off switch
10 LED working light
11 Drill chuck aperture
12 Storage case
13Charger
14 Charger power supply cord
15 Green LED
16 Red LED
H 17 Bitholder

Functional description

The cordless drill with two-speed gearing has a 19 + 1 level torque adjustment, left/right running, a removable keyless chuck, a 6-point bitholder and an LED working light.

Technical data

Cordless Drill .PBSA 12 B1

Motor voltage 12 V= Idling speed

1st gear .0-350 min
2nd gear .0-1200 min

Maximum torque 25 Nm

Span-chuck 0.8-10 mm

Weight (without battery charger) ....1.1 kg

Drilling capacity

for wood max. 25 mm
for steel max. 8 mm

Sound power level

(L_pA) 66.5 dB(A), K_pA = 3 dB

Sound power level

(L_WA) 77.5 dB(A); K_WA = 3 dB

Vibration (a_h)

Drilling in metal. < 2.5m / s^2

Screwdriving without impact. < 2.5 m / s

K = 1.5 ~m / s^2

Battery (Li-Ion) . DCBK-70-12

Battery cells 3

Nominal voltage 12 V=

Capacity 1.5 Ah

Charging time approx. 1 h

Recharger...... JLH231261600G

Nominal consumption 30 W

Uptake voltage/Input 220-240 V\~,50-60 Hz

Voltage output/Output 12.6 V=1600 mA

Protection class

Protection category IPX0

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Safety instructions

Ensure that the safety instructions are observed when operating the appliance.

Symbols and icons

Symbols on the appliance:

Carefully read these operating instructions.

Electrical appliances must not be disposed of with the domestic waste.

Symbols on the battery:

Carefully read these operating instructions.

Do not dispose of batteries in household waste, fire or water.

Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max. 45^ ).

Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner.

Store the battery in charged condition

The battery requires an ambient temperature of +10^ to +40^ .

The battery should never come into contact with water.

Symbols on the recharger:

Warning!

Before using for the first time, carefully read through the user manual.

The recharger is for indoor use only.

Miniature fuse

Protection class II

E

Electrical appliances must not be disposed of with the domestic waste.

LED display while charging.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

General safety instructions for power tools

WARNING! Read all safety directions and instructions.

Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord

suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust-ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may af

fect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Hold the device by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring or its own cord. Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts.

A short circuit between the battery contacts may cause burns or fire.

d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

6) SERVICE

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

7) SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS

a) Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

b) Recharge the batteries indoors only because the battery charger is designed for indoor use only.

c) To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

d) Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

e) Allow a hot battery to cool before charging.

f) Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the

respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.

g) Do not use non-rechargeable batteries!

8) CORRECT HANDLING OF THE BATTERY CHARGER

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• To charge the battery, use only the charger supplied. Risk of fire and explosion. This ensures that the safety of the device is maintained.

• Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.

• Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.

• Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.

• Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.

• Avoid mechanical damage to the charger. This can result in internal short circuits.

• Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.

• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

• The battery of the appliance is not fully charged at the time of delivery. It therefore needs to be fully recharged before you use it for the first time. Slot the battery into the base and plug the battery charger into a mains outlet.

• Do not use the charger to charge non-rechargeable batteries.

9) RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts

E

b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Charging the battery

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only.

Prior to attaching the charger, check that the battery's outer surface is clean and dry.

There is a risk of injury due to electric shock.

Only use the original charger from the package to charge the battery.

• Charge the battery before the first time of use. Do not briefly charge the battery several time in a row.
• Recharge the battery when you notice that the appliance is becoming slower.
• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM spare battery available from our Customer Service.
  Always take heed of the applicable safety instructions as well as the environmental protection regulations and information.
• The warranty excludes all defects caused by improper handling.

Inserting/removing the battery

1. To insert the battery (7), place it on the guide track and push it back into the appliance. It will audibly snap in.

2. To remove the battery (7) from the appliance, press the release buttons (8) on the battery and pull out the battery.

Recharging the battery

1. Remove the battery (7) from the appliance i necessary.
2. Insert the battery (7) in the charging compartment of the battery charger (13).
3. Plug the battery charger (13) into a mains outlet.
4. When the battery is fully recharged unplug the battery charger (13) from the mains.
5. Pull the battery (7)out of the battery charger (13).

Overview of the LED indicators on the charger (13):

Green LED (15) lights up without battery inserted: Charger ready.

Green LED (15) lights up: alleged charged.

Baniery such

Red LED (16) lights up:

Battery charging.

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see "Cleaning and Maintenance").

Checking the battery charge level

The battery's (7) charge level is indicated by the charge state indicator (A 4).

The LEDs indicate the battery's charge level, when the device is in operation.

red-yellow-green => Battery fully charged

red and yellow Battery half charged
red Battery needs to be charged

Operation

Choice of gear

Slide the gear selector (5) to 1 or 2, corresponding to a low or high torque selection.

A gear change may only be performed in standstill mode!

Set the direction of rotation

You can select the direction of rotation with the direction switch (clockwise and anticlockwise direction) and secure the device against accidental start up.

1. Wait for the device to shut-down
2. Clockwise direction: Press direction switch (6) to the right.

3. Anticlockwise direction: Press direction switch (6) to the left.

4. Switch lock: Bring direction switch to neutral position.

The direction changed may only be performed in standstill mode.

Torque setting

You can preset the maximum torque by rotating the torque adjustment ring (3). 19 + 1 torque levels are provided.

1. Turn the adjusting ring (3) to select the desired torque:

Step 1 -> lowest torque, Step -> highest torque.
Screws: Steps 1 - 19
Drilling: Step

E

1. Start with a lower torque step and increase according to requirement.
   Torque adjustment should only be performed in standstill mode.
   i Reaching the preset torque limit produces a noticeable rasping sound. This sound is caused by the slip clutch.

Tool change

1. Rotate the keyless chuck (1) counter-clockwise, until the drill chuck aperture (11) is large enough to accommodate the tool.
2. Push the tool as far as possible into the keyless chuck (1).
3. Rotate the chuck clockwise to clamp the tool firmly.
4. To remove the tool again, rotate the keyless chuck (1) and pull out the tool.

Keyless drill chuck removal

To use the bitholder (17), you must remove the keyless chuck (1).

1. Hold the keyless chuck (1) tightly from the front. Pull or push the drill chuck ring (2) in the direction of the keyless chuck (1).
2. This unlocks the keyless chuck (1) and it can be pulled off from the front.
3. In order to put the keyless chuck (1) back in position, pull the drill chuck ring (2) in the direction of the keyless chuck. Push the keyless chuck (1) on as far as it will go.

If the keyless chuck (1) does not engage automatically, turn the drill chuck ring (2).

Using the bitholder

After removing the keyless chuck (1) you can use the bitholder (17).

1. Insert a suitable 6-point bit in the bitholder (17). Because of the 6-point bit holder, it may be that you need to rotate the bit slightly.

2. Slide the bit right into the bitholder (17). The bit is held firmly by the duct and the magnetic bitholder.

3. To remove the bit, simply remove the bit from the bitholder (17).

Switching on/off

By using the on/off switch (9) you can progressively control the speed. The longer you push the on-off button, the higher the speed.

A 1. Press the on/off switch (9) to start the device. The LED work light (10) lights up during operation.
2. To turn it off, release the on/off switch (9). When you move the direction switch (6) to the middle position, the device is secured against being switched on.

Cleaning and maintenance

Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury!

Turn off the appliance and, before doing any servicing, remove the battery.

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

• Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush.

Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.

Maintenance

The appliance cleaner is maintenance free.

Storage

• Store the equipment in a dry place well out of reach of children.
• Store the equipment between 10^ C and 40^ C. During storage, avoid extreme cold or heat so the battery does not lose power.
• Remove the battery before storing the unit for longer periods of time.
  During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.

Disposal and protection of the environment

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.
• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.
• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
  Defective units returned to us will be disposed of for free.

Replacement parts/ accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" Page 31). Please have the order number mentioned below ready.

Keyless drill chuck (A 1) 91103353 Battery (A 7) 80001133 Charger EU (A 13) 80001078

Guarantee

Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. keyless drill chuck) or to cover damage to breakable parts (e.g. switches, batteries). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 282444) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

(£0.10/Min.)

E-Mail: [e-mail]

IAN 282444

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 282444

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

srouby: stupen 1 - 19

vrtani: stupen

Akumulator (A7) 80001133

Translation of the original EC declaration of conformity
We hereby confirm that the Cordless Drill PBSA 12 B1 series Serial number 201611000001 - 201612006000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2014/35/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60745-1:2009/A11:2010 • EN 60745-2-1:2010 • EN 60745-2-2:2010 EN 55014-1:2006/A2:2011 • EN 55014-2:2015 • EN 62471:2008 EN 60335-1:2012/A11:2014 • EN 60335-2-29:2004/A2:2010 EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 62233:2008
This declaration of conformity (16)** is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großbostheim, GERMANY 25.12.2016	Volker Lappas Documentation Representative

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
  ** The last two digits of the year in which the CE marking was affixed.
