USER MANUAL SWUB 85 C2 SILVERCREST

Operating instructions and safety advice

NL BE

ELEKTRISCHEONDERDEKEN

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions and safety advice Page 15

List of pictograms used

Introduction

Intended use Page 17

Description of parts and features.. Page 17

Included items . Page 17

Technical data.. Page 17

Important safety instructions.. Page 18

Safety system . Page 20

Special characteristics.. Page 20

Preparations for use

Placing the heated underblanket. Page 20

Switching on/off/Selecting the temperature.. Page 21

Temperature levels. Page 21

Selecting the automatic switch-off time.. Page 21

Cleaning and care.. Page 22

Storage

Disposal

Warranty/Service

Declaration of conformity.. Page 23

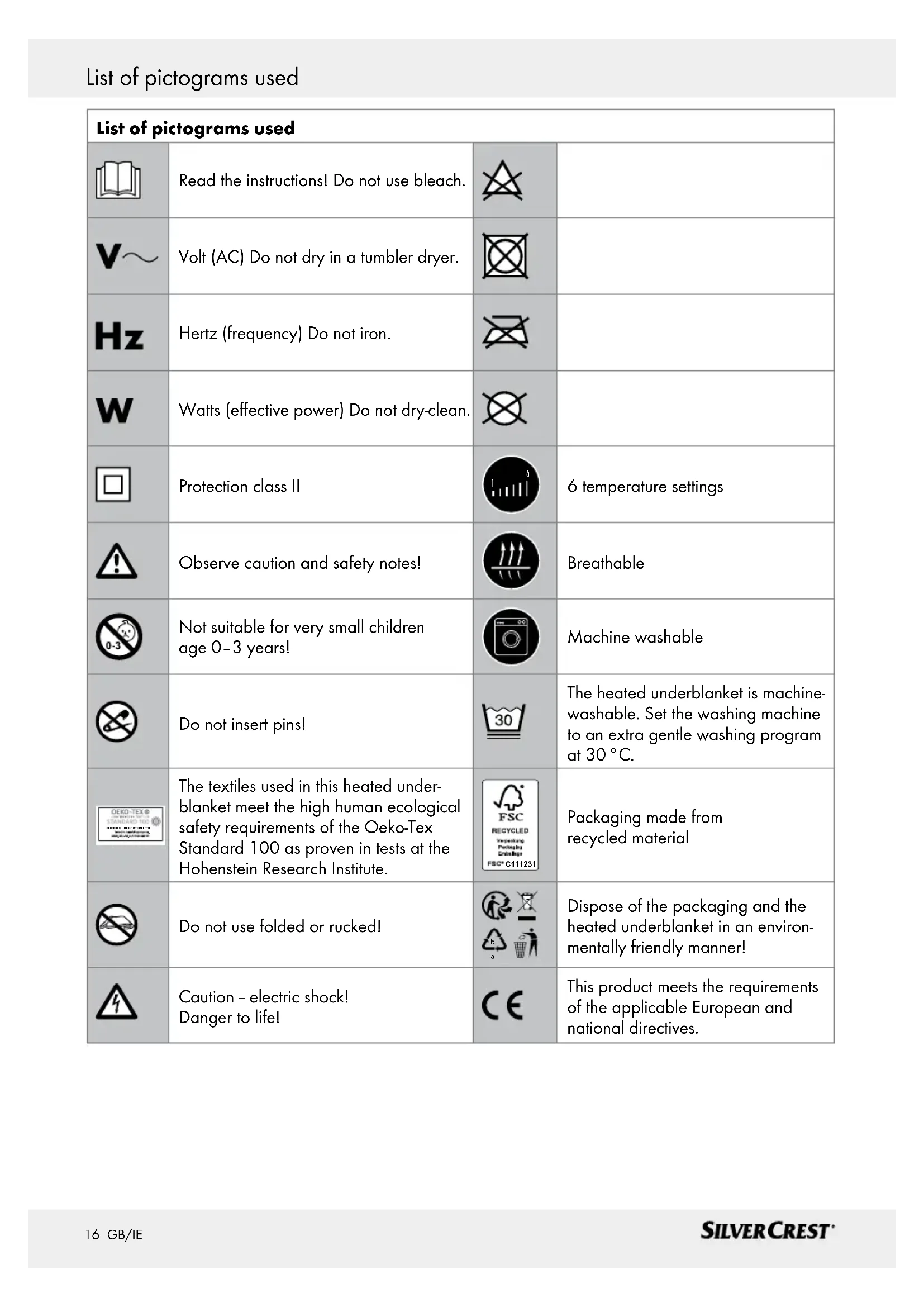

List of pictograms used
	Read the instructions! Do not use bleach.
V~	Volt (AC) Do not dry in a tumbler dryer.
Hz	Hertz (frequency) Do not iron.
W	Watts (effective power) Do not dry-clean.
	Protection class II		6 temperature settings
	Observe caution and safety notes!		Breathable
0-3	Not suitable for very small children age 0-3 years!		Machine washable
	Do not insert pins!	30	The heated underblanket is machine-washable. Set the washing machine to an extra gentle washing program at 30 °C.
	The textiles used in this heated under-blanket meet the high human ecological safety requirements of the Oeko-Tex Standard 100 as proven in tests at the Hohenstein Research Institute.	FSC RECYCLED VEREAL COATING FSC* C111231	Packaging made from recycled material
	Do not use folded or rucked!		Dispose of the packaging and the heated underblanket in an environ-mentally friendly manner!
	Caution - electric shock! Danger to life!	CE	This product meets the requirements of the applicable European and national directives.

Heated underblanket

Introduction

Please make yourself familiar with the heated underblanket before preparing it for use or using it for the first time. Please

read carefully through the following operating instructions and important safety advice. Use the heated underblanket only as described and for the indicated purposes. Keep these instructions in a safe place. If you pass the heated underblanket on to anyone else, please ensure that you also pass on all the documentation.

Intendeduse

This heated underblanket is intended for warming beds. It is not intended for use in hospitals or for commercial use. It must not be used in particular for warming babies, infants, people who are insensitive to heat, helpless people or animals. Any use other than that described above or modification to the heated underblanket is not permitted and could lead to injury and / or damage to the heated underblanket. The manufacturer accepts no liability for any damage caused by improper use.

Description of parts and features

1Controlunit
Functionindicator
3 Temperature setting switch
4 Switch-off time switch
5 Plug-inconnector

IncludedItems

Check that all the items are present and that the heated underblanket is in perfect condition immediately after unpacking.

1 Heated underblanket
1 Control unit / Plug-in connector
1 Operating instructions

-Technicaldata

Model: SWUB 85 D3

Type:W1

Power supply: 220 - 230V / 50 - 60Hz

Powerconsumption:60W

Dimensions: approx. 150 × 80 cm

Protectionclass: II/

Electrical field strength: max. 5000V / m

Magnetic field strength: max. 80A / m

Magnetic flux density: max. 0.1 milli-Tesla

Manufacturer:

MGG Elektro GmbH

Steinstraße 27

40210 Dusseldorf

GERMANY

IMPORTANT INSTRUCTIONS - KEEP FOR FUTURE REFERENCE!

Important safety instructions

WARNING! Failure to observe the following instructions can cause personal injury or property damage (electric shock, burns, fire). The following advice on safety and hazards is intended to protect your health and that of other people as well as to protect the heated underblanket. Observe this safety advice. If you pass the heated underblanket on to anyone else, please pass on these operation instructions as well.

SCALDINGHAZARD! This heated underb

may not be used by persons insensitive to heat and other persons in need of protection who do not respond to overheating (e.g. diabetics, persons with skin changes caused by illness or scarred skin areas in the application area after using analgesics or alcohol). There is a risk of receiving skin burns.

0-3 heated underblank

may not be used for very young children (0-3 years), as they are unable to react to overheating. There is a risk of receiving skin burns.

This heated underblanket may not be used by young children (3-8 years) unless the control unit was set by a parent or a supervising person and the child was adequately instructed on the safe use of the heated underblanket. There otherwise is a risk of burns.

This heated underblanket may be used by older children age 8 and up, and persons with diminished physical, sensory or mental capacities or lacking experience and knowledge when supervised and instructed on the safe use of the heated underblanket and they understand the associated risks.

Children must be supervised so they do not play with the heated

underblanket. There is a risk of injury.

Children must not perform clean or maintain the product without supervision. There is a risk of injury.
This heated underblanket is not intended for hospital or commercial use. This poses a risk of injuries and/or damage to the heated underblanket.

WARNING!

not insert needles or

pointy objects into the heated underblanket. There is a risk of electric shock.

WARNING!

not switch on the electric

underblanket whilst folded or drawn together. Otherwise the heated underblanket could be damaged.

Before use on an adjustable bed, verify the heated underblanket and the cables will not be pinched in the hinges, for example, or pushed together.
- Do not use when wet! Otherwise there is a risk of electric shock.
Only use this heated underblanket together with the control unit 1 specified on the label. Otherwise the heated underblanket could be damaged.

Under certain circumstances, the electrical and magnetic fields emitted by this heated underblanket could interfere with the proper functioning of your heart pacemaker. However, the levels are far below the permissible limits: electric field strength: max. 5000V / m , magnetic field strength: max. 80A / m magnetic flux density: max. 0.1 milli-Tesla. Therefore please consult your physician and the manufacturer of your pacemaker before using this heated underblanket.
Do not pull, twist or kink the cables. Otherwise the heated underblanket could be damaged.
Frequently check the heated underblanket for signs of wear or damage. If signs thereof are detected, the heated underblanket was used improperly or will no longer heat up, it must first be inspected by the manufacturer before being switched on again.
If the mains cable of this appliance is damaged, it must be replaced by the manufacturer or its service department, or a similarly qualified person to prevent hazards.
With the heated underblanket switched on, never

Important safety .../ Safety system / Special characteristics / Preparations for use

• place objects on it (e.g. suitcases or clothes baskets),
• place a heating source such as a hot-water bottle, heating pad or similar items on it. The heated underblanket may otherwise be damaged.

The electronic components inside the control unit will heat up whilst operating the heated underblanket. Therefore never cover the control unit or place it onto the heated underblanket during operation. This poses a risk of injuries and / or damage to the heated underblanket.
Always observe the information on start-up, cleaning and care, and storage.
If you have additional questions on using our products, please contact our Customer Service Department.

- Safetysystem

Note: The heated underblanket is fitted with a safety system. Its electronic sensor system prevents the heated underblanket from overheating over its full area by switching it off automatically in the event of a fault. If the safety system switches the heated underblanket off automatically due to a fault, then the function indicator 2 on the control unit 1 ceases to illuminate, even if the heated underblanket is switched on.

Under no circumstances should you connect the defective heated underblanket to another switch of the same type. This would also result in a permanent shutdown by the safety system in the switch.
Please note that, for safety reasons, the heated underblanket must not be used in the event of a fault and must be sent to the service centre address given below.

- Special characteristics

This heated underblanket has been provided with an especially soft and hygienic soft nonwoven fabric. The textiles used in this heated underblanket meet the high human ecological safety requirements of the Oeko-Tex Standard 100 as proven in tests at the Hohenstein Research Institute.

Preparations for use

- Placing the heated underblanket

Starting at the foot end, spread out the heated underblanket (top, see Fig. B) over the mattress. The plug-in connector 5 on the heated underblanket should be towards the head end (see Fig. C).
First connect the control unit 1 to the heated underblanket by plugging the two parts of the plug-in connector 5 together (see Fig. D).

RISK OF DAMAGE TO THE PRODUCT AND/OR OTHER PROPERTY! Please be sure

• the plug-in connector 5 and the cable do not get pinched on the bedframe.

• the cable does not get wedged between the bedframe and the mattress.

• the cable does not get severely kinked. Otherwise the plug-in connector 5 and the cable could be damaged.
  Then place the bottom sheet as usual over the heated underblanket, so that the heated underblanket lies between the mattress and the bottom sheet.

Ensure that the heated underblanket is completely flat and that it does not become drawn together or folded during use.
Before use on an adjustable bed, verify the heated underblanket and the cables will not be pinched in the hinges, for example, or pushed together.
- Switch the heated under blanket on approximately 30 minutes before going to bed and cover it with the top sheet and other bedding. By doing this you will keep all the heat in.

- Switching on/off/Selecting the temperature

Switching on:

Using the temperature setting switch 3 on the control unit 1, set the temperature to setting 1, 2, 3, 4, 5 or 6 to switch on the heated under blanket. The function indicator 2 illuminates.

Switching off:

Using the temperature setting switch 3 on the control unit 1, set the temperature to setting O to switch off the heated underblanket. The function indicator 2 ceases to illuminate.

Selecting the temperature:

This heated underblanket has a rapid heat-up feature. Set the control unit to the highest temperature setting (setting 6). This will cause the heated underblanket to warm up quickly.

WARNING! When operating the heated underblanket for several hours, we recommend setting the control unit 1 to the lowest temperature to prevent the body from overheating, potentially resulting in burns to the skin or heat stroke.

- Temperaturelevels

Using the temperature setting switch 3 on the control unit 1, set the temperature to the desired temperature setting (see Fig. A).

Setting0:Off

Setting 1:Minimumheat

Settings2-5:Customisedheat

Setting6:Maximumheat

The foot zone is the warmest part of the heated underblanket.

Note: This heated underblanket has overheating protection. After a period of approx. 3 hours at temperature settings 5 or 6, the heated underblanket automatically switches down to setting 4.

- Selecting the automatic switch-off time

Using the switch-off time setting switch 4 on the control unit 1, set the desired switch-off time. The switch-off time can be set to 1, 3, 6 or 12 hours. After the expiry of the set switch-off time, the heated underblanket no longer provides heat and the function indicator 2 starts to flash.
To heat up the heated underblanket again, first set the temperature setting switch 3 to setting O and then choose the desired temperature setting.

If the heated underblanket is no longer being used after the timer expires:

• switch off the heated underblanket (setting 0),
• unplug from the socket,
• disconnect the plug-in connection 5, thus the control unit 1 from the heated underblanket.

- Cleaning and care

RIS A WIFENING!

FROM ELECTRIC SHOCK! Before

cleaning, always pull the plug of the

heated underblanket out of the mains socket and separate the plug-in connector 5 to detach the control unit 1 from the heated underblanket (see Fig. D). Otherwise there is a risk of electric shock.

Use a dry, lint-free cloth for control unit cleaning and care.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY!

Never immerse the control 1 in

water or other liquids. It may otherwise be damaged.

If the heated underblanket is slightly soiled, use a damp cloth and, if necessary, a little liquid mild detergent.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY! Do

not clean the heated underblanket

and the control unit 1 with chemical cleaners or scouring agents. Otherwise the heated under blanket and the control unit 1 could be damaged.

The heated underblanket is machine

washable. Set the washing machine to an extra gentle cycle at 30^

Use a mild laundry detergent according to the manufacturer's instructions.

Please note that the heated underblanket may degrade through too frequent washing. The heated underblanket should be washed in a washing machine no more than 5 times over its whole lifetime.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY!

Note that the heated underblanket

must not be dry-cleaned, wrung out, machinedried, put through a mangle or ironed. Otherwise the heated underblanket could be damaged.

Do not use bleach. Do not use any

cleaning agents containing bleach (such as heavy duty detergents).

in a tumbler dryer.

Reshape the damp heated underblanket to its original size immediately after washing and dry flat atop a clothes drying rack.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY! Do

not attach the heated underblanket

to washing lines with washing pegs or the like. Otherwise the heated underblanket could be damaged.

DANGER OF ELECTRIC SHOCK!

Do not reconnect the control 1 to

the heated underblanket until the

connector 5 and the heated underblanket are completely dry. Otherwise there is a risk of electric shock.

DANGER OF ELECTRIC SHOCK!

RISK OF PROPERTY DAMAGE!

Under no circumstances switch on

the heated underblanket to dry it. Otherwise there is a risk of electric shock.

Storage

RISK OF DAMAGE TO THE

PRODUCT! Before putting it away,

let the heated underblanket cool

down. Otherwise material damage could occur.

RISK OF DAMAGE TO THE

PRODUCT! Do not crease the

heated underblanket by placing items

on top of it during storage. Otherwise material damage could occur.

If the heated underblanket is not to be used for some time, store it in the original packaging in a dry environment and do not place any objects on top of it. Disconnect the plug-in connection 5 i.e. the control unit 1 from the heated underblanket.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty/Service

We provide a 3-year warranty covering faults in materials or manufacture of the heated underblanket from the purchase date.

The warranty does not cover:

• Damage from improper use.
  Wearparts.
• Damage caused by the customer.
  If the device has been opened by an unauthorized repair shop.

This warranty does not affect the customer's legal rights. The customer must provide proof of purchase in order for any warranty claims within the warranty

period to be honoured. Warranty claims must be filed with MGG Elektro GmbH, Düsseldorf, Germany within 3 years from the date of purchase.

In the event of a claim, please contact our Service Department listed below:

Service Hotline (toll-free):

08009310319

(Mon-Fri: 8 am-6 pm)

品 [e-mail]

1800939235

(Mon-Fri: 8 am-6 pm)

[e-mail]

If we ask you to return the defective heated under blanket, please send it to the following address:

NU Service GmbH

Lessingstraße 10b

89231 Neu-Ulm

GERMANY

IAN 339339_1910

Declaration of conformity (C)

This heated underblanket complies with the requirements of the applicable European directives and national standards.

This is confirmed by the CE marking.

The relevant declarations are held by the manufacturer.
