USER MANUAL SWUB 85 B2 SILVERCREST

Operating instructions and safety advice

FR CH

SURMATELASCHAUFFANT/COUVERTURE DE DESSOUS

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE/AT/CH Bedienungsanleitung und Sicherheitshinweise			Seite	5
FR/CH Instructions d'utilisation et consignes de sécurité		Page	15
IT/CH Istruzioni d'uso e avvertenze di sicurezza	Pagina	25
NL Gebruiksaanwijzing en veiligheidsinstructies	Pagina	35
GB Operating instructions and safety advice	Page	45

A 5 1 2 3 4

B Oberseite . Face supérieure Parte superiore . Bovenkant . Top

C höhere Temperatur · température élevée temperatura più elevata · hogere temperatuur higher temperature

D Unterseite : Face inférieure Parte inferiore : Onderkant : Bottom 5

Intended use....Page 46

Description of parts and features......Page 47

Included items Page 47

Technical data......Page 47

Important safety instructions......Page 47

Safety system....Page 49

Special characteristics......Page 50

Preparations for use....Page 50

Placing the electric underblanket Page 50

Switching on/off/Selecting the temperature....Page 50

Temperature levels....Page 50

Selecting the automatic switch-off time....Page 51

Cleaning and care....Page 51

Storage Page 52

Disposal Page 52

Warranty / Service Page 52

Declaration of Conformity....Page 53

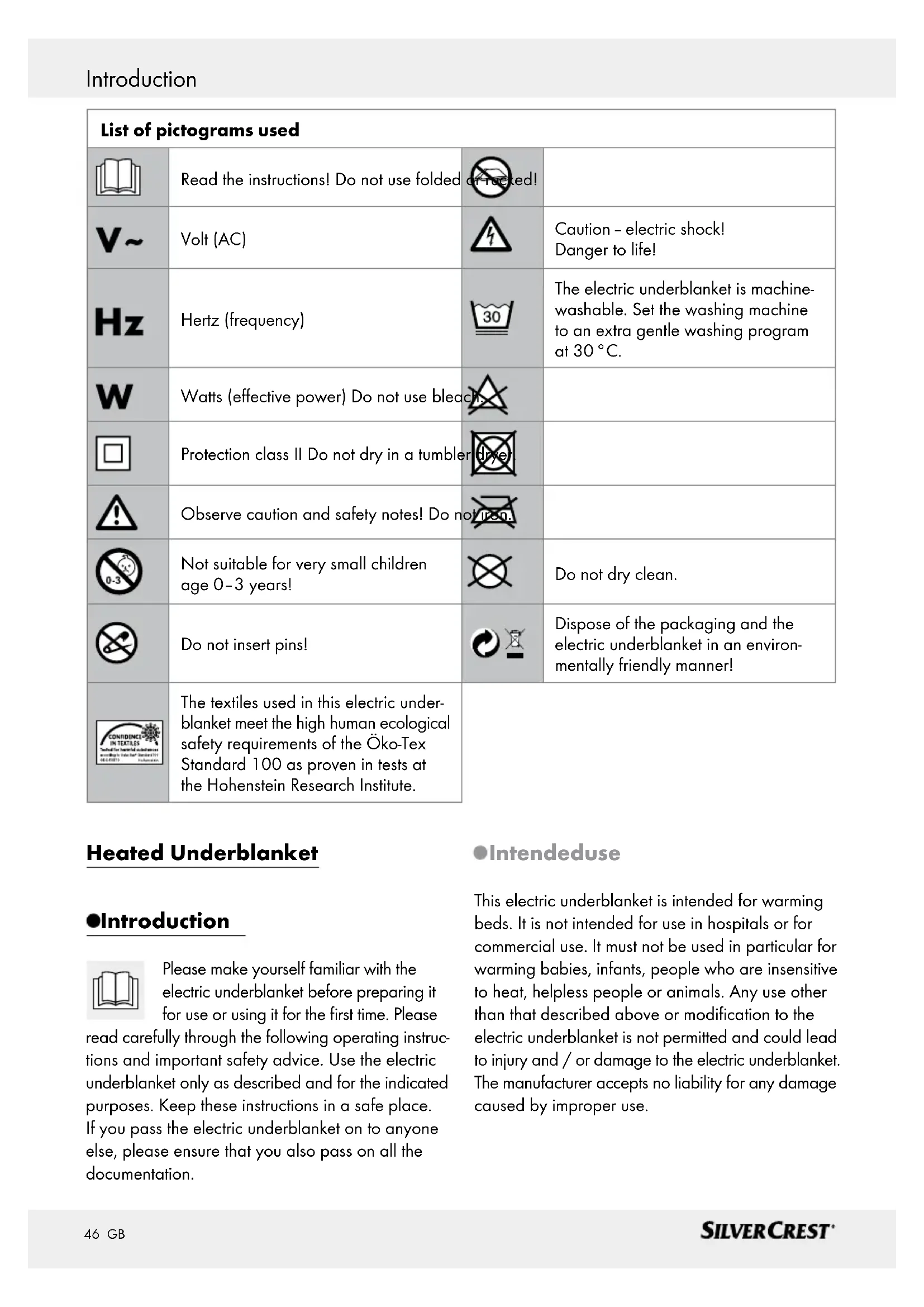

List of pictograms used
	Read the instructions! Do not use folded	ed!
	Volt (AC)		Caution - electric shock!Danger to life!
	Hertz (frequency)		The electric underblanket is machine-washable. Set the washing machine to an extra gentle washing program at 30 °C.
	Watts (effective power) Do not use bleac
	Protection class II Do not dry in a tumbler
	Observe caution and safety notes! Do no
	Not suitable for very small children age 0-3 years!		Do not dry clean.
	Do not insert pins!		Dispose of the packaging and the electric underblanket in an environ-mentally friendly manner!
	The textiles used in this electric under-blanket meet the high human ecological safety requirements of the Öko-Tex Standard 100 as proven in tests at the Hohenstein Research Institute.

Heated Underblanket

●Introduction

Please make yourself familiar with the electric underblanket before preparing it for use or using it for the first time. Please

read carefully through the following operating instructions and important safety advice. Use the electric underblanket only as described and for the indicated purposes. Keep these instructions in a safe place. If you pass the electric underblanket on to anyone else, please ensure that you also pass on all the documentation.

Intendeduse

This electric underblanket is intended for warming beds. It is not intended for use in hospitals or for commercial use. It must not be used in particular for warming babies, infants, people who are insensitive to heat, helpless people or animals. Any use other than that described above or modification to the electric underblanket is not permitted and could lead to injury and / or damage to the electric underblanket. The manufacturer accepts no liability for any damage caused by improper use.

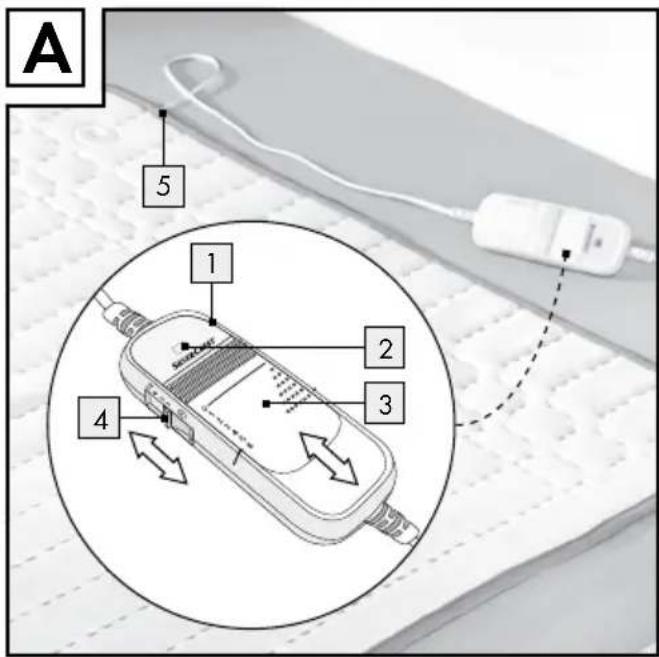

• Description of parts and features

1 Controlunit
2 Functionindicator
3 Temperature setting switch
4 Switch-off time switch
5 Plug-inconnector

Includeditems

Check that all the items are present and that the electric underblanket is in perfect condition immediately after unpacking.

1 Heated underblanket
1 Control unit / Plug-in connector
1 Operating instructions

●Technicaldata

Model: SWUB 85 B2

Type:W1

Power supply: 220-230V/50-60Hz

Powerconsumption:60W

Dimensions: Approx. 150 x 80 cm

Protectionclass: II/

Electrical field strength: max. 5000V/m

Magnetic field strength: max. 80A/m

Magnetic flux density: max. 0.1 millitesla.

Manufacturer:

MGG Elektro GmbH

Steinstraße 27

40210 Düsseldorf, Germany

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE!

Important safety instructions

WARNING! Failure to observe the following instructions can cause personal injury or property damage (electric shock, burns, fire). The following advice on safety and hazards is intended to protect your health and that of other people as well as to protect the electric underblanket. Observe this safety advice. If you pass the electric underblanket on to anyone

else, please pass on these operation instructions as well.

SCALDING HAZARD! This electric underblanket may not be used by persons insensitive to heat and other persons in need of protection who do not respond to overheating (e.g. diabetics, persons with skin changes caused by illness or scarred skin areas in the application area after using analgesics or alcohol). There is a risk of receiving skin burns.

WARNING! This 0-3 electric underblanket

Important safety instructions

may not be used for very young children (0–3 years), as they are unable to react to overheating. There is a risk of receiving skin burns.

This electric underblanket may not be used by young children (3–8 years) unless the control unit was set by a parent or a supervising person and the child was adequately instructed on the safe use of the electric underblanket. There otherwise is a risk of burns.
This electric underblanket may be used by older children age 8 and up, and persons with diminished physical, sensory or mental capacities or lacking experience and knowledge when supervised and instructed on the safe use of the electric underblanket and they understand the associated risks.
■ Children must be supervised so they do not play with the electric underblanket. There is a risk of injury.
■ Children must not perform clean or maintain the product without supervision. There is a risk of injury.
■ This electric underblanket is not intended for hospital or

commercial use. This poses a risk of injuries and/or damage to the electric underblanket.

WARNING!

not insert needles or

pointy objects into the electric underblanket. There is a risk of electric shock.

WARNING!

not switch on the electric

underblanket whilst folded or drawn together. Otherwise the electric underblanket could be damaged.

■ Before use on an adjustable bed, verify the electric underblanket and the cables will not be pinched in the hinges, for example, or pushed together.
- Do not use when wet! Otherwise there is a risk of electric shock.
■ Only use this electric underblanket together with the control unit 1 specified on the label. Otherwise the electric underblanket could be damaged.
■ Under certain circumstances, the electrical and magnetic fields emitted by this electric underblanket could interfere with the proper functioning of your heart pacemaker. However, the levels are far below the permissible

limits: electric field strength: max. 5000V/m, magnetic field strength: max. 80A/m magnetic flux density: max. 0.1 Millitesla. Therefore please consult your physician and the manufacturer of your pacemaker before using this electric underblanket.

• Do not pull, twist or kink the cables. Otherwise the electric underblanket could be damaged.
  ■ Frequently check the electric underblanket for signs of wear or damage. If signs thereof are detected, the electric underblanket was used improperly or will no longer heat up, it must first be inspected by the manufacturer before being switched on again.

If the mains cable of this appliance is damaged, it must be replaced by the manufacturer or its service department, or a similarly qualified person to prevent hazards.

- Do not place objects (e.g. suitcase or clothes basket) - onto the electric underblanket whilst on, - place a heating source such as a hot-water bottle, heating pad or similar items on it. Otherwise the electric underblanket could be damaged.

The electronic components inside the control unit ^1 will heat up whilst operating the electric underblanket. Therefore never cover the control unit ^1 or place it onto the electric underblanket during operation. This poses a risk of injuries and/or damage to the electric underblanket.

■ Always observe the information on start-up, cleaning and care, and storage.

If you have additional questions on using our products, please contact our Customer Service Department.

●Safetysystem

Note: The electric underblanket is fitted with a safety system. Its electronic sensor system prevents the electric underblanket from overheating over its full area by switching it off automatically in the event of a fault. If the safety system switches the electric underblanket off automatically due to a fault, then the function indicator 2 on the control unit 1 ceases to illuminate, even if the electric underblanket is switched on.

☐ Please note that, for safety reasons, the electric underblanket must not be used in the event of a fault and must be sent to the service centre address given below.

- Special characteristics

This electric underblanket has been provided with an especially soft and hygienic soft nonwoven fabric. The textiles used in this electric underblanket meet the high human ecological safety requirements of the Öko-Tex Standard 100 as proven in tests at the Hohenstein Research Institute.

● Preparations for use

- Placing the electric underblanket

☐ Starting at the foot end, spread out the electric underblanket (top, see Fig. B) over the mattress. The plug-in connector 5 on the electric underblanket should be towards the head end (see Fig. C).

☐ First connect the control unit 1 to the electric underblanket by plugging the two parts of the plug-in connector 5 together (see Fig. D).

RISK OF DAMAGE TO THE PRODUCT AND/OR OTHER PROPERTY! Please be sure

- the plug-in connector and the cable do not get pinched on the bedframe.

- the cable does not get wedged between the bedframe and the mattress.

- the cable does not get severely kinked. Otherwise the plug-in connector and the cable could be damaged.

☐ Then place the bottom sheet as usual over the electric underblanket, so that the electric underblanket lies between the mattress and the bottom sheet.

☐ Ensure that the electric underblanket is completely flat and that it does not become drawn together or folded during use.

Before use on an adjustable bed, verify the electric underblanket and the cables will not be pinched in the hinges, for example, or pushed together.

☐ Switch the electric underblanket on approximately 30 minutes before going to bed and cover it with the top sheet and other bedding. By doing this you will keep all the heat in.

- Switching on/off/Selecting the temperature

Switching on:

☐ Using the temperature setting switch 3 on the control unit 1, set the temperature to setting 1, 2, 3, 4, 5 or 6 to switch on the electric underblanket. The function indicator 2 illuminates.

Switching off:

☐ Using the temperature setting switch 3 on the control unit 1, set the temperature to setting 0 to switch off the electric underblanket. The function indicator 2 ceases to illuminate.

Selecting the temperature:

☐ This electric underblanket has a rapid heat-up feature. Set the control unit to the highest temperature setting (setting 6). This will cause the electric underblanket to warm up quickly.

WARNING! When operating the electric underblanket for several hours, we recommend setting the control unit to the lowest temperature to prevent the body from overheating, potentially resulting in burns to the skin or heat stroke.

•Temperaturelevels

☐ Using the temperature setting switch 3 on the control unit 1, set the temperature to the desired temperature setting (see Fig. A).

Setting 0: Off

Setting 1: Minimum heat

Settings 2-5: Customised heat

Setting 6: Maximum heat

The foot zone is the warmest part of the electric underblanket.

Note: This electric underblanket has overheating protection. After a period of approx. 3 hours at temperature settings 5 or 6, the electric underblanket automatically switches down to setting 4.

- Selecting the automatic switch-off time

☐ Using the switch-off time setting switch 4 on the control unit 1, set the desired switch-off time. The switch-off time can be set to 1, 3, 6 or 12 hours. After the expiry of the set switch-off time, the electric underblanket no longer provides heat and the function indicator 2 starts to flash.
☐ To heat up the electric underblanket again, first set the temperature setting switch 3 to setting 0 and then choose the desired temperature setting.

If the electric underblanket is no longer being used after the timer expires:

• switch off the electric underblanket (setting 0),
• unplug from the socket,
• disconnect the plug-in connection 5, thus the control unit 1, from the electric underblanket.

- Cleaning and care

FROM ELECTRIC SHOCK! Before
cleaning, always pull the plug of the
electric underblanket out of the mains socket and separate the plug-in connector 5 to detach the control unit 1 from the electric underblanket (see Fig. D). Otherwise there is a risk of electric shock.
Use a dry, lint-free cloth for control unit cleaning and care.

RISK ON OPENING!

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Never immerse the control 1 in water or other liquids. It may otherwise be damaged.

If the electric underblanket is slightly soiled, use a damp cloth and, if necessary, a little liquid mild detergent.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do not clean the electric underblanket
and the control unit 1 with chemical cleaners or scouring agents. Otherwise the electric underblanket and the control unit 1 could be damaged.

The electric underblanket is machine washable. Set the washing machine to an extra gentle cycle at 30^ C.

Use a mild laundry detergent according to the manufacturer's instructions.

☐ Please note that the electric underblanket may degrade through too frequent washing. The electric underblanket should be washed in a washing machine no more than 5 times over its whole lifetime.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY!

Note that the electric underblanket must not be dry cleaned, wrung out, machine-dried, put through a mangle or ironed. Otherwise the electric underblanket could be damaged.

Do not use bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).

Do nor dry in a tumbler dryer.

Do no iron.

Do not dry clean.

■ Reshape the damp electric underblanket to its original size immediately after washing and dry flat atop a clothes drying rack.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do not attach the electric underblanket to washing lines with washing pegs or the like. Otherwise the electric underblanket could be damaged.

DANGER OF ELECTRIC SHOCK! Do not reconnect the control 1 to the electric underblanket until the connector 5 and the electric underblanket are completely dry. Otherwise there is a risk of electric shock.
DANGER OF ELECTRIC SHOCK! RISK OF PROPERTY DAMAGE! Under no circum-

stances switch on the electric underblanket to dry it. Otherwise there is a risk of electric shock.

Storage

RISK OF DAMAGE TO THE PRODUCT! Before putting it away, let the electric underblanket cool down. Otherwise material damage could occur.
RISK OF DAMAGE TO THE PRODUCT! Do not crease the heated underblanket by placing

items on top of it during storage. Otherwise material damage could occur.

☐ If the electric underblanket is not to be used for some time, store it in the original packaging in a dry environment and do not place any objects on top of it.

- Disposal

The packaging and ancillary packing consist of environmentally friendly materials. They can be disposed of at your local recycling facility.

Do not dispose of electrical devices with household rubbish!

In accordance with European Directive (covering waste electrical and electronic equipment) and its transposition into national legislation, worn-out electrical devices must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out electrical underblanket.

- Warranty / Service

We provide a 3-year warranty from the date of purchase covering defects in materials or manufacture of the electric underblanket.

The warranty does not cover:

- Damage resulting from improper use.

·Wearparts.

• Defects that were known to the customer at the time of purchase.
  • Damage for which the customer was responsible.

This warranty does not affect the customer's legal rights.

The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Claims under the warranty are honoured

89129 Langenau, Germany.

GB

∅ 020 30249050 (mon. - fri.: 8-18 h)

for a period of 3 years after the date of purchase.

In the event of a warranty claim, the customer has the right to have the goods repaired by our own workshop or a workshop authorised by us. The electric underblanket must not be opened for any reason. Opening or modifying the electric underblanket invalidates the warranty. This warranty does not grant any additional rights to the customer.

Complaints are often initiated by errors made during use. Many of these complaints can be resolved by telephone or e-mail. Please contact our Service Hotline in the first instance, before you complain about the electric underblanket to the manufacturer.

IAN 96962

● Declaration of Conformity CE

This electric underblanket complies with the requirements of the applicable European directives and national standards.

This is confirmed by the CE marking.

The relevant declarations are held by the manufacturer.
