SHBR 100 C2 - Heated mattress topper SILVERCREST - Free user manual and instructions

Product type	Heated mattress pad for back and stomach
Brand	SilverCrest
Model	SHBR 100 C2
Dimensions	approx. 69 x 28 cm
Power supply	220-240 V ~ 50/60 Hz
Power consumption	100 W
Protection class	II
Number of temperature levels	6 (levels 1 to 6, plus off level 0)
Quick heating	Yes, in about 10 minutes
Automatic shut-off	Yes, after 90 minutes
Safety system	Electronic overheating detection with automatic shut-off
Material (top/bottom)	100% Polyester
Cover care	Machine washable at 30 °C, delicate cycle
Drying	Do not tumble dry, lay flat to dry
Ironing	Do not iron
Bleaching	Do not bleach
Dry cleaning	Do not dry clean
Spare parts	Not available separately; the controller is specific and not interchangeable
Manufacturer	MGG Elektro GmbH, Steinstraße 27, 40210 Düsseldorf, Germany
Warranty	3 years (on material and manufacturing defects)
Standards	CE certification, conforms to Öko-Tex 100

Frequently Asked Questions - SHBR 100 C2 SILVERCREST

How do I turn on and adjust the temperature of the mattress pad?

To turn on the mattress pad, set the controller to a level from 1 to 6. The operation indicator lights up. To turn off, set the controller to 0. Use level 6 for quick heating, then reduce to a lower level (1 to 5) for extended use.

How long does it take for the mattress pad to heat up?

The mattress pad has quick heating: it reaches its temperature in about 10 minutes. To speed up, first set level 6, then adjust as needed.

Does the mattress pad turn off automatically?

Yes, the mattress pad turns off automatically after 90 minutes. The operation indicator then starts blinking. To reactivate, first set to 0, wait 5 seconds, then select the desired level.

Can I machine wash the mattress pad?

Yes, the mattress pad can be machine washed at 30 °C on a very delicate cycle. Use a low-temperature detergent. Do not wash it more than 10 times over its entire lifespan. Do not tumble dry, do not iron, and do not dry clean.

How do I clean the controller?

Always unplug the controller before cleaning. Use a dry, lint-free cloth. Never immerse the controller in water. For stubborn dirt, a slightly damp cloth with a little mild dish soap is suitable.

What should I do if the operation indicator blinks?

The blinking indicates that the automatic shut-off has been activated after 90 minutes. To reuse the mattress pad, set the controller to 0, wait 5 seconds, then select the desired level again. If the blinking persists without reason, the safety system may have triggered; in that case, the product must no longer be used and should be sent to customer service.

Can I use this mattress pad if I have a pacemaker?

The electromagnetic fields emitted are below the limits (max. electric field 5000 V/m, max. magnetic field 80 A/m, max. flux density 0.1 mT). However, consult your doctor and the manufacturer of your pacemaker before use.

Is the mattress pad suitable for children?

No, this mattress pad is not suitable for children 0 to 3 years (risk of burns). For ages 3-8, it may only be used if the controller is preset by an adult. From 8 years, under supervision. Not suitable for persons insensitive to heat or dependent.

How do I store the mattress pad?

Let the mattress pad cool down before storing. Unplug the controller. Store it in its original packaging in a dry place, without placing objects on top to avoid creases.

What to do in case of a malfunction of the mattress pad?

If the safety system triggers an automatic shut-off, the indicator goes out and the mattress pad can no longer be used. Return it to customer service at the address indicated (NU Service GmbH, Lessingstraße 10b, 89231 Neu-Ulm, Germany). Contact customer service at 080 53 400 06 (France) or 0800 200 510 (Switzerland).

USER MANUAL SHBR 100 C2 SILVERCREST

stomach & Back heating Pad

Operating instructions and safety advice

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE/AT/CH Bedienungsanleitung und Sicherheitshinweise			Seite	5
FR/CH	Instructions d'utilisation et indications de sécurité			Page	13
IT / CH	Indicazioni per l'uso e per la sicurezza	Pagina 23
GB	Operating instructions and safety advice	Page	33

A 1 2

B 3

Line drawing of a human figure holding a device with a handle and connector (no text or symbols)

Diagram of a device with a curved arrow indicating rotation or movement, no text or symbols present

Fourniture......Page 15

Intended use....Page 34

Parts description Page 35

Scope of delivery....Page 35

Technical data......Page 35

Important safety instructions......Page 35

Safety system....Page 37

Start-up

Switching on/off/Selecting the temperature....Page 37

Temperature levels....Page 38

Automatic switch-off....Page 38

Cleaning and care....Page 38

Storage Page 39

Disposal Page 39

Warranty / Service centre Page 39

Declaration of conformity....Page 40

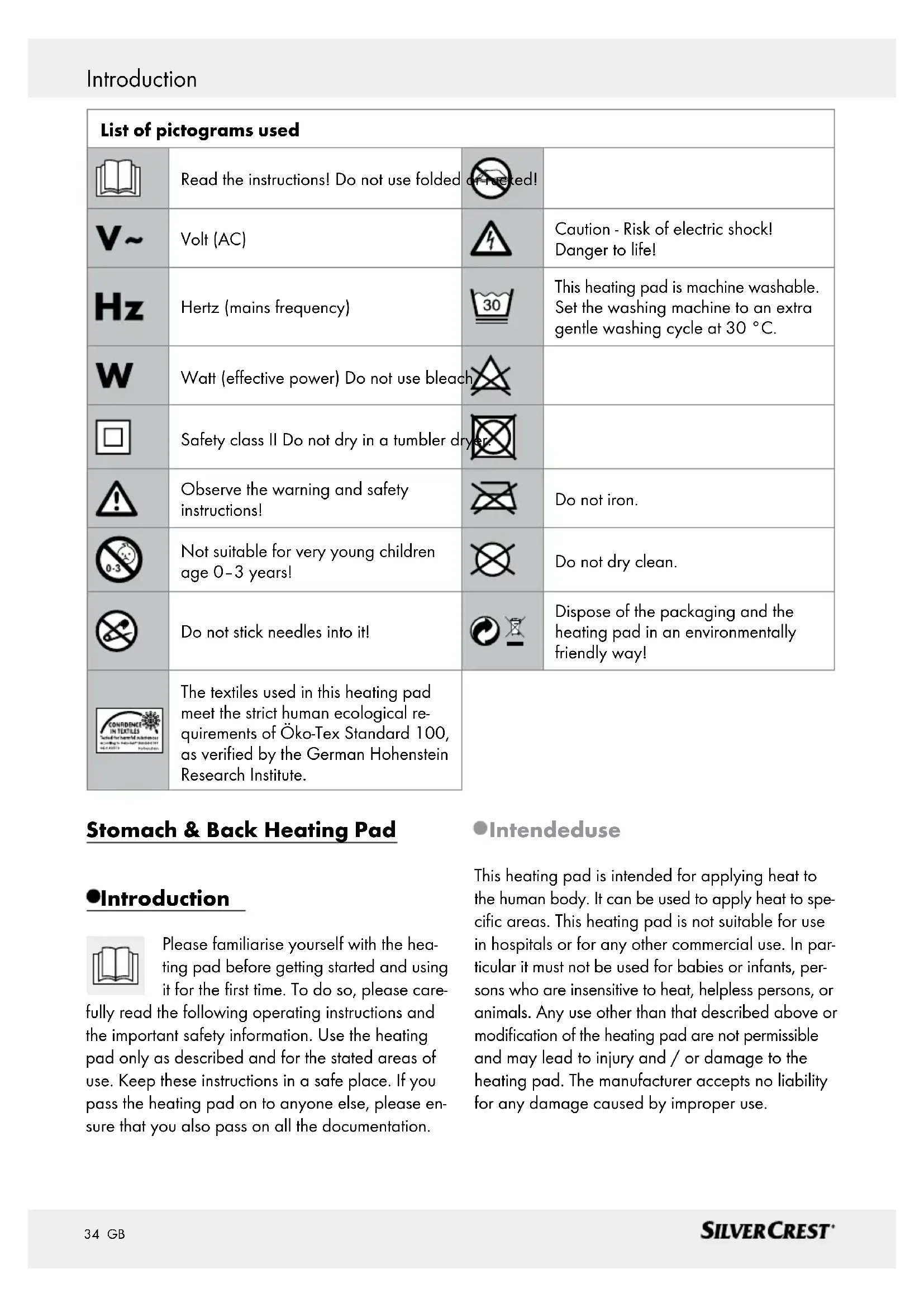

List of pictograms used
	Read the instructions! Do not use folded		.
	Volt (AC)		Caution - Risk of electric shock!Danger to life!
	Hertz (mains frequency)		This heating pad is machine washable.Set the washing machine to an extragentle washing cycle at 30 °C.
	Watt (effective power) Do not use bleach
	Safety class II Do not dry in a tumbler dry
	Observe the warning and safetyinstructions!		Do not iron.
	Not suitable for very young childrenage 0–3 years!		Do not dry clean.
	Do not stick needles into it!		Dispose of the packaging and theheating pad in an environmentallyfriendly way!
	The textiles used in this heating padmeet the strict human ecological re-quirements of Öko-Tex Standard 100,as verified by the German HohensteinResearch Institute.

Stomach & Back Heating Pad

Introduction

Please familiarise yourself with the heating pad before getting started and using it for the first time. To do so, please care-

fully read the following operating instructions and the important safety information. Use the heating pad only as described and for the stated areas of use. Keep these instructions in a safe place. If you pass the heating pad on to anyone else, please ensure that you also pass on all the documentation.

Intendeduse

This heating pad is intended for applying heat to the human body. It can be used to apply heat to specific areas. This heating pad is not suitable for use in hospitals or for any other commercial use. In particular it must not be used for babies or infants, persons who are insensitive to heat, helpless persons, or animals. Any use other than that described above or modification of the heating pad are not permissible and may lead to injury and / or damage to the heating pad. The manufacturer accepts no liability for any damage caused by improper use.

Partsdescription

1 Control (see fig. A)
2 Function display (see fig. A)

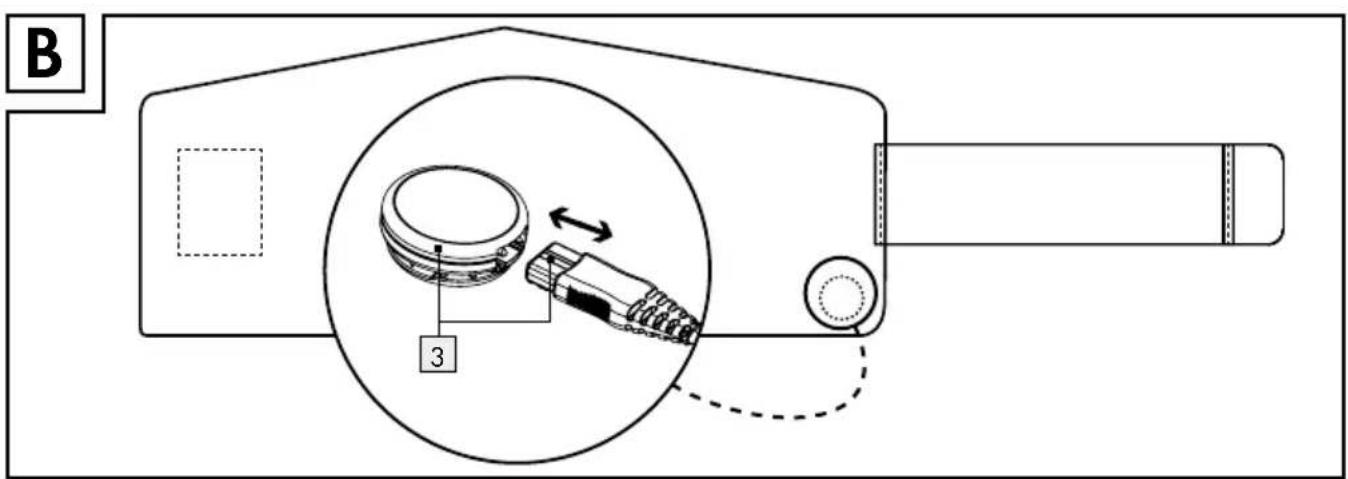

3 Plug-in connector (see fig. B)

- Scope of delivery

Please check immediately on unpacking that the delivery scope is complete and that the heating pad is in perfect condition.

1 Stomach & Back Heating Pad
1 Control unit / Plug-in connector
1 Set of instructions for use

- Technicaldata

Model: SHBR 100 C2

Type: P10 B

Power supply: 220-240V/50-60Hz

Powerinput: 100W

Dimensions: approx. 69 x 28 cm

Protectionclass: II/ ☐

electric field strength: max. 5000V/m

magnetic field strength: max. 80A/m

magnetic flux density: max. 0.1 milli-Tesla

Material:

Top/bottom: 100% Polyester

Manufacturer:

MGG Elektro GmbH

Steinstraße 27

40210 Düsseldorf, Germany

IMPORTANT INSTRUCTIONS – KEEP FOR FUTURE REFERENCE!

Important safety instructions

WARNING! Failure to observe the following instructions can cause personal injury or property damage (electric shock, burns, fire). The following safety instructions and hazard warnings are not only intended to protect your own health and the health of others, but also to prevent damage to the heating pad. Please observe these safety instructions and pass on this operating manual together with the heating pad.

SCALDING HAZARD!

This heating pad may not be used by persons insensitive to heat and other persons in need of protection who do not respond to overheating (e.g. diabetics, persons with skin changes caused by illness or scarred skin areas in the application area after using analgesics or alcohol). There is a risk of receiving skin burns.

WARNING! This heating pad may not be used for very young children (0–3 years), as they are unable

to react to overheating. There is a risk of receiving skin burns.

This heating pad may not be used by young children (3–8 years) unless the control unit was set by a parent or a supervising person and the child was adequately instructed on the safe use of the heating pad. There otherwise is a risk of burns.
This heating pad may be used by older children age 8 and up, and persons with diminished physical, sensory or mental capacities or lacking experience and knowledge when supervised and instructed on the safe use of the heating pad and understand the associated risks.
■ Children must be supervised to prevent them from playing with the heating pad. There is a risk of injury.
■ Children must not perform clean or maintain the product without supervision. There is a risk of injury.
This heating pad is not intended for hospital or commercial use. This poses a risk of injuries and / or damage to the heating pad.
WARNING! Do not insert needles or

pointed objects into the heating pad. There is a risk of electric shock.

WARNING! Do not switch on the

heating pad whilst folded or pushed together. The heating pad may otherwise be damaged.

• Do not use when wet! Otherwise there is a risk of electric shock.
  This heating pad may only be operated together with the control unit specified on the label. The heating pad may otherwise be damaged.
  The electric and magnetic fields emitted by this heating pad could potentially interfere with the functionality of your pacemaker. However, the levels are far below the permissible limits: electric field strength: max. 5000V/m, mag netic field strength: max. 80 A/m magnetic flux density: max. 0.1 milli-Tesla. Therefore please consult your physician and the manufacturer of your pacemaker before using this heating pad.
• Do not pull, twist or kink the cables. The heating pad may otherwise be damaged.
  ■ Frequently check the heating pad for wear or damage. If signs thereof are detected, the heating

pad was used improperly or will no longer heat up, it must first be inspected by the manufacturer before being switched on again.

If the power cord of the heating pad is damaged, it must be replaced by the manufacturer or its service department, or a similarly qualified person, to avoid hazards.
■ With the heating pad switched on, never

- place objects on it (e.g. suitcases or clothes baskets),

- place a heating source such as a hot-water bottle, heating pad or similar items on it. The heating pad may otherwise be damaged.

The electronic components inside the control unit will heat up whilst operating the heating pad. For this reason, the control unit must not be covered or be lying on the heating pad during operation. This poses a risk of injuries and / or damage to the heating pad.
■ Always observe the information on start-up, cleaning and care, and storage.
If you have additional questions on using our products, please contact our Customer Service Department.

●Safetysystem

Note: The heating pad is equipped with a safety system. The electronic sensor technology prevents the entire surface of the heating pad from overheating by automatically switching off in the event of a fault. If the safety system switches the heating pad off automatically due to a fault, then the function display 2 on the control unit 1 is no longer illuminated, even if the heating pad is switched on.

☐ Please note that, for safety reasons, the heating pad must not be used after a fault and must be returned to the service address indicated.

- Start-up

Note: The heating pad may smell of plastic the first time you use it, but this will disappear after a short period of time.

☐ To begin, first connect the control 1 to the heating pad with the plug-in connector 3 (see fig. B).
☐ Position the heating pad according to your individual requirements on your back or stomach (see fig. C).
☐ Wind the long, extendible rubber band around your body.
☐ Then fix the heating pad to your body by connecting the hook-and-loop fasteners of the heating pad with the hook-and-loop fasteners of the rubber band (see fig. D).

- Switching on / off / Selecting the temperature

Switching on:

Set the control unit to 1, 2, 3, 4, 5 or 6, to switch on the heating pad.
Note: The function display 2 illuminates after the heating pad is switched on.
Note: This heating pad features rapid heating, which allows it to heat up within the first 10 minutes of operation.

Start-up / Cleaning and care

Switching off:

Set the control unit to 0 to switch off the heating pad.

Note: The operating display 2 will switch off.

Selecting the temperature:

☐ Just before using the heating pad, set it to the highest temperature setting (setting 6). This will cause the heating pad to warm up quickly.
☐ When using the heating pad for several hours, set it to the lowest temperature setting (setting 1).

WARNING! When operating the heating pad for several hours, we commend setting the control unit to the lowest setting to prevent overheating and potential burns to the part of the body heat is applied to.

•Temperaturelevels

Set the required temperature level on the control 1 (see fig. A).

Level0:off

Level 1: minimum heat

Level 2-5: customised settings

Level 6: maximum heat

●Automaticswitch-off

Note: The heating pad switches itself off automatically after about 90 minutes. The function display 2 then starts to flash.

Then select the setting 0 and after about 5 seconds, reset the heating pad to the desired temperature setting to switch it on again.

If the heating pad is no longer used after the timer expires:

- switch off the heating pad (Setting 0),

• unplug from the socket,
• disconnect the plug-in connection 3, i.e. the control unit 1, from the heating pad.

- Cleaning and care

DANG RACING!

LIFE BY ELECTRIC SHOCK! Always

remove the mains plug from the socket

and the plug-in connector 3 with the control 1 from the heating pad (see fig. B) before cleaning the heating pad. Otherwise there is a risk of electric shock.

Use a dry, lint-free cloth for control unit cleaning and care.

RISK OF DAMAGE TO THE PRO- DUCT OR PROPERTY! Never im-

merse the control 1 in water or other

liquids. It may otherwise be damaged.

If the heating pad is slightly soiled, use a dam-pened cloth and a little liquid mild detergent, if necessary.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do

not use chemical cleaning or scouring

agents to clean the heating pad and control 1. The heating pad and control unit 1 may otherwise be damaged.

The heating pad is machine-washable. Set the washing machine at an extra washing cycle for delicate items at

30^ C .

For ecological reasons, please only wash the heating pad together with other textiles. Use a mild laundry detergent according to the manufacturer's instructions.

☐ Please note that frequent washing will cause wear to the heating pad. It should therefore be washed no more than max. 10 times in a washing machine throughout its useful life.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Please

note that the heating pad may not

be dry cleaned, bleached, wrung out, dried mechanically, mangled or ironed. The heating pad may otherwise be damaged.

Do not use bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).
Do nordry in a tumbler dryer.
Do not run.
Do not dry clean.
■ Reshape the still damp heating pad to the original size immediately after washing, and dry flat, spread on a clothes drying rack.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do not hang the heating pad up to dry with pegs or similar. The heating pad may otherwise be damaged.
DANGER OF ELECTRIC SHOCK! Do not reconnect the control 1 to the heating pad until the plug-in connector 3 and the heating pad are completely dry. Otherwise there is a risk of electric shock.
DANGER OF ELECTRIC SHOCK! RISK OF PROPERTY DAMAGE! Do not under any circumstances switch

the heating pad on to dry help it dry. Otherwise there is a risk of electric shock.

Storage

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Let the heating pad cool before putting it away. The heating pad may otherwise be damaged.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! To prevent the heating pad from becoming sharply creased, do not store other objects on top of the heating pad. The heating pad may otherwise be damaged.
☐ If you do not intend to use the heating pad for any length of time, store it in the original

packaging in a dry environment and without weighing it down. Disconnect the plug-in connection 3, i.e. the control unit 1, from the heating pad to do so.

●Disposal

The packaging and ancillary packing consist of environmentally friendly materials. They can be disposed of at your local recycling facility.

Do not dispose of electric equipment in the household waste!

In accordance with the European Directive on waste electrical and electronic equipment and its transposition into national law, used electrical equipment must be collected separately and recycled in an environmentally friendly manner.

Contact your local refuse disposal authority for more details of how to dispose of your worn out heating pad.

● Warranty / Service centre

We provide a 3-year warranty covering faults in materials or manufacture of the heating pad from the purchase date.

The warranty does not cover:

- Damage from improper use.

·Wearparts.

• Damage caused by the customer.
• If the device has been opened by an unauthorised repair shop.

This warranty does not affect the customer's legal rights. The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Warranty claims must be filed with MGG Elektro GmbH, Düsseldorf, Germany within 3 years from the date of purchase.

In the event of a claim, please contact our Service Department listed below: Service Hotline (toll-free):

GB

∅ 0800 93 10 319

(Mon-Fri: 8 am-6 pm)

[e-mail]

If we ask you to return the defective heating pad, please send it to the following address:

NU Service GmbH

Lessingstraße 10b

89231 Neu-Ulm

Germany

IAN 275691

● Declaration of conformity €

This heating pad complies with the requirements of the relevant European and national guidelines.

This is confirmed by the CE mark.

The relevant declarations are held by the manufacturer.

NU Service GmbH

Lessingstraße 10b

D-89231 Neu-Ulm
