USER MANUAL IAN 73872 SILVERCREST
Fourniture......Page 7
01099 Dresden, Germany
Intended Use Page 22
Description of parts and features......Page 23
Scope of delivery....Page 23
Technical data....Page 23
Important safety instructions......Page 23
Safety system......Page 25
Preparations for use
Switching on/off/Selecting the temperature....Page 25
Temperature levels....Page 25
Automatic switch-off Page 25
Cleaning and Care Page 26
Storage Page 26
Disposal Page 27
Warranty / Service centre Page 27
Declaration of conformity....Page 27

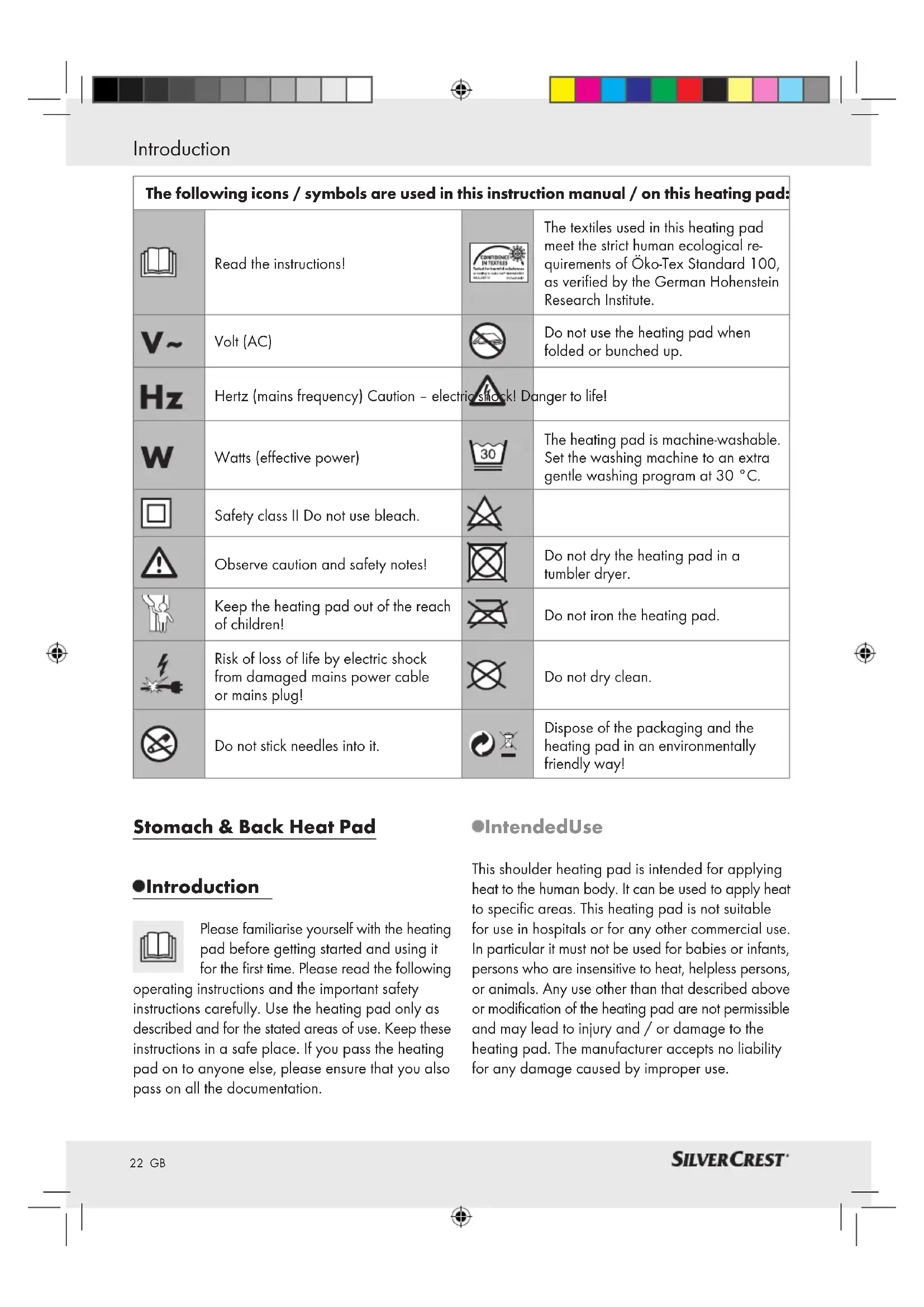

Introduction
The following icons / symbols are used in this instruction manual / on this heating pad:
 | Read the instructions! |  | The textiles used in this heating pad meet the strict human ecological requirements of Öko-Tex Standard 100, as verified by the German Hohenstein Research Institute. |
 | Volt (AC) |  | Do not use the heating pad when folded or bunched up. |
 | Hertz (mains frequency) Caution - electri |  | Danger to life! |
 | Watts (effective power) |  | The heating pad is machine-washable. Set the washing machine to an extra gentle washing program at 30 °C. |
 | Safety class II Do not use bleach. |  | |
 | Observe caution and safety notes! |  | Do not dry the heating pad in a tumbler dryer. |
 | Keep the heating pad out of the reach of children! |  | Do not iron the heating pad. |
 | Risk of loss of life by electric shock from damaged mains power cable or mains plug! |  | Do not dry clean. |
 | Do not stick needles into it. |  | Dispose of the packaging and the heating pad in an environmentally friendly way! |
Stomach & Back Heat Pad
Introduction
Please familiarise yourself with the heating pad before getting started and using it for the first time. Please read the following
operating instructions and the important safety instructions carefully. Use the heating pad only as described and for the stated areas of use. Keep these instructions in a safe place. If you pass the heating pad on to anyone else, please ensure that you also pass on all the documentation.
IntendedUse
This shoulder heating pad is intended for applying heat to the human body. It can be used to apply heat to specific areas. This heating pad is not suitable for use in hospitals or for any other commercial use. In particular it must not be used for babies or infants, persons who are insensitive to heat, helpless persons, or animals. Any use other than that described above or modification of the heating pad are not permissible and may lead to injury and / or damage to the heating pad. The manufacturer accepts no liability for any damage caused by improper use.
Introduction / Important safety instructions
- Description of parts and features
1 Control (see fig. A)
2 Function indicator (see fig. A)
3 Plug-in connector (see fig. B)
- Scope of delivery
Please check immediately on unpacking that the delivery scope is complete and that the heating pad is in perfect condition.
1 Stomach & back heat pad
1 Control unit / Plug-in connector with mains plug
1 Operating manual
●Technicaldata
Model: SHBR 100 A2
Type:P10B
Power supply: 220-240V\~/ 50-60Hz
Powerinput: 100W
Dimensions: Approx. 69 x 28 cm
Protectionclass: 11/
Electric field strength: max. 5000V/m
Magnetic field strength: max. 80 A/m
Magnetic flux density: max. 0.1 millitesla
Material:
Heating surface: 100 % Polyester
Manufacturer:
MGG Elektro GmbH
01099 Dresden, Germany
IMPORTANT ADVICE – KEEP THIS SAFE FOR FUTURE USE!
Importantsafety instructions
Failure to comply with the following instructions can cause personal injury or material damage (electric shock, skin burns, fire). The following safety instructions and hazard warnings are not only intended to protect your own health and the health of others, but also to prevent damage to the heating pad. Please observe these safety instructions and pass on this operating manual together with the heating pad.
WARNING! RISK OF FATAL INJURY AND ACCIDENTS FOR INFANTS AND SMALL CHIL-
DREN! Never leave children unsupervised with the packaging materials. Danger of suffocation.
WARNING! DANGER OF ELECTRIC
SHOCK! Do not use the heating pad if it is damp. There is a risk of electric shock.
Do not use the mains power cable for purposes for which it was not intended, e.g. for hanging up the electric heating pad, carrying it or to pull the plug out of the mains socket. Keep the mains power cable away from heat, oil and sharp edges. If the mains power cable is damaged or severed, do not touch the mains power cable, but pull the mains plug out of the mains socket immediately. Damaged or tangled mains power cables increase the risk of electric shock.
DANGER OF ELECTRIC SHOCK!
Do not stick needles or sharp objects into the heating pad. There is a risk
of electric shock.
If you use a cardiac pacemaker, please consult your doctor and the manufacturer of the pacemaker
before using this heating pad. The electric and magnetic fields generated by this electric
Important safety instructions
heating pad may under certain circumstances interfere with the operation of cardiac pacemakers. However, the levels are far below the permissible limits: details of these levels can be found in the "Technical data" chapter.
WARNING! DANGER OF ELECTRIC
SHOCK AND INJURY! Inspect the heating pad carefully before every use to check for signs of wear and / or damage. Do not use the heating pad if you discover wear or damage or if it has been subject to improper use. In this case, send it back to the dealer or his service centre before using it again. Risk of injury!
Children or anyone lacking the knowledge or experience to use the heating pad, or anyone with restricted physical, sensory or mental capacities, must not use the heating pad without supervision or instruction by a person responsible for their safety. Children must be supervised to ensure that they do not play with the heating pad. Risk of injury!
RISK OF INJURY FROM BURNS!
Do not use this heating pad for helpless persons, infants or persons who
are insensitive to heat (e.g. diabetics, people with disease-related changes to the skin or scarred skin in the area of use, or after taking pain-relieving medication or consuming alcohol). There is a risk of receiving skin burns.
d in this
neck & shoulder heating pad the high human ecological requirements of Öko-Tex Standard
100, as verified by the German Hohenstein Research Institute.
RISK OF INJURY FROM BURNS!
This heating pad must not be used by children unless the control 1 has
been preset by a parent or other responsible person, or unless the child has been instructed sufficiently in how to use this heating pad safely. There is a risk of receiving skin burns.
CAUTION! Take care that you do
not fall asleep while the heating pad is in operation. Excessively long use
can cause skin burns.
Do not use the heating pad on any part of the body that is inflamed, injured or swollen. Seek medical advice before using the heating pad if in doubt. Such inflammation, injuries and / or swelling may otherwise worsen.
■ Repairs must only be carried out by specially trained personnel or at a repair shop authorised by the manufacturer, since special tools are necessary. Improper repairs may result in considerable dangers for the user.
If the power supply cord of this appliance is damaged, it has to be replaced by the manufacturer, a repair shop approved by the manufacture or a similarly qualified person in order to avoid any danger.
Avoid damage to the heating pad!
■ Please ensure that you:
- only connect the heating pad to the voltage indicated on the heating pad (label),
- only use the heating pad in conjunction with the control 1 indicated on the heating pad (label),
- do not operate the heating pad without supervision,
do not switch the heating pad on if it is folded or bunched up,
- do not cause any sharp creases in the heating pad,
- do not place any objects, e.g. suitcase or washing basket, on the heating pad when it is switched on,
- do not place any sources of heat, e.g. hot water bottle or similar, on the heating pad when it is switched on.
These may all damage the heating pad.
Do not cover the control 1 and do not place it on the heating pad when the pad is in operation. The electronic components in the control 1 of the heating pad cause the control 1 to heat up slightly during operation.
- Do not pull, twist or crease the cables.
Safety system / Preparations for use
●Safetysystem
Note: the heating pad is equipped with a safety system. The electronic sensor technology prevents the entire surface of the heating pad from overheating by automatically switching off in the event of a fault. If the safety system switches the heating pad off automatically due to a fault, then the function display 2 on the control unit 1 is no longer illuminated, even if the heating pad is switched on.
☐ Please note that, for safety reasons, the heating pad must not be used after a fault and must be returned to the service address indicated.
● Preparations for use
Note: the heating pad may smell of plastic the first time you use it, but this will disappear after a short period of time.
☐ To begin, first connect the control 1 to the heating pad with the plug-in connector 3 (see fig. B).
☐ Position the heating pad according to your individual requirements on your back or stomach (see fig. C).
☐ Wind the long, extendible rubber band around your body.
☐ Then fix the heating pad to your body by connecting the Velcro fasteners of the heating pad with the Velcro fasteners of the rubber band (see fig. D).
- Switching on / off / Selecting the temperature
Switching on:
☐ Set Level 1, 2, 3, 4, 5 or 6 on the control ☐ to switch the heating pad on.
Note: The function display 2 illuminates after the heating pad is switched on.
Note: this heating pad features rapid heating, which allows it to heat up within the first 10 minutes of operation.
Switching off:
☐ Set Level 0 on the control ☐ to switch the heating pad off.
Note: the function display 2 ceases to illuminate.
Selecting the temperature:
☐ Just before using the heating pad, set it to the highest temperature setting (level 6). This will cause the heating pad to warm up quickly.
☐ If you wish to leave the heated pad on for several hours, set the lowest temperature (level 1).
●Temperaturelevels
☐ Set the required temperature level on the control 1 (see fig. A).
Level0:off
Level 1: minimumheat
Level2-5: customisedsettings
Level6: maximumheat
●Automaticswitch-off
Note: The heating pad switches itself off automatically after about 90 minutes. The function display 2 then starts to flash.
☐ Then select the setting "0" and after about 5 seconds, reset the heating pad to the desired temperature setting to switch it on again.
☐ Switch the heating pad off (setting "O") if the heating pad is not to be used after it has switched itself off automatically.
Cleaning and Care/Storage
- Cleaning and Care
RIS ON/WNING!
FROM ELECTRIC SHOCK! Always remove the mains plug from the socket and the plug-in connector 3 with the control 1 from the heating pad (see fig. B) before cleaning the heating pad. There is otherwise a risk of an electric shock.
DANGER OF ELECTRIC SHOCK!
Do not reconnect the control 1 to the heating pad until the plug-in connector 3 and the heating pad are completely dry. There is otherwise a risk of an electric shock.
DANGER OF ELECTRIC SHOCK! DANGER OF MATERIAL
DAMAGE! Do not under any circum- itch the heating pad on to dry help it is otherwise a risk of an electric shock.
☐ Use a dry, lint-free cloth for the cleaning and care of the heating pad and control 1.
☐ You can dampen the cloth and use a little mild liquid detergent to remove more stubborn dirt from the heating pad.
RISK OF DAMAGE TO THE
PRODUCT AND / OR OTHER
PROPERTY! Do not use chemical cleaning or scouring agents to clean the heating pad and control 1. The heating pad may otherwise be damaged.
RISK OF DAMAGE TO THE
PRODUCT AND/OR OTHER
PROPERTY! Never immerse the control unit 1 in water or other liquids. It may otherwise be damaged.
The heating pad is machine-washable. Set the washing machine at an extra washing cycle for delicate items at 30^ C .
For ecological reasons, please only wash the heating pad together with other textiles. Use a mild laundry detergent according to the manufacturer's instructions.
☐ Please note that frequent washing will cause wear to the heating pad. It should therefore be washed no more than max. 10 times in a washing machine throughout its useful life.
RISK OF DAMAGE TO THE
PRODUCT AND/OR OTHER
PROPERTY! Please note that the
heating pad may not be dry cleaned, bleached, wrung out, dried mechanically, mangled or ironed. The heating pad may otherwise be damaged.
RISK OF DAMAGE TO THE
PRODUCT AND/OR OTHER
PROPERTY! Do not hang the heating pad up to dry with pegs or similar. The heating pad may otherwise be damaged.
Note: Non-observance of the following warnings may damage the heating pad.
Do not use bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).
Do not dry in a tumbler dryer.
Do not iron.
Disposal / Warranty / Service centre / Declaration of conformity
●Disposal
The packaging and ancillary packing consist of environmentally friendly materials. They can be disposed of at your local recycling facility.
Do not dispose of electrical devices with the household rubbish!
In accordance with European Directive 2002 / 96 / EC (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical devices must be collected separately and taken for environmentally compatible recycling.
Contact your local refuse disposal authority for more details of how to dispose of your worn out heating pad.
● Warranty / Service centre
We provide a 3-year warranty covering faults in materials or manufacture of the product from the purchase date.
The warranty does not cover:
- Damage resulting from improper use.
·Wearparts. - Defects that were known to the customer at the time of purchase.
- Damage for which the customer was responsible.
This warranty does not affect the customer's legal rights.
The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Claims under the warranty within a period of 3 years from the date of purchase are honoured by
89129 Langenau, Germany.
In the event of a warranty claim, the customer has the right to have the goods repaired by our own workshop or a workshop authorised by use. The heating pad must not be opened for any reason. Opening or modifying the device invalidates the warranty. This warranty does not grant any additional rights to the customer. Complaints are often initiated by difficulties encountered during use. Many of these complaints can be resolved by telephone or e-mail. Please contact our Service Hotline in the first instance, before you return the device to the manufacturer.
IAN 73872
GB
020 30249050
● Declaration of conformity CE
This heat pad complies with the requirements of the relevant European and national guidelines.
This is confirmed by the CE mark.
The relevant declarations are held by the manufacturer.
