| Product type | Indoor/outdoor thermometer with wired sensor |
| Power supply | 1 AAA 1.5V battery (included) |
| Indoor temperature range | -10°C to +40°C |
| Outdoor temperature range | -40°C to +60°C |
| Outdoor sensor cable length | Approximately 2.8 m |
| Outdoor sensor protection rating | IP44 (protected against water splashes) |
| Display | Liquid crystal display (21 x 50 mm) |
| Main functions | Time display (24h format), indoor and outdoor temperature, recording of minimum and maximum temperatures |
| Mounting | On stand (foldable stand), wall mounting (wall plug and screw provided), or adhesive strip provided |
| Cleaning | Slightly damp, lint-free cloth; do not use corrosive or abrasive cleaning products |
| Safety | Do not disassemble; do not expose to high electromagnetic fields; keep away from heat sources; keep batteries out of reach of children |
| Warranty | 3 years from date of purchase (excluding normal wear and batteries) |
Frequently Asked Questions - Z31482B AURIOL
User questions about Z31482B AURIOL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Thermometer in PDF format for free! Find your manual Z31482B - AURIOL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Z31482B by AURIOL.
USER MANUAL Z31482B AURIOL
DE AT CH
INNEN-/AUSSEN- THERMOMETER
Operation and Safety Notes
NL ME
BINNEN-/ BUITENTHERMOMETER
GB / IE Operation and Safety Notes Page 26
Abstract black and white circular logo with curved arrows (no text or symbols)chemical
Recycling symbol with labels a and b, indicating two cycles of recyclingnatural_image
Symbolic icon of a person recycling a bag with arrows, enclosed in a circle (no text or symbols)natural_image
Silhouette of a person sorting trash into a bin (no text or symbols)natural_image
Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)natural_image
Simple line drawing of a trash bin with two crossed lines indicating no text or symbols (no text or numbers present)Description of parts ...... Page 28
Technical data ...... Page 28
Scope of supply......Page 29
Safety notes ...... Page 30
Safety instructions for batteries / rechargeable batteries....Page 32
Before use......Page 34
Getting started......Page 35
Inserting / changing the battery...... Page 35
Positioning / installing the product...... Page 35
Mounting the product on a wall......Page 37
Temperature memory ...... Page 38
Setting the time ...... Page 39
Troubleshooting Page 40
Cleaning and care......Page 40
Disposal...... Page 41
Warranty Page 43

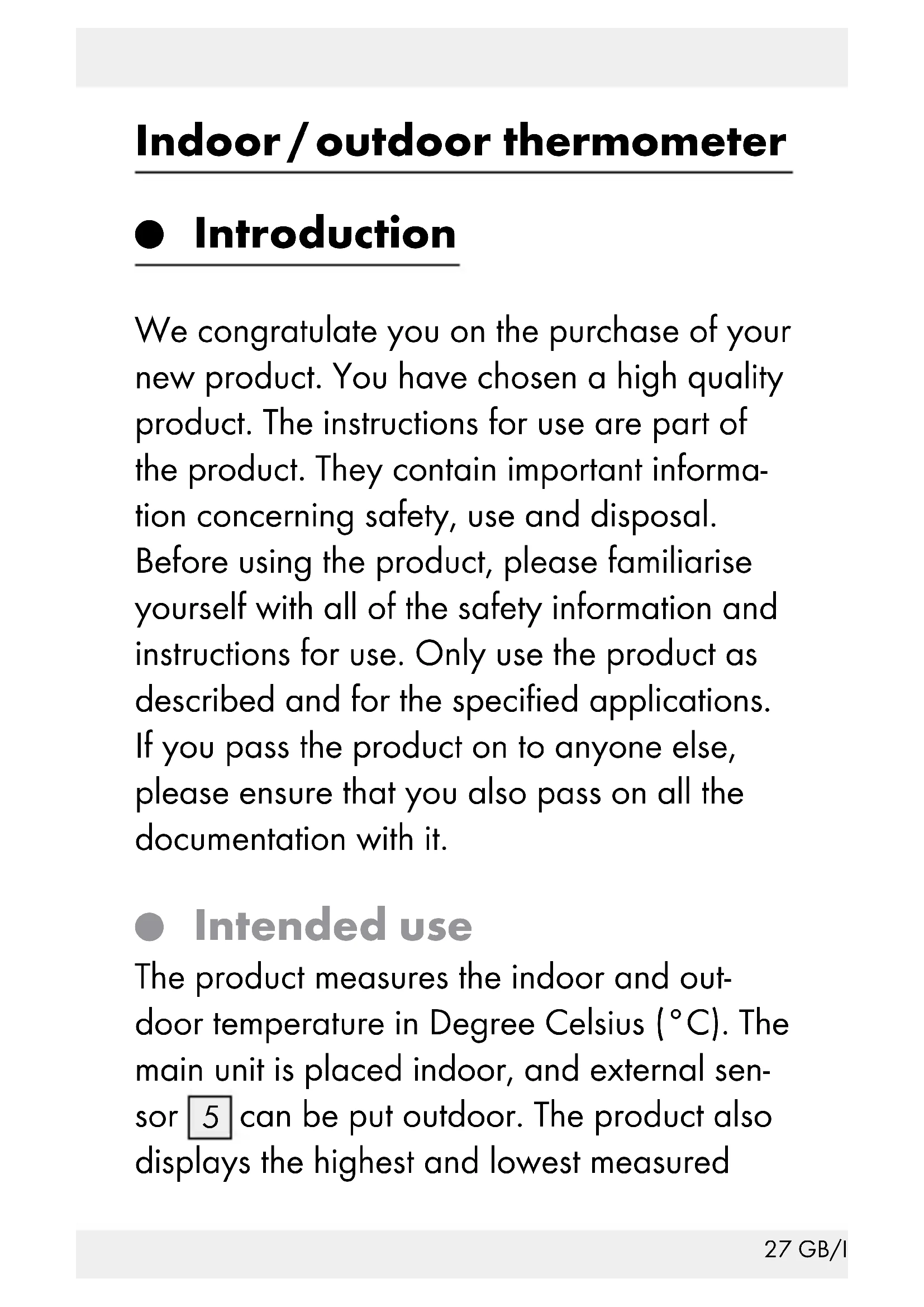

Indoor / outdoor thermometer
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal.
Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications.
If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
- Intended use
The product measures the indoor and outdoor temperature in Degree Celsius (°C). The main unit is placed indoor, and external sensor 5 can be put outdoor. The product also displays the highest and lowest measured
temperature and the time in 24-hour format. The product is not intended for commercial use.
• Description of parts
1 Indoor/outdoor thermometer
2 "TIME" display
3 "IN" indoor temperature display
4 "OUT" outdoor temperature display
5 External sensor
6 "SET" button
7 MIN/MAX button
8 Stand
9 Battery compartment cover
10 Battery compartment
11 Hanger
12 Dowel
13 Screw
14 Self-adhesive pad
- Technical data
Operating voltage: 1.5V (direct --- current)
Power supply: 1 x 1.5 V (direct ---
current) AAA
battery (included)
Temperature range: Indoor: -10 °C to
+40 °C
Outdoor: -40 °C to
+60 °C
External sensor: IP44 (splash proof)
External sensor cable: approx. 2.8 m
LC Display: 21 x 50 mm
(Width x Length)
- Scope of supply
Please check the supplied items immediately after unpacking the product to ensure that there is nothing missing and that the product and all of its parts are in perfect condition.
Do not under any circumstances install the product if the delivery scope is incomplete.
1 Indoor/outdoor thermometer
1 1.5 V = (direct current) AAA battery
1 Dowel
1 Screw
1 Self-adhesive pad
1 Operating manual
1 Screw
1 Self-adhesive pad
1 Operating manual
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
- Never dismantle the product. Improper repair can cause significant risks to the user. Repairs must always be carried out by a specialist only.
- Do not use the product if it is damaged. Damaged products represent a danger of death from electric shock!
- Do not expose the product to an extremely high electromagnetic field. This may impair the correct functioning of the product.
- Please prevent the housing of the product from rubbing to strongly against textiles. This may result in static charges and affect the results of the measurements.
Please note that the guarantee does not cover damage caused by incorrect handling, non-compliance with the operating instructions or interference with the product by unauthorised individuals.
- Install the external sensor 5 outdoors so that it is not exposed to direct sunlight.
■ Take care that the mains lead is not damaged on installation.
■ DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION!
Never recharge non-recharge-able batteries. Do not shortcircuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.
■ Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
- Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.
WEAR PROTECTIVE
GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
■ Remove the batteries / rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery/rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.
- Before use
Note: Remove all packaging material from the product.
Note: Remove the protective foil from the product.
- Getting started
- Inserting / changing the battery
□ See Fig. B.
- Positioning / installing the product
CAUTION! When choosing a position for the product, make sure that it is not exposed to direct sunlight, vibrations, heat, cold damp or dust. Do not install products close to heat sources, e.g. radiators. There is otherwise a danger that the product will be damaged.
Take care that the product is suspended properly if mounted on a wall. If the product falls, it could cause injury or damage to itself or other property.
Place the product on a flat, level surface.
☐ Do not place the product on valuable or sensitive surfaces without suitable protec-
tion. The surfaces may otherwise be damaged.
Stand:
Open the stand 8 on the back of the product to support the product.
Wall mount:
Note: you will need a drill for this step.
⚠️ CAUTION! DANGER TO LIFE, RISK OF INJURY AND DAMAGE TO
PROPERTY! Please read the operating and safety instructions for your drill carefully.
☐ Hold the product on the wall to find a suitable position for installation.
☐ Use a pencil if necessary to mark the required position.
⚠️ DANGER OF ELECTRIC SHOCK! DAN- GER OF DAMAGE TO PROPERTY! DANGER OF INJURY! Ensure that you do not strike electrical cables, gas or water pipes when you are drilling into the
wall. If necessary, check the wall using a suitable detector before you drill.
Drill a suitable hole in the wall using a drill.
☐ Push a dowel 12 into the hole and screw a screw 13 into the dowel 12. Ensure that the screw 13 is not completely screwed into the dowel 12.
- Hang the indoor / outdoor thermometer 1 from the screw 13. To do this hook the hanger 11 of the indoor / outdoor thermometer 1 on to the screw 13.
- Mounting the product on a wall
☐ Pull the protective foil from one of the sides of the self-adhesive pad 14.
□ Stick the self-adhesive pad 14 on to the back of the product.
☐ Pull the protective foil from the other side of the self-adhesive pad 14.
Take the product to the desired location and press it carefully on to a wall or other smooth surface.
Note: Wait 24 hours after installation until using the product. This is to allow the self-adhesive pad 14 to achieve an optimum level of adhesion. After installation, do not change the position of the self-adhesive pad 14, otherwise the level of adhesion achieved by the self-adhesive pad 14 could be reduced.
● Temperature memory
☐ Press the MIN / MAX button 7 to show the lowest temperature measured indoors, "IN" 3, and outdoors, "OUT" 4.
☐ Press the MIN / MAX button 7 again to display the highest measured temperature.
☐ Press the MIN / MAX button 7 again to return to the display of the current temperature.
Note: if the MIN / MAX button is not pressed for 5 seconds, the display automatically reverts to the current temperature.
Note: the stored lowest and highest temperature is deleted every day at 00:00 and measurement begins again.
- Setting the time
Press the "SET" button 6 briefly to begin setting the hours. The hours in the "TIME" display 2 flash.
☐ Press the MIN / MAX button 7 to set the hours.
Tip: keep the MIN / MAX button 7 pressed. This allows you to make the settings faster. If you do not press any button for 60 seconds, the LC display automatically reverts to the standard display.
☐ Press the "SET" button 6 briefly again to begin setting the minutes. The minutes in the "TIME" display 2 flash.
☐ Press the MIN / MAX button 7 to set the minutes.
Press the "SET" button 6 briefly again to confirm the set time.
Note: the set time is also confirmed if no button is pressed after 60 seconds.
Note: the thermometer now displays the current time under "TIME" 2, the indoor
temperature "IN" 3 and the outdoor temperature "OUT" 4.
Troubleshooting
Note: the product contains sensitive electronic components. It is therefore possible that radio transmission devices in its immediate vicinity may cause interference.
☐ Remove any such device from the vicinity of the product if errors occur on the display.
Note: electrostatic discharge may interfere with operation.
☐ In the event of any malfunction, briefly remove the battery and replace it as described under “Inserting / changing the battery”.
● Cleaning and care
- Do not under any circumstances use corrosive or abrasive cleaning agents.
Otherwise the surface of the product can be damaged.
☐ Use a slightly dampened, non-fluffing cloth to clean the product.
- Disposal
chemical
Recycling symbol with labels a and b, indicating two types of recyclable materialsObserve the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not
limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly. The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
