VCC 5325 AR - Vacuum Cleaner BEKO - Free user manual and instructions

Brand	Beko
Model	VCC 5325 AR
Product type	Canister vacuum cleaner with bag
Nominal power	800 W
Supply voltage	220-240 V ~ 50-60 Hz
Noise level	76 dBA
Dust container capacity	3,2 L
Operating radius	8 m
Power cord	With automatic rewinder
Telescopic tube	Yes, height adjustable
Main brush	Hard floor/carpet brush (2 positions)
Included accessories	Crevice tool for slots and hard surfaces
Filters	Motor protection filter, foam filter, HEPA filter
Bag full indicator	Yes, with red zone above 50%
Power adjustment	On the device (rotary knob) and on the handle (manual control)
Intended use	Household
Storage	Vertical or horizontal storage with hook on the device
Safety	Automatic shut-off not mentioned, but unplugging before maintenance required
Filter maintenance	Cleaning after 5 bag changes, wash with water and dry 24h
Warranty	Standard Beko (see conditions, non-genuine bags excluded)

Frequently Asked Questions - VCC 5325 AR BEKO

How to change the dust bag of the Beko VCC 5325 AR vacuum cleaner?

Open the top cover by pressing the release lock of the dust container. Remove the full bag by sliding it upwards. Insert a new bag following the arrow direction, then close the cover. Do not force the closure.

What filters does the vacuum cleaner have and how to maintain them?

The appliance includes a motor protection filter, a foam filter and a HEPA filter. Clean them after 5 bag changes: wash with running water, wring lightly and dry at least 24 hours before reinstalling. Do not use a heat source for drying.

What to do if the fill indicator turns red?

The fill indicator shows the bag level. If it displays a red zone above 50%, replace the dust bag immediately. An overfilled bag reduces performance.

How to adjust the suction power on the Beko VCC 5325 AR?

You can reduce power via the rotary knob on the device (turn clockwise to decrease) or by pushing the control on the handle forward to reduce suction at the brush.

Can I use the vacuum cleaner to pick up water or liquids?

No. This vacuum cleaner is designed only for dry use. Vacuuming water or liquids may damage the appliance and void the warranty. Use it exclusively for dry dust.

What type of dust bag to use?

Use only genuine Beko dust bags or those recommended by the manufacturer. Non-genuine bags may tear and damage the appliance, and repairs will not be covered by the warranty.

How to adjust the brush for hardwood or carpet?

On the hard floor/carpet brush, an adjustment lock lets you choose the position: for hard floors (position with hardwood floor pictogram) and for carpets/rugs (position with carpet pictogram). Adjust according to the floor to be cleaned.

Can the vacuum cleaner pick up ashes or cigarette butts?

Yes, but only if the butts are completely cooled. Never vacuum flammable or burning materials. For fine ashes, the bag will fill faster.

How to store the vacuum cleaner after use?

Turn off and unplug the appliance. Wind the cord by pressing the wind button. You can store the brush vertically (hook in the lower groove) or horizontally (groove at the back). Store the appliance out of reach of children.

What to do if the vacuum cleaner loses suction?

Check that the bag is not full (replace if necessary). Clean the filters (see maintenance). Make sure the hose and tube are not blocked or damaged. If the problem persists, contact an authorized service.

USER MANUAL VCC 5325 AR BEKO

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING:Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH	4-10
ITALIANO	11-19
ROMANIAN	20-29
SLOVENŠČINA	30-37
SVENSKA	38-45
ČESKY	46-53
MAGYAR	54-62
BULGARIAN	63-72
FRANÇAIS	73-81
POLSKI	82-92
DEUTSCH	93-101
ESPAÑOL	102-111
NEDERLANDS	112-120
PORTUGUES 121-129
SHQIPTARE 130-137
CPПСКИ	138-145
MAKЕДОHСКИ	146-154
UKRANIAN	155-163

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international security standards.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.

• Your mains power supply should comply with the information supplied on the rating plate of the appliance.

• The mains supply of the appliance must be secured with a minimum 16 A fuse.
• Do not use the appliance with an extension cord.
• In order to prevent the power cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.
• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.
• Do not vacuum water or other liquid materials.
• Protect the appliance from rain, humidity and heat sources.

1 Important safety and environmental instructions

• Never use the appliance in or near to combustible or inflammable places and materials.
• Unplug the appliance before cleaning and maintenance.
• Do not dip the appliance or its cable in water to clean it.
• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.
• Do not attempt to dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.
• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.
• Do not use the appliance without filters; otherwise it can get damaged.

• When vacuuming the stairs, the appliance should be located below the user.

• If your store the package material, keep it out of the reach of children.

1.2 Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your vacuum cleaner

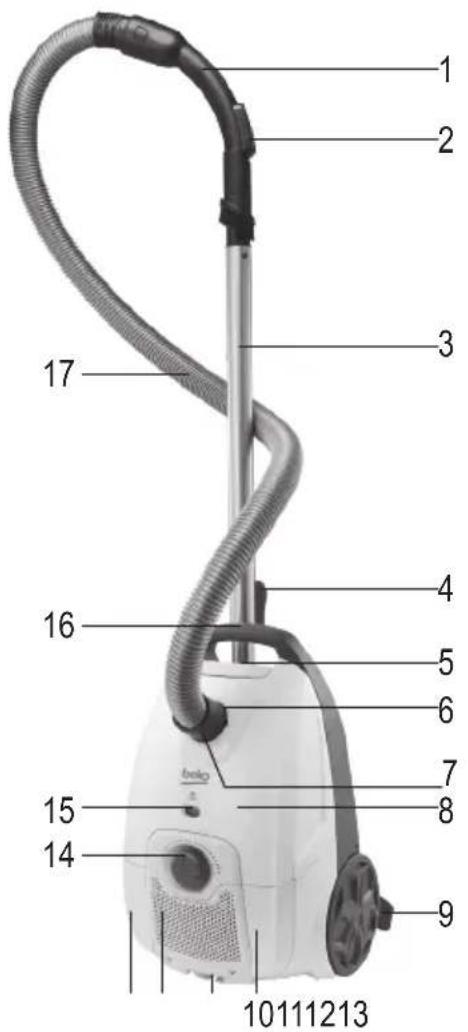

2.1 Overview

1. Handle
2. Vacuum control
3. Telescopic tube
4. Telescopic tube adjustment latch
5. Dust container release latch
6. Suction nozzle
7. Hose cap
8. Top lid
9. Parquet/carpet brush
10. Power cable winding button
11. Parquet/carpet brush parking groove
    12.Filter cap
12. On/Off button
13. Suction power adjustment knob
14. Dust indicator
15. Carriage handle
    17.Hose

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

2.2 Technical data

Power : 800W

Supply voltage: 220-240V\~,50-60Hz

Sound level : 76 dbA

Dust capacity : 3.2L

Operating radius : 8m

Rights to make technical and design changes are reserved.

3.1 Intended use

The appliance has been designed for household use and is not suitable for industrial use.

3.2 Attaching/removing the hose

1. To attach the hose (17), push the hose cap (7) in the arrow direction in order to match it with the suction nozzle and rotate it clockwise.
2. To remove the hose (17), rotate the hose cap (7) counter-clockwise and pull it.

3.3 Attaching/removing the telescopic tube

1. Attach the telescopic tube (3) to the handle (1).
2. Pull the telescopic tube (3) from the handle (1) to remove it.
3. Push the telescopic adjustment latch (4) in the arrow direction and pull the telescopic tube (3) to adjust its length.

3.4 Attaching/removing the parquet/carpet brush

You can install/remove the narrow end of the telescopic tube (3) from/to the parquet/carpet brush (9).

3.5 Adjusting the parquet/ carpet brush

Perform the following actions on the adjustment latch (4) located on the parquet/carpet brush (9);

• Use position for hard floors and parquet.

• Use "" position for rugs and carpets.

3.6 Operation

1. Plug in the appliance after pulling the power plug located at the back of the appliance.
2. Press the on/off button (13) to switch on your appliance.

3.6.1 Adjusting the suction power

1. You can adjust the suction power using the suction power adjustment button (14) found on the appliance. Rotating in the clockwise direction will increase the suction power and in counterclockwise direction will decrease the suction power.
2. You can lower the suction power of the parquet carpet brush by pulling backward the vacuum adjustment control (2) located on the handle (1) without the need to use the suction power adjustment knob (14) found on the appliance.

3 Usage

3.6.2 Dust indicator

Dust indicator (15) indicates the fullness of the dust bag. When the indicator displays red zone more than 50% , replace the dust bag. (see 4.1).

3.7 Accessories

Crevice tool

Suitable for cleaning surfaces difficult to clean, such as areas under sofas and furniture.

WARNING: Do not perform cleaning tasks using the end part of the handle (1).

3.8 Switching off and parking the appliance

1. Switch off the appliance with the on/off button (13) and unplug it.
2. Wind the power cable by pressing the power cable winding button (10).

Vertical parking feature

Insert the parking hook of the parquet/carpet brush into the parking groove located at the bottom section of the appliance.

Horizontal parking feature

Insert the parking hook of the parquet/carpet brush into the parking groove (11) located at the rear section of the appliance.

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

4.1 Replacing the dust bag

1. Open the top lid by pressing the dust container opening latch (5).
2. Remove the full dust bag from its guide, sliding it in upwards direction.
3. Dispose the full dust bag.
4. Insert the new dust bag holding it in the arrow direction indicated on it. Ensure that it is fully seated.
5. Close the appliance's top lid (8).

WARNING: Do not force the top lid (8) to close it, otherwise the plastic sections can be damaged.

WARNING: Dust bags purchased from locations other than the authorized dealers and services are not original. Unoriginal dust bags have a lesser quality and they become torn in a shorter period and render your appliance nonoperational. Faults caused due to using unauthentic dust bags are not covered within the warranty.

WARNING: Do not wash the dust bag.

4.2 Cleaning the filters

Motor Protection Filter

Foam filter

HEPA filter

After each 5 dust bag replacement (may vary depending on the frequency and area of usage), clean the filters.

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they have dried.

4 Cleaning and care

4.2.1 Motor protection filter

1. Open the top lid by pressing the dust container opening latch (5).
2. Press down on the latch of the filter cassette to remove the cassette.
3. Remove the motor protection filter from the cassette inside.
4. After washing the motor protection filter under running water, wring it out slightly and let it dry (for 24 hours minimum).

4.2.2 HEPA filter

1. Raise the filter cap in the arrow direction to open it.
2. Remove the HEPA filter by pulling it from its handle.
3. Shake off the HEPA filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.
4. If you wash the HEPA filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.

4.2.3 Foam filter

1. Raise the filter cap in the arrow direction to open it.
2. After removing the HEPA filter, pull out and wash the foam filter located behind it.
3. After washing the motor protection filter under running water, wring it out slightly and let it dry (for 24 hours minimum).

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

MaTePnAnB CbOTBETCTBNE C

HaNoHaNo-TO HN 3aKoHoJaTeJICTBO.

He n3xBp- JIyTe ONaKOBbHnTe MaTePnAaN C 6n- TOBn nn npyn OTnAbu. OTheCeTe n B ceHTbp 3a cbbnpaHe Ha ONaKO-BbHuN MaTePnAaN, NocOueH OT MeCt-HnTe Bnactn.

2.1 Перлес

1. PbkoXBaTkA
2. KOHTPOJ HA BCMyKaTeJIHaTa MOUHOCT
3. TeneckonuHa Tpb6a
4. TeneckonuHa Tpb6a n perynpyema 6noknpobka
5. KIIOUaJIka 3a OcBO6OxJaBaHe Ha KOHTeINHepa 3a npax
6. 3acmykbaaHaKpaHnK
7. Kanayka Ha Mapkya
8. Topeh Kanak
9. YeTKa 3a napKeT/KNJIM
10. ByToH 3a HauBaHe Ha 3axpaHbuaIg Ka6eI
11. KaHan 3a 3aKaUBaHe Ha Yetkata 3a NapKeT/ KJIMM

12. Kanayka Ha qnilTbpa

13. ByToH, BkJ./m3KJ.

14. Konue 3a cmykaTeHaTa MoUHOCT
    15.Индikatop 3a npax
    16.Дрьхka 3a Hoche
15. Mapky

2.2 TexHnueckn daHHN

MoUHocT : 800W

3axpaHbauo

HapexeHne : 220-240V\~, 50-60Hz

HnboHaWyma : 76 dbA

IpaBTo Ha TexHnueckn MoDnΦnKaaunn I

PpOMeHnBdN3aHa e 3aNa3eHo.

3.1 Праздаизауне

YpeBTe c63daen Da ce N3PON3Ba B DOMOBe Hne e noxoada 3a nHdyctpnaHa ynoTpe6a.

3.2 3aKenBaHe/OTcTpaHЯBaHeHa Mapkyu

1.3a da npinkpenite Mapkyua (17), HATnchete kanaqkata My (7) no nocokata Ha cTpeknkata, Dokato ce nOdpabHn C mapkyua n 3aBbptete no nocoka Ha yacOBHKOBATA cTpeknka.
2.3a da OTcpaHnTe Mapkyua (17), 3abbpTeKe KaapKaTa My (7) no nocoka, o6paHa Ha YacOBHNKOBaTa CTpeIka I nI3BaJeTe.

3.3 Пocтаянe/OTсраняВан eHa TeleecKoПиЧаТа Tрь6a

1.3aKaayete TeneckonuHaTa Tpb6a (3) KbM dpbXkata (1).
2.ИЗтеле Teleleckоинчata Tpb6a (3) otdpьжкata (1), 3aда яизвадиTe.
3. Ппшichte телескочинata Трьба Кьм Perулupaаata 6лokировka (4) по посока настrelkata и n3дьрайte Трьбata (3), за за Perулрate Дьлжинatura.

3.4 ПрикpenBaHe/OTCTpaHЯBa-He Na YeTkata 3a napKeT/KnJIIM

Moxete da MOHTnpate/OTCTpaHnte TeceH kpaHa TeleckonuHaTa DpbXka (3) Ha/OT YetKaTa 3a napKeT/KnIm (9).

3.5 PerylnpaHe Ha yeTkata 3a napKeT/KNJIM

I3BbPwBaIe TcIeHHTe DeIcTBnC peRyInpyeMaTa 6NOKIpOBKa (4), pa3noJIOKeHa Bbpxy YeTkata 3a napKET/KnIm (9);

• 3no3BaTe no3nue 3a TBbpN noOBe n napket.

• 3a KNTeHnN IN KINIMN.

3.6 Pa6ota

1.BkIIOUeTe ypeDa B KOHTaKT KaTo n3DbpNaTe 3axpaHbAuny uenCeI OT 3aHaTMy CtpaHa.
2.3a Da BKNIOUHTe ypeDa, HATNCHETe 6yToHa 3a BKn./n3Kn.(13).

3.6.1 PerylnpaHe Ha BCMyKaTeJHaTa MOUHOCT

1. Moxete da perynipate BCMykateHaTa MOHOC, N3NoJ3BaIK KJIIOOBeTe 3a perynipae Ha CmykateHaTa MOHocT (14) Ha npaxocmykaKaTaN. BbptHeTo No nocoka Ha YacOBHKoBata CTpeJka Ue yBelenu CMyKATEHaTAMOHOC T B O6paTHa Ha YacOBHKoBata CTpeJka NOcoka Ue HamaN CMyKATEHaTAMOHOCT.
2. Moxete da HamaJIte CmyKaTeJIHaTa MOUHOCT Ha YETkata 3a NapKeT IN KINIM C DbPnaHe Ha3aI Ha ynpabIeHneTo 3a HAcTpOJa Ha BaKyyMa (2), HAMIPAso ce Ha dpbXkata (1), 6e3 Da e Heo6xoJMo Da n3NoJ3BaTe KOJceto 3a peryIpaHe Ha CmyKaTeJIHaTa MOUHOCT (14) Ha ypeDa.

3 ynoTpe6a

3.6.2 Инданкатор за прах

INHnKaTOpbT 3a npax (15) noka3Ba, KOIko NblHa e Top6nKata 3a npax. Korato INHnKaTOpbT noka3Ba YepBeHa 3oHa NOBuee ot 50% , CMeHete Top6nKata. (BIX 4.1)

3.7 Akcecoapn

Pnictabka c TeceH npocen

Iopxodya e 3a Tpydno nouchBaA uCe NOBbpxHOCTN, KaTO oBnaCTN, OCTabaun NOD Macn MebeJIN.

ПЕДУПЕЖДECHNE:

He nouchBaIte, n3noJ3BaIKn KpaHata YacT Ha dpbXkata (1).

3.8ИЗКПЮЧВаHeи napКИраHeHa урEDA

1.ИЗключete урета ot 6уToHa 3a BKn./ИЗкл. (13) IиИЗвадеTe Ueпсеса OT KOHTaKТa.
2. HabniTe Ka6ena, HataNcKaiKn 6yToHa 3a HabuBaHe Ha Ka6ena (10).

BepTKaJIHo napKnpaHe yHKcIa

IocTaBeTe Kykata 3a 3akaUbaHe Ha yeTkata 3a napKeT/KnIM B KaHaJa 3a npnbpaHe, KOITo ce HAMIPA B DOJHaTA CTpHa Ha ypeDa.

Функця 3a XOpn3OHTaJIHOnnapKupaHe

Ioctabete Kykata 3a 3akaUbaHe Ha YetkaTa 3a napKeT/KNIM B KaHaja (11) 3a npnBipane, KOITO ce Hamnpa OT 3aHaTAtCTpHa Ha ypeda.

4 NocntBaHe n npdpbxxka

Ipei Da nouchte ypeia, n3KIOUeTe ro n 3BaTe UeNCeTa OT KOHTaKaT.

PPEyPPEXDEHNE:

Hikora He n3noJ3BaIte 6eH3nH pa3TBOpIeI, a6pa3INBeH noUcTbaU npenapaT, MeTaJIHn IpeDMETN TBbpDn YETKN 3a NOuCtBaHe Ha ypeDa.

4.1 Побън ha TOp6nKkaT a 3a npax

1. OTbopete rophna Kanak, kato HATnCHeTe KIOUaKATA Ha KOHTeHepa 3a npax (5).
   2.ИЗваде Te nbнота Top6nUka c npax OT HeHOTOrHe3do,ПьбзraиЯ NO NOCOKa KbM Bac.
   3.ИЗXBьрлелпьлнатаТорбчka cnpax.
2. NocTabete HOBa TOP6nUka 3a npax,ДьржknЯ no nocoka Ha cTpeJkata, yka3aHa He Hey.YBepete ce, Ye TRe e npinErHala HanbIHO.
3. 3aTbOpTe KaNaKa Ha ypeDa (8).

PPEyPExEHE: He

HaTnCKaITe CnJIHo rOpHnKaIaK (8), 3a Da ro 3aTbOpHTe, B npOTuBeH CnyaI pIaCTMaCOBtE eIeMeHTn MOxE da Ce NOBpeJr.

ПЕДУПЕЖДEHNE:

Top6nKnte 3a npax, 3akynen OTo MeCTa, pa3nHn OT OTOp3npAHnte DnIbpy n ycnyr, He ca OpunHaJIHN. HeopnHaHnTe Top6nKn mAT No-HNCKO KaeeTBO n Ce Kbcat N0-6bp3o, C KOeTO npabRT Bauny ypeJ Hen3no13Baem. Hen3npabHocTn, npuHHeHOTn3no13BaHe Ha HEnCTNHCKn Top6nKn 3a npax, He ce POKpNBat OT rapaunra Ta ha ypeda.

PPEyPExKDEHNE: He

pepeTe Top6nKkata 3a npax.

Chere cliente, cher client,

4.4 Prenos i transport

• Tokom prenosa i transporte nosite uredaj unjegovom originalnom pakovanju. Pakovanje uredaja ga stiti od fizickih ostecenja.
• Nemojte stavljati teske predmete na uredaj ili njegovo pakovanje. Ure'daj se moze oštetiti.
• Ako vam uredaj ispadne, to moze izazvati trajno ostecenje, odnosno uredaj moze postatine nefunkcionalan.

Ju lutom lexoni kété manual mé paré!

Inderuar klien,

Papnyc Ha pa6ota :8m

IpaBata 3a TexHnUKN iDn3ajHepCKN npomeHn ce 3aDpxaHn.

BpeHocHTe 1to Ce HabeEnH Co O3HaKInTe 1to Ce BnINbH aBaunot anapat nn BO Dpyr NcneuataH DoKymeHTn DOCTaBeHc CO Hero npetctabyBaat BpeHocTn Do6NeHn Na6opatOpNcKn BO cornaCHOCT co peneBaHTnTE cTaNapdN. Obne BpeHocTn MoKe da BaHPaAT CnopeNCKOPICTeHOCTa Ha ypeDT N OKONHtE yCNOBn.

3.1 HameheTa ynotpe6a

YpeIe IIN3ajHnpaH 3a IOMaUHa yNtpeBa Hne OndroBapa 3a INDyCTpNcKa npImeHa.

3.2Приклuyваьe/OTCTpaHyBa№HaцpeBOTo

1.3a da ro npinknyuhte ueboTO (17),6ythete ro kanaueTo 3a ueBO HAcOKata Ha CTpeJIkata 3a da ce COBnaDHe CO Mna3HncaTa 3a BmMyKvBaHe n CBPTe Ro BO HAcOKa Ha CTpeJIknte Ha YacOBHnKOT.
2. 3a da ro otctpaHnte ueboto (17), CBpTe ro kanaeTo 3a ueboto (7) BO cnpOTnBHa Hacoka oD CTpeJIKNTE Ha yacOBHnKOT I NOBneYeTe ro.

3.3 Приклuyваные /OTCTpaHyBaHbe Ha TeJIeCKONCKaTa ZeBka

1.Пикачete ja Teileckonckata zuBka (3) 3a paKaTa (1).
2.Повlete ja teleckonckata uebka (3) od paKaTa (1) 3a da ja otctpaHnte.
3. 3a da ja npncnocobte doJxHata Ha TeNeCKoNcKaTa ueBka, npNTnCHeTe ro pe3eTe 3a npncnocobyBaHe (4) BO HAcoka Ha cTpeIknKaTa n NobJeHe ja TeneckOcnckaTa ueBka (3).

3.4 Приклuyваные/OTстара hyваtheses Ha cheTkata 3a napket/tenix

Moxete da ro npikaute/OTcpaHnte TECHNt Kpaj Ha TeJeckonckata ueBka (3) Ha/od YetKaTa 3a napKeT/Tenix (9).

I P E D U N P E D Y B A H E:

Hemojte Ha cnna da ro 3aTbopate rophnoT kanak (8), BO cnpotnBHO MOxke da ce OwTeTa T nlaCTnHHTe DeIOBN.

PENyPENyBAHbE:

BpeKnKte 3a npab Kynehn
OD JOKaunu To He ce Ha
aBTOpN3npaHn DnIepn n
cepBncn He ce opnHaJIHN.
HeopnHaJIHnTe BpeKnKn maaT
nomaJI KBaJITet N Ce KInat 3a
MHORY KpaTOK nepNoD co wTo ypeDo
Ke BN bnde HADBOP od cyHKunja.
Ppo6JeMITE npEn3BVKaHn nopadi
HeABTeHTUHN BpeKnKn 3a npab He
ce onpateHn CO rapaHUnjata.

PENyPENYBAHbE:

BpeKnUkata 3a npab He cMee da ce nepe.

4.2 YncteHe Ha qnItpnte

Фиntep 3a 3aHTnTa Ha MOTOPOT

IaKyBaIbHi MaTepiAnn npucToIO BnroTOBneHi 3 BToPiHHoCnpoBHNy BiIDNoBIiHOCTi Do DepkabHnx BmOr

OxopoHn HaBKOJIuNbHO CepeoBUNa. He ytni3yIte nakyBaIbHi MaTePiAn pa3om i3 no6yTOBIMn Ta iHsIMn BiXoJamn. 3daBaIte ix y cneiaIbHi nyKTH npInomy Tapn, cnOpyJKeHi MicueBIMN KOMyHaJIbHIMN CnyXbAMn.

2 Baw nIococ

2.1.Огяд

1. Pучka
2. BakyymHn KOHTpOJB
3. TeneckoniiHa Tpy6ka
   4.ФikcaTop TeleckoniiHoi Tpy6Kn
   5.ΦikcaTop nIIO36ipHnka
   6.HacaikaДЯ BCacyBaHHa
4. 3arnyka wnahra
5. Bēpxhǎ kpnùkā
6. NapkeTha / KnimmoBa ⅢIka
7. Khonka HamotybaHHa KaebIO XNBHeHHa
8. Na3 cTOnHH napKeTHoi/ KJImMOBoI ①iTKN
9. KpnuKa qinbTpa
10. Khonka BkJIIOUeHHa
11. Puyka peryliobahnna cnnn BCacybaHHa
    15.ИнданkaTOp nIny
12. Puyka dnia nepenecenna
    17.卍naHr

2.2. Texhivni xapaktepnctnkn

NotyXhictb : 800 Bt

Hanpyra eNeKtpOxNvBneHn: 220-240B\~,50-60T

Pibehb wumy : 76 dBA

Mictkiictb nny : 3,2n

Padiys po6otn:8M

IpaBa Ha TexHiHi Ta KOHCTpyKTopcbKi 3MiHi 3ape3epBOBaHi.

3HaueHn, 10 Bkazahi Ha MapkyBaHHi, npnkpiHemohy Ha Bnpo6i, ta iHsi dpykoBani DOKymeHTN, NOCTaBHei 3 Hm, ppeCTabHOTb 3HaueHn, kIyIbOpMaHI B na6opatopix 3riDHO 3 BiNobIDHMn CTaHdaptamu. Li 3HaueHn MOxTyb 3MiHOBATncB 3aJexHocTi BiD yMOB eKcnnyataii npctpO Ta HABKOINHIX yMOB.

3 BnKOpncTaHHa

BukopncToByte 103nucIO dJI KINIMIB Ta KINMOBUX Bnpo6iB.

3.6 Pexim po6oTn

1.Пдкючыnpстpi nicяВпгннha shypaЖИВЛЕнн,po3taшОвагоHa 3ади naine npinady.
2. HataHcHb KhoNky BMnKaHHa (13), 06 yBIMKHyTN npucTpii.

3.6.1 PerylIOBaHHn noTyXHocTi BCMOKTyBaHHn

1.Bn moxete BiDperyIIOBAtn noTyXHicTb BCMOKTYBaHHa 3a DOnOMOROo KHONK peYIHOBAHHaNoTyXHocTi BCMOKTYBaHHa (14), RaKa 3HaXoIHbCra Ha npuAdi. O6epTaHHa B HAnpMky 3a rOdINHHKOBOO cTrpiIKoIO 36IbIHTb NoTyXHcTb BCMOKTYBaHHa, a B HAnpMky IpOTn rOdINHHKOBoCTPiIKn Cnla BCMOKTYBaHHa 3MeHShyEcBc.

3 BnKOpncTaHn

2.Bn MoKeTe 3MeHUnTn NotyXhIcTb BCMOKTyBaHHa NapKeTHOi KINIMOBi uITKn, HaTNCHyBUn Ha3aD peryJrTOp BaKyyMHOro peryIIOBaHHa (2),po3TaUoBAHn Ha pyuCi (1), 6e3 Heo6XiHocTi BnKOpNtOByBaTN peryJrTOp peryIIOBaHHa CInn BCMOKTyBaHHa (14), kNn 3HaXoNDtbcra Ha npuaDi.

3.6.2 IIndkaTop nIy

IIndikatop nny (15) Bka3ye Ha noBHTy Miuka dny nny. Kony iIndikatop BiOobpaxaEc YepBOHy 30hy 6iNbwe, HIX Ha 50% , 3amHITb MiWOK dny nny. (dVB.4.1).

3.7 Ппладя

UINHnHa HacaKa

PiXoNTb Dnay YIeHnY IOBepxOHb,do KNX Baxko DiCTaTncra,Taknx J3OHNPiD NIBaHAMTa Me6JAMN.

YBAG:He BnKOHyTe OuHsEHHa 3a DOnOMoTO KInCeBOI YactHnpyKn (1).

3.8 BnMkHeHHa Ta CToHnHa npnaNy

1. Bumkhitb npnna 3a donomoro KhoNkBumKHeHHa (13) ta BiD'edHaTe NOrO.
2. HamotaTe Ka6eNb XnBHeHnHaTnCHyBnKHOkY HamOTyBaHHaKa6eIIO XnBHeHn (10).
