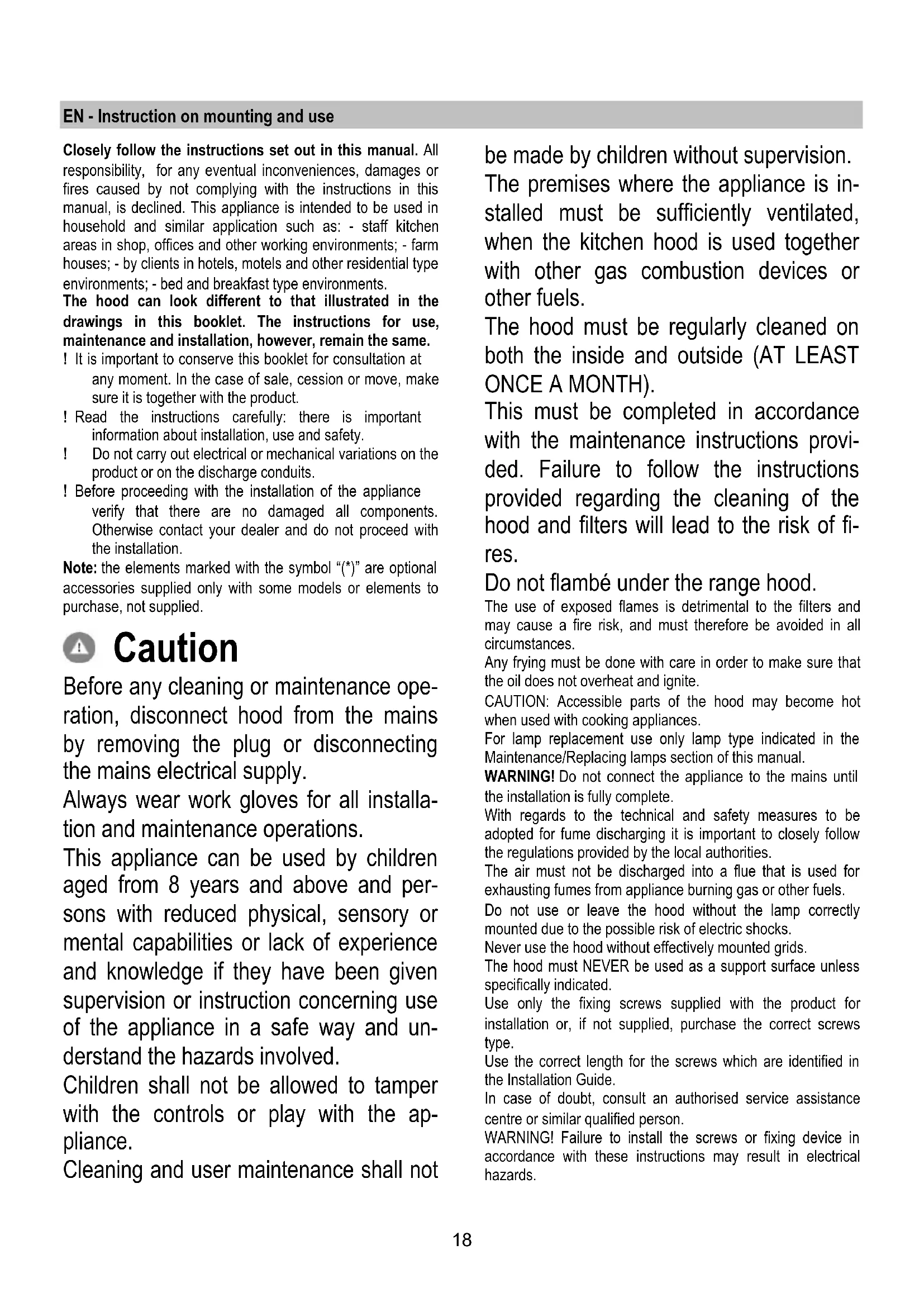

Sostituzione Lampade La cappa è dotata di un sistema di illuminazione basato sulla tecnologia LED. I LED garantiscono una illuminazione ottimale, una durata fino a 10 volte maggiore delle lampade tradizionali e consentono di risparmiare il 90% di energia elettrica. Per la sostituzione rivolgersi al servizio assistenza tecnica.18 EN - Instruction on mounting and use Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same. ! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product. ! Read the instructions carefully: there is important information about installation, use and safety. ! Do not carry out electrical or mechanical variations on the product or on the discharge conduits. ! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation. Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied. Caution Before any cleaning or maintenance ope- ration, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installa- tion and maintenance operations. This appliance can be used by children aged from 8 years and above and per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and un- derstand the hazards involved. Children shall not be allowed to tamper with the controls or play with the ap- pliance. Cleaning and user maintenance shall not be made by children without supervision. The premises where the appliance is in- stalled must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provi- ded. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fi- res. Do not flambé under the range hood. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite. CAUTION: Accessible parts of the hood may become hot when used with cooking appliances. For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual. WARNING! Do not connect the appliance to the mains until the installation is fully complete. With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. Never use the hood without effectively mounted grids. The hood must NEVER be used as a support surface unless specifically indicated. Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type. Use the correct length for the screws which are identified in the Installation Guide. In case of doubt, consult an authorised service assistance centre or similar qualified person. WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.19 Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically. This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product. Appliance designed, tested and manufactured according to:

• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise. Use The hood is designed to be used either for exhausting or filter version. Ducting version In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood. Attention! The exhausting pipe is not supplied and must be purchased apart. Diameter of the exhausting pipe must be equal to that of the connection ring. Attention! If the hood is supplied with active charcoal filter, then it must be removed. Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange). Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise. Any responsibility in the matter is therefore declined. ! Use a duct of the minimum indispensible length. ! Use a duct with as few elbows as possible (maximum elbow angle: 90°). ! Avoid drastic changes in the duct cross-section. Filter version The aspirated air will be degreased and deodorised before being fed back into the room. In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal. Installation The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to. Electrical connection The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions. Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled. Warning! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.20 Mounting Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.

• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.

• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.

In the case of the presence of panels and/or walls and/or lateral wall units check that there is sufficient space to install the hood and that access to the command panel is easy. To remove the hood from the wall unit, perform the mounting steps in reverse order. Caution! Use suitable cut resistant gloves. Start detaching the hood from the double-sided adhesive that keeps it adherent to the bottom of the wall unit (see also Fig.

Therefore, use a cutter that can be slipped between the sheet metal of the hood and the bottom of the wall unit on the right and left sides. Fig. A Caution! Otherwise, if you use force during extraction, the sheet metal of the hood could be irremediably distorted. Operation

T1. ON/OFF button “Automatic operation (sensor), connection with SNAP® ” - see the function list in the next paragraph T2. Suction speed (power) control button: 1, 2, 3, intensive Note: Intensive speed lasts for about 5 minutes, then it is automatically set to speed 3. T3. ON/OFF button (short press) and light intensity setting (long press).

Filter Saturation Indicator The hood signals when necessary to perform filter maintenance: Grease filter (every 40 hours of use): all Leds with red light Activated charcoal odour filter (every 160 hours of operation): all LEDs with red light, LEDs L2 and L3 blink Reset Filter Saturation After performing filter maintenance, press and hold buttons T1 and T3, Leds L1, L2 and L3 blink briefly in red and then turn off for good. Activation indicator for odour filter saturation with activated charcoal This indicator is normally disabled. To enable it, proceed as follows: With the hood off, press and hold simultaneously T1 and T2: L1 turns on first, then L2 and L3 and after that, when the buttons are released, the Leds L2 and L3 flash briefly to indicate successful activation. Disabling the LED for charcoal filter saturation: repeat the operation above; first the LEDs L1, L2 and L3 turn on simultaneously, then only L1, and after that, when the buttons are released, the leds L1, L2 and L3 turn on again to indicate successful disabling. Automatic operation (sensor), connection to SNAP

Caution! We recommend running the "Automatic operation settings" procedure (see below) before running the unit in automatic mode connected to SNAP

Automatic operation (sensor) The hood will turn on at the speed most suited to the cooking conditions detected by its sensor. To activate this function: Press button T1 briefly, LED L1 will turn on white. Automatic operation with SNAP

is an auxiliary extraction unit which runs together with the hood. For further details, refer to the manual included with SNAP

To activate this function: Press button T1 briefly, LED L1 will turn on orange.

Parameter setting for automatic operation Parameter setting duly takes place automatically whenever the hood is connected to the mains (for example: with the first installation or after a power cut) or manually. Note: All the manual operations of calibration, selection, setting and logical connection described below are possible with the hood OFF and automatic operation OFF (T1 OFF- L1 OFF).21 Manual setting To be performed when you notice that automatic operation is functioning unsatisfactorily; it must be performed when there are normal environmental conditions in the kitchen. Manual setting includes:

• Calibration of the hood:

• Selecting the type of hob (gas - induction or electric).
