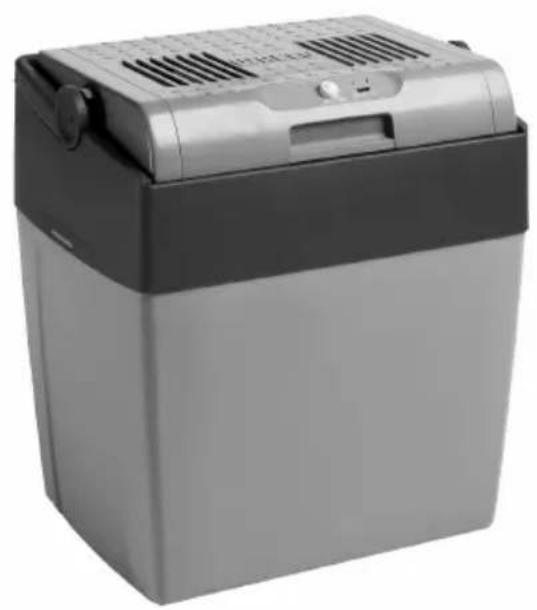

CoolFun CX26, CXT26, CX30

1 2 OFFMAX COLDOFFHOT

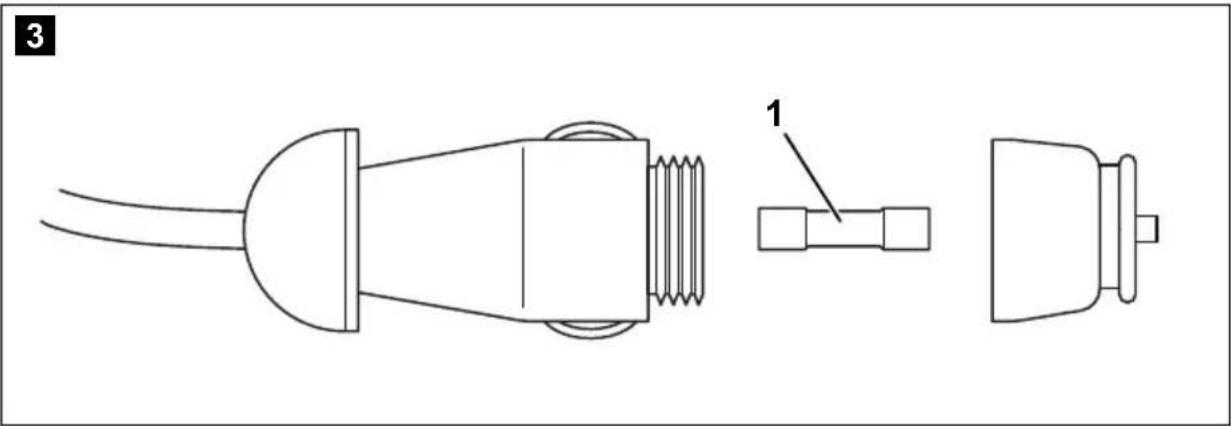

Technical line drawing of a connector with three views: top, side, and front (no text or symbols)

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is resold, this operating manual must be handed over to the purchaser along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Contents

1 Explanation of symbols 17
2 Safety instructions .... 18
3 Intended use 21
4 Scope of delivery 21
5 Technical description 22
6 Operation 23
7 Cleaning and maintenance 25
8 Guarantee 26
9 Troubleshooting....26
10 Disposal 27
11 Technical data 28

1 Explanation of symbols

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

▶ Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
√This symbol describes the result of an action.

Fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

2 Safety instructions

2.1 General safety

DANGER!

- On boats: If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.

WARNING!

• Do not operate the device if it is visibly damaged.
• If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children without supervision.
  ● Children must not play with the device.

● Children must be supervised to ensure that they do not play with the device.
● Always keep and use the device out of the reach of children under the age of 8 years.
- Do not store any explosive substances such as spray cans with a flammable propellant in the device.

CAUTION!

• Disconnect the device from the mains – before each cleaning and maintenance – after every use

- Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Check that the voltage specification on the type plate corresponds to that of the energy supply.
• Only connect the device as follows:
• With the DC cable to a DC plug socket in the vehicle (e.g. cigarette lighter)
• Or with the 230 V connection cable to the 230 V AC mains supply
  ● Never pull the plug out of the socket by the cable.
• If the cooler is connected to the DC socket: Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device.
• If the cooler is connected to the DC socket: Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.
• The cooling device is not suitable for transporting caustic materials or materials containing solvents.

2.2 Operating the device safely

DANGER!

- Do not touch exposed cables with your bare hands. This especially applies when operating the device with an AC mains power supply.

CAUTION!

- Before starting the device, ensure that the power supply line and the plug are dry.

NOTICE!

• Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
  ● Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

● Ensure that the ventilation openings are not covered.
- Do not fill the inner container with ice or fluid.
● Never immerse the device in water.
● Protect the device and the cable against heat and moisture.

3 Intended use

The cooling device can be used to cool (CX26, CXT26, CX30) and keep foodstuffs warm (only CX30). It is possible to change between the heating and cooling operation by means of a switch (only CX30).

The device can be connected as follows:

• CX26: to 12 V==
  ● CXT26: to 12 V== or to 24 V==
• CX30: to 12 V== or to 230 V\~

The cooling device is intended to be used in household and similar applications such as

● staff kitchen areas in shops, offices and other working environments
- farm houses
- clients in hotels, motels and other residential type environments
● bed and breakfast type environments
● catering and similar non-retail applications

The appliance may also be used for camping use. The appliance shall not to be exposed to rain.

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.

4 Scope of delivery

No. in fig. 1, page 3 Quantity Description

1 1 Cooling device
2 1 Instruction manual

5 Technical description

The cooler is suitable for mobile use. You can cool products to a maximum of 18 °C under the ambient temperature (CX26, CXT26, CX30) or warm them to a maximum of 65 °C (CX30).

Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan.

5.1 Control elements

No. in fig. 2, page 3 Description

1 Cooling capacity control

2 Cold/hot switch

Only CX30:

The desired mode is selected with the cold/hot switch (fig. 2 2, page 3).

When the cooler is connected to a 230 V AC mains supply, it can be used in two different operating modes:

• ECO mode: the cooler consumes less energy
  ● MAX mode: the cooler reaches maximum cooling capacity

The desired cooling capacity is selected with the cooling capacity control (fig. 2 1, page 3):

To increase the cooling capacity, turn the cooling capacity control clockwise.
For the maximum cooling capacity turn the cooling capacity control clockwise all the way to the stop (max position).
To decrease the cooling capacity, turn the cooling capacity control counterclockwise.

To turn off the cooler, turn the cooling capacity control counterclockwise all the way to the stop (off position).

When the cooler is connected to the DC socket, the cooling capacity cannot be adjusted.

6 Operation

CAUTION! Health hazard!

Food may only be stored in its original packaging or in suitable containers.

NOTICE! Risk of damage

• Ensure that the objects placed in the cooler are suitable for cooling to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy the glass containers.
• Ensure that your cooler is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents.

NOTE

• Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 25).
• A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.

NOTE

If the handle is folded back of if the cooler is being carried, the lid is locked. You can only open the lid when the handle is folded forwards.

6.1 Energy saving tips

• Choose a well ventilated installation location which is protected against direct sunlight.
• If you want to set an increased energy efficiency and a limited cooling capacity for the cooler unit, use the cooler's ECO mode.

• Allow warm food to cool down first before placing it in the device to keep cool.

• Do not open the cooling device more often than necessary.

• Do not leave the cooler unit open for longer than necessary.

6.2 Using the cooler in DC mode (CX26, CXT26, CX30)

▶Place the device on a firm base.

▶Connect the DC cable to the cigarette lighter or the DC socket in the vehicle.

√The device starts cooling/heating the interior.
▶To switch off the device, disconnect the plug.

6.3 Using the cooler in AC mode (only CX30)

▶Place the device on a firm base.
▶Connect the AC cable to the 230 V mains supply.

▶ Turn the cooling capacity control (fig. 2 1, page 3) to the desired position.
▶ Push the cold/hot switch (fig. 2 3, page 3) to the position “Cold” (cooling) or “Hot” (heating) to switch the device on.
√The device starts cooling/heating the interior.

6.4 Connecting to the cigarette lighter

NOTE

If you connect the cooler to the cigarette lighter, remember that the ignition must be turned on to supply it with power.

7 Cleaning and maintenance

WARNING!

Always disconnect the device from the mains before you clean and service it.

NOTICE! Risk of damage

● Never clean the cooler under running water or in dish water.
- Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

▶Occasionally clean the device interior and exterior with a damp cloth.
▶Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

8 Guarantee

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

● A copy of the receipt with purchasing date
● A reason for the claim or description of the fault

9 Troubleshooting

Problem Possible cause Suggested remedy
Your device is not working (plug is inserted).	There is no voltage flowing from the DC socket (cigarette lighter) in your vehicle.	The ignition must be switched on in most vehicles to supply current to the cigarette lighter.
	No voltage present in the AC voltage socket.	Try using another plug socket.
	The inner fan or the cooling element is defective.	This can only be repaired by an authorised repair centre.
When operating from the DC socket (cigarette lighter): The ignition is on and the cooler is not working.	The fuse of the DC plug is dirty. This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the DC socket fitting, either the fitting must be cleaned or the plug has not been assembled correctly.
	The fuse of the DC plug has blown.	Replace the fuse of the DC plug with one of the same rating (fig. 3 1, page 4).
	The vehicle fuse has blown.	Replace the vehicle's DC socket fuse (usually 15 A). Please refer to the operating manual of your vehicle.

10 Disposal

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

11 Technical data

	CoolFun CX26 CoolFun CXT26 CoolFun CX30
Connection voltage:	12 V---	12/24 V	12 V---220 - 240 V~,50/60 Hz
Power consumption:	47 W	47 W (12 V---)55 W (24 V---)	47 W (12 V---,cold mode)39 W (12 V---,hot mode)max. 55 W(230 V~,cold mode)39 W (230 V~,hot mode)7.5 W (AC,ECO mode)
Cooling capacity: Max.	18 °C under ambient temperature
Thermal energy: 65 °C
Category: other compaRt-			ment
Energy efficiencyclass:			A++
Energy consumption: 66 kWh/annum
Gross capacity:	25 l	26 l	30 l
Usable capacity:	24 l	25 l	29 l
Climate class:	N	N	ST
Ambient temperature:			+16 °C - +38 °C
Noise emission:			39 dB
Dimensions(W x H x D) in mm::	396 x 296 x 395	396 x 296 x 395	396 x 296 x 445
Weight:	ca. 3.7 kg	ca. 4.0 kg	ca. 4.3 kg
Testing/certification:
