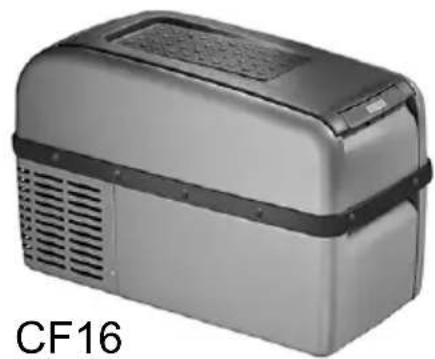

Exterior view of a gray rectangular electronic device labeled CF16 (no other text or symbols visible)

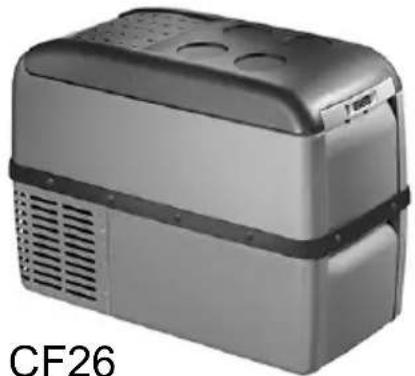

Exterior view of a gray rectangular electronic device labeled CF26 (no other text or symbols visible)

CF26

CoolFreeze CF11, CF16, CF26

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Table of contents

1 Explanation of symbols 21
2 Safety instructions 22
3 Scope of delivery 24
4 Intended use 24
5 Technical description 25
6 Operation 26
8 Cleaning and maintenance 33
9 Troubleshooting....34
10 Disposal 35
11 Technical data .... 36

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

▶ Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
√This symbol describes the result of an action.

Fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

2 Safety instructions

2.1 General safety

WARNING!

• Do not operate the device if it is visibly damaged.
• If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children without supervision.
  ● Children must not play with the device.
  ● Children must be supervised to ensure that they do not play with the device.
  ● Always keep and use the device out of the reach of children under the age of 8 years.
• Do not store any explosive substances such as spray cans with a flammable propellant in the device.

CAUTION!

• Disconnect the device from the power supply – before each cleaning and maintenance – after every use
• Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Check that the voltage specification on the type plate corresponds to that of the energy supply.
• Only connect the device to a DC plug socket in the vehicle (e.g. cigarette lighter) with the DC cable.
• Only connect the device as follows:
• With the DC cable to a DC plug socket in the vehicle (e.g. cigarette lighter)
• Or with the 230 V connection cable to the 230 V AC mains supply
• Connect the device with the 230 V connection cable to the 230 V AC mains supply.
  ● Never pull the plug out of the socket by the cable.
• If the cooler is connected to the DC socket: Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device.
• If the cooler is connected to the DC socket: Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.
• The cooling device is not suitable for transporting caustic materials or materials containing solvents.
• The cooling device contains inflammable cyclopentane in the insulation. The gases in the insulation material require special disposal procedures. Deliver the device at the end of its life-cycle to an appropriate recycling.

2.2 Operating the device safely

CAUTION!

- Before starting the device, ensure that the power supply line and the plug are dry.

NOTICE!

• Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
  ● Danger of overheating!
  Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
  ● Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluid.
  ● Never immerse the device in water.
  ● Protect the device and the cable against heat and moisture.

3 Scope of delivery

• Compressor cooler
• Connection cable for DC connection
• Connection cable for AC connection
• Operating manual
  ● Shoulder strap (CF11)

4 Intended use

The compressor cooler CF11 (item no. 9105330183), CF16 (item no. 9105330184), CF26 (item no. 9105330185) is suitable for refrigerating and freezing foodstuffs.

The compressor cooler has been designed for operation using a 12/24 V---on-board socket of a car (DC socket) or caravan as well as an AC mains supply.

The compressor cooler can also be used for camping. The compressor cooler may not be exposed to rain.

CAUTION! Health hazard!

Please check if the cooling capacity of the compressor cooler is suitable for storing the food or medicine you wish to cool.

5 Technical description

The cooler can chill products, keep them cool as well as freeze them. A maintenance-free refrigerant circuit with compressor provides the cooling.

The cooler is portable.

For use in vehicles, the cooling device can be secured with a safety belt (CF11).

When used on boats, the cooler can withstand a constant heel (inclination) of 30^ .

An integrated battery monitor can be switched on to protect your vehicle battery from discharging to dangerously low levels (see chapter “Using the battery monitor” on page 30).

5.1 Operating and display elements

Control panel (fig. 1, page 3, fig. 2, page 3)

Item Description Explanation

1 ON/OFF button Switches the cooling device on or off when the button is pressed for between one and two seconds
2 POWER Operating display
	LED lights up green Compressor is on; set temperature not yet reached
	LED lights up orange Set temperature has been reached
	LED flashes orange Voltage is too low
3 ERROR LED flashes red: Device is switched on but not ready for operation

Item Description Explanation

4 SET Selects the input mode

• Setting the temperature
• Set temperature unit (°Celsius or °Fahrenheit)
• Set the battery monitor

5 Display Displays the temperature in the refrigerator compartment

The first three digits of the four-digit display show the temperature, the fourth digit indicates the temperature unit (°C or °F).

When an error occurs, the display shows "Err1" or "Err2".

6 + Press once to increase the selected value

7 - Press once to decrease the selected value

6 Operation

The cooling device is equipped with an LED interior light that remains on when the voltage is applied. The energy consumption of the LED interior light is extremely low and is negligible compared to the total energy consumption of the device.

6.1 Before initial use

NOTE

Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (see also chapter “Cleaning and maintenance” on page 33).

6.2 Energy saving tips

• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the lid open for longer than necessary.
  ● Defrost the cooling device as soon as a layer of ice forms.
• Avoid unnecessarily low temperature settings.

6.3 Locking the cooling device

▶Close the lid.
▶ Press the latch (fig. 3 7, page 3) down, until it latches in place audibly.

6.4 Connecting the cooling device

Connection to the DC socket

NOTE

If you connect the cooler to the DC socket, remember that the ignition must be turned on to supply it with power.

▶Place the cooler on a firm base.
Make sure that the ventilation slots are not covered and that the heated air can be dissipated.
▶Connect the 12/24 V connection cable to the DC socket in the vehicle.

Connecting to a 100–240 V AC mains (e.g. at home or in the office)

DANGER! Danger of electrocution

• Never handle plugs and switches with wet hands or if you are standing on a wet surface.
• If you are operating your cooler on board a boat with an AC mains connection of 100-240 V from the land, you must install a residual current circuit breaker between the 100-240 V AC mains supply and the cooler.
  Seek advice from a trained technician.

The cooling device has a built-in multi-voltage mains adapter with a priority circuit for connecting to a 100-240 V AC supply. The priority circuit automatically switches to mains operation if the appliance is connected to a 100–240 V AC supply, even if the 12/24 V cable is still connected.

▶Plug the 100–240-V connection cable into the device AC voltage socket and connect it to the 100–240 V AC voltage mains.

6.5 Secure the cooling device in the vehicle (CF11)

▶Open the lid of the cooling device.
▶ Place the safety strap into the guide (fig. 4 1, page 4) of the cooling device.
▶Close the lid.
▶Engage the safety strap and tighten it.

6.6 Switch on the cooling device (fig. 1, page 3, fig. 2, page 3)

NOTICE! Risk of damage!

• Always ensure sufficient ventilation so that the heat generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
• Ensure that the items placed in the cooler are suitable for cooling to the selected temperature.
• Disconnect the cooler and other electric consumers from the battery before you connect the battery to a quick charging device. Overvoltage can damage the electronics of the device.

For safety reasons, the cooler is equipped with an electronic system to prevent the polarity being reversed. This protects the cooler against reversed polarity when connecting to a battery and against short circuiting.

▶ Press the ON/OFF button (1) for three seconds.
√ The "POWER" LED (2) is lit green.

Once the cooling device has reached the saved temperature, the LED lights up orange.

√ The display (5) switches on and shows the current cooling temperature.
√The cooler starts cooling the interior.

6.7 Setting the temperature (fig. 1, page 3, fig. 2, page 3)

▶ Press the "SET" (4) button once.
▶ Use the “+” (6) and “−” (7) buttons to set the cooling temperature.

√The set cooling temperature then appears in the display for a few seconds. The display flashes several times before it returns to the current temperature.

6.8 Selecting the temperature unit (fig. 1, page 3, fig. 2, page 3)

You can switch the temperature display between Celsius and Fahrenheit. To do this, proceed as follows:

▶Switch on the cooler.
▶ Press the "SET" button (4,) twice.
▶ Use the “+” (6) or “−” (7) buttons to set the temperature unit °Celsius or °Fahrenheit.

√The selected temperature units then appear in the display for a few seconds. The display flashes several times before it returns to the current temperature.

6.9 Using the battery monitor

NOTICE! Beware of damage

When switched off by the battery monitor, the battery will no longer be fully charged. Avoid starting repeatedly or operating electric consumers without longer charging phases. Make sure that the battery is recharged.

The cooling device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the 12 V vehicle electrics.

If the cooler is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level. The cooler will switch back on once the battery has been recharged to the restart voltage level.

NOTE

When the cooling device is switched off by the battery monitor due to low voltage, the display (fig. 2 5, page 3) switches off and the "Power" LED (fig. 2 2, page 3) flashes orange.

In HIGH mode, the battery monitor responds faster than at the levels "LOW" and "MED" (see the following table).

CF11, CF16, CF26:

Battery monitor mode LOW MED HIGH
Cut-off voltage at 12 V	10.1 V 11.4 V 11.8 V
Cut-in voltage at 12 V	11.1 V 12.2 V 12.6 V
Cut-off voltage at 24 V	21.5 V 24.1 V 24.6 V
Cut-in voltage at 24 V	23.0 V 25.3 V 26.2 V

This is how to select the battery monitor mode (fig. 1, page 3, fig. 2, page 3):

▶Switch on the cooler.
▶ Press the "SET" button (4) three times.
▶ Use the “+” (6) and “−” (7) buttons to select the battery monitor mode..
√The selected mode then appears in the display for a few seconds. The display flashes several times before it returns to the current temperature.

NOTE

When the cooler is supplied by the starter battery, select the battery monitor mode HIGH. When the cooler is connected to a supply battery, the battery monitor mode LOW will suffice.

If you wish to operate the cooling device from the AC mains, set the battery monitor to LOW.

6.10 Switching off the cooling device (fig. 1, page 3, fig. 2, page 3)

▶Empty the cooling device.
▶ Switch the cooling device off: Press the ON/OFF button (1) for three seconds.
▶Disconnect the plug.

If you do not want to use the cooling device for a longer period of time:

▶Leave the lid slightly open. This prevents smells from building up.

6.11 Defrosting the cooling device

Humidity can form frost in the interior of the cooling device or on the vaporiser. This reduces the cooling capacity.

Defrost the device in good time to avoid this.

NOTICE! Risk of damage to the device!

Never use hard or sharp tools to remove ice or to free objects frozen onto the device.

To defrost the cooling device, proceed as follows:

▶Empty the contents.
▶ If necessary, put them in another cooling device to keep them chilled.
▶Switch off the device.
▶Leave the lid open.
▶Wipe off the condensate.

7 Replacing the plug fuse (12/24 V) (fig. 5, page 4)

▶ Pull the adapter sleeve (4) off of the plug.
▶ Unscrew the screw (5) out of the upper half of the housing (6).
▶ Carefully lift the upper half of the housing off the lower half (1).
▶Take out the contact pin (3).

▶ Replace the defective fuse (2) with a new one that has the same rating (T8A 32V).
▶Re-assemble the plug in the reverse order.

7.1 Replacing the bulb (CF16, CF26)

▶ Press the switch pin (fig. 6 2, page 4) downwards so that the transparent part (fig. 6 1, page 4) of the lamp can be removed at the front.
▶Replace the light bulb.
▶Press the lamp back into the housing.

8 Cleaning and maintenance

WARNING!

Always disconnect the device from the power supply before you clean and service it.

NOTICE! Risk of damage

● Never clean the cooler under running water or in dish water.
- Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

▶Occasionally clean the device interior and exterior with a damp cloth.
▶Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

9 Troubleshooting

Problem Possible cause Suggested remedy

Device does not function, “POWER” LED does not light up.	No voltage is flowing from the DC power socket in your vehicle.	The ignition must be switched on in most vehicles to supply current to the on-board power socket.
	No voltage present in the AC voltage socket.	Try using another plug socket.
CF11, CF26: The device does not cool (plug is inserted, “POWER” LED is lit).	Defective compressor.	This can only be repaired by an authorised repair centre.
CF11, CF16: The device does not cool (plug is inserted, “POWER” LED flashes, display is empty).	The voltage is too low at the 12/24 V socket.	Check the battery and charge if necessary.Check the cables and connections.
When operating from the 12/24 V socket (DC socket): The ignition is on, the device is not working and the “POWER” LED is not lit.Pull the plug out of the socket and make the following checks.	The DC socket is dirty.This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the DC socket, either the socket must be cleaned or the plug has not been assembled correctly.
	The fuse of the 12/24 V plug has blown.	Replace the fuse of the 12/24-V plug (fig. 5 2, page 4).
	The vehicle fuse has blown.	Replace the vehicle's 12/24 V socket fuse (usually 15 A). Please refer to the operating manual of your vehicle.
CF11: The “ERROR” LED flashes and the display shows “ERR1” or “ERR2”.	Defective device. This can only be repaired by an authorised repair centre.
CF16: The display shows an error message (e.g. “Err1”) and the device does not cool.	The appliance has switched off due to an internal fault.	This can only be repaired by an authorised customer service centre.
CF26: “ERROR” LED flashes for longer than 2 minutes, as follows: 3 flashes, pause, 3 flashes, pause, ...	Defective device. This can only be repaired by an authorised repair centre.

10 Disposal

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

11 Technical data

	CF 11 CF16 CF26
Item no.: 9105330183 9105330184 9105330185
Voltage:	12/24 V== and 100-240 V~
Power consumption: 30 W 35 W 35 W
Rated current:
100 V~:	0.5 A	0.5 A	0.5 A
100-240 V~:	0.1 A	0.1 A	0.1 A
12 V===:	2.2 A	2.9 A	2.9 A
24 V===:	1.3 A	1.7 A	1.7 A
Cooling range:	+10 °C to -18 °C
Energy efficiency class:	A++	A++	A++
Category:	Category 1 (refrigerator with one or more fresh-food storage compartments)
Climate class:	N or T
Ambient temperature:	+16 °C - +43 °C
Noise emission:	46 dB (A)	48 dB (A)	48 dB (A)
Gross capacity:	11 l	16 l	23 l
Capacity:	10,5 l	15 l	21 l
Dimensions (W x H x D):	540 x 352 x 235 mm	549,5 x 366 x 260 mm	550 x 425 x 260 mm
Weight	9.2 kg	10.2 kg	12.7 kg
Inspection/certification:

NOTE

With ambient temperatures above +32°C (90 °F), the minimum temperature can no longer be reached.

The refrigerant circuit contains R134a.

5 Description technique

Dometic Australia Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

1800 212121

[phone]

Mail: [e-mail]

AUSTRIA

Dometic Austria GmbH

The Gateway · 25 Canton Road,

Tsim Sha Tsui · Kowloon

[phone]

[phone]

Mail: [e-mail]

HUNGARY

Dometic Plc. Sales Office

Kerékgyártó u. 5.

H-1147 Budapest

[phone]

昌 [phone]

Dometic Italy S.r.l.

Via Virgilio, 3

I-47100 Forli

[phone]

[phone]

Mail: [e-mail]

NORWAY

Dometic Norway AS

Skolmar 24

N-3232 Sandefjord

[phone]

吕 [phone]

Mail: [e-mail]

POLAND

Dometic Poland Sp. z o.o.

Ul. Puławska 435A

02-801 Warszawa

[phone]

[phone]

Mail: [e-mail]

RUSSIA

Dometic RUS LLC

Komsomolskaya square 6-1

107140 Moscow

[phone]

[phone]

Mail: [e-mail]

SLOVAKIA

Dometic Slovakia Sales Office Bratislava

Nádražná 34/A

SK-900 28 Ivanka pri Dunaji

[phone]

Mail: [e-mail]

SPAIN

Dometic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Cañada

Madrid

[phone]

[phone]

Mail: [e-mail]

SWEDEN

Dometic Scandinavia AB

Gustaf Melins gata 7

Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang (Zürich)

[phone]

吕 [phone]

Mail: [e-mail]

TAIWAN

WAECO Impex Ltd.

Taipei Office

9F.-10, No. 1180, Zhongzheng Rd.,

Zhonghe Dist., New Taipei City 23586

[phone]

昌 [phone]

Mail: [e-mail]

UNITED KINGDOM

Dometic UK Ltd.

Dometic House · The Brewery

Blandford St. Mary

Dorset DT11 9LS

[phone]

昌 [phone]

Mail: [e-mail]

UNITED ARAB EMIRATES

Dometic Middle East FZCO

P. O. Box 17860

S-D 6, Jebel Ali Freezone

Dubai

[phone]

[phone]

Mail: [e-mail]

UNITED STATES OF AMERICA

Dometic Marine Division

2000 N. Andrews Ave. Extension

Pompano Beach, FL 33069 USA

[phone]

[phone]

Mail: [e-mail]
