Sonicare ProResults HX6013 - Electric toothbrush PHILIPS - Free user manual and instructions

Brand	Philips
Model	Sonicare ProResults HX6013
Product Type	Sonic electric toothbrush
Brushing Technology	Sonic technology (up to 31,000 movements/minute)
Brushing Modes	1 standard mode
Built-in Timer	2-minute Quadpacer timer (30 seconds per quadrant)
Battery Life	Up to 3 weeks (with full charge)
Battery Type	Rechargeable lithium-ion
Charging Time	Approximately 24 hours
Charge Indicator	LED indicator
Handle	Ergonomic with non-slip grip
Brush Head	ProResults, compatible with all Sonicare handles (except FlexCare+)
Bristle Hardness	Soft (recommended for sensitive gums)
Bristle Wear Indicator	Yes (bristle color change)
Brushing Pressure	Pressure alert (optional depending on model)
Water Resistance	IPX7 (resists immersion up to 1 meter for 30 minutes)
Power Source	Mains adapter (100-240 V, 50/60 Hz)
Dimensions (handle)	Approximately 3 x 23 x 3 cm (L x H x W)
Weight	Approximately 130 g (handle only)
Care Instructions	Rinse brush head after use. Clean handle with a damp cloth.
Head Replacement	Every 3 months or sooner if bristles are worn
Package Contents	Sonicare ProResults handle, 1 brush head, charger, quick start guide
Warranty	2 years

Frequently Asked Questions - Sonicare ProResults HX6013 PHILIPS

How do I charge my Sonicare ProResults HX6013 toothbrush?

Place the toothbrush on the supplied charger. The LED indicator blinks during charging and stops when fully charged. Charging time is approximately 24 hours.

What is the battery life?

A full charge provides up to 3 weeks of use with two 2-minute brushings per day.

How do I use the Quadpacer timer?

The Quadpacer emits a short pause every 30 seconds to remind you to change mouth quadrant. The total cycle is 2 minutes, as recommended by dentists.

Can I use this toothbrush with braces or implants?

Yes, the sonic technology and soft bristles gently clean around orthodontic appliances and implants. Consult your dentist for specific recommendations.

How often should I replace the brush head?

It is recommended to replace the head every 3 months or as soon as the bristles change color to indicate wear. A worn head reduces cleaning efficiency.

Is my toothbrush waterproof?

Yes, the handle is rated IPX7, meaning it can be immersed in water up to 1 meter for 30 minutes. You can safely use it in the shower.

How do I clean the toothbrush?

Rinse the brush head with water after each use. Clean the handle with a damp cloth and avoid harsh solvents. Do not immerse the handle in water.

Does the toothbrush have a pressure sensor?

The ProResults HX6013 model does not include a pressure sensor. However, the toothbrush alerts you if you press too hard by a change in sound or vibration. Some more advanced Sonicare models incorporate a sensor.

Can I use this brush head with another Sonicare handle?

Yes, the ProResults head is compatible with all Sonicare handles except the FlexCare+ series. It fits DiamondClean, EasyClean, ProtectiveClean handles, etc.

What should I do if my toothbrush stops working?

First check the charge. If it does not turn on, try charging it for 24 hours. If the problem persists, contact Philips customer service. Do not attempt to repair the device yourself.

USER MANUAL Sonicare ProResults HX6013 PHILIPS

External Loudspeaker

Allow the user to connect an external loudspeaker. The minimum impedance is 16 Ω.

External Loudspeaker

The packaging of this product is intended to be recycled. Apply to the local authorities for correct disposal.

Disposal of your old product.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

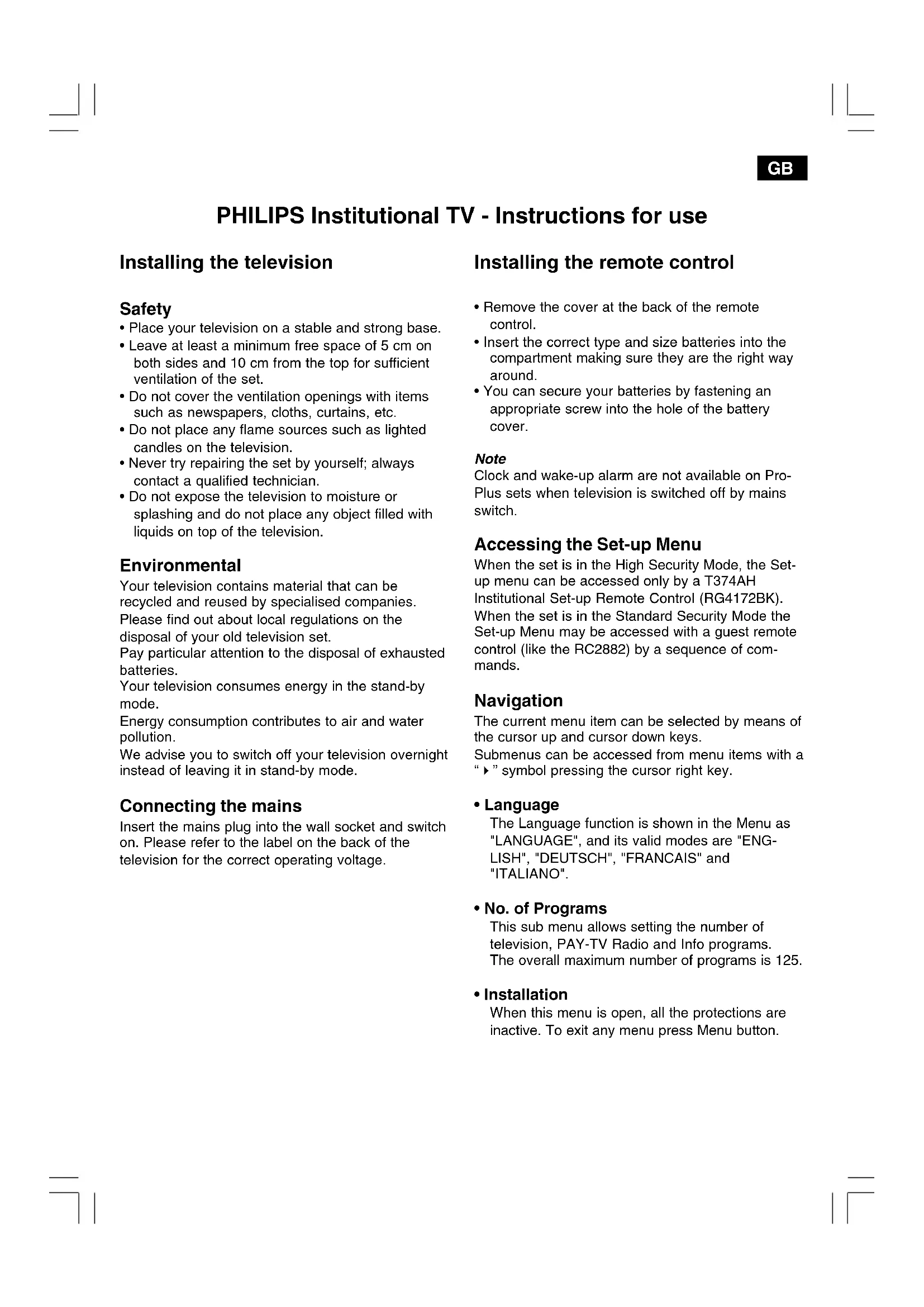

PHILIPS Institutional TV - Instructions for use

Installing the television

Safety

• Place your television on a stable and strong base.
• Leave at least a minimum free space of 5 cm on both sides and 10 cm from the top for sufficient ventilation of the set.
• Do not cover the ventilation openings with items such as newspapers, cloths, curtains, etc.
• Do not place any flame sources such as lighted candles on the television.
• Never try repairing the set by yourself; always contact a qualified technician.
• Do not expose the television to moisture or splashing and do not place any object filled with liquids on top of the television.

Environmental

Your television contains material that can be recycled and reused by specialised companies.

Please find out about local regulations on the disposal of your old television set.

Pay particular attention to the disposal of exhausted batteries.

Your television consumes energy in the stand-by mode.

Energy consumption contributes to air and water pollution.

We advise you to switch off your television overnight instead of leaving it in stand-by mode.

Connecting the mains

Insert the mains plug into the wall socket and switch on. Please refer to the label on the back of the television for the correct operating voltage.

Installing the remote control

• Remove the cover at the back of the remote control.
• Insert the correct type and size batteries into the compartment making sure they are the right way around.
• You can secure your batteries by fastening an appropriate screw into the hole of the battery cover.

Note

Clock and wake-up alarm are not available on ProPlus sets when the television is switched off by the mains switch.

Accessing the Set-up Menu

When the set is in High Security Mode, the Setup menu can be accessed only by a T374AH Institutional Set-up Remote Control (RG4172BK).

When the set is in Standard Security Mode, the Set-up Menu may be accessed with a guest remote control (like the RC2882) by a sequence of commands.

Navigation

The current menu item can be selected by means of the cursor up and cursor down keys.

Submenus can be accessed from menu items with a "▶" symbol by pressing the cursor right key.

Language

The Language function is shown in the Menu as "LANGUAGE", and its valid modes are "ENGLISH", "DEUTSCH", "FRANCAIS", and "ITALIANO".

No. of Programs

This submenu allows setting the number of television, PAY-TV, Radio, and Info programs. The overall maximum number of programs is 125.

- Installation

When this menu is open, all protections are inactive. To exit any menu, press the Menu button.

Input

The "Input" menu item selects the desired input source that will be assigned to the program. Possible values are Front End, AV1, AV2, and AV2YC (internal interface for system televisions only), and RADIO.

System

WEST EU (PAL/SECAM-BG) and EAST EU (PAL/SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Manual Search

Digits can be entered for a frequency in MHz. Right cursor starts an auto search; during frequency entry the digits not yet entered are displayed as dashes "-". Enter "0" for frequencies below 100 MHz.

Program no.

The programme type can be selected with the cursor left/right buttons. These buttons will toggle between all available types: "TV", "INFO", "PAY-TV" and "RADIO". If the program number of a certain type is 0, the corresponding type is not displayed. In order to display a program number of the above-mentioned types, always enter two numbers, for example: "01" for TV1 or digit "1" and up/down cursor.

Store

The present program information is stored after pressing the cursor left/right button. Press Menu to exit without storing.

Fine Tune

Using the "control left/right" commands starts fine-tuning.

Protection

This function indicates whether the selected program has a protection or not. With the cursor left/right keys the protection can toggle between "YES" and "NO".

Label

This menu item will be used to add a label/name for each program. Pressing the left/right buttons you may enter or exit the label field; pressing the up/down cursor you may insert alphanumeric characters.

Pressing M (Menu button) you may exit the Label Menu item.

Teletext Language

This menu enables the user to select the Teletext character set to be used for the selected channel. With cursor left/right you can select a letter corresponding to the different language clusters. "W": Pan European (Latin) / West option "E": Pan European (Latin) / East option

"G": Greek

"A": Arabic

"C": Cyrillic

Video Blank

This item can change between "YES" and "NO" to activate or deactivate picture mute.

Audio Mute

This item can change between "YES" and "NO" to activate or deactivate sound mute.

Remarks

TELEVISION up/down, INFO up/down, PAY-TV up/down and RADIO up/down are active in menu mode and the television reacts the same way as in TV mode.

Clock set-up

The Clock set-up menu can be entered from this menu item

The Menu items actually displayed depend on whether a LED clock display is available or not.

Display (OSD only)

Defines whether the actual time is displayed on the screen or not.

Display Standby (LED only)

This menu item will be used to set the intensity of the clock display when the television is in standby mode.

Display On (LED only)

This menu item will be used to set the intensity of the clock when the television is in the ON mode.

Time Setting

This menu item will be used to set the time for the clock.

Teletext Time Download

This menu item is used to activate or deactivate the function for automatic time downloading by means of Teletext.

Download Program

This menu item is used to select the channel from which to retrieve the correct time from the Teletext. When this item is selected the television set tunes to the selected program.

Time Offset

This menu item is used to set the offset needed to adjust the time received from the Teletext channel to represent the current time in the current location.

- Brightness

The brightness control contains 63 discrete values from the minimum to maximum setting.

Colour

The colour control contains 63 discrete values from the minimum to maximum setting.

- Contrast

The contrast control contains 63 discrete values from the minimum to maximum setting.

- Sharpness

The sharpness control contains 63 discrete values from the minimum to maximum setting.

- Forced mono (for stereo televisions only)

This command is used to activate or deactivate the stereo feature in stereo sets. Toggle YES, NO using the right/left cursor.

Balance (for stereo televisions only)

To balance the output sound from TELEVISION's speakers left and right

- Treble (for stereo televisions only)

To set the treble frequencies of sound output from TELEVISION's speakers.

- Bass (for stereo televisions only)

To set the bass frequencies of sound output from television's speakers.

AVL (Automatic Volume Leveller)

The Automatic Volume Leveller feature is shown as "AVL" in the menu and its valid states are "YES"; "NO".

Volume Fixed

The valid toggle states are "YES" and "NO": if YES, the volume is fixed at a certain volume, if NO, the volume contains 63 discrete values.

Volume Bar

To display volume bar when adjusting volume, select "YES". Select "NO" to hide the bar.

Min Volume

This item sets the limit for minimum volume allowed for the television set. Use right/left cursor to adjust.

Max Volume

This item sets the limit for the maximum volume allowed for the television set. Use right/left cursor to adjust.

- Switch on Volume

This item sets the television's volume at switch on. Use the right/left cursor to adjust.

- Buzzer Volume

This item sets the volume of the alarm buzzer. Use the right/left cursor to adjust.

- Switch On Program

This item sets the television's program at switch on

Power On

The Power On menu function defines the behavior of the television whenever AC power is applied.

The valid states are "FORCED", "STANDARD", and "STANDBY".

When "FORCED", the television can only be switched off by means of the main switch, a set-up remote control, or by the ESP function (Energy Saving Programmability controls the maximum continuous viewing time allowed by the control system).

When "STANDARD", the television switches on to the previous status, ON or Stand-by.

When "STAND-BY", the television always switches on in Stand-by.

- Step Tuning (YES/NO)

If YES, TV programs (1 to 9) are tuned immediately when a digit is pressed.

If NO, tuning is performed only after the dash disappears.

- Digit Time-out

This is the time-out to enter the second digit for TV program 10 onwards.

- Program Display

Program Display values can be: Number, Label, All, None.

- Keyboard Lock

In Commercial Mode, the Keyboard Lockout menu function disables the television's local keyboard for volume and program control.

Free protected programs

With this item all protected programs can be freed. If "free protected programs" is set to "YES", all programs are accessible for the user, if the item is "NO" protected programs are skipped. A TV program can be selected by relevant digit but with picture blanked and sound muted.

- ESP

Energy Saving Programmability Mode (ESP) controls the maximum continuous viewing time allowed by the control system. It allows the establishment to limit the time the Television remains activated once a Guest has checked-out.

The ESP Menu function is shown as "ESP", and its valid values are 00 - 99 (in hours). 00 value means OFF.

- Interface

This item is only present in "system" sets and it is used to enable or disable communication with the DCM (Data Communication Module).

Audio / Video Mute

The Audio/Video Mute menu function determines whether the video should be blanked and the audio should be muted if the currently tuned channel has no signal (Blue, Black, Off).

- Auto Scart

Enable/ disable automatic switching to external Scart source.

- Welcome Message

Press cursor left/right to display Welcome message entry menu:

Welcome Message, Line 1, and Line 2.

With the cursor up/down you can set the message characters.

Program Guide

This feature will enable/disable in a "list" or "page", the program numbers with the associated labels.

- Reminder

This menu function is shown as "REMINDER", and its states are "YES": "NO".

Security

The menu function "SECURITY" allows the user to select one of two states "HIGH" or "STANDARD". The default is "STANDARD".

While the set is in the Security High Mode the setup menu can only be accessed by a T374AH Institutional Set-up Remote Control. While the set is in the Security Standard Mode the Set-up Menu may be accessed with a guest remote control by a sequence of commands.

WEST EU (PAL/SECAM-BG) and EAST EU (PAL/SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Teletext Language

Audio Mute

- Brightness

- Sharpness

- Step Tuning (YES/NO)

System (TV Reception Standard)

Display in standby (LED only)

Philips Business Display Solutions

Glaslaan 1

5616LW Eindhoven

The Netherlands

PHILIPS Institutional TV - User Manual

- No. of Programs

With this submenu you can set the number of TV programs, pay-TV programs, radio and information programs. The maximum number of programs that can be set is 125.

Teletext Language

Teletext Time Download

- Buzzer Volume

- Digit Time-out

Free protected programs

- Reminder

• Installation

Program no.

The program type can be selected using the left/right cursor keys. These keys allow switching to the available program types: "TV", "INFO", "PAY-TV" (paid TV), and "RADIO".

Teletext Time Download

Sharpness

Free protected programs

WEST EU (PAL/SECAM-BG), EAST EU (PAL/SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Teletext Language

Auto allows the user to select the Teletext character set that will be used on the selected channel. With the left/right keys of the remote control, you can select a character set corresponding to the language groups. "W": Pan European (Latin) / West option, "E": Pan European (Latin) / East option, "G": Greek, "A": Arabic, "C": Cyrillic.

Video Blank

Auto this item can be toggled between "YES" and "NO" to enable or disable the "blanking" of a picture.

(Standby indicator) (LED only)

Auto this item is used to enable or disable the standby indicator when the receiver is in standby mode.

Display On

Teletext Time Download

(Time for downloading)

This is the time for downloading the teletext data for the programs of the transmission from 10 and after.

- Program Display

Free protected programs

Welcome Message, Line 1, and Line 2.

Protection (Beveiliging)

Teletext Time Download

- Brightness (Helderheid)

Volume Fixed (Vast Volume)

Volume Bar (Volumebalk)

- Buzzer Volume (Volume zoemer)

- Step Tuning (YES/NO)

Free protected programs

(Remove protection from all channels)

WEST EU (PAL/SECAM-BG) and EAST EU (PAL/SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Teletext Time Download (Czas download)

Download Program (Program download)

- Brightness

Free protected programs

(Wy!).

No. of Programs

WESTERN EUROPE (PAL/SECAM-BG) and EASTERN EUROPE (PAL/SECAM-DK), UK (PAL-I) FRANCE (SECAM-L/L').

Manual Search

Fine Tune

Teletext Language

This menu is used to set the teletext language for the selected channel.

Teletext Time Download

- Sharpness

Volume Fixed

- Switch On Program

- Keyboard Lock

Free protected programs

(Solving protected programs)

WEST EU (PAL/SECAM-BG) and EAST EU (PAL/SECAM-DK), UK (PAL-I), FRANCE (SECAM-L/L').

Teletext time Download (setting with teletext)

This item activates/deactivates the automatic download (setting) function at a specified time using teletext.

Download program (setting channels with teletext)

- Step Tuning (YES/NO)

Synchronizing steps (YES/NO)

If yes is selected, TV programs (from 1 to 9) are immediately synchronized after pressing any number.

Free protected programs

No. of Programs (Channel numbers)

Setting the list for channel numbers of pay TV programs, as well as information programs.

Total number of programs - 125.

Clock set-up (Setting the clock)

The clock setting menu can be accessed from this menu position. The current display of the menu position depends on whether the clock has a light indicator or not.

Display (screen only OSD)

On screen, the time will be displayed in real time.

Display Standby

(Screen is in Standby mode)

This menu item is used to adjust the intensity of the time display when the TV is in standby mode.

Display On (Screen is in ON mode)

This menu item is used to adjust the intensity of the time display on the turned-on screen.

Time Setting (Setting the time)

This menu item is used to set the time and clock.

Teletext Time Download (Downloading time in Teletext mode)

This menu item is used to enable/disable the function for automatically downloading time via the Teletext channel.

Download Program (Channel download) This menu item is used to select the channel from which the time will be downloaded from Teletext. When selecting this function, the TV settings are adjusted to the specified channel.

Time Offset (Time adjustment) This menu item is used to set the required time correction, downloaded from the Teletext channel, taking into account the time zone of the given locality.

Brightness (Brightness) Brightness is adjusted in a range of 63 discrete values within maximum and minimum values. Colour (Colour) Colour is adjusted in a range of 63 discrete values within maximum and minimum values. - Contrast (Contrast) Contrast is adjusted in a range of 63 discrete values within maximum and minimum values. Sharpness (Sharpness of image) Sharpness of image is adjusted in a range of 63 discrete values within maximum and minimum values. - Forced mono (Disabling stereo mode - only for stereo TV) This adjustment is used to enable/disable stereo sound reproduction of stereo TVs. Switching is done in the YES (Yes)/NO (No) state using the right/left cursor movement keys. Balance (Balance - only for stereo TV) Used for balancing sound reproduction through the right and left loudspeakers. Treble (High sound frequencies - only for stereo TV) Used for adjusting high sound frequencies of sound reproduction through loudspeakers.

Bass (low audio frequencies - only for stereo TV) is used to adjust the low audio frequencies of the audio reproduction through the loudspeaker of the TV. AVL (Automatic Volume Leveller) is shown in the menu in abbreviated form as AVL and is adjusted with the YES/NO state. Volume Fixed (fixed volume level) is adjusted with "YES" and "NO"; when this mode is enabled (YES), the volume is fixed at a certain level, and when it is disabled (NO), the volume is adjusted within a range of 63 discrete units. Volume Bar (volume bar) for visual display of volume adjustment in the form of a volume bar, set "YES"; to disable the display of the bar, set "NO". Min Volume (minimum volume level) this setting limits the allowable minimum volume level of the TV; to adjust, use the left/right cursor movement keys. Max Volume (maximum volume level) this setting limits the allowable maximum volume level of the TV; to adjust, use the left/right cursor movement keys. - Switch on Volume (volume level at power on) this setting is used to fix the volume level when the TV is turned on; to adjust, use the left/right cursor movement keys. - Buzzer Volume (minimum buzzer level) this setting is used to fix the buzzer level; to adjust, use the left/right cursor movement keys. - Switch On Program (channel at power on) this setting is used to fix the channel that the TV tunes to when it is turned on.

- Power On (power on)

The POWER ON function is used to adjust the TV control system for turning on the TV receiver in case of connecting the device to an AC power source. Allowable settings: FORCED, STANDARD, and STANDBY. In "FORCED" mode, the TV can only be turned off with the main power switch installed on the rear panel, bypassing the ESP function (energy saving system that limits the maximum continuous operation time of the TV). In "STANDARD" mode, when the TV is turned on, it is set to the state before it was turned off, and in the mode of turning on after standby. In "STAND-BY" mode, the initial state when the TV is turned on will be standby mode.

- Step Tuning (YES/NO)

Step tuning (YES/NO)

The tuning mode for TV channels (from 1 to 9) is carried out immediately after pressing the numeric key. Selecting NO leads to the fact that tuning will be possible only after the appearance of the check mark.

Digit Time-out (digit wait time)

This is the waiting time for entering the second digit after the decimal point.

- Program Display (channel designation)

Channels are designated in the following way: by number, by name, all, none.

- Keyboard Lock (key lock)

During operation in commercial equipment, this function locks the keys for volume control and channel switching on the built-in keypad of the TV.

Free Protected programs (list of protected programs). Function for protected programs from all channels. In that case, when the function "Free Protected programs" is set to "YES", the user has access to all channels. If the function is set to "NO", then when protected channels are enabled, the TV will not transmit either image or sound.

- ESP

"Energy Saving Programmability Mode" (ESP) is a programmable mode for limiting the maximum time the TV is on.

It is determined by the control system.

It allows the administrator to limit the time the TV remains on after a guest leaves the room.

The ESP function is shown in the menu as "ESP" and is adjustable in the range of 0-99 hours. "00" corresponds to the setting "off".

(LANGUAGE) ARA I CZE I DAN I DEUTSCH I ENGLISH I ITALIANO I FRANCAIS

No. of Programs

TV, 11111111111111111111111111111111111111

Installation

Press the (MENU) button to display the menu.

y

#

a

Therefore, angle A'BO = 60°.

Log off L Teletext Language

JWInput

(Input) J

AV1, AV2, 1uU

(AVs 11) AV2YC

System

A/1 (PAL/SECAM-BG)

PAL-1) (PAL/SECAM-DK)

(SECAM-L/L')

Video Blank

y 11

1. 1.1.1.1.

Audio Mute

1. 1.

Therefore, y' y' Ct = t' t'

.

Clock set-up

Therefore, c_四 = 1/2

Display

111 2

Display Stand-by

(LED)

.

(LED)

Time Setting

Teletext Time Download

Manual Search

Program no.

-

-0000000000000000000

（0）j 1

1

L 1

11 10

J1

Store

j 1 j 1 1 1 1 1 1 1 1 1 1 1 1

201 1

JW JF Fine Tune

sU1LH

Protection

ab1y2,1a000s,1d1101g 1

e 1

NO YES

Label

jbjde bai,olj jy 1

1

1 1

（）M

∴ 1 = 2

Volume Bar

jL 100000000000000000000000000000000000000

NO

Min Volume

jgl 1

.

gall Max Volume

jgl 111

Switch Volume

Buzzer Volume

Switch On Program

Power On

STANDARD FORCED

L STAND-BY

OFF

Stand-by

Stand-by

(2/2) Step Tuning

1

Digit Time-out

1

1. 45

Program

Free protected programs

#

15 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 1

E ESP

E (ESP) 240 11111111111111111111111111111111111111111111111

Interface

J 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Audio / Video Mute

yall yb| s2s g 10 all . Liz | aalz b, n! . 11 11 11 11 11 11 11 11 11 . (jnnnnaa nn nnnnnae

Table of TV frequencies.

EUROPE

CANAL FREQ (MHz)	CANAL FREQ (MHz)	CANAL FREQ (MHz)
E2 48.25	S15 .259.25	33 .567.25
E3 55.25	S16 .266.25	34 .575.25
E4 62.25	S17 .273.25	35 .583.25
E5 175.25	S18 .280.25	36 .591.25
E6 182.25	S19 .287.25	37 .599.25
E7 189.25	S20 .294.25	38 .607.25
E8 196.25	H1 .303.25	39 .615.25
E9 203.25	H2 .311.25	40 .623.25
E10 210.25	H3 .319.25	41 .631.25
E11 217.25	H4 .327.25	42 .639.25
E12 224.25	H5 .335.25	43 .647.25
R1 49.75	H6 .343.25	44 .655.25
R2 59.25	H7 .351.25	45 .663.25
R3 77.25	H8 .359.25	46 .671.25
R4 85.25	H9 .367.25	47 .679.25
R5 93.25	H10 .375.25	48 .687.25
R6 175.25	H11 .383.25	49 .695.25
R7 183.25	H12 .391.25	50 .703.25
R8 191.25	H13 .399.25	51 .711.25
R9 199.25	H14 .407.25	52 .719.25
R10 207.25	H15 .415.25	53 .727.25
R11 215.25	H16 .423.25	54 .735.25
R12 223.25	H17 .431.25	55 .743.25
S1 105.25	H18 .439.25	56 .751.25
S2 112.25	H19 .447.25	57 .759.25
S3 119.25	21 .471.25	58 .767.25
S4 126.25	22 .479.25	59 .775.25
S5 133.25	23 .487.25	60 .783.25
S6 140.25	24 .495.25	61 .791.25
S7 147.25	25 .503.25	62 .799.25
S8 154.25	26 .511.25	63 .807.25
S9 161.25	27 .519.25	64 .815.25
S10 168.25	28 .527.25	65 .823.25
S11 231.25	29 .535.25	66 .831.25
S12 238.25	30 .543.25	67 .839.25
S13 245.25	31 .551.25	68 .839.25
S14 252.25	32 .559.25	69 .855.25

FRANCE

CANAL	FREQ (MHz)
2	55.75
3	60.50
4	63.75
5	176.0
6	184.0
7	192.0
8	200.0
9	208.0
10	216.0
B	116.75
C	128.75
D	140.75
E	159.75
F	164.75
G	176.75
H	188.75
I	200.75
J	212.75
K	224.75
L	236.75
M	248.75
N	260.75
O	272.75
P	284.75
Q	296.75

ITALY

CANALE............FREQ (MHz)

A.........53.75

B.........62.25

C.........82.25

D..........175.25

E..........183.75

F..........192.25

G..........201.25

H..........210.25

I..........217.25

Information for users in the UK (not applicable outside the UK)

Positioning the TV: For the best results, choose a position where light does not fall directly on the screen, and at some distance away from radiators or other sources of heat. Leave a space of at least 5 cm all around the TV for ventilation, making sure that curtains, cupboards etc. cannot obstruct the air flow through the ventilation apertures. The TV is intended for use in a domestic environment only and should never be operated or stored in excessively hot or humid atmospheres.

For the best results, choose a position where light does not fall directly on the screen, and at some distance away from radiators or other sources of heat. Leave a space of at least 5 cm all around the TV for ventilation, making sure that curtains, cupboards, etc. cannot obstruct the air flow through the ventilation apertures. The TV is intended for use in a domestic environment only and should never be operated or stored in excessively hot or humid atmospheres.

Interference: The Department of Trade and Industry operates a Radio Interference Investigation Service to help TV licence holders improve reception of BBC and IBA programmes where they are being spoilt by interference. If your dealer cannot help, ask at a main Post Office for the booklet "How to Improve Television and Radio Reception".

Please take note of the section entitled 'Tips' at the end of this booklet.

Important: This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows: 1. Remove fuse cover and fuse. 2. Fit new fuse which should be a BS1362 5A, A.S.T.A. or BSI approved type. 3. Refit the fuse cover.

The Department of Trade and Industry operates a Radio Interference Investigation Service to help TV licence holders improve reception of BBC and IBA programmes where they are being spoilt by interference. If your dealer cannot help, ask at a main Post Office for the booklet "How to Improve Television and Radio Reception".

Mains connection

Before connecting the TV to the mains, check that the mains supply voltage corresponds to the voltage printed on the type plate on the rear panel of the TV. If the mains voltage is different, consult your dealer.

Important

This apparatus is fitted with an approved moulded

13 Amp plug. To change a fuse in this type of plug proceed as follows: 1. Remove fuse cover and fuse. 2. Fit new fuse which should be a BS1362 5A, A.S.T.A. or BSI approved type. 3. Refit the fuse cover.

In order to maintain conformity to the EMC directive, the mains plug on this product must not be removed.

Connecting the aerial

The aerial should be connected to the socket marked N at the back of the set. An inferior aerial is likely to result in a poor, perhaps unstable picture with ghost images and lack of contrast. Make-shift loft or set-top aerials are often inadequate. Your dealer will know from experience the most suitable type for your locality. Should you wish to use the set in conjunction with other equipment, which connects to the aerial socket such as TV games, or a video camera it is recommended that these be connected via a combiner unit to avoid repeated connection and disconnection of the aerial plug.

Fitting the stand (if provided)

Use only the stand provided with the set, making sure that the fixings are properly tightened. A diagram showing how to assemble the stand is packed with the stand.

Never use a make-shift stand, or legs fixed with woodscrews.
