Brand	ebode
Model	PMML
Category	Smart Home
Product Type	Wireless home automation kit for lighting (micro-transmitter + micro-receiver)
Dimensions of micro-transmitter (recessed)	Diameter 65 mm, depth 40 mm
Power supply of micro-transmitter	Battery (protective tab) – code saved in case of change
Power supply of micro-receiver	230 V~ 50 Hz (phase and neutral required)
Max power per luminaire	Direct single luminaire, no multi-socket block
Main functions	Wirelessly turn on/off, programming of house and unit codes (A‑P / 1‑16), creation of two-way switching
Compatibility	Entire ebode radio home automation range
Range	Not specified but deploy antenna fully for optimal reception
Number of memorizable transmitters/receivers	Unlimited for the receiver; each transmitter keeps its code
LED indicator	Transmitter: red (off), green (on), orange (programming) – Receiver: green, orange
Installation	Recessed in a 65 mm junction box for the transmitter; receiver at the luminaire or socket level
Maintenance and cleaning	Clean with a dry cloth; no user-serviceable parts
Safety	Do not open – risk of electrocution; cut power before installation; lethal voltages
Repairability	No user-replaceable parts; call a professional repairer
General information	Manual available in FR, DE, EN, ES, IT, NL, PT, SV; manufacturer: BMB Electronics BV, Netherlands

Frequently Asked Questions - PMML EBODE

How to install the EMML micro-transmitter?

Drill a hole of diameter 65 mm and depth 40 mm, insert the recessed box, remove the battery tab, connect the cables to the switch according to the diagram, then place the assembly deploying the antenna fully.

How to install the RMML micro-receiver?

Turn off power at the circuit breaker, then connect phase and neutral (and ground if necessary) to the receiver terminals. For a socket, add 25 mm depth. Deploy the antenna and check connections.

Do I need to program the modules after installation?

No, for a single installation, the modules are pre-programmed at address A1 and work immediately. Programming is only necessary if you add modules to another installation or in case of conflict.

How to program a new house and unit code on the transmitter?

Press briefly and simultaneously buttons (1) and (0): the LED turns orange. You have 6 seconds. Press (1) to choose the house code (A=1, B=2, etc.), the LED blinks orange 3 times. Repeat step A and press (0) for the unit code (1=1, 2=2, etc.).

How to reset the micro-receiver and program it with a transmitter?

With a paperclip, press and hold the (PROG) hole until the LED turns green, then release: the LED blinks orange (receiver cleared). Then, press (PROG) briefly: the LED blinks green, then press a button on the transmitter: the LED turns off, programming is successful.

Can I add a remote control or multiple transmitters?

Yes, the receiver can memorize an unlimited number of transmitters and remote controls. To add a transmitter, program it on the same address or follow the programming procedure. Remote controls from the ebode range are automatically recognized.

What to do if the lighting does not respond?

First check the power supply (circuit breaker, transmitter battery). Make sure the antenna is deployed. If multiple installations coexist, a code conflict may occur: reprogram the transmitter and receiver with a different code (see programming FAQ).

Is this kit compatible with LED bulbs?

Yes, the Micro-Module pack is designed for classic, halogen, low voltage, energy-saving, and LED lighting.

What safety precautions should be taken?

Always cut power at the circuit breaker before installing the receiver. Never open the modules: risk of electrocution. Repairs must be done by a professional. Avoid shocks, extreme temperatures, vibrations, and humidity.

Where to find the full manual and other languages?

The manual is available for free in PDF format on notice-facile.com for the model ebode PMML. You can request a translation in another language by providing your email on the page.

USER MANUAL PMML EBODE

White electronic device with a red cable and two black dots on its side (no text or symbols visible)

Simple illustration of a white electronic device with three red leads and two black cables (no text or symbols)

Transmitter & Receiver Remote Controlled Appliance Kit

User guide 6

General Security Note

For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. Technical manipulation of the product or any changes to the product are forbidden, due to security and approval issues.

Please take care to set up the device correctly - consult your user guide. WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

Important: the product must be used according to the instructions in this manual and is not suitable for other purposes.

Please avoid the following: strong mechanical wear and tear, high temperature, strong vibrations, and high humidity.

Please also respect the additional security notes in the various user guide chapters. To ensure correct set up please read the manual and security notes carefully.

The MICRO MODULE PACK allows the installation of a wireless controller for incandescent, halogen, low-voltage, energy-saving or LED light fixtures.

• Without the need to run wires, the Micro-Module Pack allows you to place a switch where you choose.
• It integrates with existing switches eliminating the need of running new wires or cutting extra holes in the wall.
• It installs in just minutes.
• It's compatible with all ebode home automation devices. For more information, visit the site www.ebodeelectronics.eu.

DESCRIPTION

1.1 EMML Wireless Micro Transmitter LED indicator

(1) For switching on/programming
(0) For switching off/programming

1.2 RMML Micro-Receiver

LED indicator

(PROG) for programming or (RESET)

Antenne LED → Antenne LED → Prog

INSTALLATION

Pure electrical circuit lines without any symbols

2.1 EMML INSTALLATION OF THE MICRO TRANSMITTER

1. Cut out a 65 mm hole 40 mm deep with a hole saw.

2. Set the insert box in the wall.

3. Remove the battery's protective tab then press the buttons to test. Pressing the (0) lights the red panel light. Pressing the (1) lights the green panel light.

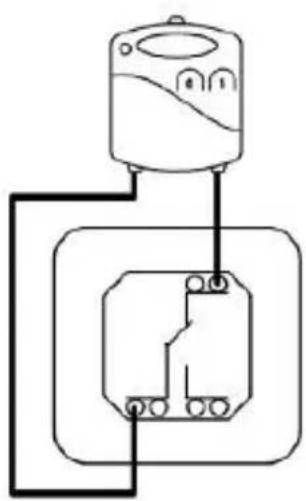

4. Connect the Micro Transmitter's wires to the switch (see opposite diagram)

5. Place the Micro Transmitter and the switch in the insert box taking care to pull out the antenna as much as you can.

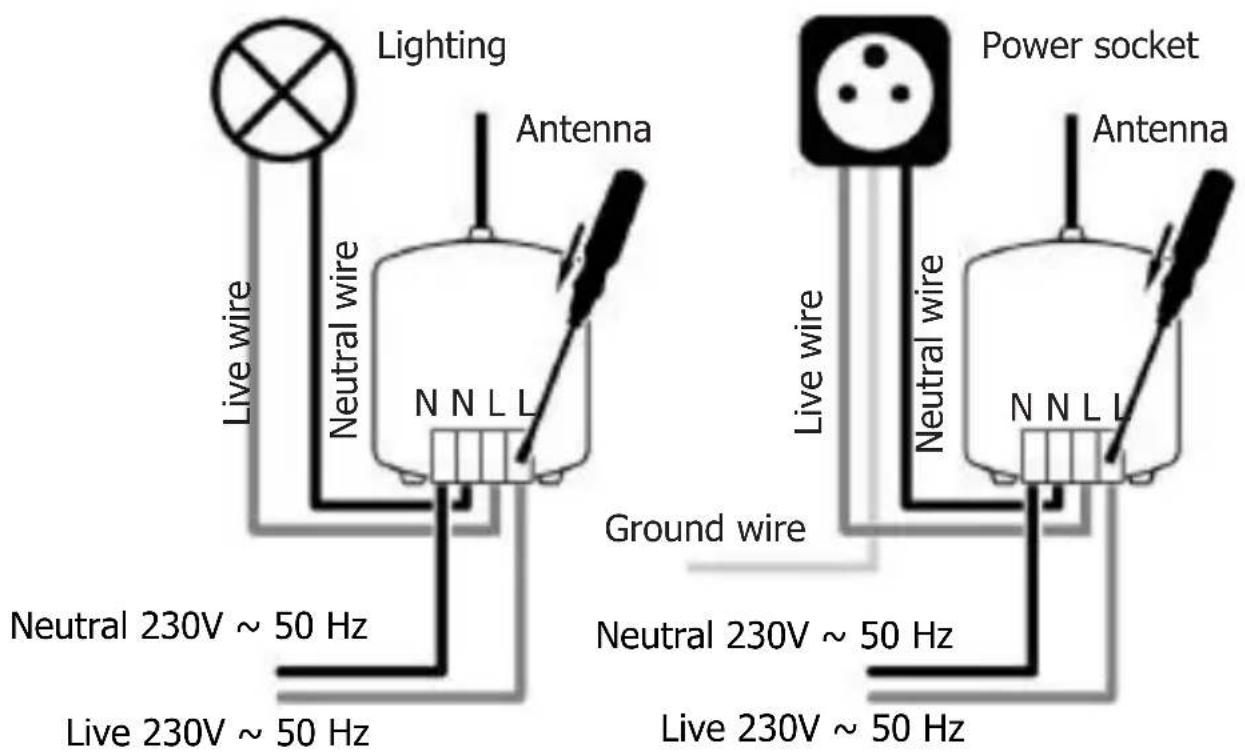

2.2 RMML INSTALLATION OF THE MICRO RECEIVER RMML

The Micro Receiver can be connected either directly to the light fixture (overhead light, wall lamp, etc.) or behind a power socket.

Lighting Antenna Live wire Neutral wire N N L L Power socket Ground wire Neutral 230V ~ 50 Hz Live 230V ~ 50 Hz Neutral 230V ~ 50 Hz Live 230V ~ 50 Hz

CAUTION

- The LIVE and the NEUTRAL wires are essential.

- For a remote-controlled socket verify the thickness of the back of the socket, add 25 mm in order to define the minimum depth of the wall box.

Do not connect more lights as the total permitted amount of wattage allows.

1. CAUTION: Shut off power to the circuit in the electrical panel.

1. Press on the top of the terminal board with a screwdriver and insert the wires (for a light fixture see diagram 1, for a power socket see diagram 2).

Then verify the connections by pulling lightly on the wires.

1. Pull out the antenna as far as you can for better reception.

ACTIVATION

Once the Micro-Modules have been installed connect the circuit switch. Verify proper operation by pressing the switch's On/Off button. The installation is done!

UPGRADING AND PROGRAMMING

If you wish to add other Micro Transmitters, Micro Receivers or remote control switches to the existing installation, you may choose among the following solutions:

-Add one or many command points to create a two-way switch: Install the Micro Transmitter(s) as specified in its manual

-Add a remote control switch: The first line of buttons automatically controls the lighting. (See remote control switch manual).

-Add an additional lighting spot: Install the Micro Receiver as specified in its manual.

REMARKS

Within a single installation, no additional programming is necessary to add one or more Micro Module(s) and remote control switch(es) to this pack.

-Installing an additional pack for another lighting point: In order to separate the two installations, follow these instructions.

3.1 HOW TO PROGRAM THE MICRO TRANSMITTER

In order to add the Micro Transmitter to a different installation from the original one, or to one with interference from a nearby system, it is necessary to program a different code.

The programming address is made up of a "HOUSE" code (from A through P) and of a "UNIT" code (from 1 through 16). The factory default address of the transmitter/receiver pair is set at A1. Proceed as follows to set a different code.

A. Accessing programming mode.

- Press the Micro Transmitter's START (1) and STOP (0) buttons briefly and simultaneously. The LED turns YELLOW.

Then the LED lights up RED once (for the HOUSE CODE), then GREEN once (for the UNIT code). The Micro Transmitter is in the A-1 setting.

You have 6 seconds to program a new code.

B. Setting the HOUSE CODE.

- Press the (1) button as many times as needed to get to the desired HOUSE CODE and then release it.

Example: A = press once, B = press twice, C = press three times, ... P = press 16 times.

- After having set the HOUSE CODE, the LED will flash YELLOW 3 times to confirm the code has been memorized and exit from programming mode.

C. Set the UNIT CODE.

• Repeat step A only.
• Press the (0) button as many times as needed to get to the desired UNIT CODE and then release it.

Example: 1 = press once, 2 = press twice, 3 = press 3 times... 16 = press 16 times.

After having set the UNIT code, the LED will flash YELLOW 3 times.

3.2 HOW TO PROGRAM THE MICRO RECEIVER

The Micro Transmitter commands must be recognized in order to add the Micro Receiver to a different installation from the original or to one with interference from a nearby system.

1. Install the Micro Receiver (Paragraph 3)
2. Proceed to make a "Reset". Press down and hold the button in the (PROG) opening with a paper clip until the LED lights up GREEN, then release it.: the LED should flash YELLOW: the Micro Receiver now has no code.
3. With the paper clip, press down briefly in the (PROG) opening. The LED will flash GREEN and wait for a command from a Micro Transmitter or remote control switch.
4. Press one of the buttons on the Micro Transmitter or the remote control switch: the Micro Receiver LED will stop blinking, confirming it has received the command. The programming is done!

REMARKS

The RMML Micro Receiver will remember as many Micro-Transmitters and remote control switches as necessary.

VERIFICATION

VerifyOn/Off switch operation.

You must wait about a second between each On / Off command.

When changing the battery, the registered code will be retained by the Micro Transmitter.

Troubleshooting - please check FAQ and technical support on

www.ebodeelectronics.eu

EINFÜHRUNG

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

1.2 RMML Micro Receptor

Indicador LED

(PROG) para programar o (REINICIO)

Antenne LED Antenne LED Prog

INSTALACIÓN

Pure electrical circuit lines without any symbols

1.2 RMML Micro Receptor

Indicador LED

(PROG) para programar ou reset

Antenne LED ão ão

Antenne LED Prog

Instalação

2.1 EMML Micro Transmissor

Pure electrical circuit lines without any symbols

2.2 RMML Micro Receptor

Pure electrical circuit lines without any symbols

CE DECLARATION OF CONFORMITY

UK - We, BMB Electronics BV, Kortakker 10 – 4264 AE Veen – The Netherlands, herewith declare that the following designated product PMML, is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Device: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Batteries: Do not dispose of used batteries in the household rubbish! They should be deposited at a collection point for used batteries.

Also available from ebode electronics:

On-Wall Modules

Product Description
EM 2-position	RF wall switch, ideal for retro fit installations to e.g. control blinds, shutter, home cinema screens but also lighting or appliances.
IMRF Single	position RF wall switch, ideal for retro fit installations to e.g. control applications or an inside or outside light.
RMV Control	your shutter, blind or e.g. cinema screen via the front panel keys, or remotely via any ebode / X10 compatible controller.
RMA Control	your appliance, light or e.g. pump via the front panel keys, or remotely via any ebode / X10 compatible controller.
RPA, RPL, RPT	Ideal for retro fit installations, the classic X10 plugin module in a new and stylish jacket. Control your appliance or lamps etc, via any ebode or X10 compatible controller via PLC AND RF!
TPC/ TMML	New stylish RF remote to control any ebode or X10 compatible RF receiver.

In-Wall Modules

Product Description

EMML 2-position RF in-wall module to install behind any mechanical wall switch. The EMML is battery operated.

RMML In-wall RF receiver, ideal for any switches lights and appliances up to 300W.

PMML A package containing both the EMML and the RMML.

Under development

Product	Description
RMP	Update on existing RMV with dry contact output. Ideal to control e.g a motorized gate.
RMSN In-wall	RF receiver without Neutral for light applications including incandescent, halogen, fluorescent, LED (even 0.5W charge).
