Product type	Micro receiver for lighting
Brand	Ebode
Model	RMML
Category	Home automation / Smart home
Usage	Remote control of lighting (incandescent, halogen, low voltage, LED, energy-saving bulbs)
Installation	Hidden at the lighting point or behind a socket
Power supply	Mains 230 V AC, 50 Hz
Maximum power	Up to 1000 W
Compatibility	Entire ebode home automation range
Range	Up to 30 m in open field
Frequency	433 MHz
Dimensions (approx.)	42 x 25 x 18 mm
Weight (approx.)	20 g
Material	Fireproof plastic
Protection rating	IP20 (indoor use)
Operating temperature	0°C to 40°C
Programming	Reset by long press, learning by short press
Memory	Up to 16 transmitters
Indicator light	Green/orange LED for programming
Antenna	Integrated, extendable
Maintenance	Clean with a dry cloth, without chemicals
Safety	Do not open, risk of electric shock. Entrust to a professional.
Repairability	No user-replaceable parts

Frequently Asked Questions - RMML EBODE

How to install the RMML micro receiver?

Cut the power at the circuit breaker. Insert the cables into the terminal block (phase and neutral) by pressing the top of the terminal block with a screwdriver. Deploy the antenna for optimal reception. Follow the installation diagrams depending on whether it is a light fixture or a socket.

How to program the micro receiver with a transmitter?

Perform a reset: long press with a paperclip in the PROG hole until green LED, then release. Then, short press so the LED flashes green. Press a button on the transmitter; the LED turns off, confirming programming.

Why does the LED not light up?

Check that the mains power is present and that the power is restored. If the LED remains off, the receiver may be defective or incorrectly wired. Make sure the phase and neutral are properly connected.

What is the maximum supported power?

The RMML supports up to 1000 W for incandescent and halogen lamps. For LED and energy-saving bulbs, the maximum power is lower; consult the ebode knowledge base.

Can I use multiple transmitters with one receiver?

Yes, the RMML can memorize as many transmitters as needed. Follow the programming procedure for each transmitter.

How to reset the micro receiver?

Insert a paperclip into the PROG hole and hold until the LED lights up green, then release. The LED will flash orange, indicating the receiver is empty.

What to do if the installation does not work?

First check that the power is cut and then properly restored. Make sure the connections are tight and the antenna is deployed. Try reprogramming the receiver with the transmitter.

Is the receiver compatible with LED bulbs?

Yes, the RMML is compatible with LED bulbs, as well as energy-saving, halogen, and incandescent bulbs. Respect the indicated maximum power.

Can the receiver be controlled remotely from a remote control?

Yes, the RMML works with remote controls and micro transmitters from the ebode home automation range. Program the receiver with your remote control as described.

Is there a risk of electric shock?

Yes, because the device is connected to 230 V mains. Never open the casing. Any intervention must be carried out by a professional. Always cut the power before installing or handling the receiver.

USER MANUAL RMML EBODE

Receiver Micro Appliance Module

User guide 6

General Security Note

For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. Technical manipulation of the product or any changes to the product are forbidden, due to security and approval issues.

Please take care to set up the device correctly - consult your user guide. WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

Important: the product must be used according the instructions in this manual and is not suitable for other purposes.

Please avoid the following: strong mechanical wear and tear, high temperature, strong vibrations, and high humidity.

Please also respect the additional security notes in the various user guide chapters. To ensure correct set up please read the manual and security notes carefully.

The Micro Receiver allows the remote control of incandescent, halogen, low-voltage, energy-saving or LED lights.

• The Micro Receiver is inconspicuously concealed at the light fixture (overhead light, wall lamp, etc.) or behind a power socket.
• It installs in just minutes.
• It's compatible with all ebode radio home automation devices. Visit the site www.ebodeelectronics.eu.

DESCRIPTION

LED indicator (PROG) for programming or (RESET)

INSTALLATION

• The LIVE and the NEUTRAL wires are essential.
• For a remote-controlled socket verify the thickness of the back of the socket, add 25mm in order to define the minimum depth of the wall box.

Connect only one light to the socket without using multi-socket converters to avoid a cumulative power drain.

Do not connect more lights as the total permitted amount of wattage allows.

1. CAUTION: Shut off power to the circuit in the electrical panel.

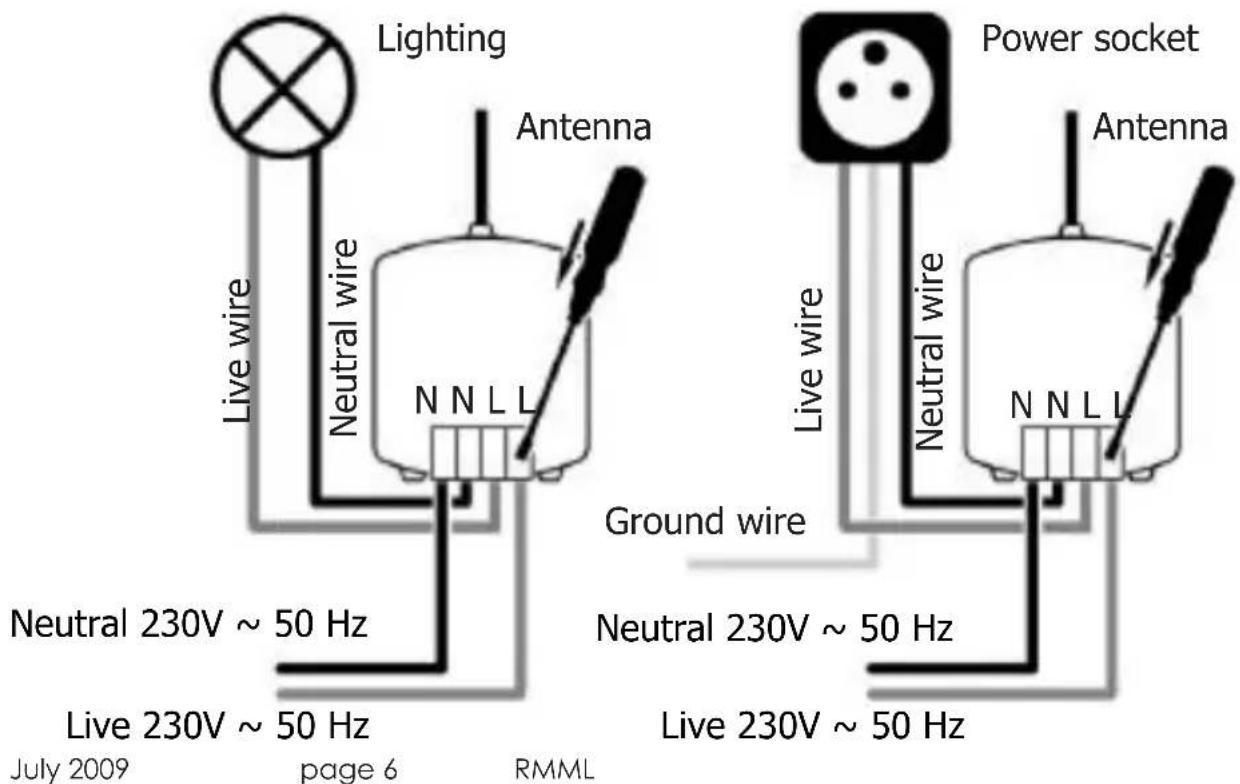

1. With the aid of a screwdriver press on the top of the terminal board and insert the cables (for the light fixture see diagram 1, for the power socket see diagram 2). Then verify the connections by pulling lightly on the wires.
2. Pull out the antenna as far as you can for better reception.

PROGRAMMING

The Micro Transmitter commands must be recognized in order to add the Micro Receiver to a different installation from the original or to one with interference from a nearby system.

1. Proceed to make a "Reset". Press down and hold the button in the (PROG) opening with a paper clip until the LED lights up GREEN, then release it. The LED should flash YELLOW: the Micro Receiver now has no code.
2. With the paper clip, press down briefly in the (PROG) opening. The LED will flash GREEN and wait for a command from a Micro Transmitter or remote control switch.
3. Press one of the buttons on the Micro Transmitter or the remote control switch: the Micro Receiver LED will stop blinking, confirming it has received the command. The programming is done!

REMARKS

The RMML Micro Receiver will remember as many Micro-Transmitters and remote control switches as necessary.

VERIFICATION

Verify On/Off switch operation.

You must wait about a second between each On / Off command.

When changing the battery, the registered code will be retained by the Micro Transmitter.

Troubleshooting - please check FAQ and technical support on

www.ebodeelectronics.eu
