USER MANUAL KE7951T Superior

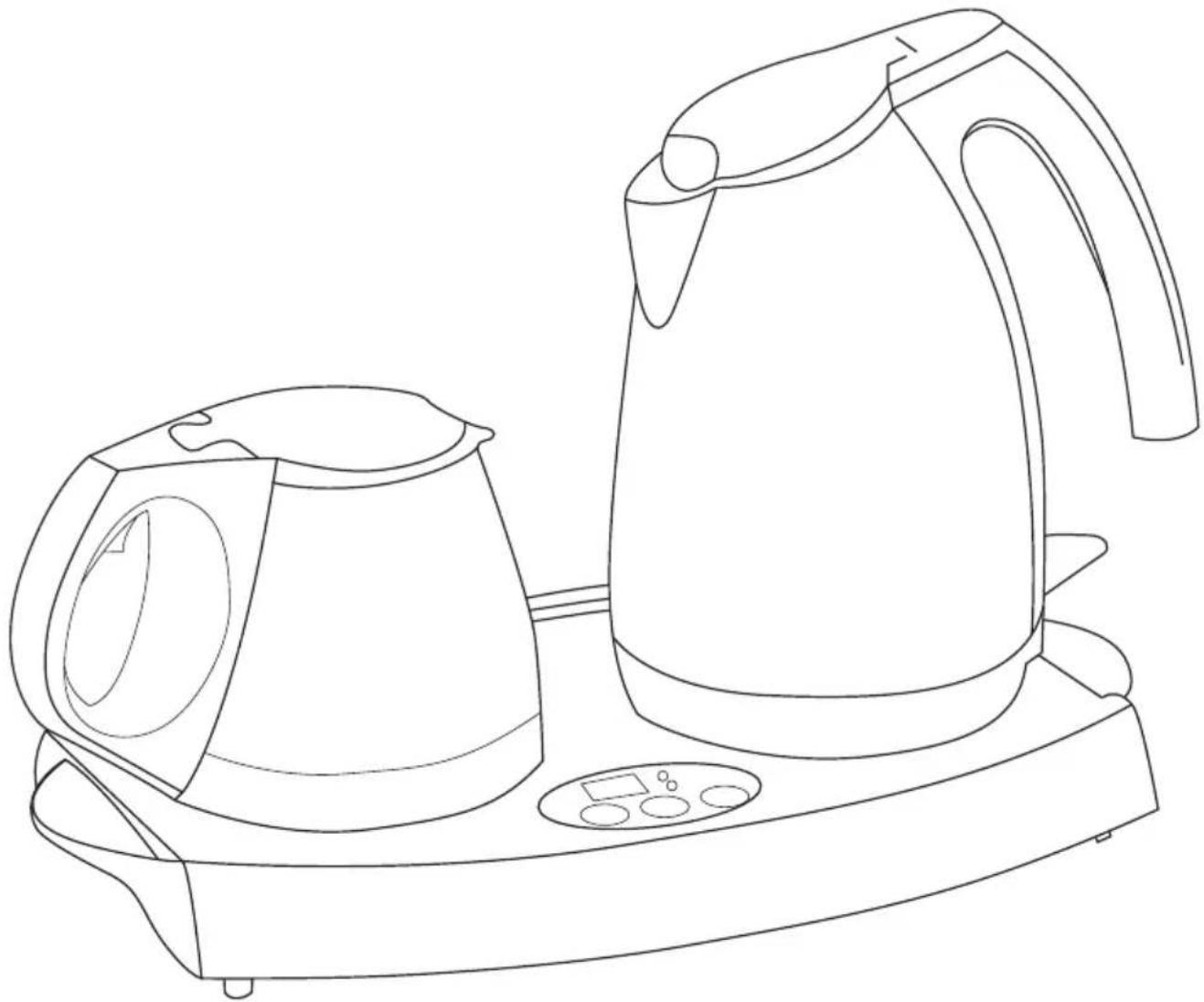

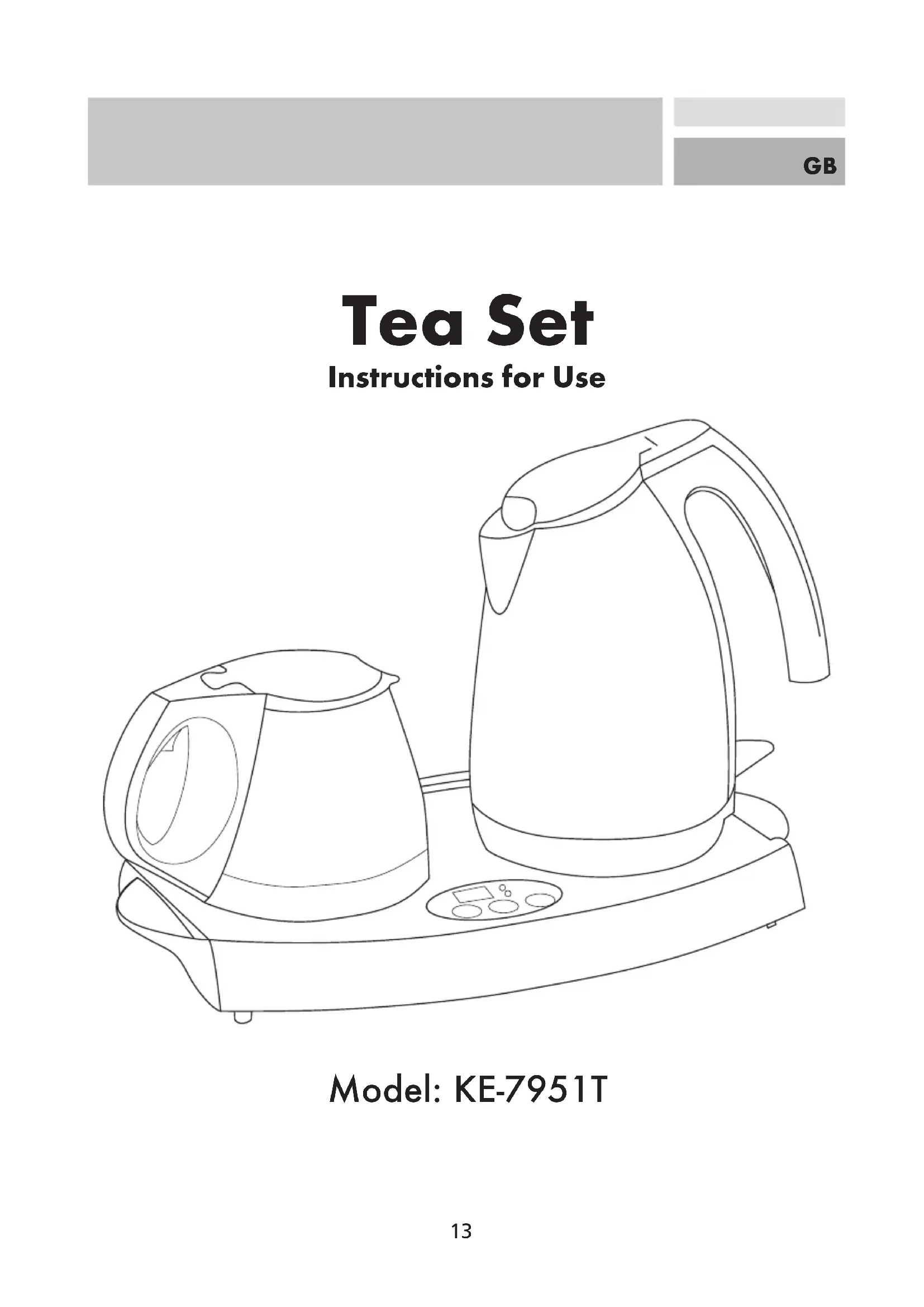

Instructions for Use

Model: KE-7951T

IMPORTANT SAFETY INSTRUCTIONS 15
APPLIANCE OVERVIEW 16
Using the appliance 17
Cleaning and care 19
De-scaling 19
TECHNICAL DETAILS 20
DISPOSAL TIPS 20
SERVICE / GUARANTEE 20

Always follow basic safety guidelines when using electrical equipment. In order to avoid the risk of burns, electrical shocks, fires and/or bodily injury, please read these instructions for use carefully before setting up and using this appliance. When using the appliance, please follow all of the instructions.

Keep these instructions for use in a safe place for future reference.

If you pass this appliance on to a third person, please also pass on these instructions for use.

IMPORTANT SAFETY INSTRUCTIONS

• Only plug the base unit into a properly installed plug socket. Do not use a multiple socket outlet or an extension cable.
• The voltage stated on the specification plate of the appliance must match the voltage of your mains supply.
• Only use the base unit with the power cable provided.
• When positioning the power cable, please ensure that this cannot cause a tripping hazard while the appliance is in use.
• Keep the power cable away from hot surfaces, open flames and sharp edges.
• Never touch the appliance, base unit, power cable or plug with wet or damp hands.
• Never submerge the appliance, base unit, power cable or plug in water or other liquids. Danger of electrocution and death!
• When unplugging the appliance, always grip the plug and not the power cable.
• Do not use the appliance outdoors.
• Only use the appliances on the base unit provided.
• Please take note of the level indicators (maximum and minimum) on the appliance. If the water level is too low, the appliance can overheat. If the water level is too high, boiling water may spill out of the machine.
• Please ensure that the kettle and glass teapot are never switched on without any water in them.
  In order to avoid the risk of burning yourself, be very careful when opening the lid of the kettle while it is still hot.
• Please note that the glass teapot is made from a heat-resistant material, but that it is still breakable. Never pour hot water into the pot while it is standing on the electric base unit. In the event of a leak, fluid could pour over the appliance. Danger of electric shock.

• Please take care when using the glass teapot so that you do not break and/or damage it. Check the glass pot regularly for possible damage or leaks.

• The warming plate for the teapot is only for keeping the pot warm and is not for heating or boiling water or tea. Never try to heat cold water or tea on the warming plate as the pot may shatter. Danger of injury. Danger of electrocution.
  The appliance must not be left unattended while in use.

• During operation, the appliances and the lid will become very hot. Only touch the appliances using the handles. Danger of burning.
• Please ensure that the lid is always securely attached during boiling and pouring. Danger of burning.
• Please ensure that the openings on the appliance are not directed towards people or objects as hot steam is emitted from these openings as the water boils.
• Before cleaning the appliance, always remove the plug from the plug socket and leave the appliance to cool completely.
  Children do not understand the dangers which could arise from using electrical appliances. Keep children away from the appliance. Please be especially careful when using the appliance if children are nearby.
• Keep all packaging material, for example plastic bags and polystyrene pieces, out of reach of children. Danger of suffocation.
• Do not use the appliance if there is any sign of damage, if it has been dropped, or if it does not work normally.
• Check the appliance, power cable and plug regularly for visible signs of damage. Do not under any circumstances use the appliance if you have noticed any damage. Do not try to repair the appliance yourself.
• Repairs should only be performed by a qualified professional.
• Only use the original parts and appliances. Other parts not recommended by the manufacturer could cause damage to the appliances and could cause injury to your person.
• Only use the appliance on non-slip, stable and heat resistant surfaces. Do not place the appliance near sources of heat or open fires.

IMPORTANT SAFETY INSTRUCTIONS / APPLIANCE OVERVIEW / BASE UNIT DISPLAY / STAINLESS-STEEL KETTLE

GB

• Only use the appliance to boil water. Do not use the appliance to heat other fluids (e.g. milk) or to heat / boil food in water.
  The appliance is only suitable for use in private households and is not suitable for commercial use.

APPLIANCE OVERVIEW

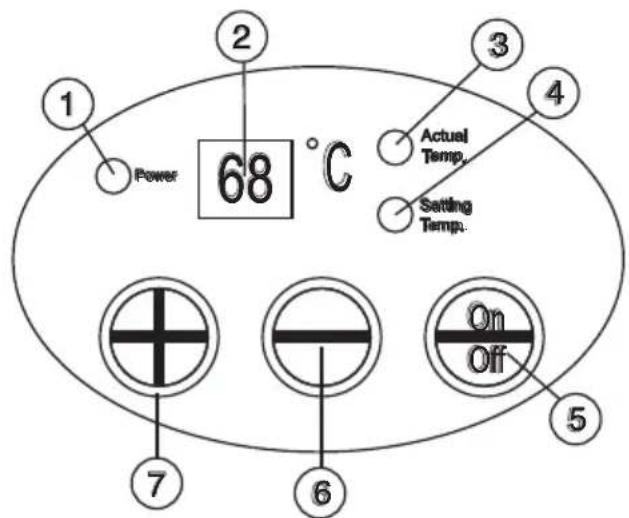

BASE UNIT DISPLAY

1 Power-on indicator

2 Digital display

3 Light for current temperature (yellow)

4 Light for set temperature (green)

5 On/Off switch

6 Reduce (-) button

7 Increase (+) button

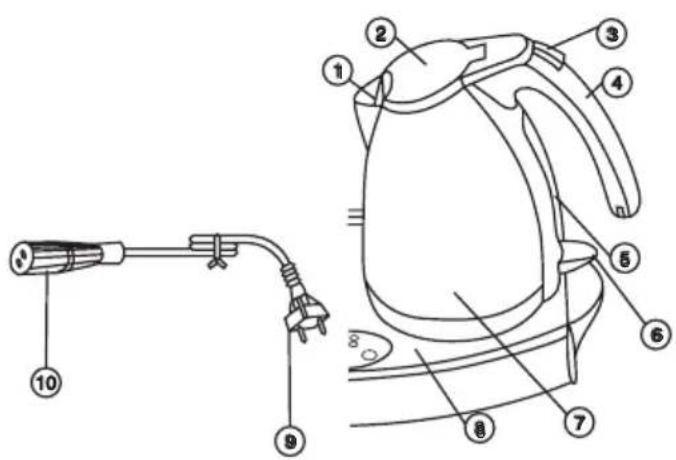

STAINLESS-STEEL KETTLE
1	Kettle filter
2	Lid
3	Button to open
4	Handle
5	Water level indicator
6	On/Off switch (automatic off function)
7	Kettle housing
8	Power socket
9	Main plug
10	Three-pole connection plug

TEAPOT AND WARMING PLATE / USING THE APPLIANCE /BASE UNIT / KETTLE

GB

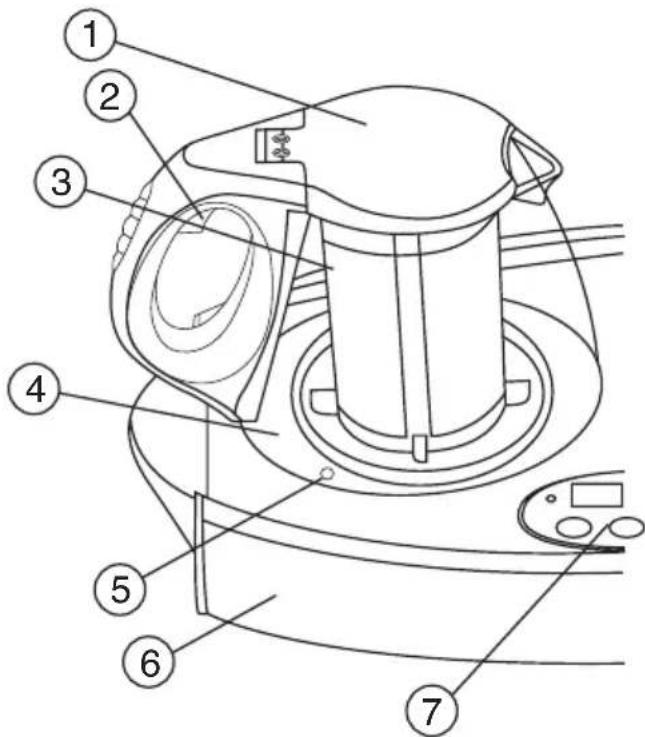

TEAPOT AND WARMING PLATE

1 Teapot lid

2 Button to open lid

3 Filter

4 Warming plate

5 Temperature sensor

6 Socket housing

7 Digital display and control

USING THE APPLIANCE

Important note:

Before using the kettle and glass teapot for the first time, we recommend that you follow these instructions for use, using just plain water, and that you then throw away the water that has passed through the appliance. This should clean the appliance and remove any possible dust or impurities that may be left over from the manufacturing process.

BASE UNIT

• Place the base unit on a stable, flat and heat resistant surface. Please ensure that the appliance cannot be knocked and cannot tip over.
• Plug the three-pole connection plug on the power cable into the appropriate socket on the base unit. The connection should be secure and should not wiggle.

KETTLE

• The lid of the kettle can be unlocked and opened by pressing the rectangular button on the kettle handle.

• Fill the kettle with clean water. The quantity of water must be between the maximum and minimum water level indicators of the appliance. If the water level is too low, the appliance can overheat. If the water level is too high, boiling water may spill out of the machine.

• Every time you wish to use the kettle, fill the appliance with fresh water. Throw away any left-over, cold and stale water.

• Close the lid of the kettle once more. The appliance will only switch off automatically once the water has boiled if the lid is shut. Press down on the lid with your hand and make sure that it locks into place audibly.

KETTLE / GLASS TEAPOT / GLASS TEAPOT WARMING FUNCTION

GB

• Place the appliance on the base unit on the socket designed for the kettle, and plug in the mains plug. The kettle must be stable on the socket of the base unit.
• Please ensure that the openings on the appliance are not directed towards people or objects as hot steam is emitted from these openings as the water boils.
• Set the switch of the appliance to "1". The power light indicates that the appliance is switched on. The water will now heat up.
• Please ensure that the lid is always fully closed while the kettle is boiling. Danger of burning.
• When the water has boiled, the appliance turns off automatically. The switch jumps back to "0" and the power light goes out.
  After boiling the kettle, wait a minute until the water is no longer bubbling. Do not open the lid while the kettle is boiling or during pouring.
• The boiling process is interrupted/ended immediately if the kettle is lifted from the base unit. The appliance turns off.
• The appliance is protected against over-heating, and operation is interrupted if the appliance is turned on unintentionally without any water. If this happens, the appliance must be left to cool for a minimum of 15 minutes before water is added and the appliance can be used again.
• When the appliance is not in use, please remove the mains plug from the socket.

GLASS TEAPOT

• The lid of the glass teapot can be opened by pressing the button on the inside of the handle.
• Use the handle on the filter to remove this from the teapot. You can now fill the filter with loose tea leaves.
• Replace the filter in the teapot. The filter must be slotted into the socket intended for it.
• Carefully pour hot water, but not boiling water, from the kettle into the teapot.
• Close the lid of the teapot. Leave the tea to brew.
• When the tea is ready, open the lid of the glass teapot by pressing the button on the inside of the handle.

• Remove the filter from the teapot. When removing the filter, you must use the plastic handle provided. Danger of scalding!

• Put the filter down on a surface that will not be damaged by water or heat.

• Close the lid of the glass teapot.
• When lifting the teapot, only use the plastic handle. Danger of burning!

WARNING:

Please note that the glass teapot is made from a heat-resistant material, but that it is still breakable. Never pour hot water into the pot while it is standing on the electric base unit. In the event of a leak, fluid could pour over the appliance. Danger of electric shock.

Avoid subjecting the glass teapot to large temperature differences. Never fill the teapot with cold water when it is still hot. Check the glass teapot regularly for any possible damage or leaks.

GLASS TEAPOT WARMING FUNCTION

• Prepare the tea as described above in the "Glass Teapot" section. Please note that the warming plate is to be used only for keeping the tea warm, and not for heating / boiling water or tea.
• Place the full teapot on the warming plate on the base unit.
• Press the ON/OFF button in order to switch the warming plate on.
• The "Current Temp" light will turn on, the display will light up, and the blue "Power" light will appear.
• As soon as the warming plate is turned on, the temperature sensor begins to measure the current temperature of the tea in the glass pot. This process can take a couple of minutes. The display will flash while this is taking place.
• If the level of liquid in the teapot has fallen below the minimum level, or if the teapot is not correctly positioned on the warming plate, the warming function will not work.
• If the temperature in the glass teapot is too high, the warming plate will not work until the tea has cooled sufficiently. In this case, the blue "Power" light will only appear when the tea has cooled sufficiently.

GLASS TEAPOT WARMING FUNCTION / CLEANING AND CARE / DE-SCALING

GB

• When the temperature sensor has measured the current temperature of the tea, this is shown in the display. The red "Current Temp" indicator will light up.
• The desired warming temperature can now be set. The "Setting Temp" indicator lights up.
• Temperatures between 50^ and 85^ can be set. The default temperature is 70^ .
  In order to set the desired temperature, press the ^ + ^ (increase temperature) or - (decrease temperature) keys.
• A short press on the "+" or "-" buttons increases or decreases the warming temperature by 1^ C at a time.
  If the ^ 十 + ^ 一 or - button is held down for longer, the temperature increases or decreases by 5^ at a time.
• When setting the temperature, the display shows the temperature that is currently set, and the "Setting Temp" indicator lights up.
• The setting can be changed at any time.
• To end the warming function, press the "ON/OFF" button. The appliance will switch off.

• The warming system stops automatically after 90 minutes in order to prevent the appliance from overheating. To continue the heating function, press the ON/OFF button once more, and repeat the instructions as above.

• Do not use any abrasive substances, abrasive sponges or strong detergents, as these can damage the surface of the appliance.

DE-SCALING

The kettle must be de-scaled regularly. The frequency of de-scaling depends on the hardness of the water in your area and on how frequently you use your appliance. In order to guarantee the safe operation of the appliance, visible signs of limescale must be removed immediately. To de-scale the appliance, use a mixture of one part vinegar (not flavoured vinegars) to three parts water.

• Fill the kettle to the maximum level with the vinegar and water mixture and leave to work in the appliance for approximately one hour.
• Next, boil the vinegar solution in the kettle and pour this away.
• Fill the kettle to the maximum level once more, this time with clean water, boil, and throw the water away.

CLEANING AND CARE

Warning:

Before cleaning the appliance, always remove the plug from the plug socket and leave the appliance to cool completely.

• During cleaning, the appliances, base unit, power cable and plug must not be submerged in water or other fluids.
• The base unit, power cable and plug must only be cleaned with a dry cloth.
• The outside of the kettle can be cleaned with a damp cloth and must be thoroughly dried afterwards.
  After using the glass teapot, always rinse thoroughly and dry in order to remove the unwanted smell of tea.
• Wash the filter of the glass teapot with water and a mild detergent.

TECHNICAL DETAILS / DISPOSAL TIPS / SERVICE / GUARANTEE

GB

TECHNICAL DETAILS

MODEL: KE-7951T
KETTLE
Mains voltage: 220 - 240V ~ 50 Hz
Power output: 1850 - 2200 Watts
Max. capacity: 1.7 Litres
Water level indicator: Min. / Max.
Safety lid Yes
Automatic off Yes
Over-heating protection Yes
WARMING PLATE
Mains voltage 220 - 240V ~ 50 Hz
Power output 55 Watts
Warming function	Yes
GLASS TEAPOT
Max. capacity	1.2 Litres

DISPOSAL TIPS

• Electrical appliances should not be disposed of with household rubbish. Legislation requires that old appliances must be disposed of at local public collection points, or by bulky refuse collection.
• This is the only way to ensure that used appliances are disposed of and re-used properly.

SERVICE / GUARANTEE

The guarantee period is 3 years and commences on the day of purchase. You must keep your receipt for proof of the purchase date.

The guarantee is valid for appliances purchased within Germany. It covers defects and failures arising within the guarantee period as a result of normal use and which are the result of material or

manufacturing faults.

In the event of a valid guarantee claim, you will incur no costs for the repair of your appliance.

The guarantee shall become null and void in the event of damage and amendments to the appliance, and in the event of incorrect use of the appliance, to the extent that this lies outside the scope of responsibility of the guarantor, in particular in the following circumstances:

• Intrusion into the appliance by an unauthorised person.
• Amendments to the exterior or interior of the appliance, removal or permanent obscuring of the serial number, and removal or amendments made to the official seal of the appliance.
• Damage caused by knocks, being dropped or external influences.
• Damage resulting from incorrect use and misuse.
• Damage from external causes, e.g. power

SERVICE / GUARANTEE

GB

surges, lightening strike.

• Commercial use of the appliance.

Your legal rights in the event of a defect

(additional delivery, collection, loss,

compensation, all according to 437 of the

German Civil Code) are not affected by this guarantee.

Please keep the original packing in case it is necessary to send back the appliance for repair.

Repaired or exchanged components shall in general be subject to the remainder of the guarantee period.

If you have any questions about the product or these instructions for use, or if you notice any possible damage to your product, please call our service hotline directly to ask about what steps you should take next.

HOTLINE/EU: (0049) - (0)1805 64 66

66*

(*0.14 €/MINUTE FROM THE

Please do not send your appliance to our address unless asked to do so. You must first contact our service hotline. Costs and liability for unrequested sending shall be the responsibility of the sender.

We reserve the right to refuse appliances returned to us unbidden, or to return them to the sender at his/her cost.

ITEM NO: 10000123
