USER MANUAL HW90B14266A HAIER

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Simple black cross symbol on white background, no text or numbers present

Simple black cross symbol on white background, no text or numbers present

Haier Airbox ① ② ③ ④ ⑤ ⑥ ⑦ Simp Drive

① ② ③ ④ ⑤ ⑥ T3 S1 T4 S2 S4 T1 T2 S3

Simple line drawing of a coiled hose with a bulb (no text or symbols)

|x
Toevoer-slang

5x
Afdicht-pluggen

Diagram showing three labeled blocks (①, ②, ③) with downward arrows indicating direction or flow, likely illustrating a mechanical or electrical component assembly.

Programma
Temp. Max.
Voorin- stelling

2

31

Type vezel
Voorinstelling Zwiersnelheid

1 Katoen 0-90 °C 30 °C Katoen / Synthetisch 1400 tpm
2 Synthetisch 0-60 °C 30 °C Chemisch 1200 tpm					Vezels
3 Mix 0-60 °C 40 °C Katoen / Synthetisch 1000 tpm
4 Wol 0-4 --- Wol- 600 tpm					materiaal
5 Ondergoed 0-60 °C 40 °C Ondergoed				100
6 Sport	0-40 °C 30 °C Sportkle				0 tpm
7 Jeans	0-60 °C 40 °C Jeans I (G3DK)
8 Hygiënisch 95 °C 95° C Katoen				000 tp
9 Bonte was	0-40 °C 30 °C Katoen-			0 tpm
10 Ultra wit	0-60 °C 40 °C Katoen			0 tpm
11 Express 15 min	0-30 °C 20 °C Katoen			00 tpm
12 Baby Care	0-90 °C 60 °C Katoen			00 tpm
13 Delicaat	0-40 °C 30 °C Zijde			0 tpm
14 Handwas	0-40 °C 30 °C Katoenr		[3A5]	0 tpm
15 Zwieren/Pompen	---	---			---
16 Zelfreiniging	90 °C	90 °C			1000 tpm

Verbruik

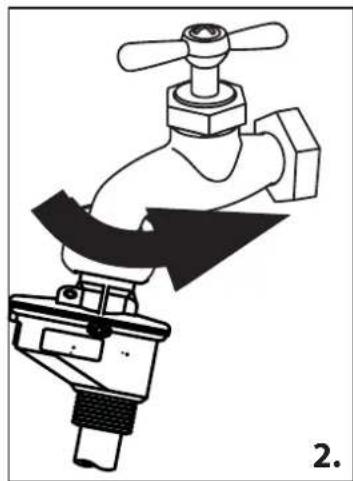

Technical illustration of a faucet with directional arrows indicating flow or movement (no text or symbols)

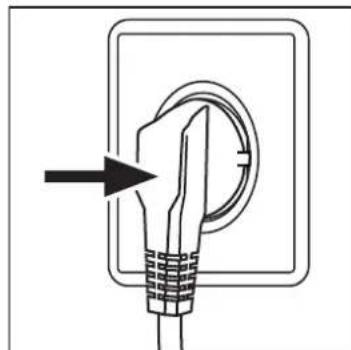

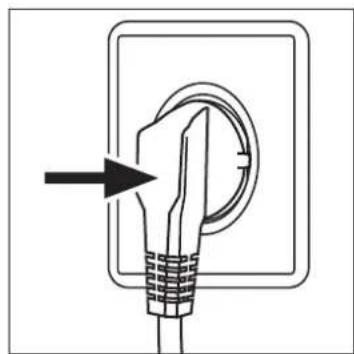

Voeding

Diagram illustrating clothing item handling with arrows indicating movement from a basket to different clothing items

Pure mechanical diagram showing a lever mechanism with weights and components (no text or symbols)

Waarschuwing!

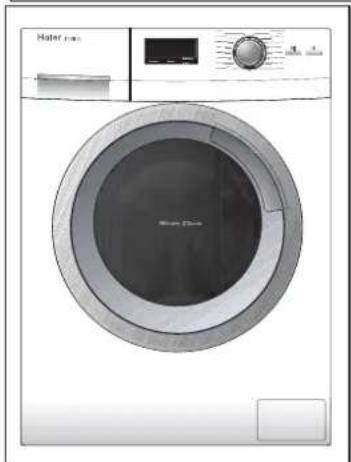

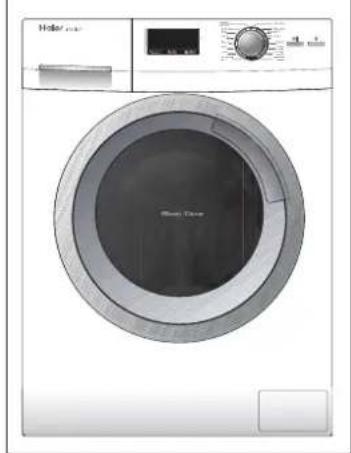

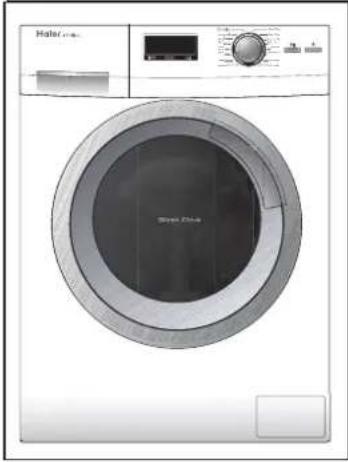

Front view of a white portable washing machine with control panel and door (no visible text or symbols)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

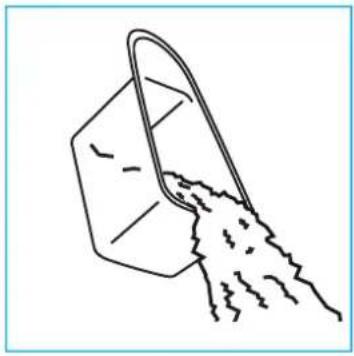

Wasmiddel kiezen

Diagram showing a device control interface with labeled ports and a hand pointing to a button labeled 'O'

Kösten Carbon Synthetisch Synthetique Mix Wol Lane Oncoyzed Lipeta Sport Jeans Hygianach 95 °C Hygianque 95 °C Bambi and Quotation Ultra wt Ultra black Expires 15 min Baby Care Delcoat Delcoat Handwass Lavage main Zefraen / Pommern Etsorange/Vortige Zefraeranging Nettoysge Fentour

88:88 Programms Programms Selects Selects Endels Endels

Diagram showing a circular device with labeled buttons and a hand pointing to a play button, likely illustrating a control or navigation interface.

Outer Inner Outer Inner Outer Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer Inner Outer

Pure technical line drawing of concentric circular components without any text or symbols

Technical diagram showing a mechanical component with labeled parts 1 and 2, likely illustrating a cutting or assembly process.

Front view of a white disposable washing machine with control panel and front-mounted screen (no visible text or symbols)

Line drawing of a hand using a tool to adjust a screwdriver on a mechanical component (no text or symbols)

Diagram of a light bulb mounted on a wall socket, with no text or symbols present.

2

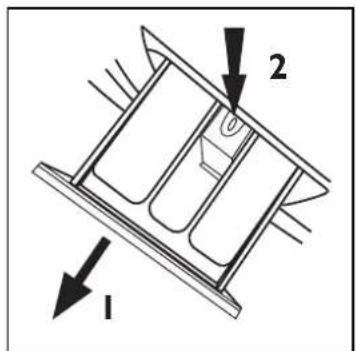

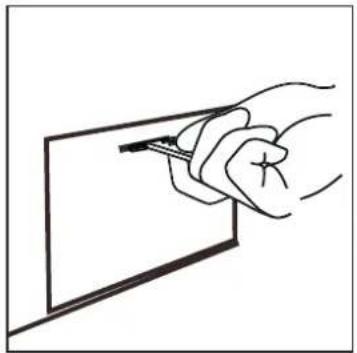

De wasmiddellade reinigen

Diagram of a plug with spring and socket, showing internal components (no text or labels)

Line drawing of a hand holding a pen, poised to write on a blank sheet (no text or symbols present)

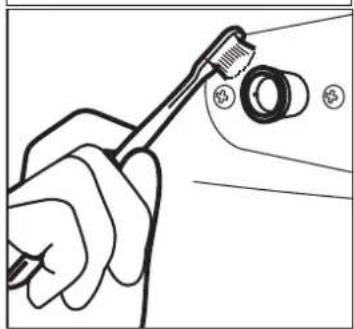

Illustration of a hand using a tool to clean or inspect a component, with no visible text or symbols.

Illustration of a hand holding a ring with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a tray (no text or symbols visible)

Two gray rectangular panels with arrows indicating rotation or movement, no text or symbols present.

Simple line drawing of a rectangular frame with corner bolt holes and a central blank space (no text or symbols)

Simple geometric diagram of a rectangle with four corner dots, no text or symbols present

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, likely representing a circuit or mechanism.

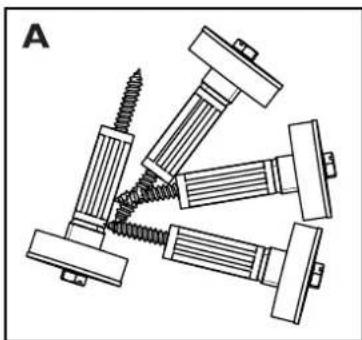

Mechanical assembly diagram showing multiple screws and fasteners (no text or labels)

5.

Line drawing of a hand holding a screwdriver (no text or symbols)

De poten verstellen

Simple line drawing of a mechanical pump or drain system with no text or symbols

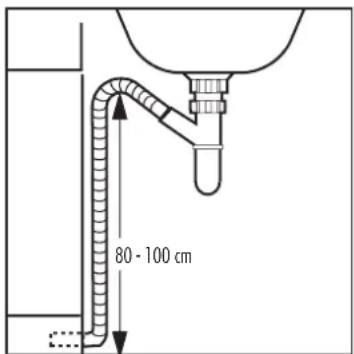

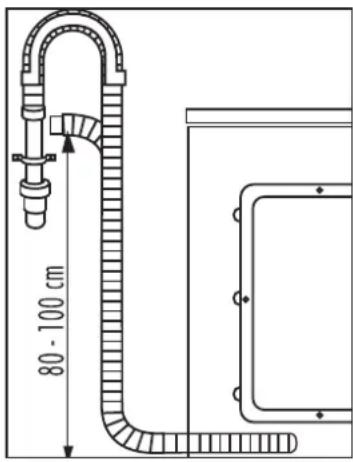

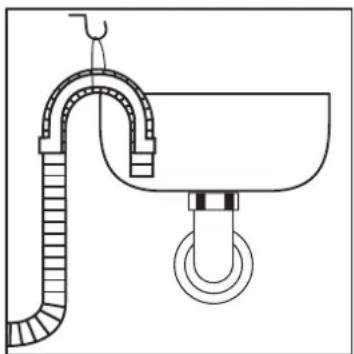

Afvoerslang

Diagram of a pipe fitting with a valve and directional arrow, no text or symbols present

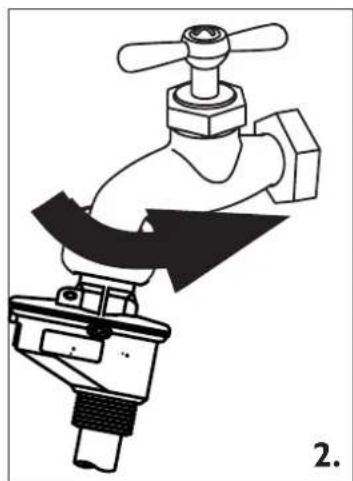

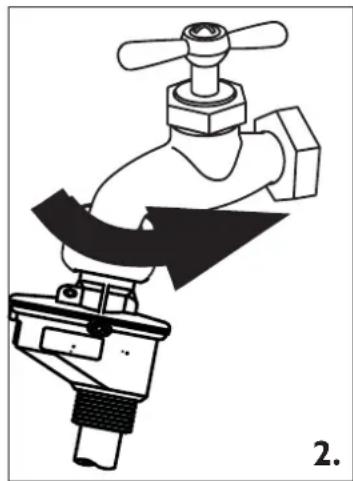

Illustration of a faucet with a handle and valve, no text or symbols present

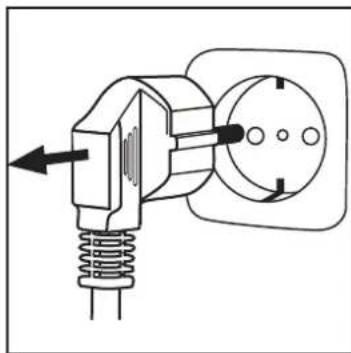

Pure electrical outlet diagram without any text, numbers, or symbols

Haier airbus polar 2000 2000 Smart Drive H M A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W

HW80-B14266A

HW90-BI4266A

Thank you for purchasing a Haier product

Please read these instructions carefully before using this appliance. It contains important information which will help you get the best out of your appliance and ensure safe and proper installation, use, care and cleaning.

Keep this manual in a convenient place so you can always refer to it for safe and proper use.

If you sell the appliance, give it away, or leave it behind when you move, make sure you also pass on this manual so that the new owner can become familiar with all features and safety warnings.

Legend

✓------ Yes ×------ No i------ General information and tips !------ Warning! Important safety information! #------ Environmental information

Disposal

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

The presence of this symbol on the product, accessories or materials that goes with this information indicates that at the end of its useful life the product or its electronic accessories (e.g. cable, Aqua Stop hose) should not be disposed with other household waste. To prevent possible damage to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them. This will promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased the product or relevant local authorities to find out how they can take this item for environmentally safe recycling and safety. Business users should contact their supplier and check the conditions of the purchase. This product and its electronic accessories should not be mixed with other commercial waste.

The old unit must be rendered inoperative before scrapping, i.e. the power cord must be removed. As well, the door lock must be rendered unusable, so that children cannot lock themselves.

Index

Safety 4-5

Product description...... 6

Control panel.... 7-9

Programmes.... 10

Consumption......II

Special features.... 12

Daily use.... 13-17

Care and cleaning.... 18-19

Troubleshooting.... 20-22

Installation.... 23-25

Technical data 26

After sales service.... 27

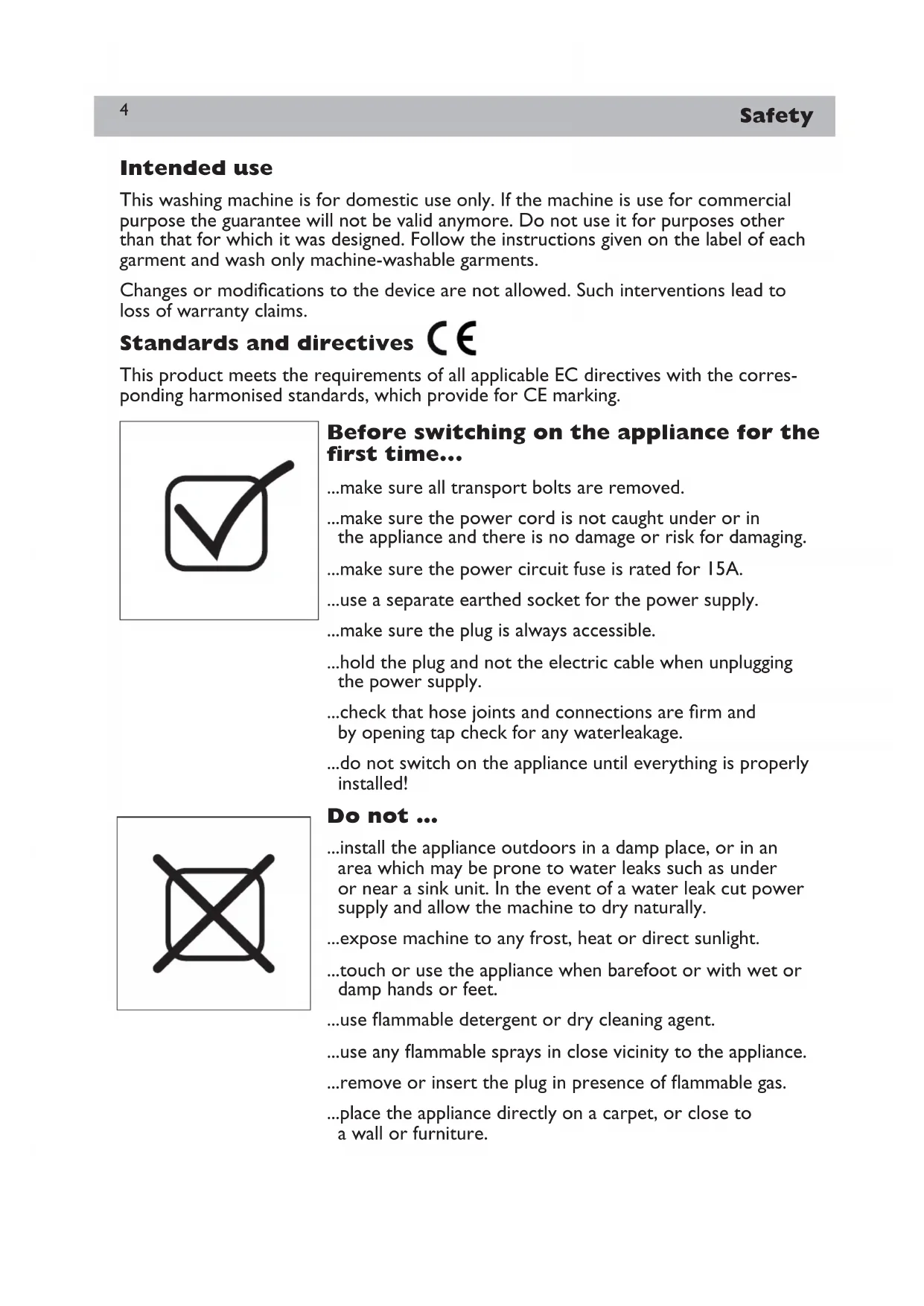

Intended use

This washing machine is for domestic use only. If the machine is use for commercial purpose the guarantee will not be valid anymore. Do not use it for purposes other than that for which it was designed. Follow the instructions given on the label of each garment and wash only machine-washable garments.

Changes or modifications to the device are not allowed. Such interventions lead to loss of warranty claims.

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

Simple checkmark inside a square outline (no text or symbols)

Before switching on the appliance for the first time...

...make sure all transport bolts are removed.

...make sure the power cord is not caught under or in the appliance and there is no damage or risk for damaging.

...make sure the power circuit fuse is rated for 15A.

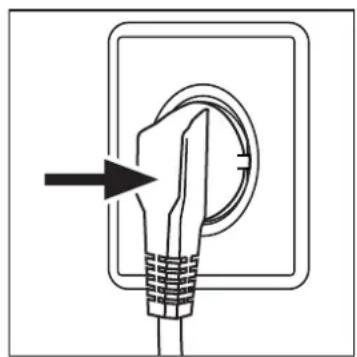

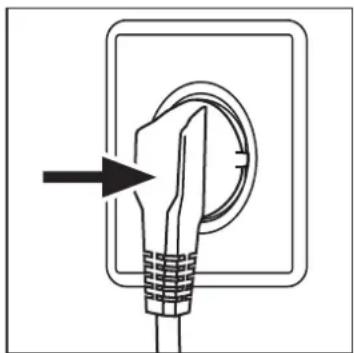

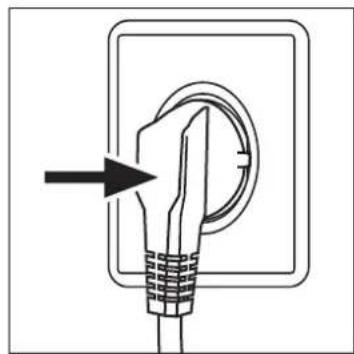

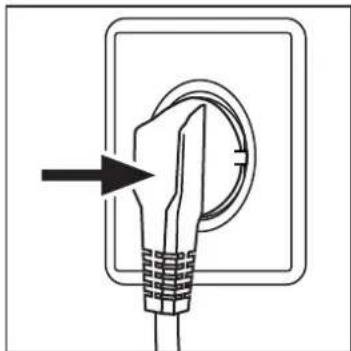

...use a separate earthed socket for the power supply.

...make sure the plug is always accessible.

...hold the plug and not the electric cable when unplugging the power supply.

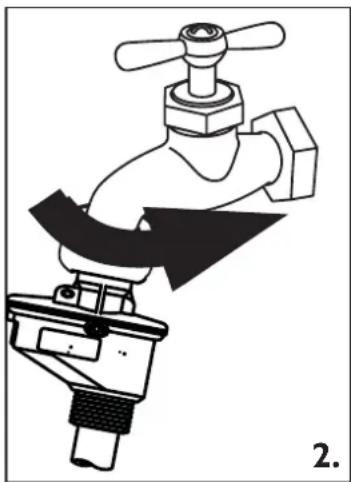

...check that hose joints and connections are firm and by opening tap check for any waterleakage.

...do not switch on the appliance until everything is properly installed!

Simple black cross symbol on white background, no text or numbers present

Do not ...

...install the appliance outdoors in a damp place, or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak cut power supply and allow the machine to dry naturally.

...expose machine to any frost, heat or direct sunlight.

...touch or use the appliance when barefoot or with wet or damp hands or feet.

...use flammable detergent or dry cleaning agent.

...use any flammable sprays in close vicinity to the appliance.

...remove or insert the plug in presence of flammable gas.

...place the appliance directly on a carpet, or close to a wall or furniture.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe away and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

During daily use of the appliance...

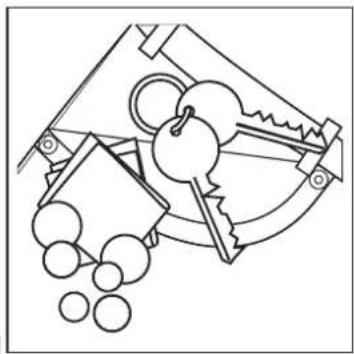

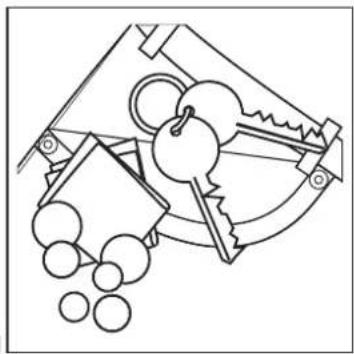

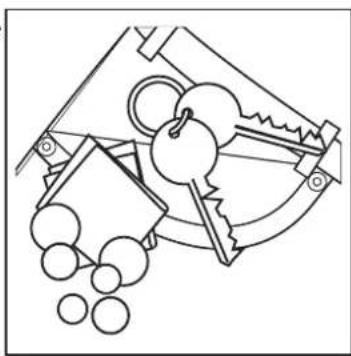

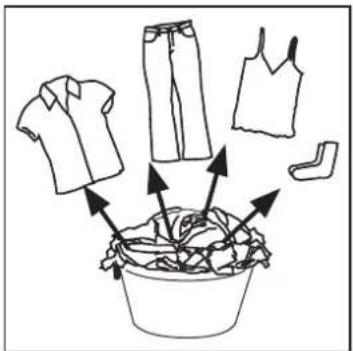

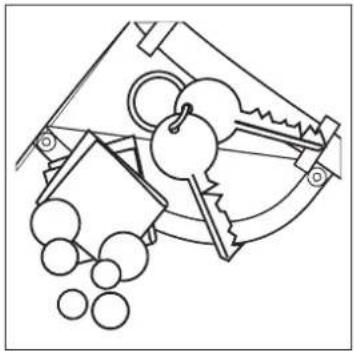

...pull up zips, fix loose threads and take care for small items to prevent laundry from being entangled. If necessary, use an appropriate bag or net.

...switch off at the wall socket after each wash programme to save electricity and for safety.

...keep the lower part of the porthole clean and open door and detergent drawer if appliance is not in use to prevent odours.

...a damaged power cord is only to be replaced by the manufacturer, his service agent or other specifically qualified people.

Simple checkmark inside a square outline (no text or symbols)

Do not ...

...touch the door during the washing process, it gets hot.

...place heavy objects or sources of heat or damp on top of the appliance.

...hot wash from rubber or sponge-like materials.

...open detergent drawer during any wash cycle.

...force the door to open, it is fitted with a self-lock device and will open shortly after wash cycle end.

...open the door if the water level is visibly over the porthole.

...cover or encase the appliance during operation or after wards to allow any moisture or dampness to evaporate.

Simple black cross symbol on white background, no text or numbers present

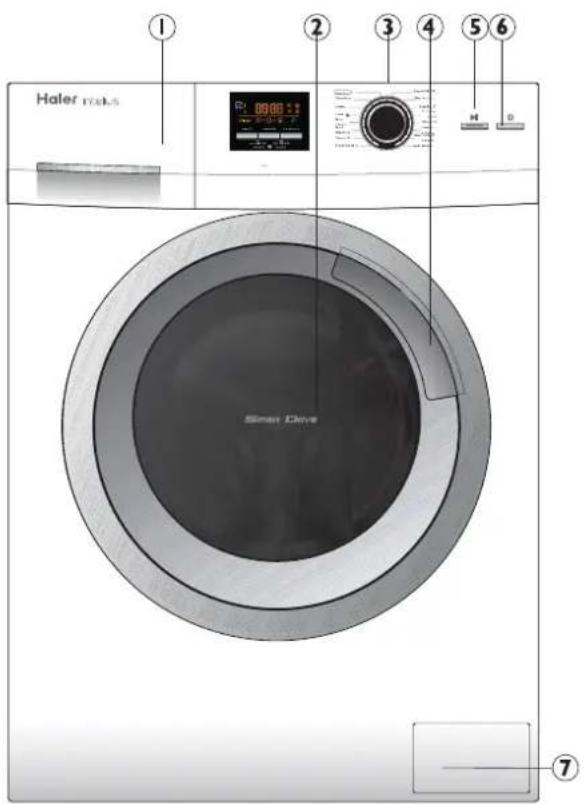

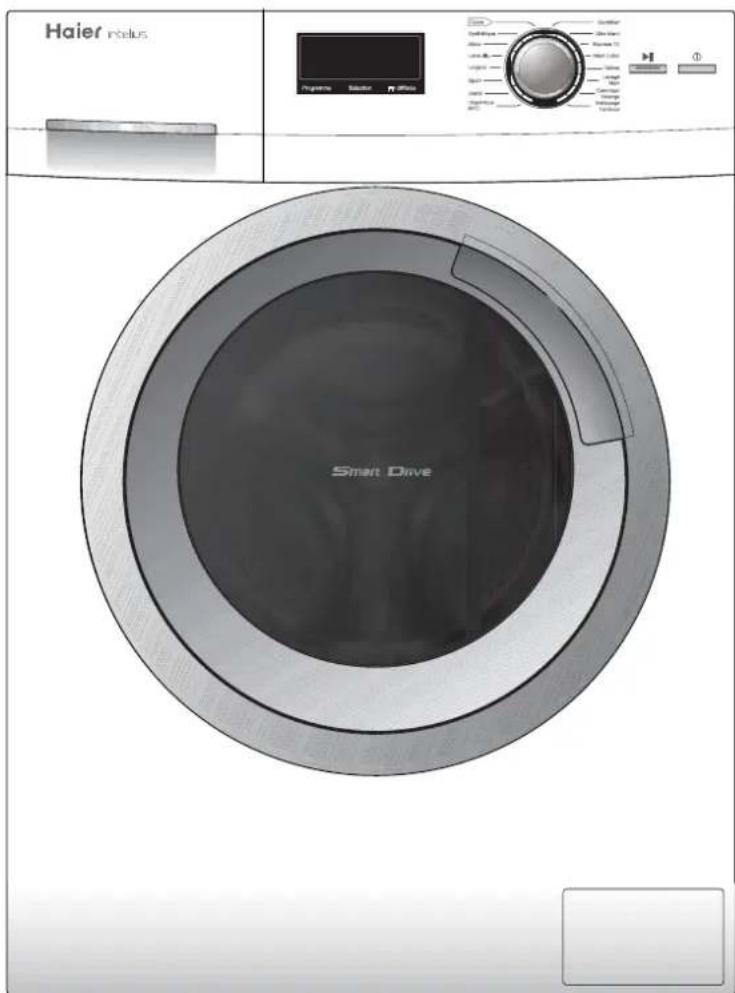

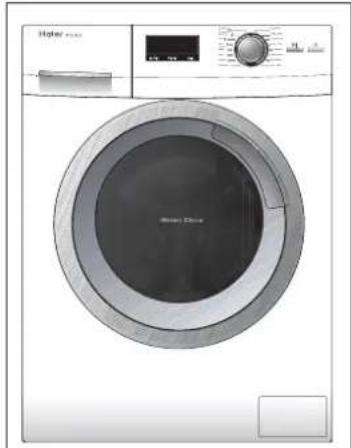

Haier plakus ① ② ③ ④ ⑤ ⑥ Smart Clave ⑦

① ② ③ ④ ⑤ ⑥ T3 S1 T4 S2 S4 T1 T2 S3

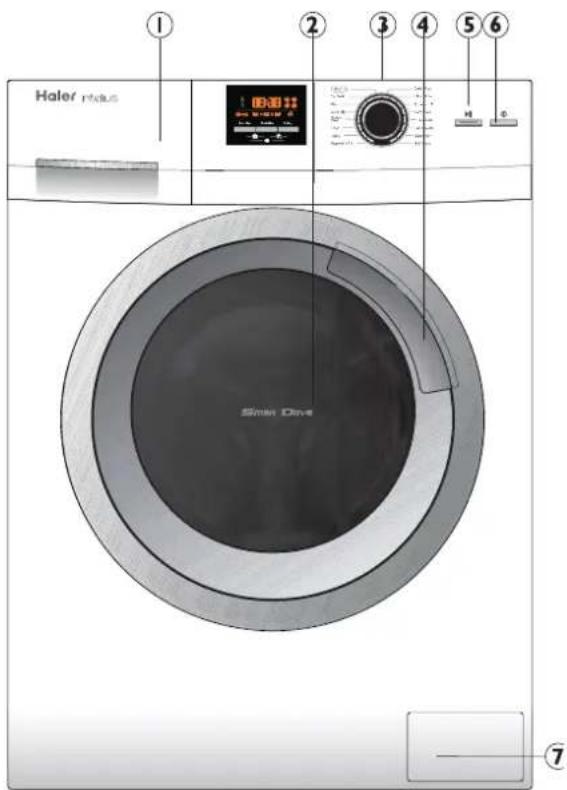

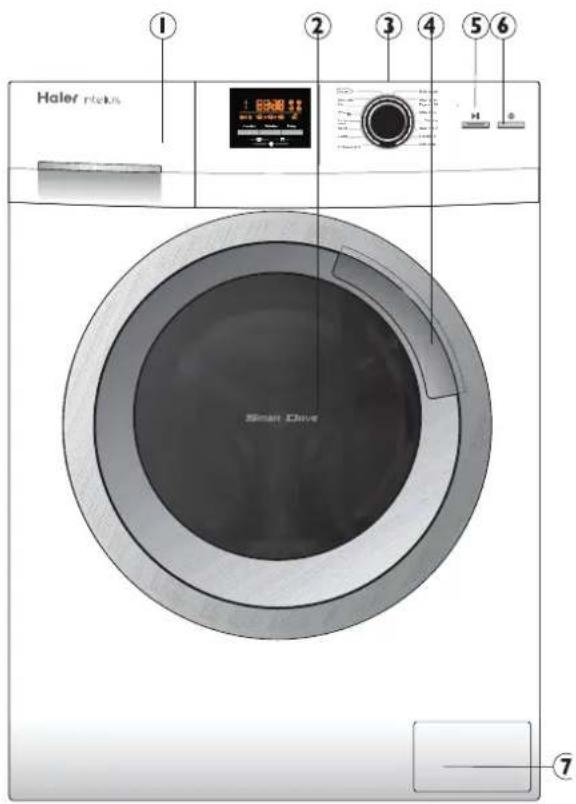

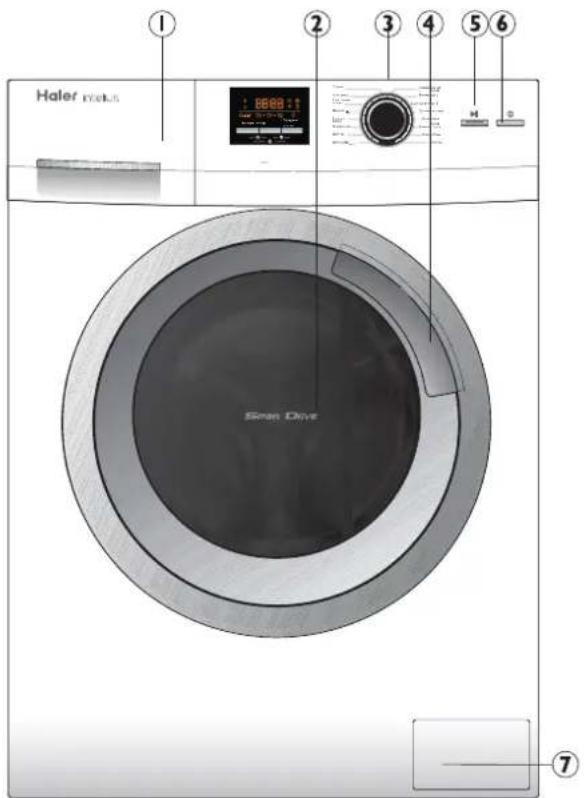

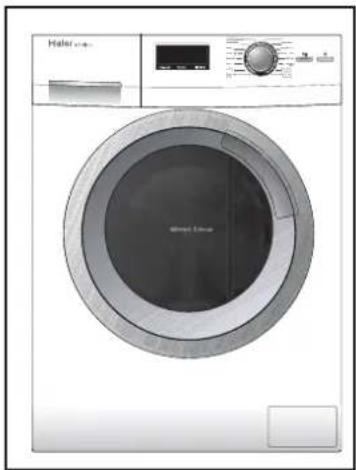

This drawing may be slightly different from the layout of the washing machine you have just purchased.

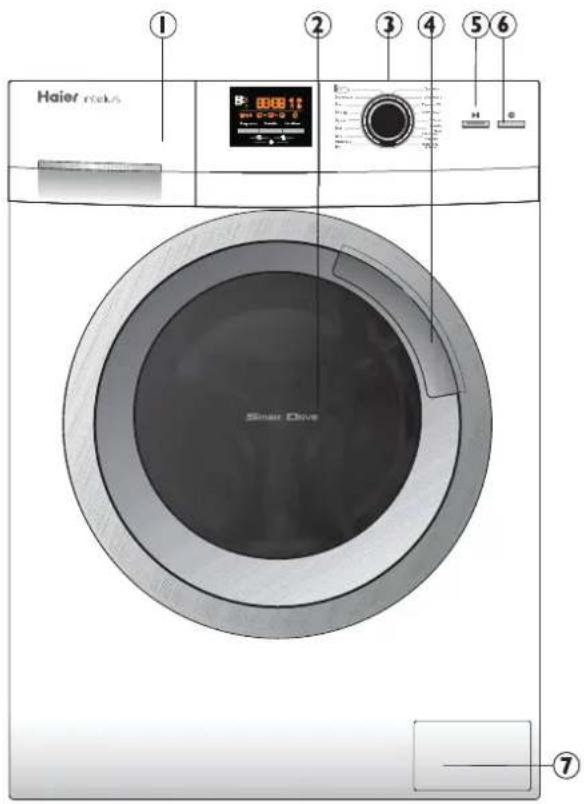

I Detergent / Softener drawer
2 Door
3 Worktop
4 Door handle
5 Control panel
6 On/Off

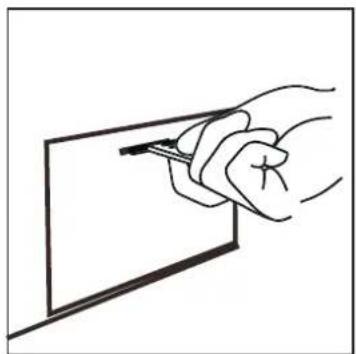

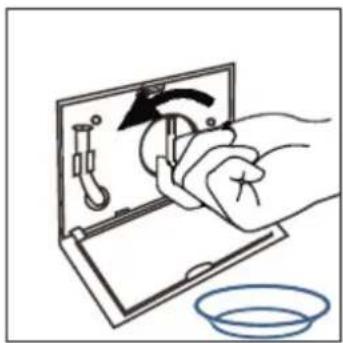

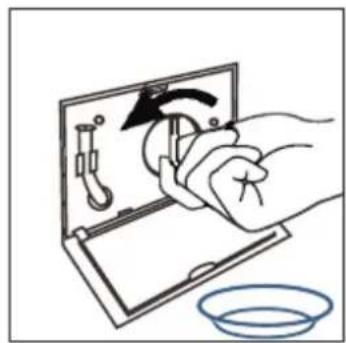

7 Service flap

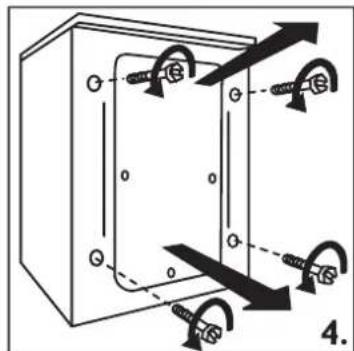

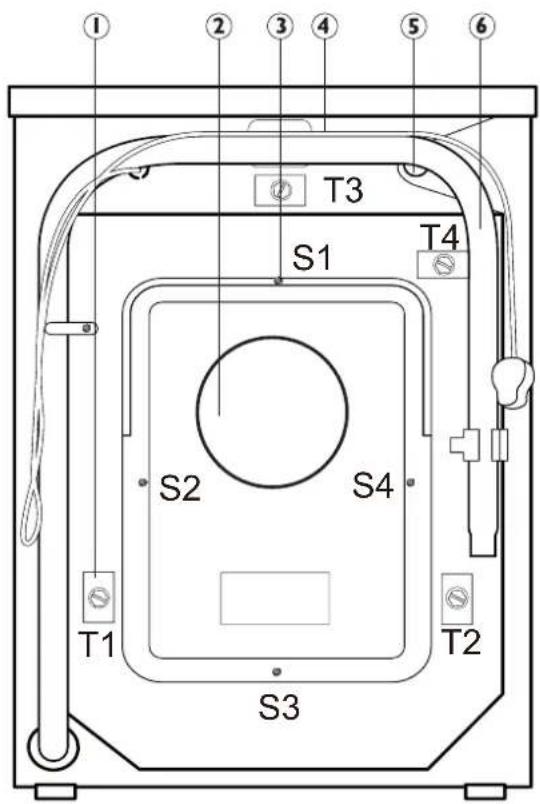

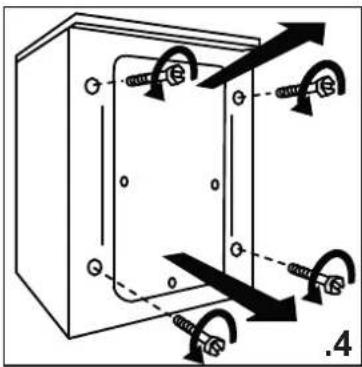

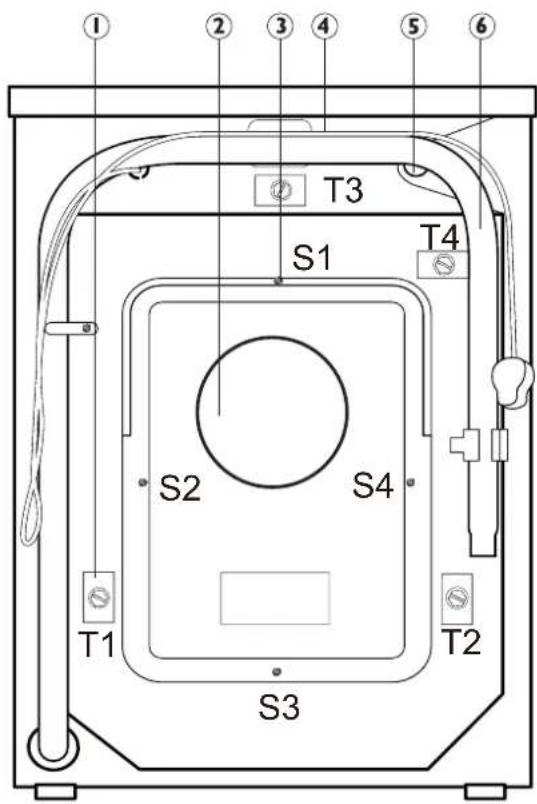

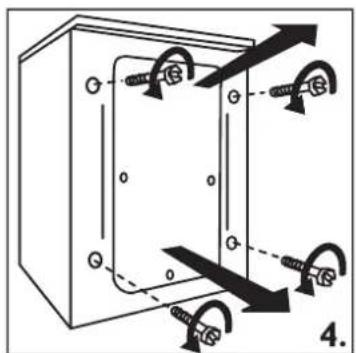

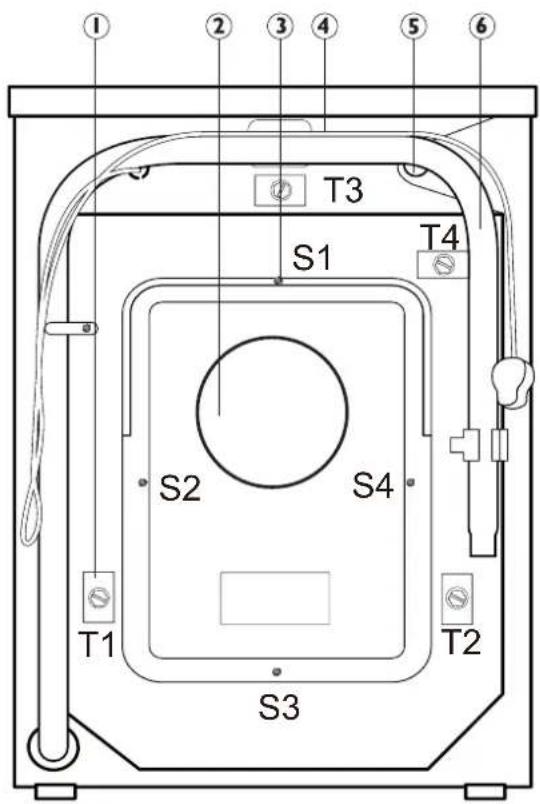

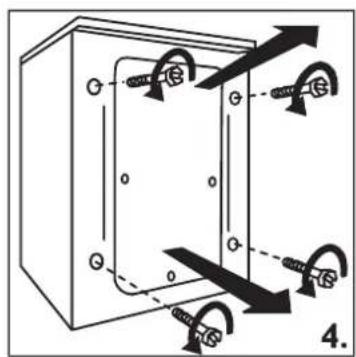

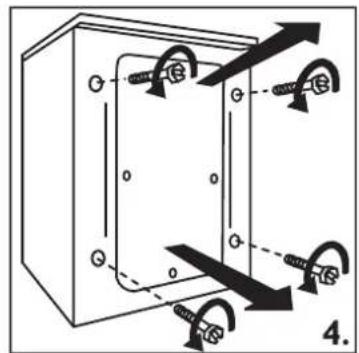

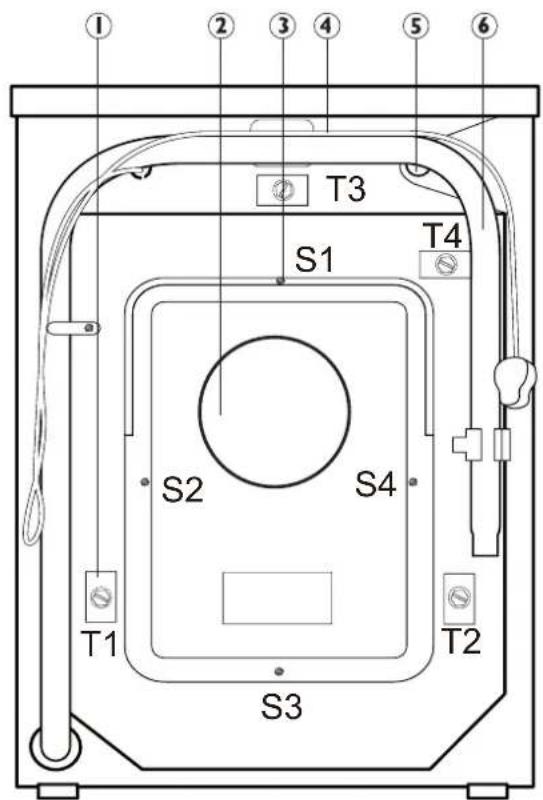

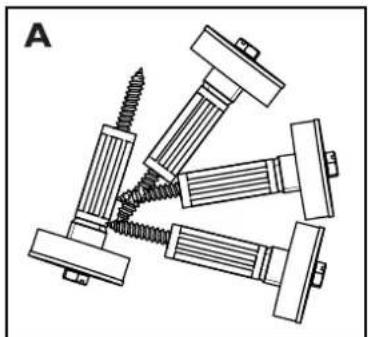

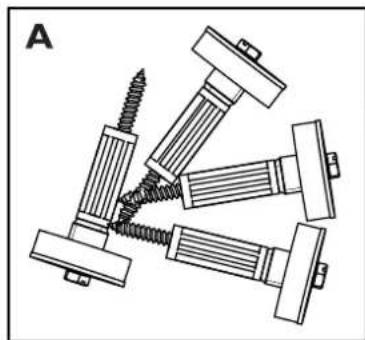

I Transportation bolts (TI-T4)
2 Back cover
3 Back cover screws (SI-S4)
4 Power cord
5 Water inlet valve
6 Drain hose

Accessories

Check the accessories and literature in accordance with this list.

Simple line drawing of a coiled tube with a connector (no text or symbols)

Ix Inlet hose assembly

5x Blanking plugs

Ix Drain hose bracket

Ix Warranty-Card

Ix User manual

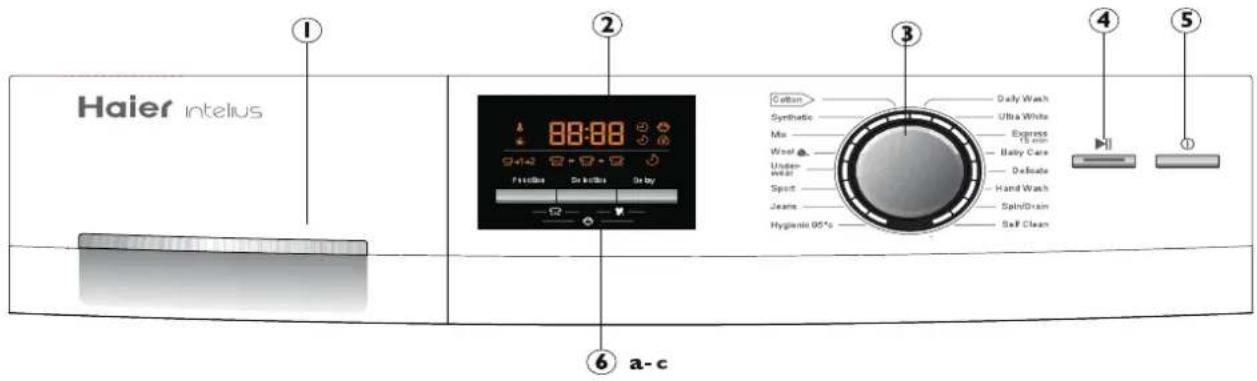

Haier Intelus ① ② ③ ④ ⑤ ⑥ a-c

I Detergent / Softener drawer
2 Display
3 Programme selector
4 "Start/Pause" button
5 "On/Off" button

6 Function button (a-c)
a Function
b Selection
c Delay

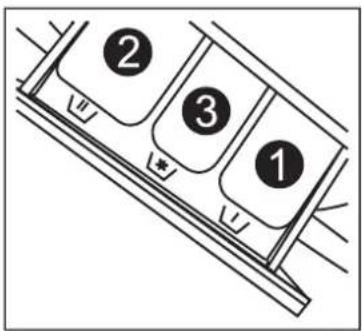

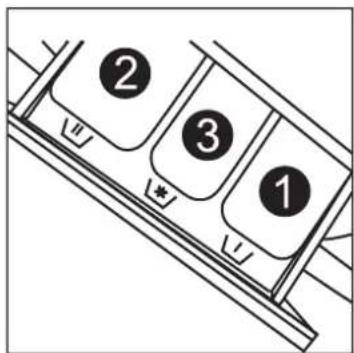

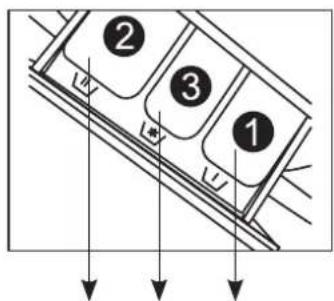

I-Detergent drawer

Open the drawer, three compartments can be seen:

Compartment I: Water inlet only, no detergent

Compartment 2: Detergent for program

Compartment 3: Softener, Conditioning agent etc.

The recommendation on the type of detergents is suitable for the various washing temperatures, please refer to the manual of detergent.

② ③ ①

2- Display

If the appliance is on display will light up the actual status on different sections (see next page). The information include washing time, spin, speed, temperature, etc will appear.

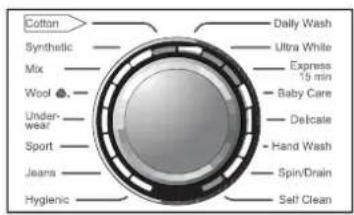

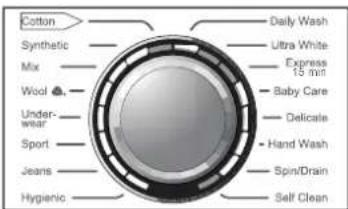

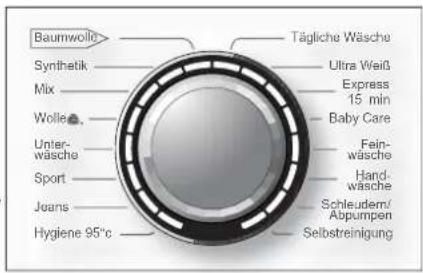

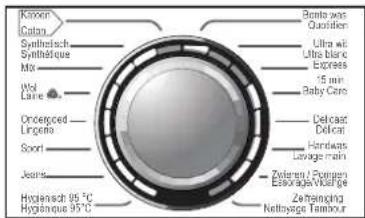

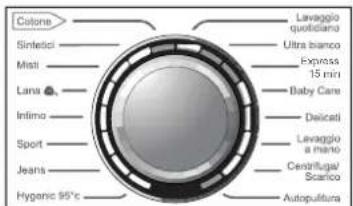

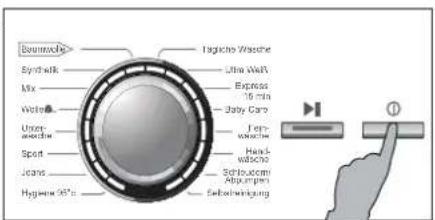

3-Programme selector

By turning the knob one of 16 programmes can be selected, related LED will light up its default settings will be displayed.

4-"Start/Pause" button

Press this button gently to start or interrupt the currently displayed programme. During operation its symbol is shining, or if interrupted blinking.

5-"On/Off" button

Touch this button gently to switch on, the display is shining. Touch it again for about 2 seconds to switch off. If no panel element or programme is activated after a while machine will shut down automatically.

To get best results in each programme Haier has well defined specific default settings. If there is no special requirement default settings are recommended. Accordingly to these factory settings many programme parameters and additional functions could be individually changed (see “programmes” and “function” buttons).

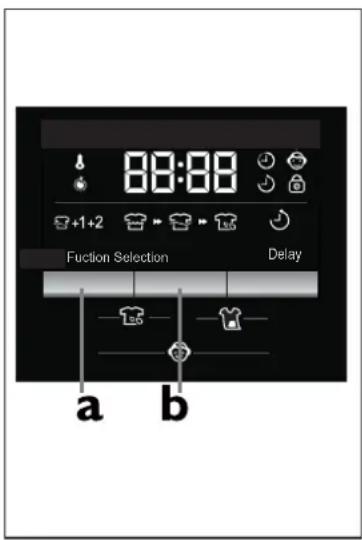

08:08 +1+2 Fuction Selection Delay a b

6a-"Function" (button a)

Touch it to select sequentially required functions and settings. The related symbol will flash.

• : temperature function --°C = cold/15/20/30/40/60/90
• spin speed function 0/400/600/800/1000/1200/1400 rpm
• Extras rinse function adds 1-2 rinse cycles. Preferable to better flush out possible residues.

Touch it to select heating temperature, spin, speed or extra rinse times according to the curret chosen function, the related symbol is blinking. Function will be activated after „Start/Pause“ button is touched.

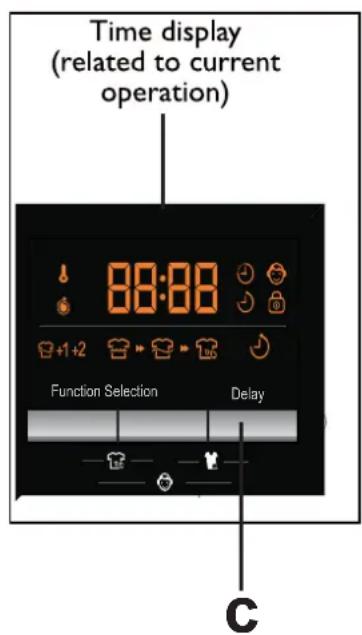

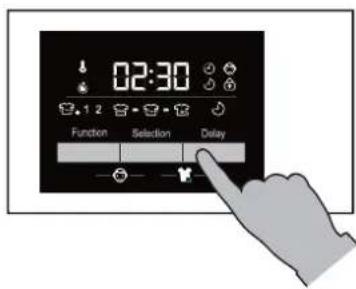

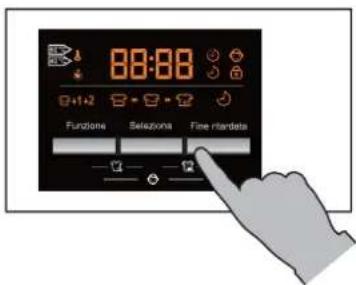

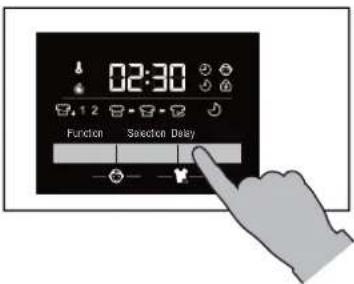

6c-"Delay" - End time delay (button c)

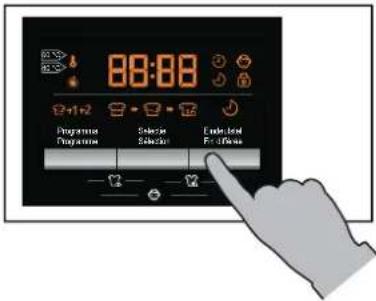

Time display (related to current operation) 88:88 Function Selection Delay C

Touch it to light up related symbol and display present programme end time. Accordingly to all programme settings start of wash cycle will be delayed.

End time delay could be increased by turning programme selector in steps of 30 minutes from 0,5-24h. For example display off „6:30“ means end of programm cycle will be in 6 hours and 30 minutes. Function will be activated after „Start/Pause“ button is touched.

It is not applicable to programme „Spin/Drain“ and „Self Clean“.

Note: End time must always be longer than programme cycle time. Otherwise operation will start immediately, although chosen end time could not be reached.

"Child lock" - control panel lock function (button a + c) \_\_\_\_

This option blocks all panel elements against activation. After starting a programme press simultaneously “Function”+“Delay” for about 3 seconds. Panel lock symbol is now displayed. Next repetition deblocks any function. For unlocking please press again the two buttons

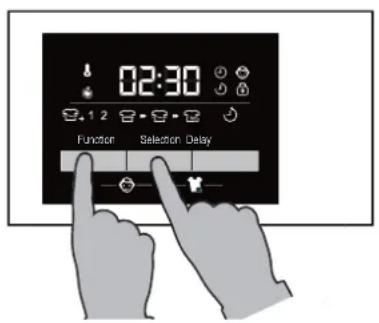

"Speed up" (button a+b)

Save times an energy. preferable if laundry is slightly soiled. Press simultaneously „function“+ „selection“ for about 3 seconds, speed up function is activated. The display shows „SPUP ON“ or „SPUP OFF“ for a short time.

"Intense" (button b+c)

Intensifies cleaning results. Preferable if laundry is heavily soiled. Press simultaneously „selection“+ „Delay“ for 3 seconds, intense function is activated. The display shows „INTE ON“ or „INTE OFF“ for a short time.

General information and tips:

To cancel any actual setting change programme or press "On/Off" about 3 seconds. To cancel a running programme touch "Start/Pause" and then "On/Off" for about 3 seconds.

Display symbols

Basic status indication
Programme cycle ation
Programme settings

	Door is locked(in operation)		Running washcycle		Washingtemperature
	Control panel locked	[820C]	Running rinsecycle	[2H80]	Spin speed
	No water supply		Running spin/drainage cycle		rinse times+ (1 or 2)
[5303]	Door is open		Time display	[8236]	Delay
[3T0D]	Speed up	[734W]	Remaining operation time (1)
	intense		Remaining delay time (2)

Programme table

I Water inlet only, no detergent
2 Detergent compartment
3 Softener compartment

Diagram showing three labeled blocks (①, ②, ③) with downward arrows indicating direction or flow, likely illustrating a mechanical or electrical component layout.

Programme

Temp. Max.

Preset

2

31

Fibre Type

Preset Spin Speed

I Cotton 0-90°C 30°C Cotton /Synth

400 rpm

2 Synthetic 0-60°C 30°C Chemical 1200 rpm

fibre fabrics

3 Mix 0-60°C 40°C Cotton /Synth. 1000 rpm

4 Wool 0-40°C --- Woolen 600 rpm

fabrics

5 Underwear 0-60°C 40°C Underwear

1000 rpm

6 Sport 0-40°C 30°C

Sports Wear

1000 rpm

7 Jeans 0-60°C 40°C Jeans

rpm

8 Hygienic 95^ C 95^ C 95^ C Co

1000 rpm

9 Daily Wash 0-40°C 30°C

Cotton fabrics

1400 rpm

10 Ultra White 0-60°C 40°C Cotton

Synth 1000 rpm

11 Express 15 min 0-30°C 20°C Cotton

Synth 1400 rpm

12 Baby Care 0-90°C 60°C Cotton

Synth 1000 rpm

13 Delicate 0-40°C 30°C Silk

600 rpm

14 Hand Wash 0-40°C 30°C

√ □ ✗

15 Spin/Drain --- ---

☒☒☒

16 Self Clean 90°C 90°C

1000 rpm

Yes

Optional

No

The indicated consumption values may accordingly differ to local conditions.

Programme	Max. load kg	Energy kWh	Water L	Temp.	Washing time h:min	Spin drying performance %
40°C Cotton * 60°C 60°C	4/4.5 4/4.5 8/9	0.40 0.55/0.58 0.55/0.58	35.0 35.0 45.0	40* 60* 60*	Auto Auto Auto	<53/54 <53/54 <53/54
Synthetic	4	0.25	46.0	30	Auto	---
Mix	4	0.56	34.0	40	Auto	---
Wool	1	0.10	50.0	---	0:36	---
Underwear	4	0.50	40.0	40	1:01	---
Sport	2	0.26	35.0	30	0:49	---
Jeans	4	0.56	40.0	40	1:28	---
Hygenic 95°C	2	2.00	36.0	95	2:06	---
Daily Wash	4	0.58	46.0	30	1:11	---
Ultra White	2	0.60	45.0	40	1:23	---
Express 15 min	1	0.20	20.0	20	0:15	---
Baby Care	4	2.00	67.5	60	1:24	---
Delicate	1	0.25	50.0	30	0:47	---
Hand Wash	2	0.25	36.0	30	0:51	---
Spin/Drain	8/9	0.10	---	---	0:10	---
Self Clean	-	1.80	15.0	90	1:25	---

* Standard programme for the Energy Labelling according to 2010/30EU: Cotton 60°C/40°C with max. spin speed setting and activated intensive function, others are default setting.
The standard 60°C and 40°C cotton programmes are suitable to clean normally soiled cotton laundry. They are the most efficient programmes in terms of combined energy and water consumption for cotton laundry. Used water temperature may differ from declared cycle temperature.

The washing machine is equipped with special additional features, to simplify the operation, to ensure optimal washing results and to safe resources.

Features

Consumers

benefit

Smart Drive Motor The "Smart Drive Motor" is a very energy-efficient, low vibration, low noise and long lasting direct drive.

ABT “ABT” is a special material that efficiently prevents the growth of germs and bacteria in the area of the door seal and the detergent drawer.

Auto weight The "Auto Weight" system detects the amount of laundry and automatically adjust the washing programme to the load.

Wave Drum The "Wave Drum" is designed for a particularly gentle treatment of the laundry and provides excellent washing results.

Dayly use

Pure electrical circuit lines without any symbols

Line drawing of a faucet with a handle and valve (no text or symbols)

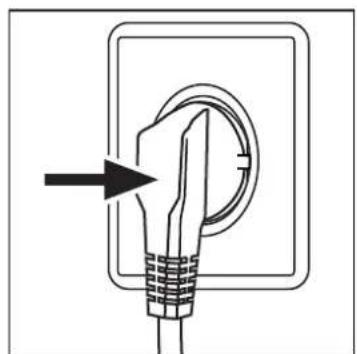

Power sulpply

Connect the washing machine to a power sulpy (220V to 240V\~/50Hz). Please refer also to section "installation".

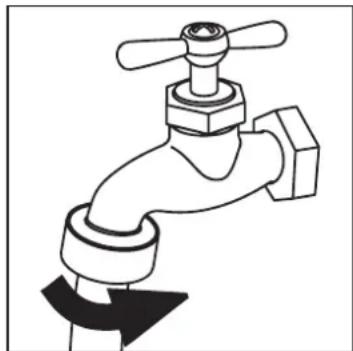

Water connection

Tun on the tap. The water must be clean and clear.

Notice

Before use check for leakage in the joints between the tap and the inlet hose by turning on the tap.

Preparing laundry

• Sort out clothes according to fabric (cotton, synthetics, wool or silk) and to how dirty they are.
• Separate white clothes from coloured ones. Wash coloured textiles first by hand to check if they fade or run.
• Garments without hems, delicates and finely woven textile such as fine curtains are to be put into a wash bag to care for this delicate laundry (hand or dry cleaning would be better).
• Close zippers and hooks, make sure the buttons are sewn on tightly and place small items such as socks, belts, bras, etc. in a wash bag.
• Unfold large pieces of fabric such as bed sheets, bedspreads etc.
  • Turn clothes inside out.
  • Empty pockets (keys, coins, etc.) and remove harder decorative objects (e.g. brooches).

Warning!

• Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and damage of clothes and appliance.
- Small parts (like buttons, etc) may lead torepair work which user has to pay by themselves and can cause damage in the machine

Diagram illustrating clothing item arrangement with labeled parts including shirts, jeans, dresses, and boots in a basket

Pure mechanical diagram showing gear and pulley components without any text or symbols

Loading the appliance

Open the door and put in the laundry piece by piece. Don't overload. Check if you can put a hand upright on top of load. Close the door carefully.

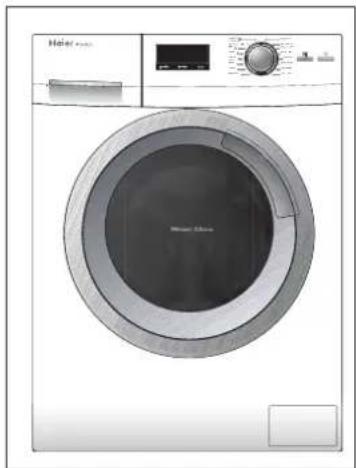

General information and tips

After each installation or longer down time run at first programme "Self Clean" with no load and added detergent in washing agent compartment (2) to remove possibly corruptive residues.

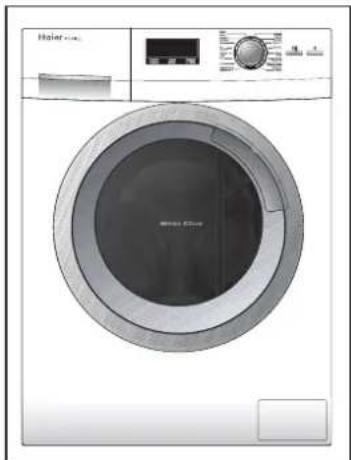

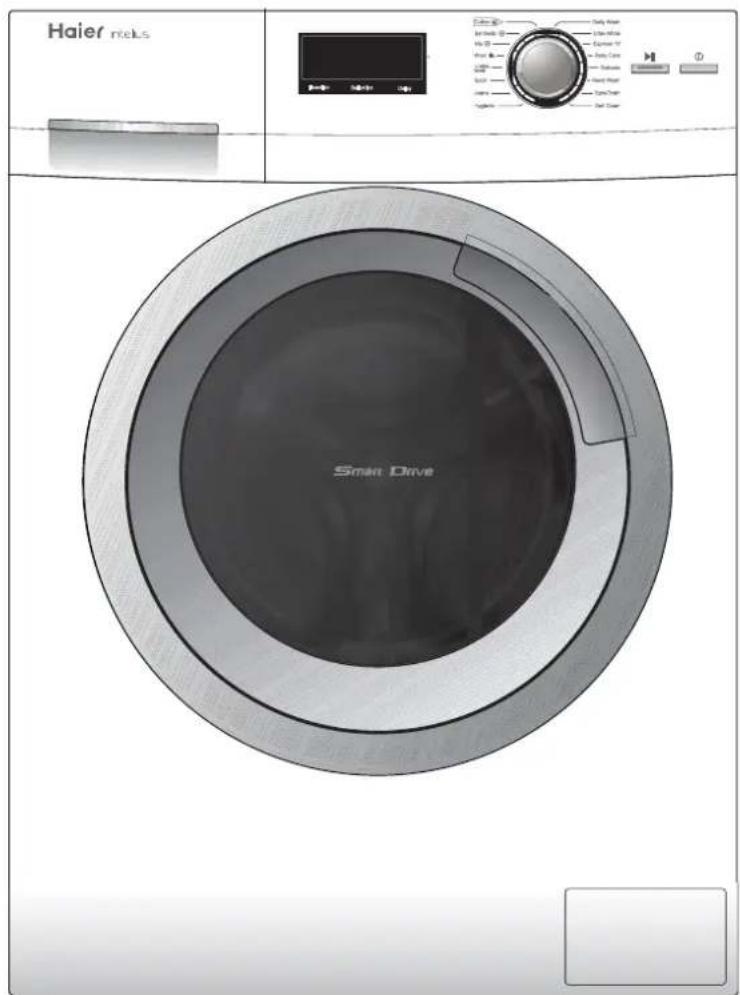

Front view of a white Hairy washing machine with control panel and door (no visible text or symbols)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Selecting detergent

Washing efficiency and performance is determined by used detergent quality. Use only machine wash approved detergent and if needed specific detergents, e.g. for synthetic and woolen fabric. Mind always detergent manufacturer recommendations. Do not use dry cleaning agents such as trichloroethylene and similar products.

i General information and tips:

Remove detergent residues before next wash cycle. Please follow given detergent dosage recommendation from detergent package.

Choose the best detergent

Programm	kind of detergent
	Universal Color Delicate Special Softener
Cotton* L/P L/P - o
Synthetic L/P L/P	L - o
Mix	L/P L/P - - o
Wool	-	-	-	L	o
Underwear	L/P L/P - - o
Sport	-	-		L	o
Jeans	L/P L/P	L - o
Hygienic 95°C*	L/P L/P	L - o
Daily Wash	L/P L/P	L - o
Ultra White L/P	-	-- o
Express 15	L	L			o
Baby Care*	L/P L/P - - o
Delicate	-	-	L - o
Hand Wash	-	-	-	L	o

L = gel-/liquid detergent P = powder detergent O = optional = no

If using liquid detergent, it is not recommended to activate the delayed start.

For the amount of detergent follow the package information!

Note for the correct washing temperature the clothing labels and the data on the detergent pack.

We recommend by using

▶ Laundry powder: cold to 90°C* (best use: 40-60°C)
▶ Color detergent: cold to 60°C (best use: 30-60°C)
▶ Wool/delicate detergent: cold to 30^ C (=best use)
* Select 90°C / 95°C programs only for special hygienic requirements

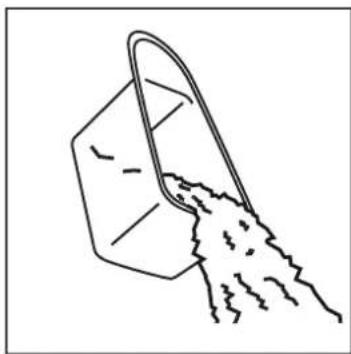

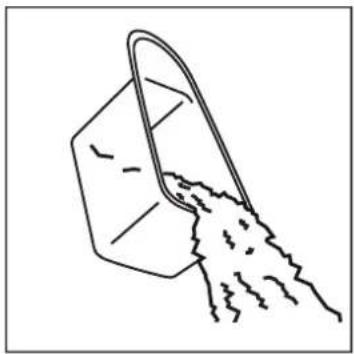

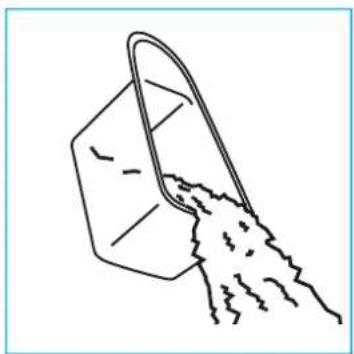

Adding detergent

Slide out the detergent drawer and put the required chemicals into corresponding compartments. Push back the drawer gently. (Refer to the instructions on the drawer)

Important information:

• Do not add detergent to compartment I
- Add liquid detergent to the main drawer and dilute it first if it is concentrated
- Do not overuse detergent or softener; otherwise, it will damage the artificial fibers.
- Please follow the instruction on the detergent package.
• Use liquid detergent according to the instructions on its package.
- Do not use liquid detergent if "delay" is selected.

Switch on the appliance

Press the „on/off“- button to switch on the appliance.

② ③ ①

Color Earbuds Wise Wood Jacket Lemon Jacket Sport Jeans Fingerie Daily Wash Daily White Express 10.7.7 Daily Grey Default Hand Wash SpectClean Soft Clean Button

Select a programme

To get the best washing results, select a programme which fits the degree of soiling and sort of laundry type.

Please turn the programme knob to select the right programme. Related programme LED with default setting and programm run-time is flashing.

Cotton Synthetic Mix Wool Under- wear Sport Jeans Hygienic Daily Wash Ultra White Express 15 min Baby Care Delicate Hand Wash Spin/Drain Self Clean

Add individual selections

Select required options and settings (refer to "Control Panel"). Please refer too to "Special Features" which efficiently support the daily use.

General information and tips:

Choose programme settings carefully referring to icons on each laundry label and "Care chart".

02:30 Function Selection Delay

Start wash programme

Touch "Start/Pause" button to start.

Appliance operates according to present settings. Changes are only possible by cancelling the programme.

Outer Sandside Mia Wood Lithic Stent Leans Hygiene Daily Wash Ultra White Express (10 cm) Baby Care Delicate A Hand Wash Eyes/Clean Self-Clean

Extra Synthes Wood Chassis Spont Jeans Hypnotik Daily Wash Libre Wash Expenses IT Baby Care Defiance Hand Wash Eye/Chair Self Chaser

Interrupt - cancel wash programme

To interrupt a running programme press gently "Start/Pause".

Programme run-time is flashing. Press it again to resume operation.

To cancel a running programme and all its individual settings activate "Start/Pause" and then for about 3 seconds "On/Off".

Pure technical line drawing of concentric circular components without any text or symbols

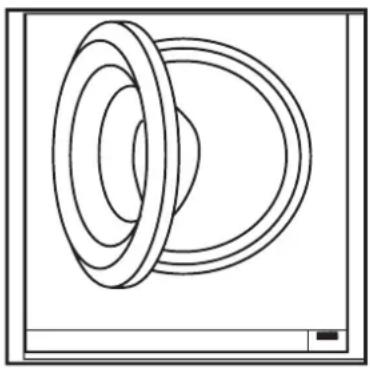

After washing

At programme cycle end “End” is displayed, afterwards machine will shut off automatically.

Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.

Turn off the water supply and unplug the power cord.

Open the door to prevent formation of moisture and odours. Let it open while not used.

Standby-mode

The switched on washing machine will go into standby-mode if it will not be activated within 2 minutes before starting the program or at the end of program. To interrupt the standby-mode push one key. During standby-mode the Start/Pause button shine all the time.

02:30 Function Selection Delay

Activate or deactivate the buzzer

I. Switch on the appliance.
2. Select the "Spin/drain" programme.
3. Press the "function" and "selection" button (also as "speed up") at the same time for 3 seconds. "BEEP-OFF" will be displayed and the buzzer will be deactivated.

For activating the buzzer please press these two buttons at the same time again. "BEEP ON" will be displayed.

Environmentally responsible use

▶To achieve best use of energy, water, detergent and time you should use the recommended maximum load size
▶Do not overload (hand width clearance above laundry).
▶Apply exact dosages of each washing agent.
▶Choose the lowest adequate washing temperature - modern detergents are efficiently cleaning below 60°C.
▶Raise default settings only due to heavy staining.
▶Select max. spinning speed if a domestic dryer is used.

Care chart

Washing Process

Maximum washing Maximum washing Maximum washing temperature 95°C - temperature 60°C - temperature 60°C normal process normal process mild process

Maximum washing Maximum washing Maximum washing temperature 40°C - temperature 40°C - temperature 40°C - normal process mild process very mild process

Maximum washing Maximum washing Maximum washing temperature 30°C - temperature 30°C - temperature 30°C - normal process mild process very mild process

Wash by hand Do not max. temp. 40°C

Bleaching Process

Any bleaching agent Only oxygen / Do not bleach allowed non-chlorine bleach allowed

Tumble Drying Process

Tumble drying possible Tumble drying possible Do not tumble dry normal temperature lower temperature

Line drying

Flat drying

Ironing Process

Iron at a maximum sole-plate temperature of 200°C

Iron at a maximum sole-plate temperature of 150°C

Iron at a maximum sole-plate temperature of 110°C without steam (steam ironing may cause irreversible damage)

Do not iron

Professional Textile Care Process

Professional dry cleaning in tetrachloroethene

Professional dry cleaning in hydrocarbons

Do not dry clean

Professional wet clean

Do not professional wet clean

1 2

Front view of a modern white washing machine with a circular vent and control panel (no visible text or symbols)

Line drawing of a hand using a tool to adjust a screw with a circular component (no text or symbols)

Pure electrical outlet diagram without any text, numbers, or symbols

Illustration of a faucet with a handle and valve, labeled with number 2 (no text or symbols on the faucet itself)

Cleaning the detergent drawer

Take always care there are no detergent residues.

Clean the drawer regularly. Pull out the drawer until it stops (1) and press the release button (2) to remove the drawer. Then flush the drawer with water until it is clean and insert the drawer back in the appliance.

Cleaning the machine

Unplug the machine during cleaning and maintenance. Use a soft cloth with soap liquid to clean the machine case and rubber components. Do not use organic chemicals or corrosive solvents.

General information and tips

After each installation or longer downtime run at first programme "Self Clean" with no load and added detergent in washing agent comparment (2) to remove possible corruptive residues.

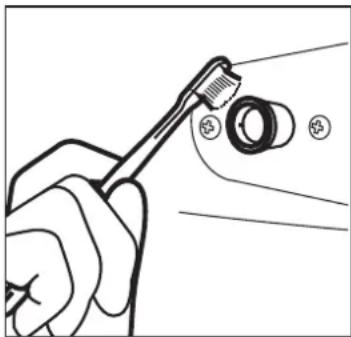

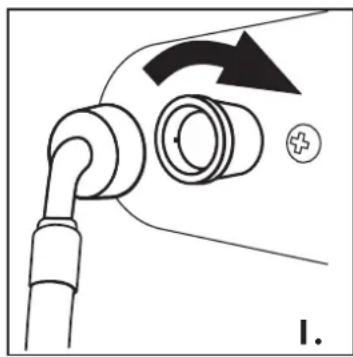

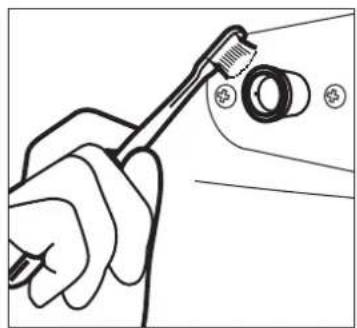

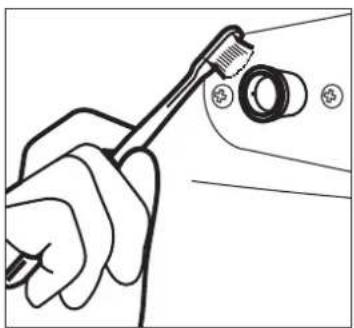

Water inlet valve and inlet valve filter

To prevent blockage of water supply by solid substances like lime clean regularly the inlet valve filter.

Long Periods of disuse

If the appliance is left idle for a longer period, pull out the electrical plug (1) and turn off water supply (2). Open the door to prevent formation of moisture and odours. Let door open while not used.

Before next usage check carefully power cord, water inlet and drain hose. Make sure everything is properly installed and without leackage.

Run at first programme "Self Clean" with no load and added detergent in compartment 2 to remove possibly corruptive residues.

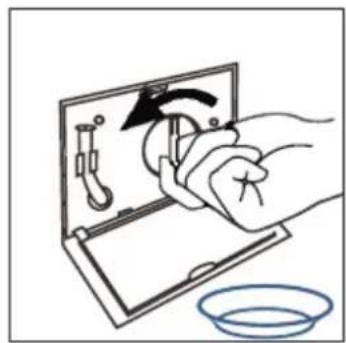

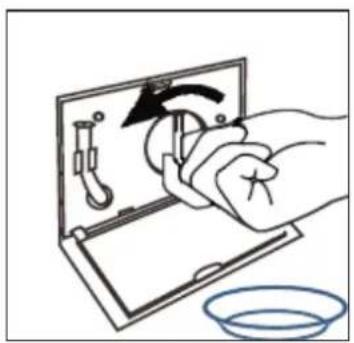

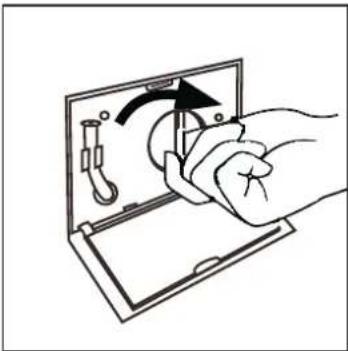

Pump filter

Please clean the filter once a month and check the pump filter for instance if the appliance

▶doesn't drain the water.
▶doesn't spin.
▶cause unusual noise while running.

Warning!

Scalding Risk! Water in the pump filter can be very hot! Before any action please ensure water has cooled down.

I. Turn off and unplug the machine.

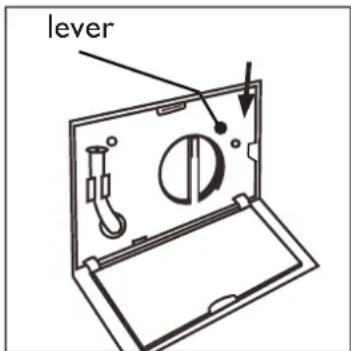

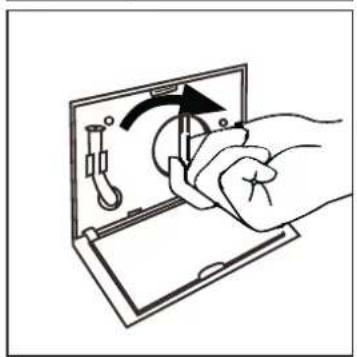

2. Open service flap. You can either use a coin or a screwdriver.
3. Provide a flat container to catch leach water. There could be bigger amounts!
4. Pull the drainhose out and hold its end above the container.
5. Take the sealing plug out of the drainhose.

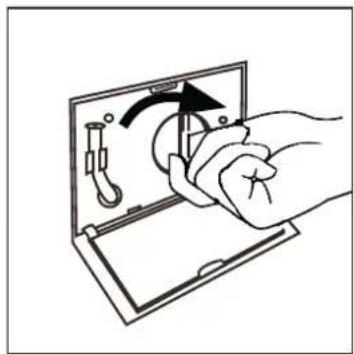

6. After complete drainage, unscrew and remove counter clockwise the pump filter.
7. Remove contaminants and dirt.

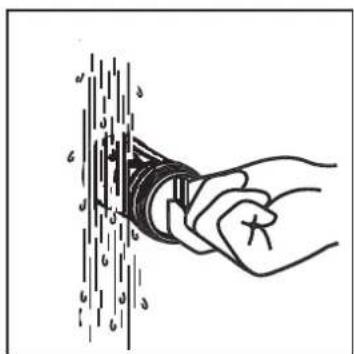

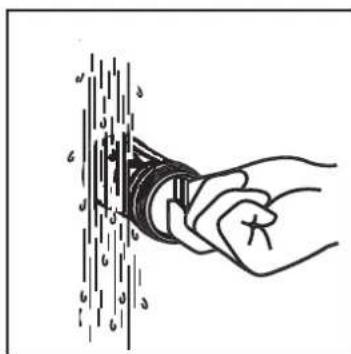

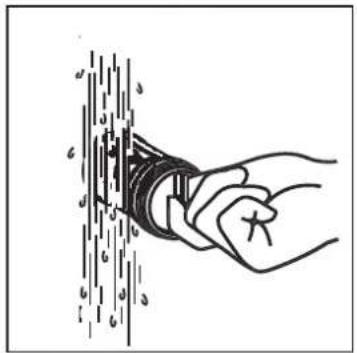

8. Clean carefully pump filter, e.g. using running water.
9. Refix it thoroughly.
10. Close drainhose and push it back into the machine.
II. Close service flap

Caution!

• Pump filter sealing has to be clean and unhurt. If the lid is not full tightened, water can escape.
  • The filter must be in place, or it may lead to leakage.

Diagram of a mechanical or electrical component with a spring and plug, showing no text or symbols.

Line drawing of a hand holding a pen, poised to write on a blank sheet (no text or symbols present)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Hand holding a ring with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a tray (no text or symbols visible)

Many occurring problems could be solved by yourself without specific expertise. In case of disfunction please check all shown possibilities thoroughly and follow below instructions before you contact an after sales service (see warranty card).

Information codes

Following codes are displayed only for information referring to the washing cycle. No measures must be performed:

Code	Message
Auto	Automatic load detection is working.
	Result of the automatic load detection.
Lo	Lo = low load
HALF	HALF = half load
FULL	FULL = optimal weight load
HI	HI = maximum load
1:25	The remaining wash cycle time will be 1 hour and 25 minutes
06:30	The remaining wash cycle time including chosen end-time delay will be 6 hours and 30 minutes
Lock	The appliance is in operation and the door is locked.
End	The washing cycle is finished. The appliance shuts off automatically.

Troubleshooting with display code

Code	Cause	Solution
E1	Drainage error, water is not fully drained within 4 minutes.	Check drain hose for blockage and proper installation.
E2	Lock - error.	Shut the door properly,
F3	Temperature sensor - error.	Contact the After sales service.
E4	Water level not reached after 8 minutes.; Drain hose is self-syphoning.	Make sure that tap is fully opened and water pressure is normal.Check drain hose installation.
F4	Heating error (Appears at the end of a cycle).	Contact the After sales service.
F7	Motor - error.	Contact the After sales service.
E8	Water protective level - error.	Contact the After sales service.
Fb^*	Water overflow.	Close tap immediately.Contact the After sales service.
FA	Water level sensor error.	Contact the After sales service.

Code Cause Solution

FC Electronic control - error. Contact the After sales service.

Unb Unbalanced load - error.

Check and balance laundry load in the drum. Reduce the load.

PAUS If there is a power cut when the machine is working, the machine will be in Pause mode.

When power is reconnected, please press the Start button for program to continue.

\* Warning!

Code Fb: Water-overflow protection is placed on deepest part of appliance. In case of leackage all functions will be shut down automatically except drain pump which will be activated for safety reasons.

Troubleshooting without display code

Problem Cause Solution

Washing machine fails to operate.	Programme is not yet started. Door is not properly closed. Machine has not been switched on Power failure.	Check programme and start it. Close the door properly. Switch the machine on. Check power supply.
Washing machine will not be filled with water.	No water. Inlet hose is kniked. Inlet hose filter is blocked. Water pressure is less than 0,03 MPa. Door is not properly closed Water supply failure	Check water tap. Check inlet hose. Unblock inlet hose filter. Check water pressure. Close the door properly. Ensure the water supply
Machine is draining while being filled	Height of drain hose is below 80 cm. Drain hose end could reach into water.	Make sure that drain hose is properly installed. Make sure the drain hose is not in water
Drainage failure	Drain hose is blocked Pump filter is blocked Drain hose end is higher than 100 cm above floor level	Unblock drain hose. Clean pump filter. Make sure that drain hose is properly installed
Strong vibration while spinning	Not all transportation bolts have been removed. Appliance has no solid position. Machine load is not correct.	Remove all transportation bolts. Ensure solid ground and a evelled position. Check load weight and balance.

Problem Cause Solution

Operation stops before completing wash cycle

• Water or electric failure.

• Check power and water supply

Operation stops for a period of time

• Appliance displays error code.

- Consider error code

• Problem due to load pattern.

- Reduce or adjust load.

• Programme performs soaking cycle?

• If it seems appropriate cancel operation.

Excessive foam floats drum and/or detergent drawer.

• Detergent is not a appropriate

- Check detergent recommendations.

• Excessive use of detergent.

- Reduce amount of detergent.

Automatic adjustment of washing time.

- Washing programme duration will be adjusted.

- This is normal and doesn't affect functionality.

• Unbalance of laundry. • Check machine load and

Spinning fails.

laundry and run a spinning programme again.

General information and tips:

If too much foam is inspected during spin cycle, motor stops and drain pump will be activated for 90 seconds. If that elimination of foam fails up to 3 times, programme ends without spinning.

Warning!

Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages. If the supply cord is damaged, it must be replaced by the service agent (see warranty card) in order to avoid a hazard.

lever

In case of power failure

The current programme and its setting will be saved. When power supply is restored operation will be resumed. To cancel it, touch "Start/Pause" and then "Power" for about 3 sec.

If a power failure cuts an operating wash programme door opening is mechanically blocked. To get out any laundry water level should not be seen in the glassy porthole of the door. - Danger of burns! Water level has to be lowered as described in "Pump filter". Not till then pull lever beneath service flap until door is unlocked by a gentle click. Afterwards refix all parts.

Preparation

Remove all packaging material including polystyrene base. While opening the package, water drops may be seen on plastic bag and porthole. This normal phenomenon results from water tests in the factory.

Dispose of the packaging in an environmentally friendly manner. For information referring current disposal routes, consult your retailer or the local authorities.

Optional: Adjusting the bottom cover board

When opening the shrink package, you will find a calcium-plastic board and a felt. The board is used for reducing noise after covering the bottom of the cabinet.

I. Past the felt on one side of the calcium-plastic board (figure.1).
2. Lay the washing machine down to its side, porthole pointing upwards, bottom side towards operator and screw off the four bolts. (figure 2).
3. Place the calcium-plastic board with felt towards inside, screw the bolts through the four holes on the board on to the tub firmly (figure 3). Finally set the machine upright again.

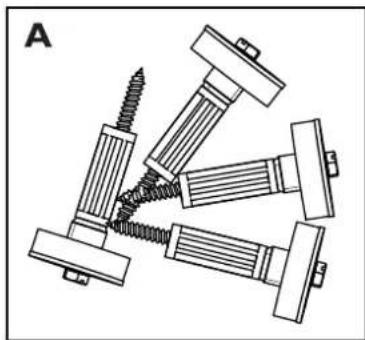

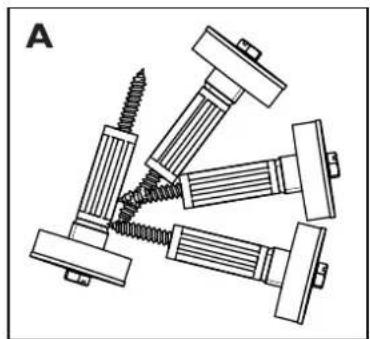

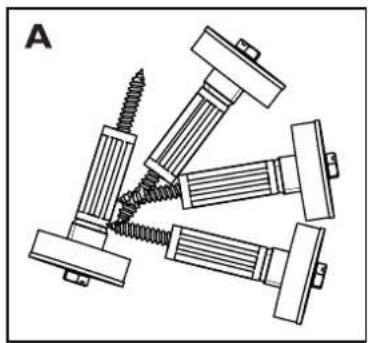

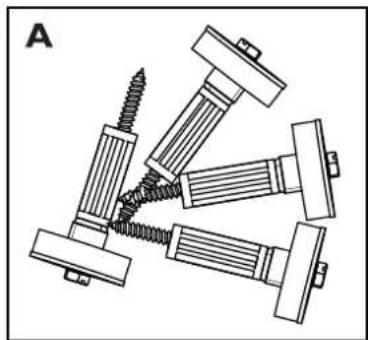

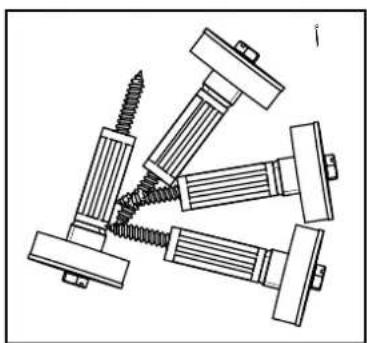

Dismantle the transportation bolts

The transportation bolts are designed for clamping anti-vibration components inside the appliance during transportation to prevent inner damage.

1. Remove bolts on the rear side and take out plastic spacers (A) from inner side of the machine.

General information and tips:

Keep the transportation bolts in a safe place for later use. Whenever the appliance is to be moved at first reinstall the bolts.

Two gray rectangular panels with arrows indicating rotation, no text or symbols present

Simple line drawing of a rectangular frame with corner bolt holes, no text or symbols present

Simple rectangular frame with four corner holes, no text or symbols present

Diagram illustrating mechanical assembly with labeled components and directional arrows, likely from an engineering or physics context.

Mechanical assembly diagram showing multiple screws and fasteners arranged in a complex arrangement (no text or symbols)

5.

1. Replace back cover by inserting it in the two gaps its convexity is facing out.

Moving the appliance

If the machine is to be moved to a distant location, replace the transportation bolts removed before installation to prevent damage.

I. Remove the blanking plugs.
3. Tighten the bolts with a spanner.

1. Insert the plastic spacers and the transportation bolts.

Line drawing of a hand holding a screwdriver (no text or symbols)

Adjusting the feet

Adjust all feet to achieve a complete level position. This will minimize vibrations and thus noise during use. It will also reduce wear and tear. We recommend to use a spirit level for adjustment. Floor should be as stable and flat as possible.

Simple line drawing of a mechanical device with a curved pipe and circular component (no text or symbols)

Drain hose

Drainage could be installed in different ways. Nevertheless, level of drain hose has to reach at one point 80-100 cm.

Do not twist, kink or jam the drain hose. If possible keep always drain hose fixed to the clip at the appliance back.

I. Drain hose to sink

Use the drain hose bracket to keep drain hose end retained and out of any water level.

Fix the bracket sufficiently to avoid dropping down due to operational movements.

80 - 100 cm

2. Drain hose to sink connection

The connection to the spigot of the water trap assembly below the sink must be secure. Ensure a proper height above ground to avoid drainage problems or self-syphoning.

3. Drain hose to waste water connection

Use the drain hose bracket to keep drain hose end retained.

Fix the bracket sufficiently to avoid dropping down due to operational movements.

Warning!

The drain hose should not be submerged in water and should be securely fixed and leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less than 80cm, the washing machine will continuously drain while being filled (self-siphoning). Drain hose is not to be extended. If necessary contact after sales service.

Inlet hose - Aqua control System

The Aqua Stop inlet hose is an important element for safety and over all control. Its valves are controlling water supply and will interrupt it if the hose is leaking

I. Connect the nut on the inlet hose to the connector on the water valve.
2. Apply inlet hose to a water tap.
Do not twist, kink or jam the inlet hose.

Warning!

Appliance is only qualified for cold water supply! Use the hose-set supplied with the appliance. Old hose-sets should not be reused. Do not connect to hot water.

Power supply connection

Before each connection check if:

▶the power supply, the socket and fusing is appropriate to the rating plate.
▶the power socket is earthed and no multi-plug or extension.is used.
▶Only U K: The UK plug meets BSI363A standard

General information and tips:

After each installation or longer down time run at first programme "Self Clean" with no load and added detergent in washing agent compartment (2) to remove possibly corruptive residues.

80 - 100 cm

Diagram of a pipe fitting with a valve and directional arrow, no text or symbols present

Illustration of a faucet with a handle and valve, no text or symbols present

Pure electrical outlet diagram without any text, numbers, or symbols

Product fiche (according EU 1061/2010)

Trade mark Haier
Model No.	HW80-B14266A/HW90-B14266A
Rated capacity (kg)	8/9
Energy efficiency class A+++
Energy consumption per year (kWh) 1)	108/114
Energy consumption of cotton 60°C, full load (kWh/cycle)	0,55/0,58
Energy consumption of cotton 60°C, partial load (kWh/cycle)	0,55/0,58
Energy consumption of cotton 40°C, partial load (kWh/cycle)	0,40
Weighted power consumption of the off mode 0,2
Weighted power consumption of the left-on mode 0,2
Water consumption per year (L) 2)	9177/9500
Spin-drying efficiency class 3)	B
Max. spin speed (rpm) 4)	1400
Remaining moisture content (%) 4)	53/54
Standard 60°C cotton programme 5)	“Cotton”60°C with max. spin speed setting and activated intensive function
Standard 40°C cotton programme 5)	“Cotton”40° with max. spin speed setting and activated intensive function
Programme time of cotton 60°C full load (min) 180
Programme time of cotton 60°C partial load (min)	180
Programme time of cotton 40°C partial load (min)	174
Duration of the left-on mode (min) 6)	-
Airborne accustical noise (washing/spinning in dB(A)) 7)	(56/70)/(56/70)
Type	frontloader freestanding

1) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.

2) Based on 220 standard washing cycles for cotton programmes at 60^ C and 40^ C at full and partial load. Actual water consumption will depend on how the appliance is used.

3) Class G is the least efficiency and Class A is the most efficient.

4) Based on the standard 60^ C cotton programme at full load and the standard 40^ C cotton programme at partial load.

5) "Standard 60°C cotton programme" and "standard 40°C cotton programme" are standard washing programmes to which the information in the label and fiche relates. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumption.

6) In case there is a power management system.

7) Based on the standard 60°C cotton programme at full load.

After sales service

Additional data

Washing programmes	16
Power supply (refer the rating plate in V~50Hz / A / W)	220 - 240V / 10 / 2000
Water pressure (MPa)	0.03 ≤ P ≤ I
Dimension (HxDxWmm)	845× 650× 595
Netto weight (kg)	77

After sales services

In case of trouble, please check the trouble-shooting section of this manual. If required please check your warranty card for after sales service information or refer to www.haier.com service and support area. You can find FAQs and can activate service claim.

Haier

Mode d'emploi

Lave-linge

Haier Radius Pigments Marker R1000 Smart Drive

HW80-B14266A

HW90-BI4266A

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Informations techniques ......26

Service après-vente......27

Utilisation prévue

Simple black cross symbol on white background, no text or numbers present

Ne pas...

Simple black cross symbol on white background, no text or numbers present

Haier air ① ② ③ ④ ⑤ ⑥ ⑦ Smart Drive

① ② ③ ④ ⑤ ⑥ T3 S1 T4 S2 S4 T1 T2 S3

Diagram showing three labeled blocks (①, ②, ③) with downward arrows indicating direction or flow, likely illustrating a mechanical or electrical component layout.

Programme	Temp. max.	Préréglage	2	3	1	Type de fibre	Préréglage Vitesse d'essorage
1 Coton	0-90 °C	30 °C				Coton /Synth	1 400 tr/min
2 Synthétique	0-60 °C	30 °C				Tissus en fibres artificielles	1 200 tr/min
3 Mixte	0-60 °C	40 °C				Coton /Synth.	1 000 tr/min
4 Laine 0-40°C --- Lainages 600 tr/min
5 Lingerie	0-60 °C	40 °C				Lingerie	1 000 tr/min
6 Sport	0-40 °C	30 °C				Vêtements de sport	1 000 tr/min
7 Jeans	0-60 °C	40 °C				Jeans	1 000 tr/min
8 Hygiénique 95 °C	95 °C	95 °C				Coton	1 000 tr/min
9 Quotidien	0-40 °C	30 °C				Tissus en coton	1 400 tr/min
10 Ultra blanc	0-60 °C	40 °C				Coton /Synth	1 000 tr/min
11 Express 15 min	0-30 °C	20 °C				Coton /Synth	1 400 tr/min
12 Bébé coton	0-90 °C	60 °C				Coton /Synth	1 000 tr/min
13 Délicat	0-40 °C	30 °C				Soie	600 tr/min
14 Lavage main	0-40 °C 30 °C Tissus en coton						1000 tr/min
15 Essorage/Vidange	---	---				---	1 400 tr/min
16 Nettoyage tambour	90 °C	90 °C				---	1 000 tr/min

Technical line drawing of a faucet with directional arrows indicating movement (no text or symbols)

Alimentation

Diagram illustrating clothing item arrangement with labeled parts including shirts, jeans, boots, and bedding in a basket

Pure mechanical diagram showing a key inserted into a bracket with circular components and a curved arrow (no text or symbols)

Front view of a white Holar washing machine with control panel and front panel (no visible text or symbols)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Pure technical line drawing of concentric circular components without any text or symbols

Après le lavage

02:30 Function Selection Delay

Activez ou désactivez l'alarme

Technical diagram showing a mechanical component with labeled parts 1 and 2, likely illustrating a cutting or assembly process.

Front view of a white portable washing machine with a circular vent and control panel (no visible text or symbols)

Illustration of a hand using a tool to adjust a toothbrush near a circular component (no text or symbols)

Diagram of a switch with a bulb and screw, no text or symbols present

2

Diagram of a mechanical or electrical component with a spring and plug, showing no text or symbols.

Line drawing of a hand holding a pen, poised to write on a blank sheet (no text or symbols present)

Illustration of a hand using a tool to adjust a circular component inside a device (no text or symbols)

Illustration of a hand holding a tool with a string, no text or symbols present

Illustration of a hand using a tool to adjust or install a device, with no visible text or symbols.

Two gray rectangular panels with arrows indicating rotation or movement, no text or symbols present.

Simple line drawing of a rectangular frame with corner bolts and a central blank space (no text or symbols)

Simple geometric diagram of a rectangle with four corner dots, no text or symbols present

Diagram illustrating mechanical assembly with labeled components and directional arrows, likely from an engineering or physics context.

Mechanical assembly diagram showing multiple screws and fasteners arranged in a cluster (no text or labels)

5.

Line drawing of a hand holding a screwdriver (no text or symbols)

Réglage des pieds

Simple line drawing of a mechanical pump or lift system with no text or symbols

Tuyau de vidange

Diagram of a pipe fitting with a valve and connector, no text or symbols present

Illustration of a faucet with a handle and valve, no text or symbols present

Pure electrical outlet diagram without any text, numbers, or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Simple black cross symbol on white background, no text or numbers present

Simple black cross symbol on white background, no text or numbers present

Haier Air ① ② ③ ④ ⑤ ⑥ Haier Air Swin Drive ⑦

① ② ③ ④ ⑤ ⑥ T3 S1 T4 S2 S4 T1 T2 S3

Simple line drawing of a coiled tube with a bulb (no text or symbols)

Diagram showing three labeled components (1, 2, 3) with downward arrows indicating direction or flow, likely illustrating a mechanical or electrical component layout.

2 3 1

Programm

Line drawing of a faucet with a handle and valve (no text or symbols)

Wasseranschluss

Diagram illustrating clothing items including shirts, jeans, boots, and bedding with directional arrows indicating movement or orientation.

Pure mechanical diagram showing a key inserted into a bracket with circular components below (no text or symbols)

Achtung:

Front view of a white washing machine with a circular vent and control panel (no visible text or symbols)

Simple line drawing of a container with a handle and a spout, no text or symbols present

Waschmittel wählen

Diagram showing three labeled blocks (1, 2, 3) mounted on a diagonal support structure with directional arrows and a star mark.

Bauwroche Syndalk Mix Wolte Uran-waschen Sport Jeans Hygrew 90°C Tagache Vrasche Ulna WaR Express 15 min Baby Care Tens-waschen Hand-waschen Schlocom Abspumpers Sebelatungung

Pure technical line drawing of a speaker or speaker component without any text, numbers, or symbols

Nach dem Waschen

Front view of a white Holar washing machine with control panel and front-mounted screen (no visible text or symbols)

Illustration of a hand holding a tool with a screw and a circular button (no text or symbols)

Pure electrical circuit lines without any symbols

2

Diagram of a plug-in socket with spring and screw, showing internal components (no text or labels)

Line drawing of a hand holding a pen, poised to write on a blank sheet (no text or symbols present)

Illustration of a hand using a tool to adjust a circular component inside a device (no text or symbols)

Illustration of a hand gripping a mechanical component with dashed lines indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols present

Two overlapping geometric shapes with arrows indicating rotation, no text or symbols present

Simple line drawing of a rectangular frame with corner holes and mounting points (no text or symbols)

Simple geometric diagram of a rectangle with four corner points and a small arrow, labeled '3.' (no text or symbols within the shape)

Diagram illustrating mechanical assembly with labeled components and directional arrows, likely from an engineering or physics context.

Mechanical assembly diagram showing multiple screws and fasteners (no text or labels)

5.

Line drawing of a hand holding a screwdriver (no text or symbols)

Gerät ausrichten

Simple line drawing of a mechanical pump or lift system with no text or symbols

Diagram of a pipe fitting with a valve and connector, showing directional arrow and plus symbol (no text or labels)

Illustration of a faucet with a handle and valve, showing mechanical components (no text or symbols)

Pure electrical outlet diagram without any text, numbers, or symbols

Haier radius Polarize 100000 gm/hr Smart Drive

HW80-BI4266A

HW90-BI4266A

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Simple black cross symbol on white background, no text or numbers present

Non...

Simple black cross symbol on white background, no text or numbers present

Haier rieks ① ② ③ ④ ⑤ ⑥ H + Smart Drive ⑦

① ② ③ ④ ⑤ ⑥ T3 S1 T4 S2 S4 T1 T2 S3

Simple line drawing of a coiled hose with a bulb (no text or symbols)

4 Lana 0-40° --- Capi in lana

5 Biancheria intima 0-60°C 40°C Biancheria intima 1.000 giri/min

6 Sport 0-40°C 30°C Capi sportivi 1.000 giri/mn

7 Jeans 0-60°C 40°C Jeans 1.000 girl/min

8 Hygienic 95°C 95°C 95°C Cotone ☐ 1000 giri/min

15 Centrifuga/Scarico --- --- --- 1.400 giri/min

16 Autopulitura 90°C 90°C √☒ ☒ --- 1.000 giri/min

Si Facoltativo No

Consumi

Technical illustration of a faucet with directional arrows indicating movement or force (no text or symbols)

Alimentazione

Diagram illustrating clothing item arrangement with labeled parts including shirts, jeans, pants, and boots in a basket

Pure mechanical diagram showing gear and key components without any text or symbols

Front view of a Haier washing machine with a circular front panel and control panel (no visible text or symbols)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Diagram illustrating a hand interacting with a device labeled with function keys and buttons, showing a transition from 'Start' to 'End' state.

Colone Sinfelici Misti Lana Infimo Sport Jeans Hygenic 95°C Lavaggio quotiana Ultra bianco Fyvass 15 min Baby Care Delicati Lavaggio a mano Centristuga/ Scantco Autopultura

Control Base 1 Base Lane 2 Intra Sport Paint Hyperk RTG Automotive Ultrasonic Ryricus 100% Baby Caps Dialnell Automotive Autohome Automotive Automotive Automotive

Lavagadi uplatens Ultra Iamius Express 10 Baby Care Dubati Lavagadi a Halix Centrifugal Sanskii Autoplasma

Pure technical line drawing of concentric circular components without any text or symbols

Dopo il lavaggio

Technical diagram showing a mechanical component with labeled parts 1 and 2, likely illustrating a cutting or assembly process.

Front view of a white washing machine with a black inner chamber and control panel (no visible text or symbols)

Line drawing of a hand holding a screwdriver with a threaded handle, next to a circular component (no text or symbols)

Diagram of a switch or power plug with a black arrow pointing to the internal component, labeled '1' (no text or symbols on the diagram itself)

Illustration of a faucet with a handle and valve, labeled with number 2 (no text or symbols on the faucet itself)

Diagram of a mechanical or electrical component with a spring and plug, showing no text or symbols.

Line drawing of a hand holding a pen, poised to write on a blank sheet (no text or symbols present)

Illustration of a hand using a tool to adjust a component in a device (no text or symbols visible)

Illustration of a hand holding a stringed object with vertical lines and dots, no text or symbols present

Illustration of a hand using a tool to switch a circular component in a device (no text or symbols)

Two gray rectangular panels with arrows indicating rotation or movement, no text or symbols present.

Simple line drawing of a rectangular frame with corner markers and a label '2.' (no text or symbols on the frame itself)

Simple geometric diagram of a rectangle with four corner dots, labeled '3.' (no text or symbols within the shape)

Diagram showing mechanical assembly with labeled components and directional arrows, likely illustrating a moving or rotating system.

Mechanical assembly diagram showing multiple screws and fasteners (no text or labels)

5.

Line drawing of a hand holding a screwdriver (no text or symbols)

Simple line drawing of a mechanical pump assembly with a curved pipe and circular component (no text or symbols)

Tubo di scarico

Diagram of a pipe fitting with a valve and connector, showing directional arrow and plus symbol (no text or labels)

Illustration of a faucet with a handle and valve, no text or symbols present

Pure electrical outlet diagram without any text, numbers, or symbols

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Simple black cross symbol on white background, no text or numbers present

Simple black cross symbol on white background, no text or numbers present

Haier molar ① ② ③ ④ ⑤ ⑥ Smart Drive ⑦

① ② ③ ④ ⑤ ⑥ T3 S1 T4 S2 S4 T1 T2 S3

Haier Intelus ① ② ③ ④ ⑤ Function Selection Delay Cotton Synthetic Mix Wear Under wear Sport Jeans Hygiene 95°C Daily Wash Ultra White Express 15 min Baby Care Delicate Hand Wash Spind/Drain Self Clean ⑥ a-c

88:88 +1+2 Fuction Selection Delay a b

Diagram showing three labeled blocks (①, ②, ③) with downward arrows indicating direction or flow, likely illustrating a mechanical or electrical component layout.

Line drawing of a faucet with a handle and valve (no text or symbols)

Zasilanie

Diagram illustrating clothing item handling with arrows indicating movement from a basket to different clothing items

Pure mechanical diagram showing a gear and key assembly without any text, numbers, or symbols

Front view of a white Holar washing machine with control panel and door (no visible text or symbols)

Simple line drawing of a container with a handle and liquid, no text or symbols present

Button Symmetric Mo Wood & Water Sport Jeans Playplace Daily Wash Lives White Capacities 100% Baby Care Deluxe Hand Wash Spin Cash Sound Clean ①

Cotton Synthetic Mix Wool Under- wear Sport Jeans Hygienic Daily Wash Ultra White Express 15 min Baby Care Delicate Hand Wash Spin/Drain Self Clean

02:30 Function Selection Delay

Cotton Symbiosis Mia White Lithic Sport Jeans Playoffs Daily Wash Ultra Wash Express 15.00 Baby Care Diffuse Hand Wash Spin Chain Self Clean

Audio Synchro Music Wood Draper Spont Jeans Hybridie Chalk Wash Ultra Wind Expenses 1F Baby Care Defiance Hand Wash Eye/Chair Self Choker

Pure technical line drawing of concentric circular components without any text or symbols

02:30 Function Selector Delay

Front view of a silver washing machine with control panel and front panel (no visible text or symbols)

Line drawing of a hand holding a tool with a brush, next to a circular button (no text or symbols)

Simple line drawing of a switch or socket with a black arrow pointing left, labeled '1' (no text or symbols on the diagram itself)

Illustration of a faucet with a handle and valve, labeled with number 2 (no text or symbols on the diagram itself)

Diagram of a mechanical or electrical component with a spring and plug, showing no text or symbols.

Line drawing of a hand holding a pen, poised to write on a blank sheet (no text or symbols present)

Illustration of a hand using a tool to adjust or install a component, with a magnified inset showing a hook and arrow (no text or symbols)

Illustration of a hand holding a tool with arrows indicating motion or force (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a tray (no text or symbols visible)

Two gray rectangular panels with arrows indicating rotation or transformation, no text or symbols present.

Simple line drawing of a rectangular frame with corner markers and a label '2.' (no text or symbols on the frame itself)

Simple geometric diagram of a rectangle with four corner dots, no text or symbols present

Diagram illustrating a mechanical or electrical assembly with labeled components and directional arrows indicating motion or force.

Mechanical assembly diagram showing multiple screws and fasteners (no text or labels)

5.

Line drawing of a hand holding a screwdriver (no text or symbols)

Regulacja nóżek

Simple line drawing of a mechanical pump or drain system with a curved pipe and circular component (no text or symbols)

Wąż odpływowy

Diagram of a pipe fitting with a valve and directional arrow, no text or symbols present

Illustration of a faucet with a handle and base, no text or symbols present

Pure electrical circuit lines without any symbols

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Simple black cross symbol on white background, no text or numbers present

Не следует...

Simple black cross symbol on white background, no text or numbers present

Haier Airbox 1 2 3 4 5 6 7 Sear Drive

① ② ③ ④ ⑤ ⑥ T3 S1 T4 S2 S4 T1 T2 S3

Simple line drawing of a coiled hose with a bulb (no text or symbols)

Diagram showing three labeled blocks (①, ②, ③) with downward arrows indicating direction or flow, likely illustrating a mechanical or electrical component assembly.

Программа

Макс. темп.

По умолчанию

2

3 1

Тип волокна

Technical line drawing of a faucet with valve mechanism, showing top and side views (no text or symbols)

Питание

Diagram illustrating clothing item arrangement with labeled parts including shirts, jeans, boots, and bedding in a basket

Pure mechanical diagram showing a gear and key assembly without any text, numbers, or symbols

Внимание!

Front view of a white washing machine with control panel and door (no visible text or symbols)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Mouth Pomachenne Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset Onset

Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control Control

Pure technical line drawing of concentric rings without any text, numbers, or symbols

Technical diagram showing a mechanical component with labeled parts 1 and 2, likely illustrating a cutting or assembly process.

Front view of a white water washing machine with control panel and front-mounted door (no visible text or symbols)

Line drawing of a hand holding a tool with a brush, next to a circular button (no text or symbols)

Electrical outlet switch with a bulb and arrow indicating left-side direction (no text or symbols)

2

Diagram of a mechanical or electrical component with a spring and plug, showing no text or symbols.

Line drawing of a hand holding a pen, poised to write on a blank sheet (no text or symbols present)

Illustration of a hand using a tool to adjust or install a component, with a magnified inset showing a hook and a bowl (no text or symbols)

Illustration of a hand holding a string with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a tray (no text or symbols visible)

Two geometric shapes with arrows indicating rotation, no text or symbols present

Simple line drawing of a rectangular frame with corner bolt holes and a central blank space (no text or symbols)

Simple geometric diagram of a rectangle with four corner dots and a curved top edge, labeled '3.' (no text or symbols within the shape)

Diagram illustrating mechanical assembly with labeled components and directional arrows, likely from an engineering or physics context.

Mechanical assembly diagram showing multiple bolts and screws (no text or labels)

5.

Line drawing of a hand holding a screwdriver (no text or symbols)

Регулировка ножек

Simple line drawing of a faucet with a handle and circular pump (no text or symbols)

Сливной шланг

Diagram of a pipe fitting with a valve and connector, showing directional arrow and plus symbol (no text or labels)

Illustration of a faucet with a handle and valve, no text or symbols present

Pure electrical outlet diagram without any text, numbers, or symbols

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Simple black cross symbol on white background, no text or numbers present

No debe:

Simple black cross symbol on white background, no text or numbers present

Haier 174LS ① ② ③ ④ ⑤ ⑥ H D Smart Drive ⑦

① ② ③ ④ ⑤ ⑥ T3 S1 T4 S2 S4 T1 T2 S3

Diagram showing three labeled blocks (①, ②, ③) with downward arrows indicating direction or flow, likely illustrating a mechanical or electrical component layout.

Programa

Temp. Máx.

Preajuste

2

31

Tipo de fibra

4 Lana 0-40°C --- Tejidos 600 rpm

de lana

5 Ropa interior 0-60°C 40°C Ropa interior

1000 rpm

6 Ropa deportiva 0-40°C 30°C Ropa deportiva ☐ 1000 rpm

7 Vaqueros 0-60°C

Vaqueros

1000 rpm

Technical illustration of a faucet with directional arrows indicating movement or force (no text or symbols)

Diagram illustrating clothing items including shirts, jeans, boots, and bedding with directional arrows indicating movement or distribution.

Pure mechanical diagram showing a gear and key assembly without any text, numbers, or symbols

Carga del aparato

Front view of a white washing machine with a circular vent and control panel (no visible text or symbols)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Audio Landscape changes Ultrance change Landscape Control Control Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape Landscape

Ripetal Stratience Masciss Lane Ripe Masciss Ripe Respirations Requival Respirations 40's Laseride plate Ultra barate Ripetal 15 min Cathode Inflated Defective Laseride Maximal Centrifugal Varicidal Auto lever

Ripulion Sanskine Mascia Luna Rope Impulse Rope Impulse Vacuum Highprime 90 V Laserio shake Ultra Marcho Ridardo 1/8 Extensio Infant Delibrado Laserio A voice Cirrhizopan Vincido Auto leads

Pure technical line drawing of concentric circular components without any text or symbols

Después del lavado

Front view of a white water heater with control panel and front-mounted screen (no visible text or symbols)

Line drawing of a hand holding a tool with a brush, next to a circular button (no text or symbols)

Diagram of a light bulb mounted on a square socket, with an arrow indicating left motion (no text or symbols)

Illustration of a faucet with a handle and valve, labeled with number 2 (no text or symbols on the faucet itself)

Diagram of a mechanical or electrical component with a spring and plug, showing no text or symbols.

Line drawing of a hand holding a pen, poised to write on a blank sheet (no text or symbols present)

Illustration of a hand using a tool to adjust a component in a device (no text or symbols visible)

Illustration of a hand holding a stringed object with vertical lines and dots, no text or symbols present

Illustration of a hand using a tool to switch a circular component in a device (no text or symbols)

Two gray rectangular panels with arrows indicating rotation, no text or symbols present

Simple line drawing of a rectangular frame with corner holes and mounting points (no text or symbols)

Simple geometric diagram of a rectangle with four corner dots, no text or symbols present

Diagram showing mechanical assembly with labeled components and directional arrows, likely illustrating a moving or rotating system.

Mechanical assembly diagram showing multiple screws and fasteners arranged in a complex arrangement (no text or symbols)

5.

Line drawing of a hand holding a screwdriver (no text or symbols)

Ajuste de las patas

Simple line drawing of a mechanical pump or drain system with a curved pipe and circular component (no text or symbols)

Manguera de desagüe

Diagram of a pipe fitting with a valve and directional arrow, no text or symbols present

Illustration of a faucet with a handle and valve, no text or symbols present

Pure electrical outlet diagram without any text, numbers, or symbols

Diagram of a pipe fitting with a valve and connector, no text or symbols present

Illustration of a faucet with a handle and valve, showing mechanical components (no text or symbols)

تحذير!

Pure electrical circuit lines without any symbols

Line drawing of a hand holding a screwdriver (no text or symbols)

خرطوم التصريف

Technical line drawing of a mechanical pump assembly with a curved pipe and circular component (no text or symbols)

Two overlapping geometric shapes with arrows indicating rotation, no text or symbols present

Pure diagram of a rectangular frame with corner markers, no text or symbols present

Simple geometric diagram of a rectangle with four corner dots, no text or symbols present

Diagram showing a mechanical or electrical component with rotating arms and labeled section '4'

Mechanical assembly diagram showing multiple screws and fasteners (no text or labels)

Line drawing of a hand holding a pen, poised to write on a blank sheet (no text or symbols present)

تحذير!

Illustration of a hand using a tool to adjust a circular component into a device (no text or symbols present)

Illustration of a hand holding a tool with a ruler inserted, showing measurement lines (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols present

تحذير!

Technical diagram showing a mechanical component with labeled parts 1 and 2, likely illustrating a cutting or assembly process.

Front view of a white washing machine with control panel and buttons (no visible text or symbols)

Illustration of a hand holding a tool with a screwdriver, next to a circular component (no text or symbols visible)

Diagram of a switch or socket with a black arrow pointing to the socket (no text or symbols present)

2

عملية الغسيل

Cable Syrac Mn Wood Spool Avent Hybrid Early Heart Ally White Express 1F Baby Care Carbonics Grey Wash Spool Clean Self Clean

بعد الغسيل

Pure technical line drawing of concentric circular components without any text or symbols

8:00:00 Function Selection Delay

Button Turn Tables File Head, Top Screen Sport Jeans Hygiene Close Pass Ultra White Ecoane Off Body Care Tobacco Hand Pass Aged Pass Self Pass

تشغيل الجهاز

Cotton Synthetic Mix Wool Under- wear Sport Jeans Hygienic Daily Wash Ultra White Express 15' Baby Care Delicate Hand Wash Spin/Drain Self Clean

88:88 Function Selection Delay

Simple line drawing of a container with a handle and a pile of food (no text or symbols)

Diagram illustrating clothing item arrangement with arrows indicating movement from a basket to different clothing items

Pure mechanical diagram showing a gear and key assembly without any text, numbers, or symbols

Front view of a Free Air Washing Machine (no visible text or symbols on the device body)

تعبنة الجهاز

Line drawing of a faucet with a handle and valve, showing fluid flow direction (no text or symbols)

Diagram showing three labeled components (1, 2, 3) with downward arrows indicating direction or flow.

88:08 +1+2 Fuction Selection Delay a b

(b) "Selection" -6b

Simple line drawing of a coiled hose with a bulb (no text or symbols)

Simple black cross symbol on white background, no text or numbers present

... عدم

Simple black cross symbol on white background, no text or numbers present

Symbol of a trash bin crossed with no text or labels, representing waste sorting or restriction (no text present)

Haier

دليل المستخدم غسالة

Haier motors Smart Drive

HW80-B14266A HW90-B14266A
