Before start How to read this guide

• Thank you for buying this Pioneer DJ product. This guide provides a brief description of the procedures up until connecting the unit to your computer and outputting audio. For the detailed procedures, refer to the Operating Instructions. Be sure to read both this guide and the Operating Instructions. Both documents include important information that you must understand before using this product. After reading the instructions, store them in a safe place for future reference. — For instructions on acquiring the Operating Instructions, see “Acquiring the manual” (p.4).• In this guide, names of screens and menus displayed on the unit and on the computer screen, as well as names of buttons and terminals, etc., are indicated with brackets. (e.g. [f] button, [Files] panel, [MASTER OUT] terminal)• Please note that the screens and specifications of the software described in this guide as well as the external appearance and specifications of the hardware are currently under development and may differ from the final specifications.• Please note that depending on the operating system version, web browser settings, etc., operation may differ from the procedures described in this guide.• This guide mainly explains on the function of the unit as a hardware. For details on Serato DJ software, see the software manual supplied with Serato DJ. Features This unit is an all-in-one DJ controller designed specifically for Serato’s DJ software Serato DJ Lite. Performance interfaces, such as “BIG JOG” or “PERFORMANCE PADS”, are arranged comfortably to control functions included in “Serato DJ Lite”. Complicated settings are not necessary, and DJ play can be started soon after connecting the unit with a USB cable to a PC/Mac with “Serato DJ Lite” installed. What’s in the box
• USB cable• Warranty (for some regions)• Operating Instructions (Quick Start Guide) (this guide) The included warranty is for the European region. — For the North American region, the corresponding information is provided on the last page of both the English and French versions of the “Operating Instructions (Quick Start Guide).” — For the Japanese region, the corresponding information is provided on the back cover of the “Operating Instructions (Quick Start Guide).” Acquiring the manual The various instructions are sometimes provided as files in PDF format. Adobe Reader must be installed in order to view files in PDF format. Viewing the Latest Version of the Operating Instructions 1 Launch a web browser on the computer and access the Pioneer DJ site below. pioneerdj.com• To change the language of the screen, click the flag icon, or click the GLOBAL icon on the bottom right of the screen and select a language from the list. 2 Click [Support]. 3 Click [Tutorials, manuals & documentation]. 4 Click [DDJ-SB3] in the [DJ CONTROLLER] category. 5 Click the desired language from the list. Downloading the Serato DJ Lite software manual 1 Access the Serato site. http://serato.com/ 2 Click [Serato DJ Lite] from [PRODUCTS]. 3 Click [DOWNLOAD SERATO DJ LITE]. 4 Click [Manuals and Downloads]. 5 Click the Serato DJ Lite software manual of the required language. About Serato DJ Lite Serato DJ Lite is a DJ software application by Serato. DJ performances are possible by connecting the computer on which this software is installed to this unit. Minimum operating environment Supported operating systemsCPU and required memorymacOS High Sierra 10.13, macOS Sierra 10.12, OS X 10.11 (latest updated)Intel processor, Core™ i3, i5, i7 1.07 GHz or better4 GB or more of RAMWindows 10 / Windows

English Setup procedure Step 1 Installing the necessary software on your computer = page 6 Install Serato DJ Lite (Windows/Mac).

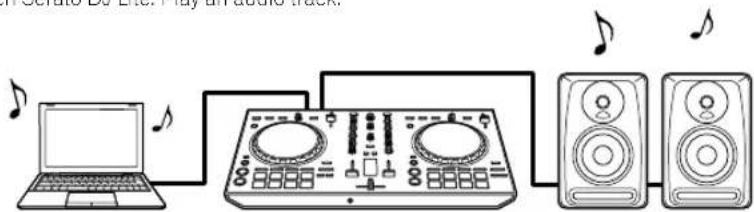

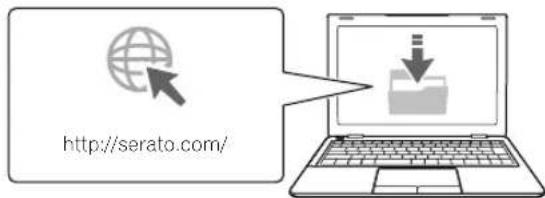

• Obtain Serato DJ Lite from the Serato site and then install it on your computer. http://serato.com/ Step 2 Connecting devices and this unit = page 7 Connect to your computer. Be sure to use the USB cable supplied with the unit for optimum performance. Connect the speakers with a built-in amplifier. Step 3 Operating Serato DJ Lite and playing an audio track = page 8 Launch Serato DJ Lite. Play an audio track. To obtain Serato DJ Lite, you need to separately register a user account on “Serato.com”.6

Step 1 Installing the necessary software on your computer Do not connect the unit to your computer until the installation has completed. Mac The installation is now complete. The message of successful installation appears once installation is completed. Click [ Close ] to quit the Serato DJ Lite installer. Read the terms of the license agreement carefully, and if you agree, select

I agree to the license terms and conditions ], then click [ Install

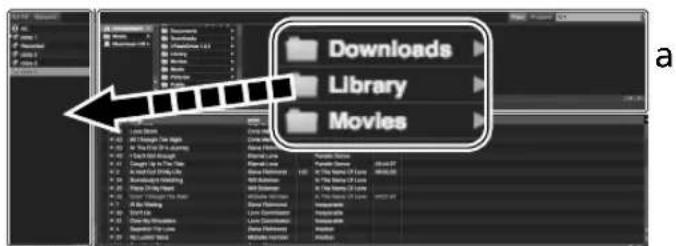

If you do not agree to the contents of the license agreement, click [ Close ] to cancel installation. Check [ Pioneer DJ DDJ-SB3 ] for the model to be used and then click the [ Continue ] icon and download the file. Unzip the downloaded file, then double-click the unzipped file to launch the installer. Click [ Verify My Email Address ] in the e-mail. An e-mail is received from Serato. Input your e-mail address and the password you want to set and then select the region. Create an account on “Serato.com”. *The download page is subject to change without notice. Access the Serato site. http://serato.com/ Click [ Serato DJ Lite ] from [ PRODUCTS

The Serato DJ Lite download page* appears. Click [

] again. Installing Serato DJ Lite Windows 1 Click [ Continue

2 Read the terms of the license agreement carefully, and then click

3 If you agree to the contents of the usage agreement, click [ Agree

If not, click [ Disagree ] to cancel installation. 4 Follow the instructions on the screen to install. 5 Click [ Close ] to quit the Serato DJ Lite installer.7

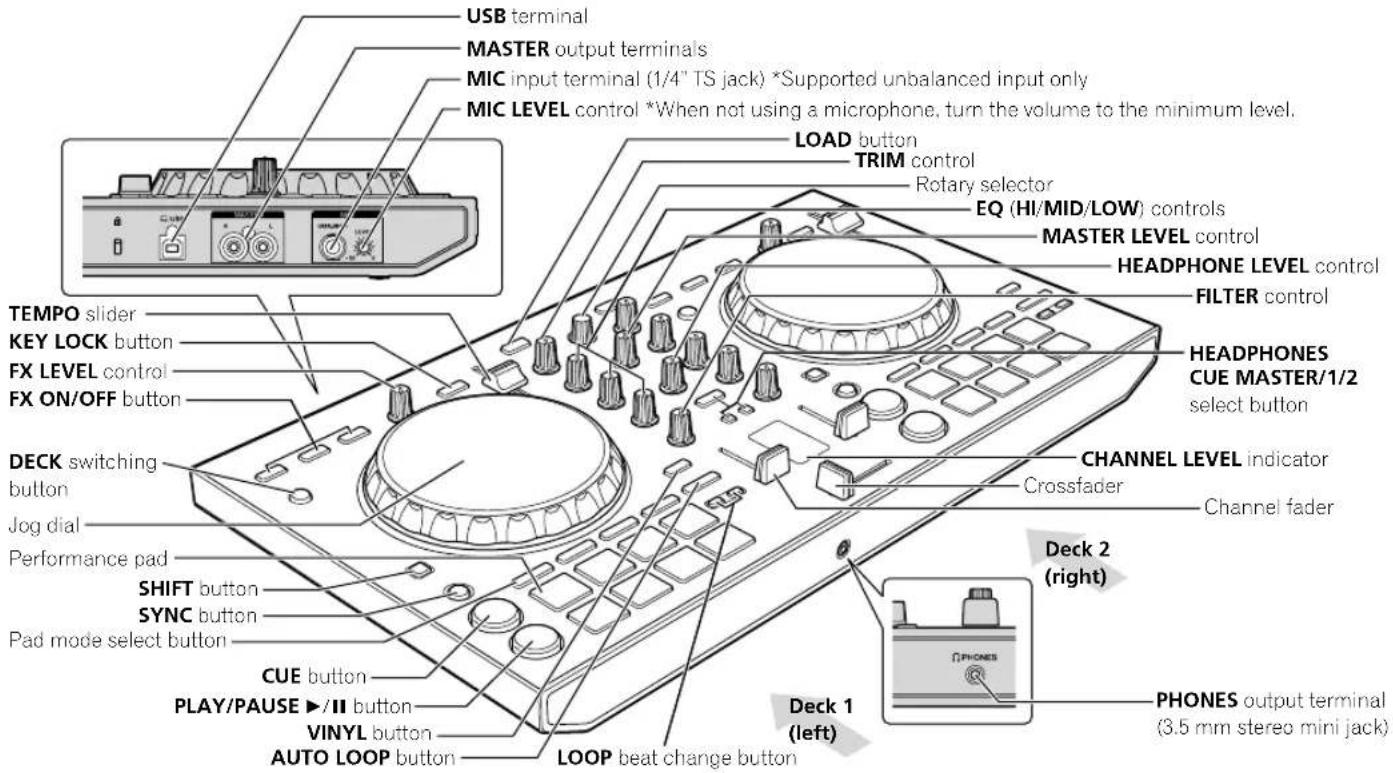

English Step 2 Connecting devices and this unit Names of Parts For details, see the Operating Instructions of this unit. USB terminal MASTER output terminals MIC input terminal (1/4” TS jack) *Supported unbalanced input only MIC LEVEL control *When not using a microphone, turn the volume to the minimum level. TEMPO slider KEY LOCK button FX LEVEL control FX ON/OFF button DECK switching button Jog dial Pad mode select button Performance pad SHIFT button SYNC button CUE button PLAY/PAUSE f button LOOP beat change button AUTO LOOP button VINYL button Deck 1 (left) Deck 2 (right) LOAD button TRIM control Rotary selector EQ (HI/MID/LOW) controls MASTER LEVEL control HEADPHONE LEVEL control FILTER control HEADPHONES CUE MASTER/1/2 select button CHANNEL LEVEL indicator Crossfader Channel fader PHONES output terminal (3.5 mm stereo mini jack) Connecting speakers with a built-in amplifier to the unit with an audio cable (RCA) Connect speakers with a built-in amplifier, powered speakers, etc. to the [MASTER] output terminals of this unit.

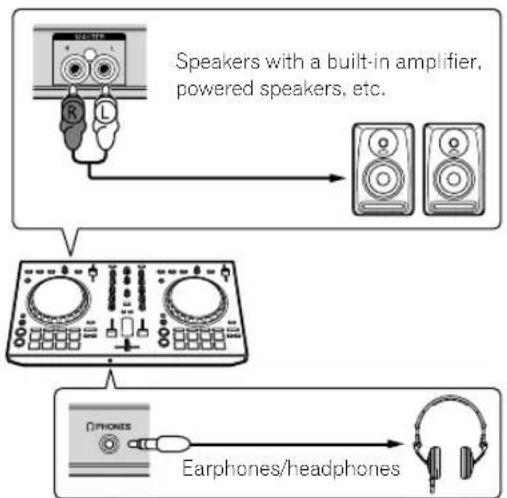

• An audio cable (RCA) is not included with this unit. Please provide it yourself separately. Speakers with a built-in amplifier, powered speakers, etc. Earphones/headphones

• Connect earphones/headphones to the [PHONES] output terminal. For details on connecting the input/output terminals, see the Operating Instructions of this unit.

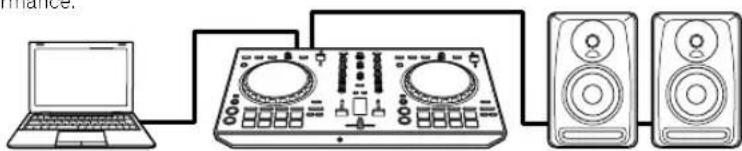

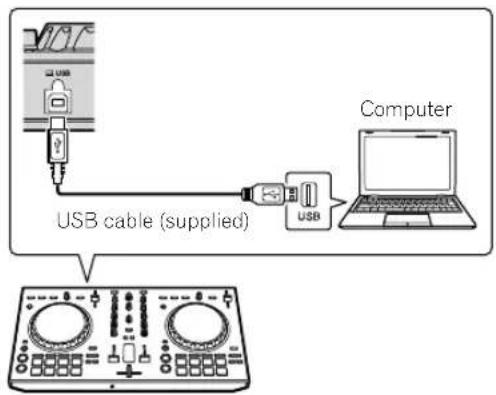

• Turn the volume of the device(s) (speakers with a built-in amplifier, powered speakers, etc.) connected to the [MASTER] output terminals to an appropriate level. Note that the output sound may be loud if the volume is set too high. Connecting your computer to the unit 1 Connect your computer to the unit via a USB cable. Make a direct connection with the supplied USB cable for optimum performance. A USB hub cannot be used. USB cable (supplied) Computer 2 Turn on your computer. 3 Turn on the device(s) (speakers with a built-in amplifier, powered speakers, etc.) connected to the output terminal.8

Step 3 Operating Serato DJ Lite and playing an audio track Obtaining a track for your DJ performance Obtain a track from your CD or the Internet.For the supported formats, see the operating instructions for the Serato DJ Lite.http://serato.com/A sample track can be obtained by following the procedure below. 1 Access the Pioneer DJ site. pioneerdj.com• To change the language of the screen, click the flag icon, or click the GLOBAL icon on the bottom right of the screen and select a language from the list. 2 Click [Support]. 3 Click [Software & firmware updates]. 4 Click [DDJ-SB3] in the [DJ CONTROLLER] category. 5 Click [Other]. 6 Click [Download link] in [DDJ-SB3 SAMPLE TRACK]. The file of the sample track is downloaded. Launching Serato DJ Lite For Windows 7 From the Windows [Start] menu, click the [Serato DJ Lite] icon under [All Programs] > [Serato] > [DJ Lite]. For Windows 8.1/10 From [Apps view], click the [Serato DJ Lite] icon. For Mac In Finder, open the [Applications] folder, then click the [Serato DJ Lite] icon.Files Adding a track file to the Serato DJ Lite library The following describes the typical procedure for importing tracks. 1 Click the [Files] icon on the Serato DJ Lite software screen to open the [Files] panel. The contents of your computer or the peripheral connected to the computer are displayed in the [Files] panel. 2 Click to select the track obtained from the tree view in the [Files] panel. 3 Drag and drop the selected file to the [crates] panel on the Serato DJ Lite software screen. A crate is created and the tracks are added in the library panel.

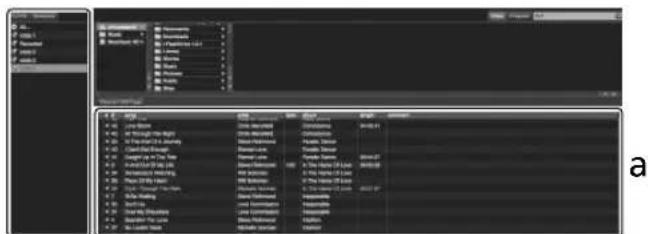

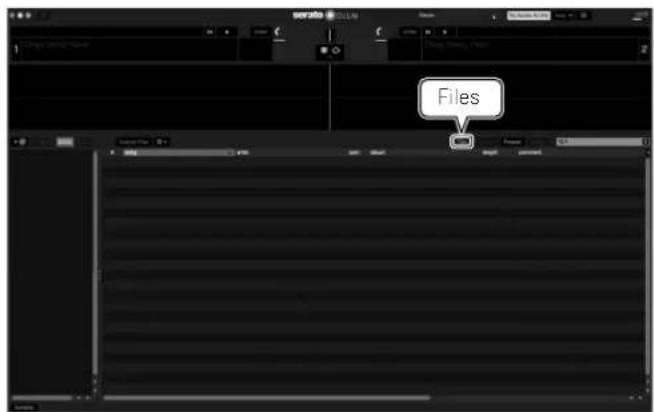

a Files panelb crates panel Loading a track into the deck The following describes the procedure for loading tracks into deck [1] as an example. 1 Select the crate created in “Adding a track file to the Serato DJ Lite library” in the crates panel. 2 Select the track saved in “Obtaining a track for your DJ performance” in the library on the computer screen.

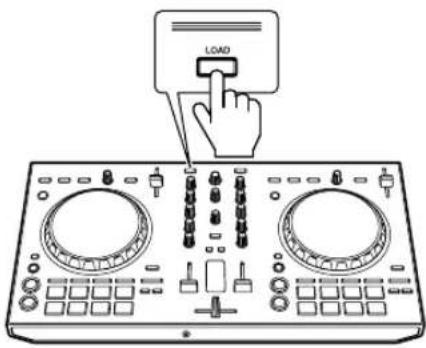

a Library panelb crates panel 3 Press the [LOAD] button of the left side deck. The track is loaded into the deck.9

English Playing a track The following describes the procedure for outputting the channel 1 sound as an example. 1 Set the positions of the controls, etc., as shown below. Names of controls, etc. Position 1 TRIM controlTurned fully counterclockwise 2 EQ (HI, MID, and LOW) controls 12 o’clock position3 FILTER control12 o’clock position4 Channel faderMinimum (lowest) position5 MASTER LEVEL controlTurned fully counterclockwise6 CrossfaderCenter position 2 Press the [f] button to play the track. 3 Turn the [TRIM] control. Adjust the [TRIM] control so that the channel level indicator’s orange indicator lights at peak level. 4 Move the channel fader to the maximum level. 5 Turn the [MASTER LEVEL] control to adjust the audio level of the speakers. Adjust the audio level output from the [MASTER OUT] terminals to an appropriate level. 6 Turn the [HEADPHONES LEVEL] control to adjust the audio level of the headphones. The [HEADPHONES CUE MASTER] select button must be set to ON to monitor through the headphones. It is recommended to set the control between the 9 and 10 o’clock positions. About the controls’ setting values The setting values of the controls, etc., below are controlled individually for the respective decks in the Serato DJ Lite software.

• EQ (HI, MID, LOW) controls

• TEMPO slider If the values controlled by Serato DJ Lite when the decks are switched differ from the positions of this unit’s controls, faders, etc., the controls, faders, etc., must be moved to the positions corresponding to the values controlled by Serato DJ Lite before they will operate.

• The initial settings of decks 3 and 4 of Serato DJ Lite are the center position for the [TRIM] control, [EQ (HI, MID, and LOW)] controls, and [FILTER] control, ±0.0% for the [TEMPO] slider, and the minimum (lowest) position for the channel fader.10

Additional information Troubleshooting

• If you think that there is something wrong with this unit, check the items in the “Troubleshooting” section on the Operating Instructions of this unit, or access the Pioneer DJ site and check [FAQ] for the [DDJ-SB3]. pioneerdj.com Sometimes the problem may lie in another component. Inspect the other components and electrical appliances being used. If the problem cannot be rectified, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• This unit may not operate properly due to static electricity or other external influences. In this case, proper operation may be restored by unplugging the USB cable, then plugging it back in. About trademarks and registered trademarks

• “Pioneer DJ” is a trademark of PIONEER CORPORATION, and is used under license.

• Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

• macOS, OS X and Finder are trademarks of Apple Inc., registered in the U.S. and other countries.

• Intel and Intel Core are trademarks of Intel Corporation in the U.S. and/or other countries.

• Adobe and Reader are trademarks of Adobe Systems Incorporated in the U.S. and other countries.

• Serato DJ, Serato DJ Pro and Serato DJ Lite are registered trademarks of Serato Limited. The names of companies and products mentioned herein are trademarks or registered trademarks of their respective owners. Cautions on copyrights Recordings you have made are for your personal enjoyment and according to copyright laws may not be used without the consent of the copyright holder.

• Music recorded from CDs, etc., is protected by the copyright laws of individual countries and by international treaties. It is the full responsibility of the person who has recorded the music to ensure that it is used legally.

• The specifications and design of this product are subject to change without notice.

• © 2018 Pioneer DJ Corporation. All rights reserved.11
