TLSG3216 - Switch TP-LINK - Free user manual and instructions

Technical Features	Details
Product Type	Managed Ethernet Switch
Ports	16 Gigabit Ethernet ports
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Power Supply	External power supply
Dimensions	440 x 220 x 44 mm
Weight	3.5 kg
Operating Temperature	0 to 40 6C
Operating Humidity	10% to 90% (non-condensing)
Usage	Ideal for small and medium businesses for local network management
Maintenance	Regular firmware update checks recommended
Security	Advanced security features including VLAN and access control
Warranty	2 years

Frequently Asked Questions - TLSG3216 TP-LINK

How to reset the TP-LINK TLSG3216 to factory settings?

To reset the TP-LINK TLSG3216, locate the reset button on the back of the switch. Press and hold this button for about 10 seconds until the lights blink, then release it. The switch will restart with factory settings.

Why does my TP-LINK TLSG3216 not work with certain devices?

Check that the Ethernet cables are properly connected and compatible with the switch. Also ensure that the devices are configured to use the same network protocol (e.g., Ethernet) and check IP settings if you are using a local network.

How to update the firmware of the TP-LINK TLSG3216?

Download the latest firmware from the official TP-LINK website. Access the switch management interface via your browser, go to the 'System' section then 'Firmware Update'. Select the downloaded file and click 'Update'.

What to do if the TP-LINK TLSG3216 does not power on?

Check that the power cable is properly connected and the outlet is working. If the switch still shows no signs of life, try another compatible power adapter.

How to configure VLAN on the TP-LINK TLSG3216?

Access the management interface from a browser by entering the switch's IP address. Go to the 'VLAN' section to create and configure VLANs as needed. Make sure to apply the changes for them to take effect.

My network is slow, how can the TP-LINK TLSG3216 improve it?

Check your Internet connection bandwidth and ensure all Ethernet cables are of good quality. Also make sure the switch is properly configured and connected devices are not consuming too much bandwidth.

How to diagnose a faulty port on the TP-LINK TLSG3216?

To diagnose a port, check the LED indicators associated with each port. If a port does not light up or blinks abnormally, try connecting another device to that port. If the problem persists, the port may be faulty.

USER MANUAL TLSG3216 TP-LINK

Easy Smart&Smart&Managed Rackmount Switch

CONTENTS

Deutsch. 01
English. 06
Espanol. 11
Elambdaviká. 16
François. 21
Italiano 26
Portugues. 31
Suomi. 36
Nederlands. 41
Svenska. 46
Norsk. 51
Dansk 56
Türkge. 61

Installation

- Tischmontage

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.

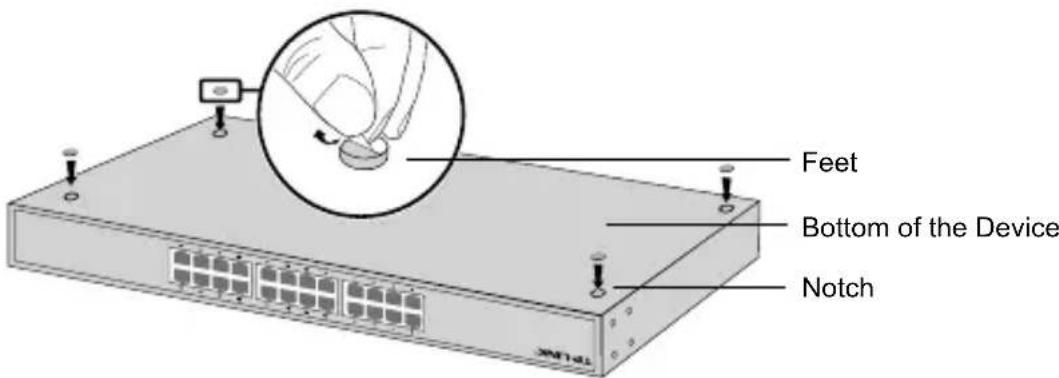

3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

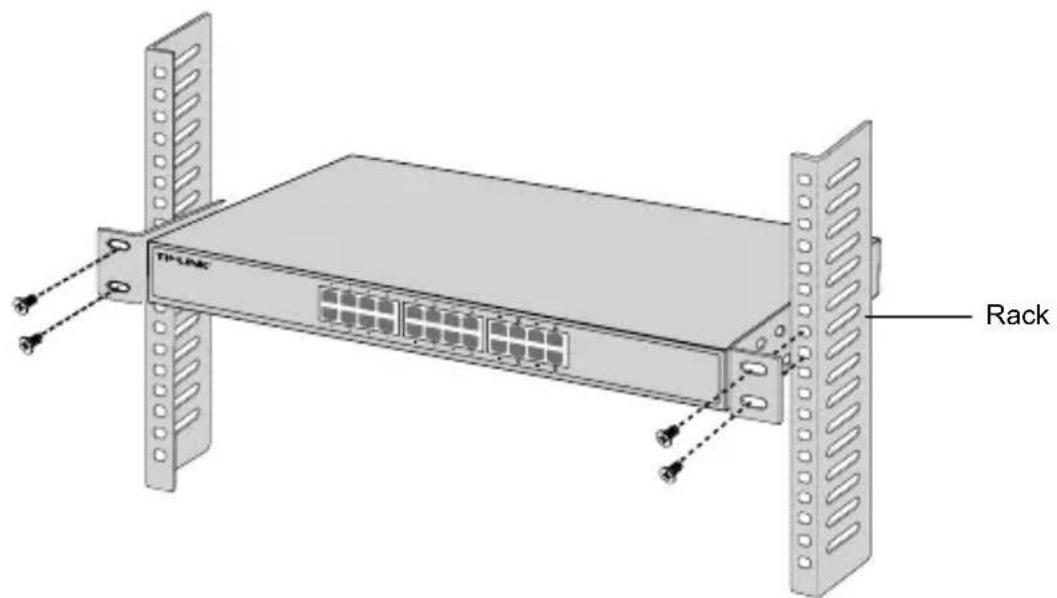

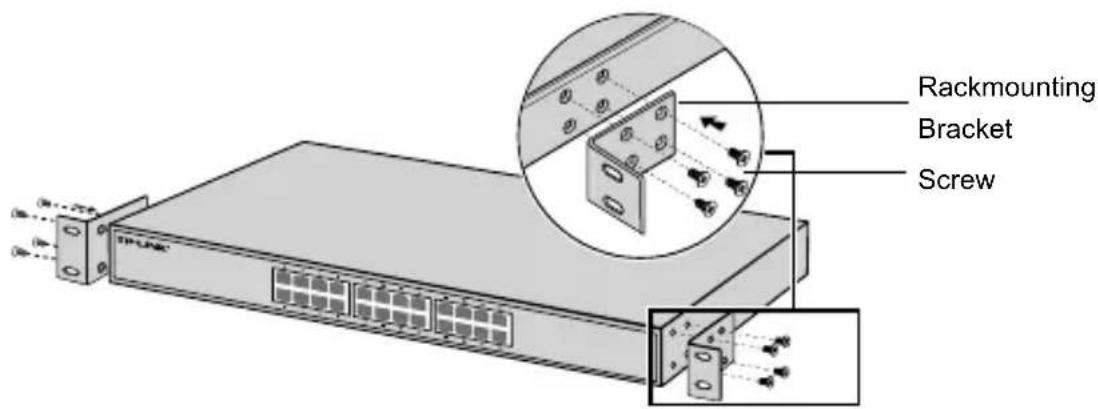

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

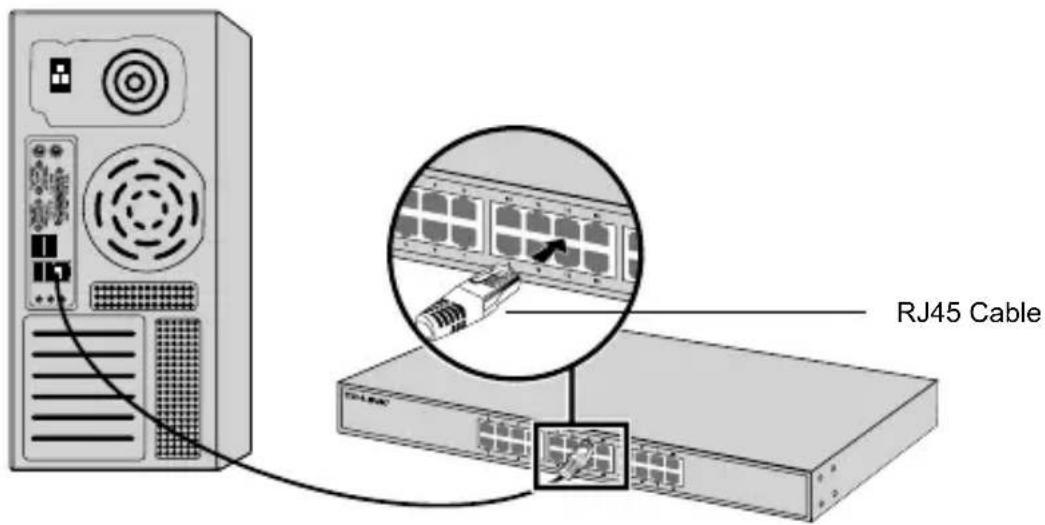

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- SFP Port

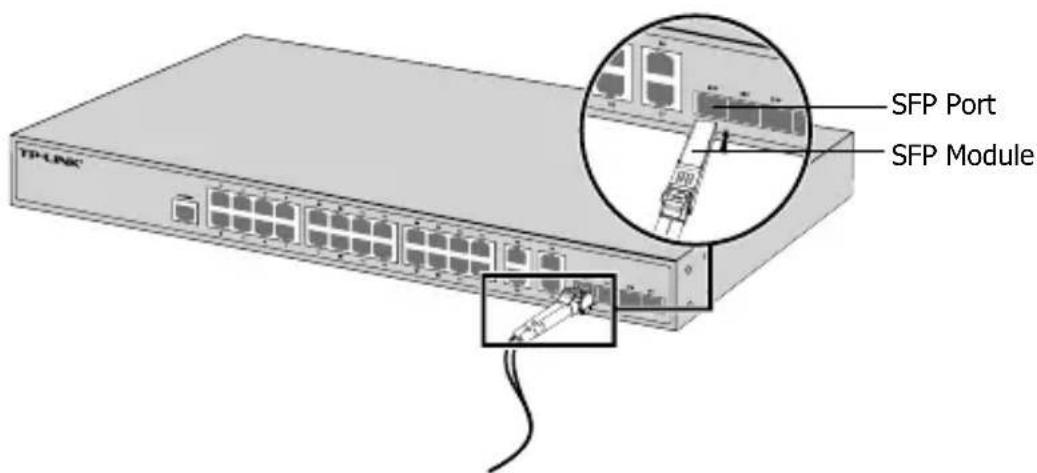

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

- Console Port

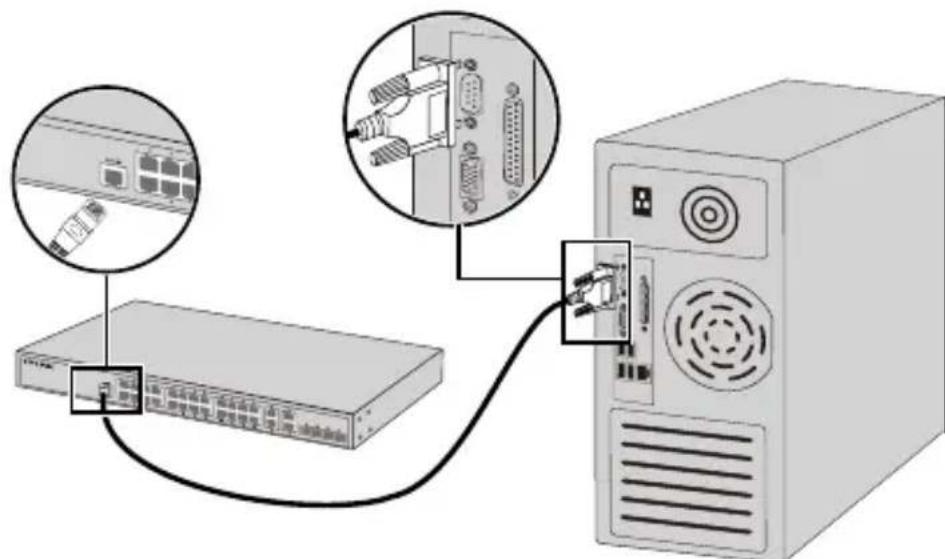

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

- Power On

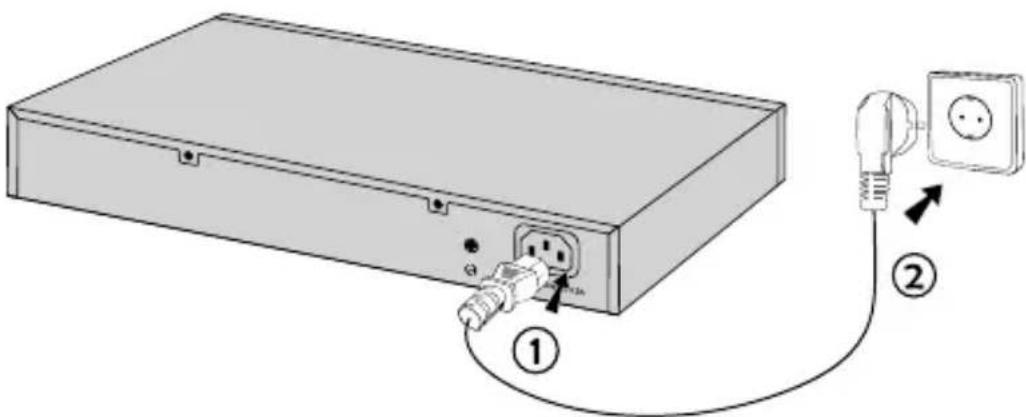

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.
2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the CLI (Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility (Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage entire networks of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

- Desktop-installation

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

• TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Espanol

South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

Robert-Bosch-Straße 9, 65719 Hofheim am Taunus, Germany

Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
