USER MANUAL Transporter 2 JANE

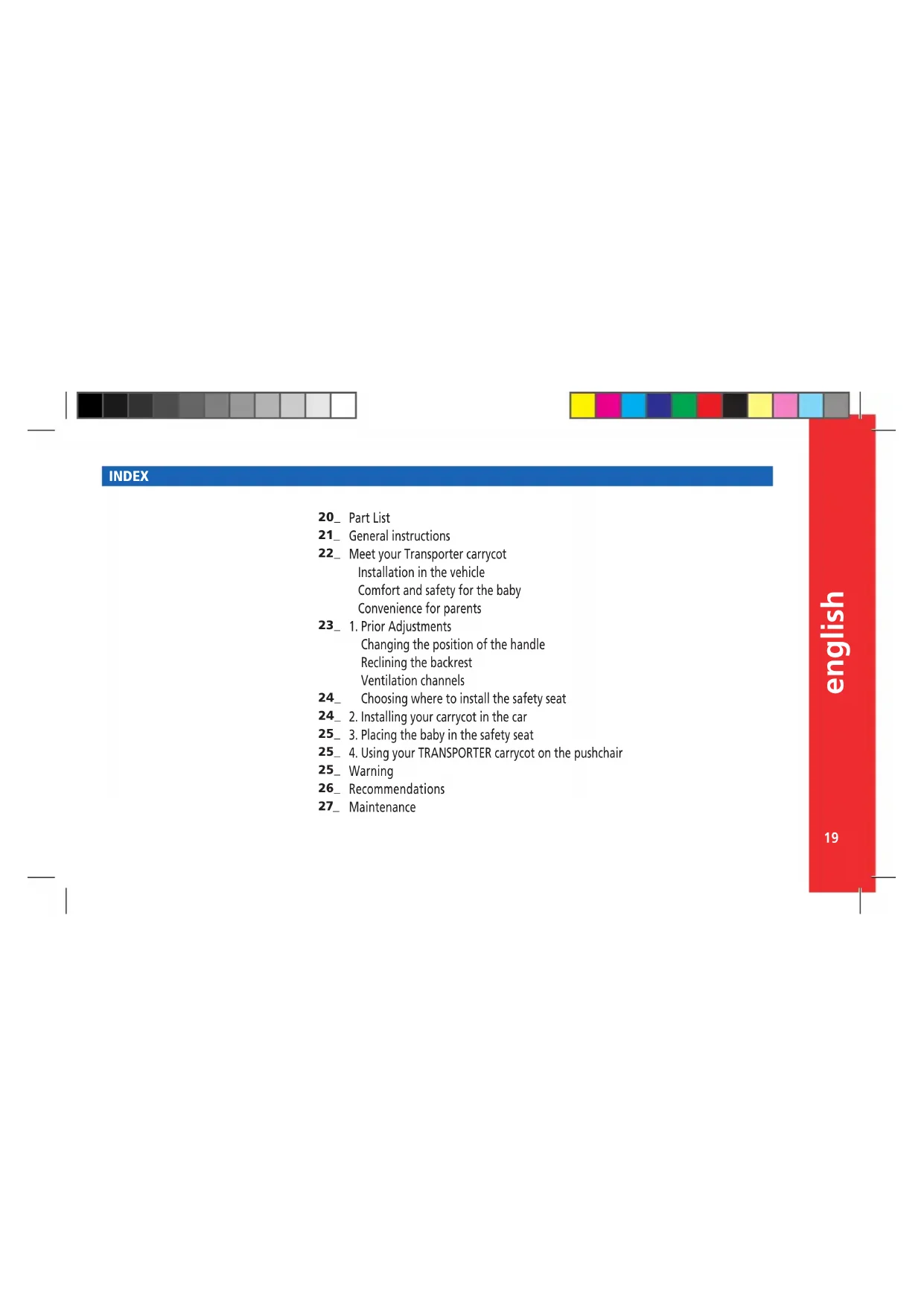

INDEX Part List General instructions Meet your Transporter carrycot Installation in the vehicle Comfort and safety for the baby Convenience for parents

1. Prior Adjustments

Changing the position of the handle Reclining the backrest Ventilation channels Choosing where to install the safety seat

2. Installing your carrycot in the car

3. Placing the baby in the safety seat

4. Using your TRANSPORTER carrycot on the pushchair

• Your new TRANSPORTER from JANÉ is a safety carrycot designed to protect your baby in the car from newborn up to a maximum of 10 kg.

• TR ANSPORTER has passed the demanding safety tests of European Regulation ECE 44/04 for groups 0 and 0+.

• TRANSPORTER is compatible with most car seats. However, when the car manufactu- rer states that the seats are suitable for the installation of “Universal” type seats, this means that there is total compatibility.

• You can also use your TRANSPORTER with any of the JANÉ chassis that has the PRO- FIX system.

It is very important to read these instructions carefully before using the TRANSPORTER seat for the first time. Make sure that everyone who is ever going to use the seat is also familiar with its correct installation and use. It has been discovered that a significant number of people who use safety seats do not install the seat correctly, understanding the instruction manuals and applying the instructions correctly is just as important for safety as the actual seat.english

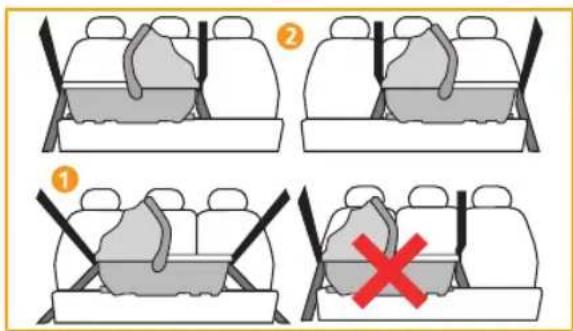

GENERAL INSTRUCTIONS Your TRANSPORTER safety carry cot should be installed on the rear seat of the car. It is advisable to install it with the head part always in the centre of the seat, never next to the door. It is only suitable for cars fitted with three anchoring point au- tomatic belts, approved according to Regulation ECE-16 or other equivalent rules. DO NOT use with a two anchoring point belt. Not all safety systems are exactly the same, so we advise that you check your TRANSPOR TER in the car in which it is going to be fit- ted. It is very important not to use second-hand products, as JANÉ can only guarantee complete safety with items used by their first bu- yer. JANÉ recommends that you replace your TRANSPORTER safety seat with a new one if it has been subjected to violent stresses in an accident. Check that all the straps are in the correct position and duly adjus- ted to your TRANSPORTER. Make sure that none of the straps are twisted. The child must understand that he must not play with the straps or fasteners under any circumstances. In order to protect your baby adequately and to ensure their comfort and stability in the car, the following ins- tructions must be strictly followed:22 TRANSPORTER Meet your TRANSPORTER carrycot Your TRANSPORTER safety seat has been designed taking into account the latest advances in terms of safety and it has been tested under the toughest conditions. It has the fo- llowing features: Installation in the vehicle: System of integrated fasteners on the frame. Makes it easier to ins- tall than the systems with detachable anchors. Structure reinforced with a honeycomb panel. This increases the re- sistance of the whole product to pass the strictest safety tests. Safety device preventing incorrect installation. This prevents the Safety device preventing incorrect installation: Makes it impossible to install the TRANSPORTER carrycot in the car with the backrest raised. Anchors with a raised position: Prevents the carrycot from rotating in the event of a collision. Comfort and safety for the baby: High-density foam mattress. Integrated 3-point seat belts, greater fastening surface area that spreads the strain out better in the event of an accident. Ventilation in the frame making it more breathable. It includes a breathable windbreaker membrane to keep the baby warm in win- ter and cool in summer. Shock absorbing material on the whole surface area in contact with the baby. Automatic reclining backrest. Convenience for parents: Pro-Fix fasteners compatible with all the JANÉ chasses. Carrying handle. Removable upholstery.english

1 Prior adjustments The carrying handle has 2 positions (figure 1a), each one of them has a specific function: Position 1: Hood folded. Position 2: Carrying position. Position for fitting and removing the carrycot from a JANÉ chassis and for carrying, as well as for use in the vehicle. To change the position, simultaneously press the buttons on both sides of the handle and turn it to the required position. Reclining the backrest The backrest of the TRANSPORTER carrycot can be adjusted from the outside with the adjustment handle. It can be adjusted to infinite posi- tions. However, it is very important to bear in mind the following points: AUTO Position: The backrest will always be in the lowest position, with the baby always lying down during the journey. (1) Your TRANSPORTER safety carrycot has two types of ventilation chan- nels to improve the breathability of the product and the comfort of your baby: Side ventilation channel. It is fitted with a breathable windbreaker membrane, that acts as a barrier against the wind but allows for ven- tilation. Lower ventilation channel. Pressing the button on the lower part of the head area gives you two extra ventilation channels for the hottest seasons. Changing the position of the handle Ventilation channels STROLLING Position: The backrest can be reclined by up to 20º when it is installed on your JANÉ pushchair or out of the car.(2) 1a - 1b - 1c -24 TRANSPORTER In the reclining position, TRANSPORTER must be fitted cross-wise on the back seats. Decide on which seats after reading the section on “Choosing where to install the safety seat”. If you have not lowered the backrest to the lying down position, the incorrect installation safety device will not allow you to insert the belt into the fastener. Undo one of the belt clips: First turn the double lock red lever and then open the metal catch. Insert the abdominal part of the seat belt into the clip and then close it again. Repeat the two previous steps for the clip on the other side. Lastly, tighten both belts while pressing the carrycot against the backrest of the vehicle seat. To remove the TRANSPORTER carrycot from the vehicle, follow the steps in reverse, in other words, turn the double lock red le- ver, open the seat belt clip turning the catch and remove the seat belt. 2 Installing your carrycot in the car 2a - 2b - 2c - 2d - Choosing the correct pace to install the safety seat in the car can re- duce the risk of injury for your baby in the event of an accident. The safety carrycot should be installed on the rear seats and in a side- ways position. You can choose from the following positions: Option 1: completely central, occupying the middle seat plus part of the two side seats and using the side seat belts. Option 2: one side seat plus the middle one, using the side and middle seat belt (must be a 3-point belt) leaving one seat free for another pas- senger. Important: the baby’s head should be over the middle seat. Choosing where to install the safety seatenglish

Unfasten the buckle. Loosen the harness by pulling the shoulder straps while pressing the tightening button. Place the baby in the safety carrycot making sure that he is lying down on the base with his back completely flat. Clip the two upper ends of the clasp together. Insert them in the central lock and press until you hear a click. Pull the tightening strap that adjusts the whole harness in just one movement. Do not leave the child unattended. Always remember to carry your baby with the safety harnesses correctly buckled. For the correct development of your baby, we recommend you let him rest in the lying down position (for babies up to 10kg.) Any alteration or addition to the device without proper authori- sation from JANÉ may seriously alter the safety of the retaining system. Failure to follow the instructions carefully for the correct use of the retaining system may be dangerous for the safety of the baby. This safety device cannot be used without its cover, or be replaced by another cover that is not the original, as this is an integral part of the safety features of the system. Check that the seat has been positioned correctly. Ensure that the belt has not been caught between the folding seats or doors. It is only suitable for cars fitted with three anchoring point au- tomatic belts, approved according to Regulation ECE-16 or other equivalent rules. DO NOT use with a two anchoring point belt. To fit the safety seat on a chassis, insert the connections in the cavity of the chassis and press until you hear a click. To release your TRANSPORTER from the chassis, press the button on the handle and pull the seat upwards. TRANSPORTER can be anchored on any JANÉ chassis that has the PRO- FIX system.

Placing the baby in the safety carrycot WARNING

Using your TRANSPORTER carrycot on the pushchair 3a - 3b - 3c - 3d - 4b - 4a - 3e -26 TRANSPORTER Keep this instruction book for future reference. Always store it in the compartment on the base. Ensure that inside the car, both luggage and any other object liable to cause injury in the event of an accident are properly fastened or stored. The TRANSPORTER safety seat should be properly fixed with the safety belts, even when not in use, as in the event of an accident it may be thrown about, causing injury to the occupants of the vehicle. Remember not to use the TRANSPORTER safety seat in cars fitted with a front airbag, unless it is disconnected or disabled, for which you should consult the car manufacturer or retailer. RECOMMENDATIONS Do not use the carrycot on seats fitted with an Air-bag. Not all safety systems are exactly the same, so we advise that you check your TRANSPORTER in the car in which it is going to be fit- ted. It is very important not to use second-hand products, as JANÉ can only guarantee complete safety with items used by their first buyer. Never leave the child alone.

WARNING: Do not add a mattress thicker than 20 mm

This product is only suitable for children who can not sit up by themselves. Do not let other children play unsupervised near the carrycot. Do not use if any of the parts are missing, broken or torn. Never use this carrycot on a support. Only use on a firm, horizontal, level and dry surface. Only use original JANÉ parts. Always be aware of the risk caused by fire and other sources of heat such as heaters, gas fires, etc., when they are near the carrycot. Regularly check the handles and the bottom of the carrycot for any signs of damage or wear and tear. This carrycot is designed for children from newborn up to 9kg in weight. Use in the car is authorised up to 10Kg in weight.english

Do not expose the cover to sunlight for long periods. When the seat is not in use, cover it or store it in the boot. Wash the plastic parts with warm water and soap, carefully drying all the components afterwards. The upholstery can be removed for washing. Follow the instruc- tions below:

• Remove the rubber band that goes underneath one of the car seat belt fasteners and undo the clasps from the other.

• Also the plastic aps that are on the sides of the carrycot.

• Remove the upholstery from the edges of your TRANSPORTER carrycot.

• Undo the safety harness clasp and pass it through the slot in the mattress upholstery.

• Take the upholstery off the backrest and pass the shoulder straps through the slots.

• Pull the mattress and take the upholstery off by opening the central part. MAINTENANCE Wash by hand at a temperature never higher than 30° C. To refit the cover, follow the same steps in reverse order. You can access the link: www.jane.es for further information on fitting your new TRANSPORTER. For your safety and the good conservation of this product, it is im- portant to bring it to one of our official workshops for regular ins- pections.28 TRANSPORTER

INFORMATION ABOUT THE GUARANTEE

This article comes with a guarantee in accordance with the provisions of law 23 / 2003 of 10th July. Keep your receipt as proof of purchase, it is essential to present the receipt in the shop where you bought the product to confirm validity of the guarantee in the event of any problems. This guarantee excludes any defects or breakages caused by inappropriate use of the article or inobservance of the safety and maintenance rules listed in the instruction pages and on the care labels, as well as faults caused by wear and tear through normal use and daily handling. The label displaying the chassis number of the model should never be taken off, it contains important information. Notice: For the maximum safety and care of your new JANÉ product, it is very important that you complete the registration card found on the web page www.jane.es This registration means we can inform you, if necessary, of the evolution and maintenance of your product. Additionally, if you would like, we can also inform you about new models or news that we think may be useful for you.français
