USER MANUAL Connect 540 MARMITEK
- To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
- Do not expose the components of your systems to extremely high temperatures or bright light sources.
- In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
- This product is not a toy. Keep out of reach of children.
- Do not open the product: the device may contain live parts. The product should only be repaired or serviced by a qualified expert.
- Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.
INTRODUCTION
Congratulations on your purchase of the Marmitek Connect 540^TM! This HDMI Matrix Switcher connects two screens (HDTV or HD projector) with four HDMI sources (Bluray player, HD set top box, Playstation, Xbox, etc). In contrast to passive HDMI splitters, this is done without any signal or encryption loss and while retaining optimum image quality. It is also ideal for use in combination with an HDMI extender (e.g. to another room). The Connect 540^TM supports Full HD 1080p and 3D (so is suitable for use with your own 3D equipment).
Marmitek products are manufactured with great care and are of the highest quality. Please read this manual carefully and follow the instructions to ensure you make the most of the opportunities offered by this product.
CONTENT
1x HDMI Matrix Switcher
1x Remote control (including battery)
1x HDMI cable
1x Usage instructions
ADVANTAGES
- For connecting gaming computers such as PlayStations and Xbox, Blu-ray Players, satellite receivers and all other HDMI devices.
- Built-in HDMI Matrix Switcher makes it possible to independently watch different HDMI sources on two screens (HDTV or HD projector).
- Suitable for Full HD 1080p and all 3D formats.
- With built-in repeater and equalizer for correcting any signal loss, allowing you to connect up to 15 metres of HDMI cable to the output.
- No interruptions because solid metal, interference-free, top quality housing is used.
- HDMI certified by ATC (Authorized Test Centers).
- Meets HDCP norms (High-bandwidth Digital Content Protection).
HDMI v1.3 PROPERTIES
- Video bandwidth 225 MHz (enables image to be provided in 1080p, 12-bit and 60Hz)
- 3D (suitable for use with your own 3D equipment).
- Deep Color 36-bit (billions instead of millions of colours, better reproduction of subtle gradation variances and higher contrasts).
- Dolby TrueHD & DTS HD Master Audio (high quality audio support).
- Lip-Sync (prevents synchronisation problems between image and sound).
- CEC (operate numerous CEC devices with one remote control).

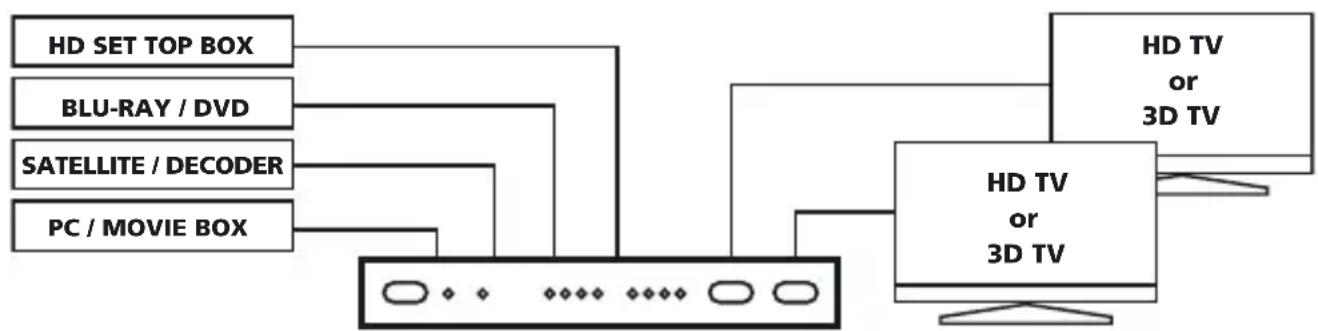

INSTALLATION
- Connect the HDMI sources to the 'input' on the Connect 540^TM via HDMI cables.
- Connect the HDMI screens (HDTV or HD projector) to the Connect 540^TM s 'output' via HDMI cables.
- Connect the power adapter to the Connect 540^TM and plug into the socket.
- Pull the plastic strip from the battery compartment of the remote control to activate the battery and use the remote control.
Tip for installation:
Only use High Speed HDMI® certified cables for the best picture and sound quality. Do not use much force to connect or disconnect the HDMI cables otherwise they may become damaged.
USE
The maximum resolution that can be used is entirely dependent on the HDMI source and the connected HDMI screens. The resolution of the HDMI source must be set so that both HDMI screens support it. Check the instructions for the connected HDMI equipment to verify the maximum supported resolution and how this can be set. Once all equipment is connected and set in the correct way, switch everything off and then on again. Select the correct HDMI input on your HDMI screen and you should then see the same signal on each screen, with the same resolution. The 'Select' button on the front of the Connect 540^TM can be used to manually switch between the two HDMI sources. Both HDMI screens will switch to the same HDMI source.
Use the remote control or the 'SELECT A/B' button at the front of the Connect 540 to manually switch between the four HDMI sources. With the Matrix Function you can select a different HDMI source on both HDMI screens.
Tip for usage:
Ensure that the HDMI source and screens fully support the HDCP protocol in order to prevent any problems.
Frequently Asked Questions
No (or bad) image and sound
If you see a bad image or no image at all after connecting the HDMI splitter, try to establish what the problem is by connecting your devices, one by one, to your screen (TV, monitor or projector). This will allow you to establish whether the problem lies in the HDMI sources, the HDMI cables, the HDMI splitter or the screen. HDMI equipment that has not been tested and certified by ATC (Authorized Test Centers) may cause image and sound problems.
- Check whether the Connect 540^TM s power adapter is connected and plugged in;
- Only use High Speed HDMI® certified cables for the best picture and sound quality;
- Do not use HDMI cables that are longer than specified in the technical data;
- Check whether the HDMI cables and/or connectors are damaged;
- Both the HDMI source as well as your screen must fully support HDMI;
- Check whether your HDMI sources and screen support HDCP (High-bandwidth Digital Content Protection).
No proper 3D picture
- Check whether the HDMI source has been set to 3D and/or that this is set to automatic.
- Both the HDMI source as well as the HD screen must support the same 3D formats.
- Check whether the proper 3D picture is reproduced by directly connecting the HDMI source to the screen with an HDMI cable.
Do you have a question that has not been answered here? Then have a look at www.marmitek.com
TECHNICAL DATA
Resolution
Supported HDTV Resolutions 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported PC Resolution (max.) 1920x1200
Supported 3D formats 1080p@23.98/24 Hz, 720p@59.94/60/50 Hz
Maximum Pixel Frequency (max.) 225MHz
Single link Bit Rate (max.) 2.25Gbps
Video Data Rate (max.) 6.75Gbps
Output Video HDMI HDCP1.0/1.1
Inputs and outputs
HDMI Input (19-pin female) 4 HDMI
HDMI Output (19-pin female) 2 HDMI
Maximum HDMI cable length 15m
Splitter housing
Dimensions (HxWxD) 260 x 110 x 25mm Weight 860 g
Environment
Ambient temperature +0 to +70°C Ambient humidity 10% up to 85%
Power
External power adapter Input 100-240VAC @50-60Hz Output 5VDC @ 2A
Specifications may be modified without prior notice.
ALSO AVAILABLE
Infrared extension
Marmitek offers several products to operate your devices, even when these are placed in a closed cupboard or in a different room. This as well wired as wireless. More information about these so called infrared extenders can be found at www.marmitek.com.
Watch Anywhere
To watch the content of your HD devices anywhere, even in another room, you can choose for Marmitek's wired or wireless AV solutions. Using the built-in infrared extender, you can operate your devices through walls and floors. More information about these so called HDMI
transmitters can be found at www.marmitek.com
Environmental Information for Customers in the European Union
European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
SICHERHEITSHINWEISE
Tipps zur Installation:
Dimensioni (A x L x P) 260 x 110 x 25mm
Peso 860g
Ambiente
VEILIGHEIDSWAARSCHUWINGEN
DECLARATION OF CONFORMITY
Hereby, Marmitek BV, declares that this Connect 540^TM is in compliance with the essential requirements and other relevant provisions of the following Directives:
DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility
Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits
Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
Marmitek is a trademark of Pattitude B.V. Connect 540 is a trademark of Marmitek B.V.
Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions.
