USER MANUAL CONNECT420 MARMITEK

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures on bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• Do not open the product (battery panel excepted): the device may contain live parts. The product should only be repaired or serviced by a qualified expert.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.

INTRODUCTION

Congratulations on your purchase of the Marmitek Connect420! You can now connect 5 HDMI sources to your (HD) TV with one cable without any loss of signal or encryption. Examples of HDMI sources include; HD-DVD players, Blu Ray players, HD Set-top boxes, PlayStation3, Xbox 360, etc. The Connect420 supports Full HD 1080p and 3D (so is suitable for use with your own 3D equipment) and switches automatically and/or with the use of a remote control.

Marmitek products are manufactured with the utmost care and are exceptionally high quality. Please read this manual carefully and follow the instructions in order to get the best from this product.

SET CONTENTS

1x HDMI Switcher
1x Remote control (including battery)
1x Power adapter
1x Instructions

ADVANTAGES

• Suitable for simultaneously connecting 5 HDMI sources to your TV. You only need 1 HDMI input and will no longer need to change cables over.
• For connecting gaming computers such as PlayStations and Xbox, Blu-ray Players, satellite receivers and all other HDMI devices.
• Suitable for Full HD 1080p and all 3D formats.
• With built-in repeater and equalizer for correcting any signal loss, allowing you to connect up to 15 metres of HDMI cable to the output.
• Switches automatically and/or with remote control.
• No interruptions because solid metal, interference-free, top quality housing is used.
• HDMI certified by ATC (Authorized Test Centers).
• Meets HDCP norms (High-bandwidth Digital Content Protection).

HDMI PROPERTIES

Video bandwidth 250 MHz (enables image to be provided in 1080p, 12-bit and 60Hz)
- 3D (suitable for use with your own 3D equipment).
- Deep Color 36-bit (billions instead of millions of colours, better reproduction of subtle gradation variances and higher contrasts).
- Dolby TrueHD & DTS HD Master Audio (high quality audio support).
- Lip-Sync (prevents synchronisation problems between image and sound).
- CEC (operate numerous CEC devices with one remote control).

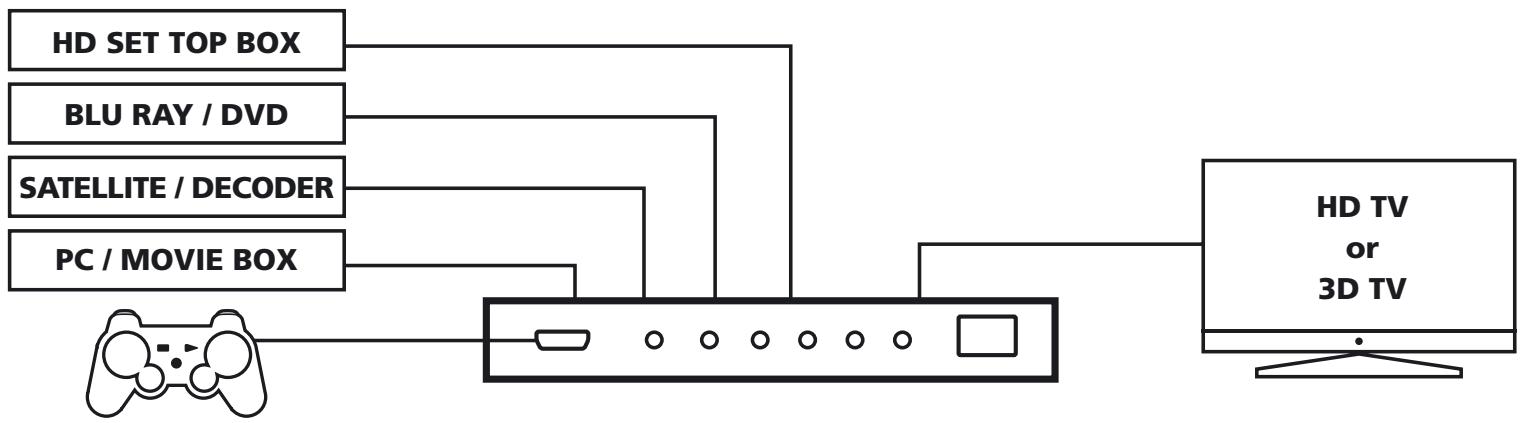

INSTALLATION

1. Connect the HDMI cable to your screen (TV, monitor or projector) to the HDMI output on the Connect420.
2. Connect the HDMI cables from your sources to the HDMI inputs on the Connect420.
3. Connect the power adapter to the Connect420 and plug into the electrical socket.
4. Pull the plastic strip out of the battery compartment on the remote control in order to activate the battery and enable use of the remote control.
5. Remove the protective film (prevents scratching) on top of the remote control and from the 'Select' button on the front of the Connect420.

Installation tip:

Only use High Speed HDMI® certified cables for the best picture and sound quality.

USING THE CONNECT420

Automatically switch between HDMI sources

When one of the HDMI sources is used, the Connect420 will automatically switch to the appropriate input channel. If numerous HDMI sources are already in use, the Connect420 will automatically switch to the most recently active HDMI source.

Note: Automatic switching must be supported by the HDMI source.

Manual switching between HDMI sources

The 'Select' button on the front of the Connect420 can be used to manually switch between the various HDMI sources. Or use the remote control to manually select an HDMI source.

The LED lights on the front of the panel indicate which source is active.

Frequently Asked Questions

No (or poor) image and sound

If you experience poor or no image after connecting the HDMI switcher, try to recover the problem by connecting the devices one at the time to your screen (TV, monitor or projector). This way you can determine whether the problem lies with the HDMI sources, the HDMI cables, the HDMI switcher or the screen. HDMI devices which are not tested and certified by ATC (Authorized Test Centers) can cause image and sound problems.

• Check if the power adaptor of the Connect420 is connected and plugged into the mains.
• Only use High Speed HDMI® certified cables for the best picture and sound quality.
• Do not use HDMI cables that are longer than specified in the technical data.
• Both the HDMI source and your screen have to support HDMI fully.
• Check whether your HDMI sources, DVI device and screen support the copy protection HDCP (High-bandwidth Digital Content Protection).

No proper 3D picture

• Check whether the HDMI source has been set to 3D and/or that this is set to automatic.
• Both the HDMI source as well as the HD screen must support the same 3D formats.
• Check whether the proper 3D picture is reproduced by directly connecting the HDMI source to the screen with an HDMI cable.

Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com

TECHNICAL SPECIFICATIONS

Resolution

Supported HDTV Resolutions

Supported PC Resolution (max.)

Supported 3D formats

Maximum Pixel Frequency (max.)

Maximum Bit Rate (max.)

480p, 576i, 576p, 720p, 1080i, 1080p

1920 × 1200

1080p@23.98/24 Hz, 720p@59.94/60/50 Hz

250 MHz

7.5 Gbps (2.5 Gbps per channel)

Inputs and outputs

HDMI Input (19-pin female)

HDMI Output (19-pin female)

Maximum HDMI cable length

1 x HDMI (front), 4 x HDMI (back)

1 x HDMI

15 meters

Remote control

Infrared remote control

Including battery CR2025

Switcher housing

Dimensions (H x W x D)

Weight

155 × 70 × 23 ~mm

270 g

Environment

Ambient temperature

Ambient humidity

+0 to +40° C

10 % to 85 %

Power

External Power adapter Input:

Output:

100- 240 VAC @50- 60 Hz

5 VDC @ 300 mA

Specifications may be modified without prior notice.

OPTIONAL ACCESSORIES

Infrared extension

Marmitek offers several products to operate your devices, even when these are placed in a closed cupboard or in a different room. This as well wired as wireless. More information about these so called infrared extenders can be found at www.marmitek.com.

Extra remote control

If you want to operate your device from various places in your home, or if you want to use just one single remote control for all your AV devices, then make your choice from the complete range of Marmitek universal remote controls. These replace almost every remote control you are using

at the moment. More information about these so called universal remote controls can be found at www.marmitek.com.

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
