USER MANUAL Kelly EDILKAMIN

COLLEGAMENTO USCITA FUMI DAL TOP

Ai sensi dell'art.13 del decreto legislativo 25 luglio 2005, n.151 "Attuazione delle Direttive 2002/95/CE,2002/96/CE e 2003/108/CE, relative alla riduzione dell'uso di sostanze pericolose nelle apparecchiatu- re elettriche ed elettroniche, nonché allo smaltimento dei rifiuti". Il simbolo del cassonetto barrato riportato sull'apparecchiatura o sulla confezione indica che il prodotto alla fine della propria vita utile deve essere raccolto separatamente dagli altri rifiuti. L'utente dovrà, pertanto, conferire l'apparecchiatura giunta a fine vita agli idonei centri di raccolta differenziata dei rifiuti elettronici ed elettrotecnici, oppure riconsegnarla al rivenditore al momento dell'acquisto di una nuova appa- recchiatura di tipo equivalente, in ragione di uno a uno.30 Dear Sir/Madam Congratulations and thank you for choosing our product. Please read this document carefully before you use this product in order to obtain the best performance in complete safety. For further details or assistance, please contact the DEALER where you purchased the product or visit the TECHNI- CAL ASSISTANCE CENTRES page on our website www.edilkamin.com. NOTE - After you remove the packaging, please inspect the unit for any damage or missing parts (cladding, remote control only Tiny, connecting sleeves, warranty booklet, glove, technical data sheet, spatula, desiccant). In case of anomalies please contact the dealer where you purchased the product immediately. You will need to present a copy of the warranty booklet and valid proof of purchase. - Commissioning/ testing Commissioning and testing must be performed by an authorized Edilkamin Technical Assistance Centre. Failure to do so will void the warranty. Commissioning, as specified in standard UNI 10683 consists in a series inspections to be performed with the insert installed in order to ascertain the correct operation of the system and its compliance to applicable regulations. To locate the Technical Assistance Centre closest to you, please ask your local dealer, call our toll-free number, or visit our website www.edilkamin.com. - Incorrect installation, incorrect maintenance, or improper use of the product, shall relieve the manufacturer from any damage resulting from the use of this product. - the proof of purchase tag, necessary for identifying the insert, is located: - on the top of the package - in the warranty booklet found inside the firebox - on the ID plate affixed to the back side of the unit; This documentation must be saved for identification together with the valid proof of purchase receipt. The data contai- ned therein must be reported when requesting information and made available should servicing be required; - All images are for illustration purposes only; actual products may vary. ENGLISH The undersigned EDILKAMIN S.p.a. with head office headquarters at Via Vincenzo Monti 47 - 20123 Milan - Italy - VAT IT00192220192 Declares under its own responsability as follows: The pellet stove illustrated below conforms to Regulation EU 305/2011 (CPR) and to the harmonised European Standard EN 14785:2006 WOOD PELLET STOVES, trademark EDILKAMIN, called TINY - KELLY Year of manufacture: Ref. Data nameplate Declaration of performance (DoP - EK 053): Ref. data tag plate the wood pellet stove TINY - KELLY is in compliance with the requirements of the European directives: 2006/95/EEC - Low voltage directive 2004/108/EEC - Electromagnetic compatibility directive EDILKAMIN S.p.a. will decline all responsability of malfunctioning or damage to the equipment in case of unauthorized substitution, assembly or modifications of any sort on the said equipment on the part of non-EDILKAMIN personnel.31 ENGLISH

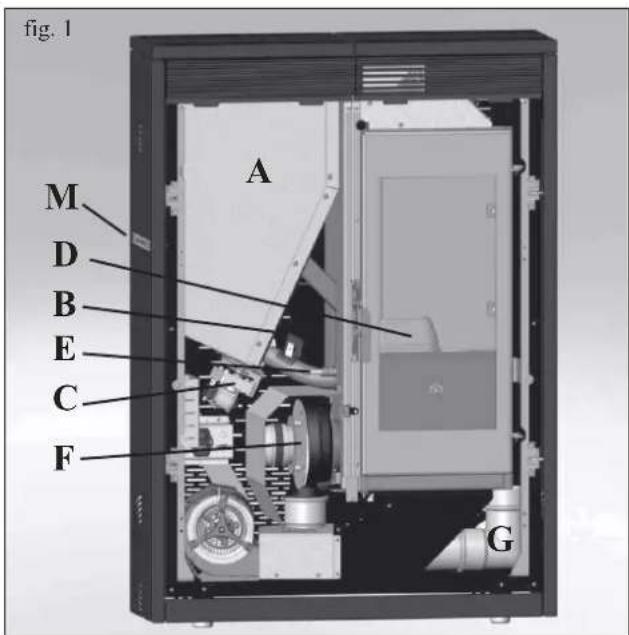

PRINCIPLE OF OPERATION

TINY - KELLY stoves heat the air using wood pellets as fuel, with electronically controlled combustion. Hereunder is the explanation of its functions (the letters refer to figure 1). The fuel (pellets) is provided by the storage hopper (A) and, to the combustion chamber (D) by means of a feed screw (B), which is driven by a gear motor (C). The pellets are ignited by the air that is heated by an elec- trical resistance (E) and drawn into the combustion cham- ber by a smoke extractor (F). The fumes produced during the combustion process are extracted from the hearth by the same centrifugal fan (F), and expelled through the outlet (G) located on the lower part of the stove. The stoves are designed to allow warm air to be channelled, to heat an adjacent room. Three outlets are set up to channel warm air (on the rear, side and top). Use the most suitable one (hence the caps will have to be used to close off the other outlets) connecting it with the specifically-designed optional KIT 8. The hearth is lined with cast iron, closed in the front by two overlapping doors. - a ceramic glass external door (use the special thermal glove to open the stove). - an inner door made from ceramic glass which is in direct contact with the fire. The amount of fuel, smoke extraction, and air - fuel supply are all controlled by the software- equipped circuit board, with the aim of obtaining highly efficient fuel consumption and low emissions. All phases of operation can be managed via radio remote control (provided with the Tiny model). Whereas the Kelly model has a synoptic panel (M) installed on the lefthand side, which allows you to control and view all phases of operation. An optional remote control to manage the main functions is available for the Kelly model. The stove is equipped with a serial port to connect an optio- nal cable (TINY cod. 621240 - KELLY cod. 620550) to be connected to devices that allow remote ignition (e.g. remo- te telephone, local thermostat). SAFETY INFORMATION The TINY - KELLY stoves are designed to provide hea- ting, by automatically burning pellets in the hearth, in the room where they are installed, as well as radiate heat and circulate air coming out of the front grille, and in the adja- cent room by circulating channelled air from the rear, right side or top outlet.

• The only risks that may derive from using the stove pertain to non-compliance with installation instructions, direct contact with live electrical parts (internal), contact with the fire or hot parts (glass, pipes, hot air output), or foreign substances being put in the stove.

• Only use wood pellets with 6 mm diameter as fuel.

• Should components fail, the stoves are equipped with safety devices that guarantee automatic shutdown. These are activated without any intervention required.

• In order to function correctly, the stove must be instal- led in accordance with the instructions given herein and the door must not be opened during operation: combu- stion is fully automatic and requires no intervention.

• Under no circumstances should any foreign substances be entered into the hearth or hopper.

• Do not use flammable products to clean the smoke channel (the flue section connecting the stove smoke outlet to the chimney flue).

• Hearth and hopper components must only be cleaned with a vacuum cleaner.

• The glass can be cleaned when COLD with a suitable product (e.g. GlassKamin Edilkamin) and a cloth.

• Do not clean when hot.

• Ensure that the stoves are installed and ignited by a qualified Edilkamin DEALER, in accordance with the instructions given herein.

• When the stove is in operation, the exhaust pipes and door become very hot (do not touch without wearing the thermal glove).

• Do not place anything, which is not heat resistant near the stove.

• NEVER use liquid fuel to ignite the stove or rekindle the embers.

• Do not obstruct the ventilation apertures in the room where the stove is installed, nor the air inlets of the stove itself.

• Do not wet the stove and do not go near electrical parts with wet hands.

• Do not use reducers on the smoke exhaust pipes.

• The stove must be installed in a room that is suitable for fire prevention and equipped with all that is required (power and air supply and outlets) for the stove to fun- ction correctly and safely.

• Should ignition fail, DO NOT re-ignite until you have emptied the combustion chamber.

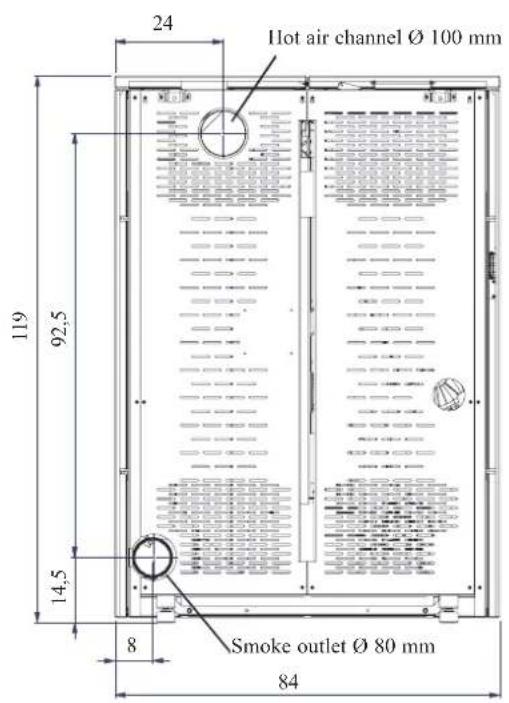

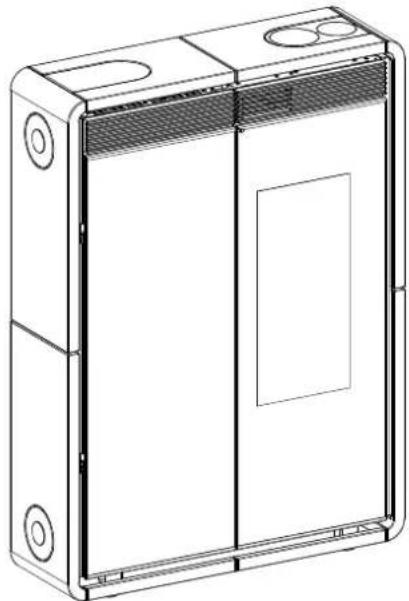

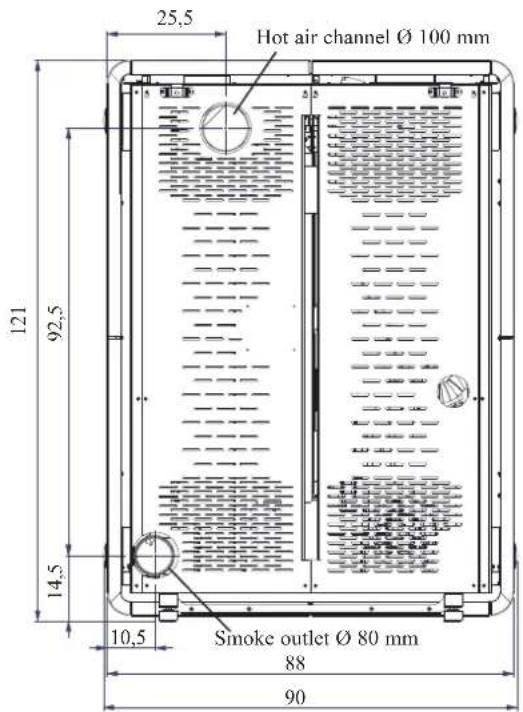

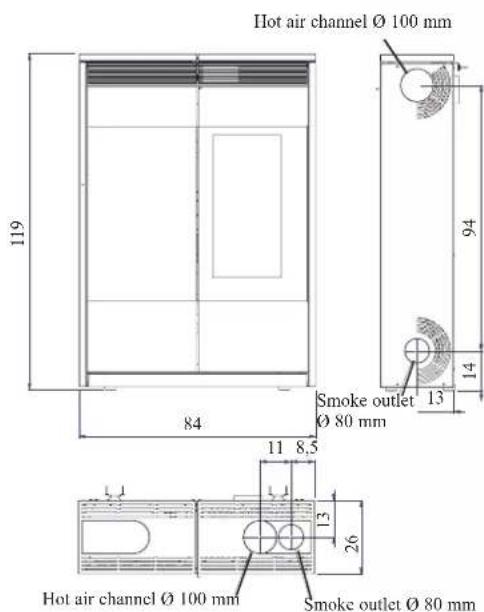

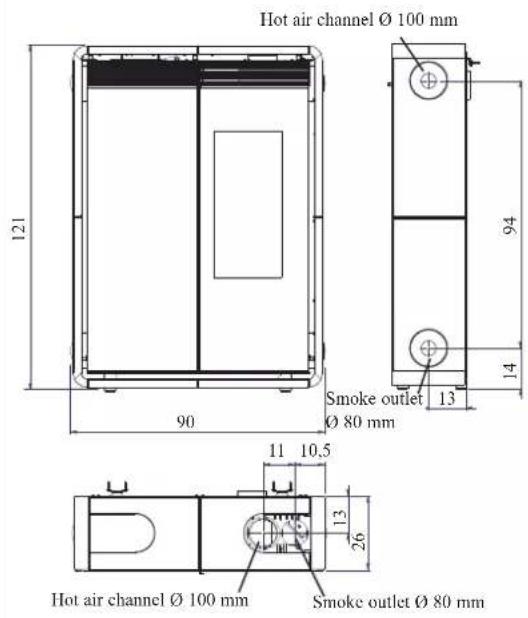

DIMENSIONS AND FINISHINGS

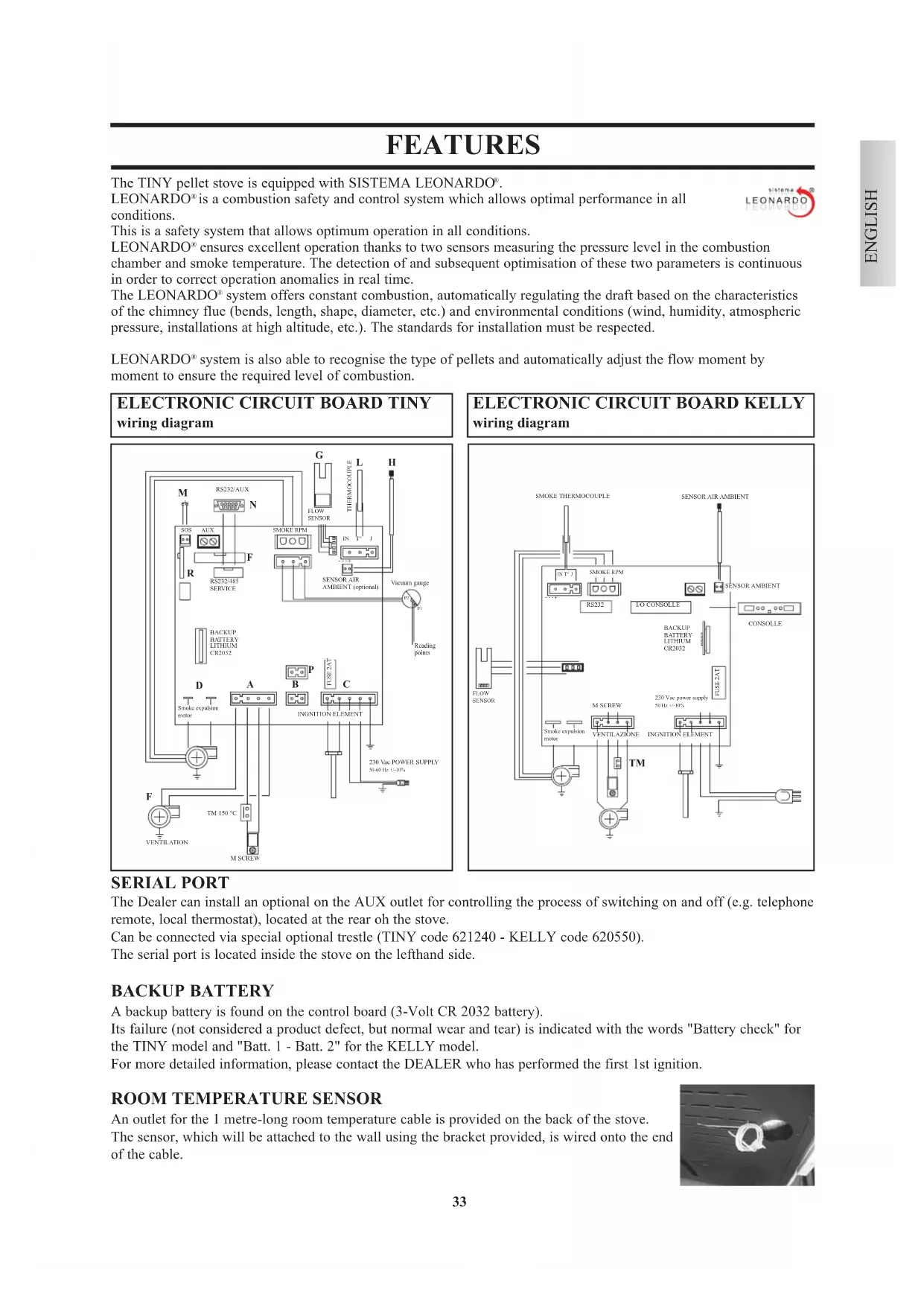

The TINY pellet stove is equipped with SISTEMA LEONARDO

is a combustion safety and control system which allows optimal performance in all conditions. This is a safety system that allows optimum operation in all conditions. LEONARDO

ensures excellent operation thanks to two sensors measuring the pressure level in the combustion chamber and smoke temperature. The detection of and subsequent optimisation of these two parameters is continuous in order to correct operation anomalies in real time. The LEONARDO

system offers constant combustion, automatically regulating the draft based on the characteristics of the chimney flue (bends, length, shape, diameter, etc.) and environmental conditions (wind, humidity, atmospheric pressure, installations at high altitude, etc.). The standards for installation must be respected. LEONARDO

system is also able to recognise the type of pellets and automatically adjust the flow moment by moment to ensure the required level of combustion. FEATURES

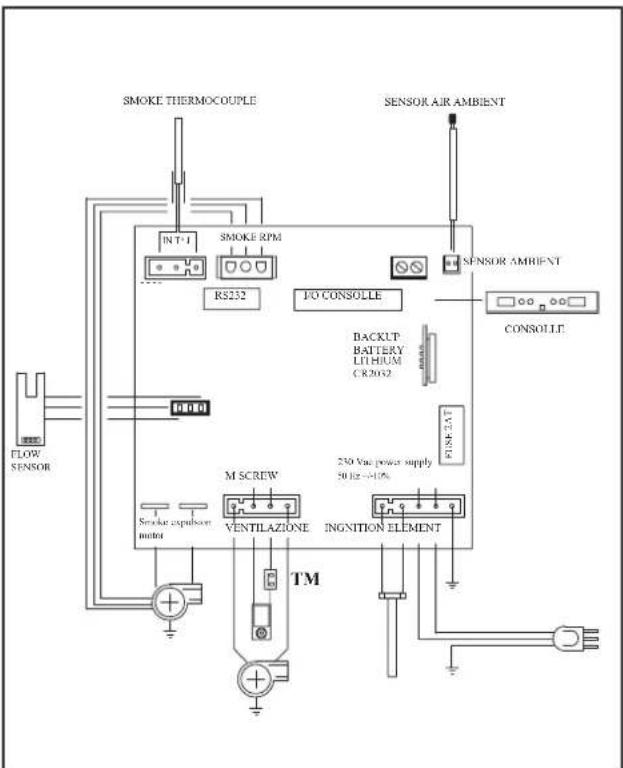

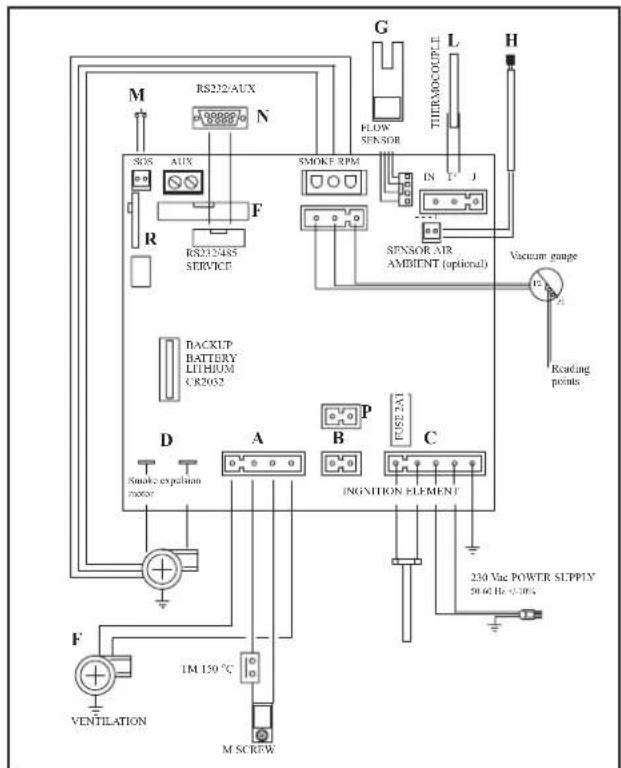

M SCREW VENTILATION Reading points Vacuum gauge

IN T° J CONSOLLE SENSOR AMBIENT INGNITION ELEMENT FLOW SENSOR M SCREW BACKUP BATTERY LITHIUM CR2032 Smoke expulsion motor SERIAL PORT The Dealer can install an optional on the AUX outlet for controlling the process of switching on and off (e.g. telephone remote, local thermostat), located at the rear oh the stove. Can be connected via special optional trestle (TINY code 621240 - KELLY code 620550). The serial port is located inside the stove on the lefthand side. BACKUP BATTERY A backup battery is found on the control board (3-Volt CR 2032 battery). Its failure (not considered a product defect, but normal wear and tear) is indicated with the words "Battery check" for the TINY model and "Batt. 1 - Batt. 2" for the KELLY model. For more detailed information, please contact the DEALER who has performed the first 1st ignition.

ROOM TEMPERATURE SENSOR

An outlet for the 1 metre-long room temperature cable is provided on the back of the stove. The sensor, which will be attached to the wall using the bracket provided, is wired onto the end of the cable.34 ENGLISH THERMOCOUPLE: placed at the smoke outlet to detect the temperature. Turns the stove on and off and controls its operation based on defined parameters. AIR FLOW SENSOR: placed in the air inlet channel. This intervenes if an anomaly is detected in the combustion air flow and causes insufficient circulation in the smoke ducts. SAFETY THERMOSTAT: trips when the temperature inside the stove is too high. It stops pellet loading, causing the stove to go out. SAFETY DEVICES THERMOTECHNICAL CHARACTERISTICS Nominal power

Emissions CO (13% O ) nominal power

ppm Smoke mass nominal power 5,8 g/s Reduced power 2,8

Efficiency reduced power 96,2

Emissions CO (13% O ) reduced power

ppm Smoke mass reduced power 2,1 g/s Maximum overheated smoke

Weight including packaging (Tiny/Kelly)217/189

• The heatable room dimensions are calculated on the basis of pellets with an lhv of at least 4300 kcal/kg and home insulation in compliance with Italian law 10/91, and subsequent changes together with an expected heat output of 33 Kcal/m³ per hour.

• It is also important to consider the position of the stove in the room to be heated. ELECTRICAL CHARACTERISTICS Power supply 230Vac +/- 10% 50 Hz Average power consumption 100 W Power consumption during ignition 400 W Remote control frequency (optional) Infrared Remote control frequency (as standard) Radio waves 2.4 GHz Protection on electronic circuit board 2AT, 250 Vac, 5x20 Fuse The data shown above is purely indicative. EDILKAMIN s.p.a. reserves the right to make changes to these products to improve their performance with no prior warning. FEATURES35 ENGLISH COVERING ASSEMBLY TINY (the KELLY model comes pre-assembled) Hardware included: no. 4 Threaded rod M8 no. 4 Ceramic cap fixing stud no. 28 M4 x 8 Screws no. 4 Adjustment pin no. 2 Brackets for attachment to wall with pins and screws Fig. 1 This figure represents the stove after it has been unpac- ked. Note: The stove is delivered with the metal part of the side plate coverings already assembled (fig. 2). The two panels of the ceramic covering (H- fig. 6) must be assembled as follows: SIDE COVERING ASSEMBLY: CERAMIC COMPONENTS Fig. 3/4 Place a pair of the ceramic components (H -fig. 3) on large enough surface and place a cloth or similar item under them to prevent scratching. Place the metal side (fig. 4) on top after having removed it from the body of the stove. Fig. 5 Screw the 8 M4 x 8 (d) screws provided into the relative bushings on the ceramic components and verify their cor- rect alignment. ATTENTION!!! Do not screw using force; work in an extremely delicate manner otherwise the threaded inserts may come out of the ceramic side. Repeat the same step for the second pair of ceramic com- ponents H. Fig. 1 Fig. 5 Fig. 2 (d) Fig. 3 (d) (d) (d) (d) (d) (d) (d) Fig. 4

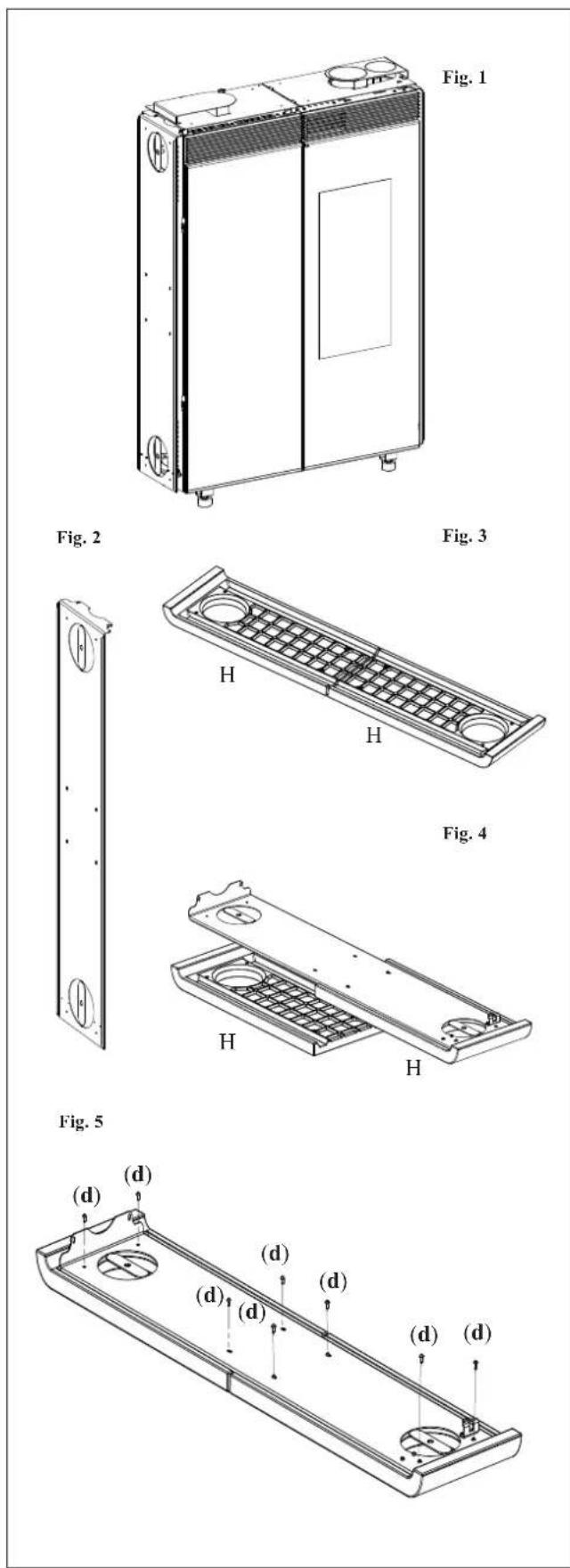

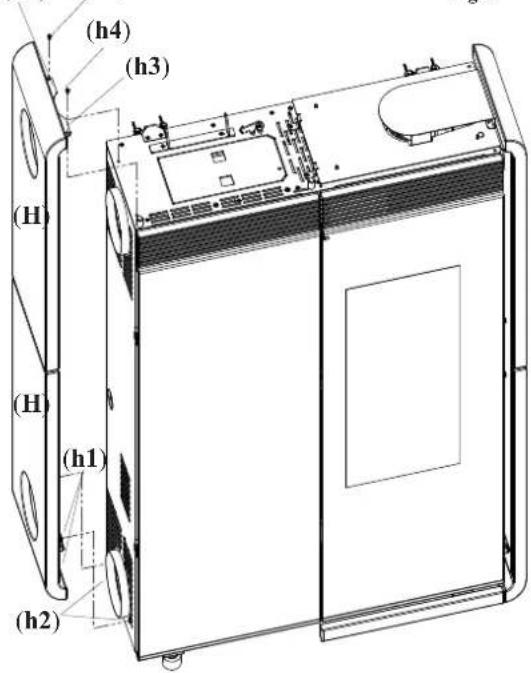

H36 ENGLISH COVERING ASSEMBLY TINY Fig. 6 Attach the sheet metal sides (H) (complete with the cera- mic components) using the self-tapping screws removed earlier, proceeding as follows: - fit the metallic brackets (h1) (present at the base of the internal side) in the pins (h2) that stick out from the sto- ve's structure; - make the side adhere to the structure in such a way that the brackets (h3) adhere to the top; - secure the side to the top using the screws (h4) through the holes of the brackets (h3).

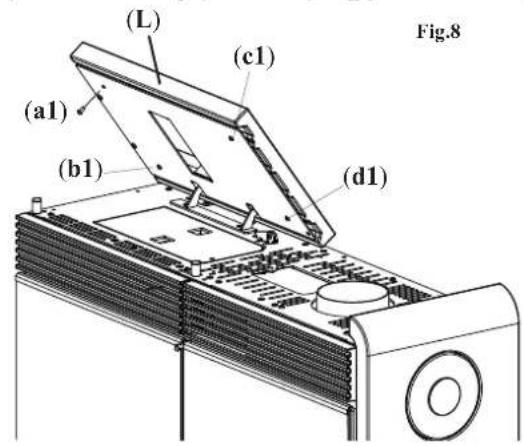

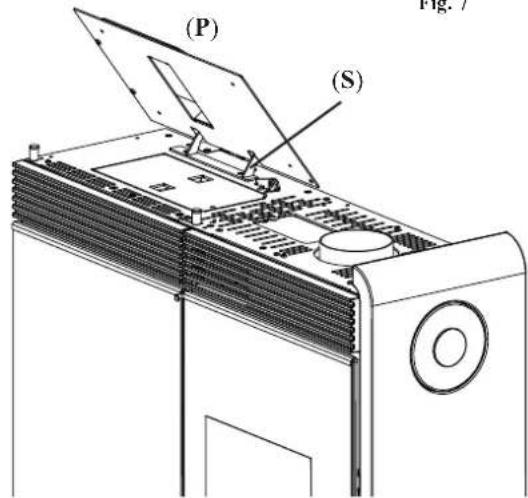

Fig. 7 The left top consists of a painted metal support (P) and a ceramic component (L-fig.8). The support (P) is supplied already assembled to the stove bracket (S). Fig. 8 Then assemble the ceramic lid cover (L) using the M6 X 8 screws (a1, b1, c1,d1). ATTENTION!!! Make sure that the ceramic lid (L) does not rub up against the top during turning and that, when opened to load pellets that it does not close by itself, falling. (L) (a1) (b1) (c1) (P) (S) (H) (H) (h1) (h2) (h3) (h4) (h3) (h4) (d1) Fig.6 Fig. 7 Fig.837 ENGLISH Fig. 9 Fig. 11 Fig. 13 (R) (O) (N) (T) (U) Fig. 10 Fig. 12 (V) (K) (Y) (X) Fig. 14 (M) (M) (M) (N+R+O) (N+R+O)

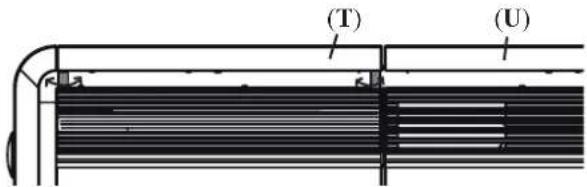

COVERING ASSEMBLY TINY

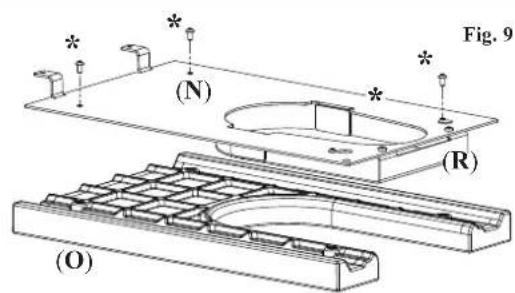

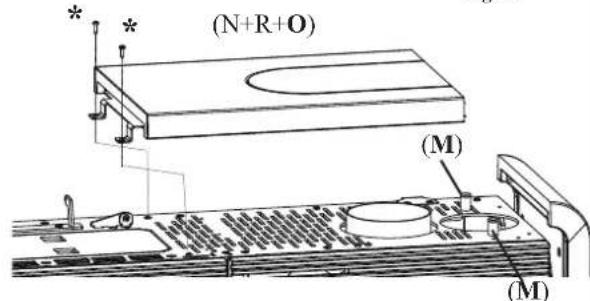

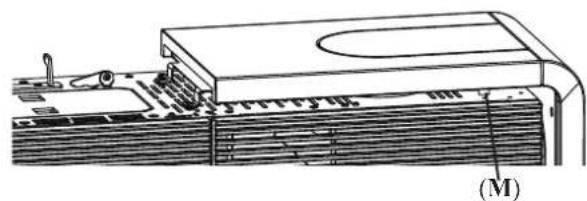

Fig. 9 The right top is composed of painted metal support (N), and a painted closed lid (R) which are already assembled together and also assembled to the stove, and to a ceramic component (O). (if the smoke outlet or the hot air duct are used with a top outlet, the closed lid (R) should be replaced with the open lid included in the accessories bag). ATTENTION!!! Place the ceramic component (O) on large enough surface and place a cloth or similar item under it to prevent scratching. Remove the metal support (N) complete with lid (R) from the stove and secure it with the 4 M4 x8 screws (*) to the ceramic component (O). Fig. 10 Turn over the ceramic and support assembly (components N, R, O) as shown in the figure. Fig. 11 Secure the three components (N, R, O) to the stove (in the same starting position) using the two self-tapping screws (*) removed earlier. Fig. 12/13 Use the 4 pins (M) under the LT and RT tops to align the two ceramic components, right semi-top (U) and left semi- top (T). Fig. 14 Screw the metallic boss (Y) to the threaded bracket (V). Insert all of it in the ceramic cover (X); Place everything into the ceramic lid (X); complete by inserting two spacers (K) Ø 40 with hole Ø 8. Screw the unit to the side of the stove. TINYCOVERING ASSEMBLY TINY

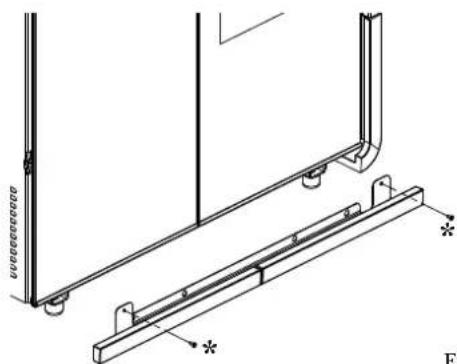

LOWER INSERT ASSEMBLY

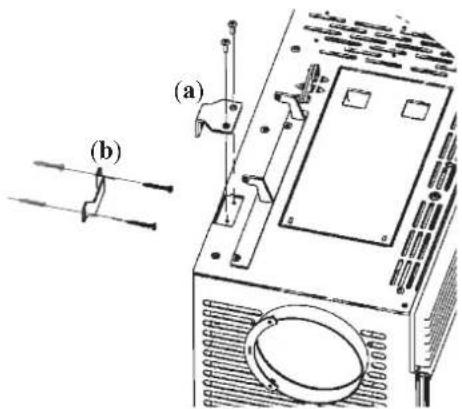

Fig. 15 Fasten the two ceramic inserts (W) to the sheet metal sup- port plate (Z) using the M4x8 screws. Fig. 16 Fix the sheet metal support complete with the ceramic inserts on the base of the stove using the self-tapping screws supplied; the holes are accessible by opening the two glass doors. Fig. 17 The figure shows the completely assembled stove. POSITIONING Fig. 18 Secure the stove to the wall using the supplied brackets (A and B) or, if necessary, an alternative system that will ensure the stove's stability. For proper operation, the stove must be level. Check the load bearing capacity of the floor. ENGLISH

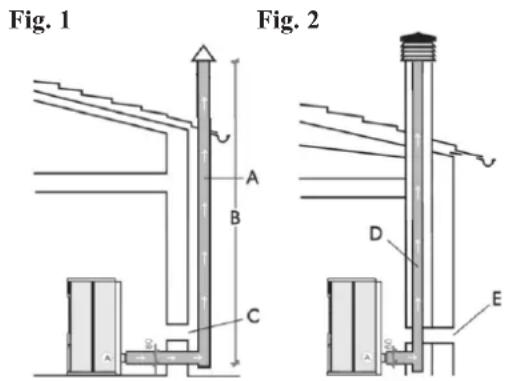

*INSTALLATION SMOKE OUTLET The stove must have its own smoke outlet (the smoke cannot be discharged into a smoke flue used by other devices). The smoke exhaust is expelled through the 8 cm-diameter outlet located on the back, right side or top. The smoke outlet must be connected to outside by means of suitable steel pipes and must be free from obstructions. The stove smoke discharge must be connected with outside by means of steel or black pipes EN 1856 certified. The pipe line must be hermetically sealed. The pipes must be sealed and insulated using materials that are resistant to high temperatures(high temperature silicone or mastic). The only horizontal section allowed may be up to 2 m long. It is pos- sible to use up to two curves with a maximum angle of 90 ° (with respect to the vertical axis). If the outlet is not fitted into a chimney flue, a vertical section and a wind guard are requi- red (reference UNI 10683). The vertical duct can be internal or external. If the smoke channel is outside, it must be appropriately insulated. If the smoke channel is fitted inside a chimney flue, the latter must be suitable for solid fuel. If it is wider than 150 mm in diameter it must be improved by entering a pipe that has a suitable cross-section and is made of suitable material (e.g. 80 mm diame- ter steel). All sections of the smoke duct must be accessible for inspection. The chimney pots and smoke ducts connected to the solid fuel appliances must be cleaned once a year (verify whether a specific legislation exists in your country). Failure to regularly inspect and clean the stove increases the probability of a fire occur- ring in the chimney pot. In that case, proceed as follows: Do not use water to extinguish the fire; Empty the pellet hopper; Contact specialist personnel before reigniting the stove. Refer to local regulations in the country of use for any- thing that is not specifically covered in this manual. In Italy, refer to standard UNI 10683 in addition to any Regional or Local Health Authority regulations. If the stove is to be installed in a block of apartments, consult the block administration before installing.

VERIFY COMPATIBILITY WITH OTHER

DEVICES The stove must NOT be installed in the same room as extractors, type B heating appliances and other appliances that may affect its operation. See regulation UNI 10683.

VERIFY THE POWER SUPPLY CONNEC-

TION (the plug must be accessible) The stove is supplied with a power cable that is to be con- nected to a 230V 50 Hz socket, preferably fitted with a magnetothermic switch. In the event that the power outlet is not easily accessible, provide a device to cut off the power supply (a switch) upstream of the stove (must be provided by the customer). Voltage variations exceeding 10% can damage the stove (unless already installed, an appropriate differential switch must be fitted). The electrical system must comply with the law; particularly verify the efficiency of the earthing system. The power line must have a suitable cross-section for the stove’s power. An inadequate earthing system can cause anomalies for which Edilkamin cannot be held liable.

FIRE PREVENTION SAFETY DISTANCES

The stove can be attached directly to brick and/or plaster- board walls. In the case of combustible walls (wood, for example), you must install adequate insulation in a non combustible material. You are required to adequately insu- late the smoke exhaust pipe and the warm air channelling pipe, as they reach high temperatures. All elements made from combustible and/or heat-sensitive material located adjacent to the stove must be arranged at a distance of no less than 20 cm or otherwise be adequately insulated with non combustible insulating material, and in any case mate- rials can not be placed at less than 80 cm in front of the stove as they are directly exposed to the heat radiating from the hearth. Leave a suitable amount of space between the element directly adjacent and the stove in order to comfortably use the synoptic panel located on the left side of the Kelly stove. AIR INTAKE There must be an air inlet behind the stove with a mini- mum diameter of 80 cm². This must be connected to the outside in order to guarantee sufficient air supply to the stove for combustion. A: insulated steel flue B: minimum height of 1.5 m and in any case above the height of the roof gutter C-E: air intake from inside room (minimum internal section: 80 cm²) D: steel flue, inside existing brick-built chimney. TYPICAL EXAMPLES CHIMNEY POT The main characteristics are: - an internal cross-section at the base, which is the same as that of the chimney flue - an outlet cross-section which is no smaller than twice that of the chimney flue - its position must be high enough to catch the wind and avoid downdraft areas in turbulent wind, it must be high enough to catch the wind and avoid downdraft areas in turbulent wind. ENGLISH

The supply of warm air in the room where the stove is installed is provided by a grille installed on the top right of the stove front. Tiny and Kelly are also supplied with a channelling system that allows warm air to be channelled to heat adja- cent rooms. It is possible to set the stove up so that the air channelling pipe comes out from the top, the back or the right side (the B - H connecting sleeves are provided separately in the package). CONNECTING THE WARM AIR OUTLET ON THE TOP In order to connect the outlet you must use the pre-cut lid provided separately (C) by removing the diaphragm C1, instead of the uncut lid (D - fig.1). Remove the pre-cut diaphragm (A - fig. 2) from the metal plate of the right ceramic support and attach the connec- ting sleeve (B - fig. 1). Slide and fit the channelling pipe onto the sleeve (B) through the hole obtained on the lid C. CONNECTING THE WARM AIR OUTLET ON THE RIGHT SIDE To connect the channelling pipe all you need to do is remove the pre-cut diaphragm (E - fig. 2) from the metal plate of the right ceramic support and attach the connec- ting sleeve (B - fig. 2). Fit the tube over the connecting sleeve (B) by sliding it through the hole in the ceramic (in this case, the ceramic cap is not used). CONNECTING THE WARM AIR OUTLET ON THE BACK It is also possible to set the stove up with the channelling pipe outlet on the back (fig. 3). In this case you must remove the lid from the rear outlet (G-fig.2) and attach it in position G - fig. 3. Install the required connecting sleeve (H-fig.3) and fit it onto the channelling pipe.

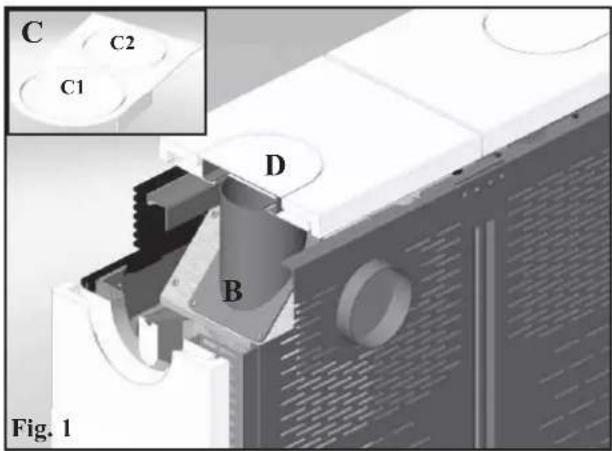

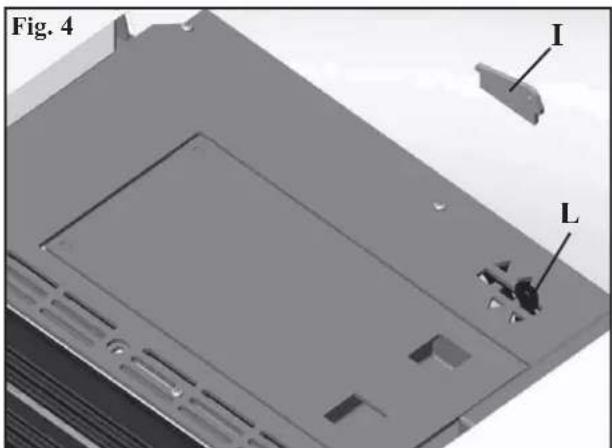

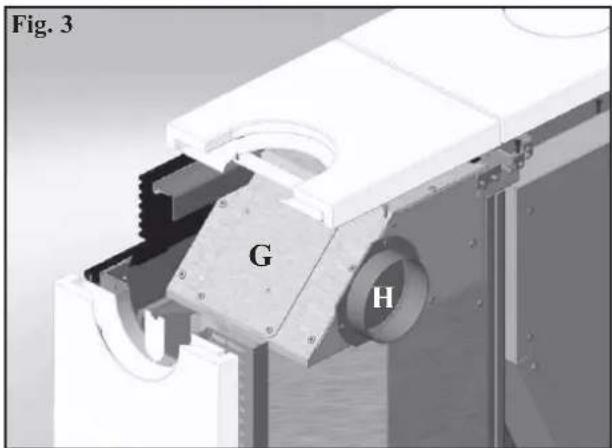

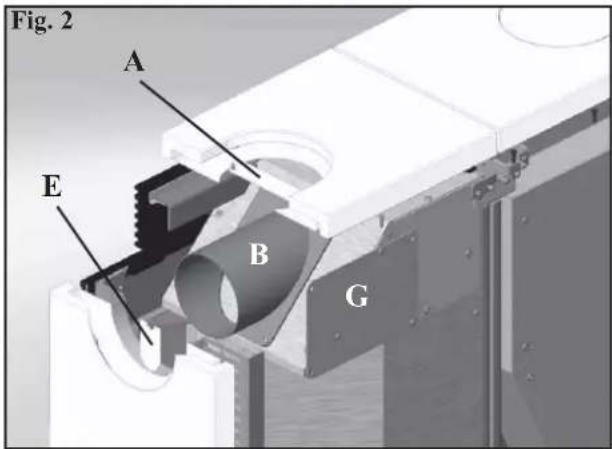

WARM AIR DISTRIBUTION CONTROL

The distribution of warm air can be adjusted manually using lever L which is accessible by lifting the top left ceramic lid (steel for Kelly) (fig. 4). N.B. inorder to operate the control lever you must remove the security plate (I-fig.4). It is possible to channel all of the warm air into the room where the stove is installed (lever fully to the right), all of the air into the adjacent room (lever fully to the left) or partially to both rooms (lever in the central position). An optional KIT 8 is available in order to channel the warm air (see page 42). It is essential to remember the importance of proper insu- lation on the pipe where the hot air passes to avoid dispersion. Avoid curves in the pipe as much as possible. N.B.: IT IS ADVISABLE TO USE CHANNELLING PIPES OF A MAXIMUM LENGTH OF 3 M WITH 2 CURVES.

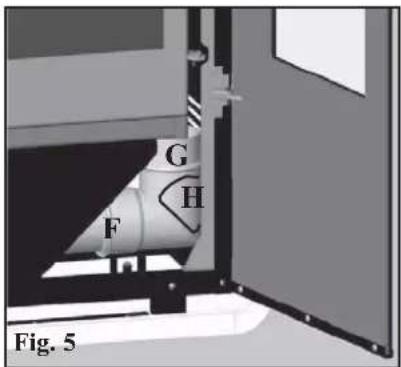

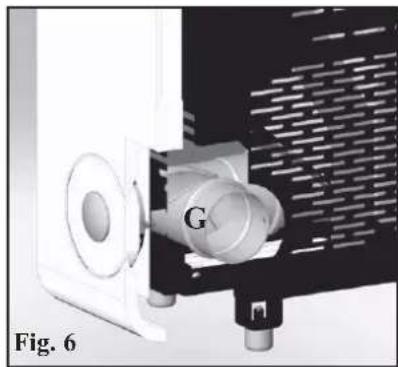

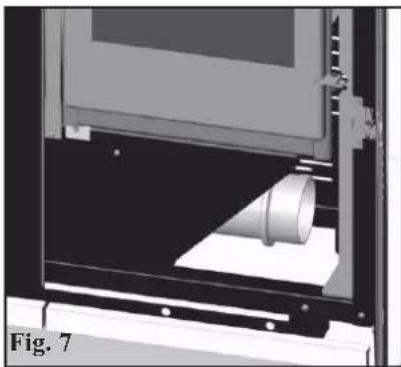

Fig. 141 ENGLISH INSTALLATION SMOKE EXHAUST Tiny and Kelly are designed to have the smoke exhaust pipe connected to the top, the back or the right side. The stove is supplied already set up for a top-connecting smoke exhaust pipe. CONNECTING THE SMOKE EXHAUST PIPE ON THE TOP In order to connect the pipe (not supplied) simply fit it onto the elbow joint (G-fig.5) which is already mounted on the stove and accessible by opening the righthand glass door (fig. 5). An inspection lid for cleaning (H) is located on the elbow joint (G). When using the top outlet you must use the pre-cut lid (C - fig. 1 on page 39) by removing the dia- phragm C2, in place of the uncut lid (D - fig. 1 on page 39). CONNECTING THE SMOKE EXHAUST PIPE ON THE BACK To set up the stove with the smoke exhaust on the back simply loosen the locking clamp (F-fig.5/6) of the elbow joint and rotate it by 90 degrees. By doing so you can connect the pipe to the back by passing it through the hole located at the bottom of the sheet metal back. CONNECTING THE SMOKE EXHAUST PIPE ON THE SIDE By removing the elbow (G-fig.6) you can connect the smoke exhaust pipe to the side (fig. 7) through the hole located on the ceramic side. To do this, simply remove the pre-cut diaphragm from the righthand sheet metal side of the side ceramic support to allow the pipe to pass through (in this case, the ceramic cap is not used). The elbow (G) can be used externally to collect condensation. AIR INTAKE There must be an air inlet behind the stove with a minimum diameter of 80 cm². This must be connected to the outside in order to guarantee sufficient air supply to the stove for combustion. There is a hole (U - fig. 8) on the back of the stove designed to set up an air inlet connected directly to the outside. By opening the front left-hand side door (fig. 7) it is possible to detach the flexible pipe (T) from its support (S) and push it through the hole (U) on the back of the stove. This pipe (T) will then have to be connected to the outside. In this case, there may be condensation problems and it is necessary to protect the air intake with a grille, which must have a free section of at least 12 cm². In the case of wall-mounted stoves, an air intake connected with the outside is required. The pipe must be less than 1 metre long and have no bends. It must end with a section at 90° facing downwards or be fitted with a wind guard. Fig. 5 Fig. 7

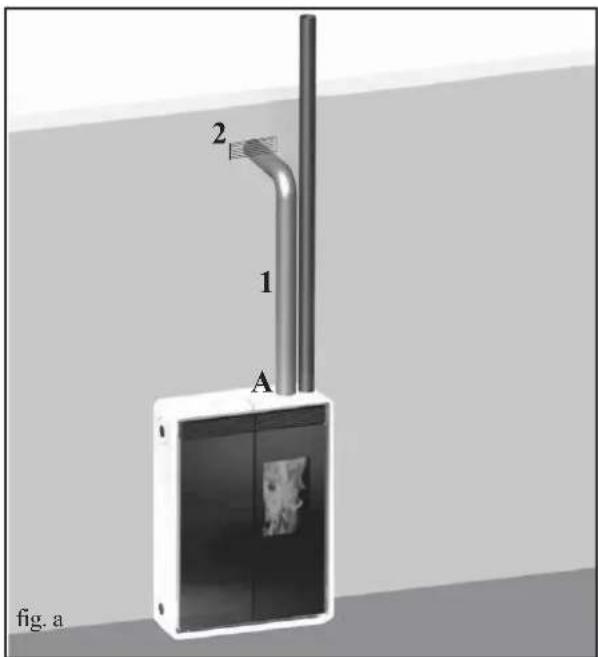

U42 ENGLISH INSTALLATION KIT 8 (code 297360) Note: THE FIRST PART OF THE FLEXIBLE PIPE MUST BE COMPLETELY "RELAXED" IN SUCH A WAY TO ELIMINATE CORRUGATION. IN THIS WAY, THE INTERNAL DIAMETER WILL BE SLI- GHTLY ENLARGED TO FAVOUR ENTRANCE. - Define the position of the stove with respect to the walling (fig. a). - Enable the hot air channelling control lever (see page 39). - Place the stove in its final position and fasten it to the wall using the supplied brackets (A and B) or, if necessary, an alternative system that will ensure the stove's stability (see page 40). - Extend the aluminium pipe (2) for hot air channelling, without connecting the stove outlet. - Fit the aluminium pipe to the hot air outlet (A). - Install the terminal outlet (3) and its aluminium pipe (2). It is essential to remember the importance of proper insulation on the pipe where the hot air passes to avoid dispersion. Avoid curves in the pipe as much as possible. KIT 8 n° code

Smoke outle tend-piece

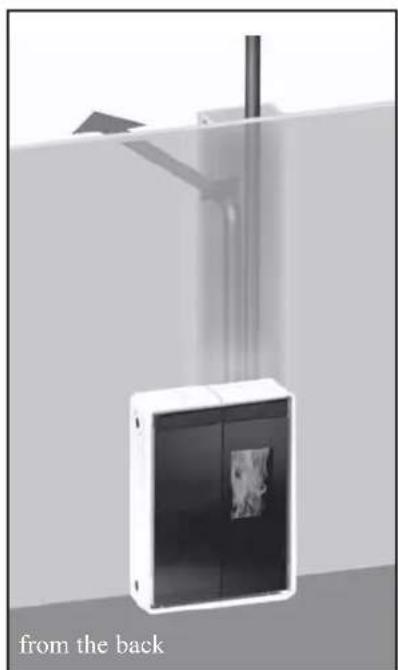

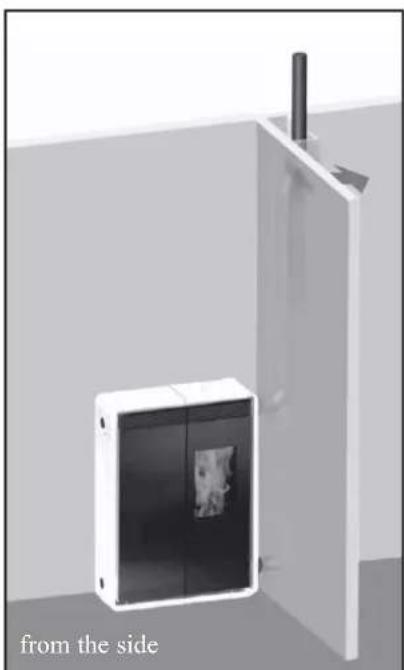

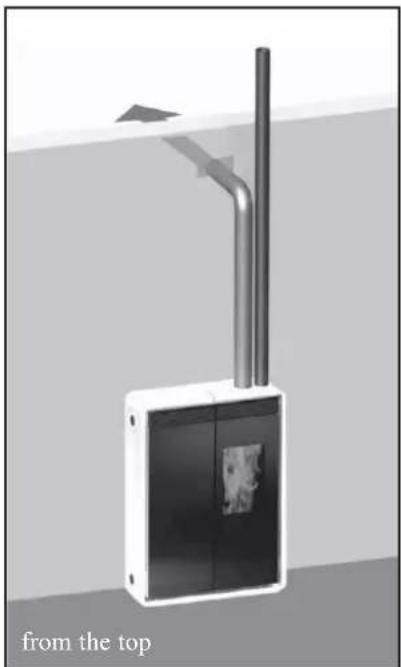

fig. a EXAMPLES OF WARM AIR CHANNELLING AND SMOKE EXHAUSTS from the side from the back from the top43 ENGLISH Before igniting. You must consult the Edilkamin DEALER in your area when igniting the stove for the first time, in order for the stove to be calibrated according to the type of pellets and installation conditions, thereby validating the warranty. There may be a slight smell of paint the first few times it is ignited, however, this will disappear quickly. Before igniting you must check: ==> that installation is correct ==> the power supply ==> that the door closes properly to a perfect seal (inner righthand door). ==> that the combustion chamber is clean ==> that the display is on standby (the date, power or temperature flashes). Filling the pellet hopper To access the hopper open the left ceramic/steel top * (fig. 1-2). THE CERAMIC TOP IS VERY FRAGILE. HANDLE IT WITH CARE WHEN OPENING AND CLOSING IT. ATTENTION: use the glove supplied when filling the stove whilst it is running and therefore is hot.

INSTRUCTIONS FOR USE

NOTE regarding the fuel. TINY - KELLY is designed and programmed to burn wood pellets with 6 mm diameter. Pellets are a type of fuel in the form of little cylinders, made from compacted sawdust, compressed under high pressure with no adhesives or foreign materials. They are sold in bags of 15 kg. For the stove to function properly, you MUST NOT burn anything else in it. Using other materials (including wood) will render the warranty null and void. Such use is detected by laboratory analyses. Edilkamin has designed, tested and programmed their stoves to guarantee the best performance when pellets with the following characteristics are used: diameter: 6 millimetres - maximum length: 40 mm - maximum moisture content: 8% - calorific value: at least 4300 kcal/kg. If pellets with different characteristics are used, the stoves must be recalibrated – a similar procedure to that carried out by the DEALER when the stove is ignited the first time. Using unsuitable pellets may: decrease efficiency; cause malfunctions; stop the stove from functioning due to clogging, dirt on the glass, unburnt fuel, etc. A simple, visual analysis of the pellets may be carried out: Good quality: smooth, uniform length, not very dusty. Poor quality: with longitudinal and transverse cracks, very dusty, various lengths and mixed with foreign matter.

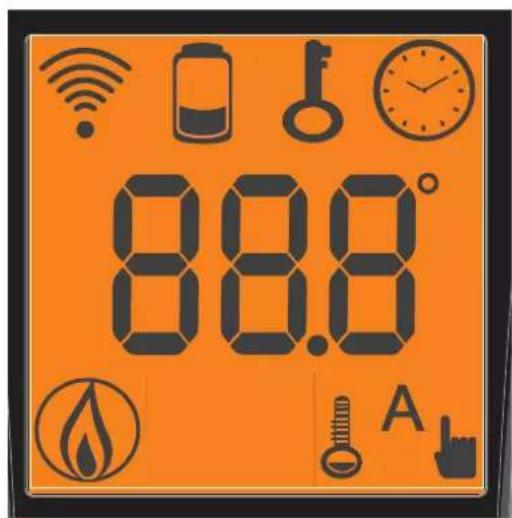

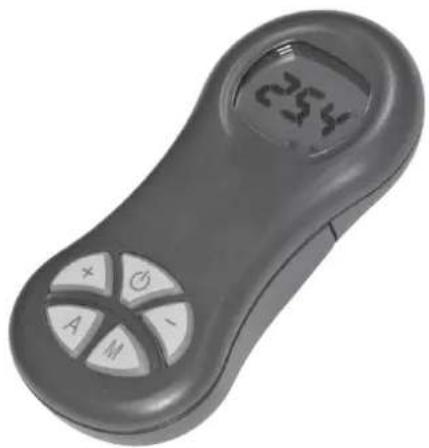

This controls all the functions. Key to buttons and display: : to turn off and on (to go from remote control on stand-by to remote control on) +/- : to increase/decrease the various regulations A : to select Automatic function M : to select Manual function and access the control and programming menus - icon flashing: remote control searching for network - icon fixed: remote control with connection enabled flat battery (3 mini alkaline batteries type AAA) keypad locked (press "A" and "M" in parallel for a few seconds to lock or unlock the keypad) programming enabled - icon flashing: Stove turning on - icon fixed: Stove working automatic function (display shows temperature) alphanumeric display consisting of 16 figures arranged in two lines of 8 figures manual adjustment function (display shows working power) The display also shows other useful information in addition to the icons described above. - Stand-by position: shows room temperature (20°C), kg of pellets (15 kg) remaining in tank and current time (15.33) - Manual work phase: shows power set (Power 1), room temperature (20°C), kg of pellets and autonomy remaining (15 kg 21 hrs) - Automatic work phase: shows temperature set (Set 22°C), room temperature (20°C), kg of pellets and autonomy remaining (15 kg 21 hrs). DO NOT PRESS THE BUTTON MORE THAN ONCE . Note: If the radio control is not used for a few seconds, the display will go dark as it has moved into the power saving function. The display can be reactivated by pressing any button.45 ENGLISH

INSTRUCTIONS FOR USE

CONTINUED: TINY model series radio remote control Filling the cochlea. The first time you use the product, or should the tank be completely emptied of pellets, to fill the coclea press both keys “+” and “–” on the remote control at the same time, holding for a few seconds. As you release the keys, the display should show the wording “LOAD”. This should be carried out before ignition if the stove has stopped due to having run out of pellets, at the end of operation to empty the combustion pot before turning. It is quite normal for some pellets to remain, that the cochlea cannot suction. Automatic igniting. With the insert on stand-by, press and hold the key , on the remote control for 2 seconds. This will start-up the ignition procedure, showing the wording “START”. At the same time, a countdown in seconds begins (from 1020 to 0). Ignition is not at a preset time, however: its duration is automatically shortened if the board reports that certain tests have been passed. The flame appears after about 5 minutes. Manual igniting. Temperatures of below 3°C will not allow the electrical resistance to heat sufficiently. In this case, or should the resistance be temporarily out of action, Diavolina® type fire-starters can be used. Insert a piece of lit Diavolina® into the combustion chamber, close the door and press the remote control. POWER REGULATION

• Remote control manual operation With the stove working, press the key "M" on the remote control once. The display will show the word “POWER P”. (specifying the power at which the insert is working). Press the keys “+” or “–” to increase or decrease the insert’s working power (from “POWER P1” to “POWER P5”).

Remote control automatic operation Press key "A" to switch to automatic operation, adjusting the temperature desired for the room (use the “+” and “–” keys to set the temperature from 5°C to 35°C, and the insert will regulate working power required to reach the temperature set. If a temperature below that of the room is set, the insert will stay on “POWER P1”. Turning off With the stove running, press and hold the key from the remote control for 2 seconds. The turn-off procedure will begin, showing a countdown on the display from 9 to 0 (for a total of 10 minutes). The turn-off phase involves:

• Interruption of pellet supply

• Maximum ventilation.

• Smoke expulsion motor. Never pull the plug out whilst the device is still in the process of turning off.46 ENGLISH CONTINUED: TINY model series radio remote control OPERATIONS THAT CAN ONLY BE CARRIED OUT BY REMOTE CONTROL Clock regulation Press and hold the key "M" for 2 seconds to access the “CLOCK” menu. This allows you to set the internal electronic board clock. By then pressing the key "M", the following data appears in sequence and can be regulated: day, month, year, hour, minutes, day of the week. The wording “SAVE??” will appear for confirmation with "M". This will allow you to check that the operations performed are correct, prior to completion (the wording “SAVE” will then be shown on the display). Weekly timer Press and hold the "M" key on the remote control for 2 seconds. This turns on the clock regulation and by pressing the '+' key, the weekly timer function is accessed, with the display showing the description “PROGRAMM ON/OFF”. This function allows you to set a number of times the insert turns on and off per day (up to a maximum of three), each day of the week. As you confirm the display with the key "M", one of the following options will appear: NO PROG. (no programme set) DAILY PROGRAM (single programme for every day of the week) WEEKLY PROGRAM. (specific programme for each day individually) Use the “+” and “–” keys to switch between programmes. Use key "M" to confirm the option “DAILY PROGRAM” to choose the number of programmes (turn on/off) to be car- ried out per day. Use the “DAILY PROGRAM” to set identical programme/s for every day of the week. By then pressing the “+” key, the following can be seen: - Prog. no. - 1st prog. (one turn on and one turn off per day), 2nd prog. (identical), 3rd prog. (identical) Use the “–” key to show in reverse order. If the 1st programme is selected, the turn on time is shown. The display shows: 1 “ON” at 10 Use the “+” and “–” key to change the hour. Confirm with the "M" key. The display shows: 1 “ON” at 30 Use the “+” and “–” key to change the minutes. Confirm with the "M" key. The same applies for the turn-off time to be set and for subsequent turning on and off. Confirm by pressing "M" and the wording “SAVE??” will appear on the display.y. When confirming ”WEEKLY PROGRAM”, you will need to choose the day to which the programming is to apply: 1 Mon ; 2 Tues; 3 Wed; 4 Thurs; 5 Fri; 6 Sa; 7 Sat Once you have chosen the day, use the “+” and “–” key and confirm with the "M" key, to programme in the same way as for the “DAILY PROGRAM”, choosing whether or not to enable a programme for each day of the week, and if so choosing number of interventions and at what times. Should you make an error during programming, you can leave the programme without saving. As you press a key, the display will show the word “NO SAVE”. Changing pellet loading Press the "M" button for two seconds from the radio control and scroll the display instructions with the "+" and "-" but- tons. You will come across the message "User menu" and when you confirm, the message "ADJ-PELLET and ADJ- DRAUGHT" will appear. If we set "Auto-adjust. ON", the system will automatically adjust pellet dropping. Alternatively, if we set "Auto-adjust. OFF," we can manually correct pellet dropping, varying the range in terms of percentages (+/- 30 %). By confirming this function with the menu key, you can access the function to adjust pellet loading. By decreasing the value set, pellet loading is decreased. By increasing the value set, pellet loading increases. This function is useful if changing the pellet type for which the insert has been calibrated and loading therefore needs correcting. Should this correction not suffice, contact the Edilkamin-authorised Dealer, to establish the new operating axis. Notes on flame variability Flame status may vary depending on the type of pellet used, in addition to normal solid fuel flame variability and regular combustion chamber cleaning carried out automatically by the boiler. (N.B.: which does NOT replace necessary cold suction by the user prior to ignition).

INSTRUCTIONS FOR USE47

ENGLISH CONTINUED: TINY model series radio remote control RESERVE WARNING The stove is fitted with an electronic function that detects the residual quantity of pellets in the tank. The detection system is integrated into the electronic board, allowing you to see how many hours and kg are left until pellet exhaustion, at all times. For correct system function, it is important that the following procedure is followed during the first ignition (by the Dealer).

ignition/test by the Edilkamin authorised Dealer Start-up must be carried out as prescribed by point 3.21 of standard UNI 10683. This standard indicates the control operations to be carried out in situ, aimed at ascertaining correct system function. Pellet reserve system Before enabling the system, you need to load a sack of pellets into the tank and use the stove until the loaded fuel has run out. This allows for a short system road test. After this, the tank can be filled completely and the stove started up. When running, at the time at which a whole 15 kg sack of pellets can be loaded, the display will show the word “RESERVE” flashing. At this point, after having poured in a sack of pellets, you need to 'inform' the memory that you have loaded 15 kg. To do so, proceed as follows:

1. press the "M" key (for approximately 3-4 seconds) until the word “CLOCK” appears.

2. press the “+” key until the word “RESERVE” appears.

3. press the "M" key until the following screen appears,

then use the “+” key to take the figure (*) to the value equal to the Kg of pellets loaded (15 kg in the above example).

4. press the "M" key to confirm

5. press the key to exit.

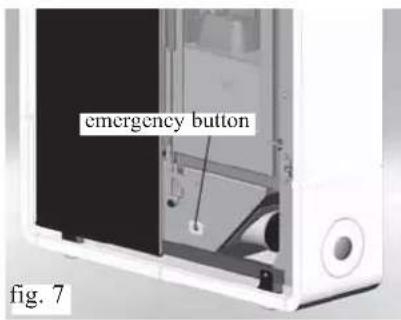

After having completed the above procedure, after having consumed the 15 kg, the wording “RESERVE” will appear flashing at intervals. After which the operation must be repeated, from point 1 to point 5. EMERGENCY BUTTON If the radio remote control fails you can access the basic functions using a red emergency button located under the outer door, to the right (see fig 7). Press the button once or several times to enable the desired function:

by pressing the red button for 2 seconds this turns on.

by pressing the red button for 2 seconds this turns off.

manual mode, by pressing the red button, you go from P1 to P5.

automatic mode, by pressing the red button, you go from 5°C to 30°C. RADIO ANTENNA The radio signal is received from the radio remote control via a small antenna built into the circuit board. Kg remaining in tank Kg loaded

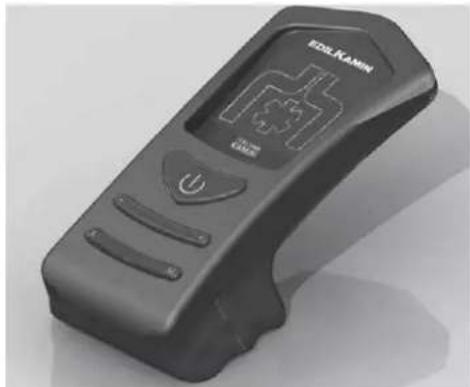

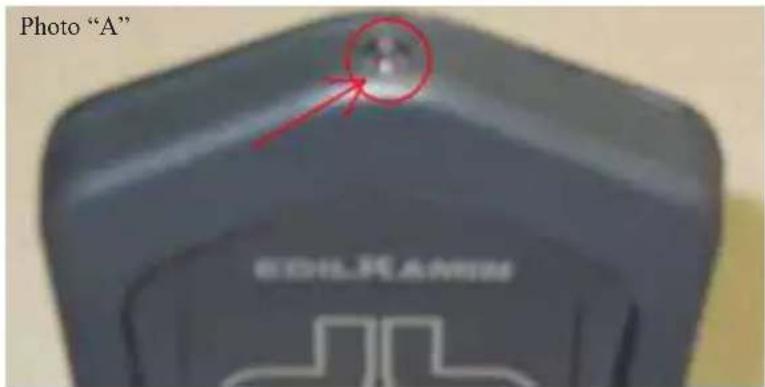

OPTIONAL REMOTE CONTROL code 633280 FOR KELLY MODEL : ignition / shutdown button + : button to increase the power/operating temperature (when inside a menu, it increases the displayed variable) - : button to increase the power/operating temperature (when inside a menu, it decreases the displayed variable) A : button to toggle from manual and automatic mode M : button to toggle from automatic to manual mode An infrared remote control is easily identified through radio transmission as it has its transmission LED at the tip. Refer to photo “A” below. Photo “A” TECHNICAL CHARACTERISTICS When a button is pressed, the backlight goes on, which indicates that the remote control is transmitting the signal. The "beep" emitted by the stove confirms its reception. CAPACITY - the remote control transmits by means of an infrared signal within a range of 4-5 metres. The LED transmission signal must be in line with the receiving LED of the stove for the signal to be transmitted correctly. This must also be in a free-field environment, therefore, free of obstacles, is possible to cover a distance of 4-5 meters. BATTERY LIFE the remote control works with 3 alkaline 1.5V AAA batteries. Their duration depends upon usage, however, the avera- ge duration is that of an entire season. - The operating temperature is: 0-40°C - The correct storage temperature is :-10/+50°C - Operating humidity is: 20-90% R.H with no condensation - Degree of protection is: IP 40 - Weight of remote control with batteries: 160gr49 ENGLISH

INSTRUCTIONS FOR USE

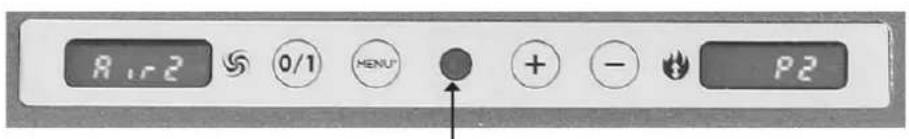

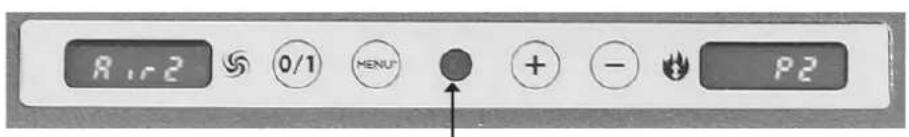

Synoptic panel for the Kelly model Panel 0/1 button To turn the stove on or off and quit time programming (prog). Panel MENU key This switches the stove from Manual to Automatic mode and vice versa and allows you to programme the timer (prog) and switch from adjusting the power to adjusting the temperature "+" and "-" panel keys These allow you to move within the programming mode of the timer (prog) and adjust the set temperature or power. Display unit messages Ac: ignition stage (flame appearance) Ar: second ignition stage (flame stabilizing) before the operating stage Of: shutdown stage (10 minutes) P1 or P2 or P3: power level set 8-29: temperature set for automatic operation H1..H7: stoppage problem identification number (see p. 55) Pu: automatic combustion chamber cleaning under way

: motor stopping; wait a few tens of seconds before entering other commands. When the stove is on standby, this flashes to show the mode it will restart in and when.

SCREW FEEDER LOADING

If the pellet hopper empties completely, press the + and - keys together to fill the screw feeder. This must be done before igniting the stove again if it has shut down due to running out of pellets. It is normal for a few pellets to be left in the hopper, which the screw feeder is not able to pick up. Automatic ignition Hold the 0/1 key down for two seconds with the stove on standby to start the ignition procedure. Ac appears on the display for a few minutes (the ignition procedure does not actually take a preset time: it is automatically shortened if the electro- nics detect that certain tests are passed). The flame appears after about five minutes. It is normal for a little smoke to be seen in the combustion chamber before the flame appears. "Ar" appears on the display until the flame stabilizes. Manual ignition At temperatures of less than 3°C (too low for the heating element to glow) or if the heating element is temporarily out of order, a firelighter may be used for ignition. Put a piece of well lit firelighter in the combustion chamber, close the door and press 0/1. ADJUSTING THE POWER (when the stove is working, press the MENU key to switch between modes)

Manual mode adjust the working power (from P1 to P3) and the ventilation. Remote control receiver50 ENGLISH CONTINUED: Synoptic panel for the Kelly model

• Automatic mode Set the temperature which the room is to reach; the stove automatically adjusts the working power to reach it (P3) or maintain it (P1). If you set a lower temperature than current room temperature, the stove operates at P1 and consumes the corre- sponding quantity of pellets. Note on flame variability Any variations in the state of the flame depend on the type of pellet used, the normal variability associated with solid fuels and the periodic automatic combustion chamber cleaning (which does NOT replace the essential cold vacuum- cleaning by the user before ignition). Switching off Hold the 0/1 key down for two seconds while the stove is operating. The shutdown procedure starts and the word "Off" appears on the display (for a total of 10 minutes). During shutdown:

• Pellet loading ceases.

• Ventilation turns up to maximum.

• The smoke expulsion motor turns up to maximum. Never unplug the stove while it is shutting down.

WEEKLY TIME PROGRAMMER BUILT INTO PANEL

The concept of the weekly time programmer built into the central panel It is possible to set 3 ignition programmes: Pr 01 with settable on and off times; Pr 02 with settable on and off times; Pr 03 with settable on and off times. It is possible to enable one or more of the three settings on each day of the week (day1 = Monday, day2 = Tuesday…day7 = Sunday). When on standby, the display alternates between showing the ignition mode (P1, P2, P3 or a temperature) and the clock. Setting the clock Hold the MENU key down for about two seconds until tS appears. Press the MENU key three times until Prog appears. Press the "-" key until SEt appears. Press the MENU key until the clock appears. It may be changed with the "-" key, which decreases the time by one minute each time it is pressed, and with the "+" key, which increases it by 15 minutes each time it is pressed. Once the time is set, confirm with the MENU key. The day number appears (day1=Monday, day2=Tuesday… day7=Sunday), which can be changed with the "-" and "+" keys. Confirm with the MENU key. Prog appears. Press the 0/1 key to quit clock setting. Enabling programmes Hold the MENU key down for about two seconds until tS appears. Press the MENU key three times until Prog appe- ars. Press the "+" key until Pr OF appears. Press the MENU key until OFF appears. Press the "+ " or "-" key until ON appears. Confirm with the MENU key. Prog appears. Press the O/1 key to return to standby. When the stove is in Pr mode, it responds to programmed on and off times. Setting a programme (e.g. Pr01) Hold the MENU key down for about two seconds until tS appears. Press the MENU key three times until Prog appe- ars. Press the "+" key twice until Pr1 appears. Press the MENU key until On P1 appears together with the "on time". It may be changed with the "+" and "-" keys in ten-minute intervals. Press the MENU key to confirm. OfP1 appears together with the off time. This may be changed with the "+" and "-" keys in ten-minute intervals. Press MENU to confirm. "Of d1" appears (which means program 1 is not enabled on day 1, Monday). This may be changed into Ond1 (which means program 1 is enabled on day 1, Monday) using the "+" and "-" keys. Press MENU to move on to the second day, and so on until day 7. Press the MENU key again and Prog appears. To quit programming press the 0/1 key. On and off times may be set for Pr 2 and Pr 3 in a similar way, and it can be decided which days they are enabled on.

INSTRUCTIONS FOR USE51

ENGLISH Before performing any maintenance, disconnect the appliance from the mains. Regular maintenance is required for the stove to function correctly. FAILURE TO KEEP UP REGULAR MAINTENANCE DOES NOT allow the stove to function properly. Any problems resulting from lack of maintenance will immediately void the warranty. TO ACCESS ALL ELECTRICAL AND MECHANICAL PARTS EASILY SIMPLY OPEN THE LEFTHAND DOOR OF THE STOVE. THE DOOR IS HELD FIRMLY SHUT WITH A SCREW, WHICH MUST ONLY BE REMOVED FOR INSPECTION PERFORMED BY THE TECHNICAL ASSITANCE CENTRE. DAILY MAINTENANCE Operations must be performed when the stove is off, cold and unplugged from the power supply

• Must be performed using a vacuum cleaner (see optional extras page 57).

• The whole procedure takes up a few minutes every day.

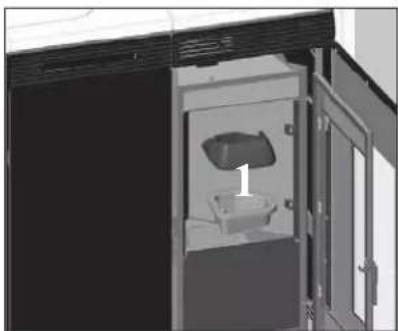

• Open the righthand door, remove the combustion chamber (1 - fig. A) and empty the residue out into the ash pan (3 - fig. C).

• DO NOT EMPTY THE RESIDUE OUT INTO THE PELLET HOPPER.

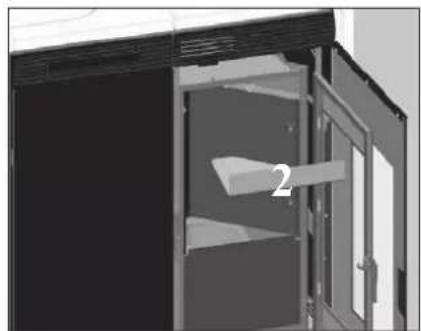

• Take out the ceiling (2 - fig. B) and empty the residue out into the ash pan (3 - fig. C).

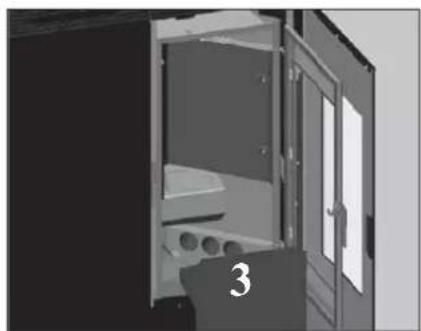

• Take out and empty the ash pan (3 - fig. C) into a fireproof container (the ash may still contain hot parts and/or embers).

• Remove the combustion chamber or use the spatula to scrape it and clean out any blocked holes on all sides

• Remove the combustion chamber (1 - fig. A) and scrape with a spatula. Clean any obstructions in the apertures.

• Vacuum the combustion chamber holder, clean the edges where the combustion chamber is lodged into its seat.

• Clean the glass, if necessary (when cold). Never vacuum hot ash, it can make the vacuum cleaner breakdown and puts the household rooms at risk of fire MANUTENZIONE SETTIMANALE

• Involves cleaning the hearth (with a swab) once the ash pan has been removed (3 - fig. C).

• empty the pellet hopper and clean the base with the vacuum cleaner.

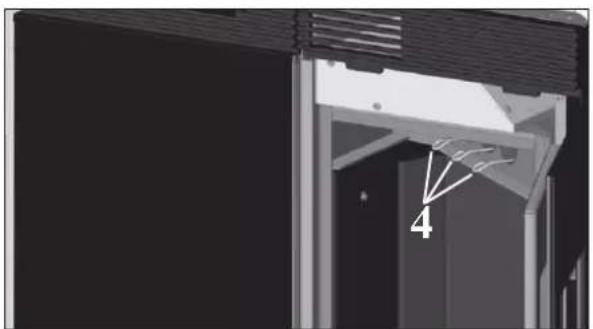

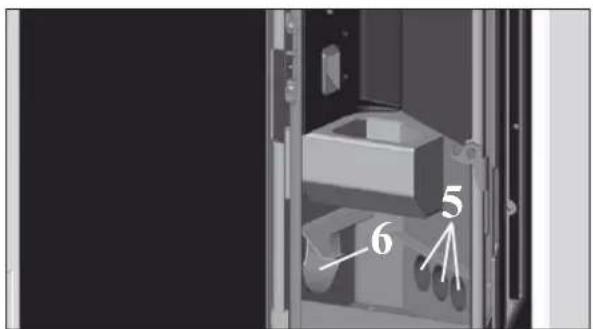

• Clean with the swabs (4 - fig. D), vacuum out the 3 pipes below (5 - fig. E)

• Clean the stove internally and externally

• Carefully clean the heat exchange tubes

• Carefully clean and remove dirt from the combustion chamber and the relative compartment

• Clean fans, verify mechanical and clamp loosening

• Clean smoke channel (replace seals on smoke exhaust pipe)

• Clean smoke duct (see weekly cleaning)

• Clean smoke extraction fan compartment, flow sensor and check thermocouple.

• Clean, inspect and scrape any residue from the ignition resistance compartment and if necessary, replace it

• Clean/check the Synoptic Panel

• Visually inspect the electrical wires, connections and power cable

• Clean the pellet hopper and check loosening of the feed screw - gear motor assembly

• Replace the door seal

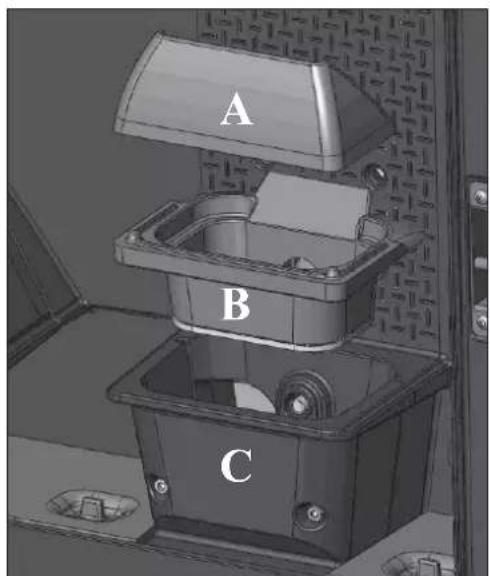

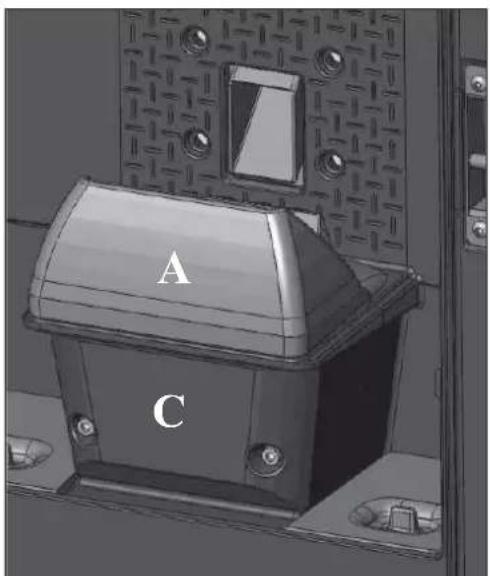

• Functionality test: load the feed screw, ignite, let it run for 10 minutes and shutdown If the stove is used very often, it is recommended to clean the smoke channel every 3 months. ATTENTION !!! After implementing a normal cleaning procedure, INCORRECT coupling of the upper (A) (figura 1) and lower (B) (figura 1) combustion chambers can compromise the stove’s performance. Therefore, before igniting the stove, ensure that the combustion chambers are correctly coupled as shown in (figura 2). We remind you that using the stove without cleaning the melting pot, may cause a sudden ignition gas inside the combustion chamber with the consequent breaking of the glass

In the event of problems the stove stops automatically and runs the shutdown process and the display shows text regarding the motivation of the shutdown (see the various alarms below). Never pull the plug during shutdown on account of malfunction. Should it block, to restart the stove you will need to allow the turn-off procedure to take place (600 seconds with audible signal), and then press the button . Do not turn the stove on again before checking the cause of the malfunction and CLEANING/ EMPTYING the crucible. INDICATION OF POSSIBLE CAUSES OF MALFUNCTION AND INDICATIONS AND REMEDIES:

1) Verific./air flow: (intervenes if the flow sensor detects insufficient combustion air flow).

Turns off for lack of depression Air flow may be insufficient because the door is open, the door does not close properly (e.g. bad seal), there is an air intake or smoke extraction problem, or the combustion chamber is clogged. Check: - door closure; - combustion air intake duct (clean, paying attention to the flow sensor components); - clean the flow sensor with dry air (like that used for PC keyboards); - stove location: it must not be installed against a wall; - combustion chamber position and cleanliness (clean regularly according to the type of pellet); - smoke duct (clean); - installation (if it does not comply with regulations or the smoke outlet has more than 2-3 bends); If you suspect the sensor is malfunctioning, carry out cold tests. If the conditions are changed (for example by opening the door) and the value does not change, there is a sensor problem. The no depression alarm may also occur during ignition, since the flow sensor starts monitoring 90 seconds after the ignition cycle begins.

2) Verific./extract.: (intervenes if the smoke extractor revolutions sensor detects an anomaly)

Turns off due to smoke expulsion motor - Check smoke extractor function (devolution sensor connection) and board. - Check smoke channel for dirt - Verify the electrical system and earthing system. - Check eletronic circuit board 3) Stop/Flame: (intervenes if the thermo coupling reports a smoke temperature below a value set, thereby interpreting it as a lack of flame). Turns off due to drop in smoke temperature Flame may fail for any of the following reasons: - lack of pellets - too many pellets have suffocated the flame - the maximum thermostat has intervened (rare, this only intervenes in the event of excessive smoke temperature)

4) Block_FI/NO Start: (intervenes if a flame fails to appear within a maximum of 15 minutes, or if ignition temperatu-

re is not reached). Turns off due to incorrect smoke temperature during ignition Distinguish either of the following cases: The flame has NOT appeared The flame has appeared but after the wording Ignition, the wording Block_FI/NO Start has appeared. Check: - correct positioning and cleanliness of combustion chamber - resistance function - room temperature (if less than 3°C) and moisture content. - Try to ignite with Diavolina® Check : - thermo coupling function - ignition temperature set in the parameters54 ENGLISH

TROUBLESHOOTING TIPS FOR TINY

Remote control inefficient:

• closer to the receiver of the stove

• check the battery and if necessary, replace it Output air not hot:

• clean the hearth exchanger. During ignition, the differential switch trips (DEALER):

• check moisture content of ignition resistance Does not ignite:

• clean combustion chamber. “Battery check”:

• The stove does not stop but the error appears on the display.

• The buffer battery of the control board needs changing. NOTA 1 All signals/warnings remain shown until you intervene on the remote control, by pressing the button . Do not use the insert before having eliminated the problem. NOTA 2 After 1000 kg of pellets consumed, the display flashes the wording ‘Mainten.’. The stove works, but you must call the Dealer out to perform extraordinary maintenance.

5) Black Out: (not a defect of the stove).

Turns off due to lack of electricity Check electricity connection and drops in voltage.

6) Fault/RC: (intervenes if the thermo coupling has failed or is disconnected).

Turns off due to thermo coupling failed or disconnected Check connection of thermo coupling to board: check function in cold test.

7) smoke °C/high: turns off due to exceeding maximum smoke temperature.

Excessive smoke temperature may depend on: pellet type, anomaly in smoke extraction, smoke channel blocked, incorrect installation, gear motor ‘drift’55 ENGLISH

TROUBLESHOOTING TIPS FOR KELLY

In the event of problems the stove stops automatically and runs the shutdown process and the display shows text regarding the motivation of the shutdown (see the various alarms below). Never pull the plug during shutdown on account of malfunction. To start the stove up again after a shutdown, let the shutdown procedure end (10 minutes marked by a beep) then press the 0/1 key. Do not turn the stove on again before checking the cause of the malfunction and CLEANING/ EMPTYING the crucible. INDICATION OF POSSIBLE CAUSES OF MALFUNCTION AND INDICATIONS AND REMEDIES:

1) H1 No Depression (this trips if the flow sensor detects insufficient combustion air flow)

Turns off for lack of depression Air flow may be insufficient because the door is open, the door does not close properly (e.g. bad seal), there is an air intake or smoke extraction problem, or the combustion chamber is clogged. Check: - door closure; - combustion air intake duct (clean, paying attention to the flow sensor components); - clean the flow sensor with dry air (like that used for PC keyboards); - stove location: it must not be installed against a wall; - combustion chamber position and cleanliness (clean regularly according to the type of pellet); - smoke duct (clean); - installation (if it does not comply with regulations or the smoke outlet has more than 2-3 bends); If you suspect the sensor is malfunctioning, carry out cold tests. If the conditions are changed (for example by opening the door) and the value does not change, there is a sensor problem. The no depression alarm may also occur during ignition, since the flow sensor starts monitoring 90 seconds after the ignition cycle begins.

2) H2 Smoke expulsion motor failure (this trips if the smoke extraction speed sensor detects a fault)

Turns off due to smoke expulsion motor - Check smoke extractor function (devolution sensor connection) and board. - Check smoke channel for dirt - Verify the electrical system and earthing system. - Check eletronic circuit board

3) SF (H3) Flame stop (this trips if the thermocouple detects a smoke temperature lower than the value set, which it

interprets as the absence of flames) Turns off due to drop in smoke temperature Flame may fail for any of the following reasons: - lack of pellets - too many pellets have suffocated the flame - the maximum thermostat has intervened (rare, this only intervenes in the event of excessive smoke temperature)

4) AF (H4) No start (intervenes if a flame fails to appear within a maximum of 15 minutes, or if ignition temperature

is not reached). Turns off due to incorrect smoke temperature during ignition Distinguish either of the following cases: the flame does NOT appear Flames appear, but AF appears on the display after Ar Check: - combustion chamber position and cleanliness; - arrival of combustion air in the combustion chamber; - if the heating element is working; - room temperature (if lower than 3°C use a firelighter) and damp. Try to light with a firelighter. Check: (only by the Dealer) - if the thermocouple is working; - start-up temperature setting in the parameters.56 ENGLISH

5) H5 Power failure stoppage (not a defect of the stove).

Turns off due to lack of electricity Check electricity connection and drops in voltage.

6) H6 Thermocouple failure (intervenes if the thermo coupling has failed or is disconnected).

Turns off due to thermo coupling failed or disconnected Check connection of thermo coupling to board: check function in cold test.

7) H7 Excessive smoke temperature turns off due to exceeding maximum smoke temperature.

Excessive smoke temperature may depend on: pellet type, anomaly in smoke extraction, smoke channel blocked, incorrect installation, gear motor ‘drift’ 8) Batt. 1 - Batt. 2 The heating stove will not stop, but this message appears on the display. The buffer battery on the pcb must be replaced. Display-control panel off:

• make sure the power cord is connected check the fuse (on the power socket) Remote control (optional) not working:

• closer to the receiver of the stove

• check the battery and if necessary, replace it Outlet air not hot:

• clean heat exchanger from inside the firebox. During ignition, the differential switch trips (DEALER):

• check moisture content of ignition resistance Does not ignite:

• clean combustion chamber. The message is displayed until the 0/1 key on the panel is pressed. Do not restart the stove until the problem has been looked into and the cause removed. It is important to tell the Dealer exactly what the panel signals.

TROUBLESHOOTING TIPS FOR KELLY57

ENGLISH Ash vacuum cleaner User for cleaning the hearth OPTIONAL CLEANING ACCESSORIES CHECK LIST TELEPHONE COMBINER FOR REMOTE IGNITION (code 281900) The stove can be ignited remotely by asking the DEALER to connect the telephone combiner to the serial port behind the stove via the optional cable (TINY code 621240 - KELLY code 620550) Remote control (KELLY code 633280) To be integrated with a complete reading of the technical specifications Positioning and installing

• Commissioned by a qualified DEALER who has issued the warranty and maintenance manual

• Only the stove outlet passes through the smoke channel/chimney flue

• The smoke channel has: a maximum of 2 curves, a maximum 2 horizontal metres

• Chimney pot that is high enough to avoid downdraft areas

• The discharge pipes are made of a suitable material (stainless steel is recommended)

• When using any flammable materials (e.g. wood), all precautions have been taken to prevent a fire hazard Use

• Good quality, dry pellets are used

• The chimney pot and ash compartment are clean and well positioned

• The door is closed properly

• The combustion chamber is inserted properly into the relevant compartment REMEMBER TO VACUUM THE COMBUSTION CHAMBER BEFORE EACH IGNITION Should ignition fail, DO NOT re-ignite until you have emptied the combustion chamber. GlassKamin (code 155240) Used for cleaning the cera- mic glass
