USER MANUAL Miestendo fix Foppapedretti

WARNING: NEVER leave your child unattended – your child’s safety is your

WARNING: The child car seat must be fitted in accordance with the manufacturer’s

instructions. Incorrect installation could be dangerous.

WARNING: This installation must only be performed by a competent adult.

WARNING: Don’t try to install the seat when intoxicated or drowsy.

WARNING: Always ensure that new or occasional users [e.g. grandparents] have read

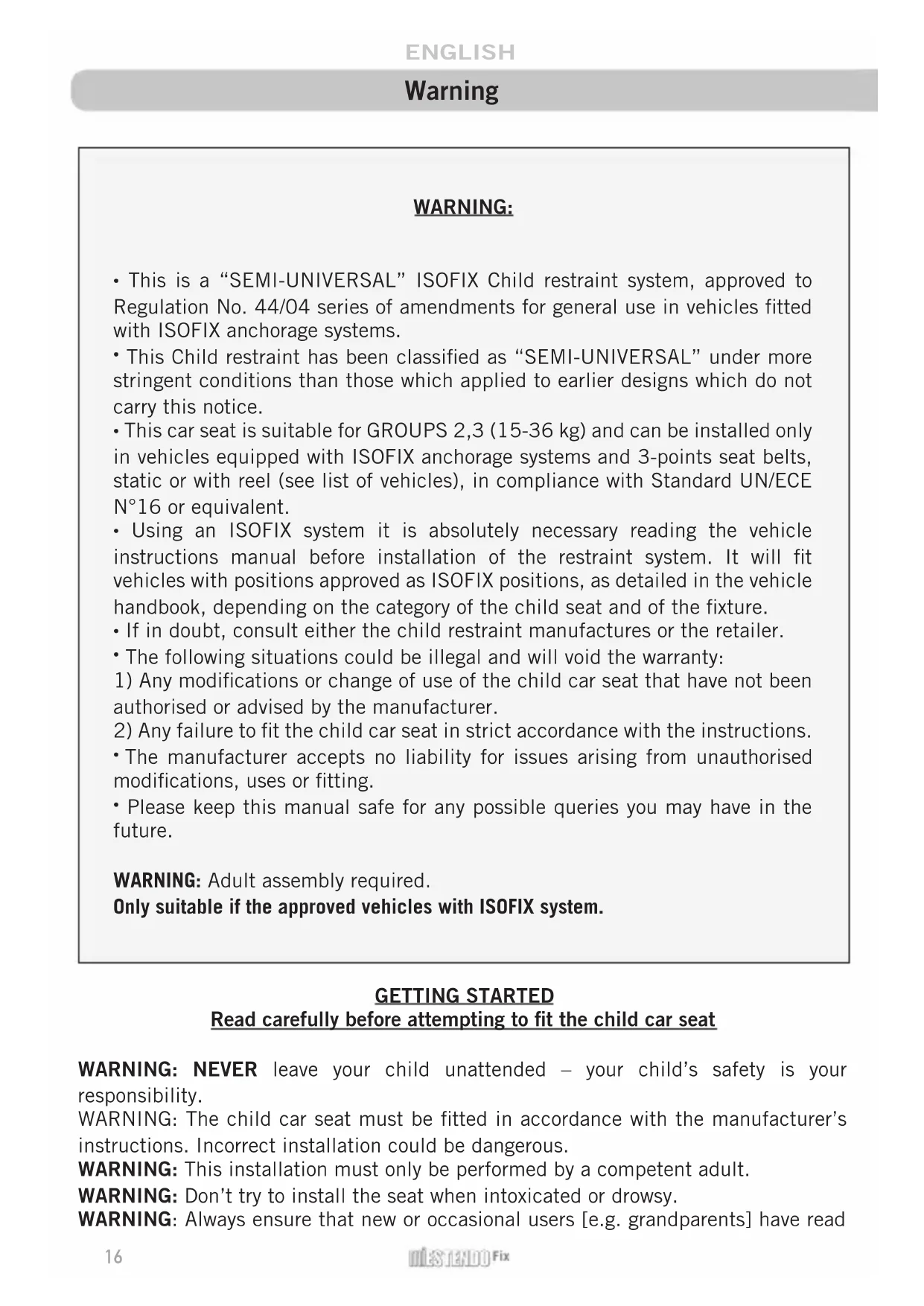

This is a “SEMI-UNIVERSAL” ISOFIX Child restraint system, approved to Regulation No. 44/04 series of amendments for general use in vehicles fitted with ISOFIX anchorage systems.

This Child restraint has been classified as “SEMI-UNIVERSAL” under more stringent conditions than those which applied to earlier designs which do not carry this notice.

This car seat is suitable for GROUPS 2,3 (15-36 kg) and can be installed only in vehicles equipped with ISOFIX anchorage systems and 3-points seat belts, static or with reel (see list of vehicles), in compliance with Standard UN/ECE N°16 or equivalent.

Using an ISOFIX system it is absolutely necessary reading the vehicle instructions manual before installation of the restraint system. It will fit vehicles with positions approved as ISOFIX positions, as detailed in the vehicle handbook, depending on the category of the child seat and of the fixture.

If in doubt, consult either the child restraint manufactures or the retailer.

The following situations could be illegal and will void the warranty:

1) Any modifications or change of use of the child car seat that have not been

authorised or advised by the manufacturer.

2) Any failure to fit the child car seat in strict accordance with the instructions.

The manufacturer accepts no liability for issues arising from unauthorised modifications, uses or fitting.

Please keep this manual safe for any possible queries you may have in the future.

WARNING: Adult assembly required.

Only suitable if the approved vehicles with ISOFIX system.17 Fix Warning the instructions or been taught the correct installation by someone who has read and understood the instructions.

WARNING: Always keep this instruction manual with the child car seat, or in the

vehicle in which you are carrying the child car seat. Some models of child car seat have a pocket to store the instructions. BEFORE STARTING

WARNING: Do not fit the child car seat on a side or rear facing vehicle seat.

WARNING: Before installing the child car seat ensure that the passenger seat you are

using is locked in the upright position.

WARNING: Do not use the child car seat in the home. It has been designed to be used

exclusively in the car.

WARNING: Do not leave loose/unsecured objects on the back seat of your car or the

parcel shelf. They may be dangerous to your child if you are forced to brake suddenly. Which is the safest passenger seat to fit your child car seat to?

THE CENTRE REAR PASSENGER SEAT

If your centre rear passenger seat is fitted with a three point seatbelt system and ISOFIX system then you should use it. If your centre rear passenger seat does not have a three point seatbelt system and ISOFIXsystem (i.e. no seatbelt at all, or only a lap belt) then you should use the rear left passenger seat or the rear right passenger seat.

WARNING :The front passenger seat can only be used if it DOES NOT have an airbag

and IS fitted with a three point seat belt system.

WHEN USING THE CHILD CAR SEAT

WARNING: Warning: Make sure that the child car seat is placed somewhere so that

rigid items and plastic parts do not become trapped in doors or movable seat units when the seatn is in everyday use.

WARNING: Always use the child safety lock system, if one is available, to make it

impossible for the child to open the car doors from inside.

WARNING: Allow the child a break during long car journeys and make sure they don’t

EXTREME HAZARD NEVER USE IN FRONT PASSENGER SEATS EQUIPPED WITH AIRBAGS (SRS) THIS CAN INCLUDE REAR PASSENGER SEATS THAT ARE EQUIPPED WITH AIRBAGS* *Consult car manufacturer for suitability. Children’s bodies are not able to withstand the forces exerted on them by a deploying air-bag ENGLISH18 Fix Warning get out of the car unaided and without supervision.

WARNING: Ensure that the child car seat is secured to the car seat at all times - even

WARNING: The child car seat must not be used without its original cover. The original

cover is essential for the safe operation of the child car seat.

WARNING: Stop the car at regular intervals to check that the child car seat is in the

correct position and that the car seatbelt is still taut and latched.

WARNING: If you have no option other than to put your child car seat on a rear

passenger seat next to side airbags:

WARNING: Consult with your vehicle manufacturer for side airbag details. It may not

WARNING: Make sure your child does not lean into the area immediately around the

airbag. WARNING Do not place anything under the child car seat (e.g. a towel or cushion) as this could affect the performance of the seat in an accident. SEAT BELT

WARNING: NEVER use any load bearing contact points other than those described in

these instructions or marked on the child car seat.

WARNING: Ensure that the lap section of the seatbelt or harness is worn low down, so

that the pelvis is firmly engaged.

WARNING: Make sure that ALL the passengers in your vehicle have their seat belts

fastened, as unrestrained people can be very dangerous to the child in an accident.

WARNING: NEVER use a seatbelt routing scheme that differs from these instructions.

WARNING: The lap and diagonal seat belt (and harness if fitted) must be used at all

times when your child is in the child car seat.

WARNING: Make sure that there are no twists in the seatbelt.

WARNING: Don’t leave your child in the child car seat while parked in direct sunlight

WARNING: Do not subject the child car seat to prolonged direct sunlight as this may

be cause the fabric to fade. You can reduce this problem by covering the child car seat with a sheet when not in use.

BACK OF THE SEAT/HEADREST

WARNING: Ensure that the child car seat is as close as possible to the backrest of

WARNING: REMOVE the headrest of the passenger seat being used if it obstructs the

proper installation of the child car seat. REMEMBER to refit the headrest when the ENGLISH19 Fix Warning child car seat has been removed. SECOND HAND OR DAMAGED CHILD CAR SEATS AND SEAT BELTS

WARNING: Never buy a second hand child car seat. It may have unseen damage.

WARNING: The manufacturer only guarantees this product when the original owner

WARNING: You MUST replace the child car seat and your vehicles seat belts if they

becomes badly worn or damaged.

WARNING: You MUST replace the child car seat if it is involved in an accident – it

may have unseen damage and may not protect your child as well as it should. At the very least send the child car seat to the manufacturers for inspection, together with the incident report. Contents Parts checklist Positioning the seat Installing the child car seat Removing the car seat Removing the seat cover Replacing the seat cover Maintenance and cleaning

ENGLISH20 Fix Welcome! Parts checklist Thank you for purchasing the Premium child car seat. Please read these instructions carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact your nearest retail store. Headrest Side protection system Armrest Seat base Adjust lever Belt hook High backrest Lap belt guide ISOFIX anchors

Instructions storage compartment (under base)

ENGLISH21 Fix Positioning the seat The car seat can be used only with 3 point seat belts (A) with ISOFIX anchorage point. DO NOT use it with 2 point seat belts (B). The car seat is intended to be used in vehicles equipped with ISOFIX anchorage system and 3 point seat belt, static or with reel in compliance with Standard UN/ECE N° 16 or equivalent. The car seat is compatible only with the vehicles indicated in the “List of Vehicles”. Important: MIESTENDO Fix is approved as “SEMI-UNIVERSAL” child restraint device. Therefore, it must be installed only on the vehicles indicated in the “List of Vehicles”. The car seat must be installed on the rear seat of the vehicle, in a position facing forward, using 3 point seat belts and ISOFIX anchorage system provided with the vehicle. If the installation is not properly secured, we suggest you try another seat in your vehicle. Although not recommended, the child car seat can be used on a passenger side front seat, so long as there is no active airbag in place.

WARNING: Never use in a seat with an active airbag.

ENGLISH22 Fix ENGLISH Installing the child car seat Place the child car seat in a suitable forward facing position. Rotate the bracket with ISOFIX anchors as indicated in the figure. Match the isofix anchors to the vehicles anchoring point until you hear a “click”. Ensure both stirrups are correctly engaged.23 Fix Installing the child car seat Put the child in the child car seat and adjust the size and fit of the seat (see previous step) then pass the vehicle’s shoulder belt through the belt hook (A) and the lap belt through the lap belt guide (B).

WARNING: Ensure the belt is not

twisted. Lock the belt into the vehicle seatbelt buckle ensuring it clicks into place. Both the lap belt and the shoulder belt should pass through the belt guide on the side nearest the buckle (C). DO NOT pass them over the armrest. The car seat must remain attached to the vehicle seat by means of ISOFIX anchorage system, even when the child is not seated in it. click

ENGLISH C24 Fix Installing the car seat NOTE: The seatbelt buckle should not foul, jam or wedge itself under the lap belt guide, as shown opposite. To adjust the height, width and fit of the child car seat, squeeze the adjust lever behind the headrest and move the headrest up or down until the desired height and width is achieved. Once the desired fit is found, release the lever and check the headrest to ensure it is locked and clicks into position. Press button “A” from both sides to release the ISOFIX connectors and remove the car seat. Removing the car seat ENGLISH

X XV25 Fix The seat cover is a safety feature. Never use the child car seat with out its cover. Removing the headrest cover: Remove the headrest cover (A), by holding the elasticed band and pulling the cover forward and off. Removing the seat back cover: Remove the four pins (B) securing the seat back cover (two pins each side of the seat back). Place the pins somewhere safe for later. Pull the cover up from the base of each side protection system (C) and remove. Removing the seat base cover: Remove the two plastic belt guides (D) on each side of the seat base, carefully ease them off and store for later. Removing the seat cover ENGLISH

C26 Fix Replacing the seat cover The seat cover is a safety feature. Never use the child car seat with out its cover. Replacing the seat back cover: Slide the back cover down, over each side impact system (D) ensuring the elastic band (E) is kept to the front of the seat. Lift back material (F) and secure the cover with plastic pins (G) on the seat back. Replacing the headrest cover: Slide the headrest cover over the headrest (H) and pull the elastic around the back. Tuck the headrest cover’s fabric flap (I) behind the seat back cover. ENGLISH

1) Store this child car seat in a safe place when not in use.

2) DO NOT place heavy objects on top of it.

3) Always store the child car seat in a dry environment.

4) DO NOT store the child car seat near a direct heat source such as a radiator.

1) The seat cover is easily removable and should be handwashed with a pH neutral soap

2) Do not press, iron, dry clean, tumble dry or wring the covers.

3) Do not use solvents, caustic or abrasive cleaning materials.

5) If the seat covers need to be replaced only use Bolenn Hug certified parts. They are

the only ones that are guaranteed to have been safety tested and designed to fit this seat. Plastic/Metal Parts

1) Wipe clean using a mild soap and warm water.

2) You must not remove, dismantle or alter any part of the seat shell.

3) You must not oil or lubricate any part of the seat shell.

1) Check your child car seat regularly for wear and tear.

2) The child car seat may have a slight rattle when not in use, this is normal. If in any

doubt, contact Bolenn Hug immediately.

3) Check the adjustable parts of your child seat at intervals of about 6 months to

ensure it is still fits correctly for your growing child. Maintenance and cleaning ENGLISH28 Fix Advertencias ADVERTENCIA:

• Este es un dispositivo ISOFIX “SEMI-UNIVERSAL” de contención del niño. Ha sido aprobado por el Reglamento ECE R44/04 para su uso general en vehículos que disponen de sistemas de anclaje ISOFIX.

LIST OF APPROVED CARS

Only suitable if the approved vehicles with ISOFIX system. This is a “Semi-Universal” child restraint for Group 2 and 3 (15-36kg). It is approved to Regulation No. 44,04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats and can be fitted on the seat of the following vehicles: LEGEND: CHECK

WARNING: before purchasing, consult the

vehicle Use and Maintenance Guide to ensure the ISOFIX anchor is present, as this could be an optional. OFF DO NOT USE ON A PASSENGER SEAT WITH A FRONT AIRBAG. Before installing the child car seat ensure that the passenger seat you are using is locked in the upright position.

List of approved carsLIST OF APPROVED CARS

X6 2008 2 4 CHECKLIST OF APPROVED CARS

0 2005 2 4 CHECKLIST OF APPROVED CARS

ⅡLIST OF APPROVED CARS

EOS 2006 2 4LIST OF APPROVED CARS
