Product type	Car seat
Brand	Foppapedretti
Model	Kite
Age category	From birth to approximately 4 years
Weight group	Group 0 (0-10 kg) and Group 1 (9-18 kg)
Approval	Regulation UN/ECE No. 44/04
Installation	Rear-facing (0-10 kg) and forward-facing (9-18 kg)
Required belt type	Approved 3-point belt only
Harness positions	4 positions (2 low for rear, 2 high for forward)
Harness	5-point with red release buckle
Recline adjustment	Yes, via lever under front of seat
Included accessories	Depth reducer cushion, pillow, blue clip (rear-facing), red clip (forward-facing), strap guides
Cover maintenance	Removable cover, hand wash at 30°C, no bleach, no machine, no tumble dry
Safety recommendations	Do not use on seat with frontal airbag, replace after an accident, check harness wear
Materials	Plastic shell, textile cover

Frequently Asked Questions - Kite Foppapedretti

How to adjust the harness height?

To adjust the harness height, remove one of the upper straps by rotating its metal stop at the back of the seatback. Choose from the 4 positions: the two low positions for rear-facing use (0-10 kg), the two high positions for forward-facing use (9-18 kg). Pass the harness straps through the corresponding slots in the cover and shell, then secure the stops. Make sure the straps are not twisted.

How to install the seat rear-facing?

Place the seat in the most reclined position. Fully extend the 3-point belt and pass both straps through the opening between the shell and base. Buckle the belt. Route the lap part through the two front guides on the base, and the diagonal part through the two upper guides at the back of the shell. Tighten the belt by pulling first on the lap part then on the diagonal part. Place the blue clip against the belt buckle. Do not use the red clip.

How to install the seat forward-facing?

Set the seat to the most reclined position. Unreel the belt and pass both straps through the opening between shell and base. Buckle the belt. Route the lap part under the two red locking clips. Open the clip on the buckle side, insert the diagonal part of the belt and lock the clip. Press the seat against the vehicle seatback and tighten the belt as much as possible. Make sure the belt is not twisted.

How to tighten or loosen the harness?

To tighten the harness, pull on the adjustment straps located on each harness. It is not necessary to press the adjuster buttons. A correct adjustment allows at most one finger's thickness between the harness and the child. To loosen, press the adjuster buttons on the upper straps of the harness, grasp the lower part of the harness and pull simultaneously.

How to recline the seat?

Push up the adjustment lever located under the front of the seat, then pull or push the shell forward or backward to achieve the desired recline. Release the lever to lock.

How to maintain the seat cover?

The cover is removable. For light stains, clean with a damp sponge and soapy water. You can also hand wash at 30°C in soapy water. Do not use bleach, do not iron, do not machine wash, do not tumble dry.

Can I use this seat on a seat with a frontal airbag?

No. Never use this child seat on a passenger seat equipped with a frontal airbag. This could be dangerous for the child. Install it on a rear seat or on a front seat without an airbag.

Up to what weight can my child be installed rear-facing?

The seat can be used rear-facing for children weighing 0 to 10 kg (Group 0). Beyond 10 kg, the child must be installed forward-facing up to 18 kg (Group 1). It is important to respect the weight limits to ensure safety.

What to do in case of an accident with this car seat?

If the seat was subjected to violent stress during an accident, it is recommended to replace it. Even without visible damage, the integrity of the seat may be compromised. Also check the harness and attachment points for any signs of wear.

Where to find spare parts for this seat?

To obtain spare parts or accessories, contact the consumer service of Foppapedretti (details on the back of the manual). Use only parts recommended by the manufacturer, especially the replacement cover.

USER MANUAL Kite Foppapedretti

Illustration of a car comfort seat with blue outlines and internal compartments (no text or symbols)

FORPAPEDREIT®

1

Diagram of a car comfort seat with numbered labels pointing to different compartments and parts.

10 11 12 13 14

Illustration of a human urinary system with an IV catheter and surrounding organs (no text or labels)

Illustration of a car seatbelt being adjusted for a seatbelt, showing orange banding and red belt (no text or symbols)

Illustration of a blue helmet with internal compartments and a red arrow indicating pressure or damage (no text or symbols)

Illustration of a hand holding a device with a red upward arrow, no text or symbols present

Illustration of a person using a device to interact with a device, showing no text or symbols

Illustration of a hand pressing down on a device with red curved arrows indicating motion (no text or symbols)

Illustration of a car seatbelt being adjusted for a red belt, with no text or symbols present.

7

0-10 kg ✓ OK

X NO

AIRBAG

8

9

10

11

9-18 kg OK

X NO

OK X NO

12

Illustration of a person wearing a blue seatbelt and orange seatbelt, with a red label showing number 13 (no text or symbols on the diagram itself)

14

15 Click !

Illustration of two mechanical joints with a red directional arrow indicating movement or force (no text or symbols)

17

18 Click !

19

Illustration of a baby in a car seat being lifted, with red arrows indicating force or pressure (no text or symbols)

21

22

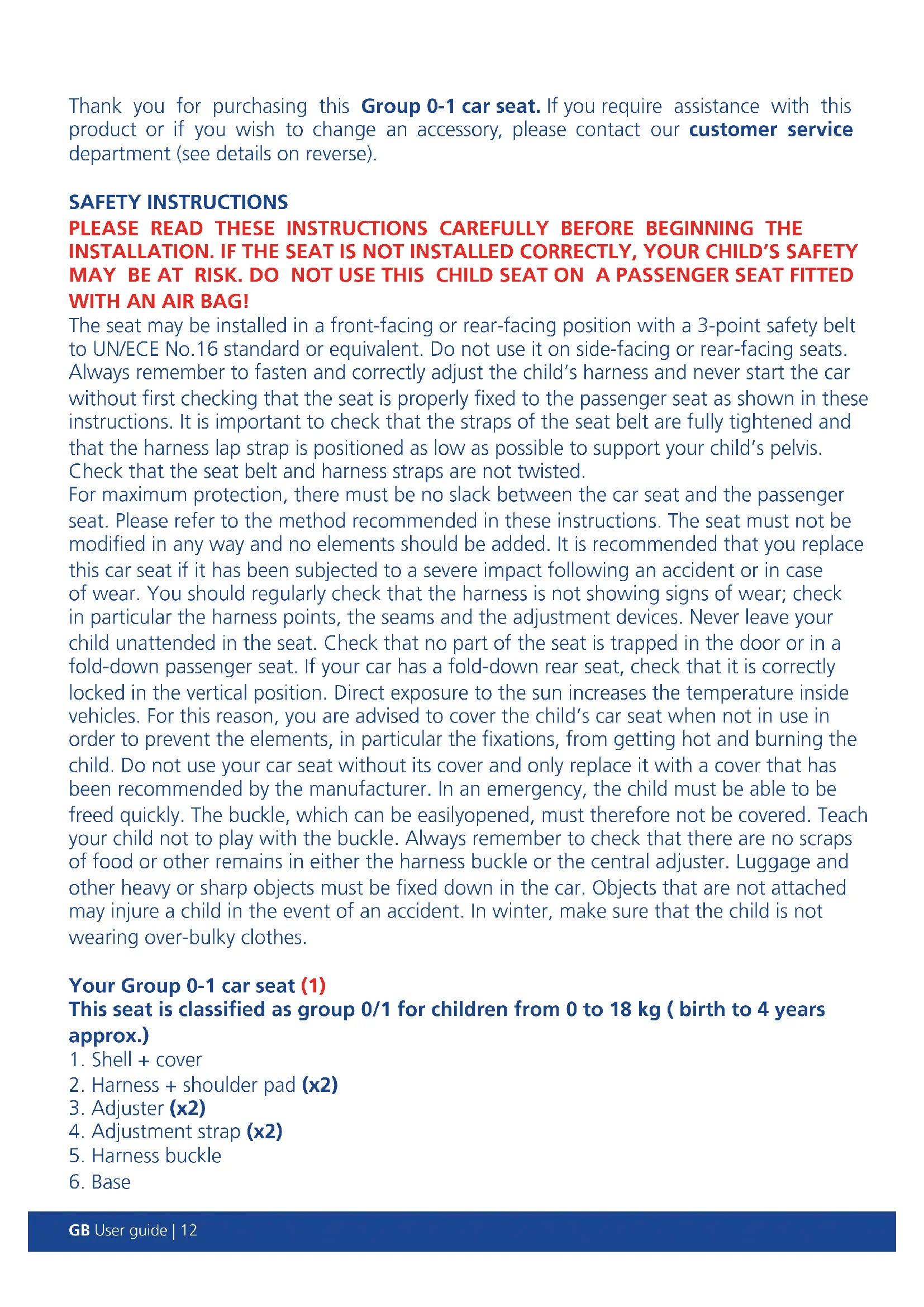

Thank you for purchasing this Group 0-1 car seat. If you require assistance with this product or if you wish to change an accessory, please contact our customer service department (see details on reverse).

SAFETY INSTRUCTIONS

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE BEGINNING THE INSTALLATION. IF THE SEAT IS NOT INSTALLED CORRECTLY, YOUR CHILD'S SAFETY MAY BE AT RISK. DO NOT USE THIS CHILD SEAT ON A PASSENGER SEAT FITTED WITH AN AIR BAG!

The seat may be installed in a front-facing or rear-facing position with a 3-point safety belt to UN/ECE No.16 standard or equivalent. Do not use it on side-facing or rear-facing seats. Always remember to fasten and correctly adjust the child's harness and never start the car without first checking that the seat is properly fixed to the passenger seat as shown in these instructions. It is important to check that the straps of the seat belt are fully tightened and that the harness lap strap is positioned as low as possible to support your child's pelvis. Check that the seat belt and harness straps are not twisted.

For maximum protection, there must be no slack between the car seat and the passenger seat. Please refer to the method recommended in these instructions. The seat must not be modified in any way and no elements should be added. It is recommended that you replace this car seat if it has been subjected to a severe impact following an accident or in case of wear. You should regularly check that the harness is not showing signs of wear; check in particular the harness points, the seams and the adjustment devices. Never leave your child unattended in the seat. Check that no part of the seat is trapped in the door or in a fold-down passenger seat. If your car has a fold-down rear seat, check that it is correctly locked in the vertical position. Direct exposure to the sun increases the temperature inside vehicles. For this reason, you are advised to cover the child's car seat when not in use in order to prevent the elements, in particular the fixations, from getting hot and burning the child. Do not use your car seat without its cover and only replace it with a cover that has been recommended by the manufacturer. In an emergency, the child must be able to be freed quickly. The buckle, which can be easily opened, must therefore not be covered. Teach your child not to play with the buckle. Always remember to check that there are no scraps of food or other remains in either the harness buckle or the central adjuster. Luggage and other heavy or sharp objects must be fixed down in the car. Objects that are not attached may injure a child in the event of an accident. In winter, make sure that the child is not wearing over-bulky clothes.

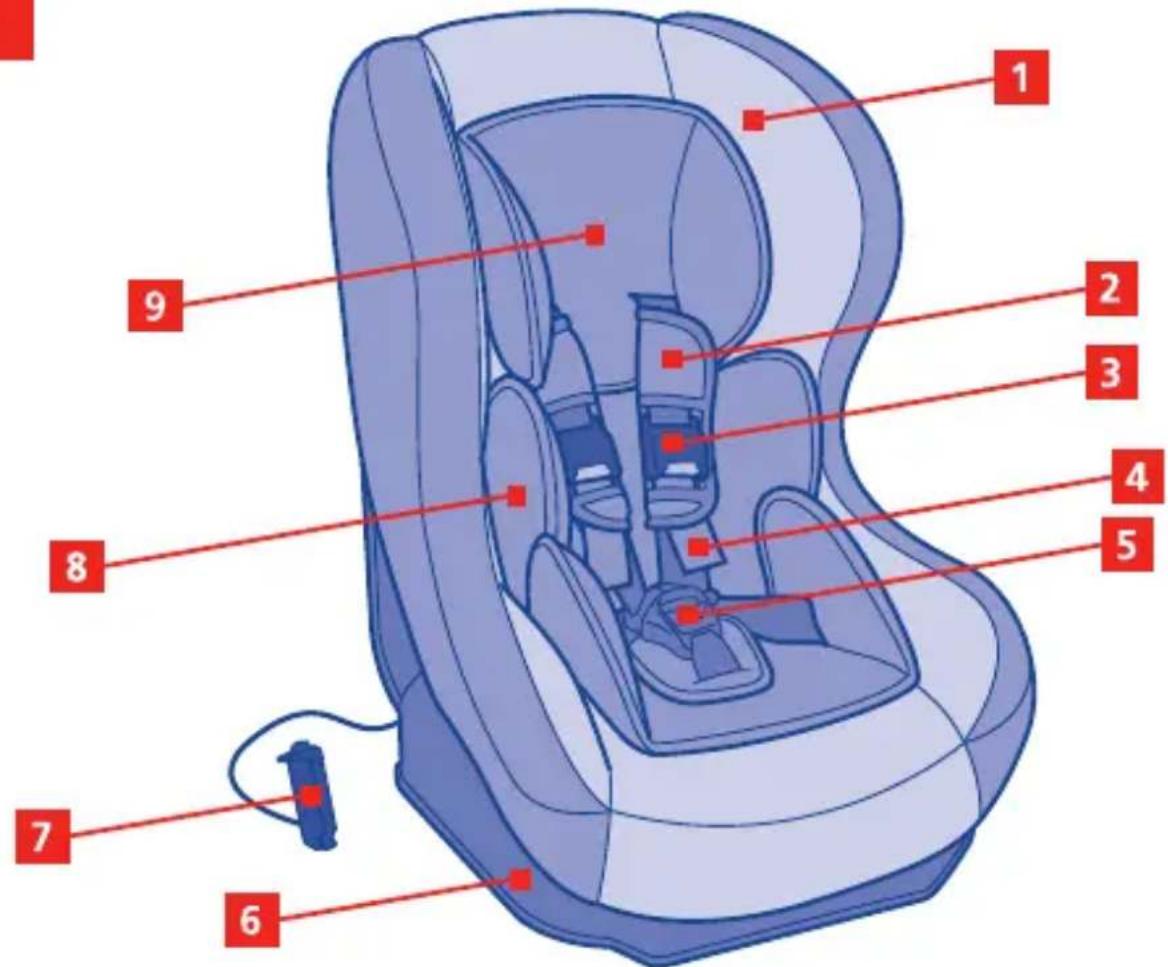

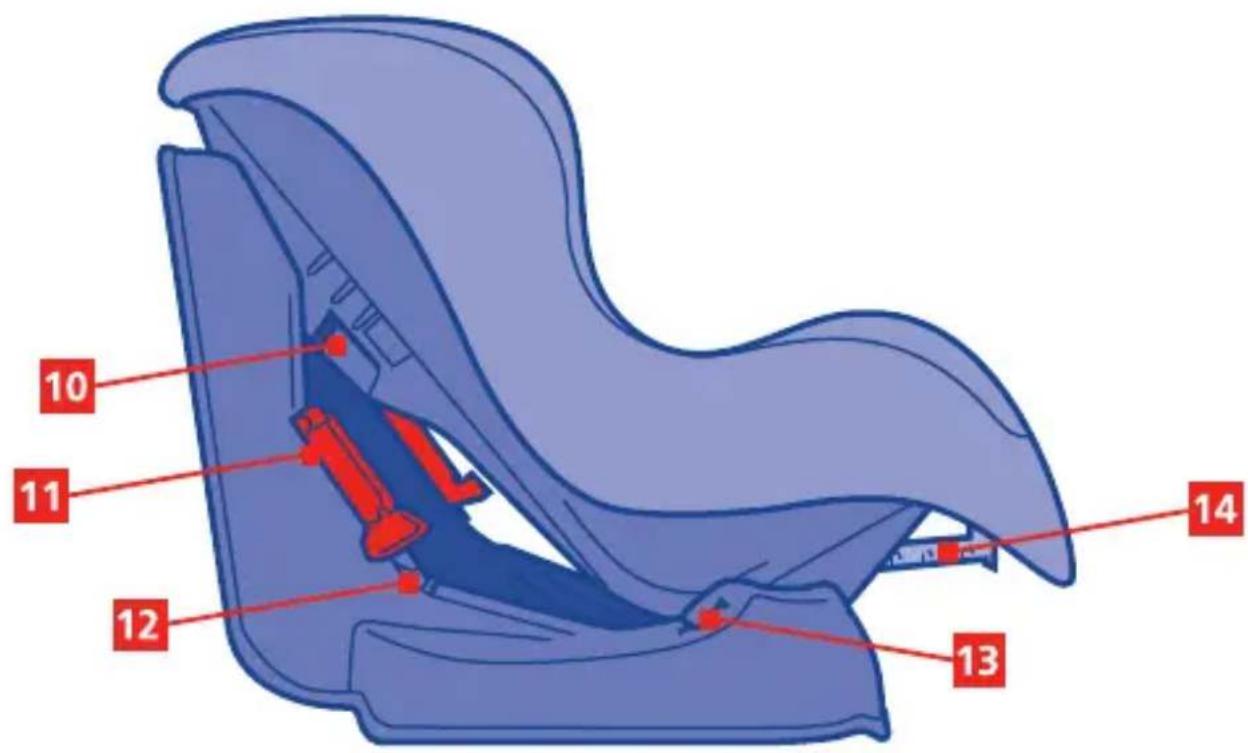

Your Group 0-1 car seat (1)

This seat is classified as group 0/1 for children from 0 to 18 kg (birth to 4 years approx.)

1. Shell + cover
2. Harness + shoulder pad (x2)
3. Adjuster (x2)
4. Adjustment strap (x2)
5. Harness buckle

6. Base

7. Blue lock-off clip (for rearward facing use only)

8. Infant reducer cushion
9. Pillow
10. Diagonal belt guides (x2 - for rearward facing use only)
11. Red belt lock-off (x2 - for diagonal belt (forward facing use only)
12. Lap belt guides (x2 - for forward facing use only)
13. Lap belt guides (x2 - for rearward facing use only)
14. Seat reclining lock

Adjusting the harnesses

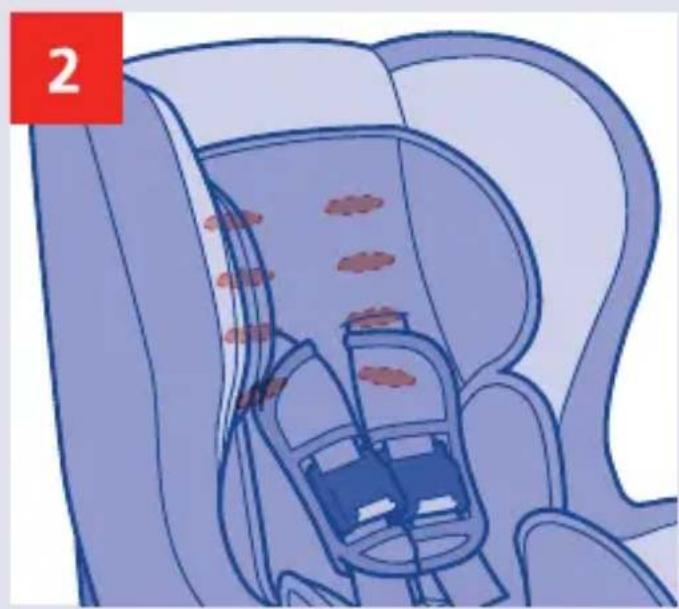

Make sure that the harness of your car seat is adapted to the height of your child before starting to install the seat in your car. The harnesses can be adjusted to 4 different heights and must be positioned as close as possible to your child's shoulders (2).

• The two lower positions are ONLY intended for use in group 0, for a child weighing from 0 to 10kg in a rear-facing position. If your child's shoulders are between two levels in a rear-facing configuration, choose the lower of the two.
• The two upper positions are ONLY intended for use in group 1, for a child weighing from 9 to 18kg in a front-facing position. If your child's shoulders are between two levels in front-facing configuration, choose the higher of the two.

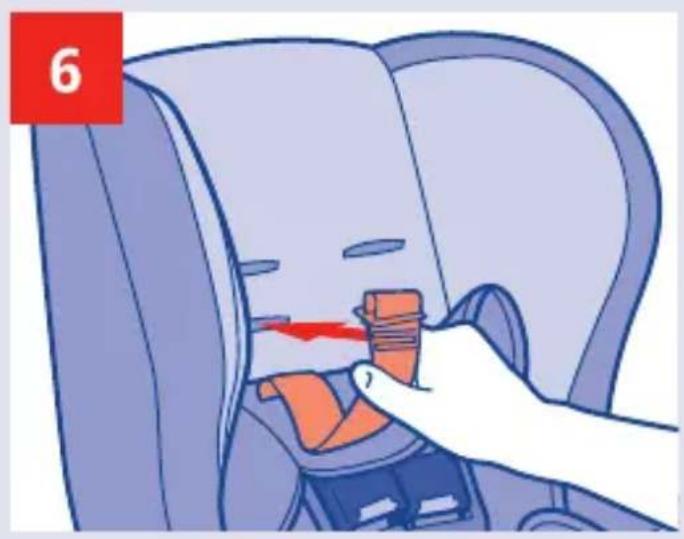

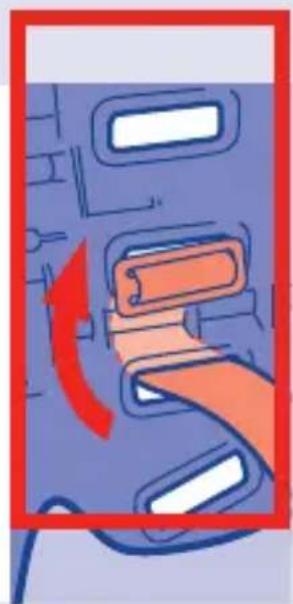

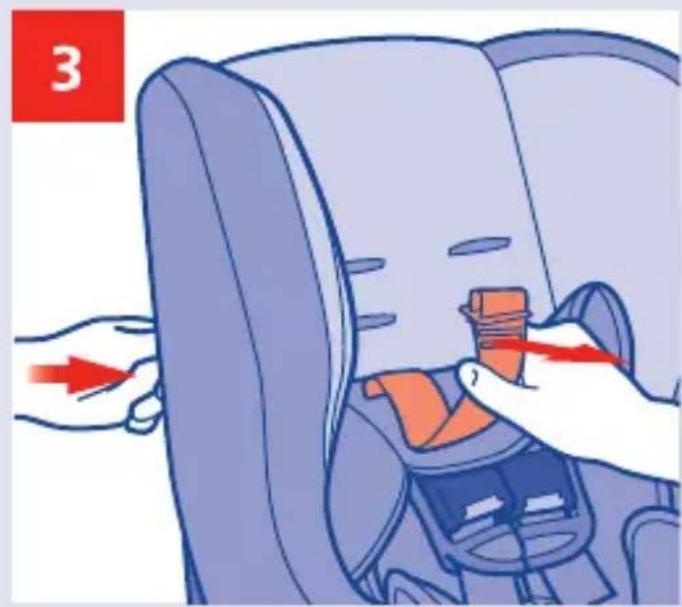

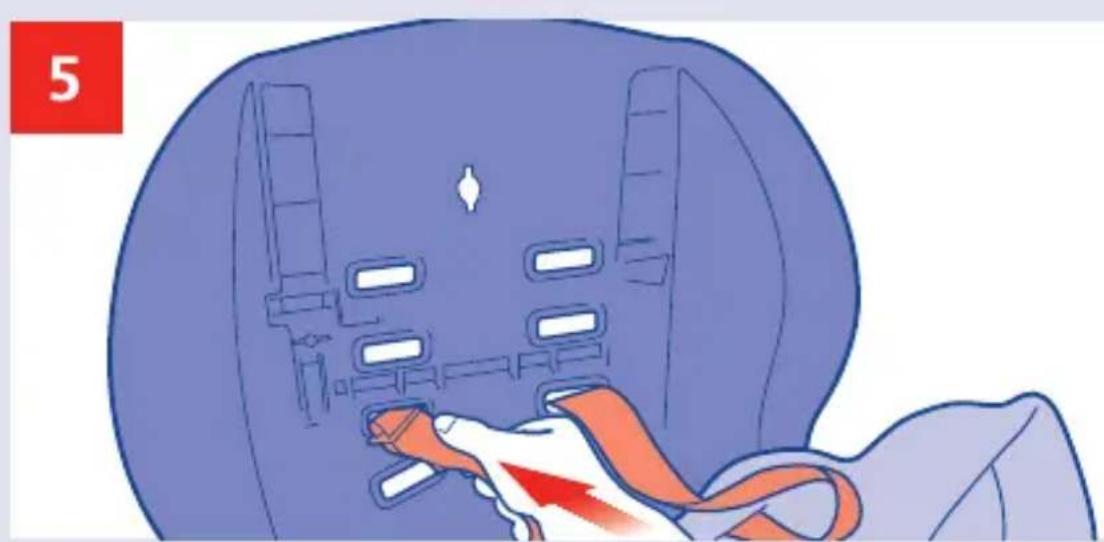

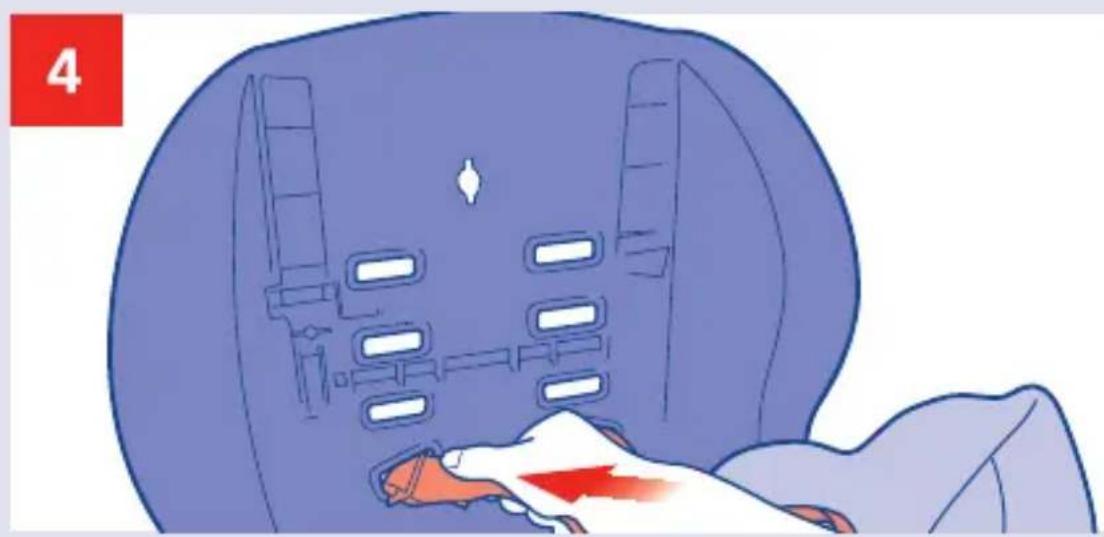

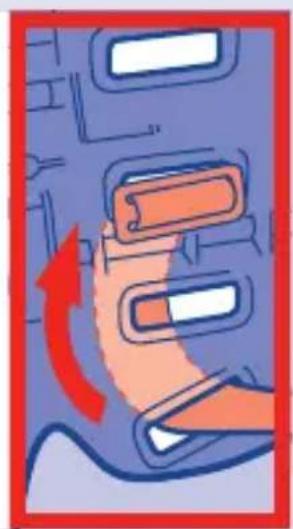

To adjust the height of the harnesses, remove the upper section of one of the harness straps by pivoting the metal anchor located behind the back rest and then pulling it through the slots of the shell and cover (3). Repeat the operation on the upper section of the second strap.

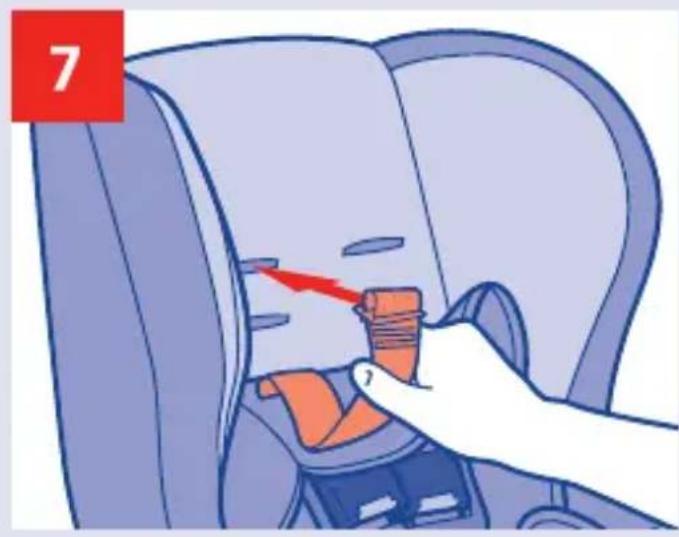

Feed the ends of the harness straps through the slots at identical level in both the cover and the shell, according to the chosen configuration:

- For a rear-facing configuration (Gr. 0, from 0 to 10 kg), the harnesses are fed through one of the two lower positions and then up to the third position to be secured inside the shell (4) (5). Make sure that the metal anchor is correctly positioned and that the ends of the harness straps are not twisted.

IMPORTANT: Whichever of the two lower positions you have chosen, make sure that the metal anchors of the harnesses are well secured through the slots of the third position of the shell.

- For a front-facing position (Gr. 1, from 9 to 18 kg), the harnesses are fed through one of the two upper positions and are secured directly behind the position chosen, at the back of the shell (6) (7). Make sure that the metal anchor is correctly positioned and that the ends of the harness straps are not twisted.

The correct type of safety belt to use with your car seat

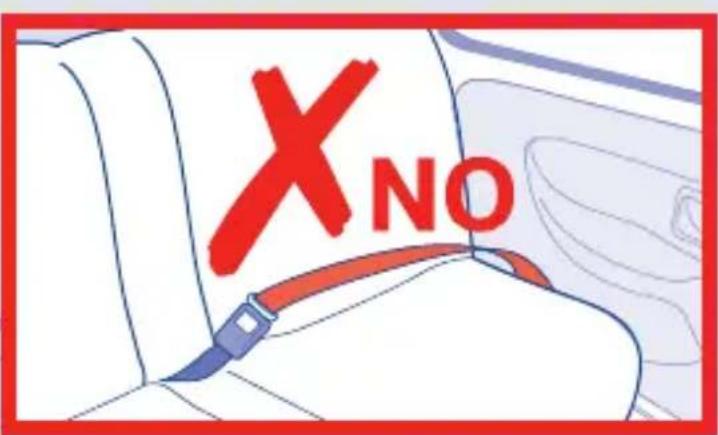

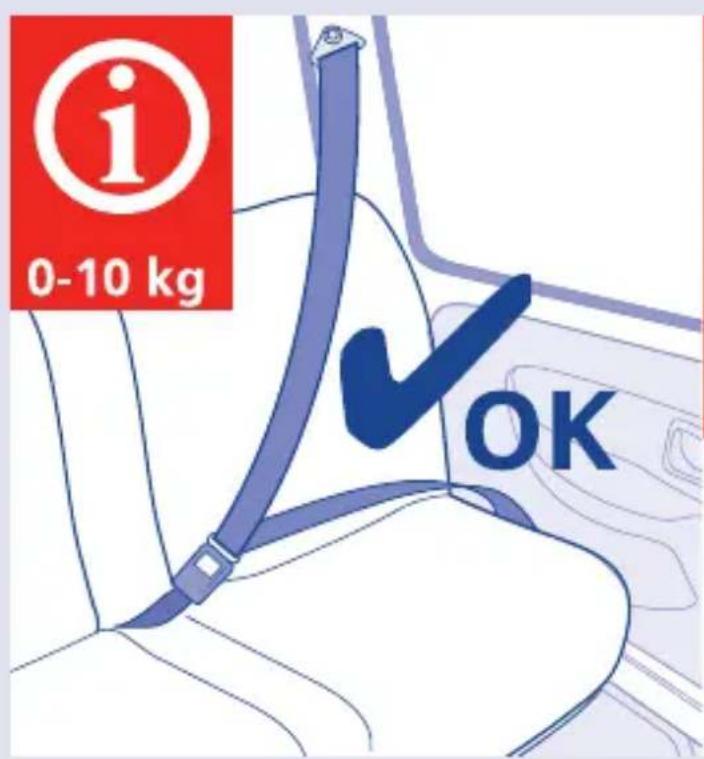

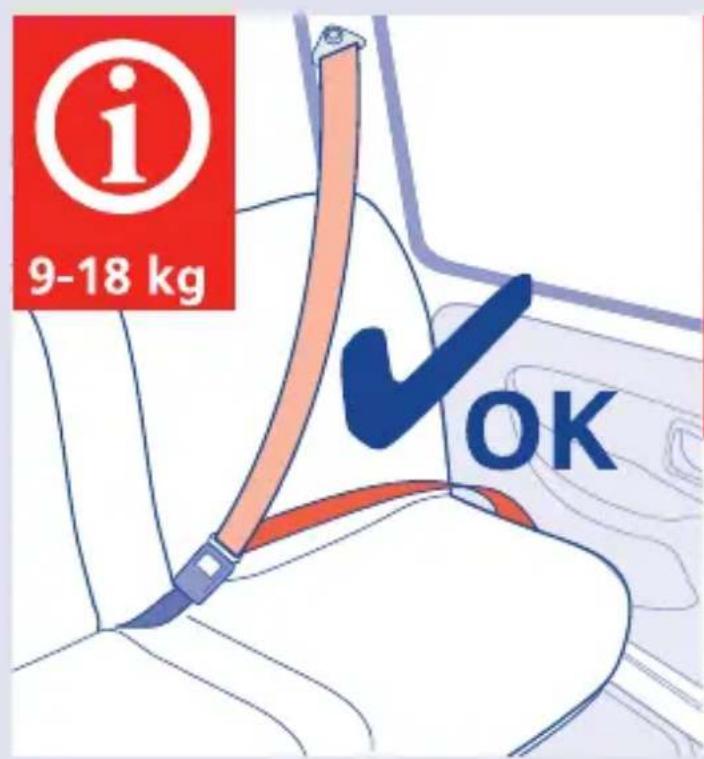

Your car seat must ONLY be installed on a passenger seat fitted with a 3-point safety belt. NEVER install your car seat on a passenger seat fitted with a 2-point safety belt! (i - 0-10 kg) (i - 9-18kg).

Rearward facing use (0 - 10 kg)

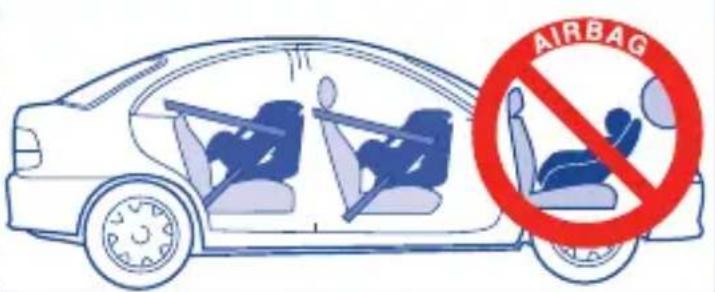

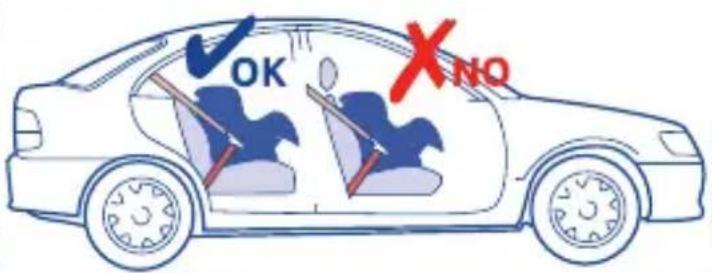

DO NOT USE THIS CHILD SEAT ON A PASSENGER SEAT FITTED WITH AN AIR BAG!

When used rearward facing, the child seat must be in the fully reclined position.

Pull lap and diagonal sections of the car seat belt until fully extended and feed both through the space between the shell and the base. Fasten the seat belt.

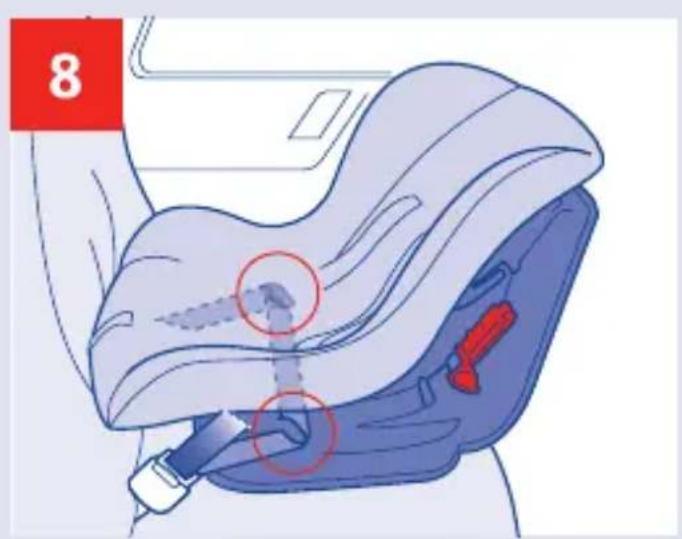

Thread the lap section through the guides located at the front of the base (8).

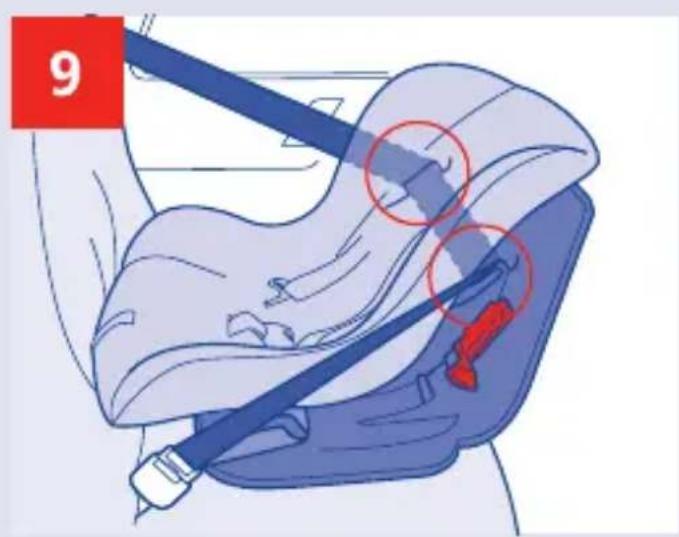

Thread the diagonal strap through the two upper guides located on the back of the seat shell (9).

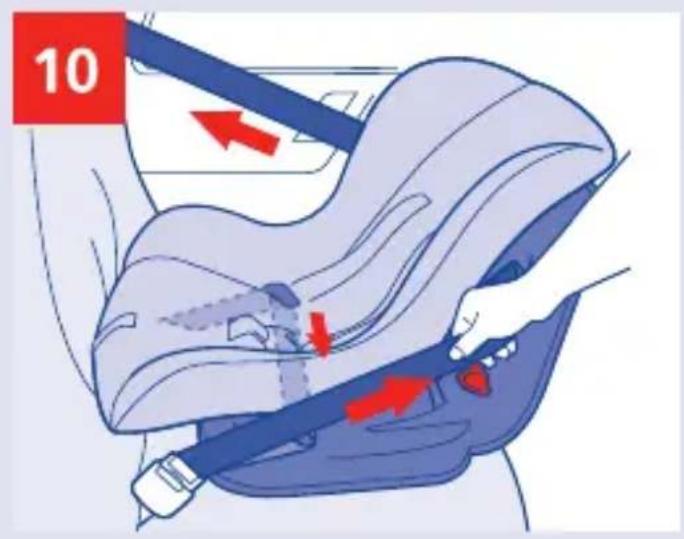

Tighten the seat belt by pulling first on the lap section, then on the diagonal one (10).

Check that there are no kinks or twists in the seat belt.

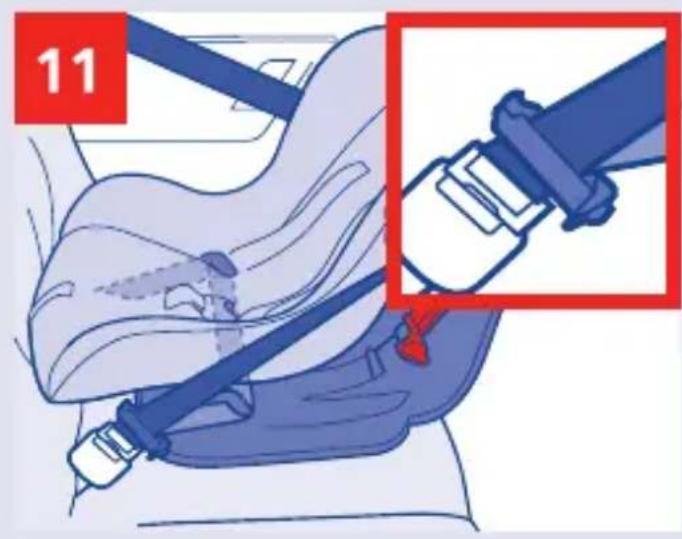

Lock the 2 sections of the belt with the blue lock-off clip. The lock-off should be positioned

against the buckle of the seat belt (11).

Do not use the red lock-off for the rearward facing installation. Always keep the seat in the most reclined position.

Forward facing use (9-18kg)

Fully recline the seat. Pull lap and diagonal sections of the car seat belt until fully extended and feed both through the space between the shell and the base. Fasten the seat belt (12).

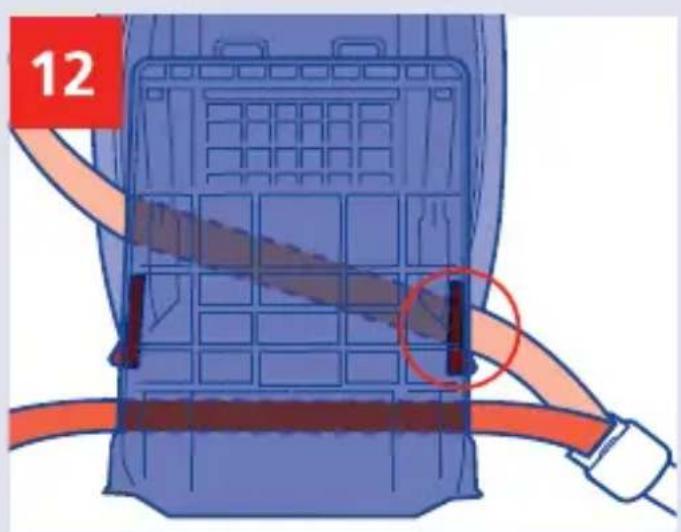

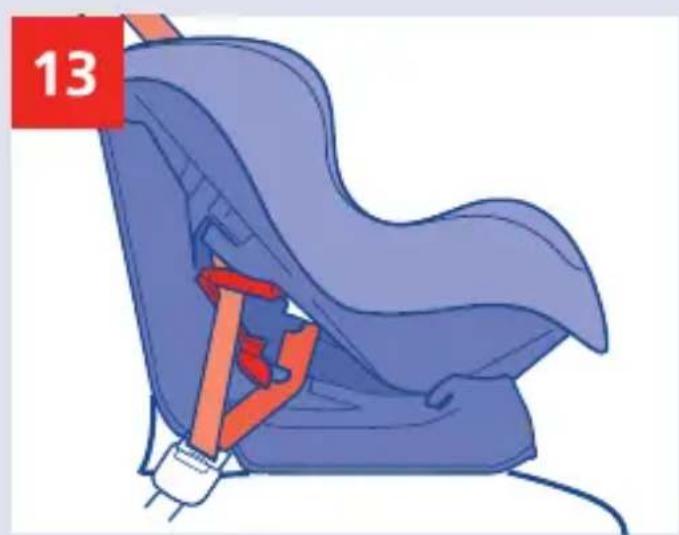

Thread the lap section through the guides located below the red lock-off clips. Open the red lock-off clip next to the buckle, then route the diagonal section of the belt through the open lock-off clip (13).

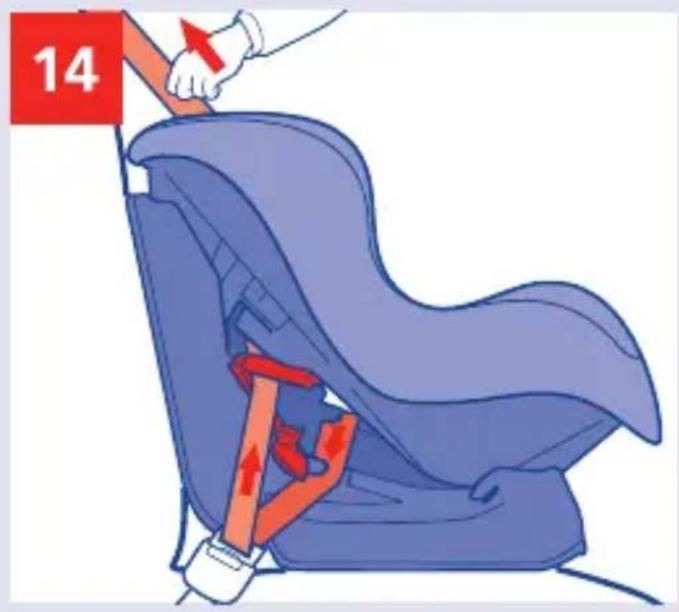

Push the child seat right down into the car seat, and tighten both sections of the seat belt by pulling the belt in the direction shown (14).

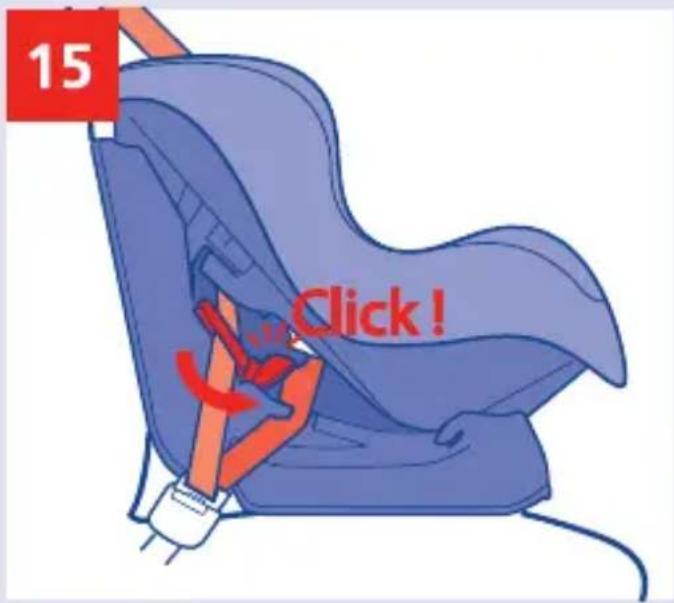

Close the lock-off across the diagonal belt (15).

Check that there are no kinks or twists in the seat belt.

Harness buckle

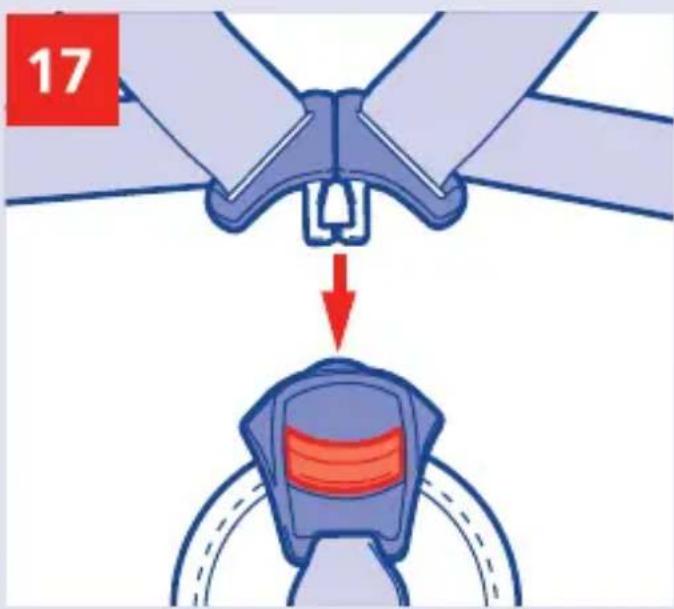

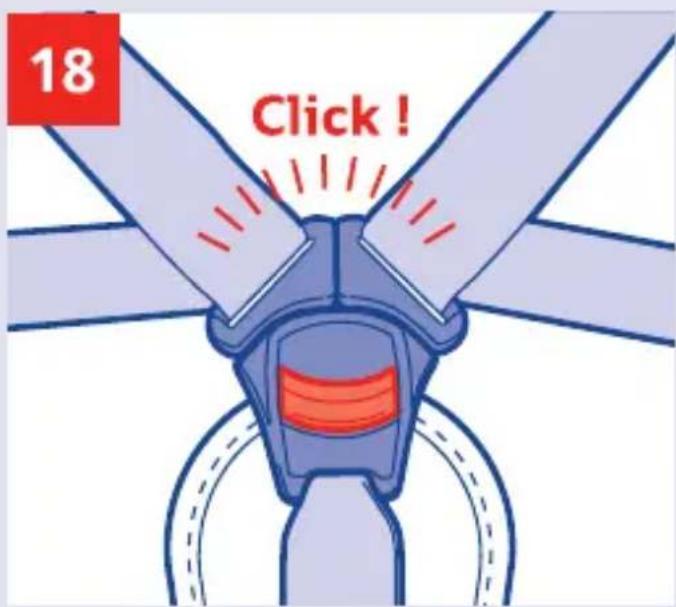

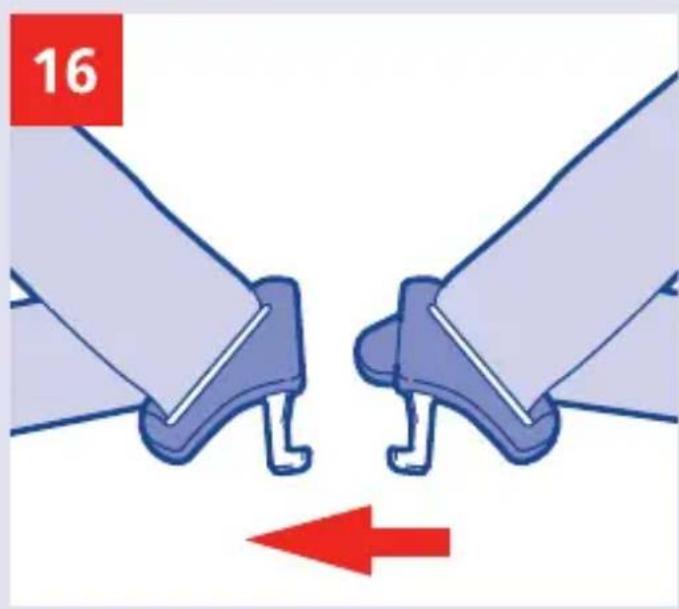

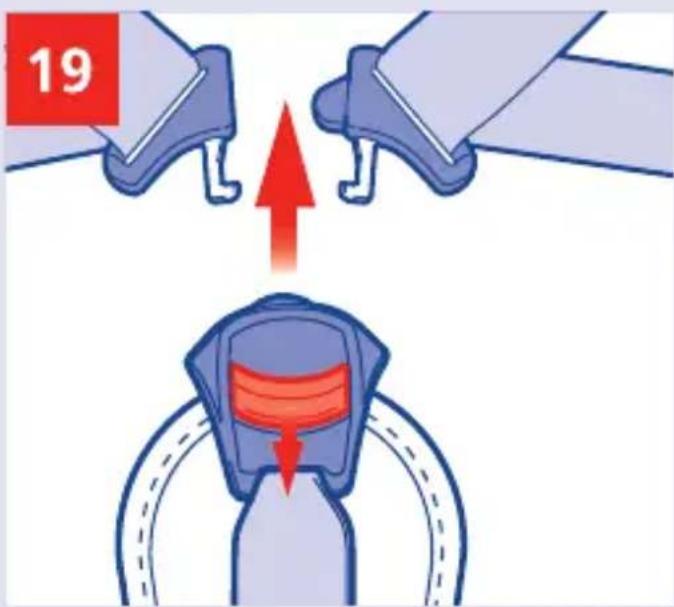

To fasten the harness, bring the two shoulder straps together (16) (17) and insert them into the buckle; you should hear a “click” (18). To release the harness, press the buckle’s red button (19).

Fitting the harness

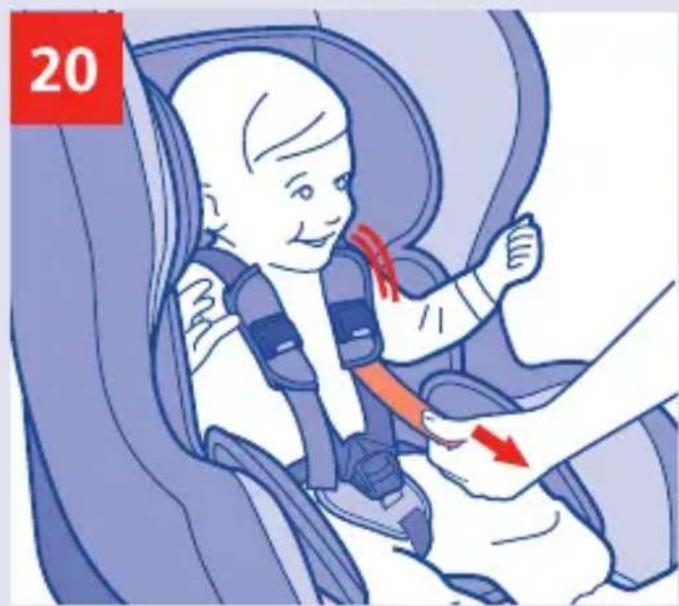

- To tighten the harness: Pull on the adjusting straps positioned on the harness. You do not need to press on the adjuster buttons (20). IMPORTANT: A correctly adjusted harness is essential for your child's protection. There should not be more than finger's width between the harness and your child.

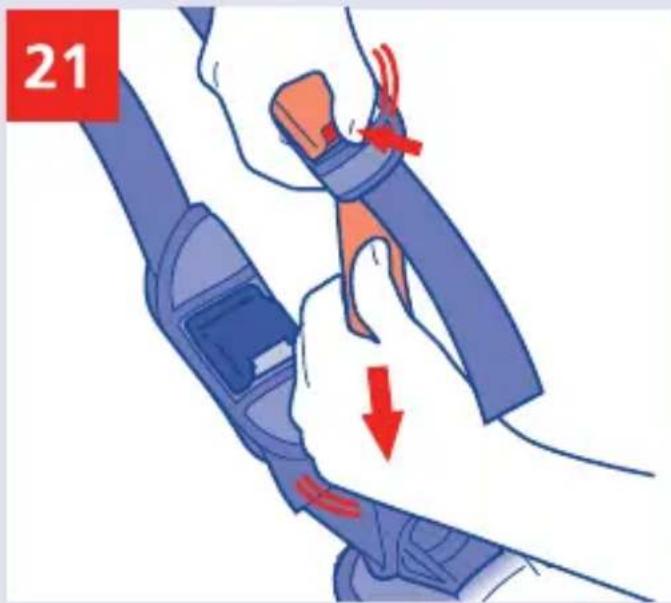

- To loosen the harness: Press on the adjuster buttons positioned on the upper section of the harness, grasp the lower section and pull simultaneously (21).

Reclining your child seat

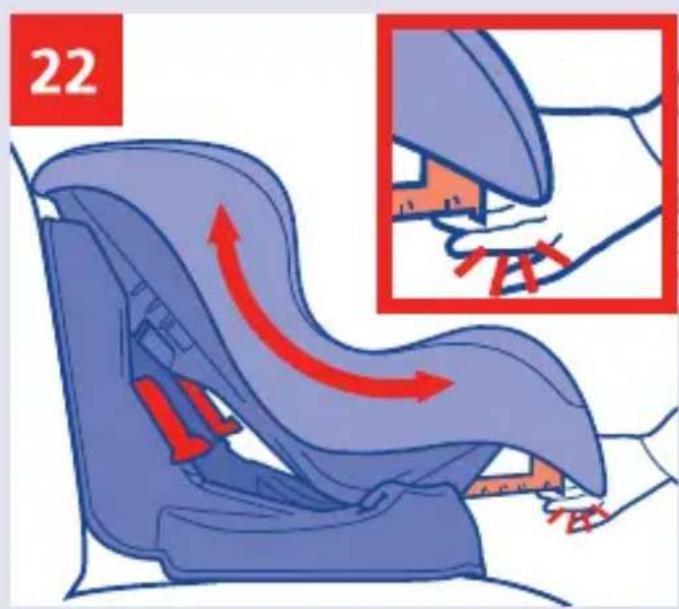

Push the adjustment lever located under the front of the seat upwards, then pull or push the base towards or away from you (22).

Storage of the instruction manual

Store this instruction manual, depending on the model of your vehicle, either in the pouch provided, or by slipping it into between the shell and the cover of the seat.

Maintenance advice

All the material parts can be removed. Slight stains can be removed using a damp sponge soaked in soapy water or it can be washed by hand at 30^ in soapy water. Do not use bleach, do not iron, do not machine wash, and do not tumble dry.

WARNING

- This car seat is a “Universal” child restraint system. It has been approved in accordance with regulation N°44/04, and is suitable for general use in vehicles and is compatible with the majority (some exceptions) of vehicle seats.

- It is more likely that the seat is perfectly compatible if the vehicle manufacturer states that its vehicles are suitable for taking “Universal” child restraint systems.

- This restraint system is classified as “Universal” in accordance with the strictest approval criteria, whereas earlier models do not correspond to these new provisions.

- It can only be adapted to vehicles with 3-point safety belts that are either fixed or have a roller mechanism and that have been approved compliant with the UN/ ECE N° 16 or other equivalent standards.

- If in doubt, contact the manufacturer or retailer of the restraint system.
