USER MANUAL Babyroad Foppapedretti

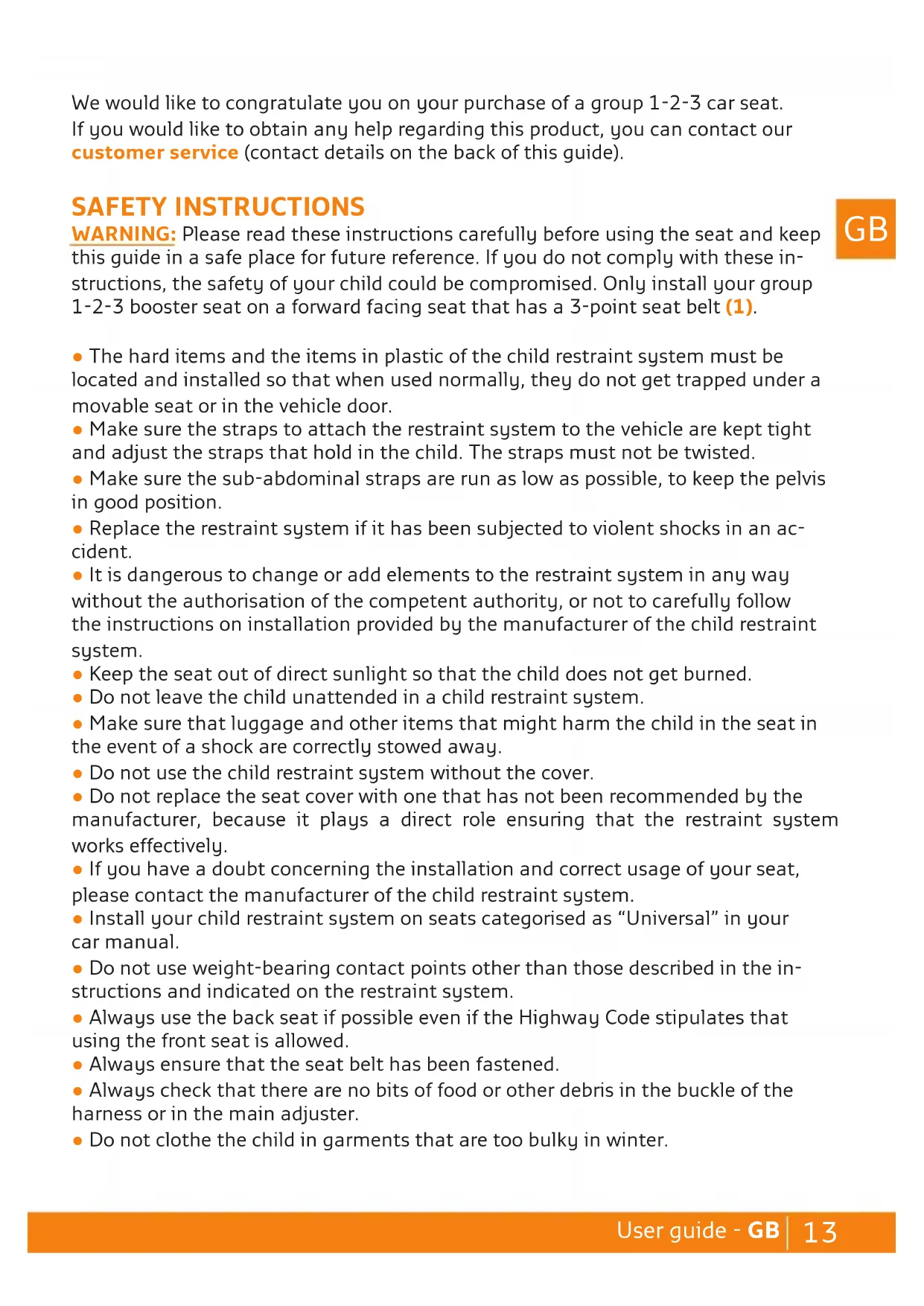

We would like to congratulate you on your purchase of a group 1-2-3 car seat. If you would like to obtain any help regarding this product, you can contact our customer service (contact details on the back of this guide). SAFETY INSTRUCTIONS

WARNING: Please read these instructions carefully before using the seat and keep

this guide in a safe place for future reference. If you do not comply with these in- structions, the safety of your child could be compromised. Only install your group 1-2-3 booster seat on a forward facing seat that has a 3-point seat belt (1).

• The hard items and the items in plastic of the child restraint system must be located and installed so that when used normally, they do not get trapped under a movable seat or in the vehicle door.

• Make sure the straps to attach the restraint system to the vehicle are kept tight and adjust the straps that hold in the child. The straps must not be twisted.

• Make sure the sub-abdominal straps are run as low as possible, to keep the pelvis in good position.

• Replace the restraint system if it has been subjected to violent shocks in an ac- cident.

• It is dangerous to change or add elements to the restraint system in any way without the authorisation of the competent authority, or not to carefully follow the instructions on installation provided by the manufacturer of the child restraint system.

• Keep the seat out of direct sunlight so that the child does not get burned.

• Do not leave the child unattended in a child restraint system.

• Make sure that luggage and other items that might harm the child in the seat in the event of a shock are correctly stowed away.

• Do not use the child restraint system without the cover.

• Do not replace the seat cover with one that has not been recommended by the manufacturer, because it plays a direct role ensuring that the restraint system works effectively.

• If you have a doubt concerning the installation and correct usage of your seat, please contact the manufacturer of the child restraint system.

• Install your child restraint system on seats categorised as “Universal” in your car manual.

• Do not use weight-bearing contact points other than those described in the in- structions and indicated on the restraint system.

• Always use the back seat if possible even if the Highway Code stipulates that using the front seat is allowed.

• Always ensure that the seat belt has been fastened.

• Always check that there are no bits of food or other debris in the buckle of the harness or in the main adjuster.

• Do not clothe the child in garments that are too bulky in winter.14 GB - User guide

Your Group 1-2-3 booster seat (2)

4. Diagonal belt guide (x2 – use with harness)

9. Adjustment strap (x2)

12. Safety cover (x2)

13. Diagonal belt guide (x2 – used without the harness)

Assembling the booster seat Place both tongues on the back into the notches on the seat (3), and then raise the back up vertically (4). Press firmly on the back to ensure that both tongues of the back of the seat are securely in place (5). The tongues on the back must be pushed down as far as they will go into the seat. Installation with the harness Gr. 1, from 9 to 18 kg (from approximately 9 months to 4 years) Make sure that the harness of your car seat is adapted to the height of your child before starting to install the seat in your car. The harness can be adjusted to three different heights. The straps must pass through the holes that are closest to your child’s shoulders. If your child’s shoul- ders are between two levels, always use the higher of the two. To adjust the height of the harness, remove the upper section of one of the harness straps by twisting the metal keeper located behind the backrest (6) and then pulling the end of the harness strap through the slots of the shell and the cover (7). Feed the end of the harness strap through the same slots at the desired height, both in the cover and the shell (8) and reattach it behind the backrest (9). Make sure that the metal anchor is correctly positioned and that the end of the harness strap is not twisted. Repeat the operation on the second strap.

• To tighten the harness: Pull on the adjusting straps positioned on the harness. You do not need to press on the adjuster buttons (10).

• To loosen the harness: Press on the adjuster buttons positioned on the upper sec- tion of the harness, grasp the lower section and pull simultaneously (11). Press on the red harness button on the buckle to free your child completely. Place the car seat against the back seat of the vehicle (12). Lower the headrest as15 User guide - GB

far as possible. Pull on the vehicle seat belt until it is completely loose. Feed both straps of the belt through the openings in the cover and the backrest shell (13) making sure the waist strap passes under the arm rest of the car seat and that the diagonal strap rises vertically between the backrest and the head support without passing through the belt guide. Bring the vehicle belt out through the opposite openings (14). Make sure that the waist strap of the belt passes under the arm rest and that the diagonal strap passes above the arm rest of the car seat. Fasten the vehicle seat belt, making sure that it is not twisted (15). Push the car seat firmly against the back seat of the vehicle and tighten the belt as much as possible by pulling the waist strap and the diagonal strap towards the winder (16). Open the harness buckle by pressing on the red button in the centre of the buckle. Place your child in the car seat. Put the harness buckle ends together and close the buckle, making sure you hear a ‘click’ (17). Pull on the adjusting strap of one of the upper harness sections until it is properly tightened against your child (18). Repeat the operation with the adjusting strap of the second upper harness section. CAUTION: A correctly adjusted harness is essential for your child’s protection. There should not be more than a finger’s width between the harness and your child. Installation without the harness Gr. 2-3, from 15 to 36 kg (from approximately 3 to 12 years) Ensure that the harness of your car seat has been dismantled before starting to install it in the vehicle. Never remove the back of your car seat. Without the back, your child will not be protected laterally.

• Dismantling the harness: Put the harness connectors together and close the buckle in order to assemble the various parts of the harness and the crotch strap. This will enable you to store the harness more easily for future use. Repeat opera- tions (6) and (7) on each upper section of the harness. Remove one of the lower section of the harness by twisting the metal keeper located under the base (19) and then pulling the end of the harness strap through the slots of the base and the cover (20). Repeat the operation on the second lower section. Remove the crotch strap by twisting the metal keeper and by passing it through the slots in the base and the cover (21). Your car seat is fitted with an adjustable headrest that has been designed to sup- port your child throughout growth by providing maximum side protection. Raise the adjustable headrest to its highest position. Place the car seat against the back seat of the vehicle (22) and feed the diagonal strap of the belt through the headrest guide (23) (24). Sit your child in the car seat. Make sure that the child’s back is fully in contact with the back of the car seat. Pull and fasten the vehicle seat belt. Pass the diagonal strap of the belt under the arm rest opposite the belt guide used. The waist strap of the belt passes under both armrests (25). Lower the adjustable headrest and adjust it to the height of your child (26). It should be16 GB - User guide

positioned so that it surrounds your child’s head, providing maximum lateral pro- tection, whilst guiding the diagonal belt over the child’s shoulder so that it doesn’t extend onto the child’s neck (27). Tighten the vehicle seat belt. Make sure that the seat belt is properly tightened, that it is not twisted and that it is not positioned at the level of your child’s neck. To remove your child from the car seat, simply unbuckle the seat belt and place it at the side of the car seat. The belt will remain suspended from the headrest belt guide. CAUTION: Secure your car seat with the vehicle seat belt at all times, even when your child is not in the car seat. An unsecured car seat can cause injuries in the event of a collision. Returning to the original configuration of the car seat Follow the instructions below if you wish to return to the harness configuration. Re-install the crotch strap, making sure that the metal keeper is correctly in place under the seat (28). Re-install one of the lower sections of the harness, making sure that the metal anchor of the lower section is correctly in place under the seat (29). Repeat the operation with the second lower section. Re-install one of the upper sections of the harness. Make sure that the metal an- chor of the upper section is correctly in place behind the backrest (30). Repeat the operation with the second upper section. Make sure that neither the upper or the lower sections of the harness are twisted. Cup holder (as an option in some models) Slide the cup holder of the car seat into the guides on each side of the seat (31).

WARNING: do not place heavy objects that might fly out of the cup holder in the

event of an impact. Storage of the instruction manual Store this instruction manual, depending on the model of your vehicle, either in the pouch provided, or by slipping it into between the shell and the cover of the seat (32). Maintenance advice All the material parts can be removed. Slight stains can be removed using a damp sponge soaked in soapy water or it can be washed by hand at 30° in soapy water. Do not use bleach, do not iron, do not machine wash, and do not tumble dry.17 User guide - GB

• This car seat is a “Universal” child restraint system. It has been approved in ac- cordance with regulation N°44/04, and is suitable for general use in vehicles and is compatible with the majority (some exceptions) of vehicle seats.

• It is more likely that the seat is perfectly compatible if the vehicle manufacturer states that its vehicles are suitable for taking “Universal” child restraint systems.

• This restraint system is classified as “Universal” in accordance with the strictest approval criteria, whereas earlier models do not correspond to these new provi- sions.

• It can only be adapted to vehicles with 3-point safety belts that are either fixed or have a roller mechanism and that have been approved compliant with the UN/ ECE N° 16 or other equivalent standards.
